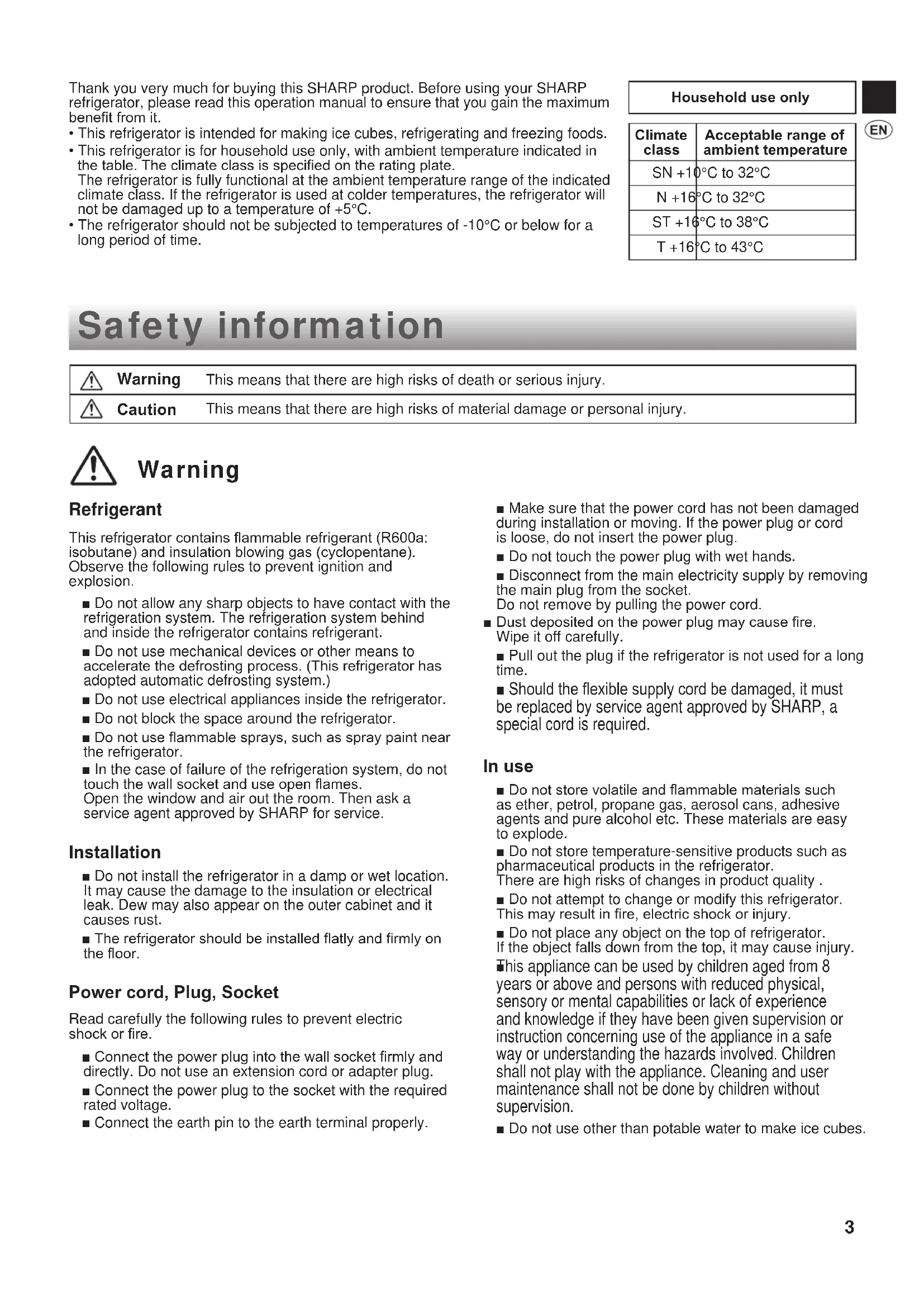

• This refrigerator is intended for making ice cubes, refrigerating and freezing foods.

• This refrigerator is for household use only, with ambient temperature indicated in the table. The climate class is specied on the rating plate. The refrigerator is fully functional at the ambient temperature range of the indicated climate class. If the refrigerator is used at colder temperatures, the refrigerator will not be damaged up to a temperature of +5°C.

• The refrigerator should not be subjected to temperatures of -10°C or below for a long period of time. Refrigerant This refrigerator contains ammable refrigerant (R600a: isobutane) and insulation blowing gas (cyclopentane). Observe the following rules to prevent ignition and explosion. ■ Do not allow any sharp objects to have contact with the refrigeration system. The refrigeration system behind and inside the refrigerator contains refrigerant. ■ Do not use mechanical devices or other means to accelerate the defrosting process. (This refrigerator has adopted automatic defrosting system.) ■ Do not use electrical appliances inside the refrigerator. ■ Do not block the space around the refrigerator. ■ Do not use ammable sprays, such as spray paint near the refrigerator. ■ In the case of failure of the refrigeration system, do not touch the wall socket and use open ames. Open the window and air out the room. Then ask a service agent approved by SHARP for service. Installation ■ Do not install the refrigerator in a damp or wet location. It may cause the damage to the insulation or electrical leak. Dew may also appear on the outer cabinet and it causes rust. ■ The refrigerator should be installed atly and rmly on the oor. Power cord, Plug, Socket Read carefully the following rules to prevent electric shock or re. ■ Connect the power plug into the wall socket rmly and directly. Do not use an extension cord or adapter plug. ■ Connect the power plug to the socket with the required rated voltage. ■ Connect the earth pin to the earth terminal properly. ■ Make sure that the power cord has not been damaged during installation or moving. If the power plug or cord is loose, do not insert the power plug. ■ Do not touch the power plug with wet hands. ■ Disconnect from the main electricity supply by removing the main plug from the socket. Do not remove by pulling the power cord. ■ Dust deposited on the power plug may cause re. Wipe it off carefully. ■ Pull out the plug if the refrigerator is not used for a long time. ■ Should the exible supply cord be damaged, it must be replaced by service agent approved by SHARP, a special cord is required. In use ■ Do not store volatile and ammable materials such as ether, petrol, propane gas, aerosol cans, adhesive agents and pure alcohol etc. These materials are easy to explode. ■ Do not store temperature-sensitive products such as pharmaceutical products in the refrigerator. There are high risks of changes in product quality . ■ Do not attempt to change or modify this refrigerator. This may result in re, electric shock or injury. ■ Do not place any object on the top of refrigerator. If the object falls down from the top, it may cause injury.

This appliance can be used by children aged from 8 years or above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way or understanding the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children without supervision. ■ Do not use other than potable water to make ice cubes. Climate class Acceptable range of ambient temperature SN +10°C to 32°C N +16°C to 32°C ST +16°C to 38°C T +16°C to 43°C Safety information Warning This means that there are high risks of death or serious injury. Caution This means that there are high risks of material damage or personal injury. Warning (B717).indb 3 2016/02/15 11:27:594 Care and Cleaning ■ Unplug the refrigerator rst to prevent electric shock. ■ Do not splash water directly on the outer cabinet or the interior. This may lead to rusting and deterioration of the electrical insulation. Trouble ■ If you smell something burnt, pull out the power plug immediately. Then ask a service agent approved by SHARP for service. ■ In case of gas leak, ventilate the area by opening window. Do not touch the refrigerator or the power socket. Disposal ■ Ensure that the refrigerator presents no danger to children while being stored for disposal. (e.g. remove the magnetic door seals to prevent child entrapment.) ■ This refrigerator should be disposed appropriately. Take the refrigerator to a professional recycling plant for ammable refrigerant and insulation blowing gases. Transportation ■ When you install or move your refrigerator, use curing mat to protect the oor from being damaged. ■ Carry the refrigerator by holding the handles located on the rear and bottom side. If you lift up the refrigerator improperly, it may cause injury. Caution rear bottom In use ■ Do not touch the compressor unit or its peripheral parts, as they become extremely hot during operation and the metal edges may cause injury. ■ Do not touch foods or metal containers in the freezer compartment with wet hands. This may cause frostbite. ■ Do not place bottled drinks and cans in the freezer compartment. Especially “Express cool” is in operation, there is a high risk that glass bottles may burst. ■ Do not open or close the door when other people put a hand near the door. There is a risk that the other people may get their ngers caught in the door. ■ Do not put oversized object in the pockets of the door. If the object falls down from the pockets, it may cause injury. (B717).indb 4 2016/02/15 11:27:595 Free standing type

Keep adequate ventilation space around the refrigerator.

• The gure shows the minimum required space for installing the refrigerator. The measurement condition of power consumption is conducted under a different space dimension.

• By keeping greater space, the refrigerator may consume a less amount of power consumption.

• If use the refrigerator in the smaller space dimension than gured, it may cause temperature rise in the unit, loud noise and failure.

• The space between the rear of the refrigerator and the wall should be 60mm or more, and less than 75mm. If the space is wider than 75mm, you may get injured by touching compressor and its peripheral parts which are extremely hot during the operation. Overall space required in use Installation Free standing type 90mm or more 60mm or more 60mm or more 1180 mm 1500 mm

Use the two front the adjustable feet to place the refrigerator atly and rmly on the oor.

When right and left doors are not properly aligned, adjust using the adjustable feet. Adjustable foot Note

• Place your refrigerator to access the plug.

• Keep your refrigerator out of direct sunlight and do not place next to heat generating appliance.

• Do not place your refrigerator directly on the ground. Insert suitable stand such as wooden board under the refrigerator.

• When you insert the power plug with the door opened, door alarm sounds but it is not abnormal. This sound stops after closing the door. Before using your refrigerator Clean the inside parts with a cloth soaked in warm water. If soapy water is used, wipe it off thoroughly with water. When the left door is raised.When the right door is raised.Lower the foot at right side.Lower the foot at left side.(Until the adjustable foot on the other side is slightly off-ground.)

Remove the 4 screws of the lower part of the cabinet and use these screws to set the foot cover. (The foot cover is packed inside the refrigerator compartment.) Screw (4 screws)Screw Foot cover (B717).indb 5 2016/02/15 11:28:006

4. Bottle pocket (left)

5. Fruit and vegetable crisper

The cover of the fruit and vegetable crisper opens as the case is pulled.

6. Freezer case (small)

(4 pcs) The casters allow the refrigerator to move back and forth.

The panel cools the refrigerator compartment indirectly from the rear. In this way, food is cooled gently without being exposed to cold air ow.

15. Bottle pocket (right)

To store large-size bottles, move the partition all the way back.

16. Fresh case (upper)

17. Fresh case (lower)

(2 pcs)1) Do not overll this tray with water. Otherwise the ice cubes will join together when frozen.2) When ice cubes are made, turn the lever clockwise to put the ice into the ice cube box. Description

(2 pcs) Note To prevent the ice cube box from being damaged, do not pour oil into the box or make ice in it.

Deodorizing unit Deodorizing catalyst is installed on the routes of cold air. There is no need to operate and clean. More food can be stored by taking out the internal accessories with normal cooling operation. Partition How to remove To remove the partition, pull it to the front with pushing the claw. Partition Push How to set Insert the four projections into the upper parts. LeverIce cube box Claw

How to remove the fruit and vegetable crisper cover Projection portion Hole CoverCasters(B717).indb 6 2016/02/15 11:28:017 Useful modes As for the operations, refer to chapter “Control panel”. Freezer compartmentFresh case Extra cool Express freezing Express cool Extra cool Express freezing Express cool Feature This mode is to cool beverages or foods to ice-cold. Note : Food with high- moisture may freeze. This mode speeds up the time to freeze food. This mode is to cool beverages or foods quickly. Point of use Fresh case Freezer compartment Freezer compartment Caution : Do not place glass bottles. There is a high risk that they may burst. Operating time 6 hours *

• This mode ends automatically.

• The alarm does not sound.

• This mode ends automatically.

• The alarm sounds. To stop the alarm *

After the operation completed

• There is no need for taking beverages or foods out.

• Be sure to take the beverages and foods out when the alarm sounds.

• If the beverages and foods are left in the freezer compartment over approximately 30 minutes, they may freeze. At the time of power failure during the operation

• This mode is automatically cancelled. • This mode is automatically restarted from the previous state at the time of re-power. Press enter button.

It may take more time to complete if the operation overlaps with defrosting. This mode starts after defrosting is completed.

If you do not stop the alarm, it sounds 30 minutes continuously. Note

• Extra cool, Express freezing and Express cool are not available at the same time while one of the modes is in operation.

• Avoid opening the door as much as possible during the operations of these modes. (B717).indb 7 2016/02/15 11:28:018 Control panel Note

• When you press one of the buttons, all icons ash once and show the standby display. If the refrigerator stops because of power failure, the modes except for Extra cool and Express freezing function the same way as before at the time of re-power.

• Operation is invalid while the refrigerator door is open.

• Mode icons or indicators in operation light up on the standby display. When Express cool is in operation, the icon ashes on the standby display.

• When there is no operation for approximately 1 minute, the display returns to the standby display automatically. The standby display turns off if there is no operation for another 1 minute. Turn-on state Operations of useful modes Display

Select on/off. (off)

Complete the setting. (Beep) Mode icon turns on. Mode icon turns off on the standby display. “Express cool”only Complete the setting by pressing for 3 seconds or more. (Beep, Beep, Beep) “Express cool” only (Flashing) Flashing When press button, the icons change in the order shown as below.

Standby display Useful modes Operation of additional modes Summary Cancel operation Display Door alarm

• When the refrigerator or freezer door is left open for over 1 minute, door alarm sounds once, and again after 1 minute.

• If the door is left open for approx. 3 minutes, the alarm sounds continuously.

• The alarm stops after close all the door. Press and simultaneously for 3 seconds or more. (Beep, Beep, Beep) The indicator turns off. Sound of button operation

• When you want to switch off button operation sound. Press and simultaneously for 3 seconds or more. (Beep, Beep, Beep) The indicator turns off. Note • When you want to turn on the additional mode, follow the same step again. (The indicator turns on.) Select button Switching button Enter button Useful modes Icon Meaning Default setting Extra cool OFF Express freezing Express cool Controlling temperature Icon Meaning Default setting Refrigerator compartment 3°C Freezer compartment -18°C Additional modes Indicator Meaning Default setting Door alarm

Sound of button operation (B717).indb 8 2016/02/15 11:28:039 Advanced Setting of Refrigerator/Freezer compartment The temperature of refrigerator compartment and freezer compartment can be adjusted in step of 0.5 °C by following the steps a to c.

After the step 1 of “Basic operations”, press 3 seconds or more. The current preset temperature returns to “Default setting” (The display is indicated as the picture on the right.)

Press or and set the temperature.

Complete the setting. (Same as the step 3 of “Basic operations”.) Follow the steps a to c again if you want to adjust the temperature in step of 1°C. Refrigerator compartment Freezer compartment Beep beep beep switch Controlling temperature The refrigerator controls its temperature automatically. However, you can adjust the temperature as below. How to check the current temperature setting Press button to select or icon. Setting of Refrigerator / Freezer compartment Freezer compartment : Adjustable between -13°C and -21°C in step of 1°C Refrigerator compartment : Adjustable between 0°C and 6°C in step of 1°C Default setting Refrigerator compartment Freezer compartment Basic operations Display

Select or icon. Refrigerator compartment Freezer compartment

Complete the setting. (Beep) FlashingFlashing (up) (down) When press button, the icons change in the order shown as below.

OUT Fruit / Vegetables Fruit and vegetables should be loosely enclosed in a plastic material e.g. wrap, bags (do not seal) and placed in the Fruit and vegetable crisper to minimize moisture loss. Dairy Products & Eggs

• Most dairy products have their best-before date on the outer packaging which informs the recommended temperature and shelf life of the foods.

• Eggs should be stored in the Egg holder. Meats / Fish / Poultry

• Place on a plate or a dish and cover with paper or plastic wrap.

• For larger cuts of meat, sh, or poultry, place to the rear of the shelves.

• Ensure all cooked food is wrapped securely or placed in an airtight container. For best freezing

• Quality of foods should be fresh.

• Freeze small quantities of food at a time in order to freeze them quickly.

• Food should be properly sealed or covered tightly.

• Place foods in the freezer evenly.

• Label bags or containers to keep an inventory of freezing food. Advice for preventing dew or frost inside the refrigerator

• Keep the door securely closed. If the food falls down, it may cause a gap between the cabinet and the door. Move it back to the shelf or the pocket.

• Food with high-moisture should be stored in airtight container or sealed tightly. Note

• Evenly place the food on the shelves to allow the cooling air to circulate efciently.

• Hot foods should be cooled before storing. Storing hot foods increases the temperature in the unit and the risk of food spoilage.

• Do not block the outlet and inlet of the cool air circulating circuit with foods or containers; otherwise the foods is not be evenly cooled throughout the refrigerator. Do not place food directly in front of cold air outlet. This may lead to the food freezing. Refrigeration reduces the rate of food spoilage. Ensure that the food is of the freshest possible quality to maximize the shelf life of perishable foods. The following is a general guide to help promote longer food storage. Storing food Vegetables are improper ● in this case. They may be frozen. Dairy products Small foods Eggs etc. Meat, Fish, Poultry etc. Fruits, Vegetables Small foods Juice etc. Bottles etc. Frozen foods (Small size) Frozen foods (Big size) Bottles etc. (Big size) (B717).indb 10 2016/02/15 11:28:0511 Power consumption Power consumption of this model is measured according to the international standard of refrigerator performance. If the refrigerator is operated with the accessories (shaded area) taken out, it works under the most energy efcient condition.

• The amount of power consumption of this model is measured with these accessories taken out as indicated shaded area.

• The amount of power consumption of this model is measured under the space dimensions on the right picture. ■ Keep the ventilation space as much as possible around the refrigerator. ■ Keep your refrigerator out of direct sunlight, and do not place it next to heat generating appliance. ■ Avoid opening the door as much as possible. ■ Hot foods should be cooled before storing. ■ Place the food evenly on the shelves to allow the cool air to circulate efciently. Tips for saving energy 300mm 90mm 300mm 60mm Important To prevent cracks on inside surfaces and plastic components, follow these tips.

• Wipe out food oil adhered to plastic parts.

• Some household chemicals may cause damage, so use only diluted washing-up liquid (soapy water).

• If undiluted detergent is used or soapy water is not wiped off thoroughly, it may result in cracks of plastic parts. Cleaning ■ Remove the accessories (e.g. shelves) from the cabinet and the door. Wash them by warm soapy dishwashing water. After that, rinse them in clean water and dry. (Only fruit and vegetable shelf is not removable.) ■ Clean the inside with a cloth soaked in warm soapy dishwashing water. Then, use cold water to wipe off soapy water thoroughly. ■ Wipe the exterior with a soft cloth each time it gets dirty. ■ Clean the Magnetic door seal with a toothbrush and warm soapy dishwashing water. ■ Wipe the control panel with a dry cloth. Note

• Do not use heavy-duty cleansers or solvents (lacquer, paint, polishing powder, benzine, boiled water, etc.) which may cause damages.

• If you pull out the power plug once, wait 5 minutes at least before connecting the power plug again.

• The glass shelves weigh approximately 3 kg each. Hold them rmly when remove from the cabinet and carry.

• Do not drop objects inside the refrigerator or strike the inner wall. This may cause cracks to inner surface. Before transporting Wipe up water in the evaporating pan. Before wiping up the water, wait more than 1 hour after pulling out the power plug because refrigeration cycle equipment is extremely hot. (The evaporating pan is located on the rear of the product.) Switching off your refrigerator If the refrigerator needs to be switched off for an extended period, the following steps should be taken to reduce the growth of mold:

2. Remove the power plug from the socket.

3. Clean and dry the interior thoroughly.

4. Keep all the doors open slightly for a few days to dry.

Defrosting Defrosting is automatically operated by a unique energy saving system. When the compartment light is blown Contact the service agent approved by SHARP to replace the light. The light is not to be replaced other than by qualied service personnel. Care and cleaning Evaporating pan(B717).indb 11 2016/02/15 11:28:0512 Before calling for service, check the following points. Problem Solution The outside of the cabinet is hot when touching. It is normal. The hot pipe is in the cabinet in order to prevent dew generation. When there is refrigerator noise. It is normal for the refrigerator to make the following sounds.

• Loud noise is made by the compressor when its operation starts -- Sound becomes quieter after a while.

• The compressor makes loud noise once a day. -- Operating sound is made immediately after automatic defrost operation.

• Sound of owing uid (gurgling sound, zzing sound) -- Sound of refrigerant owing in pipes (sound may become louder from time to time).

• Cracking or crunching sound, squeaking sound -- Sound produced by expansion and contraction of inner walls and internal parts during cooling. Frost or dew appears inside or outside the refrigerator. This may occur in one of the following cases. Use a wet cloth for wiping frost and a dry cloth for wiping dew.

• When the ambient humidity is high.

• When the door is frequently opened and closed.

• When foods containing plenty of moisture are stored. (Wrapping is required.) The foods in the refrigerator compartment freeze.

• Is the refrigerator operated for a long time with refrigerator temperature control set at 0°C? -- Change the temperature control back to around 3°C.

• Is the refrigerator operated for a long time with freezer temperature control set at -21°C? -- Change the temperature control back to around -18°C.

• If ambient temperature is low, foods may freeze even if the refrigerator compartment is set at 6°C. Odors in the compartment. • Wrapping is required for the foods with strong odors.

• Deodorizing unit cannot remove all odors. If door alarm does not stop. • The alarm stops after close the door. If you still require service Refer to your nearest service agent approved by SHARP. Before you call for service (B717).indb 12 2016/02/15 11:28:0513 Product che ANNEX

(EU) Regulation No.1060/2010 A Trade mark B Model name SJ-EX770F SJ-EX820F C Category 7 D Energy efciency class A

Annual energy consumption *1 [KWh/ year]

Storage volume of all compartments that do not merit a star rating [ L ]

Storage volume of all frozen-foodstorage compartments that merit a star rating [ L ]

The design temperature of “other compartment” warmer than +14°C

J Frost free YES K Temperature rise time [ h ] 17 17 L Freezing capacity [Kg/24h] 9.5 9.5 M Climate class T T N Airborne acoustic noise emission [dB(A)] 36 36 O Built-in appliance No (Free-standing type) *1 Energy consumption “XYZ” kWh per year, based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located. Information on Disposal for Users (private households)
