Product type	Diving watch
Brand	Festina
Model	F6695
Display	Analog and digital
Water resistance	Up to 200 meters
Maximum measurable depth	80 meters
Depth measurement accuracy	± (displayed value × 3% + 30 cm)
Operating temperature	From -10°C to +60°C
Power supply	Battery (type not specified)
Battery life	Approximately 2 years
Main functions	Time, calendar, stopwatch, alarm, dive log (4 dives), depth and duration alarms, rapid ascent alert, temperature measurement
Modes	Time/Calendar, Alarm, Stopwatch, Log, Dive alarm, Dive
Sensors	Pressure sensor (depth meter), water sensor (automatic dive mode activation), temperature sensor
Dimensions	Not specified
Weight	Not specified
Maintenance	Clean with fresh water after use, avoid shocks and chemicals
Safety	Rapid ascent alarm, depth alarm, duration alarm, low battery alert
Spare parts and repairability	Replace battery at a Festina service center; check seals periodically
Warranty	Not specified

Frequently Asked Questions - F6695 FESTINA

How to set the time on the Festina F6695?

In Time/Calendar mode, press button (B) for 2 seconds or more. The seconds flash. Use button (A) to select the digits to adjust (seconds, minutes, hours, month, date, year, 12/24h cycle). Press (A) to set. For the analog display, unscrew the crown, stop the second hand, turn the crown to set the hands to 1 minute before the digital time, then push the crown back when the digital seconds are at 0.

How to use dive mode?

Press button (M) for 2 seconds or more to enter Dive mode (display shows Ready with DIV flashing). The watch automatically enters Dive mode as soon as the water sensor detects moisture. When depth reaches 1 meter, the display switches to depth measurement values. The watch displays current depth, dive duration, and water temperature.

How to set the depth alarm?

In Dive alarm mode, press button (B) for 2 seconds or more. The depth value flashes. Use button (A) to set the depth (1 to 80 m). Press (B) to set the number of activations (ON = repeat every minute, OFF = disabled). Press (B) again to set the dive duration alarm (5 to 250 minutes in 5-minute steps). Press (B) or (M) to finish.

What to do if the second hand moves in 2-second increments?

This indicates the battery is almost exhausted. Replace the battery as soon as possible. During this time, alarms and alerts are disabled, entering Dive mode is impossible, and dive functions are inhibited. Do not dive with the watch in this state.

How to perform a general reset?

Pull out the crown. Press all three buttons (A, B, M) simultaneously then release. Push the crown back. If the alarm sounds twice, the reset is successful. All stored data (including dive log) will be erased.

What is the maximum depth the watch can measure?

The depth meter measures from 0.1 m to 80.0 m. Beyond 80 m, the display shows '---'. The watch is water resistant to 200 m, but depth measurement is limited to 80 m.

How to view the dive log?

In Log mode, press button (B) to recall data of the last 4 dives. Press button (A) to scroll through information (I) to (IV): number of dives, date, max depth, duration, start/end times, min temperature, etc.

Can the watch be used in fresh water?

Yes, but the displayed depth in fresh water will be about 2.5% higher than the actual depth. For example, 20 m displayed corresponds to 20.5 m actual. Perform appropriate training before diving in fresh water.

How to clean the watch after a dive?

Rinse the watch with fresh water to remove salt, mud, and sand. Wipe it with a dry cloth. Do not use sharp objects on the sensor. If dirt persists, rinse with fresh water. For general maintenance, refer to the 'Care for prolonged use' section.

How to replace the battery?

Battery replacement should be carried out by a Festina service center. During replacement, perform a water resistance check and replace seals if necessary. Note that maximum depth data will be erased.

USER MANUAL F6695 FESTINA

BUCEO CON ESTE RELOJ

BUCEO CON ESTE RELOJ

Diving with this watch 81
Name of parts 86
Swithching modes 90
Time/Calendar mode 92
Alarm mode 97
Chronograph mode 100
Log mode 104
Dive alarm modes 111
Diving mode 118

Precautions for diving mode use 124
Various alert functions 129
In case of the following 131
All reset 134
The battery 135
Other functions 137
Care for long term use 140
Specification 147

IFMCS00

IFMCSDO

DIVING WITH THIS WATCH

This watch is a diver's watch having a combination display (analog and digital) and equipped with an electronic depth meter.

When the watch senses water on its water sensor, the watch automatically enters the diving mode without any operation to change the mode and all diving functions become ready for use.

After a dive begins, diving time, present depth, maximum depth and water temperature are automatically measured and displayed.

The watch is provided with a log data memory function that can store the date for 4 dives. Moreover, different dive alarm functions are available. One alarm function alerts the diver of excess speed in ascending: if you ascend too rapidly during a dive, the alarm sounds.

Diving can be a safe, enjoyable activity when diving rules are properly followed. It is always, however, accompanied by certain risks including diver's paralysis and unanticipated accidents. Before diving phase obtain proper diving instruction and be sure to conduct safety checks. Please use this watch only after you have read and fully understood the operating procedures and cautions in these instructions. Using this watch other than as indicated in these instructions may result in failure of the watch to function properly.

WARNING

[Safe diving]

1. Use this product only after having received proper instruction in safe diving procedures.
2. Always use the "buddy system". This watch is not a substitute for a diving partner.

IFMCS00

DIVING WITH THIS WATCH

1. This product is recommended for sports diving to depths of up to about 15-20 meters (50ft-60ft), although the depth indicator will measure depths up to 80 meters.
2. Early battery replacement is recommended. A new battery will last approximately 2 years. (However, this will vary greatly depending on the frequency of depth meter use. Replace the battery early). This should be conducted only at Festina Service Centers.
3. Be sure to rest sufficiently after diving, as specified by diving rules. Riding in an airplane or changing to a high altitude too soon after diving may cause decompression sickness.
4. Use the depth meter function of this watch only as an auxiliary or backup instrument.
5. Avoid rapid ascent when diving, as these adversely affect the human body, including causing diver's paralysis. Maintain a safe ascent speed while diving.

IFMCS00

DIVING WITH THIS WATCH

An ascent of 9 meters (30 ft) or less per minute is recommended for sports diving to avoid various possible problems. (In conformity with the Diving Manual of the United States Navy, 1993).

[Do not use the depth meter when...]

1. In locations with altitudes exceeding 4.000 meters (13,124 ft). The watch will be unable to measure depth accurately.
2. In temperatures outside of the warranted temperature range. The warranted temperature range for the depth meter in this watch is from 10^ to 40^ / 50^ to 104^ .
3. In potentially dangerous activities or conditions. This watch is not designed for use in maritime emergencies or to prevent sea disasters and the like.
4. A substitute for a pressure gauge is needed.

IFMCSDD

DIVING WITH THIS WATCH

This watch is not designed to gauge pressures other than those associated with water depth.

1. Diving used a helium enriched environment.

This watch cannot be used in a helium enriched environment, as this may cause malfunction or breakage.

CAUTION

[Stop using this product while diving when...]

1. The low-battery warning indicator is activated.

As the battery approaches the end if its life, the display switches automatically from depth meter display to the time display, and the second hand begins to move in 2 second increments.

1. The watch's depth readings differ greatly from those of the other depth measuring instruments.

IFMCS00

DIVING WITH THIS WATCH

1. The watch stops or exhibits any abnormal functioning. (Avoid knocking the watch against diving equipment, rocks or other hand objets). Service for this watch should be conducted only by Festina Service Centers.

IFMCS00

NAME OF PARTS

IFMCS00

NAME OF PARTS

Name Time/Calender Mode
(1): Digital display (I)		Hours,Minutes, A/P
(2): Digital display (II)		Date, Day/Seconds or thermometer
(3): Operation guide for button (A)		CA
(4): Operation guide for button (B)		SEL
(5): Mode mark display		TME
(6): Hour hand
(7): Minute hand
(8): Second hand
(9): Crown
A: Button (A)	Press once	Swith to Second/Date, Day
	Depress 2 seconds or more	Thermometer measurement
B: Button (B)	Press once	--
	Depress 2 seconds or more	To time setting mode
M: Button (M)	Press once	To Alarm Mode
	Depress 2 seconds or more	The dive ready state is entered

(10): Preasure sensor
Senses water pressure to measure the corresponding depth.

Alarm Mode	Chronograph Mode
Hours, Minutes, A/P	Hours, Minutes
ON/OFF	Seconds, 1/100 seconds
SET	STA
SEL	--
ALM	CHR
Always displays hours
Always displays minutes
Always displays seconds
Used to set analog time
Switch to ON/OFF	Switch to Start/Stop
Alarm monitoring	--
--	Split time display/Reset
To Alarm correcting mode	--
To Chronograph mode	To Log Mode
The dive ready state is entered	The dive ready state is entered

(II): Water sensor. Whenever this sensor traces of water, the watch automatically enters the diving mode with (Ready display). *In addition, the watch contains the temperature sensor as an internal service.

NAME OF PARTS

IFMCSOD

IFMCS00

NAME OF PARTS

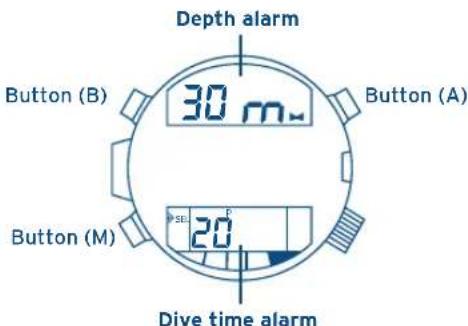

Log Mode Dive Alarm Mode
*1	Depth Alarm
*2	Dive Time Alarm
CA	--
SEL	SEL
LOG	DAL
Memo (logged) recall	--
--	Dive alarm monitor
Number of log times recall	--
--	Dive Alarm correction Mode
To dive Alarm Mode	To Time/Calendar Mode
The dive ready state is entered	The dive ready state is entered

1 Number of dive times/Maximum depth/Dive start time/Average depth
2 Month and day/Dive time/Dive en time/Minimum temperature

Diving Mode

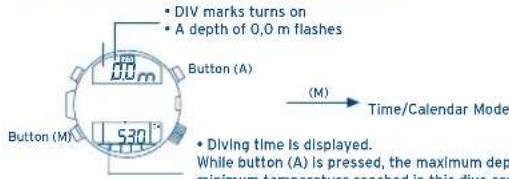

Ready display	Depth measurement readings	o m reading after depth measurement
DIVE mark flashing	Current Depth DIV turns on	0,0 m flashing, DIV turns on
DIVE mark flashing	DIV time	Dive time
DIVE mark flashing	CA	CA
DIVE mark flashing	--
Flashing	--
Always displays hours
Always displays minutes
Always displays seconds
Used to set analog time
Corresponding to the display before switching (except for chrono mode)	Maximum depth recall/ Current temperature reading	Maximum depth recall/ Minimum temperature reading
▲	--	--
▲	--	--
		To time/Calendar Mode

IFMCS00

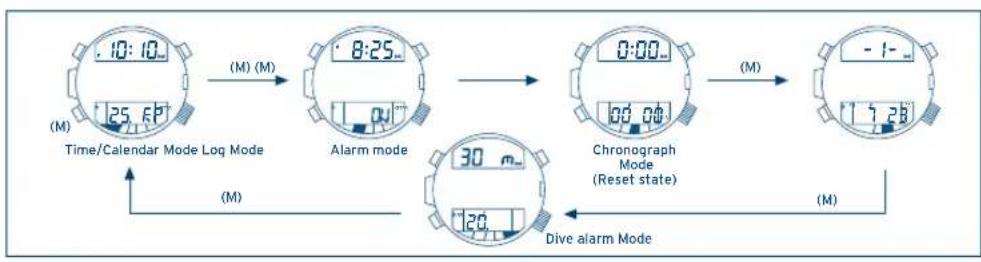

SWITCHING MODES

From any mode shown in the box below:

1. The watch can be made to enter the diving mode (Ready state) by pressing button (M) for 2 seconds or more
2. The watch will enter the diving mode (Ready state) whenever the water sensor is activated.

IFMCS00

SWITCHING MODES

Each time button (M), is pressed, the display is changed to another mode as shown below.

Press once.
Press 2 seconds or more.

IFMCS00

TIME/CALENDAR MODE

Digital display (I)

Hours, Minutes, AM/PM

Digital display (II)

Month, Date or Second or temperature measurement

[Swithching in the digital display (II)]

1. Press button (A) and select month/date or seconds.
2. Press button (A) two seconds or more, temperature measurement will be displayed.

Temperature measurement are taken and displayed every 10 seconds for 3 minutes.

IFMCS00

TIME/CALENDAR MODE

When manipulating the crown...

About the screw lock

1. Always return the crown to its original position and lock it when finished setting the watch.
2. Do not press any of the buttons while the crown is pulled out.
3. Do not pull out or turn the crown when it is wet. Doing so may allow water to seep inside the watch and cause a malfunction.

Screw locked position Freed from the screw

TIME/CALENDAR MODE

SETTING THE TIME AND CALENDAR SETTING THE TIME AND CALENDAR

Always perform the Digital setting first, then the Analog setting

[DIGITAL SETTING]

[Setting the Time and Calendar]

1. While in the time mode, press button (B) for two seconds or more, seconds will flash, and switch to correcting state.
2. While seconds flash, press button (A) to reset the seconds to "00" then seconds start again.

IFMCS00

TIME/CALENDAR MODE

1. When in the seconds correcting state (seconds flash), press button (B), the flashing digits will change in the order of seconds → minutes → hour → month → date → year → 12/24 hour system. Select the digit to correct.

2. Correct the flashing digit by pressing button (A). (Press and hold down button (A) to quick advance the flashing digit).

3. Press button (A), the 12 hour/24 hour will switch alternately.

4. If the watch is held in any correcting state for 3 minutes or more without changing the digits, the correcting mode is reset and the watch will automatically return to normal time display mode.
5. Pressing button (M) while in the time correcting state, will return the watch to normal display mode. (Manual return).
6. Due to the autocalendar, no correction at the end of the month is required.

IFMCS00

TIME/CALENDAR MODE

SETTING THE TIME AND CALENDAR

[ANALOG SETTING]

[Setting the Analog Time]

1. Unscrew the crown and pull it out to shop the second hand at (O) position.
2. Turn the crown and position the hour and minute hands 1 minute in advance of the digital time.
3. Press the crown into place when the seconds displays of digital time has just come to (O) start the second hand.

IFMCSOD

ALARM MODE

• When the alarm indicator is ON, the alarm will sound for 15 seconds at the alarm set time, once a day.

NOTE. The alarm is disabled during the diving mode, so take care.

ALARM MODE

IFMCS00

[Setting the alarm]

1. While in the alarm mode, press button (B) for two seconds or more, the hour will flash and alarm will indicate ON automatically.
2. While the hour flashes, press button (A) to set the hours.
3. Press button (B), the flashing digit will change in this order: hour, minutes.
4. Press button (A) to set the minutes.
5. Press and hold down button (A) to quick advance the flashing digit.
6. Press button (B) or (M) to finalize setting.
   Alarm 12 hours/24 hours is set in synchronized with the time/calendar mode.

IFMCSOD

ALARM MODE

[Alarm ON/OFF]

Switch the alarm ON/OFF by pressing button (A).

[Alarm monitoring]

In the alarm mode, while pressing button (A) 2 seconds or more, the alarm monitor will sound.

[Auto-return system]

If the watch is kept in the alarm mode for 3 minutes or more, it is automatically switched to the time/calendar mode.

IFMCS00

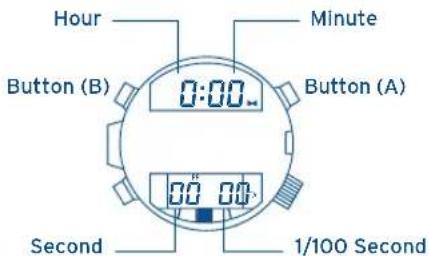

CHRONOGRAPH MODE

The chronograph can measure up to 24 hours in 1/100 seconds. The chronograph display automatically returns to OO and stops

IFMCSOD

CHRONOGRAPH MODE

[USING THE CHRONOGRAPH] [Standard measurement]

[Accumulated elapsed time measurement]

IFMCS00

MODO DE CRONOGRAFO

[Split time measurement]

1 Automatically switched after 10 seconds.
2 When the same button (B) is pressed again during the display of a split time, the next split time is displayed.

[NOTE]

• Changeover the another mode is disabled during the chronograph measurement.
  To change the mode to another mode, the chronograph measurement stop or reset.

IFMCSOD

MODO DE CRONOGRAFO

ADDITIONAL FEATURE

[Auto-return system]

• If the chronograph reset state remains for 3 minutes or more, the watch is automatically switched to the time/calendar mode.

Split time: The time elapsed from the start is displayed whenever the split operation is performed.

IFMCS00

LOG MODE

By pressing button (M), change the mode from chronograph to log mode.

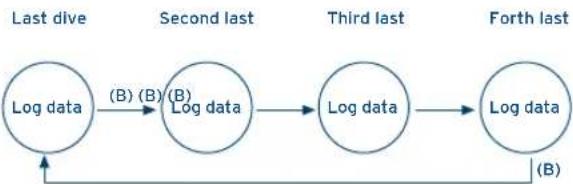

The dive log data can be retained in the watch, counting the last 4 dives.

To recall the log data for the last 4 dives, press button (B). Each time button (B),

is pressed, the log data is displayed in the order going back from the latest one.

IFMCS00

LOG MODE

• If the watch is left in the log mode with any data being displayed for 3 minutes or more, it is automatically switched to the time/calendar mode (auto-return).

• When you begin a dive, the oldest log data (Forth last log data) is erased automatically. It is recommended to record the data on a log book, etc.

IFMCS00

LOG MODE

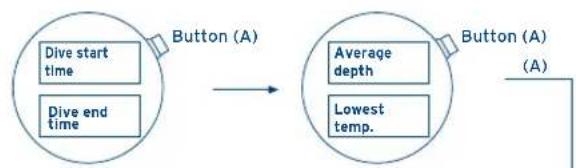

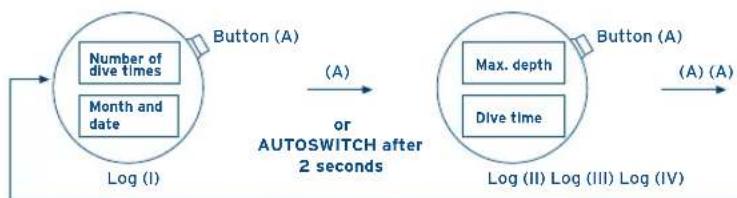

[Changing the Log Display]

Every dive makes the watch memorize the following 8 types of log data automatically which can be recalled in the order of (I), (II), (III) and (IV) as shown below.

• When the watch is switched from the chronograph mode to the log mode by pressing button (M), log (I) is displayed.

IFMCSOD

LOG MODE

Each time button (A) is pressed, the log display is changed to the next in the order of (I), (II), (III) and (IV).

On rare occasions, even if the water sensor senses traces of water and the watch is switched to the dive mode (dive ready state), however, log (I) display may fail to change to log (II) display automatically.

In case this happens, press button (A) to change the display.

IFMCS00

LOG MODE

• Only when log (I) is displayed, the display is automatically changed to log (II) after 2 seconds without pressing button (A).
• Number of dives: The number of dives performed in a particular day. A maximum of 9 dives can be counted. Counting is initiated day by day.
• Dive month and date: Date and month when diving is performed.
• Maximum depth: The maximum depth that was reached in one diving.
• Dive time: Total time when the diver remains deeper than the depth of one meter. If the diver goes again into water deeper than 1 m (4 ft) within 10 minutes after the diving depth becomes shallower than 1 m (4 ft), the dive time counting resumes at the time when the measurement is stopped and the accumulative time is recorded successively. Measurement is taken in units of seconds and up to 100 minutes at maximum. When the maximum is reached, the measurement starts again with zero.
• Dive start time: The time when a dive depth reaches 1 m (4 ft).

IFMCSOD

LOG MODE

1. Dive end time: The time when the dive depth becomes shallower than 1 m (4 ft).
2. Average depth: Average depth in one dive.
3. Minimum temperature: The minimum temperature recorded in one dive.

These log data are displayed as log (I), (II), (III) and (IV) separately.

[To delete all log data]

Button (B)

Depress button (A) and button (B) together for 2 seconds or more and all log data will be deleted.

IFMCS00

LOG MODE

IFMCSOD

DIVE ALARM MODES

[In case the depth indication flashes]

This signifies that the log data is faulty.

[In case ER (error) is shown]

This signifies that the log data is faulty.

Dive time alarm

NOTE

The alarms may be hard to hear depending on the surroundings (such as the sound of air bubbles) and the watch wearing conditions, so take care in using the alarm.

IFMCS00

DIVE ALARM MODES

The following two alarm functions are provided as dive alarms used in this watch.

1. Depth alarm function:

When the set depth is reached during a dive, the alarm will beep for 15 seconds. The depth alarm setting range is 1m to 80m / 4 ft to 240 ft (units of 1m / 4 ft). If you continue to dive deeper than the set depth alarm, every minutes the alarm can be activated repeatedly. The number of times the alarm will be activated can be chosen from 0 to 5 or every minutes.

• The number of times the alarm will sound during one dive is preset on the watch. For example, if you set the number of times at "1", the alarm sounds only once during one dive.

• Dive time alarm function:

When the set comes after starting dive, the alarm will beep for 15 seconds. This alarm will not be repeated.

IFMCSOD

DIVE ALARM MODES

• If the ascending speed is over 1,5 m (5 ft) for 10 seconds during a dive, the ascending speed alarm will beep for the duration of at least 10 seconds to alert the diver of overspeed.

IFMCS00

DIVE ALARM MODES

IFMCSOD

DIVE ALARM MODES

[Setting to depth alarm/dive time alarm]

1. Press button (B) for 2 seconds or more to switch to the DIVE ALARM correcting mode (the present depth value starts flashing). At this time, the display (II) changes from the dive time alarm display to the display for the number of times the alarm will be activated.
2. Set a diving depth at which you want the alarm to sound by pressing button (A). Each time button (A) is pressed, the depth setting becomes deeper by 1 m (94 ft). A maximum setting is 80 m (260 ft). With the maximum exceeded, the setting is returned to 1 m (4 ft).
3. Rapid advance of settings is made by pressing and holding down the button (A).
4. Press button (B) for 2 seconds or more to switch to the number of times of alarm occurrences correcting mode (the preset number of times starts flashing).
5. Change and set the number of times of alarm occurrences by pressing button (A). The display for the alarm frequency is changed and cycled in

DIVE ALARM MODES

IFMCS00

the following order: ON OFF -2 -3 -4 6.

ON: The depth alarm will beep every minute when the diving depth is deeper than the set depth.

OFF: Depth alarm is disabled.

1. Press button (B) to switch the dive time alarm display to the correcting mode (the present value for the dive time alarm starts flashing).
2. Change and set the dive time alarm time by pressing button (A). The display for dive time alarm is changed and cycled in the following order:

05→10→15...→95→--

• With the display of “— — ”, the dive time alarm is disabled.

• Press button (B) or (M) to finish the setting procedure.

IFMCSOD

DIVE ALARM MODES

[Dive Alarm Monitor]

By keeping button (A) depressed, repetitive alarm monitoring at 4 second intervals can be performed in the following order: depth alarm dive time alarm rapid ascent warning alarm.

DIVING MODE

IFMCSOD

When in any other mode, the watch will enter the diving mode with the display changing to (Ready display) by pressing button (M) for 2 seconds or more. If (Ready display) put in this way is allowed to stand for about 60 minutes, the display automatically returns to the preceding mode. One of the following three displays is shown in the diving mode.

[Ready display] [Depth Measurement Readings]

DIV mark flashes.
Display before mode change

Button (M)

When button (M) is pressed for 2 seconds or more, the watch returns to the time/calendar mode.

• Diving time is displayed. While button (A) is pressed, the maximum depth and water temperature are indicated.

IFMCSOD

DIVING MODE

1. When a depth of 1 m (4 ft) is reached after you begin diving with the watch displaying (Ready display), the display will automatically change to (Depth Measurement Readings).
2. When the diving depth becomes less than 1 m (4 ft), the display will automatically change to (0 m (0 ft) after Depth Measurement).

[O m Reading after Depth Measurement]

Button(M)

• Diving time is displayed. While button (A) is pressed, the maximum depth and minimum temperature reached in this dive are indicated.

DIVING MODE

IFMCS00

ADDITIONAL FEATURE

[Water Sensing Function]

This watch is provided with a water sensor. Whenever this sensor senses traces of water in any other mode display, the watch automatically enters the diving mode with (Ready display).

• During the chronograph, measurement, however, the mode change is disabled. When the moisture is removed, the watch is released from the (Ready display) state.

• If the button (M) is pressed for 2 seconds or longer with the display of (O m (O ft) Reading after. Depth Measurement), then the watch returns to the time/calendar mode.

• If the display of (O m (O ft) Reading after Depth Measurement) is allowed to stand for 10 minutes or longer, the watch automatically enters the time/calendar mode.

If the diver dives again deeper than 1 m (4ft) within 10 minutes, the dive time counting resumes.

IFMCSOD

DIVING MODE

[DEPTH MEASUREMENT READINGS]

[Depth measurement]

Depth

1. Depth Measurement

The diving depth is measured every second, and the reading of the depth is displayed on the watch. Units of depth measurement: 0,1 m (1 ft).

Range of measurement: 1,0 m to 80,0 m (4 ft to 260 ft).

When diving depth is less than 1 m (4 ft): the display will be 00.0 m (0 ft).

When diving depth exceeds 80 m (260 ft): display will be ——m (—ft).

DIVING MODE

IFMCS00

Depth

In case the ER (Error) displayed depth reading flashes;

This means that the depth measurement is faulty

1. Dive Time Measurement

When the diving depth reaches to 1,0 m (4 ft), the dive time measurement will start. It stops when the depth becomes less than 1,0 m (4 ft) within 10 minutes after the end of the dive time, the dive time resumes at the time when the measurement is stopped and the accumulative time is recorded successively.

IFMCS00

DIVING MODE

1. Water Temperature Measurement

Water temperature measurement starts 1 minute after a depth of 1,0m (4 ft) is measured and displayed. Subsequently temperatures will be measured every minute.

Units of water temperature measurement: 0,1^ (1^) Range of measurement: -5,0°C to +40°C (23°F - 104°F) Before temperature measurement and out of the measurement range: the display will be -, °C (-°F).

*While button (A) stays depressed during the display of the diving time, the display shows water temperature readings, not the diving time.

IFMCS00

PRECAUTIONS FOR DIVING MODE USE

Making accurate depth readings

1. Switch the watch to the Diving Mode shortly before diving. In case the watch, though being used on land, is put in the diving mode because the water sensor senses moisture such as sweat, the watch can be released from the diving mode by wiping off the moisture, then being switched to the diving mode again.
2. Avoid too rapid decent and ascent when diving. In case the diver rapidly ascends at a rate of 1,5 meters (5 ft) or more per 10 seconds, the ascending speed alarm beeps for more than 10 seconds and the display of depth readings becomes flashing, not allowing proper measurement. When the diver rapidly descends or ascends at a rate of 4 metres (15 ft) or more per second, the display indicates ER (error).

IFMCSOD

PRECAUTIONS FOR DIVING MODE USE

[High altitude & Freshwater diving]

When the Diving Mode is activated, the depth is calibrated at 0 meter. However, an accurate measurement is not possible at altitudes over 4.000 meters (14,124 ft). Do not use this watch when diving in such places. Further, this watch displays changes in depth based on a standard of seawater (density 1,025).

Depth indicated in fresh water will actually be about 2,5% over indicated.

Be sure to complete appropriate safety training before diving in fresh water or at high altitudes.

Example. 20 meters in fresh water (indicated depth) × 1,025 = 20,5 meters (actual depth).

IFMCS00

PRECAUTIONS FOR DIVING MODE USE

[Before diving]

1. Make sure that the crown is pushed all the way in and locked in place.
2. Make sure that there are no cracks or other damage to the watch band or the glass face.
3. Make sure that the band is firmly anchored to the watch body.
4. Make sure that the register ring rotates properly.
5. Make sure that the time and date are correctly set.
6. Make sure that the second hand is moving correctly.

*If the second hand is moving in 2-second increments, then the battery is low. In this case do not use for diving. Request battery replacement at the place of purchase or at your nearest Festina Service Center.

IFMCSOD

PRECAUTIONS FOR DIVING MODE USE

[During diving]

1. Never operate the buttons other than button (A) during dive. Doing so may cause fault such as poor water resistance.
2. The time alarm is set to OFF during a dive, so take care.
3. The dive alarm for ascending alarm may be hard to hear in water, depending on the surroundings (such as the sound of air bubbles) and the watch wearing conditions, so take care using the alarm.
4. Be careful not to hit the watch against solid matter such as equipment or rocks.

IFMCS00

PRECAUTIONS FOR DIVING MODE USE

[After diving]

1. After making sure that the crown is locked in place, wash the watch free of seawater, mud and sand using fresh water. Wipe completely with a dry cloth.
2. Do not attempt to remove the sensor cover or remove any dirt or debris clogging the sensor portion of the watch, using a sharp instrument. Rather wash our such debris using fresh water. If this fails, please contact your next Festina Service Center.
3. For general repairs and maintenance please refer to "Care for long term use" on pages 140-146.

IFMCSOD

VARIOUS ALERT FUNCTIONS

This watch is provided with the following alert functions. These alerts are recommended to be used to increase the safety in diving.

1. Ascending Speed Warning

If the ascending speed exceeds 1,5 m (5 ft) in 10 seconds during the dive, the alarm will sound for more than 10-seconds as the ascending speed alert.

VARIOUS ALERT FUNCTIONS

IFMCS00

IFMCSOD

IN CASE OF THE FOLLOWING

2. Abnormal Depth Alert

In case of a rapid change in depth over 4m (15 ft) for one second, the flashing ER (error) appears on the digital display (II).

If the sensor us faulty, ER (error) is shown even when the watch is used on land.

3. Water Sensor Check Alert

Although the water sensor is activated and the watch enters the diving mode with (Ready Indication), if one hour or longer is elapsed on the digital display (II) as the water sensor check alert.

In such a case, dirt or water might be on the water sensor. So wash the sensor free of adherents, wipe water of the surface and dry it sufficiently.

[The second hand goes at 2-second intervals]

This action occurs when the battery rundown warning is activated, which warms the user that the battery will run down soon.

In this case, replace the battery in advance of its lifetime. (The watch keeps correct time during this occurrence). However, when this warning function is on, other functions are inhibited as follows:

1. All alarms do not sound.
2. Changeover to the diving mode (Ready display) is disabled.
3. When in the diving mode with (Ready display), changeover to (Depth Measurement Readings) is disabled.
4. With (Depth Measurement Readings) displayed on the watch, the dive alarm do not sound. Stop diving immediately.
5. With (Temperature Measurement Readings) active on the watch, the watch returns to the pre-sale.

IN CASE OF THE FOLLOWING

IFMCS00

1. In case of the water sensor check alert display, the alert display is disabled.
2. Changeover cannot be performed from the diving mode (Ready display) or (0 m Reading after Depth Measurement) to the time/calendar mode.
   In case the depth reading is one meter or more, though the watch is used on land. In this case, any reset should be performed by referring to page 134. If the watch display is changed to the pre-state of the diving mode (Ready display) or to the time/calendar mode when the crown is pulled out, there is no problem. If the mode change cannot be made, any reset should be performed (see page 134). (Note 1).

IFMCSOD

IN CASE OF THE FOLLOWING

Digital display malfunction
Should strong impact or static electricity be applied to the watch by accident, the digital display may malfunction at times. If this occurs, any reset should be performed by referring to page 134. (Note 1).
After battery replacement
After the battery is replaced, be sure to perform all reset by referring to page 134. If not done so, the watch does not operate properly, making correct displays. (Note 1)

* Note 1

All reset operation will erase all the stored data.

ALLRESET

IFMCS00

1. Pull the crown out.
2. Press all three buttons together and release.
3. Push the crown in to its normal position. If the alarm sounds 2 times, the reset is completed.

Because all the stored data are erased after all reset, setting for each mode should be performed again correctly.

IFMCSOD

THE BATTERY

[Battery life]

A new battery installed in this watch will last approximately 2 years.

Standard usage conditions

Number of dives: 50 dives/year

Duration of dives: 1 hour

The life of the battery depends on the use frequency of the alarms or other functions. Moreover, if the watch is wet in a situation other than diving, the water sensor is activated, which reduces the battery lifetime, so take care.

[The original battery]

The battery in the watch at the time of purchase is one used to test the function and performance of the watch. Please be aware that this battery may not last for the 2 years estimated for normal batteries.

IFMCS00

THE BATTERY

[Battery replacement]

1. All battery replacement should be done by a Festina Service Center. To replace the battery, please contact the place of purchase or contact a Festina Service Center directly.
2. When replacing the battery, inspection if water resistance and other parts should be conducted, and packing materials replaced as necessary.
3. Battery replacement will result in deletion of data in the maximum depth memo. Be sure to record such data in a log book, etc. before replacing the battery.
4. Leaving a dead battery in the watch may cause damage due to leaking battery fluids.
5. Before using this watch for long periods overseas, battery replacement is recommended, as this service may be unavailable in some areas.
6. A charge for battery replacement and related inspection and parts replacement will be levied, even within the specified warranty period.

IFMCSOD

OTHER FUNCTIONS

[Register ring]

Use the register ring to measure elapsed time.

[Using the register ring]

Before diving, rotate the register ring to line up the mark with the minute hand. Elapsed time is then indicated by the position of the minute hand on the register ring.

Example. In the diagram at left the minute hand is 10 minutes past the mark, indicating that 10 minutes have elapsed.

NOTE. The register ring may only be turned counter clockwise (this helps prevent unwanted movement). Do not attempt to force it to turn clockwise.

IFMCS00

OTHER FUNCTIONS

[No decompression limits]

The range of time when it is unnecessary to stop to decompress while surfacing from a dive is determined by the depth and time of the dive. These values are referred to as "No Descompression Limits". Use these as estimates when diving.

No descompression Limits, based on the American Navy Diving Manual (1983), are printed on the band of this watch. (Some models may not have this chart).

[Reading the shart]

Caution: The non decompression limit is different depending on body condition, or personal differences. Please use the non decompression limits on this watch as a guideline.

When a dive requires non decompression limits make sure you follow a specialised divers manual.

IFMCSOD

OTHER FUNCTIONS

Depth m. N.D. Time
12 m. -200 Min.
15 m. -100 Min.
18m -60 Min.
21 m. -50 Min.
24m -40 Min.
27 m. -30 Min.
30m -25 Min.
33 m. -20 Min.
36 m -15 Min.
39 m -10 Min.
42m -10 Min.
45m . 5 Min.

DEPTH M N.D TIME
12 200 30 29
15 100 33 20
18.60 36.15
10.53 20.48
21 30 39 10
24 40 42 10
27 30 45 5

Example: If the diver is at 21 meters for 50 minutes or less, then it is OK to surface without stopping to decompress.

IFMCSO0

CARE FOR LONG TERM USE

Indication		Washing face or getting wet in the rain, when splashed over it and no water pressure is applied to it	Swimming and general washing work (kitchen work car washing, etc)	Water sports and skin diving (without air tank)	Scuba diving (with air tank)	Saturated diving (hellum gas)	Pulling the crown out when the watch is wet
Dial	Case back
WATER RESISTANT (200 m)	WATER RESISTANT ANT	OK	OK OK OK	NO NO

[Notes on Water resistance]

• This diver's watch has the waterproof construction for diving up to 200 m and withstands water pressure up to 200 m deep. The crown is screw-lock type. Tighten the screw completely before use.

• All maintenance service including battery replacement shall be carried out by Festina Service Centers.

• Subject the watch to the water resistance check at the time of battery replacement or every one or two years to maintain the water resistance of the watch

IFMCS00

CARE FOR LONG TERM USE

[Pressure Sensor]

• Never disassemble the sensor cover which protects the pressure sensor.
• Be careful that foreign objects such as sand, dust or other matter does not enter into the sensor. If such objects has entered into the sensor, wash it away with fresh water. Do not use alcohol, gasoline, thinner or other chemical substances.
  If you cannot clean the sensor, bring the watch to the Festina Service Center.

[Watch Band]

If the watchband shows cracks, replace it with a new band.
- When replacing the watchband also replace the spring bars connecting the watch and the band.

[Water resistance]

This diver's watch is designed to resist water pressure to a maximum depth of 200 meters. Before using this watch under water, push in the crown and tighten the screw lock completely.

IFMCSOD

CARE FOR LONG TERM USE

• All services after sale including battery replacement are provided by the Festina Service Center. Never have the case back opened or the screws on the sensor loosened at facilities other than the Festina Service Center.
• In order to maintain water-resistance, we recommend that you have the watch checked at the Festina Service Center at the time of battery replacement once every one or two years.

The case back is marked "DO NOT OPEN. SERVICE CENTER REPAIR ONLY"

[Temperature]

Avoid exposing the watch to direct sunlight or leaving it in extremely hot or cold locations for a long period of time.

• This will cause malfunction and shorten the life of the battery.
  This may cause your watch to gain or lose time and affect its other functions.

IFMCS00

CARE FOR LONG TERM USE

[Shock]

• This watch will withstand the bumps and jars normally incurred in daily use and while playing such non-contact sports as golf and catchball.
• Droppign the watch on the floor or otherwise imparting severe shock to it may cause malfunctioning or damage.

[Magnetic Fields]

This watch is antimagnetic up to 60 gauss and not affected by the magnetic fields produced by ordinary household electric appliances. If used in the Immediate vicinity of strong magnetism, however, the watch's function may temporarily be affected.

[Static electricity]

The integrated circuits used in the watch are sensitive to static electricity. If exposed to intense static electricity, the watch's display may lose its accuracy.

IFMCSOD

CARE FOR LONG TERM USE

[Chemicals and Gases]

Avoid wearing the watch in the presence of strong chemicals or gases. If the watch comes in contact with such solvents, nail polish, detergent or adhesive, its components may discolour, dissolve or crack. Be especially careful to avoid chemicals. The watchcase or band may discolour if they come in contact with mercury from a broken thermometer or other equipment.

[Luminous Display]

In some watches Luminous paint is applied to the hands of this watch for use in dark areas. This does not cause any health problems since the amount or luminous paint used in the watch is well within the limit allowed and is protected by the glass. Even if the amount used is extremely small, luminous paint is a hazardous substance. If the glass in broken, avoid touching the paint and bring it Immediately to the Festina Service Center for repair or replacement.

IFMCS00

CARE FOR LONG TERM USE

[Safekeeping]

If you do not use the watch for an extended period of time, wipe off perspiration, dirt and moisture thoroughly and keep it in a place not exposed to extremely high or low temperatures or high humidity. Don't leave a dead battery in the watch for a long time and be sure to replace it with a new one. If battery fluid leaks out, it may damage movement components.

[Keep Your Watch Clean]

Wipe off dirt and moisture from the glass with a soft, absorbent cloth. If you wear the watch when the back side of the case and watchband is soiled they may cause a skin rash as they come in direct contact with your skin. Keep your watch clean also to avoid staining your cuffs.

How to clean the watchband:

Metal band wash soiled parts with a tooth brush in mild, soapy water.
Rubber band wash in water.

Do not use solvent.

IFMCSOD

SPECIFICATION

1. Caliber number
   CSOO (Depth indication measured in meters/Temperature in Centigrade)

2. Accuracy of time measurement
   ± 20 seconds/month (at normal temperature
   5°C - 35°C / 41°F - 95°F

3. Accuracy of depth reading

± (indicated value X 3%+30cm)
Conditions: constant temperature and excluding margin of error by sight
* Assured accuracy temperature range 10°C-40°C / 50°F-104°F
Accuracy of depth reading is dependent on surrounding temperatures.

1. Accuracy of temperature reading:

-5°C/23°F +14°C/57,2°F = ±3°C/5,4°F
+15°C/59°F - 40°C/104°F = ±2°C/3,6°F

1. Watch operational temperature range:

-10°C-60°C/14°F-140°F

SPECIFICATION

IFMCS00

6. Display functions:

1. Analog display
   Time: Hours, Minutes, Seconds
   Time of correction: Year, Month, Day, Year (1994-2099)

2. Digital display

Time: Hours, Minutes, Seconds, AM/PM
Calendar: Date, Day of the week
Temperature: -5°C +40°C / 23°F -104°F
Alarm: Hours, Minutes, ON/OFF
Chronograph: Hours, Minutes, Seconds, 1/100 seconds (24 hours system),
Split measurement

Log memo:

Dive month and date
Dive number 1-9
Maximum depht 1,0 m - 80,0 m (4 ft - 200 ft)
Dive time 0 min - 100 min.

IFMCSOD

SPECIFICATIONS

Dive start time Hours, minutes
Dive completed time ......... Hours, minutes
Average depth 1,0 m - 80,0 m (4 ft - 260 ft)
Lowest temperature -5°C +40°C / 23°F a 104°F
* Stored log data memos for the last 4 dives can be recalled.

Dive alarm mode:

Depth alarm 1,0 m - 80,0 m (to be set in units of 1 m, with the provision to set the number of times of alarms) 5 ft - 260 ft (to be set in units of 5 ft, with the provision to set the number of times of alarms)
Dive time alarm 5 min - 95 min (5 minutes unit)

Dive:

Ready for diving DIV mark flashing
Present depth 1,0 m - 80,0 m (10 cm units)

4 ft - 260 ft (1 ft units)

*At depth less than 1,0 m (4 ft), 0 m/ft of

IFMCS00

SPECIFICATIONS

depth indication is shown. Over 80 m

(260 ft)the display is - - depth

indication is show. Over 260 ft, the display

is - - . - . Dive time (in seconds, measurable

up to 100 minutes) or Temperature indication

(in units of 0,1^ between -5^ and +40^

0.0m/0ft

Dive time (in seconds, measurable up to

100 minutes) or Maximum depth (in unit

of 10 cm / 1 ft, readings up to 80 m/260 ft

max.)

1. Alarm functions

Ascending speed alarm

Abnormal depth alarm

Water sensor check alert

1. Additional features

Low battery warning function

IFMCSOD

SPECIFICATION

Dive alarm monitor

1. Battery to be used

One battery

1. Battery Lifetimes

About 2 years (after a new battery is installed)

"Normal use conditions".

Number of times of diving: 50/year
One dive duration: 1 hour

The life of the battery depends on the use frequency of the alarms or other functions. Furthermore, if the watch is wet in a situation other than diving, the water sensor is activated, which reduces the battery lifetime, so take care.

IFMCS00

By virtue of the regulations pursuant to the handling of waste products deriving from electronic and electrical equipment, end of lifecycle watch

making products must be selectively collected for processing. You may therefore dispose of your quartz watch making products at any of our retail outlets or any other authorized collection point. The selective collection, processing, rating and recycling of these products helps contribute to safeguarding the environment and protecting our health.

IFMCSOD

MANUEL D'INSTRUCTION

DIVER'S WATCH

DIVERSES FONCTIONS D'ALERTE

DIVERSES FONCTIONS D'ALERTE

IFMCS00

2. Alerte de profondeur anormale

Heure:Heures, minutes, seconds, AM/PM
