Product type	Indoor light fixture
Material	Metal and glass
Dimensions (H x W x D)	20 cm x 30 cm x 30 cm
Weight	1.5 kg
Power supply	230 V ~ 50 Hz
Maximum bulb wattage	60 W
Bulb type	E27 (not included)
Protection rating	IP20
Electrical class	Class I (ground connection)
Main functions	Ambient lighting, pendant
Use	Indoor only
Minimum distance to flammable materials	0.5 m
Care and cleaning	Wipe with a dry cloth, do not use abrasive products
Safety	Cut power before any intervention
Warranty	2 years (material and workmanship defects)
Spare parts	Bulb, protective glass
Repairability	Replace the bulb and glass by a professional if necessary

Frequently Asked Questions - Len 455610172 Lucide

How to install the light fixture?

First cut the power supply. Follow the mounting instructions provided. Ensure the ground cable (green/yellow) is properly connected if your model is Class I.

What type of bulb to use?

Use an E27 bulb with a maximum power of 60 W. Do not exceed this wattage to avoid any risk of overheating.

Can I use this light fixture in a bathroom?

No, this light fixture has a protection rating of IP20 and is not suitable for damp rooms. Only install it in dry rooms.

How to clean the light fixture?

Turn off and unplug the device. Use a soft dry cloth to remove dust. Do not use chemical or abrasive products.

What to do if the bulb does not light up?

Check that the bulb is properly screwed in and functional. Also test the electrical circuit. If the problem persists, contact an electrician.

Can I use a dimmer with this light fixture?

It depends on the bulb used. If you want to adjust the intensity, choose a dimmable bulb and ensure the dimmer is compatible.

What is the minimum distance to respect from flammable objects?

Maintain a distance of at least 0.5 meters between the light fixture and any flammable material (curtains, furniture, etc.).

How to replace the protective glass?

Cut the power. Unscrew the glass fixings. Replace with an identical glass. If the glass is broken, wear protective gloves.

What to do if the power cable is damaged?

The cable must be replaced exclusively by the manufacturer, its after-sales service, or a qualified electrician to avoid any danger.

Does this light fixture have a warranty?

Yes, the warranty is 2 years against material and workmanship defects. Keep the proof of purchase. Glass parts are only warranted for 14 days after purchase.

USER MANUAL Len 455610172 Lucide

Thank you for purchasing a Lucide original!

This manual will hopefully guide you easily through the installation process. We aim to inspire and illuminate our clients by offering trendy, high-quality and affordable lighting.

Welcome to the community of #illuminatesyourworld

DISCOVER OUR COLLECTION!

Visit our website and discover our entire collection

CURIOUS ABOUT OUR BRAND?

Our brand video gives you a glimpse behind the scenes at Lucide

ILLUMINATESYOURWORLD

Take a look at how others around the world use Lucide products

LUCIDE

Item number: 45561/01/72

EAN code: 5411212450593

LEN

RECOMMENDED LUCIDE LIGHT SOURCE

49095/03/31

Dimmable: Yes

Included: No

General

Dimensions LxW xH: 10cm x 10cm x 16cm

Main material: Metal

Color: Light wood and Opal

Style: Scandinavian

Shape: Round

Weight: 0.50kg

Warranty: 2 Years

Specifications

Dimmable: No

Light direction: Around (Diffuse)

Adjustable in height: Not In Height Adjustable

Directional: Not Directional

Cable: Yes, Cable With Plug On Product

Cable length: 140cm

Sensor: Without Sensor

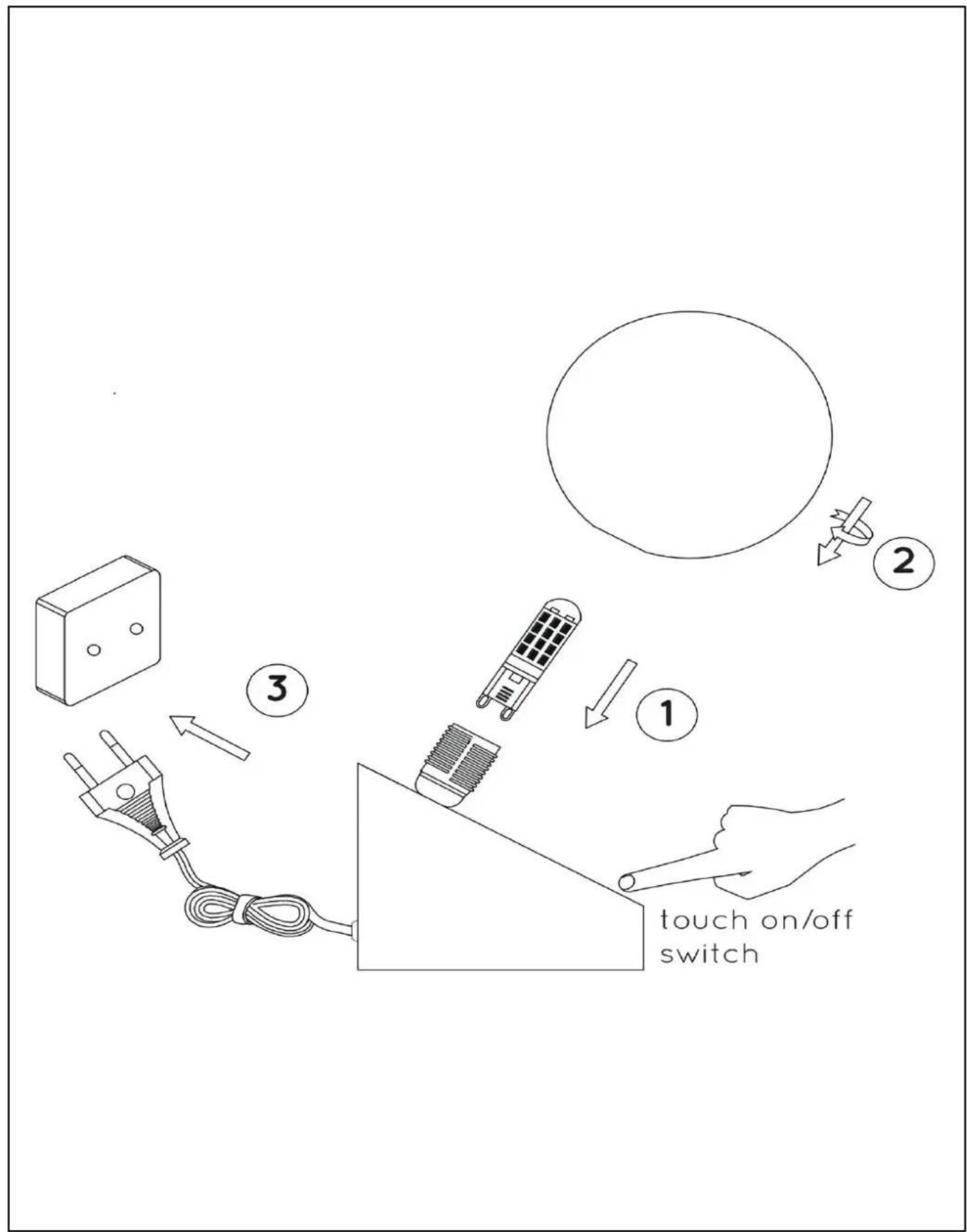

Control: On/Off Touch switch on the product

Power supply: Adapter/Power Grid

IP-Class: 20

Electric Class: 2

Number of light sources: 1

Lamp socket: G9

Wattage: 1 × 33W

Power requirements: 220 - 240V 50Hz

LEN

Item number: 45561/01/72

EAN code: 5411212450593

For more specifications or dimensions of this product please visit www.lucide.com

LEN

Item number: 45561/01/72

EAN code: 5411212450593

Please read this notice carefully and keep it during the lifetime of this product. Follow the instructions for a safe and correct installation and functioning of the light fixture. The manufacturer does not accept any responsibility for damage caused by improper installation and service. Installation should always be done by a qualified electrician.

Always isolate the power before commencing installation, maintenance or repair.

In case of doubts, please contact a qualified electrician.

Please pay attention to locations where the item can be installed (indoor, outdoor, bathroom (for outdoor and bathroom installation, please see further). Indoor items cannot be used in humid places. Do not put the item in contact with water or any liquids or inflammable products. Always respect the minimal distance (indicated on the light) to inflammable products.

During installation, make sure that the cables will not be squeezed or damaged by sharp edges. If the external flexible cable is damaged, it needs to be replaced exclusively by the manufacturer, his service agent, or a qualified electrician.

This is to avoid all risks.

Because the temperature of the item and the bulbs can get very high, they must cool down before being touched. Always use the correct bulb (respect type and maximal wattage as indicated on the product).

Explanation of the symbols which can appear on the fixture

This item is only suitable for indoor use, exclusive bathroom

(except if a higher IP degree permits that the item can be used in the bathroom).

Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with this symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

Class I: The item has an earth connection. The earth wire (green-yellow) needs to be connected to the earth connection (marked with this symbol).

Class II: The item is double insulated and must not be connected to the earth wire.

Class III: The item is only suitable for lower voltage supply and must not be connected to the earth wire.

IP 20: Protection against contact with a finger

If the protection glass is damaged or broken, it needs to be replaced immediately.

Please respect the minimum distance from the bulb to inflammable objects.

Warranty declaration:

Lucide NV warrants that the products supplied will be free from defects in material and workmanship for a period of 2 years from the date of purchase by the end user, if the item is installed and maintained properly as mentioned in the user manual.

Exclusions for the warranty:

1. Broken glass parts of the fixture will only be replaced within 14 days after purchasing by the end user.
2. Normal wear and tear, discoloring as a result from normal use.
3. Damage caused by external causes like fire, water, wrong use/ installation or maintenance of the product.

For warranty claims the customer needs to hand over defective fixture/part and the original purchase ticket.

Garantieverklaring:

Further explanations can be found on our website.
