Technical Features	Decorative wall hood, suction power of 600 m8/h, LED lighting, aluminum grease filter, noise level of 65 dB.
Usage	Designed to eliminate cooking odors and fumes, wall installation, button control.
Maintenance and Repair	Machine washable filters, regular maintenance recommended for optimal operation, possibility to replace the motor.
Safety	Overheat protection, compliant with electrical safety standards, installation away from heat sources.
General Information	Dimensions: 60 cm width, 2-year warranty, modern design suitable for all kitchens.

Frequently Asked Questions - UBH6002T PKM

How do I clean the filters of my PKM UBH6002T hood?

To clean the filters, carefully remove them from the hood and soak them in warm soapy water for about 30 minutes. Then rinse them with clear water and let them dry completely before putting them back in place.

My PKM UBH6002T hood is making noise. What should I do?

If your hood is making noise, check if the filters are dirty or improperly installed. Also make sure the hood is properly mounted on the wall. If the noise persists, contact customer service.

The light on my PKM UBH6002T hood is not working. What should I do?

First check if the bulb is burnt out. If so, replace it with a bulb of the same type. If the light still does not turn on, check the wiring and electrical connection.

How do I install my PKM UBH6002T hood?

To install the hood, follow the instruction manual included in the package. Make sure to respect the minimum distance dimensions between the hood and the cooking plate. If you are unsure about the installation, call a professional.

What is the suction power of the PKM UBH6002T hood?

The PKM UBH6002T has a suction power of 600 m8/h, which is suitable for use in medium-sized kitchens.

How do I switch my PKM UBH6002T hood to recirculation mode?

To switch to recirculation mode, make sure the charcoal filters are installed. Then set the hood's operating mode to 'recirculation' by following the instructions in the manual.

Is there a warranty for the PKM UBH6002T hood?

Yes, the PKM UBH6002T hood is generally covered by a 2-year warranty from the date of purchase. Keep your receipt for any claims.

What should I do if my PKM UBH6002T hood does not turn on?

First check if the hood is properly plugged in and if the circuit breaker has not tripped. If everything seems fine but it still does not turn on, contact customer service.

USER MANUAL UBH6002T PKM

Exterior view of a modern stainless steel kitchen ventilation duct (no text or symbols visible)

Deutsch

Englisch

Français

Seite 2

Page 17

Page 30

www.pkm-online.de

Diagram of a mechanical or electrical component with directional arrows indicating motion or force (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface with an arrow indicating direction (no text or symbols)

Simple line drawing of a hand pressing down on a laptop keyboard (no text or symbols)

Technical diagram of a cylindrical device with labeled parts and directional arrows indicating flow or movement.

1 auf

Technical line drawing of a mechanical device with internal components and directional arrows (no text or symbols)

Kohlefilter

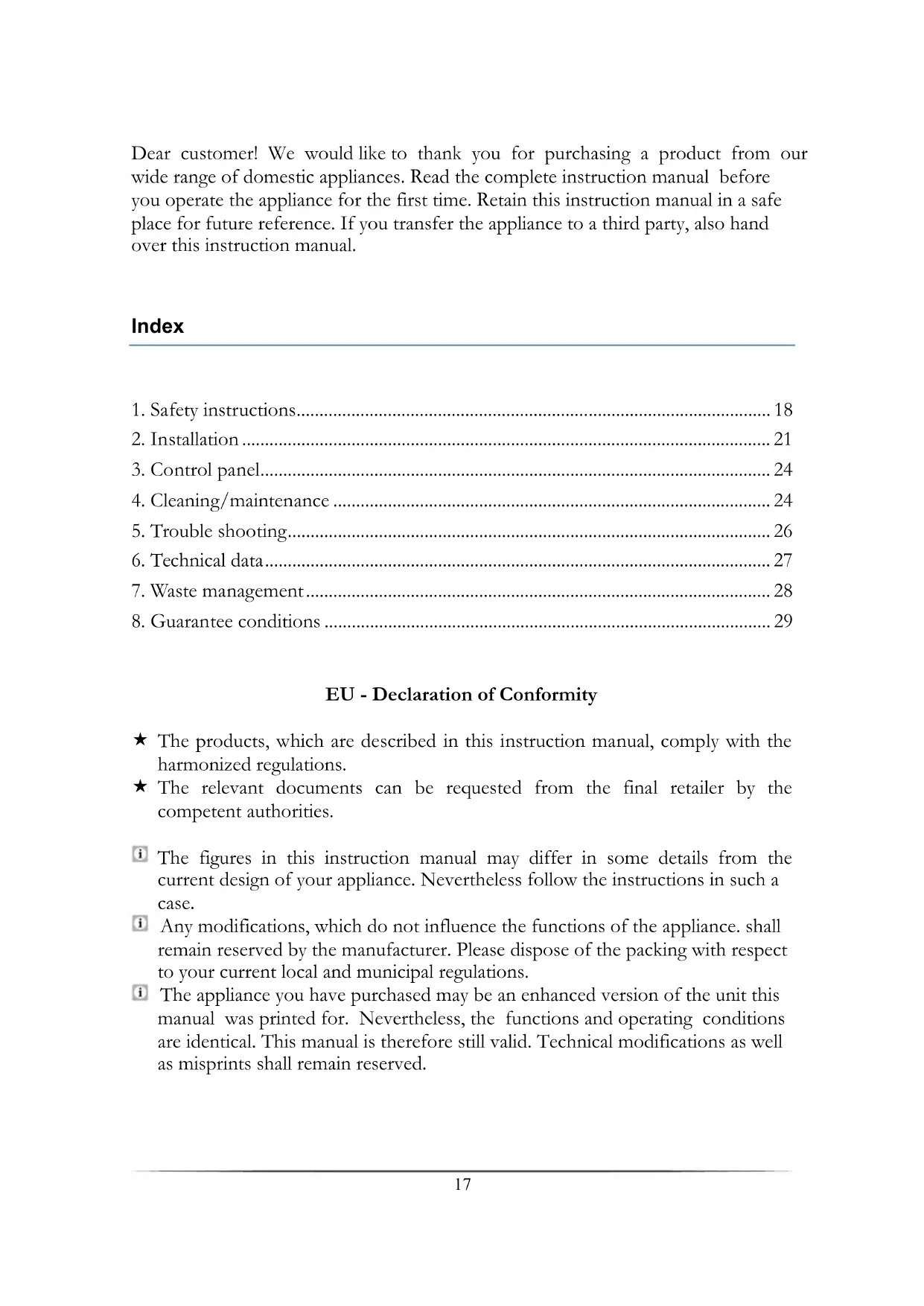

Dear customer! We would like to thank you for purchasing a product from our wide range of domestic appliances. Read the complete instruction manual before you operate the appliance for the first time. Retain this instruction manual in a safe place for future reference. If you transfer the appliance to a third party, also hand over this instruction manual.

Index

1. Safety instructions.... 18
2. Installation 21
3. Control panel....24
4. Cleaning/maintenance 24
5. Trouble shooting....26
6. Technical data....27
7. Waste management....28
8. Guarantee conditions ...... 29

EU - Declaration of Conformity

★ The products, which are described in this instruction manual, comply with the harmonized regulations.
★ The relevant documents can be requested from the final retailer by the competent authorities.
The figures in this instruction manual may differ in some details from the current design of your appliance. Nevertheless follow the instructions in such a case.
i Any modifications, which do not influence the functions of the appliance. shall remain reserved by the manufacturer. Please dispose of the packing with respect to your current local and municipal regulations.
The appliance you have purchased may be an enhanced version of the unit this manual was printed for. Nevertheless, the functions and operating conditions are identical. This manual is therefore still valid. Technical modifications as well as misprints shall remain reserved.

i Read the safety instructions carefully before you operate the appliance for the first time. All information included in those pages serve for the protection of the operator. If you ignore the safety instructions, you will endanger your health and life.

⚠️ DANGER! indicates a hazardous situation which, if ignored, will result in death or serious injury.

⚠️ CAUTION! indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.

WARNING! indicates a hazardous situation which, if ignored, could result in death or serious injury.

NOTICE! indicates possible damage to the appliance.

Store this manual in a safe place so you can use it whenever it is needed. Strictly observe the instructions to avoid damage to persons and property.
Check the technical periphery of the appliance! Do all wires and connections to the appliance work properly? Or are they time-worn and do not match the technical requirements of the appliance? A check-up of existing and newly-made connections must be done by an authorized professional. All connections and energy-leading components (incl. wires inside a wall) must be checked by a qualified professional. All modifications to the electrical mains to enable the installation of the appliance must be performed by a qualified professional.
i The appliance is intended for private use only.
The appliance is intended for extracting/recirculating cooking vapours in a private household only.
i The appliance is intended for indoor-use only.
The appliance is not intended to be operated for commercial purposes, during camping and in public transport.
i Operate the appliance in accordance with its intended use only.
Do not allow anybody who is not familiar with this instruction manual to operate the appliance.

DANGER

1. Do not operate the appliance when it does not work properly, is visibly damaged, has dropped down or the power cord/plug are damaged.
2. The power cord must be replaced by a qualified professional only.
3. Never repair the appliance yourself.
4. Do not operate any room-air dependent fireplaces while operating the appliance; otherwise harmful gases will get from the fireplace into your home.
   Whenever the hood is operated together with chimney-vented fireplaces

(e.g. coal furnace), ensure there is sufficient air supply in the room where the appliance is installed in. Always consult your local chimney-sweep master. When you operate the appliance in recirculating mode, you can simultaneously run room-air dependent fireplaces.

5. If gas is set free in your home:

Open all windows.
Do not unplug the appliance and do not use the control panel.
Do not touch the appliance until the gas has gone.
Otherwise sparks can be generated which will ignite the gas.

WARNING!

1. Whenever you use extractor hoods in combination with non electrically-operated appliances (gas and oil-fired appliances), the negative pressure of the corresponding room must not be more than 4 Pa (4 * 10 ^-5 bar).
2. An electrical supply of 220-240V AC / 50 Hz is required. Do not use a socket board or a multi socket or an extension cord when operating the appliance with 220–240 V/50 Hz (AC). All electrical connections which may be damaged must be repaired by a qualified professional.
3. Only connect the appliance to a properly grounded and dedicated socket.
4. The appliance must be grounded. Only use a proper safety socket to minimize risk of electric shock. The technical data of your energy supply must meet the data on the rating label.
5. Your domestic circuit must be equipped with an automatic circuit breaker.
6. Strictly observe the minimum distance between hood and hob:

Minimum distance hood to

Ceramic-glass rings/hotplates	65 cm
Gas cooker	75 cm
Coal / oil / stove wood firing	85 cm

1. Do not cook a la flambé dishes below the extractor hood. The flames may damage your appliance and/or cause fire.
2. Do not operate the gas jets of a gas hob without cookware. The flames may damage your appliance and/or cause fire.
3. If you fry, permanently keep an eye on the oil as it can catch fire. The risk of auto-ignition rises when using the oil many times.
4. Do not carry out any procedures on the hob using naked light or fire. The flames may damage your appliance and/or cause fire.
5. The exhaust hose must not be made of flammable materials or contain any flammable materials.
6. The extracted air must not be conducted by an exhaust pipe of a heater or

similar, not electrically-operated appliances.

1. Operate the appliance with inserted grease filters only. Otherwise recirculating-transported fat will deposit in the appliance and the exhaust system. RISK OF FIRE! Clean or replace the filters regularly.

2. Disconnect the appliance from the mains before cleaning and maintenance.

3. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children. CHOKING HAZARD!

4. This appliance may be operated by children aged from 8 years and above as well as by persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the appliance and do comprehend the hazards involved. Children must not play with the appliance. Cleaning and user-maintenance must not be carried out by children unless they are supervised.

5. Always supervise children so they will not play with the appliance.

CAUTION!

1. Accessible parts of the hood may become hot while cooking.

2. Carry out the installation of the appliance with at least two persons. Risk of damage. RISK OF INJURY!

NOTICE!

1. The appliance must be transported and installed by at least two persons.

2. Unpack the parts of the chimney very carefully; otherwise you will damage the chimney

3. Remove the complete packaging materials before initial operation. The appliance may be equipped with a transportation lock. Remove the transportation lock completely. When removing be very careful. Do not use any aggressive detergents to remove residues of the transportation lock.

4. Clean and maintain the appliance regularly to enable its proper operation and optimal performance.

5. Take the enclosed parts from the packaging and its polystyrene-components.

6. Check that the power cord and the appliance are not damaged before electrical connection.

⚠ WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

⚠ WARNING! Do not damage the wiring in the wall while drilling

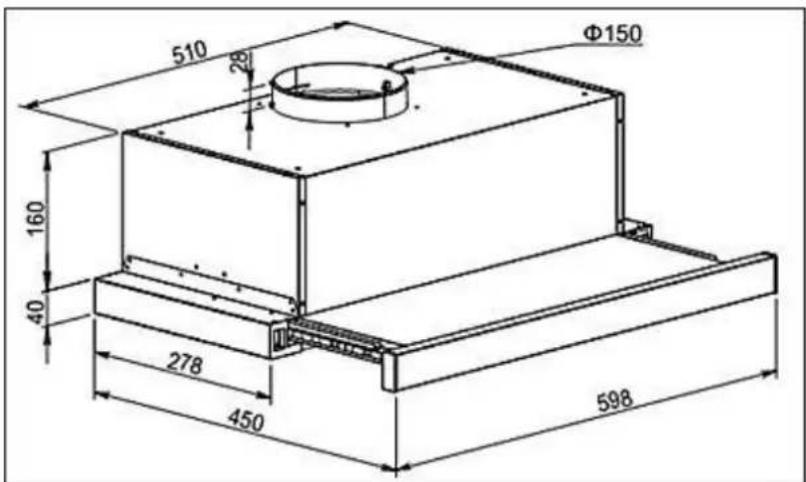

510 28 Φ150 160 40 278 450 598

1. The diameter of the exhaust hose must meet the diameter of the connecting ring.

2. If your appliance is equipped with a carbon filter, remove the carbon filter before you operate the appliance in the extraction mode. The carbon filter should be used in the recirculating mode only.

3. The exhaust duct should be as short and straight as possible. The diameter of the exhaust hose should be at least 120/150 mm (look at chapter TECHNICAL DATA). Otherwise you have to expect increased noise and decreased performance of your appliance.

4. The proper maximum bending angle outwards is 120^ .

5. Use smooth tubes or flexible, non-inflammable exhaust hoses only.

6. When the exhaust duct is connected horizontally, a minimum falling gradient of 1 cm/m or an inclination of 2^ is required. Otherwise condensate will get into the motor of the hood.

7. When an exhaust duct is used, the ending of the exhaust hose must be adjusted into the direction of flow.

8. If the exhaust duct passes through cool areas (e.g. an attic), a temperature gradient may occur in the different parts of the exhaust duct so condensate will be generated. Proper insulation of the corresponding parts of the exhaust duct will then be needed. Equip such an exhaust duct with a condensate trap if need be.

9. Depending on the model the hood is equipped with one (top) or two (top, back) outlets.

10. The idle outlet is covered by a plastic cap. You can remove this cap by turning it anticlockwise. Use the cap to cover the idle outlet.

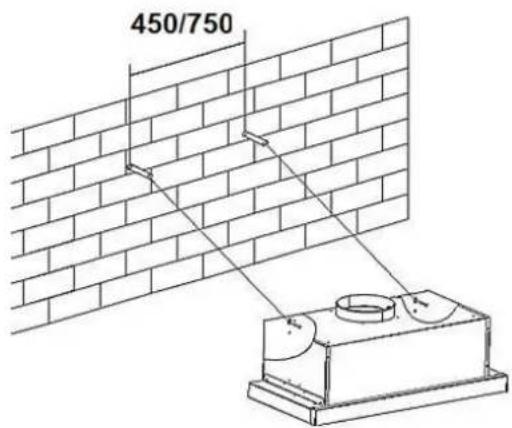

Installation, option 1/wall

1. Drill 2 holes with a diameter of 8 mm (lock at fig.1). For drilling check the relevant position of the screw-holes on the back of the appliance.

2. Insert the dowels in the holes.

3. Tighten the screws in the dowels. Hang the appliance on the screws.

450/750

1. Fix the appliance with the safety screws. The relevant openings are on the back of the housing ( 6 mm).

2. Install the air outlet valve on the appliance.

3. Extraction mode only: Install the exhaust pipe ^3 and lead it to a suitable exhaust air duct or outside.

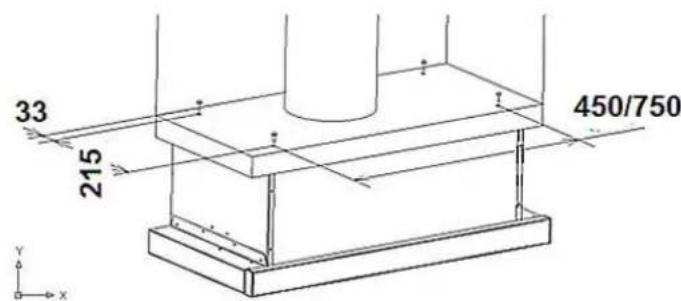

Installation, option 2 / below furniture (fig.2):

1. Drill 4 holes with a diameter of 6mm into the bottom of the furniture.

2. Install the air outlet valve on the appliance. Fix the appliance with 4 screws on the furniture.

33 215 450/750 Y X

Installation steps (recirculation mode)

1. If your home is not equipped with an air outlet for extracting exhaust air to the outside, the exhaust hose is not required. The further installation is similar to the INSTALLATION STEPS (EXTRACTION MODE).

Diagram of a mechanical or electrical component with directional arrows indicating motion, no text or symbols present

1. You can use carbon filters for odour absorption in recirculation mode only. For installing carbon filters, remove the grease filter. Press the lock and pull the grease filter downwards.

Simple line drawing of a hand pressing down on a flat surface with a downward arrow (no text or symbols)

Simple line drawing of a hand pressing down on a laptop keyboard (no text or symbols)

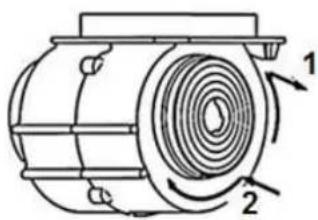

1. Plug the carbon filter into the appliance and turn in clockwise direction. Repeat on the opposite side.

Carbon filter

Technical diagram of a mechanical device with labeled parts 1 and 2, showing internal spiral structure.

1

open

Unplug the appliance before installing the carbon filter.

For recirculating mode only.

2 close

3. Control panel

1 I Light on.

0 Light off.

2 = High speed.

0 Off.

- Low speed.

1 2

NOTICE! Only switch on the lights while the appliance is operating. Do not switch on the lights to lighten the room.

4. Cleaning/maintenance

WARNING!

Disconnect the appliance from the mains before you clean or maintain it.

Ignoring the cleaning and maintenance instructions will cause an increased risk of fire.

NOTICE!

Take off all rings and bracelets before cleaning or maintaining the appliance; otherwise you will damage the surface of the appliance.

1. Clean the housing of the appliance with a suitable detergent. Use such a product carefully and economically.

2. Do not clean the control panel with a detergent. Use a damp cloth. Otherwise you may damage the electronic components of the controls.

3. Never use any alcohol-containing detergents to clean matt black painted appliances as these detergents cause colour-changes.

4. Clean the glass panels ^4 with a suitable detergent only.

5. When you clean or replace the grease filters or the carbon filters also clean all visible components on the bottom of the appliance with a mild, non-acrid and fat-dissolving detergent.

6. Do not damage the grid of metal-made grease filters. The colour of the metal surface may change due to frequent cleaning as well as the use of aggressive detergents.

7. Such changes do not influence the capacity of the appliance and are no reason for complaint.

8. Do not use a steam cleaner. RISK OF ELECTRIC SHOCK!
9. Do not use any abrasive detergents.

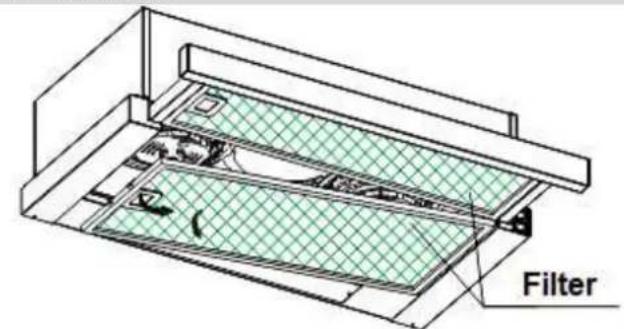

Grease filter

Metal/aluminium

You do not need to replace metal filters. Clean them once a month carefully by hand or in a dishwasher (30 ^0 ). Do not use any acrid or corrosive detergents. Do not put the filter in the dishwasher together with tableware. Dry the filters properly before you reinstall them.

Filter

Filters which are blocked with food debris do not carry a guarantee.

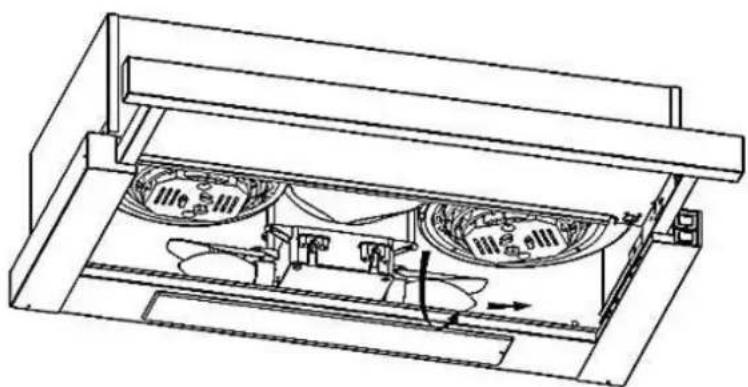

Replacing of the illuminant

Do not touch the illuminant with your hands. The sweat on your fingers will reduce the operating time of your new illuminant. Use a thin cloth or a thin glove.

1. ⚠️ WARNING! Disconnect the appliance from the energy supply.
2. The illuminant should have cooled down before you remove it.
3. Remove the old illuminant.
4. Replace it by a new one of the same kind and power.

Technical line drawing of a mechanical assembly with internal components and directional arrows (no text or symbols)

Carbon filters

Conventional carbon filters cannot be cleaned. The capacity of these filters is limited. You can use such filters for about 3-6 months. Replace a depleted filter. Find further information on the filter packaging.

5. Trouble shooting

MALFUNCTION

POSSIBLE CAUSE

MEASURE

The appliance does not work at all.

The plug of the appliance is not connected to the socket.
The plug has become loose.
The socket is not supplied with energy.
The fuse is switched off.

➢ Check the corresponding socket by connecting it with another appliance.
▶ Check the fuse.
The voltage is too low. Compare the data on the model plate with the data of your energy supplier.

Light is on but motor does not work.

▶ ventilation damper blocked.
▶ motor mounting defective.

remove blockage.
replace motor.

Abnormal motor-smells.

▶ motor defective

▶ one-way valve is leaky
➢ connection base chimney-telescopic chimney is leaky

replace motor

Smear of oil.

seal the valve
➢ seal the connection with a suitable material

Appliance vibrates.

▶ motor not properly fixed
▶ hood not properly fixed

fix motor properly
fix hood properly

Insufficient extracting capacity.

▶ too much distance hood-hob
too much draught because of open doors and/or windows

▶ lower position of hood
▶ close the doors/windows

Appliance is unstable.

➢ mounting rail is not firmly fixed
screws are not firmly tightened

➢ fix mounting rail properly
▶ tighten the screws

If the hood does not work properly and/or you can hear increased operating noise, check the schedule below:

◆ Incorrect dimension of the air duct.
Obstruction in the air duct.
The diameter of the air duct from hood to wall-box inclusive should be 120 mm; otherwise the capacity of the motor may be decreased.
If you have installed a fly screen on the wall-box, the air vent may be obstructed. Check by removing the fly screen.
If the cover panel of the wall box is equipped with firm and slanted slats, the air vent may be obstructed. Check by removing the cover panel.
◆ Install a cover panel with moveable slats, which do not obstruct the air vent.
◆ Check condition and cleanliness of the filters.
- Check if the air which is extracted by the hood is replaced to avoid negative pressure.
When you run your appliance in recirculating mode, check if the carbon filter has been replaced on time (min. every 3-6 months).

If the appliance has a malfunction not noted on the schedule or if you have checked all items on the schedule but the problem still exists, please contact the shop you purchased the appliance at.

6. Technical data

Type	Cooker hood
Material	Sheet steel/stainless steel panel
Installation-width in cm	60.00
Push buttons	2
Recirculation/extraction mode*	✓	✓
Annual energy consumption (AEC _hood )	74.4 kW/h
Energy efficiency category	D
Fluid dynamical efficiency (FDE _hood )	9.1
Fluid dynamical efficiency category	E
Lighting efficiency (LE _hood )	2.0 lux/W
Lighting efficiency category	G
Grease separation	71.9 %
Grease separation category	D
Air flow **	207 m ^3 /h	278 m ^3 /h
Maximum air flow Qmax	289 m ^3 /h
A-rated noise emission **	57 dB	62 dB
Power consumption off (P _o )	0.00 W
Power consumption standby (P _s )	0.00 W
Power consumption lighting system (W)	56 W (2*28 W/halogen)
Connected load	156 W
Voltage/frequency	AC 220-240V/50Hz
Grease filter/material/dishwasher-proof	2 aluminium	√
Carbon filter ***	2*CF 100
Exhaust hose	-
Installation material	√
Instruction manual	√
Telescopic chimney extractable from-to	-
Dimensions appliance H*W*D in cm	20.00*59.80*27.80-45.00
Weight net/gross in kg	5.10/6.10

* Extraction mode: installation with ventilation stack or air duct outwards only, wall penetration = ∅ 120 mm, drilling about ∅ ca. 130 mm.

** Measured values at minimum/maximum motor speed.

*** Optional equipment.

7. Waste management

1. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children. CHOKING HAZARD!
2. Old and unused appliances must be send for disposal to the responsible recycling centre. Never expose to open flames.
3. Before you dispose of an old appliance, render it inoperative. Unplug the appliance and cut off the entire power cord. Dispose of the power cord and the plug immediately.
4. Dispose of any paper and cardboard into the corresponding containers.
5. Dispose of any plastics into the corresponding containers.
6. If suitable containers are not available at your residential area, dispose of these materials at a suitable municipal collection point for waste-recycling.
7. Receive more detailed information from your retailer or your municipal facilities.

Materials marked with this symbol are recyclable.

Please contact your local authorities to receive further information.

for large electric appliances; PKM GmbH & Co. KG, Neuer Wall 2, 47441 Moers

This appliance includes a 24-month guarantee for the consumer given by the manufacturer, dated from the day of purchase, referring to its flawless material-components and its faultless fabrication. The consumer is accredited with both the dues of the guarantee given by the manufacturer and the vendor's guarantees. These are not restricted to the manufacturer's guarantee.

Any guarantee claim has to be made immediately after the detection and within

24 months after the delivery to the first ultimate vendee. The guarantee claim has to be verified by the vendee by submitting a proof of purchase including the date of purchase and/or the date of delivery.

The guarantee does not establish any entitlement to withdraw from the purchase contract or for a price reduction. Replaced components or exchanged appliances demise to us as our property.

The guarantee claim does not cover:

1. fragile components as plastic, glass or bulbs;
2. minor modifications of the PKM-products concerning their authorized condition if they do not influence the utility value of the product;
3. damage caused by handling errors or false operation;
4. damage caused by aggressive environmental conditions, chemicals, detergents;
5. damage caused by non-professional installation and haulage;
6. damage caused by non common household use;
7. damages which have been caused outside the appliance by a PKM-product unless a liability is forced by legal regulations.

The validity of the guarantee will be terminated if:

1. the prescriptions of the installation and operation of the appliance are not observed.
2. the appliance is repaired by a non-professional.
3. the appliance is damaged by the vendor, the installer or a third party.
4. the installation or the start-up is performed inappropriately.
5. the maintenance is inadequately or incorrectly performed.
6. the appliance is not used for its intended purpose.
7. the appliance is damaged by force majeur or natural disasters, including, but with not being limited to fires or explosions.

The guarantee claims neither extend the guarantee period nor initiate a new guarantee period. The geographical scope of the guarantee is limited with respect to appliances, which are purchased and used in Germany, Austria, Belgium, Luxembourg and the Netherlands.

Diagram of a mechanical or fluid system with directional arrows and a central block, no text or symbols present.

Simple line drawing of a hand holding a small object over a flat surface, with an arrow indicating direction (no text or symbols)

Simple line drawing of a hand pressing down on a laptop keyboard (no text or symbols)

Technical diagram of a heat exchanger or turbine with labeled components and flow indicators

1 ouvert

Technical line drawing of a mechanical assembly with internal components and motion arrows (no text or symbols)

Filtres à charbon

Please contact the shop you purchased the appliance at.

Subject to alterations

Updated

08/27/2015
