Brand	Progress
Model	PG1804
Category	Freezer
Product Type	Chest / Upright freezer? (Manual not specified, vertical freezer)
Dimensions (H x W x D)	1780 x 560 x 550 mm
Voltage	230-240 V
Frequency	50 Hz
Autonomy in case of power failure	24 hours
Climate class	SN, N, ST, T (from +10°C to +43°C depending on class)
Default temperature	-18 °C
Main functions	FastFreeze, ChildLock, DrinksChill, High temperature alarm, Open door alarm
Display	Digital with function indicators
Defrost type	Automatic (No Frost)
Refrigerant	Isobutane (R600a)
Freezing capacity (24h)	Indicated on the rating plate (not specified in the text)
Child lock	Yes (ChildLock)
Temperature alarm	Yes, with visual and audible alarm
Open door alarm	Yes, after about 90 seconds
Maintenance and cleaning	Interior cleaning with warm water and mild detergent; accessible condenser to brush
Safety	Grounding mandatory; do not use extension cord; do not damage the refrigeration circuit
Spare parts and repairability	Use only original parts; repair by authorized service center
General information	Manual available in several languages; 56 pages

Frequently Asked Questions - PG1804 PROGRESS

How to adjust the temperature of my Progress PG1804 freezer?

Use the + and - buttons on the control panel to adjust the temperature. The default temperature is -18 °C. The display shows the programmed temperature.

How to activate the FastFreeze function?

Press the Functions button until the FastFreeze symbol flashes, then press OK to confirm. The function stops automatically after 52 hours.

How to lock the buttons (ChildLock)?

Press Functions until the ChildLock symbol flashes, then press OK. To deactivate, repeat the procedure.

How to use the DrinksChill function?

Press Functions until the DrinksChill symbol flashes. The timer shows 30 minutes. Adjust from 1 to 90 minutes with the +/- buttons, then press OK. An audible alarm sounds at the end.

What to do in case of high temperature alarm?

When the alarm symbol flashes and an audible signal sounds, press any button to stop the alarm. The display shows the maximum temperature reached, then returns to the programmed temperature.

How to clean the interior of the freezer?

Unplug the appliance. Use a soft damp cloth with warm water and mild detergent. Never use abrasive products or solvents. Rinse and dry thoroughly.

Can I reverse the door opening?

Yes, the manual mentions the possibility of reversing the door. After reversal, wait at least 4 hours before plugging in the appliance to allow the compressor oil to flow back.

What does the display 'dEMo' mean?

The appliance is in demonstration mode. To exit, press and hold the Mode button for about 10 seconds until you hear a long beep and the screen briefly turns off.

What are the normal operating noises?

It is normal to hear a slight gurgling (refrigerant liquid), a hum from the compressor, a cracking sound due to thermal expansion, and a click from the thermostat during cycles.

What to do in case of a power failure?

The autonomy is about 24 hours. Do not open the door unnecessarily. Cold accumulators help maintain temperature. After power returns, the high temperature alarm may trigger; press a button to stop it.

USER MANUAL PG1804 PROGRESS

4 OK
5 Functions
6 ON/OFF

1-3 4-6 7-12

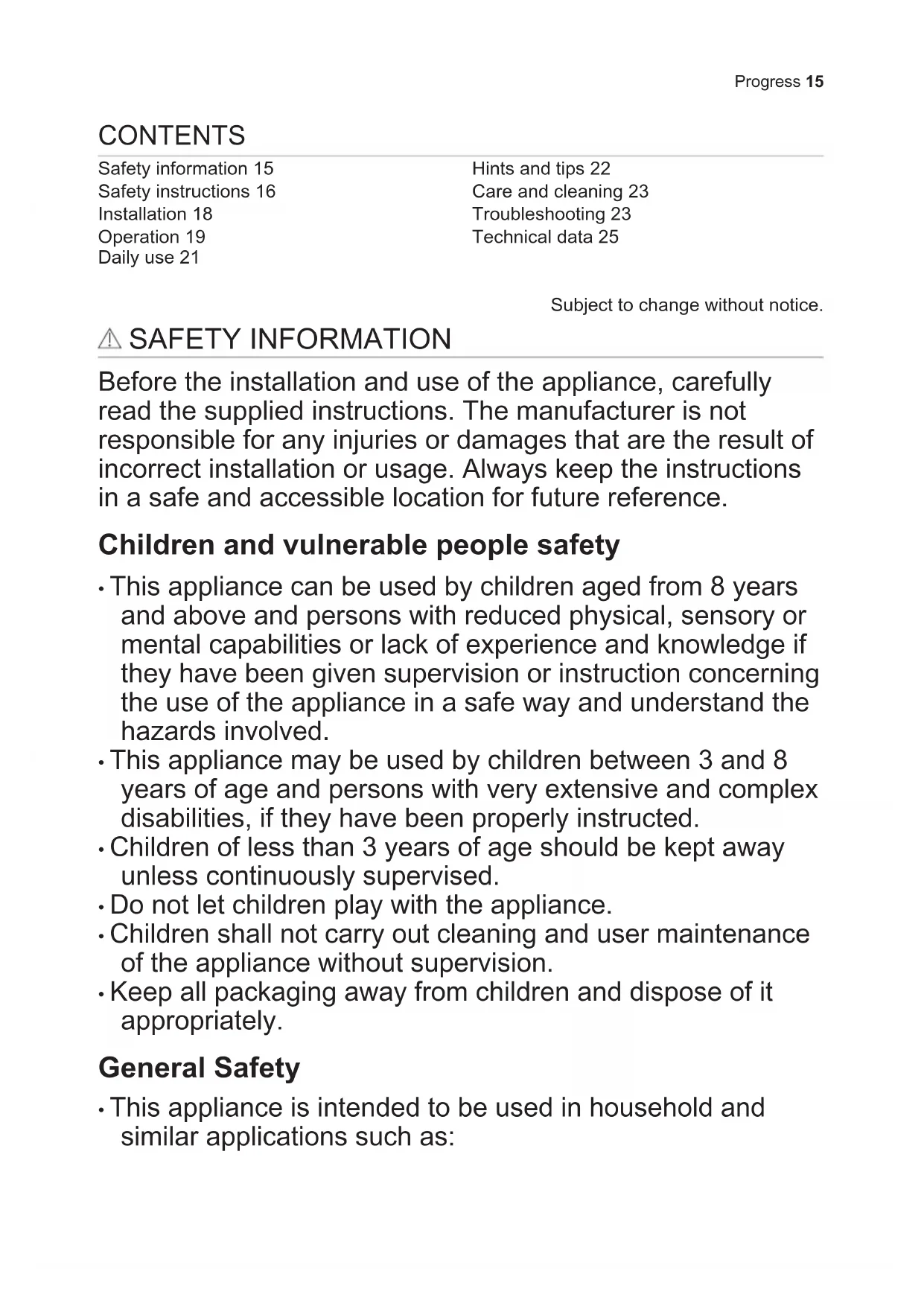

Safety information 15 Safety instructions 16 Installation 18 Operation 19 Daily use 21

Hints and tips 22 Care and cleaning 23 Troubleshooting 23 Technical data 25

Subject to change without notice.

⚠ SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
• This appliance may be used by children between 3 and 8 years of age and persons with very extensive and complex disabilities, if they have been properly instructed.
• Children of less than 3 years of age should be kept away unless continuously supervised.
• Do not let children play with the appliance.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.
• Keep all packaging away from children and dispose of it appropriately.

General Safety

- This appliance is intended to be used in household and similar applications such as:

• Farm houses; staff kitchen areas in shops, offices and other working environments
• By clients in hotels, motels, bed and breakfast and other residential type environments

- WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

- WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- WARNING: Do not damage the refrigerant circuit.

- WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

- Do not use water spray and steam to clean the appliance.

- Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons in order to avoid a hazard.

SAFETY INSTRUCTIONS

Installation

WARNING! Only a qualified person must install this appliance.

• Remove all the packaging and the transit bolts.
• Do not install or use a damaged appliance.
• Follow the installation instructions supplied with the appliance.
  • Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.

• Make sure the air can circulate around the appliance.

• At first installation or after reversing the door wait at least 4 hours before connecting the appliance to the power supply. This is to allow the oil to flow back in the compressor.

• Before carrying out any operations on the appliance (e.g. reversing the door), remove the plug from the power socket.
• Do not install the appliance close to radiators or cookers, ovens or hobs.
• Do not expose the appliance to the rain.
• Do not install the appliance where there is direct sunlight.

• Do not install this appliance in areas that are too humid or too cold.

• When you move the appliance, lift it by the front edge to avoid scratching the floor.

• The appliance contains a bag of desiccant. This is not a toy. This is not food. Please dispose of it immediately.

Electrical connection

WARNING! Risk of fire and electric shock.

WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING! Do not use multi- plug adapters and extension cables.

• The appliance must be earthed.
- Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
• Always use a correctly installed shockproof socket.
- Make sure not to cause damage to the electrical components (e.g. mains plug, mains cable, compressor). Contact the Authorised Service Centre or an electrician to change the electrical components.
- The mains cable must stay below the level of the mains plug.
- Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
- Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

Use

WARNING! Risk of injury, burns, electric shock or fire.

- Do not change the specification of this appliance.

• Do not put electrical appliances (e.g. ice cream makers) in the appliance unless they are stated applicable by the manufacturer.
• Be careful not to cause damage to the refrigerant circuit. It contains isobutane (R600a), a natural gas with a high level of environmental compatibility. This gas is flammable.
• If damage occurs to the refrigerant circuit, make sure that there are no flames and sources of ignition in the room. Ventilate the room.
• Do not let hot items to touch the plastic parts of the appliance.
• Do not put soft drinks in the freezer compartment. This will create pressure on the drink container.
• Do not store flammable gas and liquid in the appliance.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.
• Do not touch the compressor or the condenser. They are hot.
• Do not remove or touch items from the freezer compartment if your hands are wet or damp.
• Do not freeze again food that has been thawed.
• Obey the storage instructions on the packaging of frozen food.

Care and cleaning

WARNING! Risk of injury or damage to the appliance.

• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
• This appliance contains hydrocarbons in the cooling unit. Only a qualified person must do the maintenance and the recharging of the unit.
• Regularly examine the drain of the appliance and if necessary, clean it. If the drain is blocked, defrosted water collects in the bottom of the appliance.

Service

• To repair the appliance contact an Authorised Service Centre.
- Use original spare parts only.

Disposal

WARNING! Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.
• Cut off the mains cable and discard it.

INSTALLATION

WARNING! Refer to Safety chapters.

Location

Refer to the assembly instructions for the installation.

To ensure best performance, install the appliance well away from sources of heat such as radiators, boilers, direct sunlight etc. Make sure that air can circulate freely around the back of the cabinet.

Positioning

Install the appliance in a dry, well ventilated indoors where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance.

Climate class	Ambient temperature
SN +10°C to + 32°C
N +16°C to + 32°C
ST +16°C to + 38°C
T +16°C to + 43°C

• Remove the door to prevent children and pets to be closed inside of the appliance.
• The refrigerant circuit and the insulation materials of this appliance are ozone-friendly.
• The insulation foam contains flammable gas. Contact your municipal authority for information on how to discard the appliance correctly.
• Do not cause damage to the part of the cooling unit that is near the heat exchanger.

Some functional problems might occur for some types of models when operating outside of that range. The correct operation can only be guaranteed within the specified temperature range. If you have any doubts regarding where to install the appliance, please turn to the vendor, to our customer service or to the nearest Authorised Service Centre.

Electrical connection

• Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply.
• The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.
  • The manufacturer declines all responsibility if the above safety precautions are not observed.
• This appliance complies with the E.E.C. Directives.

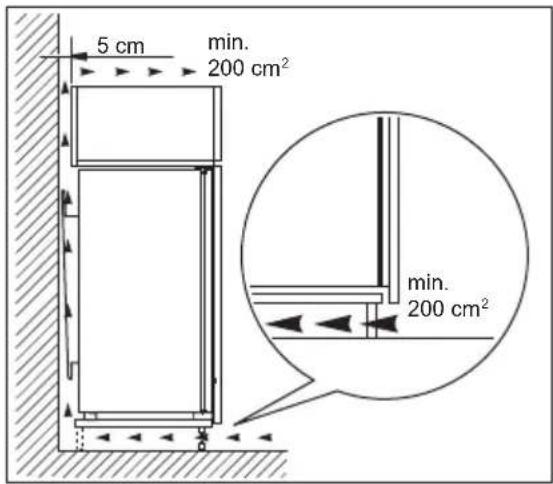

Ventilation requirements

The airflow behind the appliance must be sufficient.

CAUTION! Refer to the assembly instructions for the installation.

5 cm min. 200 cm² min. 200 cm²

OPERATION

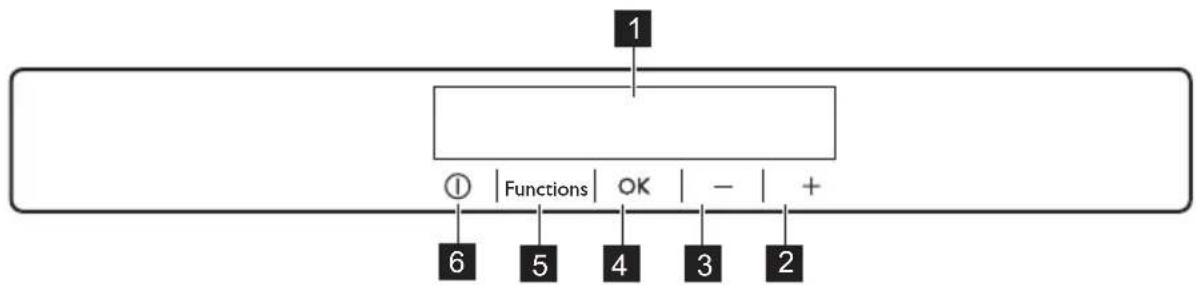

Control Panel

1 Display
2 Temperature warmer button
3 Temperature colder button
4 OK

5 Functions
6 ON/OFF

It is possible to change predefined sound of buttons by pressing together Functions

and temperature colder button for a few seconds. Change is reversible.

Display

A 88 min B -88° C F E D

A. Timer indicator
B. FastFreeze function
C. Temperature indicator
D. Alarm indicator
E. ChildLock function
F. DrinksChill function

Switching on

1. Connect the mains plug to the power socket.
2. Press the appliance ON/OFF if the display is off. The temperature indicators show the set default temperature.

The alarm buzzer could operate after few seconds. To reset the alarm refer to "High temperature alarm".

To select a different set temperature refer to "Temperature regulation".

If "dEMo" appears on the display, refer to "Troubleshooting".

Switching off

1. Press the appliance ON/OFF for 5 seconds.
   The display switches off.
2. Disconnect the mains plug from the power socket.

Temperature regulation

Set the temperature of the appliance by pressing the temperature regulators.

Default set temperature:

- -18°C for the freezer

The temperature indicators show the set temperature.

The set temperature will be reached within 24 hours. After a power failure the set temperature remains stored.

FastFreeze function

The FastFreeze function accelerates the freezing of fresh food and, at the same time, protects foodstuffs already stored from undesirable warming.

1. To activate this function press the Functions button until the corresponding icon appears.

The FastFreeze indicator flashes.

1. Press the OK button to confirm.

TheFastFreeze indicator is shown.

This function stops automatically after 52 hours.

To switch off the function before its automatic end repeat the procedure until the FastFreeze indicator turns off.

The function switches off by selecting a different set temperature.

ChildLock function

Activate the ChildLock function to lock the buttons from unintentional operation.

1. Press Functions until the corresponding icon appears. The ChildLock indicator flashes.

2. Press OK to confirm. The ChildLock indicator is shown. To deactivate the ChildLock function, repeat the procedure until the ChildLock indicator goes off.

DrinksChill function

The DrinksChill function is to be used to set an acoustic alarm at the preferred time, useful for example when a recipe requires to cool down food products for a certain period of time.

It is also useful when a reminder is needed in order not to forget the bottles placed in the freezer for fast cooling.

1. Press Functions until the corresponding icon appears. The DrinksChill indicator flashes. The Timer shows the set value (30 minutes) for a few seconds.

2. Press the Timer regulator to change the Timer set value from 1 to 90 minutes.

3. Press OK to confirm. The DrinksChill indicator is shown. The Timer start to flash (min). At the end of the countdown the DrinksChill indicator flashes and an audible alarm sounds. Press OK to switch off the sound and terminate the function.

To switch off the function repeat the procedure until the DrinksChill goes off.

It is possible to change the time at any time during the countdown and at the end by pressing the Temperature colder button and the Temperature warmer button.

High temperature alarm

An increase in the temperature in the freezer compartment (for example due to an earlier power failure) is indicated by flashing the alarm icon and freezer temperature indicators, and sounding of buzzer.

Press any button.

DAILY USE

WARNING! Refer to Safety chapters.

Cleaning the interior

Before using the appliance for the first time, the interior and all internal accessories should be washed with lukewarm water and some neutral soap to remove the typical smell of a brand-new product, then dried thoroughly.

CAUTION! Do not use detergents, abrasive powders, chlorine or oil-based cleaners as they will damage the finish.

Freezing fresh food

The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.

To freeze fresh food activate the FastFreeze function at least 24 hours before placing the food to be frozen in the freezer compartment.

Place the fresh food to be frozen in the two top compartments.

The buzzer switches off.

The freezer temperature indicator shows the highest temperature reached for a few seconds, then displays the set temperature again.

The alarm indicator continues to flash until the normal conditions are restored.

Door open alarm

If the door is left open for approximately 90 seconds, the acoustic alarm starts and alarm indicator flashes.

The alarm stops after closing the door. During the alarm, the acoustic signal can be muted by pressing any button.

The maximum amount of food that can be frozen in 24 hours is specified on the rating plate, a label located on the inside of the appliance.

The freezing process lasts 24 hours, during this period do not add other food to be frozen.

When the freezing process is completed, you can restore previously set temperature (see "FastFreeze function").

Thawing

Deep-frozen or frozen food, prior to being used, can be thawed in the refrigerator compartment or at room temperature, depending on the time available for this operation.

Small pieces may even be cooked still frozen, directly from the freezer: in this case, cooking will take longer.

Ice-cube production

This appliance is equipped with one or more trays for the production of ice-cubes.

Do not use metallic instruments to remove the trays from the freezer.

1. Fill these trays with water
2. Put the ice trays in the freezer compartment.

Cold accumulators

The freezer contains at least one cold accumulator which increases storage time in the event of a power cut or breakdown.

Frozen Food Calendar

1-3 4-6 7-12

HINTS AND TIPS

Normal operating sounds

The following sounds are normal during operation:

• A faint gurgling and bubbling sound from coils sound when refrigerant is pumped.
• A whirring and pulsating sound from the compressor when refrigerant is pumped.
• A sudden cracking noise from inside appliance caused by thermic dilatation (a natural and not dangerous physical phenomenon).
• A faint click noise from the temperature regulator when the compressor switches on or off.

Hints for energy saving

• Do not open the door frequently or leave it open longer than absolutely necessary.
• Do not remove the cold accumulators from the freezer basket.

Hints for freezing

- Freeze only top quality, fresh and thoroughly cleaned food products.

The symbols show different types of frozen goods.

The numbers indicate storage times in months for the appropriate types of frozen goods. Whether the upper or lower value of the indicated storage time is valid depends on the quality of the foods and treating before freezing.

• For more efficient freezing and thawing divide food into small portions.
• Wrap the food in aluminium foil or polythene. Make sure that the packages are airtight.
• To avoid increase in temperature of already frozen food, do not place fresh unfrozen food directly next to it.
• Lean foods store better and longer than fatty ones. Salt reduces the storage life of food.
• Do not eat ice cubes, water ices or ice lollies immediately after taking them out of the freezer. Risk of frostbites.
• It is advisable to show the freezing date on each individual pack to enable you to keep tab of the storage time.

Hints for storage of frozen food

• Make sure that the commercially frozen food products were adequately stored by the retailer.
• Make sure that frozen foodstuffs are transferred from the food store to the freezer in the shortest possible time.
• Once defrosted, food deteriorates rapidly and cannot be refrozen.
• Do not exceed the storage period indicated by the food manufacturer.

CARE AND CLEANING

WARNING! Refer to Safety chapters.

General warnings

CAUTION! Unplug the appliance before carrying out any maintenance operation.

This appliance contains hydrocarbons in its cooling unit; maintenance and recharging must therefore only be carried out by authorized technicians.

The accessories and parts of the appliance are not suitable for washing in a dishwasher.

Periodic cleaning

CAUTION! Do not pull, move or damage any pipes and/or cables inside the appliance.

CAUTION! Do not damage the cooling system.

The equipment has to be cleaned regularly:

1. Clean the inside and accessories with lukewarm water and some neutral soap.
2. Regularly check the door seals and wipe them clean to ensure they are clean and free from debris.

TROUBLESHOOTING

WARNING! Refer to Safety chapters.

What to do if...

Problem Possible cause Solution
The appliance does not operate.	The appliance is switched off.	Switch on the appliance.
Problem Possible cause Solution
The mains plug is not connected to the mains socket correctly.		Connect the mains plug to the mains socket correctly.
There is no voltage in the mains socket.		Connect a different electrical appliance to the mains socket. Contact a qualified electrician.
Audible or visual alarm is on.	The cabinet has been recently switched on or the temperature is too high.	Refer to "High temperature alarm".
	The temperature in the appliance is too high.	Contact a qualified electrician or contact the nearest Authorised Service Centre.
	The door is left open. Close the door. Refer to "Door open alarm"
A or symbol is shown instead of numbers on the Temperature Display.	Temperature sensor problem.	Contact the nearest Authorised Service Centre (the cooling system will continue to keep food products cold, but temperature adjustment will not be possible).
The compressor operates continually.	Temperature is set incorrectly.	Refer to "Operation".
Many food products were put in at the same time.		Wait few hours and then check the temperature again.
The room temperature is too high.		Refer to climate class chart on the rating plate.
Food products placed in the appliance were too warm.		Allow food products to cool to room temperature before storing.
	The door is not closed correctly.	Refer to "Closing the door".
	The "FastFreeze" is switched on.	Refer to "FastFreeze function".
There is too much frost and ice.	The door is not closed correctly or the gasket is deformed/dirty.	Refer to "Closing the door".
Problem Possible cause Solution
The compressor does not start immediately after pressing the "FastFreeze", or after changing the temperature.	This is normal, no error has occurred.	The compressor starts after a period of time.
Temperature cannot be set. The "FastFreeze function" is switched on.		Switch off "FastFreeze function" manually, or wait until the resets automatically to set the temperature. Refer to "Fast-Freeze function".
dEMo appears on the display.	The appliance is in demonstration mode.	Keep the OK pressed for approximately 10 seconds until a long sound is heard and display shuts off for a short time.
The temperature in the appliance is too low/too high.	The temperature regulator is not set correctly.	Set a higher/lower temperature.
	The food products' temperature is too high.	Let the food products temperature decrease to room temperature before storage.
	The door has been opened often.	Open the door only if necessary.
	The "FastFreeze function" is switched on.	Refer to "FastFreeze function".
	There is no cold air circulation in the appliance.	Make sure that there is cold air circulation in the appliance.

If the advice does not lead to the desired result, contact the nearest Authorised Service Centre.

1. If necessary, adjust the door. Refer to assembly instructions.

2. If necessary, replace the defective door gaskets. Contact the Authorised Service Centre.

Closing the door

1. Clean the door gaskets.

TECHNICAL DATA

Dimensions of the recess
Height mm 1780
Width mm 560
Depth mm 550
Rising time Hours 24
Voltage Volts 230 - 240
Frequency Hz 50

The technical information is situated in the rating plate, on the external or internal

side of the appliance and in the energy label.

ENVIRONMENTAL CONCERNS

Recycle materials with the symbol Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do

not dispose of appliances marked with the symbol ☒ with the household waste. Return the product to your local recycling facility or contact your municipal office.

TABLE DES MATIÈRES

1-3 4-6 7-12

CONSEILS

1-3 4-6 7-12

TIPPS UND HINWEISE
