USER MANUAL IVC50 Klarstein

Wet/dry vacuum cleaner

CLEANINGCI LEANINGLE ANINGLEAN NINGCLEAN NINGLEANINGCI GCLEANINGCI CLEANINGLE LEANINGLE ANINGLEAN

Klarstein IVC50 - 1

KLARSTEIN

www.klarstein.com

Klarstein IVC50 - 2

bar | Category | Value | | :--- | :--- | | Category 1 | 100 | | Category 2 | 100 | | Category 3 | 100 | | Category 4 | 100 | | Category 5 | 100 | | Category 6 | 100 | | Category 7 | 100 | | Category 8 | 100 | | Category 9 | 100 | | Category 10 | 100 | | Category 11 | 100 | | Category 12 | 100 | | Category 13 | 100 | | Category 14 | 100 | | Category 15 | 100 | | Category 16 | 100 | | Category 17 | 100 | | Category 18 | 100 | | Category 19 | 100 | | Category 20 | 100 | | Category 21 | 100 | | Category 22 | 100 | | Category 23 | 100 | | Category 24 | 100 | | Category 25 | 100 | | Category 26 | 100 | | Category 27 | 100 | | Category 28 | 100 | | Category 29 | 100 | | Category 30 | 100 | | Category 31 | 100 | | Category 32 | 100 | | Category 33 | 100 | | Category 34 | 100 | | Category 35 | 100 | | Category 36 | 100 | | Category 37 | 100 | | Category 38 | 100 | | Category 39 | 100 | | Category 40 | 100 | | Category 41 | 100 | | Category 42 | 100 | | Category 43 | 100 | | Category 44 | 100 | | Category 45 | 100 | | Category 46 | 100 | | Category 47 | 100 | | Category 48 | 100 | | Category 49 | 100 | | Category 50 | 100 | | Category 51 | 100 | | Category 52 | 100 | | Category 53 | 100 | | Category 54 | 100 | | Category 55 | 100 | | Category 56 | 100 | | Category 57 | 100 | | Category 58 | 100 | | Category 59 | 100 | | Category 60 | 100 | | Category 61 | 100 | | Category 62 | 100 | | Category 63 | 100 | | Category 64 | 100 | | Category 65 | 100 | | Category 66 | 100 | | Category 67 | 100 | | Category 68 | 100 | | Category 69 | 100 | | Category 70 | 100 | | Category 71 | 100 | | Category 72 | 100 | | Category 73 | 100 | | Category 74 | 100 | | Category 75 | 100 | | Category 76 | 100 | | Category 77 | 100 | | Category 78 | 100 | | Category 79 | 100 | | Category 80 | 100 | | Category 81 | nan | | Category 82 | nan | | Category 83 | nan | | Category 84 | nan | | Category 85 | nan | | Category 86 | nan | | Category 87 | nan | | Category 88 | nan | | Category 89 | nan | | Category 90 | nan | | Category 91 | nan | | Category 92 | nan | | Category 93 | nan | | Category 94 | nan | | Category 95 | nan | | Category 96 | nan | | Category 97 | nan | | Category 98 | nan | | Category 99 | nan | | Total (Total) | nan | | Total (Category) | nan | | Total (Category) | nan | | Total (Category) | nan | | Total (Category) | nan | | Total (Category) | nan | | Total (Category) | nan | | Total (Category) | nan | | Total (Category) | nan | | Total (Category) | nan | | Total (Category) | nan | | Total (Category) | nan | | Total (Category) | nan | | Total (Category) | nan |
text_image QR code image containing encoded data, no visible human-readable text

INHALTSVERZEICHNIS

Member of Berlin Brands Group

Handwerkerstr. 11

15366 Dahlwitz-Hoppegarten

Deutschland

natural_image Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

Klarstein IVC50 - Dear Customer, - 1

text_image QR code image containing encoded data, no visible human-readable text

CONTENT

Safety Instructions 14

Product Overview 15

Operation 16

Cleaning and Care 18

Disposal Considerations 19

Manufacturer & Importer (UK) 19

TECHNICAL DATA

Item number 10007544
Power supply 230 V ~ 50 Hz
Power consumption 2000 W
Volume 50 L
Weight 6,6 kg

SAFETY INSTRUCTIONS

  • Children over the age of 8 and persons with reduced physical, sensory or mental capabilities or those with a lack of experience and knowledge may only use the device if they are instructed on how to do so by a person responsible for their safety, or if they are supervised and understand the hazards associated with the use of the device.
  • Before use, check the voltage on the device badge. Connect the device only to sockets which correspond to the voltage of the device.
  • Do not vacuum near flammable or explosive materials as these may be ignited by the motor.
  • Do not obstruct the air intakes as heat accumulation may damage the motor.
  • Do not vacuum flammable or explosive materials such as burning cigarettes or gasoline. Do not suck up any sharp objects that may stick to the filter or clog it. Do not absorb powdery materials such as lime powder, gypsum or graphite powder, which could damage the engine.
  • Do not turn the unit over as water may enter the motor.
  • Switch off the appliance after each use and before cleaning and disconnect it from the mains supply.
  • Keep the unit away from direct sunlight or intense heat as this may deform the plastic.
    • To avoid damage, do not twist or step on the suction hose.
  • Do not allow water to run on or into the cover during cleaning as this may damage the electrical components.
  • Only use the product as described in the instructions. Any other use may result in damage to the product or personal injury.
  • Modification or alteration of the product may affect product safety.
  • Handle the product with care. It can be damaged by shocks, blows or falling from a low height.
  • Keep the product away from moisture and extreme heat.
  • Repairs to the device should only be carried out by an authorised specialist workshop. Do not open the unit under any circumstances. Incorrect assembly may result in malfunction or total failure.
  • The unit should be protected from all moisture and direct sunlight.
  • Do not clean the unit with cleaning agents. Use a dry or slightly damp (microfiber) cloth for cleaning.

Note: If water escapes from the air outlet, do not tilt the unit as this will damage the motor. Do not use the unit as a pump, as this may damage the motor.

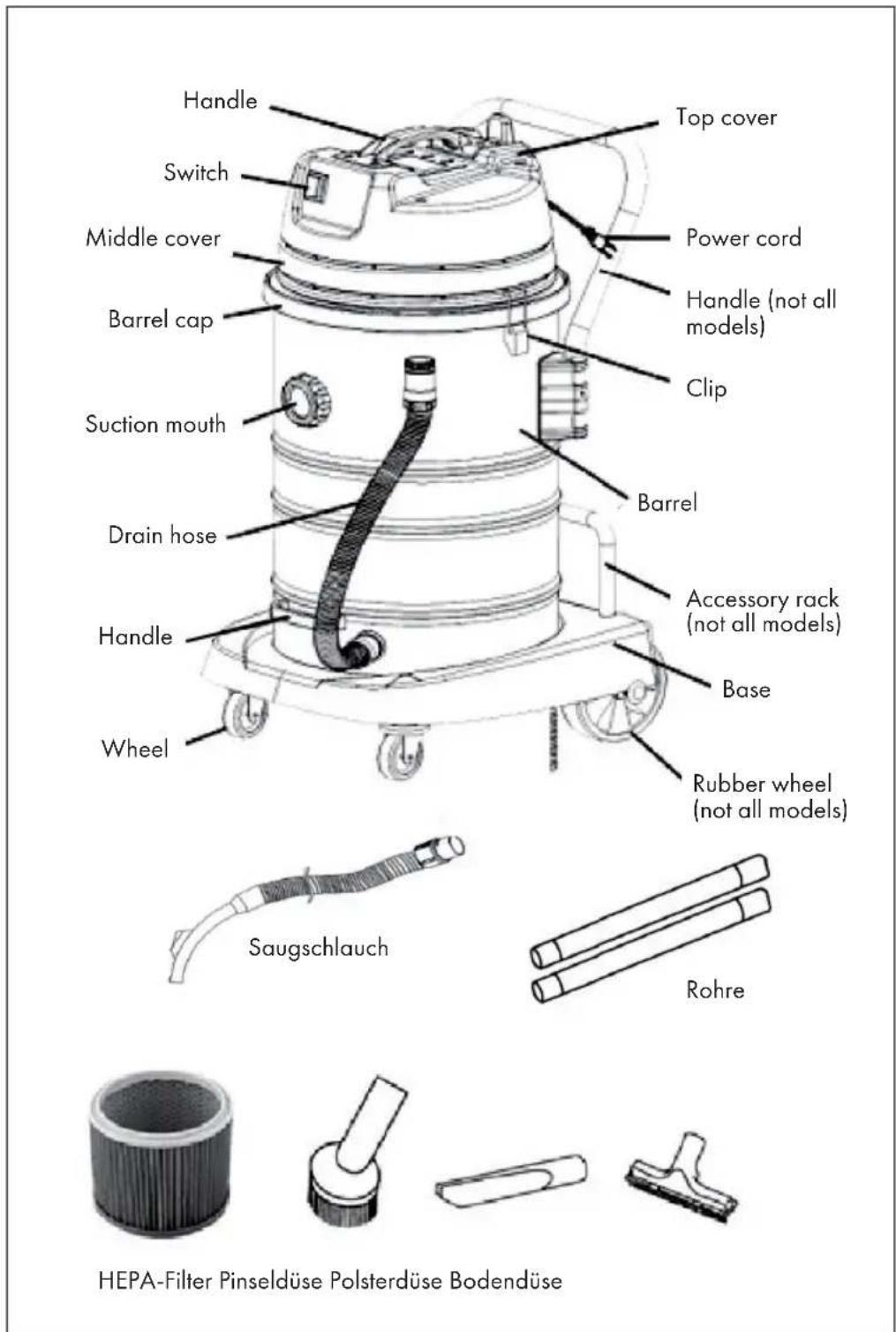

PRODUCT OVERVIEW

Klarstein IVC50 - PRODUCT OVERVIEW - 1

text_image Handle Top cover Switch Power cord Middle cover Handle (not all models) Barrel cap Clip Suction mouth Barrel Drain hose Accessory rack (not all models) Handle Base Wheel Rubber wheel (not all models) Saugschlauch Rohre HEPA-Filter Pinseldüse Polsterdüse Bodendüse

OPERATION

Assembling and Disassembling

Klarstein IVC50 - OPERATION - 1

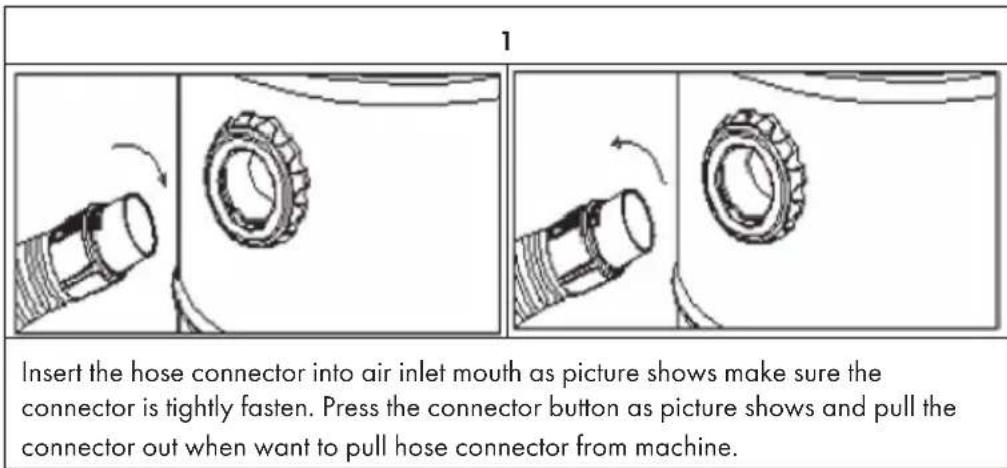

text_image 1 Insert the hose connector into air inlet mouth as picture shows make sure the connector is tightly fasten. Press the connector button as picture shows and pull the connector out when want to pull hose connector from machine.

Klarstein IVC50 - OPERATION - 2

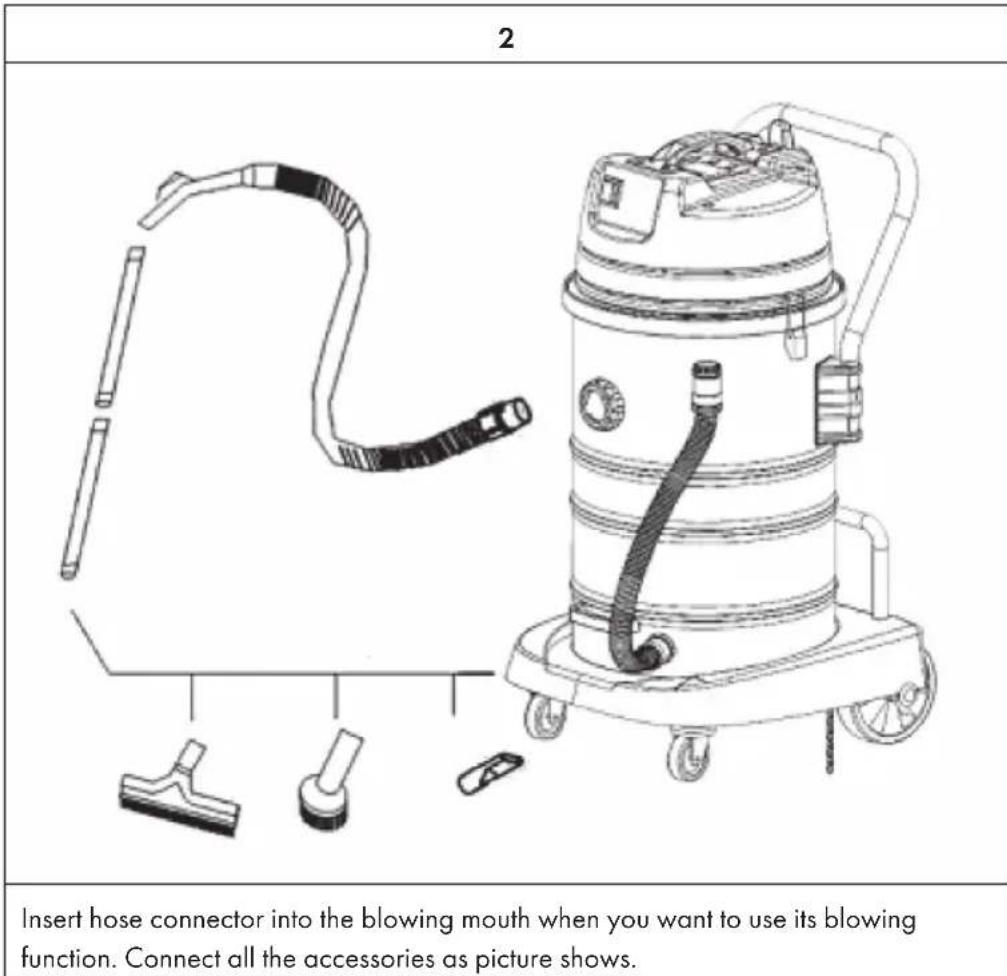

text_image 2 Insert hose connector into the blowing mouth when you want to use its blowing function. Connect all the accessories as picture shows.

Getting Started

Insert plug into the supply socket. Press switch button, the machine begin to work. You can adjust the airflow by pushing the sliding block up and down.Klarstein IVC50 - Getting Started - 1Klarstein IVC50 - Getting Started - 2

Operation of blower

• Always wear safety goggles before using the blower.
- Keep bystanders clear from blowing debris.
- Wear a dust mask if blowing creates dust that might be inhaled.

1Make sure that the power cord is disconnected from the socket.
2Unscrew the inserted hose assembly from the suction port with a left-hand rotation.
3Insert the main cannula of the hose assembly into the air outlet on the top of the head and tighten it with the right hand rotation.
4Insert the power cord.
5Start the switch button.
6Hold the hose assembly, let outlet port aimed at the leaves and so on.

Using the Accessory

Klarstein IVC50 - Using the Accessory - 1Klarstein IVC50 - Using the Accessory - 2Klarstein IVC50 - Using the Accessory - 3Klarstein IVC50 - Using the Accessory - 4
Wet floor nozzle for floor, carpet, etc.Bristle for Windows, table, etc.Crevice nozzle for crevice, corner, etc.Blowing mouth for blowing the dust away in the crevice of the machine.

CLEANING AND CARE

Barrel Cleaning

After working or when the barrel is full of dust which cause suction decreases considerably, you should cut off the electricity and clean the dust away from the barrel.

  • Unfasten the locking knob, lift up the top cover.
    • Take off the filter bag, clean the dust away in the dust barrel.
    • Install the filter bag back and place the top cover.

Cleaning the HEPA filter

The HEPA filter should be washed with clean, warm water if it is covered with dust. If necessary, use a mild detergent.

  • Remove the HEPA filter.
  • Wash it.
  • Let it dry.

DISPOSAL CONSIDERATIONS

Klarstein IVC50 - DISPOSAL CONSIDERATIONS - 1

natural_image Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom
