Product type	Condenser tumble dryer
Brand	Candy
Model	EVOH 981NA1TS
Maximum capacity	8 kg (cotton)
Drum volume	115 liters
Dimensions (H x W x D)	85 x 60 x 60 cm
Energy class	A+
Power supply	220-240 V, 50 Hz
Drying programmes	Perfect Home, Dry, Ready to Store, Ready to Iron, Anti-crease, Wool, Mix & Dry, Shirts, Quick 40', Time, Jeans
Options	Delayed start (1-24 h), Delicate drying, Anti-crease
Sensor type	Automatic drying sensor
Lint filter	Yes, with cleaning indicator
Condenser	Yes, with manual cleaning
Water tank	Yes, capacity approx. 4 kg, with drain indicator
Permanent drain kit	Available as an option
Safety	Automatic shut-off in case of overheating, child lock (monitoring)
Maintenance and cleaning	Clean filter after each cycle, regular condenser cleaning, drain tank
Spare parts and repairability	Original parts available from GIAS service
General information	Household use, do not use with solvents or foams

Frequently Asked Questions - EVOH 981NA1TS CANDY

What are the available programmes on the Candy EVOH 981NA1TS?

The programmes include Perfect Home, Dry, Ready to Store, Ready to Iron, Anti-crease, Wool, Mix & Dry, Shirts, Quick 40', Time and Jeans. Consult the manual for details of each programme.

How to clean the lint filter?

Pull the filter upwards, open it, remove lint with a soft brush or fingers, then put it back. Never use the dryer without the filter.

What to do if the water tank indicator lights up?

Empty the condensation water tank by gently pulling it out, tilt it to drain water through the rear opening, then push it back firmly.

How to use the delayed start?

Press the Delayed Start button to set a delay of 1 to 24 hours. Then press Start/Pause to start the countdown.

Why does the displayed remaining time vary during the cycle?

The remaining time is constantly adjusted based on the detected humidity. It is normal for it to increase or decrease.

What types of textiles should not be machine dried?

Do not dry items treated with dry cleaning, foam rubber, fiberglass, wool, silk, delicate fabrics, or clothes with metal decorations.

How to clean the condenser?

Remove the protective cover, turn the levers, take out the condenser, remove dust with a dry cloth (no water), clean the sponge under water, then reassemble everything.

What is the maximum drying capacity?

The maximum capacity is 8 kg for cotton and 4 kg for synthetics. Do not overload.

How to cancel a running programme?

Press the Start/Pause button for 3 seconds. The display flashes 0:00 to confirm reset.

What to do if the dryer does not start?

Check that the appliance is plugged in, the door is properly closed, the fuse has not blown, the water tank is not full, and a programme is selected.

USER MANUAL EVOH 981NA1TS CANDY

Heat Pump Tumble Dryer

Grand

Evo

8kg

English 2

Italiano 14

Deutsch 26

Français 38

Dutch 50

Porteguese 62

Suomi 74

Dansk 86

Norsk 98

Svenska 110

Ελληικα 122

български 134

Slovensko 146

Introduction 3

Delivery Information 3

Unpacking the Product 3

Safety Reminders 3

Use 3

Installation 4

The Laundry 4

Environmental Issues 4

Gias Service 4

Installation 5

Electrical Requirements 5

Adjusting the Feet 5

Drain Hose Kit: Fitting Instructions 5

Preparing the Load 6

Clothes Preparation 7

Do Not Tumble Dry 7

Energy Saving 7

Sorting the Load 7

Controls and Indicators 7

Selecting the Programme 8

Door and Filter 9

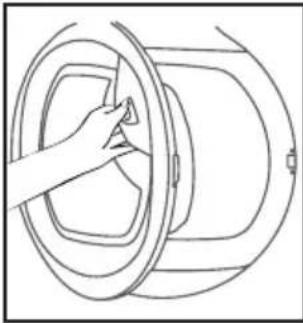

Opening the Door 10

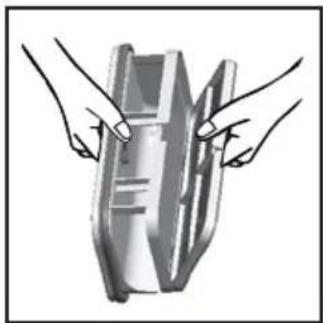

Filter 10

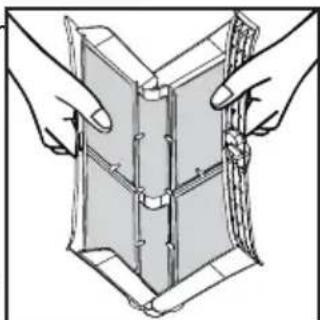

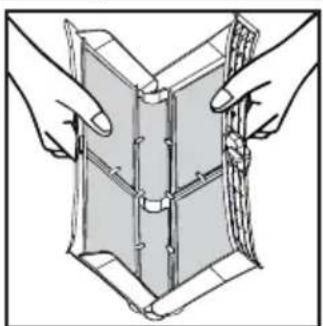

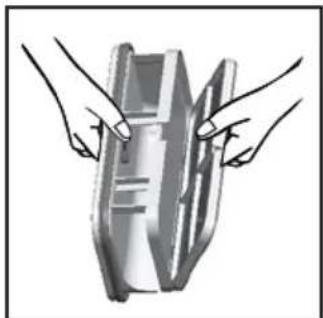

Filter Care Indicator 10

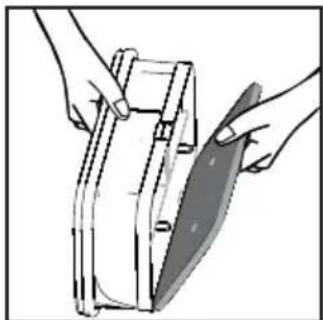

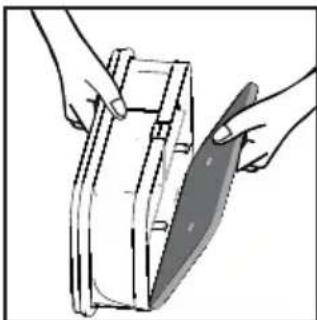

To Clean the Condenser Filter 10

Water Container 10

To Remove the Container 11

Operation 11

Delay Start Function 11

Cancelling and Resetting the Programme 12

Cleaning and Routine Maintenance 12

Cleaning the Dryer 12

Technical Specifications 12

Troubleshooting 12

Customer Service 13

Spares 13

Gias Service 13

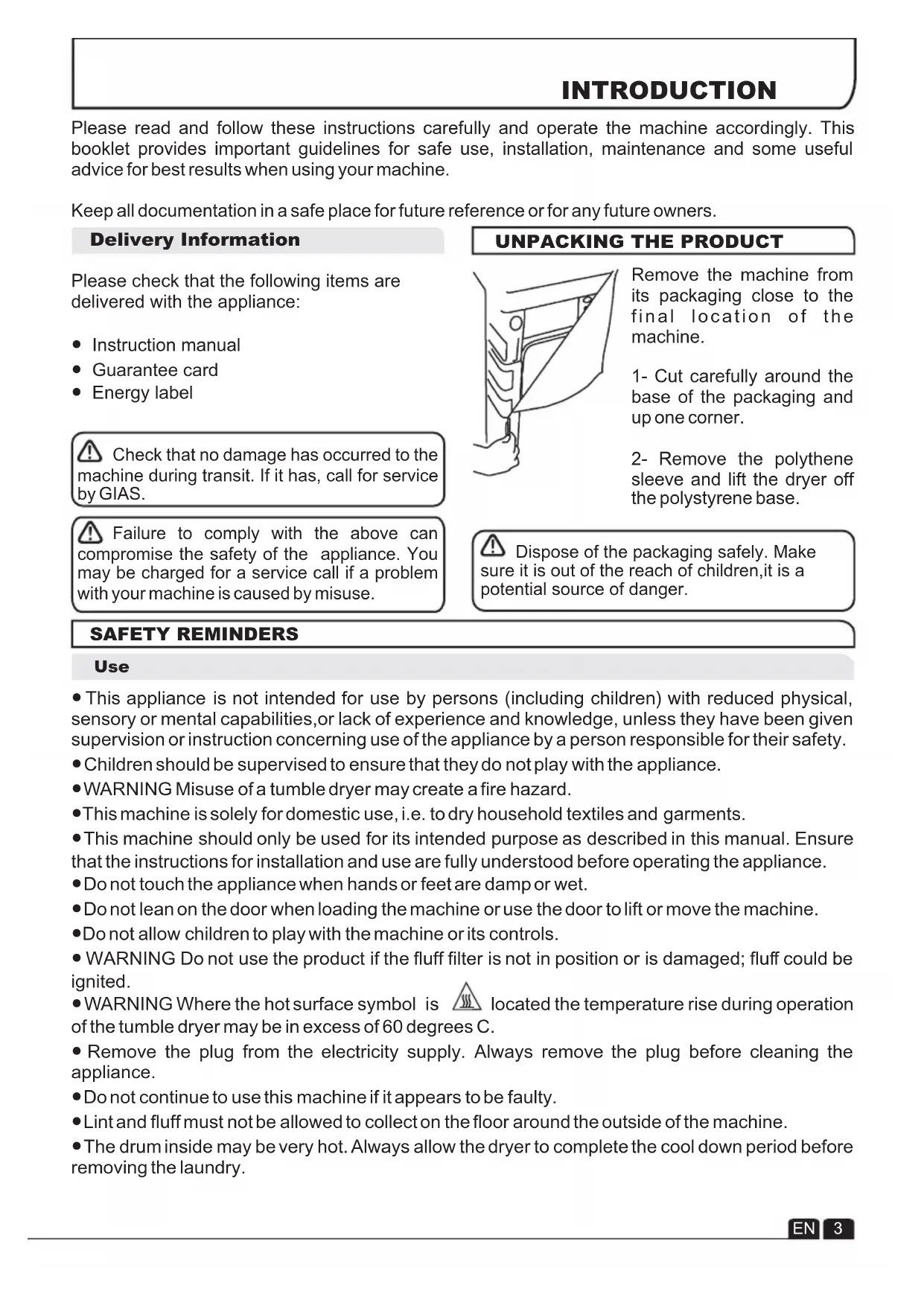

INTRODUCTION

Please read and follow these instructions carefully and operate the machine accordingly. This booklet provides important guidelines for safe use, installation, maintenance and some useful advice for best results when using your machine.

Keep all documentation in a safe place for future reference or for any future owners.

Delivery Information

Please check that the following items are delivered with the appliance:

• Instruction manual
• Guarantee card
• Energy label

⚠️ Check that no damage has occurred to the machine during transit. If it has, call for service by GIAS.

⚠️ Failure to comply with the above can compromise the safety of the appliance. You may be charged for a service call if a problem with your machine is caused by misuse.

UNPACKING THE PRODUCT

Line drawing of a hand holding a mechanical component, showing a folded or angled assembly (no text or symbols)

Remove the machine from its packaging close to the final location of the machine.

1- Cut carefully around the base of the packaging and up one corner.
2- Remove the polythene sleeve and lift the dryer off the polystyrene base.

⚠️ Dispose of the packaging safely. Make sure it is out of the reach of children, it is a potential source of danger.

SAFETY REMINDERS

Use

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• WARNING Misuse of a tumble dryer may create a fire hazard.
• This machine is solely for domestic use, i.e. to dry household textiles and garments.
• This machine should only be used for its intended purpose as described in this manual. Ensure that the instructions for installation and use are fully understood before operating the appliance.
• Do not touch the appliance when hands or feet are damp or wet.
• Do not lean on the door when loading the machine or use the door to lift or move the machine.
• Do not allow children to play with the machine or its controls.
• WARNING Do not use the product if the fluff filter is not in position or is damaged; fluff could be ignited.
• WARNING Where the hot surface symbol is ↗ located the temperature rise during operation of the tumble dryer may be in excess of 60 degrees C.
• Remove the plug from the electricity supply. Always remove the plug before cleaning the appliance.
• Do not continue to use this machine if it appears to be faulty.
• Lint and fluff must not be allowed to collect on the floor around the outside of the machine.
• The drum inside may be very hot. Always allow the dryer to complete the cool down period before removing the laundry.

Installation

- Check that the product has no visible signs of damage before use. If damaged do not use and please call GIAS Service.

- Do not use adapters, multiple connectors and/or extensions.

- Never install the dryer against curtains and be sure to prevent items from falling or collecting behind the dryer.

- The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer.

The Laundry

- Do not dry unwashed items in the tumble dryer.

- WARNING Do not tumble dry fabrics treated with dry cleaning fluids.

- WARNING Foam rubber materials can, under certain circumstances, when heated become ignited by spontaneous combustion. Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads MUST NOT be dried in the tumble dryer.

• Always refer to the laundry care labels for directions on suitability for drying.

- Clothes should be spin dried or thoroughly wrung before they are put into the tumble dryer. Clothes that are dripping wet should not be put into the dryer.

- Lighters and matches must not be left in pockets and NEVER use flammable liquids near the machine.

- Glass fibre curtains should NEVER be put in this machine. Skin irritation may occur if other garments are contaminated with the glass fibres.

- Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.

- Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.

Environmental Issues

- All packaging materials used are environmentally-friendly and recyclable. Please help dispose of the packaging via environmentally-friendly means. Your local council will be able to give you details of current means of disposal.

- To ensure safety when disposing of an old tumble dryer disconnect the mains plug from the socket, cut the mains power cable and destroy this together with the plug. To prevent children shutting themselves in the machine break the door hinges or the door lock.

European Directive 2002/96/EC

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

GIAS Service

- To ensure the continued safe and efficient operation of this appliance we recommend that any servicing or repairs are only carried out by an authorised GIAS service engineer.

If the appliance is not running properly or breaks down, switch it off and disconnect the plug from the socket. Consult GIAS Service for possible repair.

Electrical Requirements

Tumble dryers are supplied to operate at a voltage of 220-240V, 50 Hz single phase. Check that the supply circuit is rated to at least 6 A.

Electricity can be extremely dangerous.

This appliance must be earthed.

The socket outlet and the plug on the appliance must be of the same type.

Do not use multiple adapters and/or extension leads.

The plug should be accessible for disconnection after the appliance has been installed.

CE Appliance complies with European Directive 2004/108/EC, 2006/95/EC and subsequent amendments.

You may be charged for a service call if a item with your machine is caused by ect installation.

If the mains cord on this appliance is

damaged, it must be replaced by a special cord which is ONLY obtainable from the spares service. It must be installed by a competent person.

Do not plug the machine in and switch it

on at the mains until the installation is completed. For your safety, this dryer must be correctly installed. If there is any doubt about installation, call GIAS Service for advice.

Adjusting the Feet

Once the machine is in place the feet should be adjusted to ensure that the machine is level.

Hand holding a small object with directional arrows indicating rotation or movement (no text or symbols)

VENTILATION

Adequate ventilation must be provided in the room where the tumble dryer is located to prevent gases from appliances burning other fuels, including open fires, being drawn into the room during operation of the tumble dryer.

• Exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels.
• Check regularly that the air flowing through the dryer is not restricted.
• Check the fluff filter after use, and clean, if necessary.
• The inlet and outlets should be kept free from obstructions. To ensure adequate ventilation the space between the bottom of the machine and the floor must not be obstructed. There should be a gap of at least 12mm between the machine and any obstructions.
• Prevent items from falling or collecting behind the dryer as these may obstruct the air inlet and outlet.
• NEVER install the dryer up against curtains.

Important: During transport ensure that the dryer is in an upright position, if it's necessary you can only flip in the side shown;

Simple line drawing of a computer with a cross mark on screen (no text or symbols)

Simple line drawing of a washing machine with a checkmark on its side (no text or symbols)

Caution: If the product is in different side, wait at least 4 hours before switching on so that the oil can flow back into the compressor. Failure to do this could result in damage to the compressor. EN 5

DRAIN HOSE KIT: FITTING INSTRUCTIONS

To avoid having to empty the water container after each drying cycle, the water normally collected during the drying cycle can be discharged directly to a waste water drain pipe (the same drainage system as household sinks). Water Bye-Laws prohibit connection to a surface water drain. The waste water drain pipe system should be located adjacent to the tumble dryer.

The kit is composed: 1 hose, 1 straight hose connector, 1 pipe clip and 1 plastic tie.

WARNING!

Switch off and remove the

tumble dryer plug from the electricity supply before carrying out any work.

Fit the Kit as Follows:

1. Unscrew and remove the 3 screws, at the rear of the machine, retaining the worktop trim.

2. Remove the rear worktop trim and the worktop surface by carefully sliding it towards the rear of the machine.

3. The waste water container is situated at the right-hand side of the machine (viewed from the rear). A grey hose connects to the bridge above the water container. Using pliers, remove the pipe retaining clip from the bridge.

4. Pull the hose off the bridge connection.

5. Attach the hose from the kit, using the connector and pipe clips supplied, to the hose removed from the bridge connection.

Close-up of a hand using a tool to adjust or install a white electronic device (no visible text or symbols)

Close-up of a hand holding a small object with textured surface, possibly a tool or component (no visible text or symbols)

Close-up of a hand holding a white sheet of paper against a plain background (no text or symbols visible)

Close-up of a hand using pliers to handle a cable or wire (no visible text or symbols)

1. Take off the water container cover from the rear of the machine by removing the two screws and unclipping the cover.

2. Break off the tab on the side of the cover and replace the cover on the machine, refit the screws. You should now have revealed a hole in the back of the cabinet next to the Cover.

3. Feed the drain hose through the hole in the cabinet.

4. Locate the grey pipe in the cutout of the tray and secure the pipe assembly to the bridge with the plastic tie.

5. Carefully slide the worktop back into position ensuring that the hose is not trapped and replace the worktop rear trim with the 3 screws.

6. Connect the new drain hose to the waste water pipe. Make sure that the new hose does not kink when pushing the tumble dryer into position. Ensure that the guidelines, as shown, are followed when routing the new external hose.

7. Connect to the mains electricity supply.

8. After emptying the waste water container switch the machine ON (and press the 'START' button on electronic models) to commence with the drying program.

Close-up of a hand holding a metallic tool with threaded end, mounted on a white plastic housing (no visible text or symbols)

Close-up of a hand using a screwdriver to cut a white surface with visible lines (no text or symbols)

Close-up of a hand holding a small white plastic object with a protruding clip (no visible text or symbols)

Close-up of hands holding a black cable with a coiled spring (no visible text or symbols)

Close-up of electrical connectors and wiring (no visible text or symbols)

PREPARING THE LOAD

Before using the tumble dryer for the first time:

• Please read this instruction book thoroughly.
• Remove all items packed inside drum.
• Wipe the inside of the drum and door with a damp cloth to remove any dust which may have settled in transit.

Clothes Preparation

Make sure that the laundry you are going to dry is suitable for drying in a tumble dryer, as shown by the care symbols on each item.

Check that all fastenings are closed and that pockets are empty. Turn the articles inside out. Place clothes loosely in the drum to make sure that they don't get tangled.

Do Not Tumble Dry:

Woollens, silk, delicate fabrics, nylon stockings, delicate embroidery, fabrics with metallic decorations, garments with PVC or leather trimmings, training shoes, bulky items such as sleeping bags, etc.

IMPORTANT: Do not dry articles which have been treated with a dry cleaning fluid or other clothes (danger of fire or explosion).

During the last 15 minutes (roughly) the load is always tumbled in cool air

Energy Saving

Only put into the tumble dryer laundry which has been thoroughly wrung or spin-dried. The drier the laundry the shorter the drying time thus saving electricity.

ALWAYS

• Try to dry the maximum weight of laundry, this will save time and electricity.
• Check that the filter is clean before every drying cycle.

NEVER

• Exceed the maximum weight, this will waste time and electricity.
• Put dripping wet items into the tumble dryer, this may damage the appliance.

Maximum Drying Weight

- Cottons

Max. 8 kg

- Synthetics

Max. 4 kg

Do not overload the drum, large items when an exceed the maximum admissible clothes (for example: sleeping bags, duvets).

Sort the Load as Follows

- By care symbols

These can be found on the collar or inside seam:

Suitable for tumble drying.

Tumble drying at high temperature.

Tumble drying at low temperature only.

Do not tumble dry.

If the item does not have a care label it must be assumed that it is not suitable for tumble drying.

- By amount and thickness

Whenever the load is bigger than the capacity, separate clothes according to thickness (e.g. towels from thin underwear).

- By type of fabric

Cottons/linen: Towels, cotton jersey, bed and table linen.

Synthetics: Blouses, shirts, overalls, etc. made of polyester or polyamid, as well as for cotton/synthetic mixes.

- By drying level

Sort into: iron dry, cupboard dry, etc. For delicate articles press the 📊 button to select low drying temperature.

Do not install the product in a room where it is a risk of frost occurring. At temperature and freezing point the product may not be to operate properly: there is a risk of increase if the water is allowed to freeze in the hydraulic circuit (valves, hoses, pumps).

For a better product performance the ambient room temperature must be between +2°C and +35°C.

CONTROLS AND INDICATORS

Control Panel and Indicator Lights

Knob: You can turn it in both directions to choose the required programme.

Time selection ⚙:To modify the drying timing of required programme; it works only with certain programmes.

Delay start ⏻: To delay the start of the drying cycle and to dry your laundry when electricity costs less (please see dedicated section)

Delicate fabrics: When pulled, this indicator 📋 turns off and this new one 🌐 turns on; with this special function, the drying temperature is lower to better protect your delicate clothes.

Anti-Crease Button ☎ – Select the anti-crease function at the end of drying cycle. The drum keeps moving at regular phases to refresh the laundry.

Cool down ✿ : This indicator turns on during the final cool phase of the cycle.

Start/Pause ▷: To start the programme required or to pause the cycle.

Automatic programmes: Depending on desired programme, specific indicators turn on (please see "programme list"); ECO indicator turns on when you select a low consumption programme.

Filter care Ⓞ : When on, please clean the filters.

Full water tank 📋 : When on, please empty the water tank.

SELECTING THE PROGRAMME

This machine has a special Sensor Dry to help you choose your preferred programme simply by selecting the level of dryness wanted.

For small loads and pre-dried clothes, please use a Timing programme and select "Delicate fabrics" button to lower the temperature inside the drum.

If the Sensor does not detect any item, this Dryer will work for only 10 minutes before starting the Cool down phase.

If the load is too big or too wet, this Dryer will automatically work for 3 hours and then start the Cool down phase.

At the end of each programme, there is always the Cool Down phase: it is a cool-air refresh phase of around 15 minutes.

SELECTING THE PROGRAMME

PROGRAMME	IDEAL FOR
Perfect Home	Clothes you want completely dried, e.g. towels, bathrobes, table clothes or sheet. Time: around 3h.
Store Dry	Clothes you want to fold and store without ironing, e.g. shirts in mixed fabrics, socks, baby clothes. Time: around 2h and 45 min.
Hang Dry	Clothes you don't need to iron, but just hang after the drying cycle. Time: around 2h and 30 min.
Iron Dry	Leave clothes slightly damp to allow easier ironing. Time: around 1h and 50 min.
No Crease	Clothes you just need to refresh. Good for items of clothing which have been left prior to ironing or if they have been dried outside or on radiators. This programme has a specific Anti-Crease function that relaxes fibres and makes easier ironing. Time: 9 min + 3 min cool down.
Wool	To soften your woollen clothes or to simply refresh them after a long time in the wardrobe. Time: 12 min.
Mix & Dry	To dry mixed cotton and synthetic clothes: save time and no need to separate the washing and dry them in different cycles. Time: around 2h (max 4 kg).
Shirts	To dry shirts both cotton and synthetic fabrics. Time: 1h for 2kg of synthetic shirts (around 10 shirts); 1h and 20 min for 3 kg of cotton shirts (around 10 shirts).
Rapid 40'	For dry, refreshed and ready to dress clothes in onyl 40 minutes. Sensor system keeps under control the temperature to have always the best result. Max 2 kg.
Time	If you want to choose drying times, from 30 to 180 minutes. By selecting “20 min” you choose a “cool programme”, ideal to refresh clothes and to remove eventual smells.
Jeans	To dry up to 4 kg of Jeans (around 5 pairs). The programme works for around 2h, but timing can change according to the load and washing spin speed. Jeans programme can only be used for 100% cotton items, please do not mix colours nor dry jeans with embroideries or accessories.

Opening the Door

Line drawing of a hand cleaning a circular mechanical component (no text or symbols)

Pull on handle to open the door.

To restart the dryer, close the door and press ▷.

WARNING! When the tumble dryer is in use the drum and door may be VERY HOT. Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

Filter

IMPORTANT: To maintain the efficiency of the dryer check that the fluff filter is clean before each drying cycle.

Do not operate the dryer without the filters. Clogged filters can increase the drying time and cause damage which may result in expensive repair costs.

1. Pull the filter upwards.
2. Open filter as shown.
3. Gently remove lint using a soft brush or your fingertips.
4. Snap the filter together and push back into place.

Line drawing of a hand holding a rectangular object inside a car (no text or symbols)

Filter Care Indicator

● Lights when the filter needs cleaning.

Check and clean the main filter in the door and the condenser filters allocated in the bottom of the dryer, If the laundry is not drying check that the filter is not clogged.

Illustration of two hands holding a folded or layered object, no text or symbols present

To Clean the Condenser Filter

1. Remove the kickplate.
2. Turn the two locking levers anti-clockwise and pull out the front cover.
3. Gently remove the filter frame and clean any dust or fluff with a cloth from the filter. Do not use water to clean the filter.
4. Remove the sponge gently from its place and then wash the sponge by holding it under a running tap turning it so to remove any dust or fluff.
5. Refit the front cover ensuring it is in the correct way (as indicated by the arrow) and pushed firmly into place. Lock the two levers by turning them clockwise.
6. Refit the kickplate.

Illustration of hands installing or adjusting a rectangular panel with a circular component (no text or symbols)

Top-down view of a rectangular device with four small accessories on its sides (no text or symbols visible)

Illustration of two hands adjusting a rectangular object with internal lines (no text or symbols)

Illustration of hands holding a mechanical component with a blade, no text or symbols present

Hand inserting a component into a plastic housing (no text or symbols visible)

DO NOT USE WATER TO CLEAN THE FILTER.

The water removed from the laundry during the drying cycle is collected in a container inside the door of the dryer. When the container is full the 📋 indicator on the control panel will light, and the container MUST be emptied. However, we recommend that the container is emptied after each drying cycle. NOTE: Very little water will collect during the first few cycles of a new machine as an internal reservoir is filled first.

To Remove the Container

1. Gently pull out the tray until it is completely removed. Support the tray with both hands. When it is full the water container will weigh about 4kg.

2. Tilt the water container to empty the water out through the rear hole.

When emptyslide the water container back into position. PUSH FIRMLY INTO PLACE.

1. Press ▷III to restart the cycle.

NOTE: If you have the option of drainage near the dryer it is possible to use the discharge kit to provide a permanent drain for the water collected by the dryer. This will remove the need to empty the water tray. All the information for assembly of the kit is contained in the kit envelope.

Line drawing of a hand holding a circular object over a surface, with no visible text or symbols

Line drawing of two hands shaking over a tool (no text or symbols)

Line drawing of a hand pressing down on a curved surface with two circular objects above (no text or symbols)

OPERATION

1. Open the door and load the drum with laundry. Ensure that garments do not hinder closure of the door.

2. Gently close the door pushing it slowly until you hear the door 'click' shut.

3. Turn the Programme Selector dial to select the required drying programme (see Programme Guide).

4. If drying synthetics, acrylics or delicate items, press the ☐ button to reduce the heat level. The indicator will light up when the machine is in low heat setting. To deselect in the first few minutes of the programme, press the ☐ button, after this time reset the machine to change the setting.

5. Press the ▷■ button. The dryer will start automatically and the indicator above the button will be continuously lit.

6. If the door is opened during the programme to check the laundry, it is necessary to press to recommence drying after the door has been closed.

7. When the cycle is nearing completion the machine will enter the cool down phase, the clothes will be tumbled in cool air allowing the load to cool down.

8. Following the completion of the cycle the drum will rotate intermittently to minimize creasing. This will continue until the machine is switched OFF or the door is opened.

Do not open the door during the automatic programs in order to obtain a proper drying.

Delay Start Function

The Delay Start Function ⏻ allows the user to delay the start of the drying cycle by 1 to 24 hours.

When the function is first selected the display will show a delay of 1 hour, subsequent presses of the button will increase the delay with 1 hour steps.

To commence the programme press ▷ and the appliance will complete the drying cycle at the end of this time. The indicator light will flash to indicate that the start delay is in progress.

Cancelling and Resetting the Programme

To cancel a programme press the ▷■button for 3 seconds. In the TIME CONTROL display 0:00 Light will flash to indicate that it has been reset.

CLEANING AND ROUTINE MAINTENANCE

Cleaning the Dryer

• Clean the filter and empty the water container after every drying cycle.
  • Regularly clean the filters.
• After each period of use, wipe the inside of the drum and leave the door open for a while to allow circulation of air to dry it.
• Wipe the outside of the machine and the door with a soft cloth.
• DO NOT use abrasive pads or cleaning agents.
• To prevent the door sticking or the build up of fluff clean the inner door and gasket with a damp cloth after every drying cycle.

WARNING! The Drum, door and load may very hot.

Technical Specifications

Drum capacity	115 litres
Maximum load	8 kg
Height	85 cm
Width	60 cm
Depth	60 cm
Energy Label Band	A +

Information for Test Laboratory

EN 61121 Programme	Programme To Use
-DRY COTTON	-HANG DRY
-IRON DRY COTTON	-IRON DRY
-EASY-CARE TEXTILE	-HANG DRY + SYNTHETIC

Note: Install and use the drain hose to discharge the condensing water.

IMPORTANT Always switch off and remove the plug from the electricity supply before cleaning this appliance.

For electrical data refer to the rating label on the front of the dryer cabinet (with the door open).

What Might be the Cause of...

Defects you can remedy yourself

Before calling GIAS Service for technical advice please run through the following checklist. A charge will be made if the machine is found to be working or has been installed incorrectly or used incorrectly.

If the problem persists after completing the recommended checks, please call GIAS Service, they may be able to assist you over the telephone.

Time display to end could change during drying cycle. The time to end is continuously checked during the drying cycle and the time is adjusted to give the best estimation time. The displayed time may increase or decrease during the cycle and this is normal.

Drying time is too long/clothes are not dry enough...

• Have you selected the correct drying time/programme?
• Were the clothes too wet? Were the clothes thoroughly wrung or spindried?
• Does the filter need cleaning?
• Is the dryer overloaded?
• Has the option been selected from a previous cycle?

The dryer does not operate...

• Is there a working electricity supply to the dryer? Check using another appliance such as a table lamp.
• Is the plug properly connected to the mains supply?
  • Is there a power failure?
• Has the fuse blown?
• Is the door fully closed?
• Is the dryer switched on, both at the mains supply and at the machine?
• Has the drying time or the programme been selected?
• Has the machine been switched on again after opening the door?

The dryer is noisy...

- Switch off the dryer and contact GIAS Service for advice.

The 📄 Indicator is on...

- Does the filter need cleaning?

The 📋 Indicator is on...

- Does the water container need emptying?

CUSTOMER SERVICE

Should there still be a problem with your dryer after completing all the recommended checks, please call GIAS Service for advice.

They may be able to assist you over the telephone or arrange for a suitable appointment for an engineer to call under the terms of your guarantee. However, a charge may be made if any of the following applies to your machine:

• Is found to be in working order.

- Has not been installed in accordance with the installation instructions.

- Has been used incorrectly.

Spares

Always use genuine spares, available direct from GIAS Service.

GIAS Service

For service and repairs call your local GIAS Service engineer.

The manufacturer declines all responsibility in the event of any printing mistakes in this booklet. The manufacturer also reserves the right to make appropriate modifications to its products without changing the essential characteristics.

Introduzione 15

Line drawing of a hand holding a door panel, showing structural details (no text or symbols)

Illustration of a hand holding a small object with directional arrows indicating rotation or movement (no text or symbols)

VENTILAZIONE

Technical line drawing of a mechanical component with hatched fill and mounting bracket (no text or symbols)

Close-up of a hand using a tool to adjust or install a white plastic component (no visible text or symbols)

Close-up of a hand holding a small rectangular object with textured surface (no visible text or symbols)

Close-up of a hand holding a white object against a plain background (no text or symbols visible)

Close-up of hands using pliers to handle a coiled cable or wire (no text or symbols visible)

Close-up of a hand holding a coiled pipe or hose component, with no visible text or symbols.

Close-up of a hand using a screwdriver to press down a white appliance (no visible text or symbols)

Close-up of a hand holding a small white plastic object with a pointed tip (no visible text or symbols)

Close-up of hands connecting black hoses to a white surface, no visible text or symbols

Close-up of a car's front suspension system with visible hoses and wiring (no text or symbols)

Line drawing of a hand adjusting a circular component (no text or symbols)

Line drawing of a hand holding a rectangular object inside a car (no text or symbols)

Illustration of two hands holding a folded or layered object, no text or symbols present

Pulizia Filtro

Illustration of hands installing or adjusting a mechanical component with a circular component (no text or symbols visible)

Top-down view of a rectangular object with four small icons on its surface, no text or symbols visible.

Illustration of two hands holding a rectangular object with internal markings (no text or symbols visible)

Illustration of hands holding a tool or device with a shaded blade (no text or symbols visible)

Hand inserting a component into a rectangular housing (no text or symbols visible)

NON USARE ACQUA PER PULIRE IL FILTRO

VASCHETTA DELL'ACQUA

Hand cleaning a car window with a cloth (no text or symbols visible)

Line drawing of two hands shaking over a surface, no text or symbols present

Line drawing of a hand holding a small object near the lower part of a body (no text or symbols)

FUNZIONAMENTO

Line drawing of a hand holding a mechanical component, showing internal structure without any text or symbols

Illustration of a hand holding a small object with directional arrows indicating rotation or movement (no text or symbols)

ENTLÜFTUNG

Black rubber hose with two plastic clips and a separate screw (no text or symbols visible)

Close-up of a hand using a screwdriver to adjust or install a component on a white shelf (no visible text or symbols)

Close-up of a hand holding a small white object against a textured gray background (no text or symbols visible)

Close-up of a hand holding a white object against a plain background (no text or symbols visible)

Close-up of a hand using pliers to tighten a cable (no text or symbols visible)

Close-up of hands holding a metallic tool with threaded spring and black connector (no visible text or symbols)

Close-up of a hand using a screwdriver to cut a white surface with visible lines (no text or symbols)

Close-up of a hand holding a white plastic object with a small protrusion (no visible text or symbols)

Close-up of hands holding a black cable with coiled tubing, no visible text or symbols

Close-up of a mechanical component with black hoses and connectors (no visible text or symbols)

Line drawing of a hand adjusting a circular component with a handle (no text or symbols)

Line drawing of a hand inserting a card into a car door (no text or symbols)

Flusensieb-Anzeige

Illustration of two hands holding a folded or folded object with visible internal structure (no text or symbols)

Illustration of hands installing or adjusting a rectangular panel inside a cabinet (no text or symbols visible)

Top-down view of a rectangular device with four small mechanical components on its surface (no text or symbols visible)

Illustration of two hands holding a rectangular object with internal markings (no text or symbols visible)

Illustration of hands holding a mechanical component with a blade, no text or symbols present

Illustration of a hand inserting a component into a rectangular housing (no text or symbols visible)

KONDENSWASSER-BEHÄLTER

Hand cleaning a surface with a cloth (no text or symbols visible)

Line drawing of two hands shaking over a surface (no text or symbols)

Line drawing of a hand holding a circular object above a curved surface (no text or symbols)

BETRIEB

Line drawing of a hand holding a door panel, showing structural details (no text or symbols)

Illustration of a hand holding a small object with directional arrows indicating rotation or movement (no text or symbols)

VENTILATION

Technical line drawing of a mechanical component with hatched area and internal structure (no text or symbols)

Black rubber hose with two plastic clips and a separate screw (no text or symbols visible)

Close-up of a hand using a screwdriver to adjust or install a component, no visible text or symbols

Close-up of a hand holding a white rectangular object with a textured edge, possibly a mechanical or architectural component (no visible text or symbols)

Close-up of a hand holding a white paper with a small object near the edge (no visible text or symbols)

Close-up of hands using a pliers to handle a coiled cable or wire (no visible text or symbols)

Close-up of hands holding a coiled spring and a black tool, no visible text or symbols

Close-up of a hand using a screwdriver to cut a white surface with visible lines (no text or symbols)

Close-up of a hand holding a white plastic object with a small protrusion (no visible text or symbols)

Close-up of hands holding a black cable with a coiled spring (no visible text or symbols)

Close-up of a mechanical component with black hoses and metal brackets (no visible text or symbols)

PRÉPARATION DE LA CHARGE

Line drawing of a hand adjusting a circular component with a handle (no text or symbols)

Line drawing of a hand opening a car door with a closed lid (no text or symbols)

Illustration of two hands holding a folded or folded object with visible internal structure (no text or symbols)

Illustration of hands installing or adjusting a rectangular panel with a circular component above (no text or symbols)

Top-down view of a rectangular object with four small icons on its surface, no text or symbols visible.

Illustration of two hands holding a rectangular object with internal lines (no text or symbols)

Illustration of hands using a tool to cut a mechanical component (no text or symbols visible)

Hand inserting a component into a rectangular housing (no text or symbols visible)

CONDENSEUR

RÉSERVOIR D'EAU

Line drawing of a hand cleaning a surface with a cloth (no text or symbols)

Line drawing of two hands shaking over a surface (no text or symbols)

Line drawing of a hand pressing down on a curved surface with circular and ring elements (no text or symbols)

FONCTIONNEMENT

Line drawing of a hand holding a mechanical component, showing internal structure without any text or symbols

Illustration of a hand holding a small object with arrows indicating direction (no text or symbols)

VENTILATIE

Technical line drawing of a mechanical component with hatched area and connecting rods (no text or symbols)

Air Outlets in the Base

Close-up of a hand holding a tool interacting with a white plastic door handle (no visible text or symbols)

Close-up of a hand holding a small rectangular object with textured surface (no visible text or symbols)

Close-up of a hand holding a white sheet of paper, partially obscured by a small object (no visible text or symbols)

Close-up of a hand using pliers to handle a coiled cable or wire (no text or symbols visible)

Close-up of a hand holding a coiled pipe or tool against a white background (no visible text or symbols)

Close-up of a hand using a power tool to cut or mark a white plastic component (no visible text or symbols)

Close-up of a hand holding a white plastic object with a small protrusion (no visible text or symbols)

Close-up of hands connecting a black cable to a white plastic sheet (no text or symbols visible)

Close-up of electrical connectors and wiring (no visible text or symbols)

HET WASGOED VOORBEREIDEN

Line drawing of a hand cleaning a circular mechanical component (no text or symbols)

Line drawing of a hand holding a rectangular object inside a car (no text or symbols)

Illustration of two hands holding a folded or folded object, no text or symbols present

Illustration of hands installing or adjusting a rectangular panel inside a cabinet (no text or symbols visible)

Top-down view of a rectangular device with four small accessories on its sides (no text or symbols visible)

Illustration of two hands holding a rectangular object with internal markings (no text or symbols)

Illustration of hands holding a mechanical component with a blade, no text or symbols present

Illustration of a hand inserting a component into a plastic housing (no text or symbols visible)

Hand holding a sheet of paper or paper, partially covered by a curved surface (no text or symbols visible)

Line drawing of two hands shaking over a surface, no text or symbols present

Line drawing of a hand pressing down on a surface with circular and ring elements (no text or symbols)

BEDIENING

Line drawing of a hand holding a mechanical component, showing a folded or angled assembly (no text or symbols)

Illustration of a hand holding a small object with directional arrows indicating rotation or movement (no text or symbols)

VENTILAÇÃO

Technical line drawing of a mechanical component with hatched area and connecting rods (no text or symbols)

Aberturas de saída do ar na base

Black rubber hose with two plastic clips and a separate screw (no text or symbols visible)

Close-up of a hand using a screwdriver to adjust or install a component on a white shelf (no visible text or symbols)

Close-up of a hand holding a small white object with a textured surface, possibly a tool or component (no visible text or symbols)

Close-up of a hand holding a small object near a wall, possibly a tool or device (no visible text or symbols)

Close-up of hands using pliers to handle a cable or wire (no text or symbols visible)

Close-up of hands holding a coiled spring and a black tool inside a white plastic housing (no visible text or symbols)

Close-up of a hand using a screwdriver to cut or mark a white surface with diagonal lines (no text or symbols visible)

Close-up of a hand holding a white plastic object with a small protrusion (no visible text or symbols)

Close-up of hands holding a black cable with coiled tubing, no visible text or symbols

Close-up of a mechanical component with black hoses and connectors (no visible text or symbols)

PREPARAÇÃO DA CARGA

Line drawing of a hand adjusting a circular component with a handle (no text or symbols)

Line drawing of a hand opening a car door with a closed door (no text or symbols)

Indicador de Controlo do Estado do Filtro

Illustration of two hands holding a folded or layered object, no text or symbols present

Illustration of hands installing or adjusting a rectangular panel with a circular component above (no text or symbols)

Top-down view of a rectangular device with four small mechanical components on its surface (no text or symbols visible)

Illustration of two hands holding a rectangular object with internal markings (no text or symbols)

Illustration of hands holding a flatbed object with a knife, no text or symbols present

Illustration of a hand inserting a component into a device housing (no text or symbols visible)

Hand cleaning a surface with a cloth (no text or symbols visible)

Line drawing of two hands shaking over a surface (no text or symbols)

Line drawing of a hand holding a curved object with circular and ring elements (no text or symbols)

UTILIZAÇÃO

Line drawing of a hand holding a mechanical component, no text or symbols present

Hand holding a small object with directional arrows indicating rotation or movement (no text or symbols)

POISTOTUULETUS

Pure technical diagram of a mechanical or electrical component without any text, numbers, or symbols

Black flexible hose with two plastic clips and a separate screw (no text or symbols visible)

Close-up of a hand using a screwdriver to adjust or install a component (no visible text or symbols)

Close-up of a hand holding a white rectangular object with a textured edge, possibly a wall or panel (no visible text or symbols)

Close-up of a hand holding a pen near a wall corner (no visible text or symbols)

Close-up of hands using pliers to handle a cable or wire (no text or symbols visible)

Close-up of a hand holding a metallic tool with threaded spring, partially enclosed in a white plastic housing (no visible text or symbols)

Close-up of a hand using a screwdriver to cut a white surface with visible lines (no text or symbols)

Close-up of a hand holding a white plastic object with a small protrusion (no visible text or symbols)

Close-up of hands holding a black cable with coiled tubing (no visible text or symbols)

Close-up of electrical connectors and wiring (no visible text or symbols)

Line drawing of a hand adjusting a circular component with a handle (no text or symbols)

Line drawing of a hand opening a car door with a rectangular panel inside (no text or symbols)

Illustration of two hands holding a folded or layered object with visible internal structure (no text or symbols)

Illustration of hands installing or removing a mechanical component into a cabinet (no text or symbols visible)

Top-down view of a rectangular object with four small icons on its surface, no text or symbols visible.

Illustration of two hands holding a rectangular object with internal lines (no text or symbols)

Illustration of hands holding a mechanical component with a shaded blade (no text or symbols)

Hand inserting a component into a plastic housing (no text or symbols visible)

⚠️ ÄLÄ PUHDISTA SUODATINTA VEDELLÄ.

VESISÄILIÖ

Hand holding a sheet of paper or paper, partially covered by a curved surface (no text or symbols visible)

Line drawing of two hands shaking over a surface, no text or symbols present

Line drawing of a hand holding a small object near the lower part of a human body (no text or symbols)

KÄYTTÖ

Line drawing of a hand holding a mechanical component, showing a folded or folded structure (no text or symbols)

Illustration of a hand holding a small object with directional arrows indicating rotation or movement (no text or symbols)

VENTILATION

Technical line drawing of a mechanical component with hatched fill and pipe connection (no text or symbols)

Luftuttak i bunnen

Simple line drawing of a floppy disk with a central X mark (no text or symbols)

Black cable with two plastic clips and a separate screw, shown without any text or symbols.

Close-up of a hand using a tool to adjust or install a white electronic device component (no visible text or symbols)

Close-up of a hand holding a white rectangular object with a textured edge, possibly a wall or panel (no visible text or symbols)

Close-up of a hand holding a white sheet of paper with a small object near the edge (no visible text or symbols)

Close-up of hands using pliers to handle a cable or wire (no text or symbols visible)

Close-up of a hand holding a coiled spring component, partially enclosed in a white plastic housing (no visible text or symbols)

Close-up of a hand using a screwdriver to clean or store items on a white surface (no visible text or symbols)

Close-up of a hand holding a small white plastic object with a protruding clip (no visible text or symbols)

Close-up of hands holding a black cable with coiled tubing (no visible text or symbols)

Close-up of a mechanical component with black hoses and connectors (no visible text or symbols)

FORBEREDELSE AF ILÆGNING AF T∅J

Line drawing of a hand adjusting a circular component with a handle (no text or symbols)

Line drawing of a hand holding a rectangular object inside a car (no text or symbols)

Illustration of two hands holding a folded or layered object, no text or symbols present

BRUG IKKE VAND TIL RENG∅RING AF FILTERET

Illustration of hands installing or adjusting a wall-mounted panel, no text or symbols present

Top-down view of a rectangular object with four small mechanical components on its surface (no text or symbols visible)

Illustration of two hands holding a metallic object with a V-shaped opening (no text or symbols)

Illustration of hands using a tool to cut a mechanical component (no text or symbols visible)

Illustration of a hand inserting a component into a plastic housing (no text or symbols visible)

IKKE BRUK VANN FOR Å RENGJ∅RE FILTERET.

VANDBEHOLDER

Hand cleaning a car window with a cloth (no text or symbols visible)

Line drawing of two hands shaking over a surface (no text or symbols)

Line drawing of a hand holding a small object near the bottom of a curved surface (no text or symbols)

BETJENING

Line drawing of a hand holding a mechanical component, no text or symbols present

SIKKERHETSPÅMINNELSER

Bruk

SIKKERHETSPÅMINNELSER

Installasjon

Illustration of a hand holding a small object with directional arrows indicating motion (no text or symbols)

VENTILASJON

Two identical diagrams showing a washing machine with a cross mark and a checkmark, no text or symbols present.

Black rubber hose with two plastic clips and a separate screw (no text or symbols visible)

Close-up of a hand using a tool to adjust or install a component, no visible text or symbols

Close-up of a hand holding a small white object with a textured edge, possibly a tool or component (no visible text or symbols)

Close-up of a hand holding a white sheet of paper, partially obscured by a ruler (no visible text or symbols)

Close-up of hands using pliers to handle a cable or wire (no text or symbols visible)

Close-up of hands holding a mechanical component with threaded spring and black cable (no visible text or symbols)

Close-up of a hand using a screwdriver to cut a white surface with visible cracks (no text or symbols)

Close-up of a hand holding a white plastic object with a small protrusion (no visible text or symbols)

Close-up of hands holding a coiled black cable with a metallic connector (no visible text or symbols)

Close-up of a mechanical component with coiled black cables and flanges (no visible text or symbols)

GJ∅RE KLART T∅YET

Line drawing of a hand cleaning a circular mechanical component (no text or symbols)

Line drawing of a hand opening a car door with a closed door (no text or symbols)

Indikator For Filtervedlikehold

Illustration of two hands holding a folded or layered object, no text or symbols present

Illustration of hands installing or adjusting a cabinet panel (no text or symbols visible)

Top-down view of a rectangular device with four small accessories on its surface (no text or symbols visible)

Illustration of two hands holding a rectangular object with internal lines (no text or symbols)

Illustration of hands holding a rectangular object with a knife inserted, no text or symbols present

Hand inserting a component into an open electrical enclosure (no text or symbols visible)

IKKE BRUK VANN FOR Å RENGJ∅RE FILTERET.

VANNBEHOLDER

Line drawing of a hand cleaning a curved surface with a cloth (no text or symbols)

Line drawing of two hands shaking over a surface (no text or symbols)

Line drawing of a hand pressing down on a surface with circular features (no text or symbols)

BRUK AV MASKINEN

UPPACKNING AV PRODUKTEN

Line drawing of a hand holding a door panel with a diagonal line indicating alignment or folding (no text or symbols)

Hand holding a small object with directional arrows indicating rotation or movement (no text or symbols)

VENTILATION

Simple line drawing of a floppy disk with a central X mark (no text or symbols)

Black flexible hose with two plastic clips and a separate screw (no text or symbols visible)

Close-up of a hand using a screwdriver to adjust or install a component (no visible text or symbols)

Close-up of a hand holding a white rectangular object with a textured edge, possibly a wall or panel (no visible text or symbols)

Close-up of a hand holding a pen near a wall corner (no visible text or symbols)

Close-up of hands using pliers to handle a cable or wire (no text or symbols visible)

Close-up of a hand holding a metallic tool with threaded spring attached to a white plastic housing (no visible text or symbols)

Close-up of a hand using a screwdriver to cut a white surface with visible lines (no text or symbols)

Close-up of a hand holding a white plastic cylindrical object with a small protrusion (no visible text or symbols)

Close-up of hands holding a black cable with coiled tubing (no visible text or symbols)

Close-up of electrical wiring with black hoses and connectors (no visible text or symbols)

FÖRBEREDA LASTEN

Line drawing of a hand adjusting a circular component (no text or symbols)

Line drawing of a hand holding an open book inside a car (no text or symbols)

Filterindikator

Illustration of two hands holding a folded or folded object with visible internal structure (no text or symbols)

Illustration of hands installing or adjusting a wall-mounted shelf panel (no text or symbols visible)

Simple diagram of a rectangular container with four small icons on its sides, no text or symbols present.

Illustration of two hands holding a rectangular object with internal markings (no text or symbols)

Illustration of hands holding a rectangular object with a knife inserted, no text or symbols present

Illustration of a hand inserting a component into a device housing (no text or symbols visible)

RENGÖR INTE FILTRET MED VATTEN.

VATTENBEHÅLLARE

Hand cleaning a car window with a cloth (no text or symbols visible)

Line drawing of two hands shaking over a surface (no text or symbols)

Line drawing of a hand holding a circular object above a curved surface (no text or symbols)

ANVÄNDNING

Line drawing of a hand holding a bracket with a diagonal line indicating alignment or folding (no text or symbols)

Illustration of a hand holding a small object with directional arrows indicating rotation (no text or symbols)

ΕΞΑΕΡΙΣΜΟΣ

Technical line drawing of a mechanical component with hatched fill and curved rail (no text or symbols)

Close-up of a hand using a tool to adjust or install a white electronic device (no visible text or symbols)

Close-up of a hand holding a small object, possibly a tool or component, with no visible text or symbols.

Close-up of a hand holding a white sheet of paper, with no visible text or symbols

Close-up of hands using pliers to handle a coiled cable or wire (no text or symbols visible)

Close-up of a hand holding a metallic tool with threaded end, mounted on a white plastic housing (no visible text or symbols)

Close-up of a hand using a screwdriver to cut a white surface with black lines (no text or symbols visible)

Close-up of a hand holding a white plastic object with a small protrusion (no visible text or symbols)

Close-up of hands connecting a black cable with a coiled cable (no text or symbols visible)

Close-up of electrical connectors and wiring (no visible text or symbols)

Line drawing of a hand cleaning a circular mechanical component (no text or symbols)

Line drawing of a hand opening a car door with a rectangular panel inside (no text or symbols)

Illustration of two hands holding a folded or layered object with internal structure (no text or symbols)

Illustration of hands installing or adjusting a mechanical component with a circular component (no text or symbols visible)

Top-down view of a rectangular device with four small icons on its surface (no text or symbols visible)

Illustration of two hands inserting a component into a device (no text or symbols visible)

Illustration of hands using a knife to cut a rectangular object (no text or symbols visible)

Illustration of a hand inserting into a plastic housing component (no text or symbols visible)

Hand cleaning a surface with a cloth (no text or symbols visible)

Line drawing of two hands shaking over a surface, no text or symbols present

Line drawing of a hand pressing down on a surface with a circular object and ring (no text or symbols)

ΛΕΙΤΟΥΡΓΙΑ

Line drawing of a hand holding a mechanical component, no text or symbols present

Hand holding a small object with directional arrows indicating motion or force (no text or symbols)

Вентилация

Technical line drawing of a mechanical component with hatched area and connecting rods (no text or symbols)

Simple line drawing of a computer monitor with a cross mark on the screen (no text or symbols)

Simple line drawing of a washing machine with a checkmark overlay (no text or symbols)

Close-up of a hand using a screwdriver to adjust a white plastic component (no text or symbols visible)

Close-up of a hand holding a metal bracket with a white plastic sheet (no text or symbols visible)

Close-up of a hand holding a white surface against a plain background (no text or symbols visible)

Close-up of hands using a pliers to handle a coiled cable or wire (no visible text or symbols)

Close-up of hands assembling a mechanical component with a coiled spring (no visible text or symbols)

Close-up of a hand using a screwdriver to cut or mark a white plastic component (no visible text or symbols)

Close-up of a hand holding a small white plastic object, possibly a container or mechanical part (no visible text or symbols)

Close-up of hands holding a black cable with a coiled cable (no visible text or symbols)

Close-up of a mechanical component with coiled black cables and a white frame (no visible text or symbols)

Line drawing of a hand cleaning a circular mechanical component (no text or symbols)

Line drawing of a hand holding a rectangular object inside a car (no text or symbols)

Illustration of two hands holding a folded or layered object with visible structural elements (no text or symbols)

Illustration of hands installing or adjusting a rectangular panel with a circular inset (no text or symbols)

Top-down view of a rectangular object with three small icons on its surface, no text or symbols visible.

Illustration of two hands adjusting a rectangular object with internal lines (no text or symbols)

Illustration of hands using a tool to cut a rectangular object (no text or symbols visible)

Illustration of a hand inserting a component into a rectangular housing (no text or symbols)

Line drawing of a hand cleaning a curved surface with a cloth (no text or symbols)

Line drawing of two hands shaking over a surface, no text or symbols present

Line drawing of a hand holding a small object near the bottom of a curved surface (no text or symbols)

Начин на работа

Line drawing of a hand holding a mechanical component, showing internal structure and alignment (no text or symbols)

European Directive 2002/96/EC

Hand holding a small object with arrows indicating rotation or movement (no text or symbols)

PRETOK ZRAKA

Technical line drawing of a mechanical component with hatched fill and internal structure (no text or symbols)

Air Outlets in the Base

Simple line drawing of a floppy disk with a central X mark and textured base (no text or symbols)

Black rubber hose with two plastic clips and a separate screw (no text or symbols visible)

Close-up of a hand using a screwdriver to adjust or install a component (no visible text or symbols)

Close-up of a hand holding a white rectangular object against a textured wall (no text or symbols visible)

Close-up of a hand holding a white sheet of paper, partially obscured by a tool (no visible text or symbols)

Close-up of hands using pliers to handle a cable or wire (no text or symbols visible)

Close-up of hands holding a mechanical component with threaded spring and black connector (no visible text or symbols)

Close-up of a hand using a tool to clean or store floor tiles (no visible text or symbols)

Close-up of a hand holding a white plastic object with a small protrusion (no visible text or symbols)

Close-up of hands holding a black cable with a coiled spring (no visible text or symbols)

Close-up of electrical connectors and wiring (no visible text or symbols)

PRIPRAVA NA POLNJENJE STROJA

Line drawing of a hand adjusting a circular component (no text or symbols)

Line drawing of a hand inserting a card into a car interior (no text or symbols)

Signalna Lučka za Stanje Filtra

se prižge, ko je treba filter očistiti.

Če se perilo ne suši pravilno, preverite, da ni filter Zamašen.

Illustration of two hands holding a folded or folded object with visible internal structure (no text or symbols)

Illustration of hands installing or adjusting a cabinet panel (no text or symbols visible)

Top-down view of a rectangular object with four small icons on its surface, no visible text or symbols.

Illustration of two hands adjusting a mechanical component (no text or symbols visible)

Illustration of hands using a tool to cut a mechanical component (no text or symbols visible)

Illustration of a hand inserting a component into a rectangular housing (no text or symbols)

⚠ Nepoužívajte vodu a na čistenie filtra.

Hand holding a sheet of paper or paper, partially covered by a circular object (no text or symbols visible)

Line drawing of two hands shaking over a pole (no text or symbols)

Line drawing of a hand holding a small object near the lower part of a curved surface (no text or symbols)

UPORABA SUŠILNEGA STROJA

1. Odprite vrata in vložite perilo v boben. Pazite, da perilo ne ovira zapiranje vrat.

2. Nežno zaprite vrata – potisnite jih proti stroju, dokler se slišno ne zaprejo.

3. Obrnite gumb za izbiranje programov na ustrezen program (gl. razpredelnico programov).

Information for Test Laboratory

Program EN 61121	Ustrezni program
-Bombaž, Suho	-Za v omaro
-Bombaž, za likanje	-Za likanje
-Um. tkanine	-Za v omaro-Sintetika

POMEMBNO: Preden začnete stroj čistiti, redno ugasnite in izvlecite električni vtič iz nice.
