VZ40N - Sink SMEG - Free user manual and instructions

Find the device manual for free VZ40N SMEG in PDF.

SMEG VZ40N - Sink
📄 42 pages English EN ⬇ Download 💬 AI Question ❓ 10 questions ⚙️ Specs
Notice SMEG VZ40N - page 6
6 / 42
Pick your language and provide your email: we'll send you a specifically translated version.
Product type Kitchen sink
Brand Smeg
Model VZ40N
Material Stainless steel or composite (not specified)
Dimensions (L x W x H) 500 x 450 x 200 mm (estimated)
Approximate weight 5 kg (estimated)
Power supply None (non-electric sink)
Installation type Built-in or undermount (depending on configuration)
Main functions Dishwashing, food preparation
Daily cleaning Soft non-abrasive sponge and dish detergent
Stubborn stains (light colors) Bleach/warm water solution (3/4-1/4) + rinsing
Stubborn stains (dark colors) Circular motions with dish detergent
Limescale stains Diluted descaling product, circular motions
Precautions Do not use abrasives, steel wool, or alkaline products
Heat protection Do not place hot pans directly
Impact protection Avoid accidental impacts
Weekly descaling treatment Fill with warm water + laundry detergent, leave for 5-6 hours
Safety Keep packaging away from children
Installation By qualified personnel, silicone not supplied
Warranty Non-compliance with instructions may void warranty

Frequently Asked Questions - VZ40N SMEG

How to install the Smeg VZ40N sink?
Installation must be carried out by a professional in accordance with current standards. Silicone is not supplied. Before mounting, clean the sink with a mild detergent and a soft sponge to remove production residues.
What cleaning products to use for the sink?
Use a soft non-abrasive sponge and ordinary dish detergent. Avoid products based on ammonia, caustic soda, as well as steel wool or abrasive sponges that would scratch the surface.
How to remove stubborn stains on a light-colored sink?
Prepare a mixture of bleach and warm water (3/4 bleach, 1/4 water). Let it sit for about 8 hours (preferably overnight), then rinse thoroughly and dry. If necessary, repeat 1 to 2 times.
How to remove stubborn stains on a dark-colored sink?
Rub the stain with a soft sponge soaked in dish detergent using small circular motions. Rinse with warm water and dry thoroughly. Repeat if necessary.
How to remove limescale traces?
Use a descaling and anti-corrosion product diluted in warm water. Apply evenly, gently rub in circles, let it sit for a few minutes, rinse and dry with a microfiber cloth.
What to do if I spill boiling liquids in the sink?
Before pouring boiling water, turn on the cold water tap and ensure there is at least 1 cm of water at the bottom of the sink to avoid damaging the material.
Can I put hot pans directly on the sink?
No, never place hot pans, pots, or kettles (up to 500°C) directly on the surface. This could cause discoloration or irreversible damage.
How to avoid micro-scratches on the sink?
Do not cut directly on the surface; use a cutting board. Avoid impacts with hard objects and never use steel wool or abrasive sponges.
How often should I descale the sink?
It is recommended to perform a descaling treatment at least once a week, especially for dark-colored sinks. Fill the bowl with warm water, add two tablespoons of laundry detergent or a tablet, let it sit for 5 to 6 hours, rinse and dry.
What if the warranty is questioned?
Failure to follow cleaning and maintenance instructions may void the standard warranty. Scrupulously follow the recommendations in the manual to maintain the validity of the warranty.

User questions about VZ40N SMEG

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

Your email remains private: it is only used to notify you if someone answers your question.

No questions yet. Be the first to ask one.

Download the instructions for your Sink in PDF format for free! Find your manual VZ40N - SMEG and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. VZ40N by SMEG.

USER MANUAL VZ40N SMEG

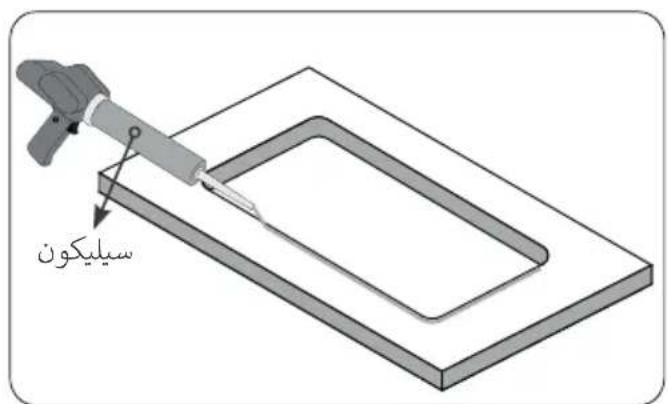

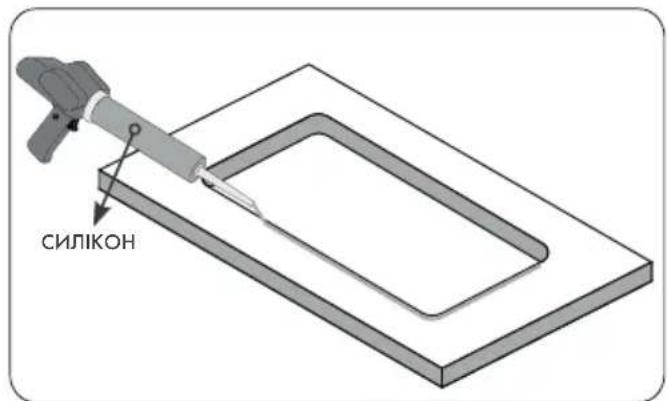

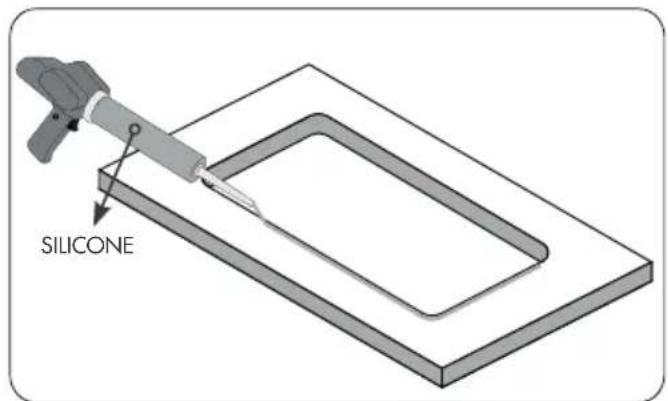

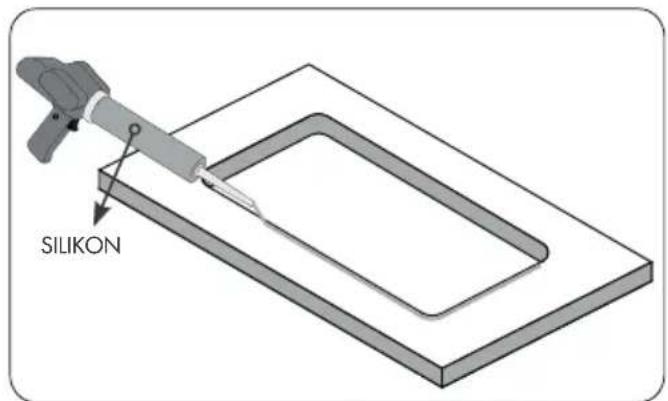

SILICONE

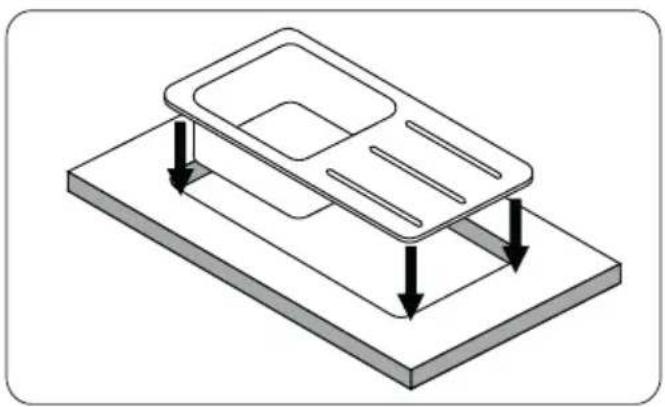

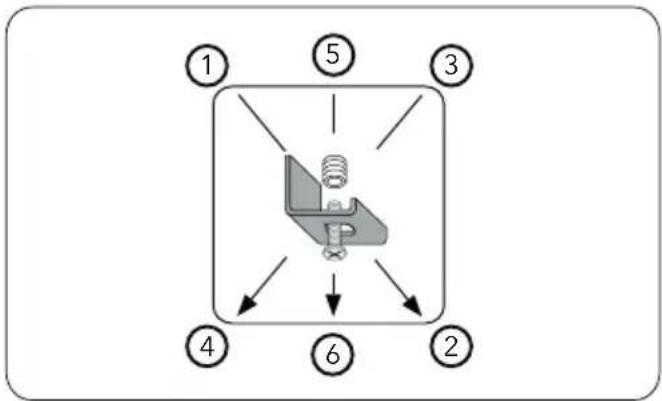

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols).

LAVELLO TOP

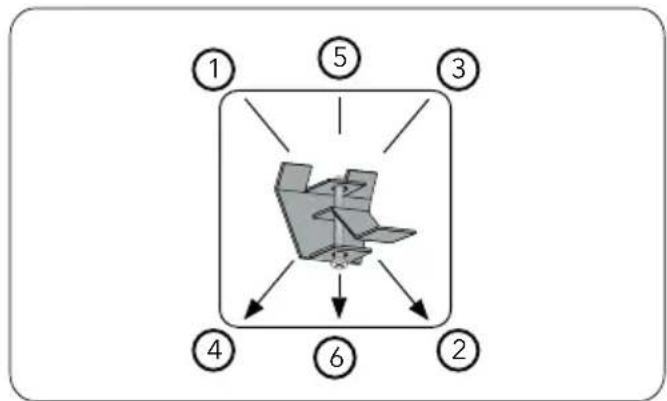

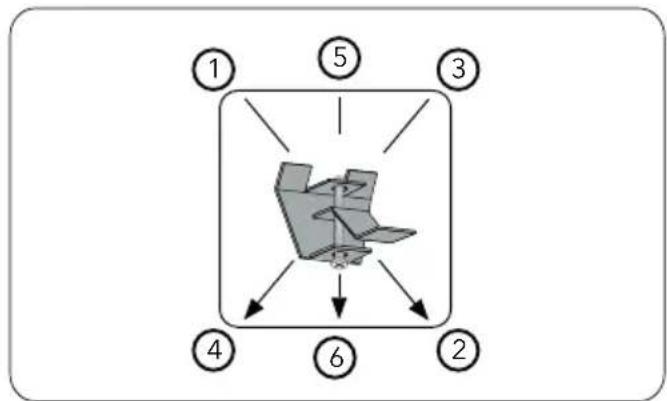


TOP SILICONE LAVELLO

Simple line drawing of a hand wiping a surface with motion lines (no text or symbols).

2. NON-ROUTINE MAINTENANCE

Simple line drawing of a cooking pot with a crossed-out X symbol (no text or labels).

SMEG VZ40N - NON-ROUTINE MAINTENANCE - 2

Before fitting the sink, it is advisable to wash it using standard dish detergent and a soft sponge to remove any manufacturing residues.

Rinse the sink thoroughly and dry it using a microfibre cloth.

SMEG VZ40N - NON-ROUTINE MAINTENANCE - 3

STANDARD INSTALLATION

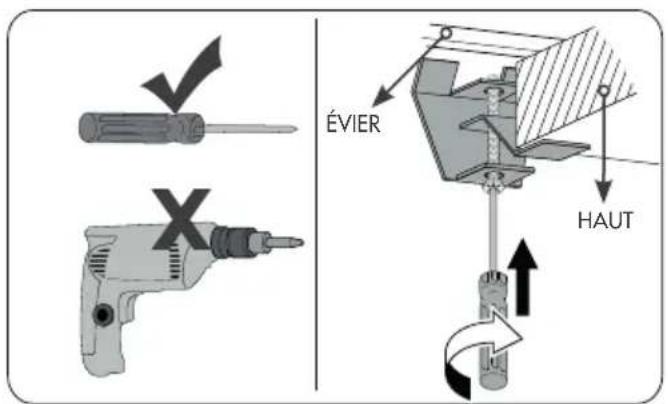

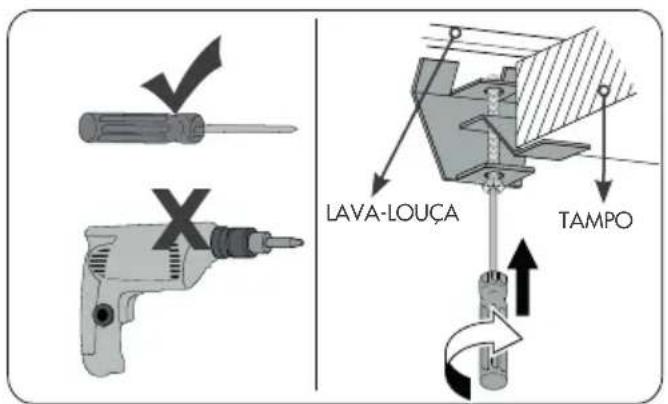

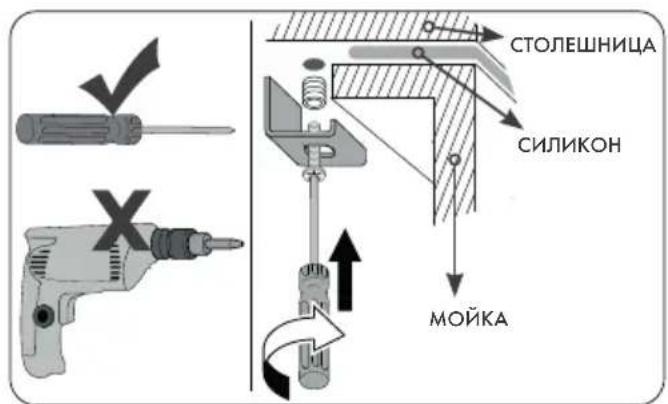

Diagram illustrating a drill bit and screwdriver tool application, showing correct and incorrect states of the process.

SILICONE

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols).

SINK TOP

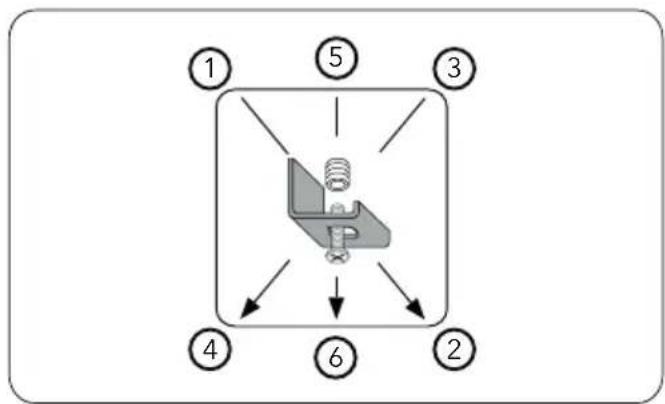

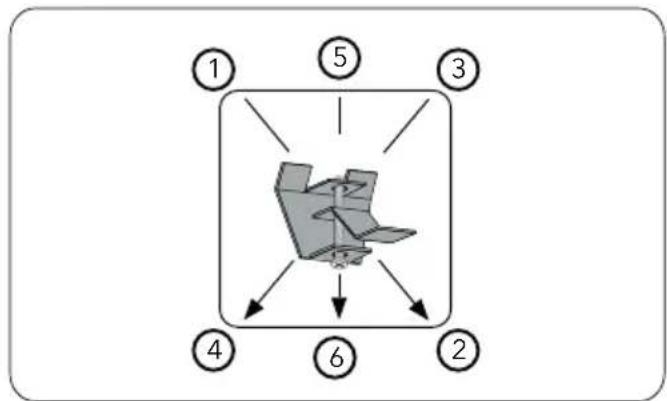


SMEG VZ40N - STANDARD INSTALLATION - 6

UNDERMOUNT INSTALLATION

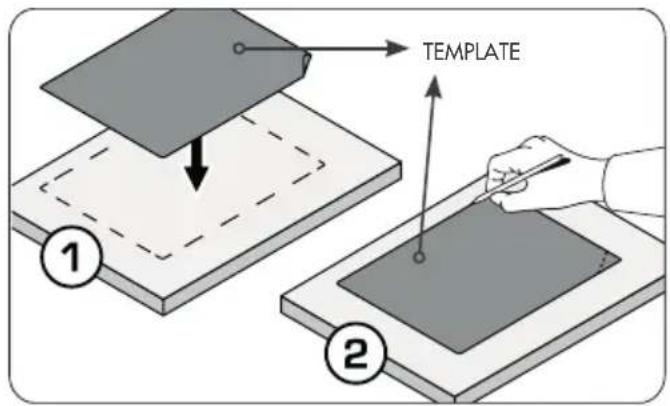

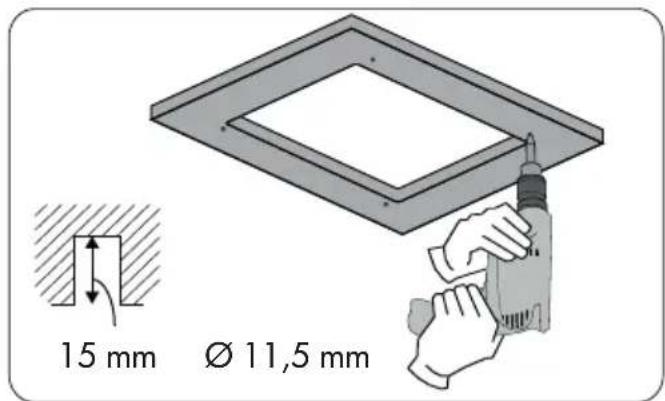

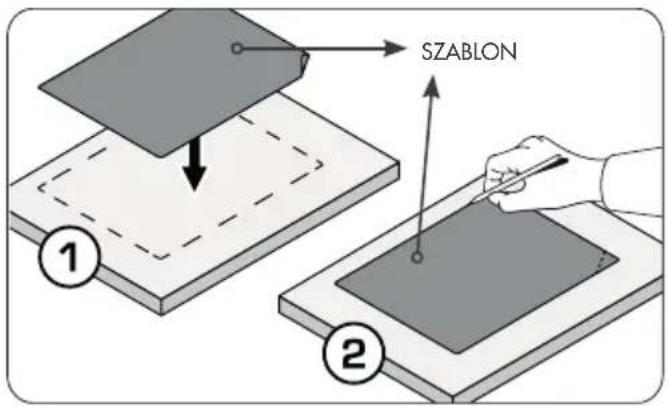

TEMPLATE ① ②

15 mm Ø 11.5 mm

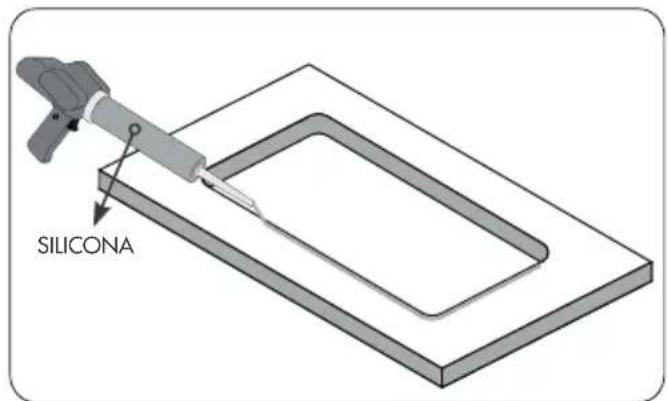

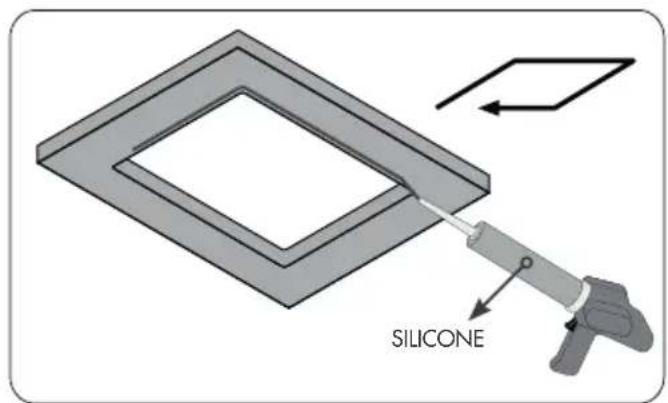

SILICONE

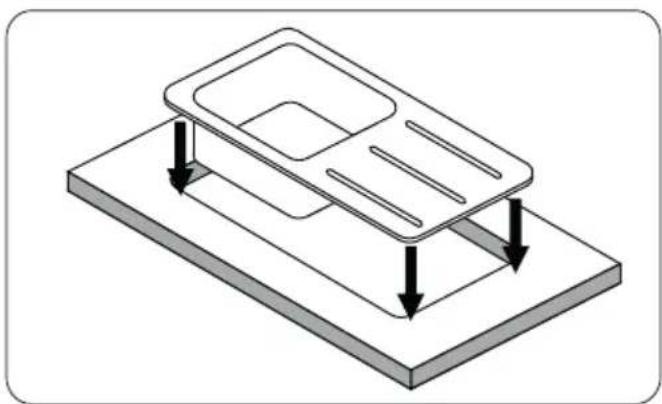

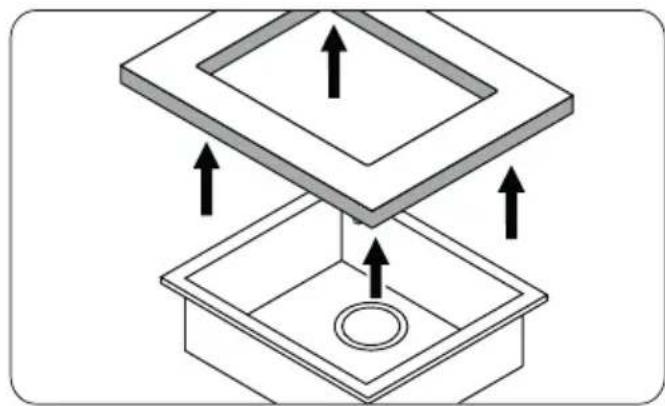

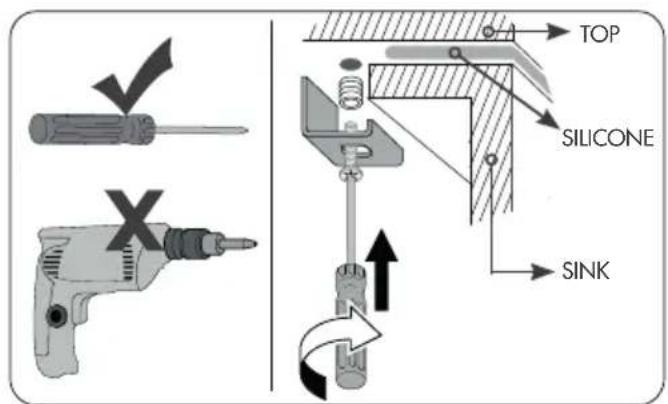

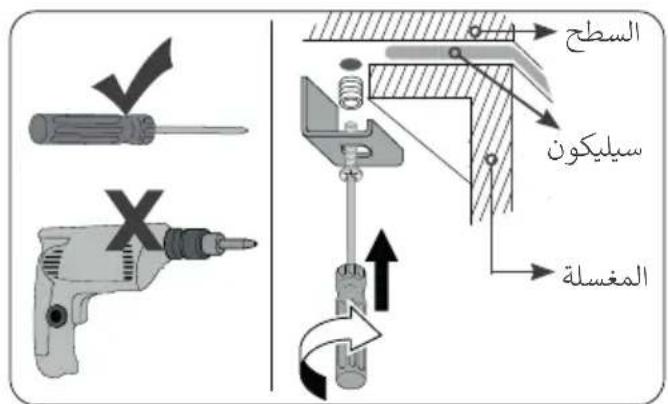

Diagram of a mechanical assembly with two stacked components and upward arrows indicating motion (no text or symbols)

TOP SILICONE SINK

SMEG VZ40N - UNDERMOUNT INSTALLATION - 7

The packaging materials (plastic bags, expanded polystyrene, etc.) must not be left within reach of children as they are a potential hazard.

SMEG VZ40N - UNDERMOUNT INSTALLATION - 8

Installation and support should be undertaken by qualified individuals, in accordance with the applicable legal requirements.

The silicone is not included with the product. The sink shown in this guide is for illustrative purposes only.

SMEG VZ40N - UNDERMOUNT INSTALLATION - 9

1. ROUTINE MAINTENANCE

Cleaning your Smeg product is quick and simple. Even though the non-porous surface prevents liquids penetrating into the material, it is preferable to remove them immediately using a soft, non-abrasive sponge and standard dish detergent. You should then rinse the surface and dry it carefully using a microfibre cloth.

Simple line drawing of a hand wiping a surface with motion lines (no text or symbols)

2. NON-ROUTINE MAINTENANCE

Cleaning stubborn stains is not difficult: all you need to do is choose the right product and use it correctly.

SMEG VZ40N - NON-ROUTINE MAINTENANCE - 1

For stubborn stains on LIGHT-COLOURED products, you can use a solution of bleach and warm water (3/4 to 1/4), leaving it to act for eight hours (we recommend that this cleaning be performed during the night). Afterwards, rinse thoroughly and dry the entire surface carefully using a microfibre cloth. If the stains remain, the operation can be repeated one or two more times.

SMEG VZ40N - NON-ROUTINE MAINTENANCE - 2

For stubborn stains on DARK-COLOURED products, you can remove them directly with a soft, non-abrasive sponge and standard dish detergent, using small circular movements. When finished, rinse using warm water and carefully dry the entire surface using a microfibre cloth. If the stains remain, the operation can be repeated one or two more times.

SMEG VZ40N - NON-ROUTINE MAINTENANCE - 3

To remove limescale stains, we recommend the use of a non-corrosive descaling product diluted with warm water. Distribute the solution uniformly over the entire surface of the product. Clean with a soft, non-abrasive sponge using small circular movements and leave the product to act for several minutes (follow the instructions and conditions for use on the product label). When finished, rinse using warm water and dry carefully using a microfibre cloth.

Failure to follow the cleaning and maintenance instructions stated in this manual may invalidate the standard warranty provided by the manufacturer.

SMEG VZ40N - NON-ROUTINE MAINTENANCE - 4

To ensure that there is no change to the characteristics of the product, we recommend that users observe the following precautions:

- dry the surface of the product every day to avoid prolonged exposure to water that could lead to the build-up of limescale or stubborn stains

- do not use detergents that contain alkaline substances and aggressive liquids (such as ammonia, caustic soda or drain cleaners)

- do not remove traces of dirt using steel scourers or abrasive sponges that could damage the surface

- do not cut or chop directly on the surface of the product because this could cause irreparable scratches (always use chopping boards)

- avoid accidental knocks that could cause irreparable micro-damage

- do not place hot cookware, pans or coffee makers directly on the sink surface: stains from discolouration and/or damage could form in areas where hot items are placed

- avoid pouring boiling liquids directly into the sink without first turning on the cold tap and filling the sink with at least 1 cm of water, as this could damage the product

• to prevent the build-up of limescale, it is recommended that a descaling treatment be completed at least once a week. This is recommended in particular for dark-coloured sinks. Fill the tub with warm water and add two spoonfuls of liquid or powder dishwasher detergent or a dishwasher tab. Leave the solution for 5/6 hours. Rinse thoroughly and dry carefully.

Simple line drawing of a crossed-out kitchen counter with no text or symbols

Simple line drawing of a cooking pot with steam rising from a stove, crossed out by a diagonal line (no text or symbols)

SMEG VZ40N - NON-ROUTINE MAINTENANCE - 7

Do not put pans or coffee makers that have just been taken off the heat (which sometimes reach 500°C) directly into sink.

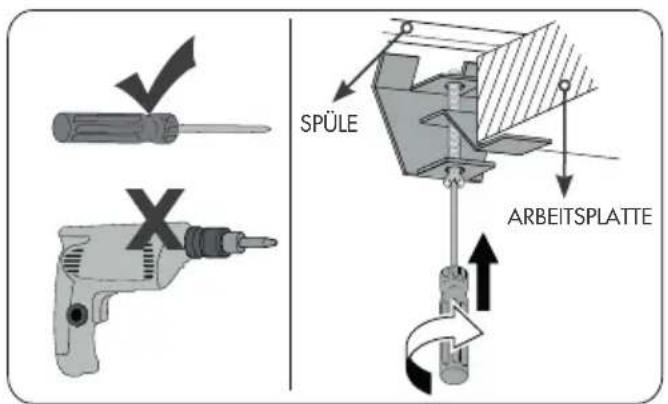

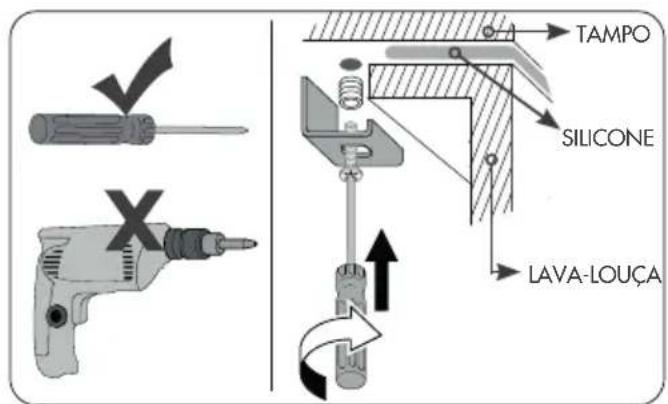

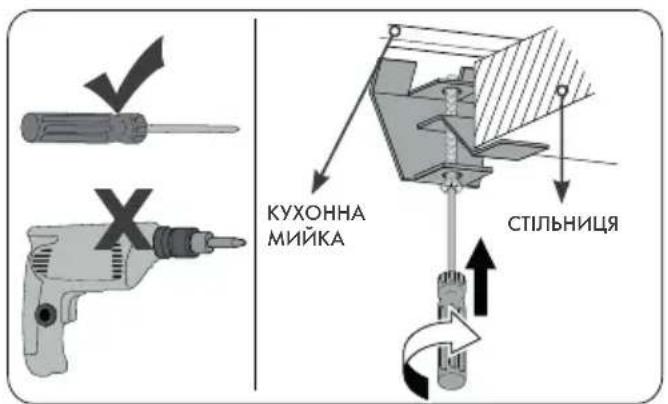

Diagram illustrating a drill bit and screwdriver tool application, with a magnified view showing the process.

SILICONE

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)

SINK TOP

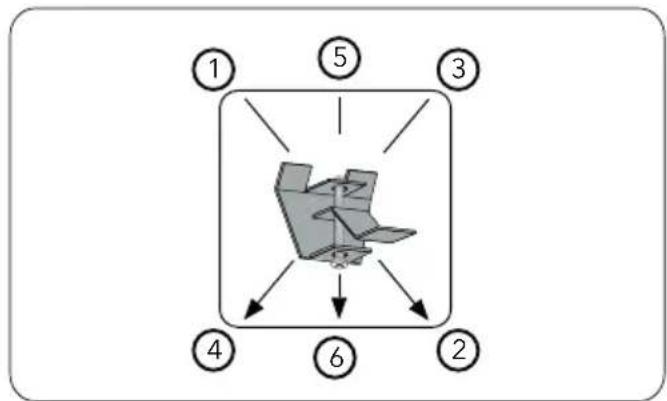


SMEG VZ40N - NON-ROUTINE MAINTENANCE - 13

INSTALLATION SOUS LE PLAN SUPÉRIEUR

1 2 PATTERN

15 mm Ø 11.5 mm

SILICONE

Diagram of a layered mechanical or electronic component with upward arrows indicating motion or force, no text or symbols present.

TOP SILICONE SINK

Simple line drawing of a hand wiping a surface with motion lines (no text or symbols)

Simple line drawing of a cooking pot with steam rising, crossed by a diagonal line (no text or symbols)

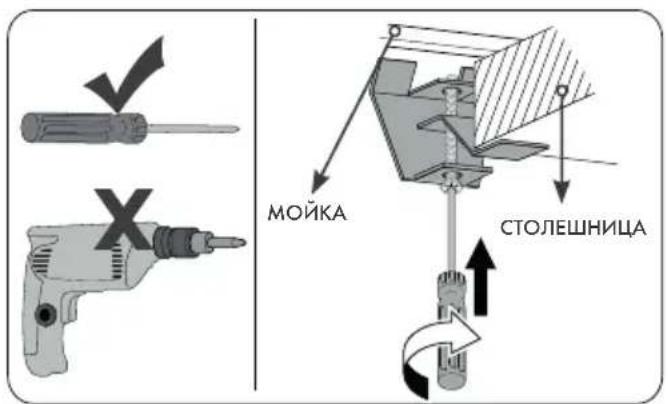

Diagram illustrating a drill bit and screwdriver tool application, with a magnified view showing the process.

SILICONE

Isometric diagram of a device with two rectangular components and downward arrows indicating movement or force (no text or symbols)

SINK WORKTOP

UNTERBAU-INSTALLATIONSMEG VZ40N - INSTALLATION SOUS LE PLAN SUPÉRIEUR - 14

TEMPLATE ① ②

15 mm Ø 11.5 mm

SILICONE

Diagram of a mechanical assembly with two stacked components and upward arrows indicating motion (no text or symbols)

WORKTOP SILICONE SINK

Simple line drawing of a hand cleaning a surface with a cloth (no text or symbols)

Simple line drawing of a cooking pot with steam rising, crossed by a black X (no text or symbols)

Diagram illustrating a drill bit and screwdriver tool application, with a magnified view showing the process.

SILICONE

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)

SINK COUNTERTOP

Diagram of a mechanical assembly with two stacked components and upward arrows indicating motion (no text or symbols)

COUNTERTOP SILICONE SINK

Simple line drawing of a hand wiping a surface with a cloth (no text or symbols)

Simple line drawing of a cooking pot with a crossed-out X symbol (no text or labels)

Diagram illustrating a drill bit and screwdriver tool application, with Chinese labels for each step.

SILICONE

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)

DISHWASHER COVER

Diagram of a layered mechanical or electronic component with upward arrows indicating motion or force, no text or symbols present.

COVER SILICONE DISHWASHER

Simple line drawing of a hand cleaning a surface with a cloth (no text or symbols)

Simple line drawing of a bowl with steam rising from a sink, crossed out by a diagonal line (no text or symbols)

Diagram illustrating a drill bit and screwdriver tool application, showing correct and incorrect states of the process.

SILICONE

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)

Diagram of a mechanical assembly with two stacked components and upward arrows indicating motion (no text or symbols)

Hand wiping a surface with a cloth (no text or symbols)

2. НЕПЛАНОВЫЙ УХОД

Simple line drawing of a kitchen with a crossed-out black X symbol (no text or labels)

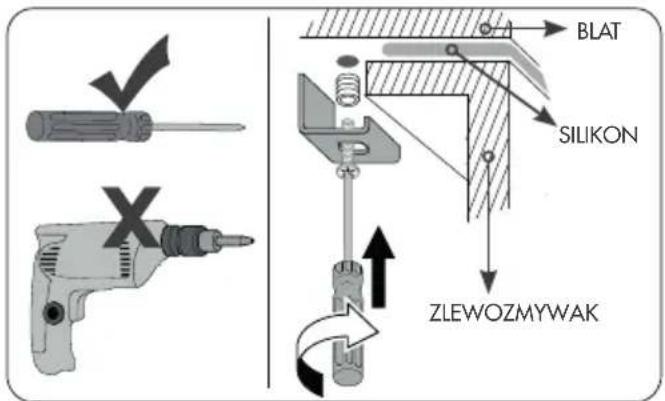

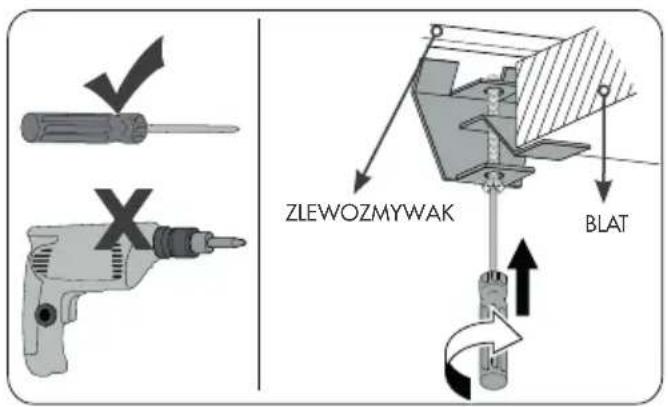

Diagram illustrating a drill bit and screwdriver tool, showing correct and incorrect states of the process.

SILICONE

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)

SINK COUNTERTOP

MONTAŻ POD BLATEMSMEG VZ40N - НЕПЛАНОВЫЙ УХОД - 7

TEMPLATE ① ②

15 mm Ø 11.5 mm

SILICONE

Diagram of a mechanical assembly with two stacked components and upward arrows indicating motion (no text or symbols)

BLAT SILICONE SINK

Simple line drawing of a hand cleaning a surface with a cloth (no text or symbols)

2. IMMEDIATE MAINTENANCE

Simple line drawing of a cooking pot with steam rising from a stove, crossed out by a diagonal line (no text or symbols)

Diagram illustrating a drill bit and screwdriver tool application process with labeled parts

SILICONE

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols)

Diagram of a mechanical assembly with two stacked components and upward arrows indicating motion (no text or symbols)

SALTCELLAR SILICONE KITCHEN SINK

Simple line drawing of a hand cleaning a surface with a cloth (no text or symbols)

Simple line drawing of a kitchen with a crossed-out black X symbol (no text or labels)

Diagram illustrating a drill bit and screwdriver tool application process with labeled parts.

Silicone

Isometric diagram of a device with two stacked plates and directional arrows indicating movement or force (no text or symbols).

Diagram of a layered mechanical or electronic component with upward arrows indicating motion or force, no text or symbols present.

Two hand icons with different textures, one covering a cloth and the other covering a surface (no text or symbols).

Simple line drawing of a crossed-out kitchen counter with no text or symbols.

Simple line drawing of a cooking pot with crossed-out black lines (no text or symbols).

SMEG VZ40N - IMMEDIATE MAINTENANCE - 17
