CTP 2500 - Beard trimmer Orbegozo - Free user manual and instructions

USER MANUAL CTP 2500 Orbegozo

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent.
6. Never pull on the cord when unplugging.
7. Do not use the unit with a damaged cord or plug, or if it is not working properly.
8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other liquid.

10. Make sure the appliance has been unplugged before cleaning.

11. This appliance must be installed following the national regulations for electrical installations.
12. This appliance is for household use only.
13. In case that you need a copy of the instruction manual, you can find it I www.orbegozo.com.

14. WARNING: In case of misuse, there is a risk of possible injury.

15. Do not reach for an appliance that has fallen into water. Unplug it immediately.

16. Do not use while bathing or in the shower.
17. Do not place or drop into water or other liquid.
18. Do not place or store this appliance where it can fall or be pulled into a tub or sink.
19. Except when charging, always unplug this appliance from the electrical outlet immediately after using.
20. Unplug this appliance before cleaning it.
21. Keep the cord away from heated surfaces.
22. Never drop or insert any object into any of the appliance's openings.
23. Do not use outdoors or operate where aerosol (spray) products are being used, or where oxygen is being administered.
24. Always store this appliance and cord in a moisture-free

area.

• Make sure the cord is disconnected from the groomer stand when storing.
• Do not use this appliance with a damaged or broken cutter unit, as injury may occur. Always make sure blades are aligned properly.
• Do not use an extension cord or a voltage converter with this appliance.
• Do not wrap the cord around the appliance.
• The power unit is intended to be correctly oriented in a vertical or floor mount position.
• Do not pull on the connection cord, but rather on the plug, to separate the appliance from the mains.
• Do not leave the appliance unattended when it is switched on, as this may

be a source of danger.

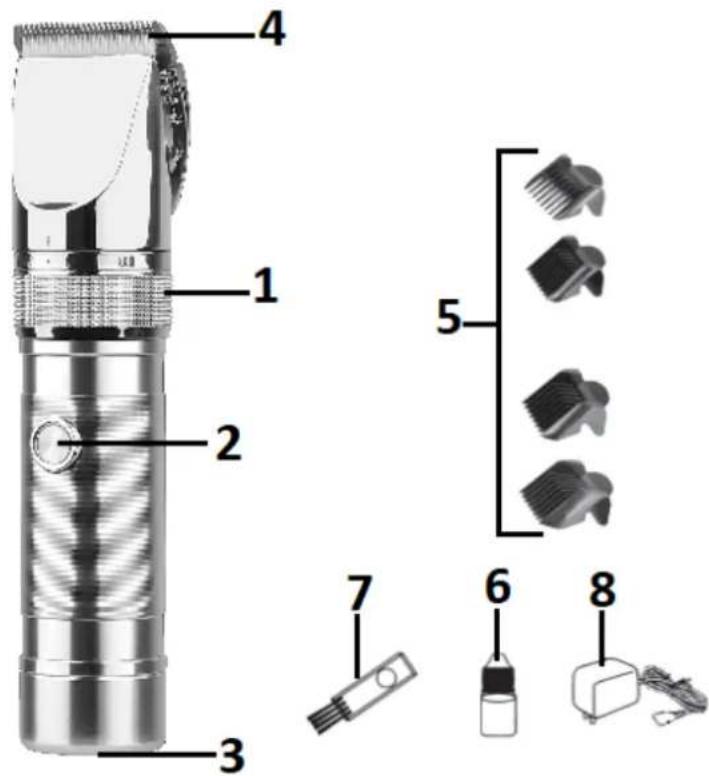

DESCRIPTION

1. Precision cutting selector.
2. ON/OFF push-button.
3. Battery and indicator light.
4. Blades
5. Guide combs.
6. Oil bottle
   7.Brush
7. Power supply adaptor

NOTE:

Guide combs give different length of cut by different sizes. For getting used with this hair clipper, we advise you to start with long length.

TECHNICAL SPECIFICATION

Rated Voltage: 230V 50Hz

Charging Time: 4 hours

HOW TO USE

1. This hair clipper can be used with or without cord. If you want to use it with cord and the battery is fully discharged, it cannot work, wait 1 minute to charge it a little. On the other side, it is normal that body is a bit hot while you are using it with cord or when it is fully charged.
2. Connect the adaptor to charging connection on bottom side of the appliance, after plug the adaptor to the mains. Indicator light will light in red and the battery will charge. You also can charge the battery out of hair clipper connecting the adaptor to it, for removing the battery unscrew the base and remove the battery. For full charging it needs 4 hours, after that it can be used for more than 300 minutes. It is recommended for first charge of battery or after 6 months with no use, 10 hours of charging to active the rechargeable battery activity. Avoid long time recharge (for more than 6 hours) or lifespan of battery will reduce considerably
3. Turn on the appliance with ON/OFF push-button, push it to switch on. Push it again to switch off.

USING OF ACCESSORIES

When you mount or dismount the combs, the appliance should be switch off.

1. Choose the guide comb according desired length (3, 6, 9, 12mm).
2. Place the comb facing its rail guide and rail guide of hair clipper and push it until hear a click. See below pic.

1. Each guide comb has a length (3, 6, 9, 12mm). Once it is placed you can change the length turning the precision cutting selector (0.8 to 2.0mm).
2. To remove guide comb, push upward on the back side and the comb will be out easily.

CLEANING AND MAINTENANCE

1. Press blades forward with thumb. See below picture. Blades can be removed and cleaned with brush. Press the mobile blade (white one) as pic shows, you can clean between both blades. Clean the rest of hair in the body of hair clipper. Use oil to get longer duration of blades, put 2 or 3 drops on the blades.

1. Blades should be cleaned regularly. Once they are cleaned put them place back on the hair clipper and press it to arrow direction in below picture.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-technica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.
