CMGN 6184S - Freezer CANDY - Free user manual and instructions

Product Type	Combined Freezer (Refrigerator-Freezer)
Brand	Candy
Model	CMGN 6184S
Climate Class	SN (10-32°C), N (16-32°C), ST (16-38°C)
Refrigerant	R600a (isobutane)
Freezer Capacity	Not specified
Refrigerator Capacity	Not specified
Super Cooling Function	Yes (quick cooling of refrigerator compartment)
Super Freezing Function	Yes (quick freezing of large quantities)
Smart ECO Mode	Yes (automatic setting for energy saving, refrigerator at +4°C, freezer at -18°C)
Holiday Mode	Yes (turns off refrigerator, keeps freezer running)
Open Door Alarm	Yes (after 3 minutes)
Freezer Overheat Alarm	Yes (temperature above 10°C at power-on)
Display	Touch screen (round or vertical depending on version)
Connectivity	Wi-Fi (SimplyFi) for remote control via app
Antibacterial System	Yes (if present, via UVA LED and photocatalytic mineral filter)
Water Dispenser	Yes (internal tank, fresh water without opening the door)
Defrosting	Automatic (No Frost)
Interior Lighting	Replaceable LED
Adjustable Feet	Yes (adjustable front feet)
Door Hinge Side	Reversible (manually or by technician)
Power Supply	Not specified
Weight	Not specified
Dimensions (W x D x H)	Not specified

Frequently Asked Questions - CMGN 6184S CANDY

How to adjust the freezer temperature?

On the touch screen, press the MODE icon until the freezer number blinks, then use the + and - buttons to adjust. The default temperature is -18°C.

How to reverse the door opening direction?

Unplug the appliance and empty it. Remove the top, middle, and bottom hinges, then move them to the opposite side. Follow the steps in the manual. We recommend calling a qualified technician.

What to do in case of a power outage?

Do not open the door. Food stays frozen for about 16 hours if the door remains closed. If the power outage lasts more than 20 hours, check the food and consume it quickly or refreeze after cooking.

How to activate Holiday mode?

Press the OPTION button until 'Vacation' blinks, then press OK. The refrigerator turns off but the freezer continues to operate. Make sure there is no food in the refrigerator.

How to clean the freezer?

Unplug the appliance. Clean the interior with warm water and baking soda, rinse and dry. Do not use abrasive products. Vacuum the condenser grille at the back.

Why is the alarm sounding?

The open door alarm sounds after 3 minutes. The freezer overheat alarm sounds if the temperature exceeds -10°C during initial power-on. Press any button to stop it.

How to use the water dispenser?

Fill the water tank located in the refrigerator door (up to the MAX line). Push the external lever with a glass to get fresh water.

How to connect the appliance to Wi-Fi?

Download the simplyFi app. Press the Wi-Fi icon for 3 seconds until it turns blue. Follow the instructions in the app to register the appliance.

What to do if there is excessive frost formation?

The appliance is No Frost, so defrosting is automatic. If frost appears, check that the door closes properly and that the seal is not damaged. Regular maintenance of the seal and tightness is recommended.

How to change the internal LED bulb?

Unplug the appliance. Lift the lighting cover, unscrew the old LED (counterclockwise) and replace it with a new one by screwing. Put the cover back and plug in.

USER MANUAL CMGN 6184S CANDY

ANTIBACTERIAL SYSTEM (if present)

WATER DISPENSER

SAFETY INFORMATION....29

COMBI REFRIGERATOR CANDY.... 36

Climate Class.... 36

TRANSPORTATION INSTRUCTIONS.... 36

INSTALLATION INSTRUCTIONS 37

STARTING TO USE....37

COMBI OPERATION 38

VERTICAL DISPLAY 38

ROUNDED DISPLAY....40

INTERNAL USER INTERFACE....41

TECHNICAL FEATURES 42

Freshness Control....42

ANTIBACTERIAL SYSTEM (if present) 42

WATER DISPENSER....42

Tips for keeping food perfect in the Fridge 43

Where to store your foods in the fridge.... 43

Storing Frozen Food 44

ENERGY SAVING 45

TAKE CARE....45

Defrosting 45

Cleaning and Care 45

CHANGING THE INTERNAL LIGHT 46

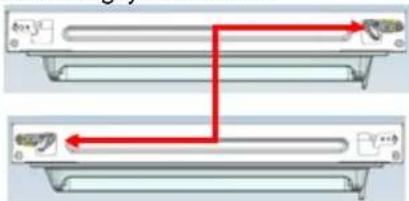

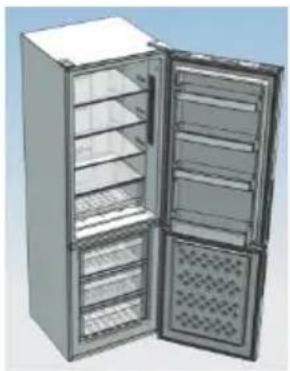

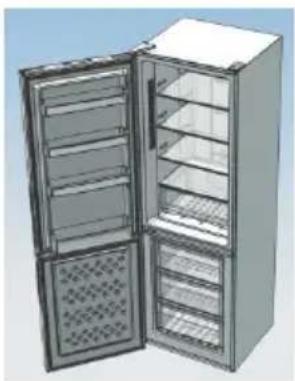

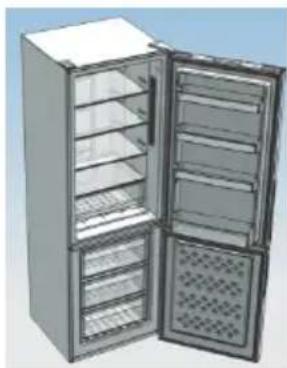

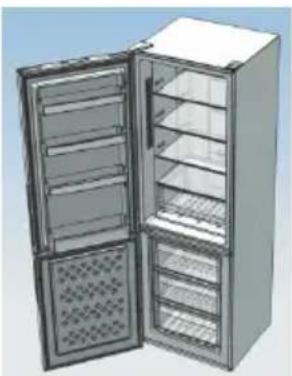

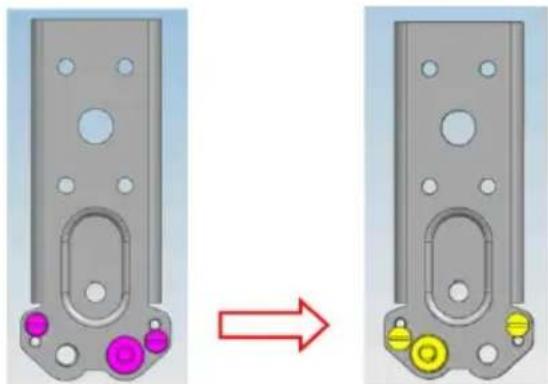

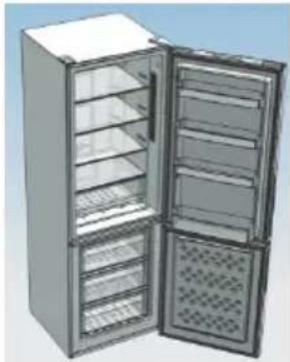

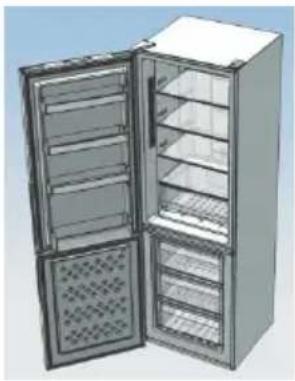

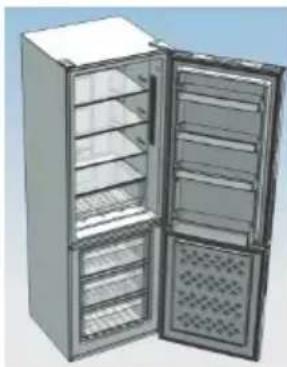

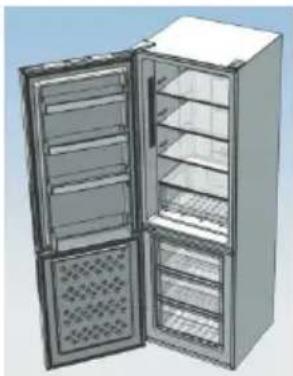

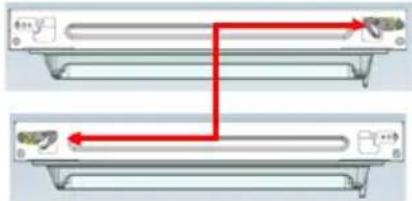

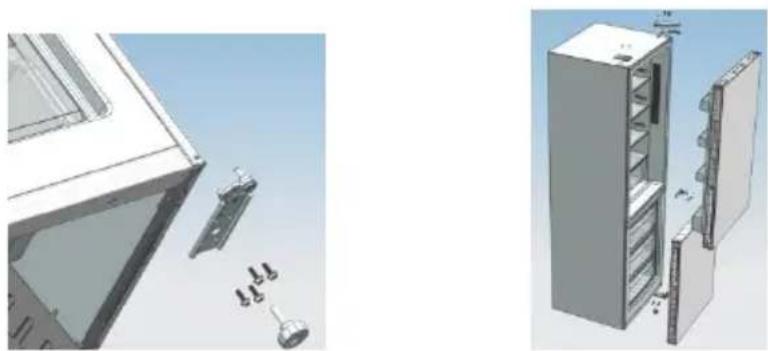

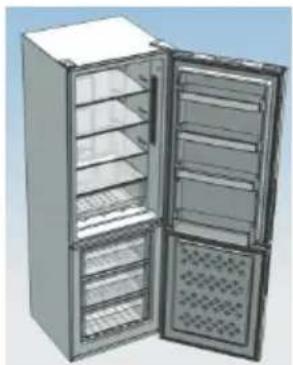

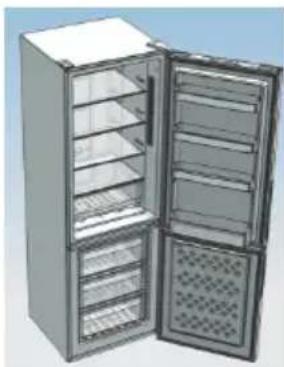

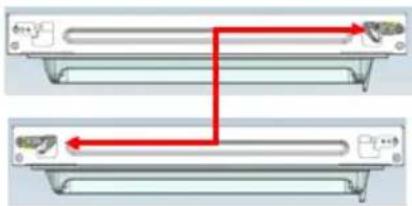

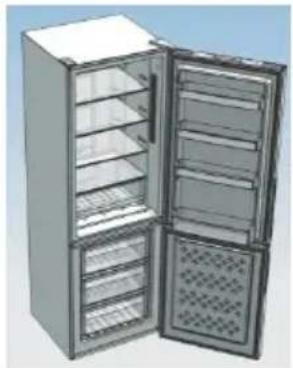

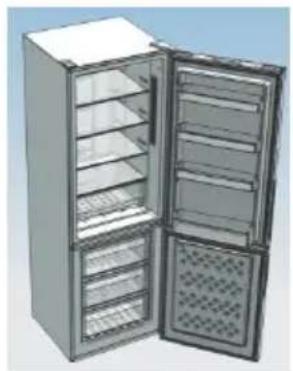

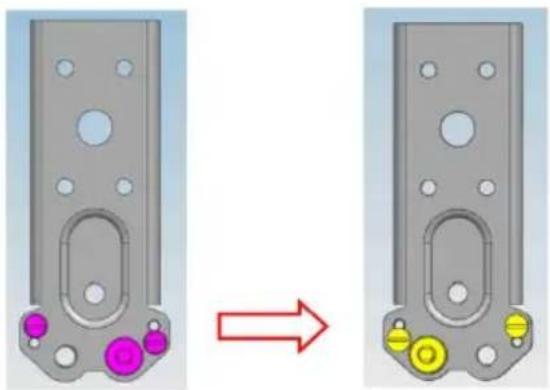

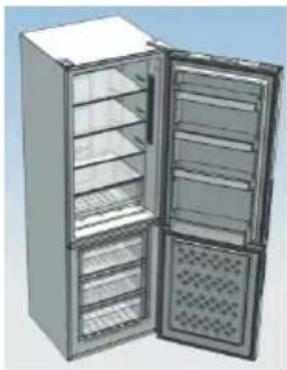

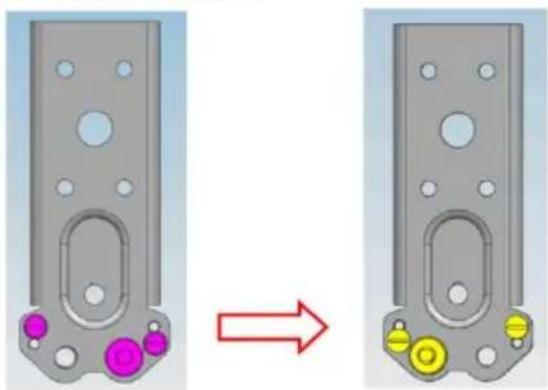

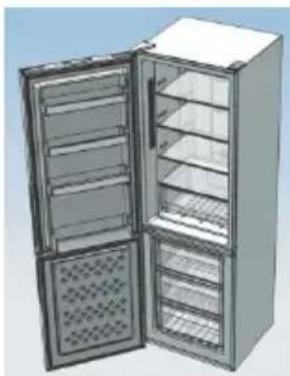

REVERSING THE DOOR SWING 46

TROUBLE SHOOTING....51

Thank you for purchasing this product.

Before using your refrigerator, please carefully read this instruction manual in order to maximize its performance. Store all documentation for subsequent use or for other owners. This product is intended solely for household use or similar applications such as:

• the kitchen area for personnel in shops, offices and other working environments
• on farms, by clientele of hotels, motels and other environments of a residential type - at bed and breakfasts (B & B)
• For catering services and similar applications, not for retail sale.

This appliance must be used only for purposes of storage of food. Any other use is considered dangerous and the manufacturer will not be responsible for any omissions. Also, it is recommended that you take note of the warranty conditions. Please, to obtain the best possible performance and trouble-free operation from your appliance, it is very important to carefully read these instructions. Failure to observe these instructions may invalidate your right to free service during the guarantee period.

SAFETY INFORMATION

This guide contains many important safety information. Please, we suggest you keep these instructions in a safe place for easy reference and a good experience with the appliance.

The refrigerator contains a refrigerant gas (R600a: isobutane) and insulating gas (cyclopentane), with high compatibility with the environment, that are, however, flammable.

Caution: risk of fire

If the refrigerant circuit should be damaged:

- Avoid open flames and sources of ignition.

Thoroughly ventilate the room in which the appliance is situated.

WARNING!

- Care must be taken while cleaning/carrying the appliance to avoid touching the condenser metal wires at the back of the appliance, as you might injure your fingers and hands or damage your product.

- This appliance is not designed for stacking with any other appliance. Do not attempt to sit or stand on top of your appliance as it is not designed for such use. You could injure yourself or damage the appliance.

- Make sure that the mains cable is not caught under the appliance during and after carrying/moving the appliance, to avoid the mains cable becoming cut or damaged.

- When positioning your appliance, take care not to damage your flooring, pipes, wall coverings, etc. Do not move the appliance by pulling by the lid or handle. Do not allow children to play with the appliance or tamper with the controls. Our company declines to accept any liability should the instructions not be followed.

- Do not install the appliance in humid, oily, or dusty places, nor expose it to direct sunlight and to water.

- Do not install the appliance near heaters or flammable materials.

- If there is a power failure, do not open the lid.

Frozen food should not be affected if the failure lasts for less than 20 hours. If the failure is longer, then the food should be checked and eaten immediately or cooked and then refrozen.

- If you find that the lid of the chest freezer is difficult to open just after you have closed it, don't worry. This is due to the pressure difference which will equalize and allow the lid to be opened normally after a few minutes.

- Do not connect the appliance to the electricity supply until all packing and transit protectors have been removed.

- Leave to stand for at least 4 hours before switching on to allow compressor oil to settle if transported horizontally.

- This freezer must only be used for its intended purpose (i.e., storing and freezing of edible foodstuffs).

- Do not store medicine or research materials in the Wine Coolers. When the material that requires a strict control of storage temperatures is to be stored, it is possible that it will deteriorate or an uncontrolled reaction may occur that can cause risks.

- Before performing any operation, unplug the power cord from the power socket.

- On delivery, check to make sure that the product is not damaged and that all the parts and accessories

are in perfect condition.

- If in the refrigeration system a leak is noted, do not touch the wall outlet and do not use open flames. Open the window and let air into the room. Then call a service center to ask for repair.

- Do not use extension cords or adapters.

- Do not excessively pull or fold the power cord or touch the plug with wet hands.

- Do not damage the plug and/or the power cord; this could cause electrical shocks or fires.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.

- Do not place or store flammable and highly volatile materials such as ether, petrol, LPG, propane gas, aerosol spray cans, adhesives, pure alcohol, etc. These materials may cause an explosion.

- Do not use or store flammable sprays, such as spray paint, near the Wine Coolers. It could cause an explosion or fire.

- Do not place objects and/or containers filled with water on the top of the appliance.

- We do not recommend the use of extension leads and multi-way adapters.

- Do not dispose of the appliance on a fire. Take care not to damage the cooling circuit/pipes of the appliance in transportation and in use. In case of

damage, do not expose the appliance to fire, potential ignition source, and immediately ventilate the room where the appliance is situated.

- The refrigeration system positioned behind and inside the Wine Coolers contains refrigerant. Therefore, avoid damaging the tubes.

- Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

- Do not damage the refrigerant circuit.

- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- Do not use electrical appliances inside the food storage compartments, unless they are of the type recommended by the manufacturer.

- Do not touch internal cooling elements, especially with wet hands, to avoid cracks or injuries.

- Maintain the ventilation openings in the appliance enclosure or in the built-in structure, free of obstruction.

- Do not use pointed or sharp-edged objects such as knives or forks to remove the frost.

- Never use hairdryers, electrical heaters or other such electrical appliances for defrosting.

- Do not scrape with a knife or sharp object to

remove frost or ice that occurs. With these, the refrigerant circuit can be damaged, the spill from which can cause a fire or damage your eyes.

• Do not use mechanical devices or other equipment to hasten the defrosting process.
• Absolutely avoid the use of open flame or electrical equipment, such as heaters, steam cleaners, candles, oil lamps and the like in order to speed up the defrosting phase.
• Never use water to wash the compressor position, wipe it with a dry cloth thoroughly after cleaning to prevent rust.
• It is recommended to keep the plug clean, any excessive dust residues on the plug can be the cause of fire.
• The product is designed and built for domestic household use only.
• The guarantee will be void if the product is installed or used in commercial or non-residential domestic household premises.
• The product must be correctly installed, located and operated in accordance with the instructions contained in the User Instructions Booklet provided.
• The guarantee is applicable only to new products and is not transferable if the product is resold.
• Our company disclaims any liability for incidental or consequential damages.

- The guarantee does not in any way diminish your statutory or legal rights.

- Do not perform repairs on this Wine Cooler. All interventions must be performed solely by qualified personnel.

- If you are discarding an old product with a lock or latch fitted to the door, ensure that it is left in a safe condition to prevent the entrapment of children.

- This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or with a lack of experience and knowledge, provided that they have been given adequate supervision or instruction concerning how to use the appliance in a safe way and understand the hazards involved.

- Children should not play with the appliance. Cleaning and user maintenance should not be made by children without supervision.

- Locks: If your Fridge/Freezer is fitted with a lock, to prevent children being entrapped keep the key out of reach and not in the vicinity of the appliance. If disposing of an old Fridge/Freezer, break off any old locks or latches as a safeguard.

COMBI REFRIGERATOR CANDY

Climate Class

The appliance is designed to operate at a limited range of ambient temperature, depending on climate zones. Do not use the appliance at temperatures outside the limit. The climate class of your appliance is indicated on the label with technical description inside the fridge compartment.

Climate Class	Amb. T. (°C)	Amb. T. (°F)
SN	From 10 to 32	From 50 to 90
N	From 16 to 32	From 61 to 90
ST	From 16 to 38	From 61 to 100
T	From 16 to 43	From 61 to 110

TRANSPORTATION INSTRUCTIONS

The appliance should be transported only in a vertical upright position. The packing as supplied must be intact during transportation. If during the course of transport the product has been transported horizontally, it must only be laid on its left hand side (when facing the door front) and it must not be operated for at least 4 hours to allow the system to settle after the appliance is brought back to upright position.

1. Failure to comply with the above instructions could result in damage occurring to the appliance. The manufacturer will not be held responsible if these instructions are disregarded.
2. The appliance must be protected against rain, moisture and other atmospheric influences.

INSTALLATION INSTRUCTIONS

1. If possible avoid placing the appliance near cookers, radiators or in direct sunlight as this will cause the compressor to run for long periods. If installed next to a source of heat or refrigerator, maintain the following minimum side clearances:

From Cookers 4" (100 mm)

From Radiators 12" (300 mm)

From Fridges 4" (100 mm)

1. Make sure that sufficient room, with an average temperature of between 16°C and 32°C, is provided around the appliance to ensure free air circulation. Ideally, a space of no less than 9 cm on the back and 2 cm on the sides.
2. The appliance should be located on a smooth surface.
3. It is forbidden to use the refrigerator outdoors.
4. Protection from moisture. Do not locate the freezer in a moist space to avoid the metal parts rusting. And do not spray water on the freezer, otherwise it will weaken the insulation and cause current leakage.
5. Refer to "Cleaning and Care" section to prepare your appliance for use.
6. If the freezer is installed in unheated areas, garages, etc., in cold weather condensation may form on the outer surfaces. This is quite normal and is not a fault. Remove the condensation by wiping with a dry cloth.
7. Never place the refrigerator in a wall recess or into fitted cabinets or furniture. When it is working, the grille at the back may become hot and the sides warm. Do not drape the refrigerator with any covering.

STARTING TO USE

Before you start to use the freezer, please check that:

1. The interior is dry and air can circulate freely at the rear.
2. Clean the interior as recommended under "TAKE CARE" section (electric parts of the refrigerator can only be wiped with a dry cloth).
3. Do not switch on until 4 hours after moving the fridge/freezer. The coolant fluid needs time to settle. If the appliance is switched off at any time, wait 30 minutes before switching back on to allow the coolant fluid to settle.
4. Before connecting the refrigerator to the mains supply, position the thermostat control dial, which is located inside the fridge compartment.
5. Turn the thermostat knob to the "3" position and turn on the electricity. The compressor and the light inside the refrigerator will begin to work.
6. Before storing foods in your refrigerator, turn the refrigerator on and wait for 24 hours, to make sure it is working properly and to allow the fridge/freezer to reach the correct temperature.
7. Open the door 30 minutes later. If the temperature in the refrigerator has decreased noticeably, it shows that the refrigerator system works well. When the refrigerator operates for a period of time, the temperature controller will automatically set the temperature within limits it opens.

COMBI OPERATION

Appliance connected to power at the first time: When the appliance is connected to power at the first time, the display will be lit for 2 seconds before going normal and the appliance runs with intelligence function.

Display Control: When the refrigerator door is closed and there is no button operation in 3 minutes, the display light goes off.

When the display light is off, open the refrigerator door or click any button to light it up.

VERTICAL DISPLAY

TEMPERATURE SETTING: Click the "Fridge" or "Freezer" button and when it flickers in the symbol, temperatures can be set. Each time when the button is clicked, the temperature changes accordingly. Temperatures cannot be set under functions of fast cooling, fast freezing, Smart ECO and vacation. Under temperature setting, if there is no button operation in 5 seconds, the button stops flickering and the set temperature comes into effect.

SMART ECO: Activate the Smart Eco button to set the temperatures of the fridge in max. energy efficiency conditions (+4°C for fridge temperature, -18°C for freezer temperature).

To enter Smart Eco: Click "option" until it flickers and then click "OK" to enter this function.

To deactivate Smart Eco: Click "option" until it goes to Smart ECO, click "OK" to quit this function and the light goes off.

FAST COOLING: Activate Fast Cooling mode to start an additional pulse for a fast freezing of the fridge compartment. The function is activated and confirmed by the switching on of the dedicated LED icon.

To enter Fast Cooling: Click "option" until it flickers in "Fast Cooling" and then click "OK" to enter this function.

To deactivate Fast Cooling: Click "option" until it goes to "fast cooling" and then click "OK" to deactivate this function.

FAST FREEZING: Activate Fast Freezing to rapidly freeze big quantities of food keeping intact nutritional food properties. When the light in Fast Freezing goes off and the freezer temperature goes back to the value before fast freezing. When Fast Freezing time is up (26 hours), it deactivates automatically. When it goes to Vacation, Fast Freezing stops.

To enter Fast Freezing: Click "option" until it flickers in "Fast Freezing" and then click "OK" to enter

this function.

To deactivate Fast Freezing: Click "option" until it goes to "fast freezing" and then click "OK" to quit this function.

VACATION: In case of long stops, the Vacation function can be used. This function deactivates the fridge compartment, while leaving the freezer on. Ensure that there is no food inside the fridge compartment before using this function. The function is activated and confirmed by the switching on of the dedicated LED icon. The light in Vacation goes off and the refrigerator temperature goes back to the value before Vacation.

Vacation quits under functions of Smart ECO and Fast Cooling.

To enter Vacation: Click "option" until it flickers in "Fast Freezing" and then click "OK" to enter this function.

To deactivate Vacation: Click "option" until it goes to "Vacation" and then click "OK" to quit this function.

POWER OFF MEMORY: Refrigerator can automatically keep all the settings in case of power off. When the unit is plugged in again, the refrigerator will run with the settings before power off.

POWER-ON DELAY: To prevent harm to the refrigerator in case of sudden power cut and power on, the unit does not start immediately if the power off time is less than 5 minutes.

FREEZER OVER-TEMPERATURE ALARM (only in case of power on): When the freezer temperature is higher than 10° . Cat the first time connected to power, the symbol light of the freezer chamber goes on and the number representing temperature flickers.

Press any button or wait for 5 seconds, flickering stops and it goes back to the temperature that was set.

REFRIGERATOR DOOR OPENING ALARM: When the refrigerator is open over 3 minutes, the buzzer will buzz. Close the door or press any button to stop the alarm, but for the latter, the alarm will go again after 3 minutes.

SENSOR FAULT ALARM: When it shows "E0", "E1", "E2" or other abnormal symbols, it means sensor faults and the refrigerator needs repair.

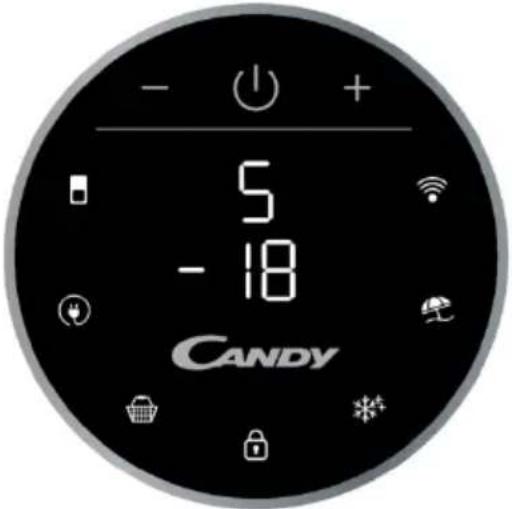

ROUNDED DISPLAY

Rounded Display is a touch user interface. When the refrigerator is turned on, white LED lights will be enlightened. When the functions is pressed the icon lights change from white to blue.

SETTING TEMPERATURE: Press MODE icon to change the temperature

- Refrigerator Temperature: Press the MODE icon once, the refrigerator digit blinks, and manage the temperature of the refrigerator with "+" and "-" buttons.

- Freezer Temperature: Press the MODE icon twice, the freezer digit blinks, and manage the temperature of the freezer with "+" and "-" buttons.

ECO MODE Icon: Press the Eco Mode icon to set the temperatures of the fridge in maximum energy efficiency conditions (+5°C for fridge temperature, -18°C for freezer temperature). The function is activated and confirmed when the icon LED changes from white to blue.

If you want to exit the ECO mode function, you need to press the Eco Mode icon again and the refrigerator temperature turns back to normal operation.

SUPER COOLING Icon: Press the Super Cooling icon to start an additional pulse for fast freezing of the fridge compartment. The function is activated and confirmed when the icon LED changes from white to blue.

If you want to exit the Super Cooling function, you need to press the Super Cooling icon again and the refrigerator temperature turns back to normal operation.

LOCK Icon: Press the Lock icon to block the display user interface. If the lock function is selected, the icon (LED) should turn into blue. When the Lock function is turned on, the user cannot set any new functions. To turn off the Lock function, the user must perform a long press on the icon for 3 seconds to unlock the display.

SUPER FREEZING Icon: Press the Super Freezing icon to rapidly freeze large quantities of food while keeping intact nutritional food properties. The function is activated and confirmed when the icon LED changes from white to blue.

If you want to exit the Super Freezing function, you need to press the Super Freezing icon again and the freezer temperature turns back to normal operation.

HOLIDAY Icon: In case of long stops, the Holiday function can be used. This function deactivates the fridge compartment, while leaving the freezer on. Ensure that there is no food inside the fridge compartment before using this function. The function is activated and confirmed when the icon LED changes from white to blue.

If you want to exit the Holiday function, you will need to press the Holiday icon again, the light in Holiday goes off and the refrigerator temperature goes back to the value before Holiday.

WI-FI Icon: This appliance is equipped with SmartFi+ technology that allows you to control it remotely via App. Press the Wi-Fi icon for 3 seconds to activate the Wi-Fi function and the icon light changes from white to blue.

Machine Enrollment (on App): Download the SimplyFi App on your device. The Candy SimplyFi App is available for devices running both Android and iOS, both for tablets and for smartphones. Get all the details of the SmartFi+ functions by browsing the App in DEMO mode.

Open the App, create the user profile and enroll the appliance following the instructions on the device display or the "Quick Guide" attached on the machine. This operation is necessary just for the first installation. To finalize the enrollment, follow the instructions on the smartphone's screen.

Refrigerator usage from remote by App: When the enrollment is completed, the Wi-Fi LED will be switched on. From now on it will be possible to manage the product by using the buttons on the display or using the App: both of them will be aligned according to the last command given.

INTERNAL USER INTERFACE

SET Button: Press the SET button to set the temperature until you reach the level you want, where level 1 is the warmest and level 4 is the coldest. Under normal operating conditions, we recommend using an intermediate setting (level 2).

Once the setting takes effect, it immediately enters the corresponding stall for operation control, and the stall indicator lights up for 3 seconds and then goes out. Factory default temperature is set to 2. Long press the "SET" key for more than 3 seconds to enter the hardware self-check program. The hardware self-check operation is effective within 10 minutes, and the long button operation after 10 minutes is invalid.

WI-FI Button: This appliance is equipped with SmartFi+ technology that allows you to control it remotely via App. Press the Wi-Fi icon for 3 seconds to activate the Wi-Fi function and the icon light changes from white to blue.

Machine Enrollment (on App): Download the SimplyFi App on your device. The Candy SimplyFi App is available for devices running both Android and iOS, both for tablets and for smartphones. Get all the details of the SmartFi+ functions by browsing the App in DEMO mode.

Open the App, create the user profile and enroll the appliance following the instructions on the device display or the "Quick Guide" attached on the machine. This operation is necessary just for the first installation. To finalize the enrollment, follow the instructions on the smartphone's screen.

Refrigerator usage from remote by App: When the enrollment is completed, the Wi-Fi LED will be switched on. From now on it will be possible to manage the product by using the buttons on the display or using the App: both of them will be aligned according to the last command given.

FAST COOL Button: When the "FAST COOL" button is pressed, the rapid cooling function is activated, according to the 21°C to refrigeration control gear. Maximum running time is 3 hours, after this time the temperature will be set to 1.

If the "SET" button is pressed during the speed cooling process, the instant cooling function is immediately withdrawn and the default is entered into the next gear.

TECHNICAL FEATURES

FRESHNESS CONTROL

Thanks to freshness control, you can guarantee the right humidity level for vegetables and fruits in the crisper drawer (Fresh drawer). The humidity gets bigger as the rod goes from left to right.

ANTIBACTERIAL SYSTEM (if present)

LED UVA Lights activate a Titanium Filter producing a "photocatalysis" reaction which will destroy bacteria within the refrigerator air. This reaction works when the refrigerator door is closed to avoid purified air leakage.

In Total No Frost products, it is inserted in the sky box and it works every time the compressor works. The filter is permanent and therefore does not need changing.

The antibacterial system has to be turned off during the energy consumption test.

WATER DISPENSER

The water dispenser allows you to get chilled water without opening the fridge compartment door.

Before first use

Before using the water dispenser for the first time, remove and clean the water tank located inside the fridge compartment.

- Lift the water tank out of the fridge compartment.

- Open the water tank cover and then clean the water tank and cover in warm soapy water. Rinse thoroughly.

- After cleaning, attach the cover to the water tank and then replace the water tank back on the fridge door.

- Clean the dispenser pad outside the fridge door.

Filling the water tank with water

• Open the small cover.
• Fill the water tank with drinkable water up to the Max line.
• Close the small cover.

Dispensing

To dispense water, push the dispenser pad gently, using a glass or container. To stop the flow of water, pull your glass away from the dispenser pad.

Tips for keeping food perfect in the Fridge

Take extra care with meat and fish: cooked meats should always be stored on a shelf above raw meats to avoid bacterial transfer. Keep raw meats on a plate which is large enough to collect juices and cover it with cling film or foil.

Leave space around food: this allows cold air to circulate around the Fridge, ensuring all parts of the Fridge are kept cool.

Wrap up food!: to prevent transfer of flavors and drying out, food should be separately packed or covered. Fruit and vegetables need not be wrapped.

Pre-cooked food should be cooled properly: allow pre-cooked food to cool down before placing in the Fridge. This will help to stop the internal temperature of the Fridge from rising.

Shut the door!: to prevent cold air escaping, try to limit the number of times you open the door. When returning from shopping, sort foods to be kept in your Fridge before opening the door. Only open the door to put food in or take it out.

Where to store your foods in the fridge

Cool area: this is where to store foods which will keep longer if they are kept cool. Milk, eggs, yogurt, fruit juices, hard cheeses e.g. Cheddar. Opened jars and bottles of salad dressings, sauces and jams. Fats, e.g. Butter, margarine, low-fat spreads, cooking fats and lard.

Coldest area (0°C to 5°C): this is where foods which must be cold to keep them safe should be kept:

• Raw and uncooked foods should always be wrapped.
• Pre-cooked chilled foods, e.g. Ready meals, meat pies, soft cheeses.
• Pre-cooked meats e.g. Ham,
• Prepared salads (including pre-packed mixed green salads, rice, potato salad etc). Desserts, e.g. Fromage frais, home-prepared food and leftovers or cream cakes.

Crisper: this is the most humid part of the Fridge. Vegetables, fruit, fresh salad items, e.g. Unwashed whole lettuce, whole tomatoes, radishes etc can be stored here.

WE RECOMMEND THAT ALL PRODUCE KEPT IN THE SALAD BIN IS WRAPPED.

NOTE: Always wrap and store raw meat, poultry and fish on the lowest shelf at the bottom of the fridge. This will stop them dripping onto, or touching other foods. Do not store inflammable gases or liquids in the fridge.

Electrical operation: after 3 hours on the freezer, the temperature in the cabinet is above -12°C, the alarm light is lit, and the buzzer sounds.

Storing Frozen Food

Clean and defrost your refrigerator regularly.	Freeze zzy drinks.
Prepare fresh food for freezing in small porons to ensure rapid freezing.	Consume ice-cream and water ices direct from freezer. It may cause “freezer burns” on lips.
Always choose high quality fresh food and be sure it is thoroughly clean before you freeze it.	Store poisonous or dangerous substances in the freezer.
Wrap all foods in aluminum foil or freezer quality plasc bags and make sure any air is excluded.
Wrap frozen food when you buy it and put it into the freezer shortly.
Keep food for as short a me as possible and adhere to “Best Before”, “Use By” dates.

For more about storing, download the App and visit "Tips & Hints".

ENERGY SAVING

For better energy saving we suggest:

• Installing the appliance away from heat sources and not exposed to direct sunlight and in a well-ventilated room.
• Avoid putting hot food into the refrigerator to avoid increasing the internal temperature and therefore causing continuous functioning of the compressor.
• Do not excessively stuff foods so as to ensure proper air circulation. • Defrost the appliance in case there is ice to facilitate the transfer of cold.
• In case of absence of electrical energy, it is advisable to keep the refrigerator door closed.
• Open or keep the doors of the appliance open as little as possible.
• Avoid adjusting the setting to temperatures too cold.
• Remove dust present on the rear of the appliance.

TAKE CARE

Defrosting

This appliance has an automatic defrosting system, so there is no need to defrost it manually.

Cleaning and Care

After defrosting, you should clean the fridge/freezer internally with a weak solution of bicarbonate of soda. Then rinse with warm water using a damp sponge or cloth and wipe dry. Wash the baskets in warm soapy water and ensure they are completely dry before placing them back in the fridge/freezer. Condensation will form on the back wall of the fridge; however, it will normally run down the back wall and into the drain hole behind the salad bin.

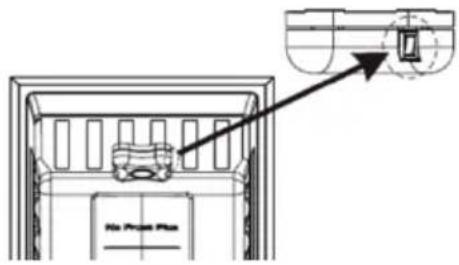

The drain hole will have a "cleaning spike" inserted into it. This ensures that small pieces of food cannot enter the drain. After you have cleaned the inside of your fridge and removed any food residues from around the hole, use the "cleaning spike" to make sure that there are no blockages. Use standard furniture polish to clean the fridge/freezer exterior. Make sure that the doors are closed to prevent polish getting on the magnetic door seal or inside.

The grille of the condenser at the back of the fridge/freezer and the adjacent components can be vacuumed using a soft brush attachment.

Do not use harsh cleaners, scouring pads, or solvents to clean any part of the fridge/freezer.

CHANGING THE INTERNAL LIGHT

1. Before carrying out the LED replacement, always disconnect the mains supply.
2. Hold and lift up the LED light cover.
3. Remove the old LED by unscrewing it in a counter-clockwise direction.
4. Replace with a new LED light by screwing it in a clockwise direction, making sure that it is secure in the light holder.
5. Replace the light cover and reconnect your fridge to the mains supply and switch it on.

REVERSING THE DOOR SWING Disassemble the Refrigerator Door

1. a. Use a tool to remove the screw from the hinge cover, and then remove the latter. Insert the communication line into the hole on the cabinet top.

b. Use a tool to remove the 4 screws from the upper hinge cover and then remove the latter.

Pry up the door bush and small end cap cover on the door.

c. Insert the door bush and door communication line into the hole on the door and then put on the small end cap cover.

d. Use a tool to remove the 2 screws as shown in the below figure to remove the hole cover on the cabinet top and get the

cabinet communication line out of the hole.

Pry up the small end cap cover on the door and get out the door bush and door communication line.

e. Insert the door bush into the round hole on the door and then put on the small end cap cover.

f. Move the refrigerator door upward over 500mm to remove the door.

1. a. Use a tool to remove the 3 screws from the middle hinge cover and then remove the middle hinge.

b. Move the freezer door upward over 500mm to remove the door.

c. Remove the adjustable front feet under the lower hinge; use a tool to remove the 4 screws from the lower hinge and then disassemble the lower hinge. Door disassembly is finished.

Assemble door, lower hinge accessories to the corresponding positions

1. a. Use a tool to get the door bush out as shown in the below figure and assemble it to the corresponding position of the other side.

b. Use a tool to remove the screws of the stopper ass as shown in the below figure and then assemble them to the other side of the door.

c. Use a tool to remove the axle and two stoppers on the lower hinge and then assemble them to the position as shown in the below figure.

This situation applies to open door in right side. This situation applies to left side.

Assemble the refrigerator door and freezer door to the opposite side

1. a. Remove the adjustable front foot as shown below by hand and then assemble the lower hinge to the other side of the cabinet and fix the screws by using a tool.

b. Assemble the shorter adjustable front foot to the lower hinge side and adjust the height of the foot to make the refrigerator stay in level.

1. Put on the freezer door and turn the middle hinge by 180° and then assemble it to the other side of the cabinet; use a tool to screw up the 3 screws to fix the middle hinge.

1. Put on the refrigerator door and assemble the upper hinge to the other side of the cabinet; use a tool to screw up the 4 screws to fix the upper hinge.

After that, connect the door communication line and the cabinet communication line and then put on the upper hinge cover and fix it using a screw.

1. Assemble the hole cover to the other side of the cabinet and use a tool to screw up the hole cover.

Door disassembly is finished here.

Figure of door opening from the right

Figure of door opening from the left

Double check that the door is aligned correctly and all the seals are closed on all sides. If necessary, re-adjust the levelling feet.

NOTE: If you want to have the door swing reversed, we recommend that you contact a qualified technician. You should only try to reverse the door yourself if you believe that you are qualified to do so. All parts removed must be saved to do the reinstallation of the door. You should rest the fridge freezer on something solid so that it will not slip during the door change process. Do not lay the fridge freezer flat as this may damage the coolant system. Ensure the fridge freezer is unplugged and empty. We recommend that 2 people handle the fridge freezer during assembly.

TROUBLESHOOTING

• If the appliance does not operate when switched on, check:
• Power cut: If the internal temperature of the Fridge/Freezer compartment is -18°C or less when the power returns, your food is safe. The food in your Fridge/Freezer will remain frozen for approx 16 hours with the door closed. Do not open the Fridge/Freezer door more than necessary.
• The product is designed and built for domestic household use only.
• The plug is inserted properly in the socket and that the power supply is on. (To check the power supply to the socket, plug in another appliance).
• The fuse has blown/circuit breaker has tripped/main distribution switch has been turned off.
• The temperature control has been set correctly.
• If the refrigerator is exceptionally cold, you may have accidentally adjusted the thermostat control dial to a higher position.
• If the refrigerator is exceptionally warm, the compressor may not be working. Turn the thermostat control dial to the maximum setting and wait a few minutes. If there is no humming noise, it is not working. Contact the local store where your purchase was made.
• If condensation appears outside of the Refrigerator, this may be due to a change in the room temperature. Wipe off any residue of moisture. If the problem continues contact the local store where your purchase was made.
• If the provided plug has been replaced, make sure the new plug is properly connected. If the appliance is still not operating after the above checks, please contact Customer Service.

SCRAPPING OLD APPLIANCES

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials.

Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

WEEE should not be treated as household waste.

WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

Conformity

By placing the CE mark on this product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product.

TABLE OF CONTENTS

SAFETY INFORMATION .... 54

COMBI CANDY 62

Climate class....62

TRANSPORT INSTRUCTIONS....62

INSTALLATION INSTRUCTIONS 63

START-UP 63

COMBINED OPERATION....64

VERTICAL DISPLAY UNIT 64

ROUND DISPLAY UNIT....66

INTERNAL USER INTERFACE 67

TECHNICAL SPECIFICATIONS 68

FRESHNESS CONTROL....68

WATER DISPENSER

ENERGY SAVING....98

CARE....98

Defrosting 98

WATER DISPENSER

WATER DISPENSER

ANTIBACTERIAL SYSTEM (if present)

WATER DISPENSER

WATER DISPENSER....173

THE VERTICAL DISPLAY

WATER DISPENSER

Fill the glass

ANTIBACTERIAL SYSTEM (if equipped)

WATER DISPENSER

DISPOSAL OF OLD APPLIANCES

ANTIBACTERIAL SYSTEM (if equipped)

ROUND DISPLAY....296

INTERNAL USER INTERFACE....297

TECHNICAL FUNCTIONS 298

FRESHNESS CONTROL.... 298

ANTIBACTERIAL SYSTEM (if equipped).... 298

WATER DISPENSER 298

WATER DISPENSER

1. a. Use a tool to unscrew the 3 screws on the middle hinge cover, then remove it.

The doors are pre-assembled.

SET button: Press the SET button to set the temperature until you reach the desired level, with level 1 being the highest and level 4 the lowest temperature. Under normal operating conditions, we recommend using the middle level (level 2).

When the setting takes effect, it immediately starts the corresponding stop for operational control, and the stop indicator lights up for 3 minutes and then goes off. The standard factory temperature is set to 2.

Press the SET button and hold for more than three seconds to enter the self-test program for the computer equipment. The self-test operation starts within 10 minutes, and holding the button for a long time is not valid after 10 minutes.

WI-FI button: The device is equipped with SmartFi+ technology that allows remote control of the device via an app. Press and hold the Wi-Fi icon for three seconds to activate the Wi-Fi function; the icon light changes from white to blue.

Connecting the device (via the app): Download the SimplyFi app to your device. The Candy SimplyFi app is available for devices using Android and iOS operating systems, for tablets and smartphones. Learn all about SmartFi+ features by searching the app in DEMO mode. Open the app, create a user profile, and connect the device by following the on-screen instructions or the "Quick Guide" provided with the device. This action is only necessary during initial installation. To complete the connection, follow the instructions shown on the smartphone screen.

ANTIBACTERIAL SYSTEM (if present)

WATER DISPENSER

Filling

To fill with water, gently press the dispenser tap with a glass or container. To stop the water flow, remove the glass from the dispenser tap.

b. Using a tool, remove the four screws from the top cover of the hinge, and then remove it.

Lift the door bushing and the small end cap cover on the door.

cap.

c. Insert the door bushing and the connection line into the hole on the door, and then place the small end cap cover.

d. Using a tool, remove the two screws, as shown in the figure below, to remove the hole cover on the top of the chamber, and then pull the chamber connection line out of the hole.

Lift the cover of the small end cap on the door and remove the door bushing and the door connection line.

e. Insert the door bushing into the round hole on the door, and then install the small end cap cover.

f. Move the refrigerator door upward more than 500 mm to remove the door.

1. a. Using a tool, remove the 3 screws from the middle hinge cover, and then remove the middle hinge.

b. Move the freezer door upward more than 500 mm to remove the door.

c. Remove the adjustable front foot under the lower hinge; using a tool, remove the 4 screws from the lower hinge, and then disassemble the lower hinge. The door removal is complete.

Installing the door and lower hinge accessories at the appropriate positions

1. a. Using a tool, remove the door bushing as shown in the figure below, and assemble it at the appropriate position on the other side.

b. Using a tool, remove the screws from the plug as shown in the figure below, and then assemble them on the other side of the door.

c. Using a tool, remove the shaft and two plugs on the lower hinge, and then assemble them at the position as shown in the figure below.

b. Assemble the shorter adjustable front foot on the side of the lower hinge and adjust the height of the foot so that the refrigerator is level.

1. Install the freezer door and rotate the middle hinge 180 degrees, then install it on the other side of the cabinet; using a tool, tighten 3 screws to secure the middle hinge.

1. Install the refrigerator door and assemble the upper hinge on the other side of the cabinet; using a tool, tighten 4 screws to secure the upper hinge.

After that, connect the door connection line and the cabinet connection line, then install the upper hinge cover and secure it with a screw.

1. Assemble the hole cover on the other side of the cabinet and, using a tool, secure the hole cover screws.

This device is marked in accordance with Directive 2012/19/EU on waste electrical and electronic equipment (WEEE).

SET button: Press the SET button to adjust the temperature until you reach the desired level, where level 1 is the warmest and level 4 is the coldest. Under normal operating conditions, we recommend using the middle level (level 2).

When the setting takes effect, it immediately starts the corresponding stop for operational control, and the stop indicator is lit for 3 minutes and then turns off. The standard factory temperature is set to 2.

Press and hold the "SET" button for more than 3 seconds to enter the hardware self-test program. The hardware self-test operation starts within 10 minutes, and holding the button for a long time is not valid after 10 minutes.

ANTIBACTERIAL SYSTEM (if present)

WATER DISPENSER

The water dispenser allows you to get cold water without opening the refrigerator compartment door.

Before first use

Before first use of the water dispenser, remove and clean the water container located inside the refrigerator compartment.

• Lift and remove the water container from the refrigerator compartment.
• Open the lid of the water container, then clean the water container and lid in warm soapy water. Rinse thoroughly.
• After cleaning, place the lid on the water container, then return the water container to the refrigerator door.
• Clean the dispenser tap outside the refrigerator door.

Inside the drain opening, a "cleaning tip" will be inserted. This will prevent small food particles from falling into that opening. After cleaning the inside of your refrigerator and removing food residue around that opening, use the "cleaning tip" to check if the opening is clogged. For cleaning the outside of the refrigerator/freezer, use common furniture polish. Make sure the appliance door is closed so that the polish does not get on the magnetic seal strip on the door or inside the appliance.

c. Insert the door bushing and connecting line into the hole on the door, then place the small end cap cover.

d. Using a tool, remove the two screws as shown in the figure below to remove the hole cover on the top of the chamber, and then pull the chamber connection line out of the hole.

Lift the cover of the small end cap on the door and remove the door bushing and the door connection line.

e. Insert the door bushing into the round hole on the door, and then put the cover of the small end cap back on.

f. Lift the refrigerator door upward over 500mm to remove the door.

1. a. Using a tool, remove the 3 screws from the middle hinge cover, and then remove the middle hinge.

b. Lift the freezer door upward over 500mm to remove the door.

c. Remove the adjustable front foot under the bottom hinge; using a tool, remove the 4 screws from the bottom hinge, and then disassemble the bottom hinge. The door disassembly is complete.

Assembling the door and the bottom hinge accessories at the corresponding positions.

1. a. Using a tool, remove the door bushing as shown in the figure below and assemble it at the corresponding position on the other side.

b. Using a tool, remove the screws from the plug as shown in the figure below, and then assemble them on the other side of the door.

c. Using a tool, remove the shaft and two plugs on the bottom hinge, and then assemble them at the position as shown in the figure below.

Apply this situation for opening the door on the right side. Apply this situation to the left side.

Assembling the refrigerator door and freezer door on the opposite side

1. a. Manually remove the adjustable front foot as shown below, and then assemble the bottom hinge on the other side of the chamber and tighten the screws using a tool.

1. Place the freezer door and rotate the middle hinge 180 degrees, then place it on the other side of the chamber; using a tool, tighten the 3 screws to secure the middle hinge.

1. Install the refrigerator door and assemble the upper hinge on the other side of the compartment; use a tool to tighten the 4 screws to secure the upper hinge. After that, connect the door wiring harness to the compartment wiring harness, then install the upper hinge cover and secure it with a screw.
2. Install the hole cover on the other side of the compartment and use a tool to tighten the hole cover screws.

Image of door opening from the left side

Make sure the doors are properly aligned and that the gaskets are sealed on all sides. If necessary, readjust the leveling feet.

NOTE: If you want to change the door opening direction, we recommend contacting a qualified technician. Attempt to change the door opening direction yourself only if you feel qualified. You must keep all removed parts to reinstall the door. Lean the refrigerator/freezer against something stable to prevent it from slipping during the door reversal process. Do not lay the refrigerator/freezer on its back to avoid damaging the cooling system. Make sure the refrigerator/freezer is unplugged and empty. We recommend that two people handle the refrigerator/freezer during assembly.

TROUBLESHOOTING

ANTIBACTERIAL SYSTEM (if available)

WATER DISPENSER

WATER DISPENSER....399

WATER DISPENSER

WATER DISPENSER

1. Install the freezer door and rotate the middle hinge 180° and attach it to the other side of the cabinet by using a tool to tighten 3 screws and secure the middle hinge.

1. Install the refrigerator door and install the upper hinge on the other side of the cabinet by using a tool to tighten 4 screws and secure the upper hinge.

Then connect the door communication cable and the cabinet communication cable, then install the upper hinge cover and secure it with the screw.

WATER DISPENSER

Tips for perfect food storage in the refrigerator

1. Install the refrigerator door and mount the upper hinge on the other side of the cabinet; secure the upper hinge by screwing in the 4 screws using the tool.

WATER DISPENSER

ANTIBACTERIAL SYSTEM (if available)

WATER DISPENSER

ANTIBACTERIAL SYSTEM (if available)

WATER DISPENSER

into the refrigerator door.

WATER DISPENSER
