USER MANUAL CA3051 Cyber Acoustics

CA-3051 Owner's Guide Powered Speaker System

Thank you!

Merci!

Gracias!

Getting Started

Pour commencer Inicio

Connect to line-out source (green)

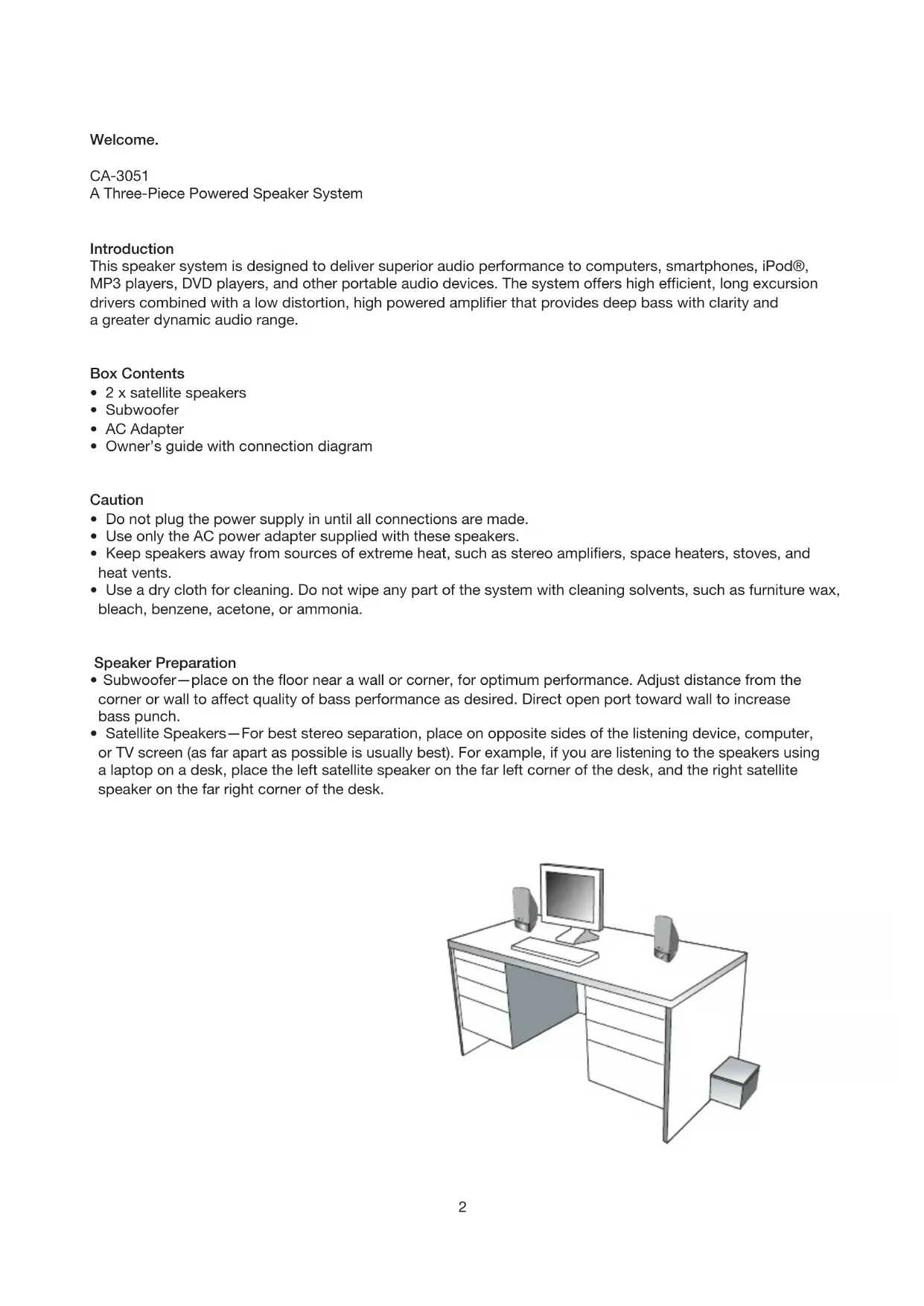

A Three-Piece Powered Speaker System

Introduction

This speaker system is designed to deliver superior audio performance to computers, smartphones, iPod® MP3 players, DVD players, and other portable audio devices. The system offers high efficient, long excursion drivers combined with a low distortion, high powered amplifier that provides deep bass with clarity and a greater dynamic audio range.

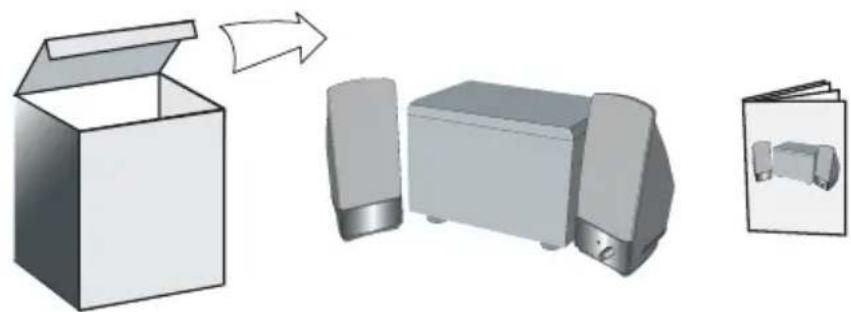

Box Contents

• 2 x satellite speakers
  Subwoofer
• AC Adapter
• Owner's guide with connection diagram

Caution

• Do not plug the power supply in until all connections are made.
• Use only the AC power adapter supplied with these speakers.
• Keep speakers away from sources of extreme heat, such as stereo amplifiers, space heaters, stoves, and heat vents.
• Use a dry cloth for cleaning. Do not wipe any part of the system with cleaning solvents, such as furniture wax, bleach, benzene, acetone, or ammonia.

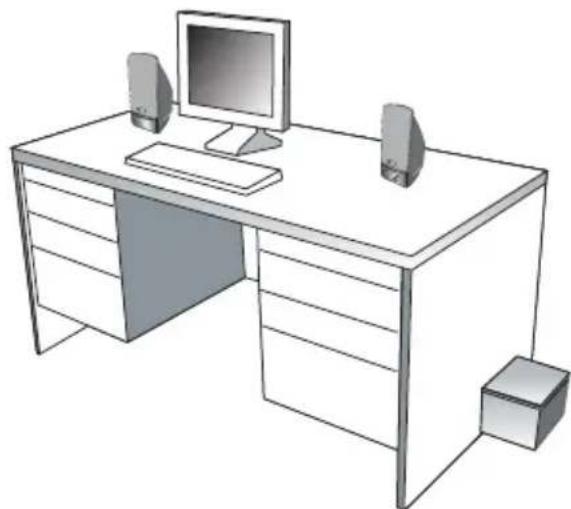

Speaker Preparation

• Subwoofer—place on the floor near a wall or corner, for optimum performance. Adjust distance from the corner or wall to affect quality of bass performance as desired. Direct open port toward wall to increase bass punch.
• Satellite Speakers—For best stereo separation, place on opposite sides of the listening device, computer, or TV screen (as far apart as possible is usually best). For example, if you are listening to the speakers using a laptop on a desk, place the left satellite speaker on the far left corner of the desk, and the right satellite speaker on the far right corner of the desk.

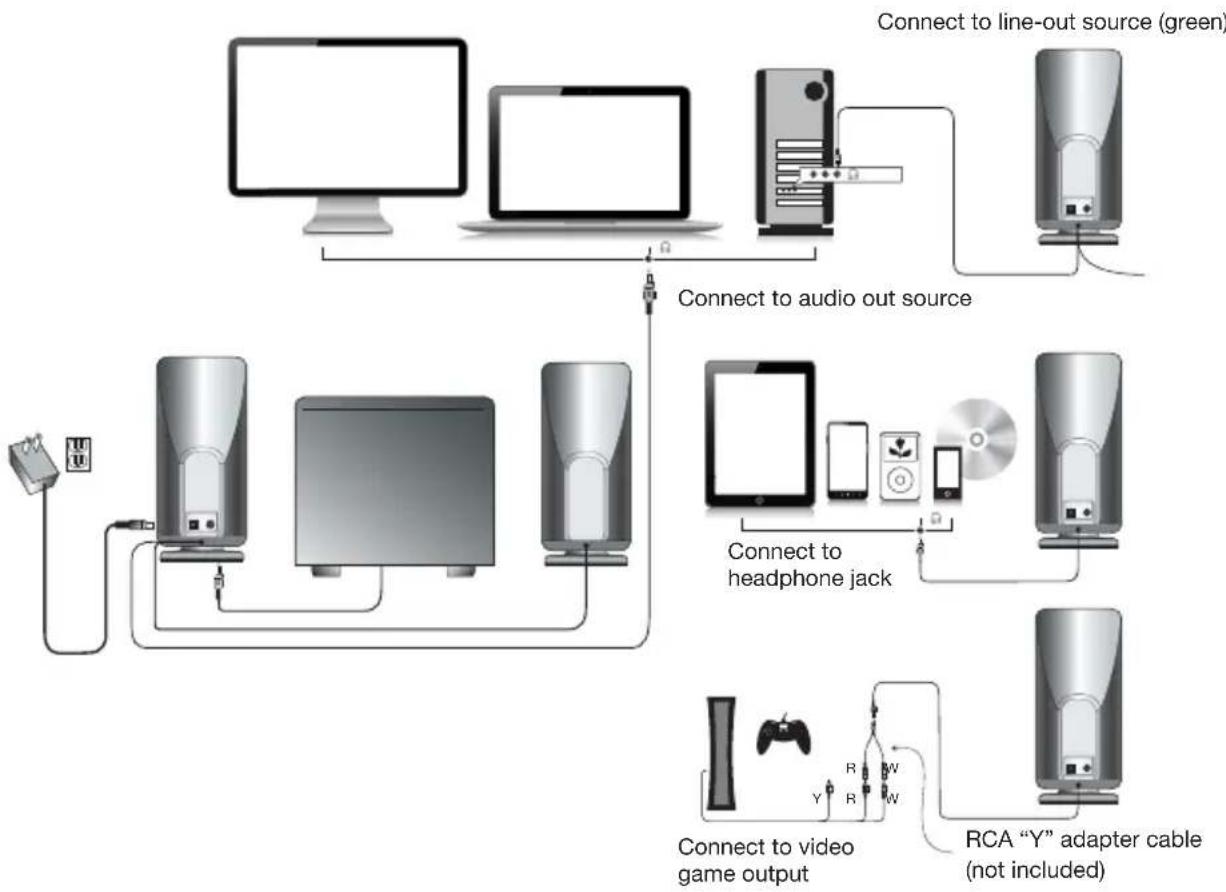

Speaker Connection

You can connect these speakers to a variety of devices, such as laptop, computer, smartphone, iPod, MP3 player, CD player, DVD player, and other audio devices. Please read the following instructions along with the diagrams provided to identify which diagram most closely matches your connection source.

Desktop computer

• Take the cable with the green plug and plug it into the green output/source jack in the back or front of the computer (also referred to as the sound/audio out jack).
• Take the plug from the subwoofer and plug this into the "sub output" jack on the back of right speaker.
• Take the AC power adapter cord and plug the black plug into the back of the right Satellite speaker.
• Take the AC power adapter and plug into wall socket or power strip.

Smartphone, iPod, MP3 player, DVD Player, or CD player

• Take the cable with the green plug and plug it into the green output/source jack of the audio device.
• Take the plug from the subwoofer and plug this into the "sub output" jack on the back of right speaker.
• Take the AC power adapter cord and plug the black plug into the back of the right Satellite speaker.
• Take the AC power adapter and plug into wall socket or power strip.

Gaming system

• In order to connect these speakers to a game console, you will need a console gaming adapter, also known as a "Y adapter", which has dual-RCA outputs and is sold separately.
• Turn off the power to your gaming system.
• Take the red and white dual-RCA connections on the Y adapter, and plug them into the matching red and white RCA jacks on your gaming system.
• Take the green stereo jack at the other end of the "Y" adapter and plug that into the cable with the green plug coming from the back of the right speaker.
• Take the plug from the subwoofer and plug this into the "sub output" jack on the back of right speaker.

Controls & features

• Power - The on/off button is on the right satellite speaker. Rotate clockwise to turn on. Rotate counter-clockwise to turn the system off.
• Master Volume Control - This control is on the right satellite speaker. Rotate clockwise to turn volume up or counter - clockwise to turn volume down.

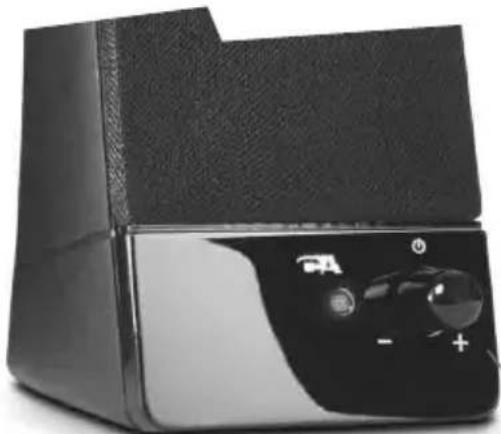

Volume control with power on/off switch

Troubleshooting

Symptom:

Speaker system will not power on.

Solution:

• Power button is not turned on. Rotate clockwise and check for the blue LED indicator light to come on.
• Verify the AC power adapter is plugged into the wall outlet.
• Check if the wall outlet or power strip you are using is actually getting power, i.e. not a switched outlet.

Symptom:

Speaker does not produce sound.

Solution:

• Verify the speaker is getting power. Check above steps.
• Make sure the volume is turned up to audible listening level.
• Verify that all cables are plugged into the correct jacks.
• Many times users believe that the speakers are not working, when in fact they are having trouble with the sound source. The most common problem when connecting to a computer is that the connections are incorrect. Make sure you are connected to the audio output jack from your computer. Many times, this jack will be green. Also, make sure your media device or CD/DVD device is playing and the software volume settings are turned up and not muted.
• If you still have problems, disconnect the speaker source cable from your computer and connect to a smartphone, iPod, or anything else with a 3.5mm headphone output. If your speakers work on this other source, you know they are functioning as normal and the issue likely lies with your computer or the connections.

Symptom:

Sound is distorted.

Solution:

• Turn the volume down by 25% or 50% . If this does not work, also check the audio software volume level and decrease it if necessary.
• Adjust the computer's master volume control by balancing the volume until it's at 50% , then adjust the volume levels on the speakers.

If you have questions or need assistance with your speakers, we're here to help.

Call 360-883-0333 during the hours of 8 am to 5 pm (United States PST) or send email to

[e-mail]

iPod, iPhone, iPad, and iPad mini are a trademarks of Apple, Inc.
