Product type	Integrated connected freezer
Brand	Neff
Model	KI8875D40
Height (cm)	177,2
Width (cm)	54,1
Depth (cm)	54,5
Net weight (kg)	62
Freezer net capacity (L)	219
Energy class	A+
Annual energy consumption (kWh/year)	240
Noise level (dB)	39
Climate class	SN-T
Ambient temperature min/max (°C)	10 / 43
Cooling system	NoFrost (automatic defrost)
Special functions	SuperFreeze, door alarm, vacation mode, electronic control
Connectivity	Home Connect (Wi-Fi, app control)
Display	LED screen with temperature display
Child safety	Yes (key lock)
Installation type	Integrable (free-standing possible)
Power supply	220-240 V, 50 Hz
Repairability	Spare parts available via Neff after-sales service
Cleaning and maintenance	Interior cleaning with soapy water, removable ice cube tray

Frequently Asked Questions - KI8875D40 NEFF

How to adjust the temperature of my Neff KI8875D40 freezer?

Use the +/- buttons on the temperature display panel of the freezer compartment. The recommended temperature is -18 °C. You can also adjust via the Home Connect app if the appliance is connected.

How to activate the SuperFreeze function?

Press the SuperFreeze button (or hold it down depending on the model) until the indicator lights up. This function quickly lowers the temperature to freeze large quantities of fresh food. Deactivate it after 24 hours to avoid unnecessary consumption.

Is my Neff KI8875D40 freezer compatible with Home Connect?

Yes, this model is equipped with Home Connect. You can connect it to your Wi-Fi network via WPS or step-by-step mode, then control it via the Home Connect app on your smartphone.

What to do if the door alarm sounds?

The door alarm triggers if the door is left open too long. Close the door completely. The alarm stops automatically. If the problem persists, check that nothing is preventing the door from closing.

How to defrost my NoFrost freezer?

The NoFrost system defrosts automatically. No manual action is required. However, it is recommended to clean the interior regularly with a soft cloth and lukewarm water.

Can I install the freezer in an unheated garage?

This freezer has a climate class of SN-T, meaning it can operate in ambient temperatures from 10 °C to 43 °C. In an unheated garage in winter, ensure the temperature does not drop below 10 °C.

How to clean the interior of the freezer?

Disconnect the appliance, remove food and drawers. Clean interior surfaces with a soft cloth dipped in lukewarm soapy water. Rinse with clean water and dry. Never use abrasive detergents or chemicals.

What to do if the freezer stops cooling?

First check that the appliance is properly plugged in and that the circuit breaker has not tripped. Ensure the ambient temperature is within the allowed range. If the problem persists, contact Neff after-sales service.

How to reset factory settings?

To reset, press the temperature adjustment button of the freezer compartment for about 10 seconds until the display flashes. Release, then confirm. All settings return to default values.

Where to find spare parts for this model?

Spare parts are available from Neff after-sales service or on the official website. Use the appliance reference (KI8875D40) to identify compatible parts.

USER MANUAL KI8875D40 NEFF

EN Connect your refrigerator to the future. 8

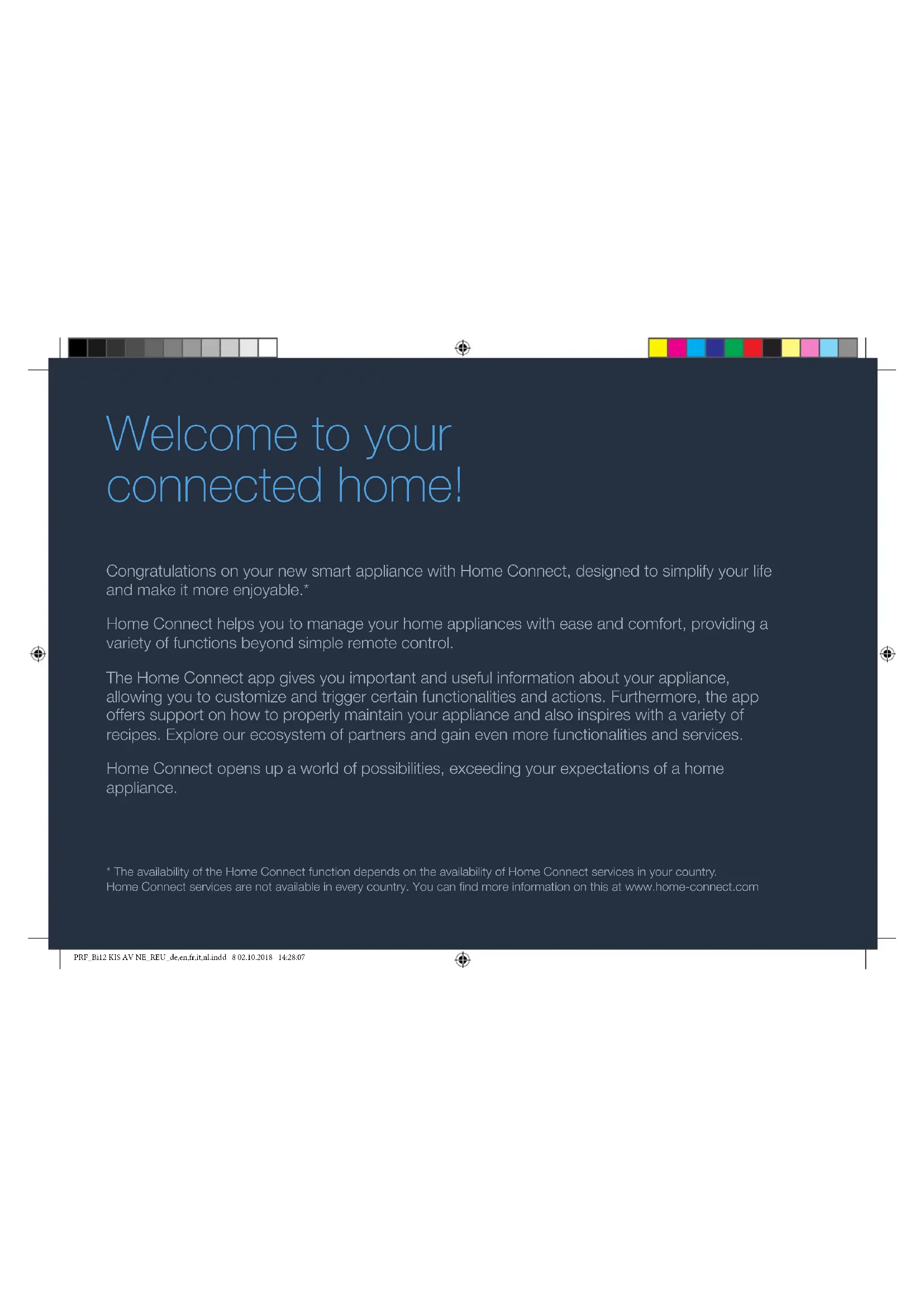

Welcome to your connected home!

Congratulations on your new smart appliance with Home Connect, designed to simplify your life and make it more enjoyable.*

Home Connect helps you to manage your home appliances with ease and comfort, providing a variety of functions beyond simple remote control.

The Home Connect app gives you important and useful information about your appliance, allowing you to customize and trigger certain functionalities and actions. Furthermore, the app offers support on how to properly maintain your appliance and also inspires with a variety of recipes. Explore our ecosystem of partners and gain even more functionalities and services.

Home Connect opens up a world of possibilities, exceeding your expectations of a home appliance.

• The availability of the Home Connect function depends on the availability of Home Connect services in your country. Home Connect services are not available in every country. You can find more information on this at www.home-connect.com

Explore: With the

Home Connect app you can...

Manage your appliance

In the app's section you have an overview of your connected appliances, offering a variety of functions beyond simple remote control. Monitor the appliance's progress, change or pause programs, change settings, trigger actions, and receive notifications.

Be inspired

The recipe section provides a variety of inspiring recipes, tips and videos, that will make cooking and baking even more enjoyable.

Get support

The service section gives helpful information on how to maintain and operate your appliance properly.

Discover even more benefits

We are constantly expanding our ecosystems of partners. Please refer to www.home-connect.com for an overview of all partners.

Let's get started:

What you need

1 | Your refrigerator must be installed properly and turned on
2 | A smartphone or tablet equipped with the latest version of iOS or Android operating system.
3 | Your refrigerator within the Wi-Fi signal of your home network.
4 | The name (SSID) and password (key) of your Wi-Fi network.
5 | This installation guide.

Important information:

Data security: Home Connect values customer data, ensuring the transfer of data is encrypted.
Home Connect utilizes a variety of security measures, which are periodically reviewed. For further information visit www.home-connect.com.

Appliance safety: To ensure safe operation of your appliance with Home Connect functionality, please consult the safety information in the appliance instruction manual.

EN9

10 EN

Step 1: Download the Home Connect app and create a user account

1 | Open the App Store (Apple devices) or Google Play Store (Android devices) on your smartphone or tablet.
2 | Search for the "Home Connect" app in the store's search and install it.

The Home Connect app: Home connect

3 Open the app and register so you can create a Home Connect account.
4 Write down your Home Connect account credentials (user account and password), you will need them later.

The app will guide you through the steps of adding your appliance to Home Connect. It will refer to this guide only when needed.

Step 2: Connect your refrigerator to your home network

1 Your refrigerator must be installed properly and turned on.
2| Open your Home Connect app to add your refrigerator.
3 | Please follow the directions in the app and refer to this guide only when prompted to by the app.

Note:

We are constantly working to improve the Home Connect app, which may lead to differences in the setup steps. Please rely on the instructions in the latest version of the Home Connect app to guide you through the setup process.

Step 2.1: Connect your refrigerator to your home network with WPS

Please enter step 2.1 only when prompted to by the app. The following steps describe operations at the appliance itself.

1 | Press the button g.

The refrigerator compartment temperature display shows "Cn".

2 | Press the button / on the refrigerator compartment until the refrigerator compartment temperature display shows "AC" and the freezer compartment temperature display "OF".

3 | Press the button / on the freezer compartment.

An animation appears for 2 minutes in the freezer compartment temperature display.

4 | Within the next 2 minutes activate the WPS function on your home network router.
If connection is successful, "On" flashes in the freezer compartment temperature display.

The app is notified as soon as your refrigerator is successfully connected to your Wi-Fi network.

5 | Follow the instructions in the app.

Note:

If the connection cannot be established within 2 minutes check that your refrigerator is within range of your Wi-Fi network.

For some appliances WPS mode is also called "automatic mode".

EN12

Step 2.2: Connect your refrigerator to the home network step-by-step

Please enter step 2.2 only when prompted to by the app. The following steps describe operations at the appliance itself.

1 | Press the button.

The refrigerator compartment temperature display shows "Cn".

2 | Press the button on the refrigerator compartment until the refrigerator compartment temperature display shows "SA" and the freezer compartment temperature display "OF".

3 | Press the button on the freezer compartment.

An animation appears in the freezer compartment temperature display.

The appliance opens a temporary Wi-Fi network named "HomeConnect" for 5 minutes with the password "HomeConnect".

The app provides your home Wi-Fi network name (SSID) and its password via this temporary Wi-Fi network to the refrigerator enabling the refrigerator to connect to your home Wi-Fi network.

4 | Follow the instructions in the app.

Note:

For some appliances the step-by-step mode is also called "SAP mode" or "manual mode".

If step-by-step mode does not work, check:

• Your appliance is in the range of the Wi-Fi network.
• Your smartphone/tablet is connected to your home Wi-Fi network.
• Your smartphone/tablet and appliance are connected to the same home Wi-Fi network.

Step 3: Connect your refrigerator to the Home Connect app

Please enter step 3 only when prompted to by the app. The following steps describe operations at the appliance itself.

1 | Press the button.

The refrigerator compartment temperature display shows "Cn".

2 | Press the button / on the refrigerator compartment until the refrigerator compartment temperature display shows "PA" and the freezer compartment temperature display "OF".

3 | Press the button / on the freezer compartment.

An animation appears in the freezer compartment temperature display.

If connection is successful, "PA" appears in the refrigerator compartment temperature display and "On" in the freezer compartment temperature display.

Note:

If the connection could not be established, make sure your smartphone/tablet is within range of your W-Fi network.

Home Connect opens up a world of possibilities, exceeding your expectations of a home appliance.

To learn more about smart home appliances with Home Connect and our partner ecosystem visit www.home-connect.com
