USER MANUAL MXFS9000 SAMSUNG

PREMIUM HI-FI Component System MP3/WMA/CD-DA Playback with CD/USB user's manual Imagine the possibilities Thank you for purchasing this Samsung product.To receive more complete service, please register your product at www.samsung.com/register MX-FS9000 MX-FS9000-SJ,ZN-ENG(MIC)_131001.indd 1 2013-10-01 2:44:52Safety Warnings 2 English English 3 TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPENThis symbol indicates “dangerous voltage” inside the product that presents a risk of electric shock or personal injury.CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.This symbol indicates important instructions accompanying the product.CLASS 1 LASER PRODUCTKLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITEKLASS 1 LASER APPARATPRODUCTO LÁSER CLASE 1CLASS 1 LASER PRODUCTThis Compact Disc player is classified as a CLASS 1 LASER product. Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.DANGER :

• Complies with 21CFR 1040.10 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007• VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. AVOID DIRECT EXPOSURE TO BEAM. (FDA 21 CFR) WARNING
• To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. CAUTION
• Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.• The Mains plug is used as a disconnect device and shall stay readily operable at any time.• Use only a properly grounded plug and receptacle. - An improper ground may cause electric shock or equipment damage. (Class l Equipment only.)• CLASS 3B VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO THE BEAM (IEC 60825-1)• THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVER AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

• An administration fee may be charged if eithera. an engineer is called out at your request and there is no defect in the product (i.e. where you have failed to read this user's manual) b. you bring the unit to a repair centre and there is no defect in the product (i.e. where you have failed to read this user's manual).
• The amount of such administration charge will be advised to you before any work or home visit is carried out. MX-FS9000-SJ,ZN-ENG(MIC)_131001.indd 2 2013-10-01 2:44:542 English English 3 Precautions
• Ensure that the AC power supply in your house complies with the identification sticker located on the back of your product. • Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation (7.5~10cm).• Do not place the product on amplifiers or other equipment which may become hot. Make sure the ventilation slots are not covered.• Do not stack anything on top of the product. • Before moving the product, ensure the Disc Insert Hole is empty. • In order to disconnect the product completely from the power supply, remove the AC plug from the wall outlet, especially when left unused for a long period of time.• During thunderstorms, disconnect the AC plug from the wall outlet. Voltage peaks due to lightning could damage the product.• Do not expose the product to direct sunlight or other heat sources. This could lead to overheating and malfunction of the product.• Protect the product from moisture, and excess heat or equipment creating strong magnetic or electric fields (i.e. speakers.).• Disconnect the power cable from the AC supply if the product malfunctions. Your product is not intended for industrial use. • Use of this product is for personal use only.• Condensation may occur if your product or disc has been stored in cold temperatures. If transporting the product during the winter, wait approximately 2 hours until the product has reached room temperature before using.• The batteries used with this product contain chemicals that are harmful to the environment. Do not dispose of batteries in the general household trash.• Maintain an open space of approximately 6 inches (15 cm) on the sides and rear of the system, for ventilation purposes.• Place the loudspeakers at a reasonable distance on either side of the system to ensure good stereo sound.• Direct the loudspeakers towards the listening area. Cautions On Handling And Storing Discs Small scratches on the disc may reduce sound and picture quality or cause skipping.Be especially careful not to scratch discs when handling them. Holding Discs
• Do not touch the playback side of the disc. • Hold the disc by the edges so that fingerprints will not get on the surface.• Do not stick paper or tape on the disc. Disc Storage
• Do not keep in direct sunlight.• Keep in a cool ventilated area.• Keep in a clean Protection jacket. Store vertically.• Do not allow the discs to become contaminated with dirt.• Do not load cracked or scratched discs. Handling and Storing Discs If you get fingerprints or dirt on the disc, clean it with a mild detergent diluted in water and wipe with a soft cloth.• When cleaning, wipe gently from the inside to the outside of the disc• Condensation may form if warm air comes into contact with cold parts inside the product. When condensation forms inside the product, it may not operate correctly. If this occurs, remove the disc and let the product stand for 1 or 2 hours with the power on. Disc Types And Disc Format This product does not support Secure (DRM) Media files. CD-R Discs• Some CD-R discs may not be playable depending on the disc recording device (CD-Recorder or PC) and the condition of the disc. • Use a 650MB/74 minute CD-R disc. Do not use CD-R discs over 700MB/80 minutes as they may not be played back.• Some CD-RW (Rewritable) media, may not be playable. • Only CD-Rs that are properly "closed" can be fully played. If the session is closed but the disc is left open, you may not be able to fully play the disc.CD-R MP3/WMA Discs• Only CD-R discs with MP3 files in ISO 9660 or Joliet format can be played.• MP3 file names should contain no blank spaces or special characters (. / = +).• Use discs recorded with a compression/decompression data rate greater than 128Kbps.• Only files with the ".mp3" and ".wma" extensions can be played.• Only a consecutively written multisession disc can be played. If there is a blank segment in the Multisession disc, the disc can be played only up to the blank segment.• If the disc is not closed, it will take longer to begin playback and not all of the recorded files may be played.• For files encoded in Variable Bit Rate (VBR) format, i.e. files encoded in both low bit rate and high bit rate (e.g., 32Kbps ~ 320Kbps), the sound may skip during playback.• A maximum of 999 files can be played per CD. • Supported Audio Formats(Bit Rate):WMA 56~128kbps, MP3 80~320kbps Important Information on Use MX-FS9000-SJ,ZN-ENG(MIC)_131001.indd 3 2013-10-01 2:44:544 English English 5 Safety Warnings ................................................. 2Important Information On Use .......................... 3Precautions .................................................... 3Cautions On Handling And Storing Discs

OFF User's Manual Remote Control/ Batteries FM Antenna Power Cable FOOT Rubber Microphone (MIC)

Connect the FM antenna to the FM antenna con-nector terminal. Slowly move the antenna wire around until you find a location where reception is good, then fas ten it to a wall or other rigid surface. If reception is poor, you may need to install an outdoor antenna. To do so, connect an outdoor FM antenna to the FM antenna connector terminal of the product using a 75Ω coaxial cable (not supplied).2. ONLY FOR SERVICE• This jack is just for testing, please don't use it. 3. AUX IN 2 Terminals Use the Audio Cable (not supplied) to connect AUX IN 2 on the product to Audio Out on the external analog output device. • Be sure to match connector colors. • If the external analog output device has only one Audio Out jack, connect either left or right.• Press the TUNER/AUX button to select the AUX 2.• If no button actions for more than 8 hours in AUX mode, the power will automatically turn off.4. LED Terminals for Speaker Beat Waving.5. 2.2 CH Speaker TerminalsThe speakers connector terminals are located on the rear of the product. To achieve the correct sound quality, insert those speaker connectors to the same color of the speaker terminals system. • LEFT channel (marked , White/Purple). • RIGHT channel (marked , Red/Purple). • Don't plug in the Purple SUBWOOFER connector to White or Red terminal by force. 6. POWER• Insert only the provided power cable.7. Cooling fan• The fan operates while the unit is powered on. If set to the minimum volume, the fan won't operate. Secure a minimum 10 cm of clear space from all sides of the fan when installing the product. Rear Panel

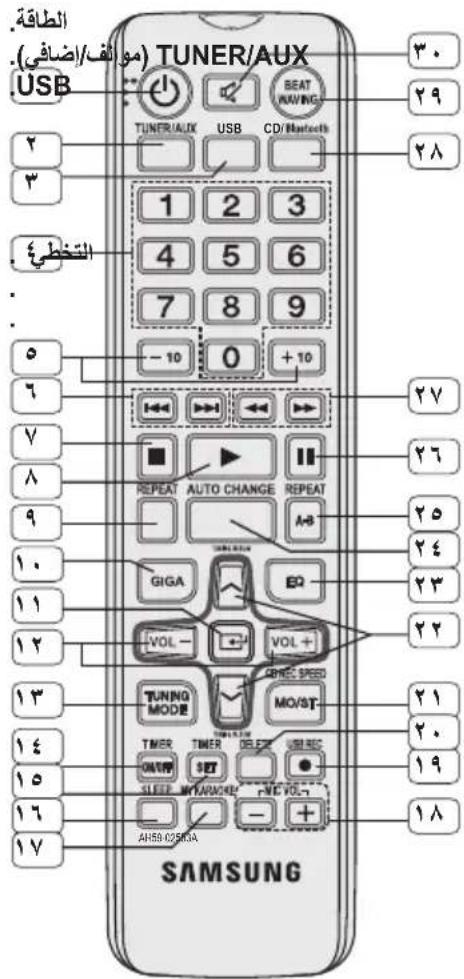

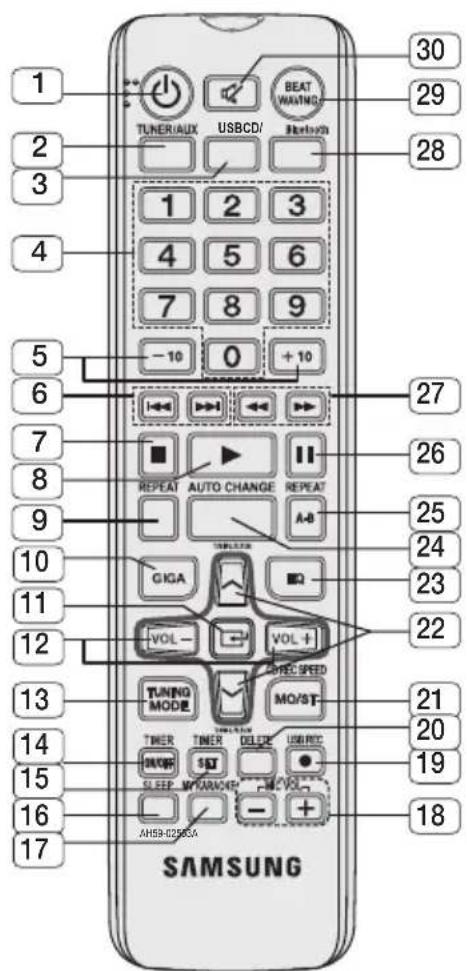

Installing Batteries In The Remote Control ` Place batteries in the remote control so they match the polarity : (+) to (+) and (–) to (–). ` Do not dispose of batteries in a fire. ` Do not short circuit, disassemble or overheat the batteries. ` Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. ` The remote control can be used up to approximately 23 feet (7 meters) in a straight line.* Battery size: AAA1. POWER2. TUNER/AUX3. USB4. Number(0~9) buttonDuring playback, press the desired track number. The selected track is played.5. SKIP(-10, +10)6. SKIP 7. STOP8. PLAY9. REPEAT10. GIGA11. ENTER12. VOLUME(-,+)13. TUNING MODE14. TIMER ON/OFF15. TIMER SET16. SLEEPSet a sleep time to shut off the product.17. MY KARAOKE 18. MIC VOLUME -, + 19. USB REC20. DELETE21. Mono/Stereo for FM, CD REC SPEED for CD Ripping

MX-FS9000-SJ,ZN-ENG(MIC)_131001.indd 7 2013-10-01 2:45:028 English English 9 Description Connecting the Speakers Recommended speaker setup.

The product may not operate properly if not installed in accordance with recommended speaker setup, or exposed to shaking or external shocks.

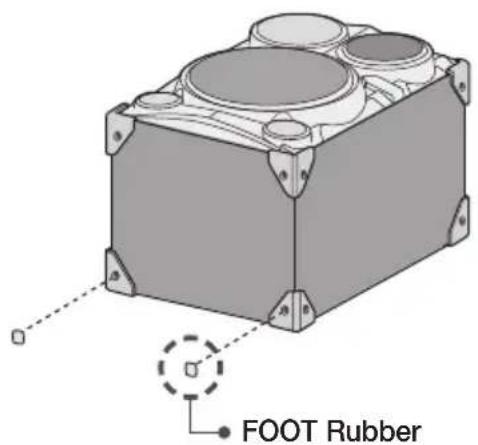

Do not extend wires of the speakers, and do not pressed or peeled off them with a heavy object. Attaching the speaker foot Attach the supplied speaker foot at rear corner on the bottom of the speaker to stabilize the speakers and to prevent them from slipping.FOOT Rubber MX-FS9000-SJ,ZN-ENG(MIC)_131001.indd 8 2013-10-01 2:45:098 English English 9 Display function You can view all functions available on the dis-play, adjust the brightness of the display and select the Display/LED either on or off.Each time you press the DISPLAY/DEMO button on the display mode will change as following: ◆ The Dimmer function The Dimmer function is selected and the display dark- ens. ◆LED OFF The LED is turned off while the dimmer function is work- ing. ◆Clock ON The Clock you set is displayed. ◆Display/LED ON All display and LED turned on.

The DEMO Music function Press DISPLAY/DEMO button for 5 seconds to play demo music. When you press the DISPLAY/DEMO button, the function operates as follows: DIMMER LED Off (unit/speaker)

LED On (unit/speaker) - To cancel the Demo Music mode• Press the DISPLAY/DEMO button for 5 seconds. The current mode is canceled and the product is turned off.•Press TUNER/AUX, CD/Bluetooth or USB button. The current mode is canceled and the mode is changed to the mode you selected. - While playing DEMO Music, all buttons will not work except [Power], VOL, [MUTE] and buttons mentioned above - If you connect speaker to AUX1 while displaying DEMO, sound is produced through AUX1 and you can use the VOL buttons and [MUTE]. Playing CD Loading Compact DiscYou can play 12 cm compact compact disc that requires no adapter.

1. Insert a disc gently into the disc slot with the disc's

label facing up and then disc will be played automatically.

• You can load or unload compact discs when the radio, USB or auxiliary source function is selected, and when you press the EJECT button, all of the other functions will be changed to the CD mode.• If no buttons are pressed on the product or remote control for more than 3 minutes when the product is in Pause mode, it will be changed to Stop mode.• If no buttons are pressed on the product or remote control for more than 25 minutes when the product is in Stop mode, the power will automatically turn off.CD/MP3/WMA-CD Playback

This product is designed to play an audio CD, CD-R, CD-RW, MP3/WMA-CD.1. Insert a disc gently into the disc slot with the disc's label facing up.2. The disc will be played automatically.• For MP3/WMA-CD audio, it may take several minutes to complete scanning the disc tracks.• If you play a file with an English name or a MP3/WMA-CD medium in an English title, the song title will be shown in the display. (Other languages besides English may not be indicated.)• An English-titled track containing a special character will not show the title in the display.<CD Playback Display>Track IndicatorPlaytime Indicator3. Adjust the volume according to needs with the following procedures.• Turn the VOLUME control on the product.

• Press the VOL + or VOL - button of the remote control. The volume level can be adjust in 31 steps (VOLUME MIN, VOLUME01~ VOLUME 29, and VOLUME MAX).4. Main UnitTo pause playback temporarily, press the p button.Press p again to continue playing the disc.Remote control To pause playback temporarily, press the PAUSE (#) button. Press PLAY (+) button to continue playing the disc.

5. To end playing, press the STOP (

) button.• If there is not a CD inserted it is indicated as “NO DISC”.• The quality of MP3/WMA-CD playback may vary depending on the condition of the disc containing the music files or the condition of the recorder with which the disc was created.• If different types of files or unnecessary folders are on the same disc, you will have problems with playback. Gently insert a CD into the disc slot and do not apply excessive force.• Do not put force or place a heavy object on the product.• Do not insert an out-of-spec. shape of CD such as a heart or octangle shaped CD. Otherwise, the product may be damaged.• Care must be taken about maintenance of the compact discs. Basic Functions MX-FS9000-SJ,ZN-ENG(MIC)_131001.indd 9 2013-10-01 2:45:0910 English English 11 Basic Functions Selecting a Track You can select a desired track while the disc is being played To play the previous trackPress the button within 3 seconds after the current track started playing. Press the button twice at least 3 seconds after the current track started playing.To play the next trackPress the button.To play the current trackPress the button 3 seconds later after the current track started playing.To play the track of your choicePress the

button to move to a desired track.• You can also use the number (0~9) button on the remote control to select a track. Searching a Track/Folder Quickly You can select a track/folder directly without the

1. Turn the EASY SEARCHING JOG control on the

product to the left or right to select a desired track.• You can move to the selected track directly.2. When the searching is done, the track will automatically start playing. Searching for a Specific Music Passage on a CD When listening to a compact disc, you can quickly search for a specific music passage on a track.Forward Search ............................

You can also press and hold the

button on the product to automatically scan for a track. Repeat One or All Tracks on the CD You can repeat playing CD unlimitedly:• CD containing a specific track.• Whole tracks of a CD.

1. Press the REPEAT button on the remote

control. Each time you press the REPEAT button, the repeat mode will change as following: MP3:

OFF ➝ TRACK ➝ ALL ➝ RANDOM

2. When you wish to stop the repeat function,

press the REPEAT button until "OFF" is displayed.• OFF: Cancels repeat playback.• TRACK: Repeatedly plays the selected track.• DIR (DIRECTORY): Repeatedly plays all tracks in the selected directory.• ALL: Repeatedly plays the entire disc.• RANDOM: Plays tracks in random order. A-B Repeat Playback You can repeatedly play back a designated section of a CD.

1. Press the REPEAT A-B button at the beginning

of desired part.• 'RPT A' will be displayed.

2. Press the REPEAT A-B button at the ending of

desired part.• 'RPT AB' will be displayed.

3. To cancel REPEAT A-B function, press the

REPEAT A-B button again.• 'OFF' will be displayed. REPEAT A-B function is available within a track. CD Programming This function is not available during playback of an MP3/WMA-CD.• You can program the playback order of up to 24 tracks of your choice.• However, you must stop playing the CD before selecting tracks.1. While in CD playback mode, press the STOP( ) button to stop playing the CD.2. Press the ENTER button to display the message below: (01= program number, ---= track number) MX-FS9000-SJ,ZN-ENG(MIC)_131001.indd 10 2013-10-01 2:45:1010 English English 11 Basic functions

button to move to a desired track.• Press to move to the previous track.• Press to move to the next track.4. Press the ENTER ( ) button to confirm your selection, the selection is stored and is displayed.5. To select a different track, following the steps 3 to 4 above.6. Press the PLAY (+) button to play the programmed tracks.7. Press the STOP( ) button to stop playing the programmed tracks, Press the STOP ( ) button again to cancel playing the programmed tracks.• If you eject the disc or turn off the product or change other function mode, your programming will be canceled.Checking or Editing the Programmed TrackYou can check a list of programmed tracks and edit them as you want.1. If a programmed track is being played, press the STOP( ) button once.2. Press the ENTER ( ) button twice to display the message below: (01= program number, 002= track number)3. Repeat pressing the ENTER ( ) button until the desired track is displayed.4. Press the

button to select a different track.5. Press the ENTER ( ) button to confirm your selection.

6. To play the programmed tracks, press the Play

) button. Playing USB Connect an external storage device such as USB flash memory or external HDD (Hard Disk Drive) to the product. You can play files in MP3/WMA format.Before you begin! 1. Connect the external USB storage device to your product.

2. Select the USB mode by pressing the USB 1 or USB 2

button on the product or the USB button on the remote control.3. The first file of the first directory plays automatically

4. To stop playing Press the STOP (

) button to stop playing. To remove the USB device If you press the STOP (

) button once again, you can remove the USB device safe- ly. ☛ Do not connect a USB recharger to the USB port of this product. Otherwise, the product may be damaged.To Select a File from USB DeviceYou can select an MP3 file during the play. If you want to move the next/previous(file), press the [,] buttons shortly.• It moves the next/previous file within the directory.• If you press the [,] buttons more times than the number of the files in the directory, it will move over to the next directory.To repeat

1. Press the REPEAT button.

Each time you press the REPEAT button, the repeat mode will change as following:

OFF ➝ TRACK ➝ DIR ➝ ALL ➝ RANDOM

2. When you wish to stop the repeat function, press the REPEAT button until "OFF" is displayed.• OFF: Cancels repeat playback.• TRACK: Repeatedly plays the selected file.• DIR(DIRECTORY): Repeatedly plays all files in the selected folder.• ALL: Repeatedly plays all files.• RANDOM: Plays files in random order.To Use High Speed SearchYou can search the desired section quickly during the play.1. Press the

button. • Each time you press the button, you will move forward/backward fast. The sound will not output in high speed search. To Delete a FileYou can delete a file in your USB device. Select a file you want to delete. Press the DELETE button.

Press [,] buttons on the product and remote control to select YES/NO.• To cancel the selection, press the RETURN button on the product. MX-FS9000-SJ,ZN-ENG(MIC)_131001.indd 11 2013-10-01 2:45:1012 English English 13 Basic Functions

Press the ENTER button on the remote control. The selected file will be deleted. The NTFS file system is not supported.To Skip Next 10 Files

1. Press the +10 or -10 button while in playback mode.

This will skip the files as many as 10 or -10 from the current file.Move FOLDERPress the remote control's TUNING/ALBUM

button to move to the previous/next folder.How to safely remove the USB device 1. Press the ( ) button twice while the USB is playing and press the

) button once when it is at a block state.

2. If a REMOVE message appears on screen, remove the

USB device.Before Using the USB Storage• Some USB devices may not work properly with this product.• This product supports only an external HDD that is formatted in FAT file system.• USB 2.0 HDD should be connected to a separate power source. Otherwise, the USB 2.0 HDD will not work at all.• If an USB external storage is connected to multiple devices, only the MP3 files in the first HDD will be played.• DRM-applied files are not supported. Digital Right Management: This will restrict unauthorized access to a DRM file so that the copyright of the file is protected from piracy.• Even if the extension of the file is .mp3, the file cannot be played if it is formatted in MPEG layer 1 or 2.• Do not use an unrecognized USB hub.• Only the first 15 characters of a MP3/WMA file are displayed.• Only removable HDDs with less than 160GB are supported. Depending on the device, a 160GB- or more removable HDD may not be supported.• It will take several minutes to recognize the files in the selected USB device.• The USB device (USB HDD, in particular) may cause a delay to move to the next file.• The USB storage supporting only USB VER1.1 may perform a slow access or may not recognize the file properties.• The maximum current supported by an external USB device via each USB port is 0.5A (based on DC 5V).• A certain USB, digital camera device, USB card reader, iPod, iPhone or Smart Phone may not be supported. Bluetooth You can use a Bluetooth device to enjoy music with high quality stereo sound, all without wires!What is Bluetooth?Bluetooth is a technology that enables Bluetooth compliant devices to interconnect easily with each other using a short wireless connection.• A Bluetooth device may cause noise or malfunction, depending on usage, when: - A part of your body is in contact with the receiving/transmitting system of the Bluetooth device or the Hi-Fi Component. - It is subject to electrical variation from obstructions caused by a wall, corner, or office partitioning. - It is exposed to electrical interference from same frequency-band devices including medical equipment, microwave ovens, and wireless LANs.• Pair the Hi-Fi Component with the Bluetooth device while they are close together.• The further the distance is between Hi-Fi Component and Bluetooth device, the worse the quality is. If the distance exceeds the Bluetooth operational range, the connection is lost.• In poor reception-sensitivity areas, the Bluetooth connection may not work properly.• The Bluetooth connection only works when it is close to the set. The connection will be automatically cut off if the distance is out of this range. Even within this range, the sound quality may be degraded by obstacles such as walls or doors.• This wireless device may cause electric interference during its operation.To connect the Hi-Fi Component to a Bluetooth device Check if the Bluetooth device supports the Blue-tooth compliant stereo headset function. Press the CD/Bluetooth button of the Hi-Fi Component to display the BLUETOOTH message.• You will see WAIT for a while and then READY on the front display of the Hi-Fi Component. Select the Bluetooth menu on the Bluetooth device you want to connect. (Refer to the Bluetooth device's user manual.) Select the Stereo headset menu on the Bluetooth device.• You will see a list of scanned devices. Select "[Samsung] HI-FI XXXXXX" from the list.• When the Component is connected to the Bluetooth device, it will display CONNECTED BLUETOOTH on the front display. MX-FS9000-SJ,ZN-ENG(MIC)_131001.indd 12 2013-10-01 2:45:1012 English English 13 Basic functions

• If the Bluetooth device has failed pair with the Component, delete the previous “[Samsung] HI-FI XXXXXX” found by the Bluetooth device and make it search for the component again. Play music on the connected device.• You can listen to the music playing on the connected Bluetooth device over the Hi-Fi Component system.• In Bluetooth mode, some model's Play/Repeat/Stop/Next/Back functions are not available. The product only supports Middle Quality SBC data (up to 237kbps@48kHz), and does not support High Quality SBC data (328kbps@44.1kHz).• The AVRCP feature is not supported.• Connect only to a Bluetooth device that supports the A2DP (AV) function.• You cannot connect to a Bluetooth device that supports only the HF (Hands Free) function.• Only one Bluetooth device can be paired at a time.• Once you have turned off Hi-Fi Component and the pairing is disconnected, the pairing will not be restored automatically. To reconnect, you must pair the device again.• Search or connection may not be performed properly by Hi-Fi Component in the following cases. - If there is a strong electrical field around Hi-Fi Component. - If several Bluetooth devices are simultaneously paired with Hi-Fi Component. - If the Bluetooth device is turned off, not in place, or malfunctions. - Note that such devices as microwave ovens, wireless LAN adaptors, fluorescent lights, and gas stoves use the same frequency range as the Bluetooth device, which can cause electric interference.To disconnect the Bluetooth device from Hi-Fi ComponentYou can disconnect the Bluetooth device from Hi-Fi Component. For instructions, see the Bluetooth device's user manual.• Hi-Fi Component will be disconnected.• When Hi-Fi Component is disconnected from the Bluetooth device, Hi-Fi Component will display DISCONNECTED READY on the front display.To disconnect Hi-Fi Component from the Bluetooth devicePress the CD/Bluetooth button on the front panel of Hi-Fi Component to switch from Bluetooth mode to another mode or turn off Hi-Fi Component.• The connected Bluetooth device will wait a certain time for a response from Hi-Fi Component before terminating the connection.(Disconnection time may differ, depending on the Bluetooth device)• The currently connected device will be disconnected.

In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Hi-Fi Component and the Bluetooth device exceeds (5 meters).• If the Bluetooth device comes back into the effective range and then again connect after disconnecting, you can restart to restore the pairing with the Bluetooth device.• Hi-Fi Component automatically turns off after 25 minutes in the Ready state. Using My Karaoke You can use MY Karaoke function to sing along with your favorite CDs and USB.1. Connect the microphone to the MIC jack on the front of the product. ` If your microphone jack is larger than 3.5 (ø) MIC jack, you need a Connector-Adaptor(optional) to complete the connection. ` First, connect the Connector-Adaptor to the MIC jack on the front of the product, ` Second, connect the microphone (with larger jack) to the Connector-Adaptor.2. Press the MIC VOL-, + button on the remote control to adjust the volume of the microphone.3. Press the MY KARAOKE button on the remote control to suppress the vocal if you need. Each time the button is pressed, the selection is changed as follows: MY KARAOKE ON MY KARAOKE OFF ` If you hear strange noises (squealing or howling) while using the Karaoke feature, move the microphone away from the speakers. Turning down the microphone's volume or the speaker volume is also effective. Do not set the MICROPHONE towards the SPEAKER. ` The microphone does not operate in the AUX and TUNER mode. ` If you connect with the Microphone, GIGA SOUND will automatically turn off. Even if you remove the microphone, it will not turn on. MX-FS9000-SJ,ZN-ENG(MIC)_131001.indd 13 2013-10-01 2:45:1114 English English 15 Basic Functions Listening a Radio To Store the Stations You WantYou can store up to: 15 FM stations.

1. Select FM by pressing the TUNER/AUX button.

2. To search for a station by the preset mode or the manual mode, press the TUNNING MODE button on the remote control or the STOP button on the product.

• Preset : Once or more times until PRESET is displayed. You can search the stored frequencies in the preset mode.• Manual : Once or more times until MANUAL is displayed. You can search the frequencies one by one in the Manual mode.3. Select the station to be stored by:

button on the remote control to select the preset station.

4. Press the MO/ST button to switch between stereo and

mono.• In a poor reception area, select MONO for a clear, interference-free broadcast.• This applies only when listening to an FM station.5. If you do not want to store the radio station found, revert to Step 3 and search for another station. Otherwise:a. Press the ENTER button.b. Or, press the TUNING/ALBUM button on the remote control to select a program number.c. Press the ENTER button to save the preset.6. To store any other radio frequencies required, repeat Steps 3 to 4.

In Tuner mode• In the Manual mode, you can use

button or the EASY SEARCHING JOG control on the product to search a stored radio station.Selecting a Stored StationYou can listen to a stored radio station as following:

1. Select FM by pressing the TUNER/AUX button on

the product and remote control.2. Press the TUNING MODE button on the remote control until “PRESET” is displayed.3. Pres s [,] button on the main unit or TUNING/ ALBUM , , . on the remote control to select a desired preset number. Turn the EASY SEARCHING JOG control left or right on the main unit to select the stored station. ` When My Karaoke is on, EQ/GIGA SOUND and FOOTBALL MODE does not work. ` After the stop operation, the setting of my karaoke will disappear. ` Only when connected with a Microphone, the my karaoke function is available. 10 Skip Function Press the +10 or -10 button on the remote control while in playback mode. This will skip the tracks as many as 10 or -10 from the current track. Auto Change Function You can circularly play between the disc and the USB.

1. Press the AUTO CHANGE button on the remote.

Each time press this button, the mode will switch as following: AUTO CHANGE ON

• When the AUTO CHANGE mode is "ON", - the music will be played on DISC USB1 USB2 continuously. - if you press the POWER button, function change button or the EJECT button, the AUTO CHANGE function automatically switches to "OFF" mode. - the recording can't work. - the REPEAT, SLEEP function can't work and automatically changes to OFF. - the CD REC SPEED, USB REC, NUMBER KEY and DELETE function can't work.• When USB is playing, if you disconnected the USB, the AUTO CHANGE function automatically switches to "OFF" mode. • If there's no USB1, it will jump to USB2. MX-FS9000-SJ,ZN-ENG(MIC)_131001.indd 14 2013-10-01 2:45:1114 English English 15 Timer Function Setting the Clock For each step, you have a few seconds to set the required options. If you exceed this time, you must start again.1. Press the TIMER SET button on the remote control twice, "CLOCK SET" is displayed.2. Press the ENTER ( ) button on the remote control, the hour flashes.• Increase the hours: ,• Decrease the hours: .3. When the correct hour is displayed, press the ENTER ( ) button and then the minutes flashes.• Increase the minutes: ,• Decrease the minutes: .4. When the correct minute is displayed, press the ENTER ( ) button and then "TIMER PLAY SET" appears in the display. Setting the Timer The timer enables you to switch the product on or off at specific times automatically.• Before setting the timer, check that the current time is correct.• For each step, you have a few seconds to set the required options. If you exceed this time, you must start again.• If you no longer want the product to be switched on or off automatically, you must cancel the timer by pressing the TIMER ON/OFF button. Example: You wish to wake up to music every morn- ing.

1. Press the TIMER SET button until TIMER PLAY SET is

displayed.2. Press the ENTER ( ) button. Result: ON TIME is displayed for a few seconds, you can set the timer switch-on time.3. Set the timer switch-on time. a Press the TUNING/ALBUM , or . button to set the hours.b Press the ENTER ( ) button. Result: The minutes flash. c Press the TUNING/ALBUM , or . button to set the minutes.d Press the ENTER ( ) button. Result: OFF TIME is displayed for a few seconds, you can now set the timer switch-off time.4. Set the timer switch-off time. a Press the TUNING/ALBUM , or . button to set the hours.b Press the ENTER ( ) button. Result: The minutes flash. c Press the TUNING/ALBUM , or . button to set the minutes.d Press the ENTER ( ) button. Result: VOLUME XX is displayed, where XX corre- sponds to the volume already set.

5. Press the TUNING/ALBUM , or . button to adjust the

volume level and press the ENTER ( ) button. Result: The source to be selected is displayed.

6. Press the TUNING/ALBUM , or . button to select the

desired source to be played when the product switches on. If you select... You must also... FM (radio) .................... a Press the ENTER ( ) button. b Select a preset station by pressing the TUNING/ ALBUM , or . button. CD (compact disc) .....Load a compact disc.USB ............................Connect the USB device.7. Press the ENTER ( ) button. Result: TIMER REC SET (Do you want to record?) is displayed.8. Press the ENTER ( ) button. Result: REC SET YES/NO is displayed, you can press the TUNING/ALBUM , or . button to select the REC YES or REC NO, and then press ENTER button. If you select the REC NO, it will cancel tuner timer recording even if you have already set the tuner timer recording. If you select the REC YES, you can set the tuner timer recording. Press the ENTER ( ) button. Result: ON TIME is displayed for a few seconds, you can set the tuner timer recording switch-on time. Press the ENTER ( ) button. Result: OFF TIME is displayed for a few seconds, you can set the tuner timer recording switch-off time. Advanced Functions MX-FS9000-SJ,ZN-ENG(MIC)_131001.indd 15 2013-10-01 2:45:1116 English English 17 Advanced Functions

• The maximum time of tuner and aux timer recording is 5 hours.• If the timer switch on and off times are identical, the word ERROR is displayed.• You may use

buttons on the product instead of the TUNING/ALBUM

button to adjust in step 3 to 8.• If the switch-on or -off time is the same as the timer recording time, only the switch-on or -off time is effective, and the timer recording is not applied.• If the auto timer is turned on,the CD or USB function may require an additional step to be activated depending on the disc(or device). So it is better for you to select the tuner function instead.• If you select CD or USB mode when there is no disc or no USB in the product, it will automatically change to TUNER. Cancelling the Timer After having set the timer, it will start automatically as shown by the TIMER ON message on the dis play. If you no longer wish to use the timer, you must cancel it.To cancel the timer, Press the TIMER ON/OFF button once. To restart the timer, Press the TIMER ON/OFF button once again.• When you select the TIMER OFF mode, the TIMER RECORDING and TIME function are not available. Recording Function Basic Recording You can record sound of the CD, USB, the Radio Broadcasting, and the external source into the USB storage device.

1. Connect the external USB storage device you want

to record to the USB ( ) on your product. Music does not play back during file copy.2. Play a disc or USB, adjust the radio frequency or connect the external source to your product.

• Press the CD on the product to select the CD function.• Insert a CD gently into the disc slot.• Use the CD selection (

• Adjust the Radio frequency you want to record.USB 1 • Connect the USB device including original files USB device to USB 1 jack.• Press the USB button to select USB 1.• Play a song from the USB 1.External Source • Connect an External device/MP3 player to the product.• Press the TUNER/AUX button to select <AUX IN 1 or AUX IN 2>.• Play a song from the external device.3. Press the USB REC button on the remote control to start recording.

• Track recording message is displayed and CD recording starts.• If you want to record the all tracks of disc, press and hold the USB REC button. Then, Full CD recording message will be displayed.RADIO• Tuner recording message is displayed and recording starts.CD-ROM/ USB• “FILE COPY” is displayed and recording starts.• You can also copy a folder including MP3/WMA files to USB 2 device. if you press and hold the USB REC button while the system play an MP3 or WMA file in the folder, your system may show "FOLDER COPY".• If you play the MP3 or WMA file, the file will be copied into the USB device. Your system may show "FILE COPY". When the recording is done, “STOP” will be displayed. • If there is the same file name when you copy, "EXIST FILE" is displayed, and the function is canceled.• When a microphone is connected to the product if you press the USB REC button, it activates the MP3 Recording not Copy function.• When shortly pressing a USB REC button, the file copy starts and when shortly pressing a USB REC button for seconds, the folder copy starts. External Source• AUX recording message is displayed and recording starts.CD/USB1(MP3) & MIC • MP3 recording message is displayed and recording starts.

4. To stop recording, press the STOP (@) button and

then automatically create and save as the MP3 file.5. After the recording, a directory named “RECORDING”(CD-DA), “CD COPY”(CD-ROM/USB(WMA/MP3)), “TUNER RECORDING”, “AUX RECORDING” or “MP3 RECORDING” will be created in your device. MX-FS9000-SJ,ZN-ENG(MIC)_131001.indd 16 2013-10-01 2:45:1216 English English 17 Advanced functions

• The WMA/MP2 file just can be copied not recorded.• Do not disconnect the USB or the AC Cord during the recording as this may cause file damage. • If you disconnected USB device during the recording, the product will be power off and you may not delete the recorded file, In this case, please connect the USB device to the PC and backup the USB data on the PC first and then format the USB device. • When the USB memory is not enough, it will be displayed “NOT ENOUGH MEMORY”. • The recording works if the USB device or the HDD is formatted in the FAT file system. (The NTFS file system is not supported.) • When you use CD high speed search function, the CD recording can’t work. • Sometimes, the recording time may be longer with some USB devices.• In the program mode, you can't use the CD recording function.• When all recording, the EQ and GIGA SOUND functions can not work and automatically change to OFF. • When the CD recording, the REPEAT function can not work and automatically changes to OFF. • If you use the MIC function during the CD recording, the voice from the microphone will be recorded. • You can not record the radio when searching or no available frequencies in the Tuner mode.• Note that setting the input level too loud when recording music from an external device through the AUX and USB channel may introduce noise into the recording. In that case, lower the external device’s volume level. Recording Speed Each time you press the CD REC SPEED button on the remote control, the recording speed will change as following:RECORD SPEED x 1 RECORD SPEED x 4• While the tuner or external source is recording, the recording speed does not supported.• When you select RECORD SPEED x 4, the audio sound will not be output.• If you connected the microphone, you just have one recording speed mode: RECORD SPEED x 1.• During recording, if you disconnect the microphone, the recording will stop, even if you reconnect the microphone, it will still stop. Special Sound Effect Selecting EQ Mode Your product supports the predefined equalizer settings between high and low frequencies to be in harmonious with the current music genre.

1. Press the EQ button.

Each time you press this button, the sound mode will switch as following:<CASE 1> OFF

CLASSIC ELECTRONIC MP3 ENHANCER VIRTUAL SOUND USER EQ• May appear differently according to your region.2. If you want to set the USER EQ mode, select the USER EQ, then press the ENTER button. You can set the BASS, MID(Middle) and TREB(Treble) level. Result: The BASS level(left numeric) flash.

Press the TUNING/ALBUM , or . button to select from -06 to 06.Press the ENTER button.Result: setting is completed.• When all recording, the EQ function can't work and the EQ automatically switches to "OFF" mode.• If no buttons is pressed within 8 seconds, your settings will automatically be cancelled and the previous settings will be saved.• The EQ mode may be different depending on your region. Using the FOOTBALL Mode You can directly select the football mode for lis-tening a sports broadcasting in realism.

1. Press the FOOTBALL MODE button on the product.

Each time you press the button, the sound mode will switch as following:FOOTBALL OFF FOOTBALL MODE 1

FOOTBALL MODE 2 • The FOOTBALL mode may be different depending on your region. MX-FS9000-SJ,ZN-ENG(MIC)_131001.indd 17 2013-10-01 2:45:1218 English English 19 Advanced Functions GIGA SOUND Function Your product is equipped with the function of GIGA SOUND mode.The function of GIGA SOUND mode amplifies bass and improves high key or bass twice as much for you to appreciate powerful real sound.

1. Press the GIGA SOUND BEAT button on the main

unit or the GIGA button on the remote control. Each time press this button, the sound will switch as following: GIGA SOUND BEAT

2. To cancel this function, press the GIGA SOUND

BEAT button until the “OFF” is displayed.

• The GIGA SOUND mode may be different depending on your region. BEAT WAVING Function You can switch the Speaker LED mode to your preference.

1. Each time you press the BEAT WAVING button on the

product, the Speaker LED display mode will change as following: PARTY 1 PARTY 2 FUN 1 FUN 2 PURE

• If you select the BEAT WAVING OFF, all of the speaker LED Lightings will turn off. DJ BEAT Function It sets FLANGER, PANNING, CHORUS, WAHWAH sound effect and the level of each effect is adjust-able. ☛ The set scope is [-15 ~ +15] and the initial set up value are all 0.FLANGER : It creates a vibration that is equal to the jet's rise/fall.PANNING : It increass the left/right speaker's output by turn and makes it sound like it is moving from side to side.WAHWAH : It sounds like 'Wah~ Wah~'.CHORUS : It creates a vibration like a singing a chorus.1. To set the desired effect, press one of the

FLANGER, PANNING, CHORUS, WAHWAH

button of the product.• The blue LED turns on around the relevant button and the DJ BEAT button.• You can control the level of effect that was set to Volume Jog. In order to control the volume, press the product's DJ BEAT button.• To cancel the set effect, press the relevant button once more.• To change the set effect, press the desired effect button.

• The PANNING effect can be set with the FLANGER, CHORUS, WAHWAH effect in duplicate.
• To set the PANNING effect in duplicate, press the PANNING button when another effect is set up or press another effect button when the PANNING effect has been applied.• Use Volume JOG to control the level of effect that was set up at the end.• To control the level of effect that was previously set, press the button of effect that was set up at the end and cancel the last effect first. Booting Sound Function If you set the booting sound, you can feel the magnificent audio output of the product while it boots up.

1. Press the product's GIGA SOUND BEAT button or

the remote control's GIGA button for a long time.

• The BOOTING SOUND menu appears on the display panel.

2. Press the product's GIGA SOUND BEAT button or

the remote control's GIGA button for a long time to turn ON or OFF the BOOTING SOUND. MX-FS9000-SJ,ZN-ENG(MIC)_131001.indd 18 2013-10-01 2:45:1218 English English 19 Troubleshooting Refer to the chart below when this product does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, turn off the product, disconnect the power cord, and contact the nearest authorized dealer or Samsung Electronics Service Center.Symptom Check/RemedyI cannot eject the disc. •Isthepowercordpluggedsecurelyintotheoutlet?•Turnoffthepowerandthenturnitbackon.Playback does not start immediately when the Play/Pause button is pressed.•Areyouusingadeformeddiscoradiscwithscratchesonthesurface?•Wipethediscclean.Sound is not produced. •Nosoundisheardduringfastplayback,slowplayback,andstepmotion playback.•Arethespeakersconnectedproperly?Isthespeakersetupcorrectlycustomized?•Isthediscseverelydamaged?The remote control does not work.•Istheremotecontrolbeingoperatedwithinitsoperationrangeofangleand distance?•Arethebatteriesdrained?•Theproductisnotworking. (Example: The power goes out or the front panel key doesn't work or a strange noise is heard.)•Theproductisnotworkingnormally.•While“NODISC”messageappearsonthedisplayoftheproduct,pressand hold the STOP (@) button on the product for longer than 5 seconds with no disc (RESET function).Using the RESET function will erase all stored settings. Do not use this unless necessary.Can't receive radio broadcast. •Istheantennaconnectedproperly?•Iftheantenna'sinputsignalisweak,installanexternalFMantennainanarea with good reception. Troubleshooting MX-FS9000-SJ,ZN-ENG(MIC)_131001.indd 19 2013-10-01 2:45:1220 English Specifications GeneralWeightMain unit 8 Kg Speaker70 KgDimensionsMain unit 588 (W) X 238 (H) X 388 (D)Speaker 588 (W) X 882 (H) X 577 (D)Operating Temperature Range+5°C~+35°COperating Humidity Range10 % to 75 %FM TunerSignal/Noise ratio55 dBUsable sensitivity10 dBTotal harmonic distortion 1 % CD Disc CD : 12 cm (COMPACT DISC)Reading Speed : 4.8 ~ 5.6 m/sec.Maximum Play Time : 74 min.AmplifierFront speaker output640W/CH (4)Subwoofer output640W/CH (4)Frequency range22Hz~20KHzS/N Ratio 65 dBChannel separation 60 dBInput sensitivity (AUX)800mV*: Nominal specification- Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.- Weight and dimensions are approximate.- Design and specifications are subject to change without prior notice.- For information on the power supply and power consumption, refer to the label attached to the product. Specifications Hereby, Samsung Electronics, declares that this equipment is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.The original Declaration of Conformity may be found at http://www.samsung.com, go to Support > Search Product Support and enter the model name.This equipment may be operated in Jordan. MX-FS9000-SJ,ZN-ENG(MIC)_140509.indd 20MX-FS9000-SJ,ZN-ENG(MIC)_140509.indd 20 2014-05-09 4:59:332014-05-09 4:59:33AH68-02612K-06 Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. Area Contact Centre

DISPLAY/DEMO LED Off LED On

-Demo Music DISPLAY/DEMO

BASS BASS .06-06 ., . MIDDLE .06-06 ., TREBLE .06-06 .,
