AR6232S - Electric oven ARDES - Free user manual and instructions
Find the device manual for free AR6232S ARDES in PDF.
| Product type | Electric oven |
| Brand | Ardes |
| Model | AR6232S |
| Power supply | 230 V ~ 50 Hz |
| Power | Not specified in the manual |
| Capacity | Not specified in the manual |
| Cooking functions | Upper heating, lower heating, upper + lower heating, upper heating + fan, lower heating + fan, upper + lower + fan |
| Temperature setting | Yes, by rotary knob |
| Timer | Yes, with automatic shut-off and audible signal |
| Operation indicator light | Yes, lights up during operation and turns off when temperature is reached |
| Included accessories | Baking tray, grid, tongs for tray and grid, removable drip tray |
| Cavity material | Not specified |
| Door | Can be left ajar for grilling |
| Interior light | Yes, replaceable bulb |
| Cleaning | Unplug and let cool; use a damp cloth; do not immerse; accessories are dishwasher-safe |
| Child safety | Use possible from age 8 under supervision; keep out of reach of children under 8 |
| Installation | Flat surface, minimum 12 cm clearance around for ventilation, height of at least 85 cm |
| Warranty | 2 years from date of purchase |
| After-sales service | Contact an authorized service center for repairs or cable replacement |
Frequently Asked Questions - AR6232S ARDES
User questions about AR6232S ARDES
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Electric oven in PDF format for free! Find your manual AR6232S - ARDES and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. AR6232S by ARDES.

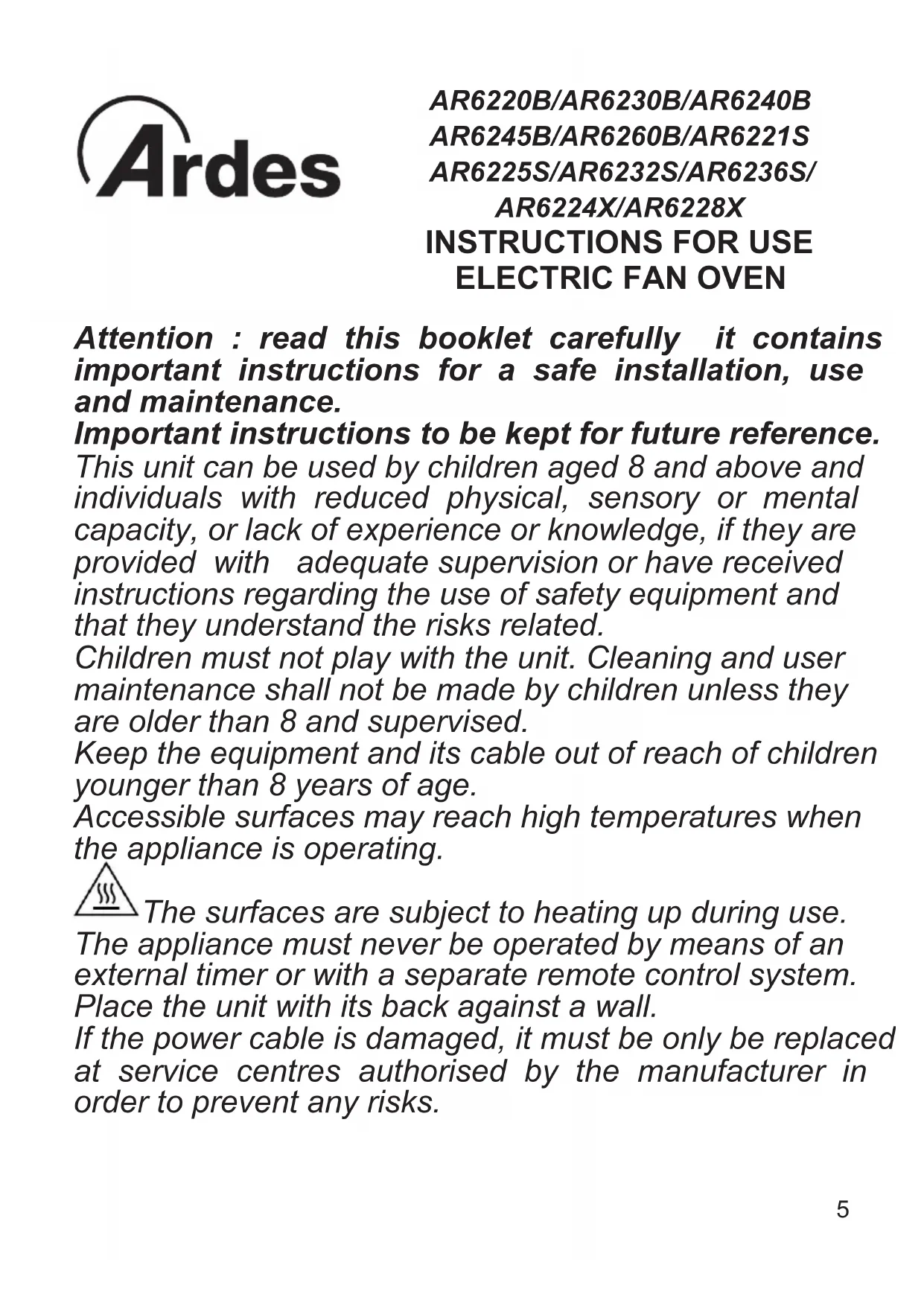

USER MANUAL AR6232S ARDES
Attention : read this booklet carefully it contains important instructions for a safe installation, use and maintenance.
Important instructions to be kept for future reference.
This unit can be used by children aged 8 and above and individuals with reduced physical, sensory or mental capacity, or lack of experience or knowledge, if they are provided with adequate supervision or have received instructions regarding the use of safety equipment and that they understand the risks related.
Children must not play with the unit. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
Keep the equipment and its cable out of reach of children younger than 8 years of age.
Accessible surfaces may reach high temperatures when the appliance is operating.
The surfaces are subject to heating up during use.
The appliance must never be operated by means of an external timer or with a separate remote control system.
Place the unit with its back against a wall.
If the power cable is damaged, it must be only replaced at service centres authorised by the manufacturer in order to prevent any risks.
After removing the packaging, check the appliance for any signs of damage. In case of visible damage, do not use it and contact a qualified technician.
Do not leave parts of the packaging within the reach of children.
This appliance is not a children's toy: it is an electrical device and must be treated with the necessary caution.
Before connecting the appliance, make sure that the power supply voltage matches the indication on the data plate.
Electrical safety of this appliance is assured only if it has been connected to an effective earthing system.
If the plug and socket are not compatible, the socket has to be replaced with a suitable type by skilled persons. Do not use adapters or extension cables which do not meet current safety standards or that exceed the current carrying capacity limits.
Unplug the appliance from the mains when not in use.
Do not tug on the power cable or on the appliance itself to remove the plug from the socket.
The use of any electrical appliance requires that a number of basic rules are observed, namely:
-
Never touch the appliance with wet or humid hands.
-
Children must be supervised to make sure that they do not play with the appliance.
-
Do not use the appliance when barefoot.
-
Do not leave the appliance exposed to weathering (rain, sunlight).
-
Do not subject it to rough handling.
In case of failure, disconnect it at once. Do not attempt to repair it, but take it to a service centre approved by the manufacturer.
If you decide you do not want to use this appliance any longer, disable it by cutting the power cable
- of course, after disconnecting it from the socket.
If the power cable gets damaged, it has to be replaced only at a service centre approved by the manufacturer.
In case of a breakdown or malfunctioning of the appliance, disconnect it at once. Do not attempt to repair it, but take it to a service centre approved by the manufacturer.
The appliance has been designed and manufactured to operate as an electric cooker in the home.
Any other use is considered inappropriate and dangerous.
Do not use the appliance out of doors.
For safety reasons, the appliance should never be opened.
During use, rest the appliance on a flat surface.
To prevent children from accidentally touching hot components, use the appliance on surfaces that are at least 85 cm high.
Keep the appliance out of reach of children and the disabled since the plates reach high temperatures.
Attention: the surfaces temperature could be elevated when the appliance is on.
The appliance must not be operated with an external timer or a separate remote control system.
Do not let any object into the ventilation inlets placed at the back of the appliance.
Do not place the cord near sources of heat.
Do not place the appliance above or below other ovens, microwave ovens or close to gas stoves.
Leave at least 12cm of free space round the oven to allow for appropriate ventilation and cooling.
Do not move the appliance when it is on, when it is hot or when it contains food or liquids.
Be very careful when using containers made of materials other than metal or glass (for example ceramic).
Do not use containers made in plastic, paper or similar materials.
Use of gloves or other protective devices is recommended when handling hot food to be put into or taken out of the oven.

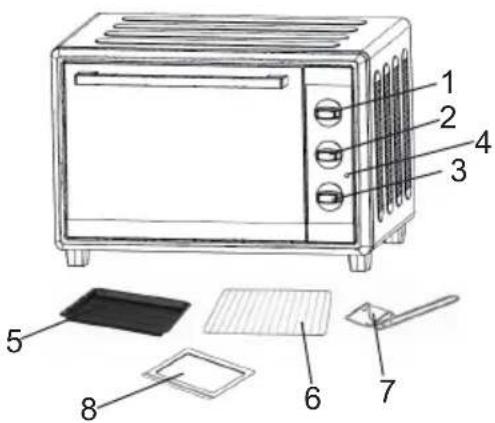

1 - Knob for adjusting temperature.
2 - Knob for selecting the function.
3 - Knob for setting baking time
4 - Functioning pilot light.
5 - Baking tin.
6 - Grill.
7 - Tong for Baking tin / grill.
8 - Crumb tray (for AR6260B, AR6225S, AR6232S, AR6236S, AR6224X, AR6228X)
Technical data indicated on the appliance.
Instructions for use
GB
First use
Before using the oven turn it on for about 10 minutes in order to get rid of any oil residues that may have been left on the inside walls of the appliance.
Before using the appliance for the first time, clean it and wash the parts in contact with food as indicated in the MAINTENANCE paragraph.
To turn the power on, insert the plug into the wall socket and select the desired heating function (2).
Adjust the cooking temperature (1), set the timer (3) and the unit will shut down when the time is over. You will hear a beep.
The pilot lamp is ON during functioning (4) and it turns off when set temperature is reached.
The modes of use are:
Heating above
Heating below
Heating below and above
Heating above + ventilation
Heating below + ventilation
Heating below and above + ventilation
Cooking from above only:
Suitable for grilled fish, steaks, chicken, pork chops, etc.
Place the food on the grill and slide it into the top rack.
It must be located as close as possible to the top heating element without touching it.
It is recommended that you leave the door ajar and turn the food halfway through the expected cooking time.
Cooking from below only:
Suitable for desserts, cakes and cookies.
Preheat the oven.
Position the grill on the lowest or middle rack.
Place the food on the grill, located as close as possible to the bottom heating element without touching it.
Cooking from above and below:
Suitable for bread, focaccia and pizza.
Position the food to be toasted on the grill.
At the end of the cooking cycle you will hear an acoustic signal.
It is recommended not to load the provided trays with more than 2Kg of food.
Maintenance
GB
Disconnect the plug from the socket and let the appliance cool down well before cleaning it. In order to clean the appliance, use a soft or slight damp cloth.
Never use abrasives or chemical solvents.
Do not use very wet substances, liquids or cloths to prevent water from entering into the appliance and irreparably damaging it. Never use abrasive sponges to clean the inside of the oven.
The accessories provided can be cleaned with common washing up detergents or put directly into the dish-washer.
To clean the parts of the oven that could come into contact with food us especific and appropriate products.
NEVER IMMERSE THE APPLIANCE INTO THE WATER.
AR6240B, AR6245B, AR6260B, AR6225S, AR6232S, AR6236S, AR6224X, AR6228X.
In order to change the inner light, remove the protection cover unscrewing it and replace the light with another one having the same technical characteristics.
Terms and Conditions
The guarantee is valid for 24 months.
This guarantee applies only if it has been duly filled in and is submitted with the receipt showing the date of purchase.
The guarantee covers the replacement or repair of parts making up the appliance which were faulty at source due to manufacturing faults.
After the guarantee has expired, the appliance will be repaired against payment.
The manufacturer declines any responsibility for damage to persons, animals or property due to misuse of the appliance and failure to observe the directions contained in the instructions.
Limits
All rights under this guarantee and any responsibility on our part will be voided if the appliance has been:
-
mishandled by unauthorized persons
-
improperly used, stored or transported.
The guarantee does not cover damage to the outward appearance or any other that does not prevent regular operation.
If any faults should be found despite the care taken in selecting the materials and in creating the product, or if any information or advice are required, please contact your local dealer.
USER INFORMATION
"Implementation of Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE)", pertaining to reduced use of hazardous substances in electrical and electronic equipment, as well as to waste disposal".
The symbol of the crossed-out wheelie bin on the equipment or on its packaging indicates that the product must be disposed of separately from other waste at the end of its service life.
The user must therefore take the dismissed equipment to suitable separate collection centres for
electrical and electronic waste, or return it to the dealer in case they purchase a new device of equivalent type, at a one-to-one-ratio.
Suitable segregated collection of the equipment for subsequent recycling, treatment or environmentally-friendly disposal helps prevent damage to the environment and to human health, and encourages the re-use and/or recycling of the materials that make up the equipment.
Abusive disposal of the product by the user shall result in the application of administrative fines in accordance with the laws in force.
