USER MANUAL FS61HMC NEFF

HOB KOOKPLAAT T16TS7KN.2 Ø = cm

• Grundeinstellungde Störungen, was tun?

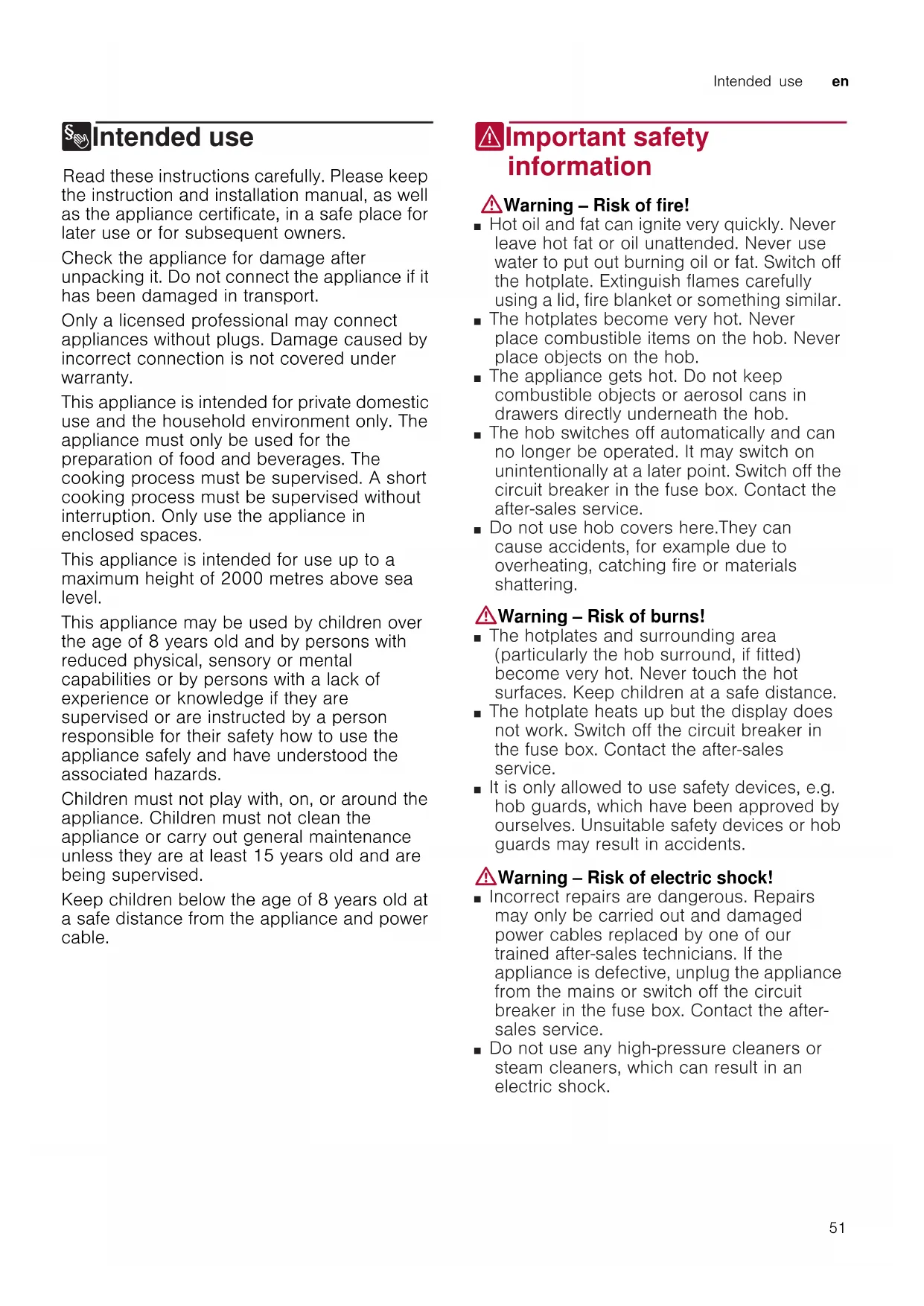

8Intended use Intended use Read these instructions carefully. Please keep the instruction and installation manual, as well as the appliance certificate, in a safe place for later use or for subsequent owners. Check the appliance for damage after unpacking it. Do not connect the appliance if it has been damaged in transport. Only a licensed professional may connect appliances without plugs. Damage caused by incorrect connection is not covered under warranty. This appliance is intended for private domestic use and the household environment only. The appliance must only be used for the preparation of food and beverages. The cooking process must be supervised. A short cooking process must be supervised without interruption. Only use the appliance in enclosed spaces. This appliance is intended for use up to a maximum height of 2000 metres above sea level. This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsible for their safety how to use the appliance safely and have understood the associated hazards. Children must not play with, on, or around the appliance. Children must not clean the appliance or carry out general maintenance unless they are at least 15 years old and are being supervised. Keep children below the age of 8 years old at a safe distance from the appliance and power cable. (Important safety information Impor t ant saf et y informat i on :Warning – Risk of fire! ■ Hot oil and fat can ignite very quickly. Never leave hot fat or oil unattended. Never use water to put out burning oil or fat. Switch off the hotplate. Extinguish flames carefully using a lid, fire blanket or something similar. Risk of fire! ■ The hotplates become very hot. Never place combustible items on the hob. Never place objects on the hob. Risk of fire! ■ The appliance gets hot. Do not keep combustible objects or aerosol cans in drawers directly underneath the hob. Risk of fire! ■ The hob switches off automatically and can no longer be operated. It may switch on unintentionally at a later point. Switch off the circuit breaker in the fuse box. Contact the after-sales service. Risk of burns! ■ Do not use hob covers here.They can cause accidents, for example due to overheating, catching fire or materials shattering. :Warning – Risk of burns! ■ The hotplates and surrounding area (particularly the hob surround, if fitted) become very hot. Never touch the hot surfaces. Keep children at a safe distance. Risk of burns! ■ The hotplate heats up but the display does not work. Switch off the circuit breaker in the fuse box. Contact the after-sales service. Risk of burns! ■ It is only allowed to use safety devices, e.g. hob guards, which have been approved by ourselves. Unsuitable safety devices or hob guards may result in accidents. :Warning – Risk of electric shock! ■ Incorrect repairs are dangerous. Repairs may only be carried out and damaged power cables replaced by one of our trained after-sales technicians. If the appliance is defective, unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after- sales service. Risk of electric shock! ■ Do not use any high-pressure cleaners or steam cleaners, which can result in an electric shock. Risk of electric shock!en Causes of damage

■ A defective appliance may cause electric shock. Never switch on a defective appliance. Unplug the appliance from the mains or switch off the circuit breaker in the fuse box. Contact the after-sales service. Risk of electric shock! ■ Cracks or fractures in the glass ceramic may cause electric shocks. Switch off the circuit breaker in the fuse box. Contact the after-sales service. :Warning – Hazard due to magnetism! The removable control element is magnetic and may affect electronic implants, e. g. heart pacemakers or insulin pumps. For people with electronic implants: never carry the control element in clothing pockets. The minimum distance to heart pacemaker should be 10 cm. :Warning – Risk of injury! Saucepans may suddenly jump due to liquid between the pan base and the hotplate. Always keep the hotplate and saucepan bases dry. ]Causes of damage Ca u s e s of damage Caution! ■ Rough pot and pan bases scratch the ceramic. ■ Avoid boiling pots dry. This may cause damage. ■ Never place hot pots or pans on the control panel, the display area or the surround. This may cause damage. ■ Damage can occur if hard or pointed objects fall on the hob. ■ Aluminium foil and plastic containers melt on hot hotplates. Oven protective foil is not suitable for your hob. Overview You will find the most frequently caused damage in the following table. 7Environmental protection En v i r o n ment al pr ot ec t i on In this section, you can find information about saving energy and disposing of the appliance. Energy-saving tips ■ Always place suitable lids on saucepans. When cooking without a lid, considerably more energy is required. A glass lid means that you can see inside without having to lift the lid. ■ Use pots and pans with even bases. Uneven bases increase energy consumption. ■ The diameter of pot and pan bases should be the same size as the hotplate. In particular, small saucepans on the hotplate cause energy losses. Please note: cookware manufacturers often indicate the upper diameter of the saucepan. This is usually bigger than the diameter of the base of the pan. ■ Use a small saucepan for small quantities. A larger, less full saucepan requires a lot of energy. ■ Cook with only a little water. This will save energy. Vitamins and minerals in vegetables are preserved. ■ Always cover as large an area of the hotplate as possible with your saucepan. ■ Switch to a lower heat setting in good time. ■ Select a suitable ongoing cooking setting. You will waste energy by using an ongoing cooking setting which is too high. ■ Use the residual heat of the hob. For longer cooking times, you can switch the hotplate off 5-10 minutes before the end of the cooking time. Environmentally-friendly disposal Dispose of packaging in an environmentally-friendly manner. Damage Cause Measure Stains Boiled over food Remove boiled over food imme- diately with a glass scraper. Unsuitable clean- ing agents Only use cleaning agents that are suitable for glass ceramic. Scratches Salt, sugar and sand Do not use the hob as a work surface or storage space. Rough pot and pan bases scratch the ceramic. Check your cookware. Discolouration Unsuitable clean- ing agents Only use cleaning agents that are suitable for glass ceramic. Pan abrasion (e.g. aluminium) Lift pots and pans when moving them. Blisters Sugar, food with a high sugar con- tent Remove boiled over food imme- diately with a glass scraper. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU. Damage Cause MeasureGetting to know your appliance en

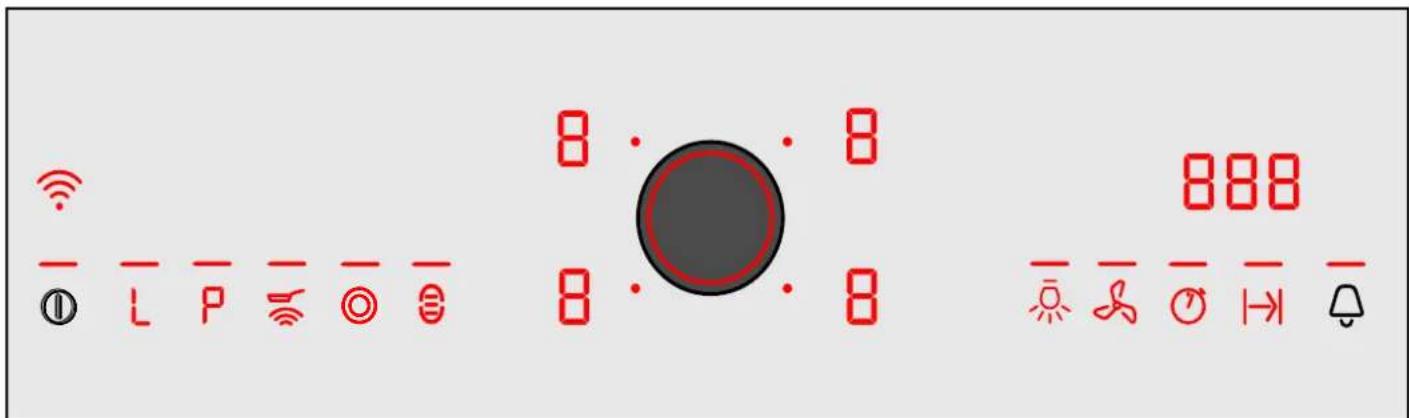

*Getting to know your appliance Get t i ng to know your appl i ance The instruction manual is the same for various different hobs. You can find the hob dimensions in the overview of models. ~ Page 2 The control panel Notes■ Depending on the operating condition of the hob, the controls which can currently be selected light up. If you touch them, the relevant function is activated.■ The controls which cannot currently be selected do not light up.■ Always keep the controls dry. Moisture reduces their effectiveness.■ Do not pull pans close to the displays and sensors. The electronics could overheat. The hotplates Notes■ Any dark areas in the glow pattern of the hotplate are due to technical reasons. The function of the hotplate is not affected.■ Hotplate temperature is regulated by the heat switching on and off.The heat may also switch on and off at the highest setting.This ensures e.g.:– sensitive components are protected from overheating– the appliance is protected from electrical overload– better cooking results are achieved■ With multi-circuit hotplates the heater elements of the inner filament circuits and the heater element of the activations may switch on and off at different times.

Indicators ‚-Š Heat settings Operating readiness

• /œ Residual heat PowerBoost function Keep-warm function Timer Wi-FiControls Main switch Keep-warm function PowerBoost function Sensor frying system Automatic zone control Combination heating element Lighting hood Fan setting hood Stopwatch function Timer Kitchen timer/child safety lockHotplate Activating and deactivating Single-circuit hot-plate Dual-circuit hotplate Select the hotplate and touch the ðsymbol When the hotplate is activated: the corresponding indicator lights upen Twist-Pad with Twist knob

Combination cooking zone The single and dual-circuit hotplate can be operated without the bridge heating element independently of each other or combined with the bridge heating element as described in the table. The small roasting zone (1 + 3) and the single-circuit hotplate (2) can also be operated independently of each other with different heat settings. Different temperature ranges are therefore generated at the large roaster, the teppan yaki or the grill plate, for example: the small roasting zone can then be used to fry a meal and the single-circuit hotplate can simultaneously be used to keep a meal warm. Note: Suitable cookware is available from the after- sales service or our e-Shop. Residual heat indicator The hob has a two-stage residual heat indicator for each hotplate. If • appears in the display the hob is still hot. It may be used, for example, to keep a small meal warm or to melt cooking chocolate. As the hotplate cools down further, the display changes to œ. The display remains lit until the hotplate has cooled sufficiently. jTwist-Pad with Twist knob Twi st - Pad wi t h Twi s t knob The twistpad is the area in which you can use the twist knob to select the hotplates and set heat settings. The twist knob automatically centres itself in the twistpad area. The twist knob is magnetic and is placed on the twistpad. Tapping the twist knob where there is a marking activates the relevant hotplate. Turning the twist knob selects the heat setting. Note: Always keep the twist knob clean. Soiling may impair its function. Removing twist knob You can remove the touch knob. This makes cleaning easier. You can also remove the twist knob while the hotplate is on. The wipe protection function is activated and the hob switches off after 35 seconds. Notes ■ The main switch is excluded from the wipe protection function. You can switch off the cooktop at any time. ■ If you mount the twist knob again and then turn it, the wipe protection function will be switched off. :Warning – Risk of fire! If you place a metallic object onto the twistpad, the cooktop may continue to heat up. Always switch off the cooktop using the main switch for this reason. Storing the twist knob The twist knob contains a strong magnet. Keep the twist knob away from magnetic data carriers, such as video cassettes, diskettes, credit cards or cards with magnetic strips. Otherwise they may be damaged beyond repair. They can also cause interference in television sets and monitors. :Warning – Hazard due to magnetism! For wearers of electronic implants, e.g. pacemakers or insulin pumps. Implants may be affected by magnetic fields. You should therefore never carry the twist knob in a pocket. They must be kept at least 10 cm from pacemakers. Note: The twist knob is magnetic. Metal particles which stick to the underside can scratch the ceramic hob. Always wipe the twist knob thoroughly. 1 = dual-circuit hotplate 2 = single-circuit hotplate 3 = bridge heating element Combination Activation Suitable for Small roasting zone: Combination of 1 + 3 Select dual-circuit hotplate. With the ð symbol acti- vate the outer filament cir- cuit. ð display is lit. With the ð symbol acti- vate the bridge heating ele- ment. ì display is lit. Small roaster Small teppan yaki Large roasting zone: Combination of 1 + 3 + 2 Touch the Õ symbol. u dis- play is lit. Large roaster Large teppan yaki Large grill plate

Operation without the twist knob If you have mislaid the twist knob, you can also operate the hob without it:

1. Switch on the hob using the main switch.

2. Touch the œ symbol and U at the same time for 4

seconds. An audible signal sounds.

3. Touch the U symbol repeatedly until the display for

the desired hotplate lights up.

4. Press the œ (-) and (+) x buttons to select the heat

setting required. The hotplate is switched on. Note: You can place the twist knob back on the twistpad at any time. 1Operating the appliance Oper at i ng the appl i anc e In this section, you can find out how to set the hotplates. The table shows heat settings and cooking times for various meals. Switching the hob on and off The main switch is used to switch the hob on and off. Switching on the appliance Touch the # symbol. A signal sounds. The A display above the main switch lights up. The control displays and the heat setting displays ‹ light up. The hob is ready for use. Switching off the appliance Touch the # symbol until the A display above the main switch and the displays goes out. All hotplates are switched off. The residual heat indicator remains on until the hotplates have cooled down sufficiently. Notes ■ The hob will switch itself off automatically once all hotplates have been switched off for a while (10- 60 seconds). ■ The settings remain stored for 4 seconds after the hob has been switched off. If you switch it on again during this time, the hob will operate using the previously stored settings. Setting a hotplate Use the twist knob to set the desired cooking time. Heat setting 1 = lowest setting Heat setting 9 = highest setting There is an intermediate setting between each heat setting. This is identified by a dot. Set the heat setting The hob must be switched on.

1. Select the hotplate. To do this, touch the twist knob

in the appropriate area for the required hotplate.

2. Within the next 10 seconds, turn the twist knob until

the desired heat setting appears in the heat setting display. The hotplate is switched on. Changing the heat setting: Select the hotplate and set the new heat setting. Switching off the hotplate: Select the hotplate and set it to ‹. After about 10 seconds, the residual heat indicator appears. Table of cooking times The following table provides some examples. Cooking times and heat settings may vary depending on the type of food, its weight and quality. Deviations are therefore possible. For bringing liquids to the boil, use heat setting 9. Stir thick liquids occasionally. Food that needs to be seared quickly or food which loses a lot of liquid during initial frying is best seared in several small portions. Tips for energy-saving cooking can be found in the Environmental protection section.~ Page 52 Ongoing cooking set- ting Ongoing cook- ing time in min- utes Melting Chocolate coating 1-1. - Butter, honey, gelatine 1-2 - Heating and keeping warm Stew (e.g. lentil stew) 1-2 - Milk** 1.-2. - Heating sausages in water** 3-4 - Defrosting and heating Frozen spinach 2.-3. 10-20 min Frozen goulash 2.-3. 20-30 min Poaching, simmering Dumplings 4.-5.* 20-30 min Fish 4-5* 10-15 min

vPowerBoost function Po we r Bo o s t functi on PowerBoost lets you heat up large volumes of water even faster than on heat setting 9. PowerBoost is only available on hotplates marked with the ˜ symbol. With dual-circuit hotplates the second filament circuit has to be activated for use with the PowerBoost function. Switching on PowerBoost

1. Select the hotplate.

2. Touch the ˜ symbol. The ˜ indicator lights up.

The PowerBoost function is switched on. Switch off PowerBoost

1. Select the cooking zone.

2. Select any ongoing cooking setting. The ˜ display

goes out. PowerBoost is switched off. Notes ■ If you do not turn off the PowerBoost function, it switches off automatically after a certain period of time. The hotplate switches back to the heat setting

■ Please remember that oil and fat heat up quickly with PowerBoost. Never leave the hob unattended. Oil and fat that have overheated will catch fire quickly, see section "Important safety information".~ Page 51 White sauces, e.g. béchamel sauce 1-2 3-6 min Whisked sauces, e.g. sauce Béar- naise, hollandaise 3-4 8-12 min Boiling, steaming, braising Rice (with double the quantity of water) 2-3 15-30 min Rice pudding 1.-2. 35-45 min Unpeeled boiled potatoes 4-5 25-30 min Boiled potatoes 4-5 15-25 min Pasta, noodles 6-7* 6-10 min Stew, soups 3.-4. 15-60 min Vegetables 2.-3. 10-20 min Frozen vegetables 3.-4. 10-20 min Cooking in a pressure cooker 4-5 - Braising Roulades 4-5 50-60 min Pot roast 4-5 60-100 min Goulash 2.-3. 50-60 min Frying with little oil** Escalope, plain or breaded 6-7 6-10 min Escalope, frozen 6-7 8-12 min Chop, plain or breaded*** 6-7 8-12 min Steak (3 cm thick) 7-8 8-12 min Hamburger, rissoles (3 cm thick)*** 4.-5. 30-40 min Poultry breast (2 cm thick)*** 5-6 10-20 min Poultry breast, frozen*** 5-6 10-30 min Fish and fish fillet, plain 5-6 8-20 min Fish and fish fillet, breaded 6-7 8-20 min Fish and fish fillet, breaded and frozen, e.g. fish fingers 6-7 8-12 min Scampi and prawns 7-8 4-10 min Sautéing vegetables, fresh mush- rooms 7-8 10-20 min Vegetables, meat in Asian-style strips 7.-8. 15-20 min Stir fry, frozen 6-7 6-10 min Pancakes 6-7 consecutively Omelette 3.-4. consecutively Fried eggs 5-6 3-6 min Ongoing cooking set- ting Ongoing cook- ing time in min- utes

• Ongoing cooking without a lid ** Without lid *** Turn frequently Deep-fat frying (150-200 g per portion continuously in 1-2 li- tres oil**) Frozen products, e.g. chips, chicken nuggets 8-9 - Croquettes, frozen 7-8 - Meat, e.g. chicken portions 6-7 - Fish, breaded or battered 5-6 - Vegetables, mushrooms, breaded or battered, tempura 5-6 - Small baked items, e.g. ring doughnuts/jam-filled doughnuts, fruit in batter 4-5 - Ongoing cooking set- ting Ongoing cook- ing time in min- utes

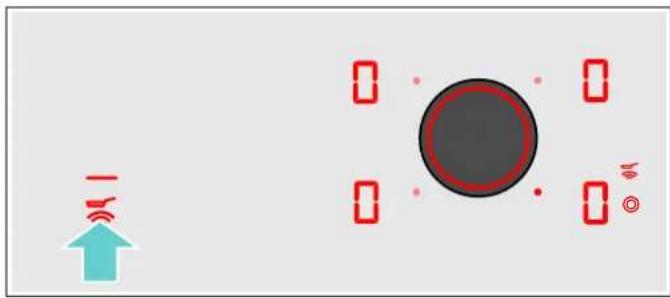

cFrying Sensor Fr y i ng Sensor The dual-circuit hotplate marked with the Û symbol has a sensor frying system function. If you operate the hotplate with the sensor frying system, a sensor regulates the temperature of the pan. Your advantage when frying: ■ The hotplate only heats up when necessary. This will save energy. ■ Oil and fat do not overheat. Notes ■ Never leave fat unattended while you are heating it.■ Put the pan in the centre of the hotplate. Make sure that the base of the pan has the correct diameter. ■ Do not place a lid on the pan, otherwise the regulator will not work. You can use a splatter guard; it will not prevent the regulator from working. ■ Only use fat that is suitable for frying. For butter, margarine, extra virgin olive oil or lard, select the frying setting 1 or 2. Pans for the sensor frying system Select the right pan when using the sensor frying system. System pans as optional accessories You can buy a frying pan that is perfectly suited to frying with the sensor cooking system from your specialist electrical retailer or from www.neffeshop.com: Z9453X0 Both availability and whether it is possible to order online differ between countries. The frying settings given below have been adjusted to the system pans. Note: The sensor frying system may also work with other pans. Test the pans first with low frying settings, changing as necessary. The pans may overheat on high frying settings. The frying settings Setting the sensor frying system Select the appropriate frying setting from the table. Put the pan on the hotplate. The hob must be on. Select the hotplate.

1. Touch the Û symbol.‹ lights up in the hotplate

display and the Û symbol appears.

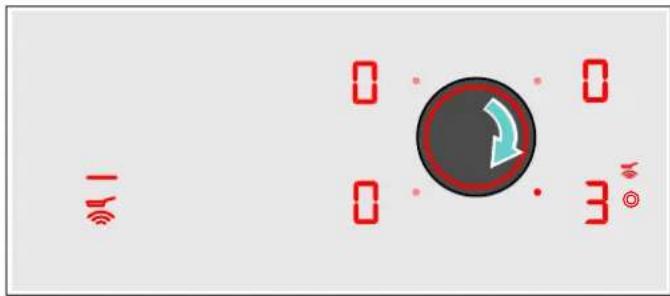

2. Turn the twist knob to select the desired frying

setting. The sensor frying system is activated. The large dual-circuit hotplate is switched on automatically. The Ûsymbol flashes until the frying temperature is reached. Then a signal sounds. Symbol Û is lit.

3. Add the fat and then the food to the pan.

Turn as you normally would to prevent burning. Switching off the sensor frying system Touch the Û symbol. Frying setting Temperature Suitable for 1 very low e.g. cooking and reducing sauces, steam- ing vegetables without adding water and with added fat, frying food with extra vir- gin olive oil, butter or margarine 2 low e.g. omelettes, frying food with extra virgin olive oil, butter or margarine 3 low - medium e.g. frying fish, thick food such as rissoles and sausages 4 medium - high e.g. frying steak medium or well done, fro- zen breaded products, thin food such as escalopes, strips of meat and vegetables 5 high e.g. frying steak rare, potato fritters and fried potatoes

Frying table The table shows which frying setting is suitable for which dish. The frying time may depend on the type, weight, thickness and quality of the food. The frying settings given are for the system pans. The frying settings may vary if you use different pans. First heat the empty pan. Only add the food with the fat to the pan when the signal sounds. Frying setting Total frying time after the signal sounds Meat Escalope, plain or breaded 4 6-10 min Fillet 4 6-10 min Chop* 3 10-17 min Cordon bleu* 3 15-20 min Steaks, rare (3 cm thick) 5 6-8 min Steaks medium or well done (3 cm thick) 4 8-12 min Poultry breast (2 cm thick)* 3 10-20 min Sausages, pre-boiled or raw* 3 8-20 min Hamburgers (1.5 cm thick)** 3 6-30 min Rissoles (2 cm thick)** 3 10-20 min Strips of meat, gyros 4 7-12 min Minced meat 4 6-10 min Bacon 2 5-8 min Fish Fish, fried, e.g. trout 3 10-20 min Fish fillet, plain or breaded 3/4 10-20 min Scampi, prawns 4 4-8 min Egg dishes Pancakes 4 continuous frying Omelettes 2 3-6 min (per portion) Fried egg 2/4 2-6 min Scrambled egg 2 4-9 min Shredded raisin pancake 3 10-15 min French toast 3 4-8 min (per portion) Potatoes Fried potatoes, boiled in their skin 5 6-12 min Fried potatoes, made from raw potatoes 3 15-25 min Potato fritter 5 2.5-3.5 min (per por- tion) Rösti 2 40-45 min Glazed potatoes 4 10-15 min Vegetables

• Turn frequently ** Place in a cold pan Sweat garlic / onions until transluscent 1/2 2-10 min Fried onions 3 5-10 min Courgettes, aubergines 3 4-12 min Peppers, green asparagus 3 4-15 min Steaming vegetables with added fat and without adding water, e.g. courgettes, green peppers 1 10-20 min Mushrooms 4 10-15 min Glazed vegetables 4 6-10 min Frozen products Escalope 4 15-20 min Cordon bleu 3 10-30 min Poultry breast * 2 10-30 min Chicken nuggets* 4 10-20 min Gyros, kebab 4 10-15 min Fish fillet, plain or breaded 3 10-20 min Fish fingers 4 8-12 min Chips 4/5 4-6 min Stir fries / stir-fried vegetables 4 8-15 min Spring rolls 3 10-30 min Camembert/cheese 3 10-15 min Sauces Tomato sauce with vegetables 1 25-35 min Béchamel sauce 1 10-20 min Cheese sauce, e.g. Gorgonzola sauce 1 10-20 min Reducing sauces, e.g. tomato sauce, Bolognese sauce 1 25-35 min Sweet sauces, e.g. orange sauce 1 15-25 min Miscellaneous Camembert/cheese 3 7-10 min Dried ready meals to which you add water, e.g. pasta with sauce* 2 4-6 min Croutons 3 6-10 min Toasting almonds / other nuts / pine nuts** 2 3-7 min Frying setting Total frying time after the signal sounds

• Turn frequently ** Place in a cold panChildproof lock en

AChildproof lock Childproof lock You can use the childproof lock to prevent children from switching on the hob. Switching the childproof lock on and off The hob must be switched off. To switch on: Touch the U symbol for 4 seconds. The ‚ display lights up for 10 seconds. The hob is locked. To switch off: Touch the U symbol for 4 seconds. The ‚ display goes out. The lock is released. Automatic childproof lock This function automatically activates the childproof lock every time you switch the hob off. Switching on and off Find out how to switch the automatic childproof lock on and off in the Basic settings section.~ Page 61 OTime-setting options Ti me- set t i ng opt i ons There are 3 different time-setting options: ■ A hotplate should switch off automatically■ Kitchen timer■ Stopwatch Automatic hotplate switch-off Enter a cooking time for the relevant hotplate. When the cooking time has elapsed, the hotplate switches off automatically. Setting the cooking time The cooking position must be switched on.

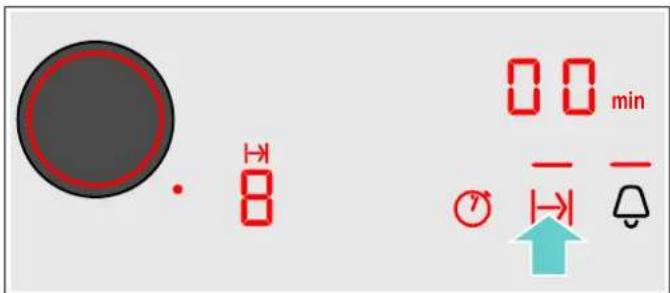

flashes. ‹‹ min lights up in the timer display.

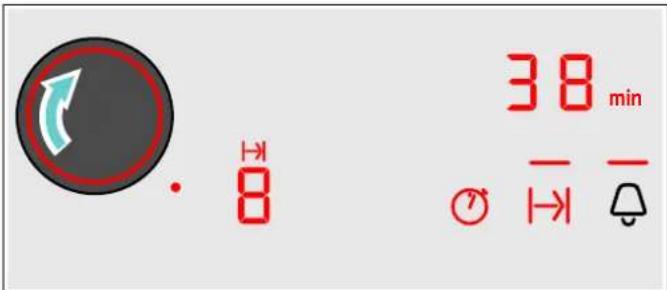

3. Within the next 10 seconds, set the desired cooking

time with the twist knob. The cooking time counts down. If you have set a cooking time for several cooking positions, the shortest cooking time will be displayed. A üabove the x symbol lights up. The x display for the cooking position lights up. Sensor frying system When you cook with the sensor frying system, the set cooking time only begins when the temperature for the selected area is reached. When the time has elapsed When the cooking time has elapsed, the cooking position switches off. ‹ lights up in the cooking position display. An audible signal sounds. ‹‹ flashes for one minute in the timer display. The x display flashes. Touch any control. The displays go out and the audible signal ceases. Changing or cancelling the cooking time Select the hotplate using the twist knob. Touch the x symbol and change the cooking time or set to ‹‹. Notes ■ If you want to query the remaining cooking time for a particular hotplate, select the hotplate with the twist knob. The cooking time appears for 10 seconds. ■ You can select a cooking time of up to 99 minutes.■ If the cooking time has counted down to the last minute, the timer display changes from minutes to seconds. Automatic timer You can use this function to preselect a cooking time for all hotplates. Each time a hotplate is switched on, the pre-selected cooking time then counts down. When the cooking time has elapsed, the hotplate switches off automatically. You can find out how to switch on the automatic timer in the Basic settings section.~ Page 61 Note: You can change the cooking time for a hotplate or switch off the automatic timer for the hotplates: Select the hotplate and touch the x symbol. Change the cooking time or set to ‹‹ in the settings range. Kitchen timer You can use the kitchen timer to set a time of up to 99 minutes. It runs independently of all the other settings. PLQ PLQen Automatic safety cut-out

Setting the kitchen timer

1. Touch the U symbol. The display A above the U

symbol flashes. ‹‹min lights up in the timer display.

2. Use the twist knob to set the desired cooking time.

The timer starts counting down after a few seconds. When the time has elapsed When the time has elapsed, an audible signal sounds and ‹‹ flashes in the display for one minute. The A display above the U symbol lights up. Touch any symbol. The displays go out and the audible signal ceases. Setting the correct time Touch the U symbol and use the twist knob to change the time. Stopwatch function The stopwatch function displays the time that has passed since activating the function. The stopwatch function only works when the hob is switched on. When the hob is switched off, the stopwatch function is switched off as well. The stopwatch function is switched on by touching the œ symbol. ‹‹ appears in the timer display and timing starts. Seconds are displayed during the first minute, and then minutes. The stopwatch function is switched off by touching the œ symbol again. The timer display goes out. Note: If another time-setting option is selected in addition to the stopwatch function, the setting appears in the timer display for 10 seconds. The stopwatch function is then displayed again. bAutomatic safety cut-out Au t omat i c safety cut - out If a hotplate has been switched on for a long time without the setting being changed, the automatic time limit is activated. The hotplate stops heating. ”‰ and the •/œ residual heat indicator flash alternately on the hotplate display. The display goes out when you touch any control. You can make new settings. When the time limit is activated depends on the heat setting selected (1 to 10 hours). zKeep warm function Ke e p wa r m function The Keep warm function is suitable for melting chocolate or butter and for warming food and cookware Switching on the Keep warm function

1. Select the hotplate.

2. Touch the – symbol.–lights up on the heat setting

display. The Keep warm function is switched on. Switching off the Keep warm function

1. Select the hotplate.

2. Touch the – symbol. ‹ lights up on the heat setting

display. The Keep warm function is switched off. [Energy consumption indicator Ener gy consumpt i on indicator You can use this function to have the total energy consumption between switching the hob on and off displayed. Once switched off, the consumption in kilowatt hours (e.g. 1.87 kWh) is displayed for 10 seconds The accuracy of the display depends, amongst other things, on the voltage quality of the power supply. The display has not been activated. You can find out how to activate the display in the Basic settings section.~ Page 61Basic settings en

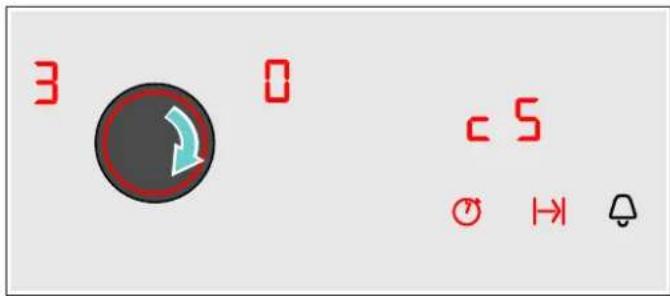

QBasic settings Ba s i c set t i ngs Your appliance has various basic settings. You can adapt these settings to suit your own needs. Changing the basic settings The hob must be switched off.

1. Switch on the hob.

2. Within the next 10 seconds, touch and hold the U

symbol for 4 seconds. The after-sales index will be displayed to begin with.Turn the twist knob to scroll through all the different information:

3. Touch the U symbol again.

™‚ will appear and ‹ will be lit on the hotplate display.

4. Touch the U symbol repeatedly until the required

6. Touch and hold the U symbol for 4 seconds.

The setting is now activated. Switching off To exit the basic setting, switch off the hob with the main switch and make new settings. Display screen Function

Manual and automatic childproof lock switched off.

Confirmation signal and operation error signal are switched off (main switch signal always remains).

Only the operation error signal is switched on.

Only the confirmation signal is switched on.

Confirmation signal and operation error signal switched on.*

Energy consumption display (Ask your electricity supply company what the mains voltage is)

Consumption display switched off.*

Consumption display with mains voltage at 230 V.

Consumption display with mains voltage at 400 V.

Consumption display with mains voltage at 220 V.

Consumption display with mains voltage at 240 V.

Switched off.* ‹‚-ŠŠ Cooking time, after which the hotplates switch off.

Duration of the timer end signal

Activation of the heating elements

Last setting before the hotplate was switched off.

Time for selecting the hotplate

Unlimited: The last selected hotplate can always be adjusted without having to select it again.*

Once you select a hotplate, you have 10 seconds to adjust it: After this you will have to select it again in order to be able to adjust it.

Switched on. *Basic setting Information screen After-sales service index (KI)

Month of manufacture ‹.†en Home Connect

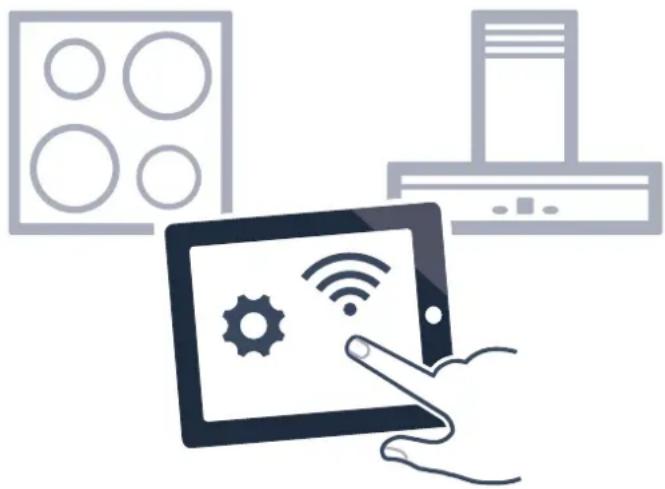

oHome Connect Ho me Connect Note: Home Connect is due to be introduced for NEFF from the end of 2018. This appliance is WLAN-enabled and settings can be sent to the appliance via a mobile device. If the appliance is not connected to the home network, the appliance functions in the same way as a hob with no network connection. The hob can always be operated via the control panel. The availability of the Home Connect function depends on the availability of Home Connect services in your country. Home Connect services are not available in every country.You can find more information on this at www.home-connect.com. Notes ■ Hobs are not designed to be used unattended - you must always keep an eye on the cooking process. ■ Ensure that you follow the safety instructions in this instruction manual and that these are also observed when operating the appliance via the Home Connect app. You must also follow the instructions in the Home Connect app.~ "Important safety information" on page 51 ■ Using the Home Connect app, you can send settings to your appliance and then have to confirm them on the appliance. It is not possible to operate the appliance whilst you are away from home. ■ Operation on the appliance always has priority. During this time, it is not possible to operate the appliance using the Home Connect app. Setting up To implement settings via Home Connect, you must have installed and set up the Home Connect app on your mobile device. Follow the steps specified by the app to make the settings. The app must be open in order to perform the setup process. Automatic registration in the home network You require a router that has WPS functionality. You require access to your router.If you do not have this, follow the steps for "Manually logging into your home network".

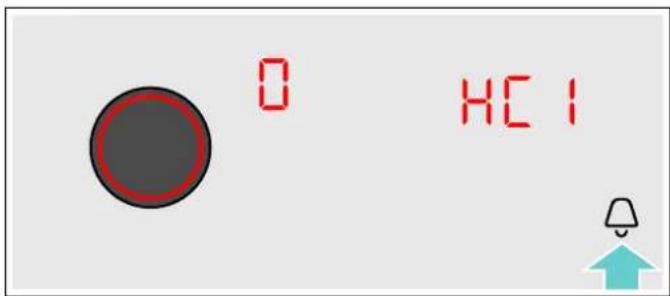

1. Switch on the hob.

2. Touch the U symbol for 4 seconds.

The product information will be displayed.

3. Touch the U symbol repeatedly until the

• ’‚ setting appears. ‹ will be lit on the hotplate display.

4. Set the value to ‚ using the twist knob.

‚ and the D symbol will flash on the hotplate display.

5. Press the WPS button on the router within the next

2 minutes. Once the D symbol stops flashing and remains lit continuously on the hotplate display, the hob is connected to your home network. Note: If a connection cannot be established, the value ƒ, "Connect manually", will appear.Log the appliance into your home network manually or try connecting automatically again. The appliance will automatically try to connect to the app; the •’ƒ setting will appear. The value ‚ will flash in the settings area.

6. On your mobile device, follow the instructions in the

app for automatic network login. Once the value ‹ appears on the hotplate display, the login process is complete. Manual registration in the home network

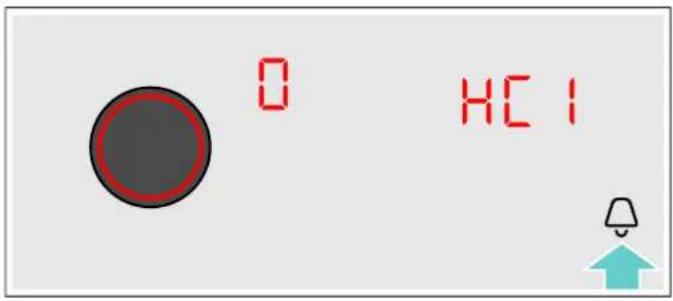

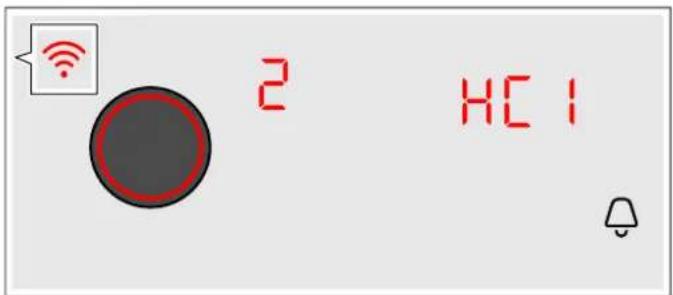

1. Switch on the hob.

2. Touch the U symbol for 4 seconds.

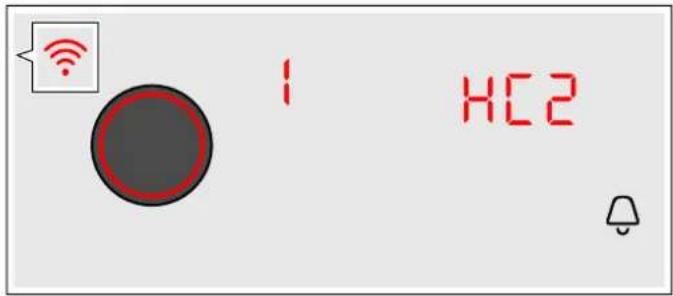

3. Touch the U symbol repeatedly until the •’‚

setting appears. ‹ will be lit on the hotplate display.

4. Set the value to ƒ using the twist knob.

ƒ and the D symbol will flash on the hotplate display.

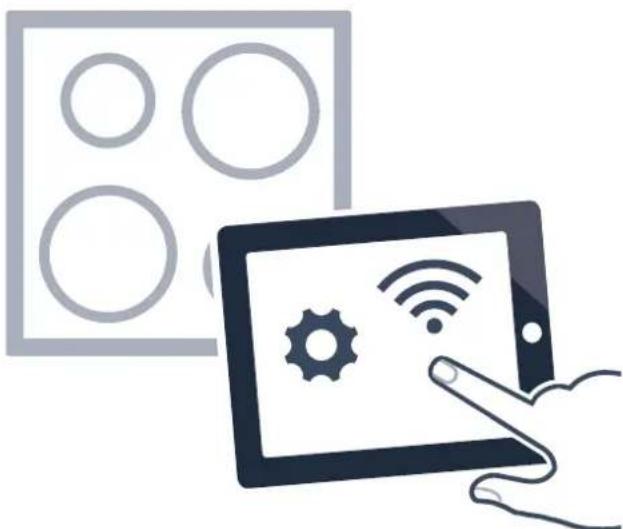

5. Use the SSID "Home Connect" and the key "Home

Connect" to log your mobile device into the hob network. Once the D symbol stops flashing and remains lit continuously on the hotplate display, the hob is connected to your home network. The appliance will automatically try to connect to the app; the •’ƒ setting will appear. The value ‚ will flash in the settings area.

6. Launch the app on your mobile device and follow the

instructions for manually logging into your network. Once the value ‹ appears on the hotplate display, the login process is complete. Home Connect settings You can adjust Home Connect to suit your requirements at any time. In the basic settings for your hob, navigate to the Home Connect settings to display network and appliance information. Symbol Function

Registration in the home network (WLAN)

Not connected /disconnect network.

Connect automatically.

• ’ƒ Connection to app

Radio module switched off.

Update available and ready for installation.

Starting installation.

Remote access by Customer Service

WLAN signal strength

Not connected to home network (WLAN).

Signal strength 1 (poor)

Signal strength 2 (moderate)

• Basic settingen Home Connect

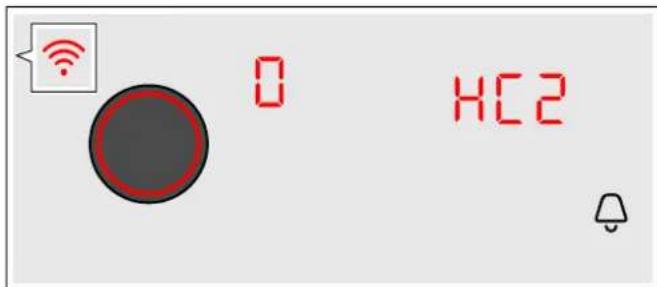

Notes ■ The •’ƒ setting is only displayed if the appliance is connected to the home network. ■ The •’„ setting is only displayed if the appliance has once connected to a network. ■ The •’† setting is only displayed if an update is available. ■ The •’‡ setting is only displayed if Customer Service is attempting to connect to the appliance. You can end this at any time after granting access. ■ The •’ˆ and •’‰ settings are only displayed if there is a connection to WLAN. Deactivating WLAN If Wi-Fi has been activated, you can use the Home Connect functions. Note: In networked standby mode, your appliance requires a maximum of 2 W.

1. Touch the U symbol for 4 seconds.

The product information will be displayed.

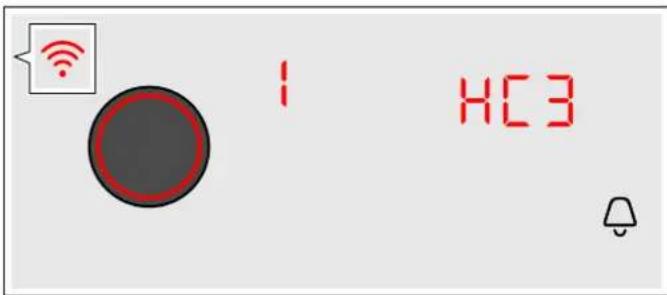

2. Touch the U symbol repeatedly until the

• ’„ setting appears. ‚ will be lit on the hotplate display.

3. Set the value to ‹ using the twist knob.

This deactivates Wi-Fi; the D symbol will go out on the control panel. Disconnecting from the network Di sconnect i ng from the net wor k You can disconnect your hob from the network at any time. Note: If your hob is disconnected from the network, it is not possible to operate it using Home Connect.

1. Touch the U symbol for 4 seconds.

The product information will be displayed.

2. Touch the U symbol repeatedly until the

• ’‚ setting appears. „ will be lit on the hotplate display.

3. Set the value to ‹ using the twist knob.

This disconnects the appliance from your home network; the D symbol will go out on the control panel. Connecting to the network Connec t i ng to the net wor k

1. Touch the U symbol for 4 seconds.

The product information will be displayed.

2. Touch the U symbol repeatedly until the

• ’‚ setting appears. ‹ will be lit on the hotplate display.

4. Follow the instructions in the section entitled

"Automatic login to your home network" or "Manually logging into your home network". Connect to the app If the Home Connect app is installed on your mobile device, you can connect it to your hob. Notes ■ The appliance must be connected to the network. ■ The app must be open and be set up. ■ If your extractor hood is directly connected, first disconnect the hob from your home network and then initiate the connection process again.~ "Disconnecting from the network" on page 64

1. Touch the U symbol for 4 seconds.

The product information will be displayed.

2. Touch the U symbol repeatedly until the

• ’ƒ setting appears. ‹ will be lit on the hotplate display.

3. Set the value to ‚ using the twist knob.

4. Follow the instructions in the app to complete the

Signal strength 3 (good)

Connection to Home Connect server

Connected. Symbol Function

Settings via app Using the Home Connect app, you can easily access the basic settings for your hob and send settings for the hotplates to the hob. Notes ■ Before you can change the basic settings, the hob must be switched off. ■ If the appliance is being operated by means of the controls on the appliance itself, this mode of operation always has priority. During this time, it is not possible to operate the appliance using the Home Connect app. ■ When the appliance is delivered, the settings transmission option is already activated by default. ■ If the settings transmission option has been deactivated, only the hob's operating statuses will be displayed in the Home Connect app.

1. Touch the U symbol for 4 seconds.

The product information will be displayed.

2. Touch the U symbol repeatedly until the

the value ‚ with the twist knob. To deactivate the settings transmission option, select the value ‹. Confirming settings As soon as cooking settings are transmitted to a cooking zone, the cooking zone display, timer display or modified function starts, depending on the setting. To confirm these settings, touch the twist knob in the appropriate area for the cooking position required. To discard the settings, touch any other button on the hob. Software update Using the software update function, your hob's software can be updated (e.g. for the purpose of optimisation, troubleshooting or security updates). To do this, you need to be a registered Home Connect user, have installed the app on your mobile device and be connected to the Home Connect server. As soon as a software update is available, you will be informed by the Home Connect app, from which you will also be able to download the update. Once the update has been successfully downloaded, you can start installing it via the hob (basic settings,

• ’† setting) or the Home Connect app if you are on your local area network. The Home Connect app will notify you once installation is complete. Notes ■ You can continue to use your hob as normal while updates are downloading. ■ Depending on your personal settings in the app, software updates can also be set to download automatically. ■ We recommend that you install security updates as soon as possible. About data protection When your appliance is connected for the first time to a WLAN network, which is connected to the Internet, your appliance transmits the following categories of data to the Home Connect server (initial registration): ■ Unique appliance identification (consisting of appliance codes as well as the MAC address of the installed WiFi communication module). ■ Security certificate of the WiFi communication module (to ensure a secure IT connection). ■ The current software and hardware version of your domestic appliance. ■ Status of any previous resetting to factory settings. This initial registration prepares the Home Connect functions for use and is only required when you want to use these Home Connect functions for the first time. Note: Ensure that the Home Connect functions can be used only in conjunction with the Home Connect app. Information on data protection can be accessed in the Home Connect app.en Hood connection

Declaration of Conformity Constructa Neff Vertriebs-GmbH hereby declares that the appliance with functionality meets the basic requirements and other relevant provisions of Directive 2014/53/EU. A detailed RED Declaration of Conformity can be found online at www.neff-international.com among the additional documents on the product page for your appliance.

2.4 GHz band: max. 100 mW

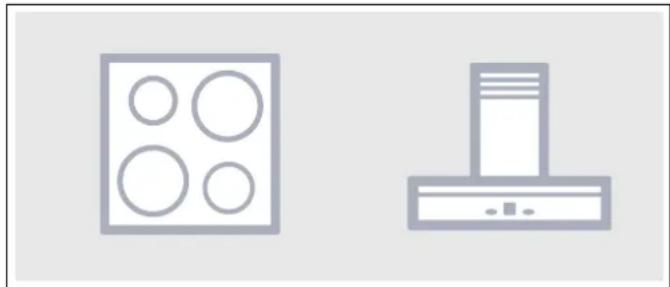

5 GHz band: max. 100 mW eHood connection Ho o d connect i on You can connect this appliance to a suitable extractor hood and then control the functions of the hood via your hob. You have various options for connecting the appliances together: Home Connect Two appliances can be connected using the Home Connect app provided that both of them are Home Connect-compatible. Both appliances can be controlled via the app and via the control panel. Refer to the Home Connect documents supplied and the Home Connect section for more information. ~ "Home Connect" on page 62 Connecting appliances directly If the appliance is connected directly to an extractor hood, the extractor hood can be controlled via the hob. It is then not possible for either of the appliances to connect to your home network or to the app. Both appliances can be controlled via the control panel. Connecting appliances via your home network Use this type of connection if neither or one of the two appliances is connected to the Home Connect app. If the appliances are connected to each other via your home network, you can use both the hood controls and Home Connect to operate the hob. Notes ■ Make sure you follow the safety instructions in the instruction manual for your extractor hood and that these are complied with even when operating the appliance via the hood controls on the hob.~ "Important safety information" on page 51 ■ If the appliance is being operated by means of the controls on the extractor hood, this mode of operation always has priority. It is not possible to use the hood controls on the hob during this time. ■ In networked standby mode, your appliance requires a maximum of 2 W. Setting up Both the hob and the extractor hood must be switched on before you can connect them to each other. To do this, refer to the section entitled "Connecting to the hob" in the instruction manual for your extractor hood. Connecting directly If you connect your hob directly to the extractor hood, it cannot be connected to your home network as well and you will not be able to use Home Connect.

1. Switch on the hob.

2. Touch and hold the U symbol for four seconds.

The product information is displayed.

3. Touch the U symbol repeatedly until the ™‚‡

setting appears. ‹ lights up in the hotplate display.

4. Set the value to ‚ using the twist knob.

‚ flashes in the hotplate display.

5. You have two minutes to initiate the connection

process on the extractor hood. Once the hob is connected to the extractor hood, the value „ appears in the hotplate display. After you exit the settings menu, the symbols for the hob-based hood controls are displayed in the hob's control panel. Connecting via your home network You require a router that has WPS functionality. You require access to your router.If you do not have this, follow the steps for "Direct connection". When you begin, make sure that the extractor hood is connected to the app or is on your home network.

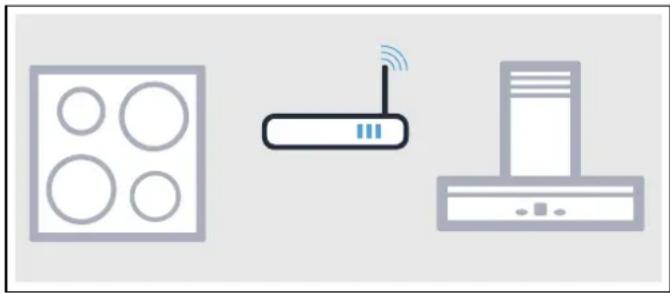

1. Switch on the hob.

2. Touch the U symbol for 4 seconds.

The product information will be displayed.

3. Touch the U symbol repeatedly until the ™‚‡

setting appears. ‹ (not connected) or ƒ (connected to home network) will be lit on the hotplate display.

4. Set the value to ‚ using the twist knob.

‚ will flash on the hotplate display.

5. If the appliance is not yet connected to your home

network, press the WPS button on the router within the next 2 minutes. The hob will be connected to your home network and the value ƒ will appear on the hotplate display. The process of connecting to the extractor hood starts automatically and is active for 2 minutes. If the appliance is already connected to your home network, proceed to the next step.

6. Initiate the process for connecting to the extractor

hood. Once the connection process is complete, the value „ will appear on the hotplate display.The symbols for the hood controls on the hob are displayed on the hob's control panel. Note: Connection can only be established when both appliances are connected to your home network and the connection process has been initiated for both of them. If the connection process has already timed out for one of the two appliances, try to connect again (basic settings, ™‚‡ setting). Resetting connection You can reset the connections you have saved for your home network and extractor hood at any time.

1. Touch the U symbol for 4 seconds.

The product information will be displayed.

2. Touch the U symbol repeatedly until the ™‚‡

Control the hood via the hob In the basic settings of your hob you can adjust the behaviour of your extractor hood depending on the switch-on/off of the hob or individual cooking zones. ~ "Hood control settings" on page 68 You can select other settings using the control panel. Setting the fan Switching on Touch the A symbol. Setting fan level Use the twist knob to select the fan setting. You can choose between the levels 1, 2 and 3. To select the intensive levels, turn the twist knob until ˜‚ or ˜ƒ appears. Switching off Use the twist knob to select fan setting 0. Setting automatic mode Switching on

1. Touch the A symbol.

2. Turn the twist knob until the ‘ symbol appears on

the control panel. The fan starts up automatically when steam is produced. Switching off

1. Touch the A symbol.

2. Turn the twist knob until the fan setting 0 has been

selected or choose another fan setting. Setting the hood lighting You can switch the hood light on and off via the hob's control panel. Touch the 6 symbol.en Cleaning

Hood control settings Ho o d cont r ol set t i ngs You can adapt the hood controls to suit your needs at any time. Note: The ™‚‰, ™ƒ‹, ™ƒ‚ and ™ƒƒ settings are only displayed if the appliance is connected to an extractor hood. DCleaning Cl e a n i n g Suitable maintenance and cleaning products can be purchased from the after-sales service or in our e-Shop. Ceramic Clean the hob after each use. This will prevent spills from burning onto the ceramic. Only clean the hob when it has cooled down sufficiently. Use only cleaning agents which are suitable for glass ceramic. Follow the cleaning instructions on the packaging. Never use: ■ Undiluted washing-up liquid ■ Detergent intended for dishwashers ■ Scouring agents ■ Harsh cleaning agents such as oven spray or stain remover ■ Abrasive sponges ■ High-pressure cleaners or steam jet cleaners Ground-in dirt can be best removed with a glass scraper, available from retailers. Please note the manufacturer's instructions. You can also obtain a suitable glass scraper from our after-sales service or from the e-Shop. Using special sponges to clean glass ceramic achieves great cleaning results. Hob surround To prevent damage to the hob surround, observe the following instructions: ■ Use only hot soapy water. ■ Wash new sponge cloths thoroughly before use. ■ Do not use any sharp or abrasive agents. ■ Do not use the glass scraper. Twist knob It is recommended that the touch knob is wiped with lukewarm soapy water only. Do not use harsh or abrasive agents. The twist knob will be damaged if cleaned in the dishwasher or immersed in soapy water. Symbol Function

Not connected / disconnect.

Connected to home network (WLAN).

Connected to extractor hood.

Switched off. The hood must be switched on manually if needed.

Switched on in automatic mode.* In automatic mode, the hood switches itself on when a cooking zone is switched on.

Switched on in manual mode. The hood switches itself on with a default setting when a cooking zone is switched on. ™ƒ‹ Fan run-on

The fan switches itself off when the hob is switched off.

Switched on in automatic mode.*

Switched on with standard fan run-on.

No change in settings. ™ƒ‚ Switch light on automatically

Switched on.* The light switches itself on when the hob is switched on. ™ƒƒ Switch light off automatically

Switched on. The light switches itself off when the hob is switched off.

3Trouble shooting Tr oubl e shoot i ng Faults often have simple explanations. Please read the notes in the table before calling the after-sales service. The electronics of your hob are underneath the control panel. For various reasons, the temperature in this area may rise sharply. In order that the electronics do not overheat, the hotplates are switched off as and when necessary. The ”ƒ, ”…, or ”† display appears alternately with the • or œ residual heat indicator. E-report in the displays When an error message with "E" appears in the display, e.g. E0111, switch the appliance off and on again. If it was a one-off error, the display goes out. If the error message appears again, call the after-sales service and quote the exact error message. 4Customer service Cu s t o mer ser vi ce Our after-sales service is there for you if your appliance needs to be repaired. We will always find an appropriate solution, also in order to avoid after-sales personnel having to make unnecessary visits. E number and FD number Please quote the E-number (product number) and the FD number (production number) of your appliance when contacting the after-sales service. The rating plate bearing these numbers can be found on the appliance certificate. Please note that a visit from an after-sales service engineer is not free of charge in the event of misuse of the appliance, even during the warranty period. Please find the contact data of all countries in the enclosed customer service list. To book an engineer visit and product advice Rely on the professionalism of the manufacturer. You can therefore be sure that the repair is carried out by trained service technicians who carry original spare parts for your appliances. Display Fault Measure None The power supply has been disconnected. Check the household fuse for the appliance. Check whether there is a power cut by trying other electronic appliances. All displays flash The touch control is wet or an object is resting on it. Dry the control or remove the object.

Several hotplates have been used over a pro- longed period at high power settings. To pro- tect the electronics, the hotplate has been switched off. Wait a while. Touch any touch control. When ”ƒ goes out, the electronics have cooled down sufficiently. You can continue cooking. ”… Despite the switch-off by ”ƒ, the electronics have become hot again. All hotplates have therefore been switched off. Wait a while. Touch any touch control. When ”… goes out, you can con- tinue cooking. ”†and the heat setting flash alternately. An audible signal can be heard

Warning: There is a hot pan in the area of the

control panel. There is a risk that the electron- ics will overheat. Remove the pan. The fault display goes out shortly afterwards. You can continue cooking. Ӡand audible signal There is a hot pan in the area of the control panel. To protect the electronics, the hotplate has been switched off. Remove the pan. Wait a while. Touch any control. When Ӡ goes out, you can continue cooking.

The hotplate was in operation for too long and has switched itself off. You can switch the hotplate back on again immediately. š“ The hotplates do not heat up Demo mode is switched on Switching off the demo mode: Disconnect the appliance for 30 seconds from the power supply (switch off the household fuse or the circuit breaker in the fuse box). Touch any touch control after 3 minutes. The demo mode is switched off. GB 0344 892 8989 Calls charged at local or mobile rate. IE 01450 2655

0.03 € per minute at peak. Off peak 0.0088 €

ETest dishes Tes t di shes This table has been produced for test institutes to facilitate the testing of our appliances. The data in the table refers to our accessory cookware from Schulte Ufer (4-part induction pot set Z9442X0) with the following dimensions: ■ Saucepan dia.16 cm, 1.2 litres, for 14.5 cm dia. single-circuit hotplate ■ Cooking pot dia. 16 cm, 1.7 litres, for 14.5 cm dia. single-circuit hotplate ■ Cooking pot dia. 22 cm, 4.2 litres, for 18 cm dia. or 17 cm dia. hotplate ■ Frying pan dia. 24 cm, for 18 cm dia. or 17 cm dia. hotplate Test dishes Heating up/bringing to boil Ongoing cooking Heat setting Cooking time (min:sec) Lid Ongoing cooking setting Lid Melting chocolate Cookware: saucepan Chocolate couverture (e.g. Dr. Oetker dark choc- olate, 150 g) on 14.5 cm dia. hotplate - - - 1. No Heating and keeping lentil stew warm Cookware: cooking pot Lentil stew made to DIN 44550 Initial temperature 20° C Amount: 450 g for 14.5 cm dia. hotplate 9 approx. 2:00 without stirring Yes 1. Yes Amount: 800 g for 18 cm dia. or 17 cm dia. hotplate 9 approx. 2:00 without stirring Yes 1. Yes Lentil stew from the tin e.g lentils with Erasco sausages: Initial temperature 20° C Amount 500 g for 14.5 cm dia. hotplate 9 approx. 2:00 (Stir after approx. 1:30) Yes 1. Yes Amount: 1000 g for 18 cm dia. or 17 cm dia. hotplate 9 approx. 2:30 (Stir after approx. 1:30) Yes 1. Yes Simmering Béchamel sauce Cookware: saucepan Milk temperature: 7° C Recipe: 40 g butter, 40 g flour, 0.5 l milk (3.5% fat content) and one pinch of salt for

Melt the butter, stir in the flour and salt, and keep cooking the roux for 3 minutes

Add the milk to the roux and bring to the boil, stirring continuously

After the Béchamel sauce has come to the boil, keep cooking it at setting 1 for a further 2 minutes, stirring all the timeTest dishes en

Cooking rice pudding - Ongoing cooking with lid Cookware: cooking pot Milk temperature: 7° C Recipe: 190 g round grain rice, 90 g sugar, 750 ml milk (3.5% fat content) and 1 g salt for 14.5 cm dia. hotplate 9 approx. 6:45 Heat the milk until it starts to rise up. Switch down to the ongoing cook- ing setting and add the rice, sugar and salt to the milk Total cooking time (incl. bringing to boil) approx. 45 minutes No 2 Yes Stir the rice pudding after 10 minutes Recipe: 250 g round grain rice, 120 g sugar, 1 l milk (3.5% fat content) and 1.5 g salt for 18 cm dia. or 17 cm dia. hotplate 9 approx. 7:20 Heat the milk until it starts to rise up. Switch down to the ongoing cook- ing setting and add the rice, sugar and salt to the milk Total cooking time (incl. bringing to boil) approx. 45 minutes No 2 Yes Stir the rice pudding after 10 minutes Cooking rice pudding - Ongoing cooking without lid Cookware: cooking pot Milk temperature: 7° C Recipe: 190 g round grain rice, 90 g sugar, 750 ml milk (3.5% fat content) and 1 g salt for 14.5 cm dia. hotplate 9 approx. 7:30 Add rice, sugar and salt to the milk and heat the mixture up, stirring continuously. At a milk temperature of approx. 90°C switch down to the ongoing cooking setting. Simmer for approx. 50 minutes No 2 No Recipe: 250 g round grain rice, 120 g sugar, 1 l milk (3.5% fat content) and 1.5 g salt for 18 cm dia. or 17 cm dia. hotplate 9 approx. 8:00 Add rice, sugar and salt to the milk and heat the mixture up, stirring continuously. At a milk temperature of approx. 90°C switch down to the ongoing cooking setting. Simmer for approx. 50 minutes No 2 No Cooking rice Cookware: cooking pot Water temperature 20° C Recipe acc. to DIN 44550: 125 g long grain rice, 300 g water and a pinch of salt for 14.5 cm dia. hotplate 9 approx. 2:48 Yes 2 Yes Recipe acc. to DIN 44550: 250 g long grain rice, 600 g water and a pinch of salt for 18 cm dia. or 17 cm dia. hot- plate 9 approx. 3:15 Yes 2. Yes Test dishes Heating up/bringing to boil Ongoing cooking Heat setting Cooking time (min:sec) Lid Ongoing cooking setting Liden Test dishes

If the tests are carried out with an 18 cm dia. hotplate with a power rating of 1500 W, the boiling time is increased by approx. 20% and the ongoing cooking setting by one ongoing cooking setting. Frying pork loin chops Cookware: frying pan Initial temperature loin chops: 7° C Amount: 3 loin chops (total weight approx. 300 g, about 1 cm thick) 15 g sunflower oil for 18 cm dia. or 17 cm dia. hotplate 9 approx. 2:40 No 7 No Frying pancakes Cookware: frying pan Recipe acc. to DIN EN 60350-2 Amount: 55 ml batter per pancake for 18 cm dia. or 17 cm dia. hotplate 9 approx. 2:40 No 6 or 6. depending on browning level

Deep-fat frying frozen chips Cookware: cooking pot Amount: 1.8 kg sunflower oil, per portion: 200 g frozen chips (e.g. McCain 123 Original fries) for 18 cm dia. or 17 cm dia. hotplate 9 Until oil temperature reaches 180

No 9 No Test dishes Heating up/bringing to boil Ongoing cooking Heat setting Cooking time (min:sec) Lid Ongoing cooking setting Lidnl
