USER MANUAL PR100FR PRIMO

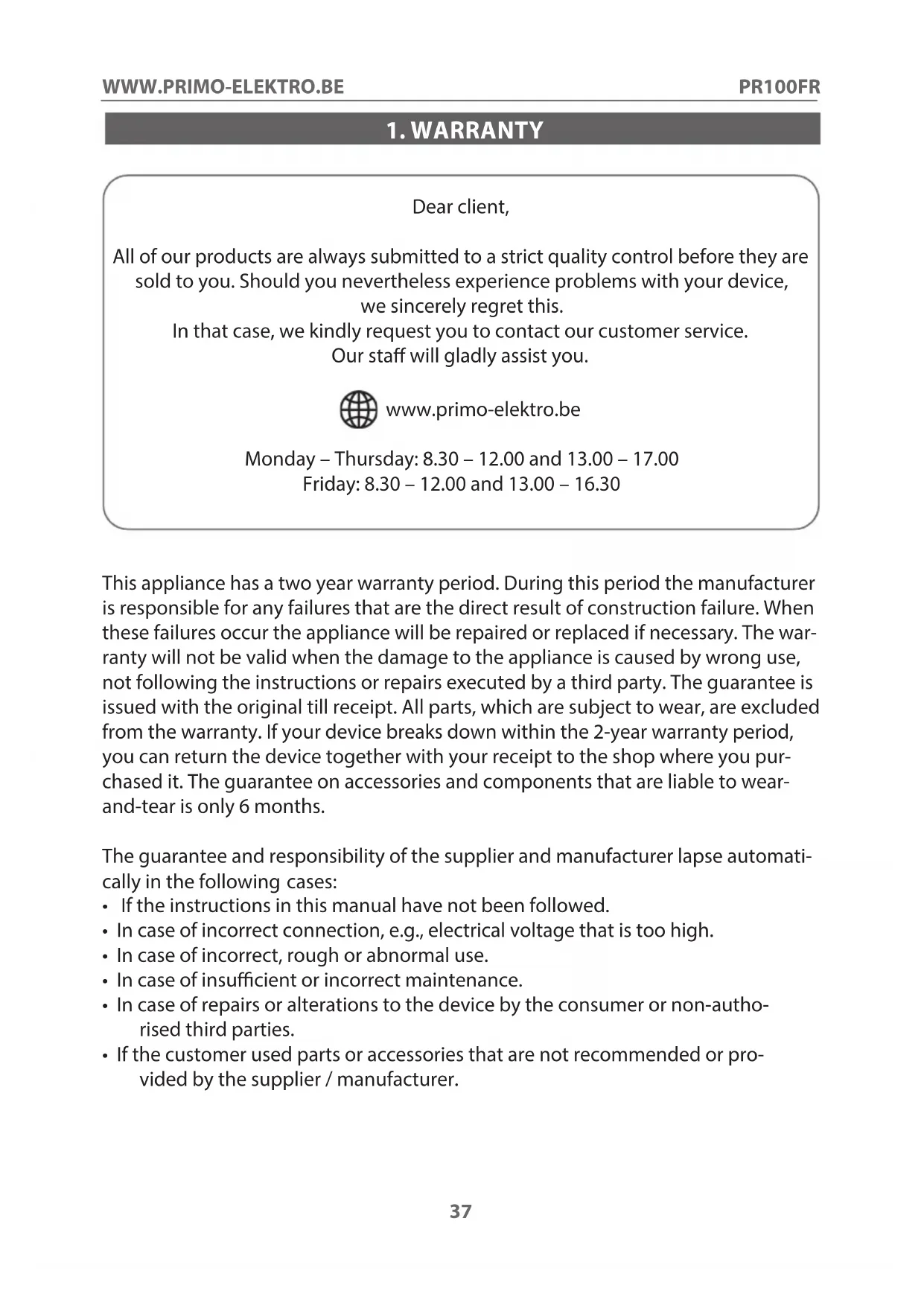

Dear client, All of our products are always submitted to a strict quality control before they are sold to you. Should you nevertheless experience problems with your device, we sincerely regret this. In that case, we kindly request you to contact our customer service. Our sta will gladly assist you. www.primo-elektro.be Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00 Friday: 8.30 – 12.00 and 13.00 – 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The war- ranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you pur- chased it. The guarantee on accessories and components that are liable to wear- and-tear is only 6 months. The guarantee and responsibility of the supplier and manufacturer lapse automati- cally in the following cases:

• If the instructions in this manual have not been followed.

• In case of incorrect connection, e.g., electrical voltage that is too high.

• In case of incorrect, rough or abnormal use.

• In case of insucient or incorrect maintenance.

• In case of repairs or alterations to the device by the consumer or non-autho- rised third parties.

• If the customer used parts or accessories that are not recommended or pro- vided by the supplier / manufacturer.PR100FR

To ensure safety, you must read this manual thor- oughly. This appliance is made for domestic use and should only be used according to the instructions described below.

• This device may be used by children from the age of 8 years and by persons with a physical sensory or mental limitations or lack of experience and knowl- edge if these persons are supervised have been given supervision or instruction concerning the use of the appliance in a safe manner and that they also know the hazards involved in using the device.

• Children must not play with the appliance.

• Maintenance and cleaning of the appliance must not be done by children, unless they are older than 8 years of age and are supervised.

• Keep the appliance and cord out of the reach of chil- dren under the age of 8.

• If the electrical cord is damaged, it must replaced by the manufacturer, its after-sales service or a similarly qualied person person in order to avoid any accident.

• Caution : the appliance must not be used with an external timer or remote control.

• This device is suitable for use in the household envi- ronment and in similar environments such as : - Kitchen corner for staff of stores, offices and

other similar professional environments. - Farm houses. - Hotel and motel rooms and other environments with a residential character. - Guest rooms, or similar.

• An empty refrigerator can be very dangerous for children. Remove the refrigerator door when not in use. Or take other measures that will make the appliance harmless. Be careful not to damage the refrigeration system.

• After installation, let the appliance stand for 3 hours before turning it on. This will allow the refrigerant to settle.

• WARNING! Never put this unit on or near a gas fire or electric fire or in a place where it could come in contact with a heat source. There are flammable materials on the back of the appliance.

• Pay attention to the “re hazard - ammable mate- rial” symbol located on the back of the appliance.PR100FR

Install the device in a dry and well ventilated area. The device is intended for use in an area where the ambient temperature falls within the following class, depending on the climate class found on the rating plate on the back of the appliance. Climate class Ambient temperature SN Between 10°C and 32°C N Between 16°C and 32°C ST Between 18°C and 38°C T Between 18°C and 43°C SAVE THIS MANUAL FOR FUTURE REFERENCEPR100FR

• Remove all packing material, both inside and outside.

• Clean the outside of the unit with a dry cloth. You can clean the inside with a soft damp cloth.

• Do not place the appliance in a narrow passage, direct sunlight or moisture.

• Make sure that air can circulate freely around the refrigerator. The back of the refrigerator should be at least 13 cm away from the wall.

• Place the refrigerator on a firm, level surface.

• Avoid direct sunlight and heat. Sunlight can damage the outside of the refrigerator. Heat will cause higher consumption.

• Avoid excessive humidity. Too much moisture in the air will cause frost to form too quickly inside your refrigerator.

• You can set the temperature inside the appliance with the thermostat. The higher the setting (5), the harder the refrigerator will cool.PR100FR

STORAGE GUIDE For the best storage, set up your refrigerating appliance as follows: Refrigerator compartment Type of food Door rack • Food with natural preservatives such as jams, juices, drinks, spices, etc.

• Do not store food with a limited shelf life here Crisper drawer • Fruits, herbs, and vegetables

• Do not refrigerate bananas, onions, potatoes, or garlic Middle shelf • Dairy and eggs Top shelf • Food that does not need to be cooked, such as readymade meals, leftovers, spreads, etc. A cooler compartment is suitable for storing frozen foods and making ice cubes. It is not suitable for freezing fresh food.

5. CHANGING THE DIRECTION OF DOOR ROTATION

You can change the direction of rotation of the door. If you wish to do so, proceed as follows: Attention : Make sure that the appliance is not live!

1. Remove the protective cap on the hinge and the cover on the other side. In

the door, remove the cover cap at the top.

2. Remove the 3 screws located in the upper hinge. Remove the upper hinge.

Then you can lift the door out of the lower hinge. Put them in a place where you can store them scratch-free. When you change the direction of rotation of the door, we recommend that you rotate the rubber seal as shown in the picture. This will make the door seal perfectly when you replace it.PR100FR

3. Tilt the unit, unscrew the feet and remove the 3 screws located in the bottom

hinge. Next, remove the hinge. Loosen the nut and washer, mirror the metal plate horizontally, and reassemble as demonstrated in the photo.

4. Attach the metal plate to the other side of the refrigerator with 3 screws. Turn

the feet into the openings provided for this purpose.PR100FR

5. Then place the appliance back on the feet. After this, you can place the door

on the bottom hinge. Attach the door to the upper hinge. To do this, screw 3 screws into the holes provided. Cover the upper hinge and the screw holes with the cover plates. Make sure that the rubber seal seals nicely. If it does not, repeat step 2.

6. MAINTENANCE AND CLEANING

CLEANING Wash the water collection tray and shelves with a mild detergent. Then dry all parts thoroughly with a soft dry cloth. Clean the exterior with a soft damp cloth. DEFROST You should defrost your appliance when an ice layer of about 6mm begins to form. Defrosting will take several hours. You can speed up the process by removing all frozen parts from your refrigerator and leaving the door ajar for, a short period of time. Important : close the door before the defrosting process is finished. The water collection tray should be placed directly under the cooling zone to catch thaw water.PR100FR

Note : Never use sharp or pointed objects to remove ice from the refrigerator or freezer compartment. The refrigerator contains refrigerant gas. If the refrigerator is accidentally punctured, the appliance will stop working and the warranty will also be void. Do not operate the appliance when the refrigerator has been perforated. Note : If the appliance has been turned off for any reason, wait 2 to 5 min before turning the appliance back on. HOLIDAY When going on vacation for a short period of time, you can leave the unit turned on. If you are going on vacation for a longer period of time, please do the following :

• Remove all food from your refrigerator.

• Unplug the appliance from the electrical outlet.

• Clean the refrigerator thoroughly.

• Leave the refrigerator door open to avoid mold and bad odors. POWER FAILURE Most power outages are restored in 1 or 2 hours and will not change the temperature of your refrigerator. You should, however, keep opening the door to a minimum during a power failure. During a longer power outage, you should take measures to protect the food, e.g. by putting dry ice on your food.

MOVING THE APPLIANCE

Remove the plug from the electrical outlet. Secure all loose parts inside the refrigerator. Fully screw in the control feet to avoid damaging the feet. IMPORTANT RULES

• Never place hot food in the refrigerator.

• Beverages should be kept in a sealed container.

• Food kept in the refrigerator for longer periods of time should be covered or kept in glass containers.

• Never place spoiled food in the refrigerator.

• Always make sure the refrigerator is not overloaded so that food can be ade- quately cooled.

• Open the refrigerator door only when necessary.

• Appliance must not be used for outdoor camping e.g. tent.

• May only be used indoors.

• Appliance must not be used in public transportation.PR100FR

Problem Solution Device does not work.

• The appliance is not receiving power, check whether the power supply is OK.

• Check that the plug is plugged in.

• Check that the correct voltage is used. The refrigerator cools too frequently.

• Is the door closed properly.

• Have you put hot food in the refrigerator, causing the appliance to work harder to cool.

• The door has been open too often or too long.

• The appliance is receiving the wrong voltage.

• The appliance is too close to a heat source or direct sunlight. The inside tempera- ture of the refrigera- tor is too hot.

• Check that the refrigerator has power.

• Check that the plug is plugged in.

• The temperature setting is too low.

• The door has been left open too long or too often.

• The air supply is blocked.

• Check that the appliance is getting the correct volt- age.

• The unit is too close to a heat source or the sun. The freezer compart- ment is not cold enough.

• The refrigerator door is not closed properly.

• The refrigerator door has been left open too long or too often.

• Check that the appliance is getting the correct volt- age.PR100FR

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. The packaging is recyclable. Please treat the packaging ecologically.
