USER MANUAL DPUB154 PANASONIC

Basic Operating Instructions

Blu-ray Disc™ Player

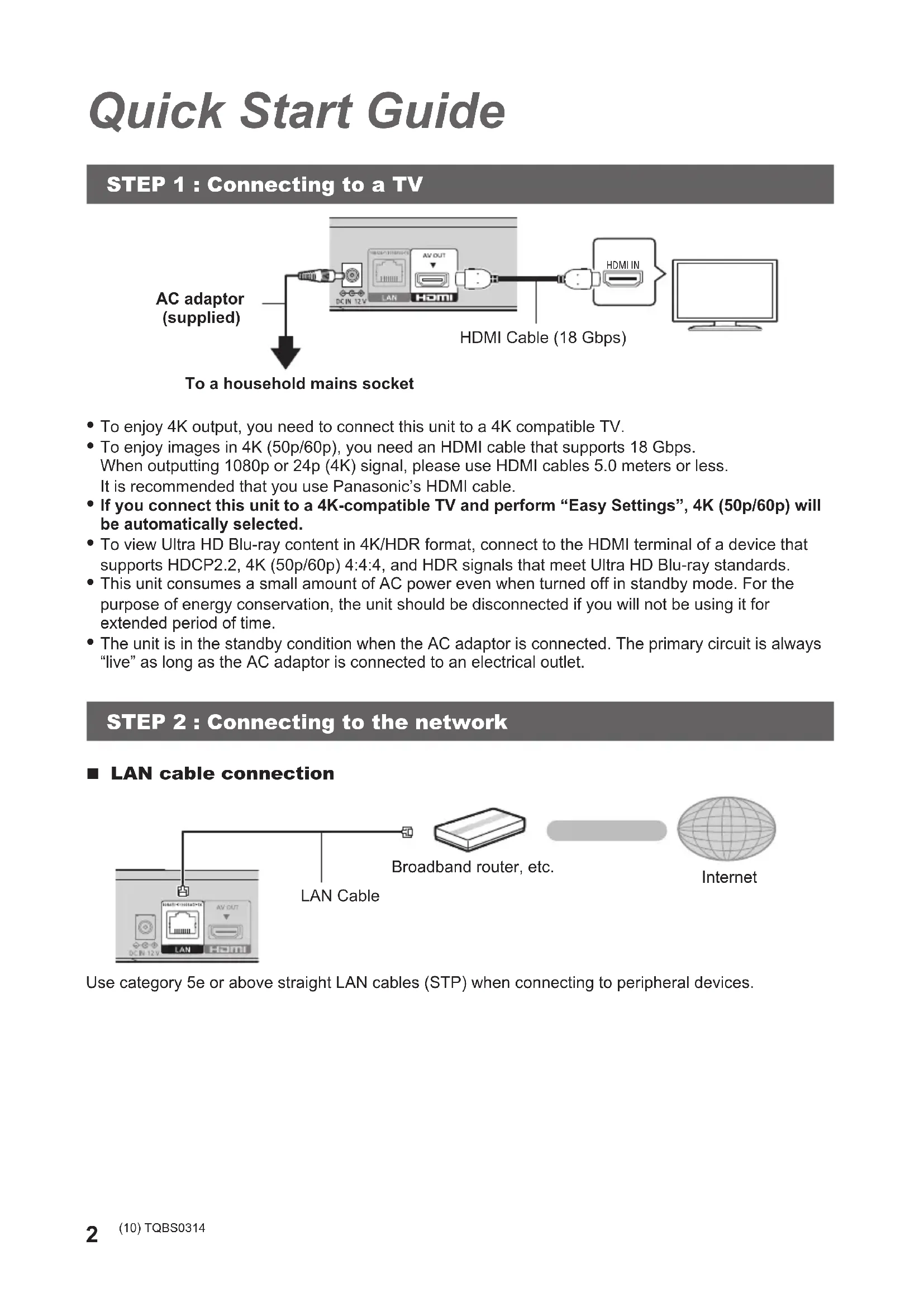

STEP 1: Connecting to a TV

BD-RE/BD-RE DL/BD-R/BD-R DL: Video, MKV, MP4, MPEG2, JPEG, MPO, AAC, AIFF, ALAC, DSD (DFF, DSF), FLAC, MP3, WAV, WMA

DVD-Video: Video

DVD-R/DVD-R DL: Video, AVCHD, MKV, MP4, MPEG2, JPEG, MPO, AAC, AIFF, ALAC, DSD (DFF, DSF), FLAC, MP3, WAV, WMA

DVD-RW/+R/+RW/+R DL: Video, AVCHD

Music CD: Music [CD-DA]

CD-R/CD-RW: MKV, MP4, MPEG2, JPEG, MPO, AAC,

AIFF, ALAC, FLAC, MP3, Music [CD-DA], WAV, WMA

MP4, MPEG2, JPEG, MPO, AAC, AIFF, ALAC,

DSD (DFF, DSF), FLAC, MP3, WAV, WMA

The product with Hi-Res AUDIO logo is conformed to High-Resolution Audio standard defined by Japan Audio Society. This logo is used under license from Japan Audio Society.

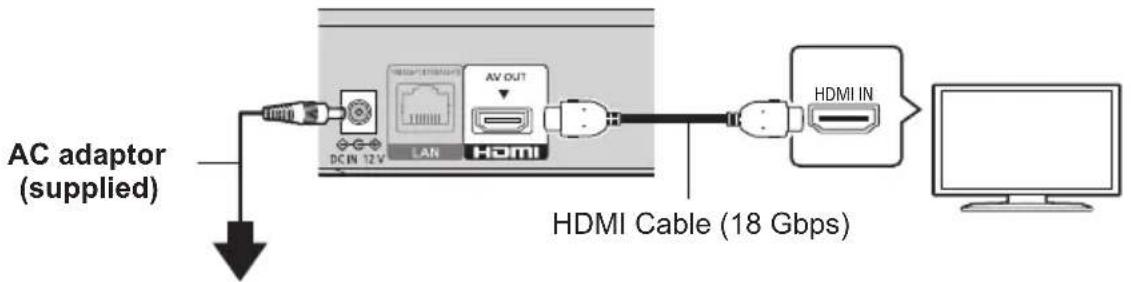

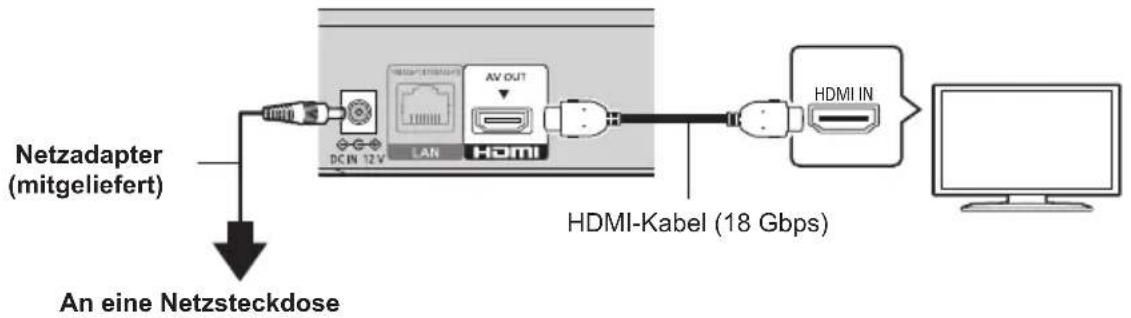

STEP 1: Connecting to a TV

To a household mains socket

• To enjoy 4K output, you need to connect this unit to a 4K compatible TV.
• To enjoy images in 4K (50p/60p), you need an HDMI cable that supports 18 Gbps. When outputting 1080p or 24p (4K) signal, please use HDMI cables 5.0 meters or less. It is recommended that you use Panasonic's HDMI cable.
• If you connect this unit to a 4K-compatible TV and perform "Easy Settings", 4K (50p/60p) will be automatically selected.
• To view Ultra HD Blu-ray content in 4K/HDR format, connect to the HDMI terminal of a device that supports HDCP2.2, 4K (50p/60p) 4:4:4, and HDR signals that meet Ultra HD Blu-ray standards.
• This unit consumes a small amount of AC power even when turned off in standby mode. For the purpose of energy conservation, the unit should be disconnected if you will not be using it for extended period of time.
• The unit is in the standby condition when the AC adaptor is connected. The primary circuit is always "live" as long as the AC adaptor is connected to an electrical outlet.

STEP 2: Connecting to the network

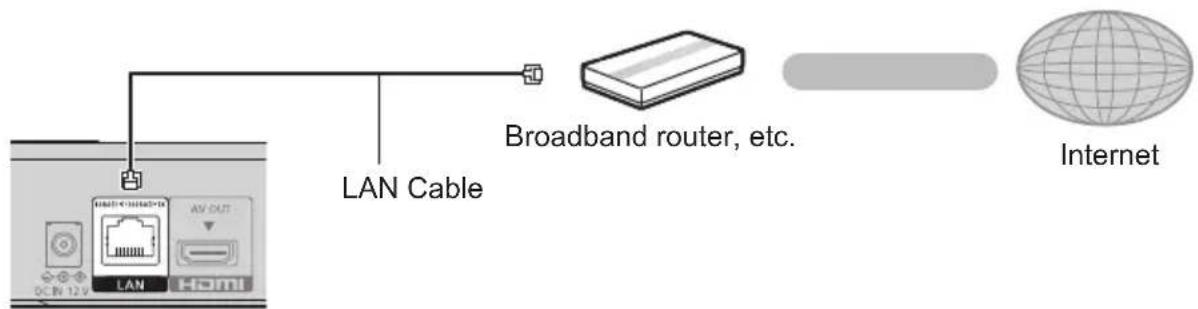

LAN cable connection

Use category 5e or above straight LAN cables (STP) when connecting to peripheral devices.

STEP3:Settings

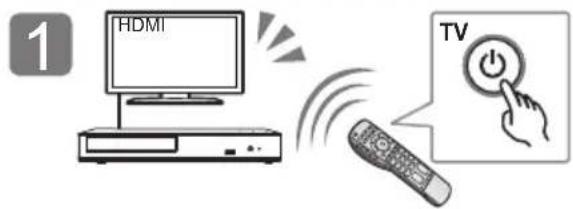

Turn on the TV and select the appropriate video input.

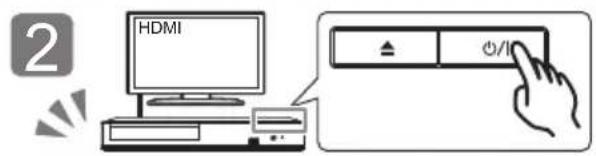

Press [ /1]^*

Follow the on-screen instructions to continue with the settings.

• Standby/on switch ([b/])

Press to switch the unit from on to standby mode or vice versa. In standby mode, the unit is still consuming a small amount of power.

In your use of internet functions

Your use of internet-enabled functions and software updates must follow the rules set forth in the "Terms and Conditions of Use". Please review "Terms and Conditions of Use" and "Privacy Policy" carefully and confirm your understanding of "Privacy Policy" and agreement to the "Terms and Conditions of Use" by checking the box and select "OK".

[HOME] "Setup" "Player Settings" "Network" "Legal Notices"

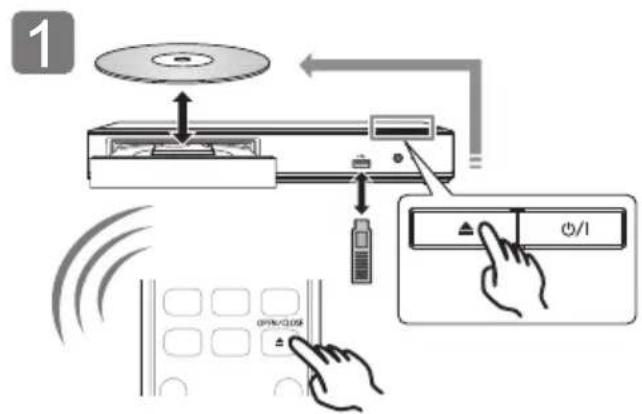

STEP4:Playback

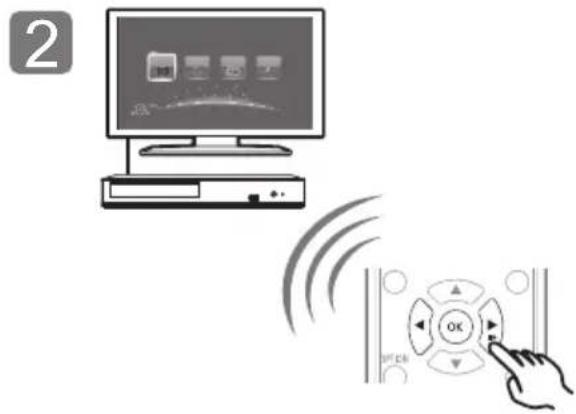

Insert the media. Select the item to play and press [OK].

Firmware updates

• Panasonic is constantly improving the unit's firmware to ensure that our customers are enjoying the latest technology.
• Panasonic recommends updating your firmware as soon as you are notified.
• For details, refer to the operating instructions (PDF format).

Thank you for purchasing this product. Please read these instructions carefully before using this product, and save this manual for future use.

Accessories

Check the supplied accessories before using this unit.

1 Remote control (N2QAYA000205)
2 Batteries for remote control
1 AC adaptor

Product numbers are provided in these operating instructions correct as of February 2019. These may be subject to change.
- Do not use AC adaptor with other equipment.
- Do not use any other AC adaptors except the supplied one.

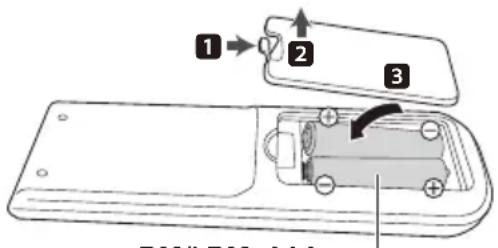

- Using the remote control

R03/LR03, AAA (Alkaline or manganese batteries)

• Insert the batteries to the terminal so that i and matches those in the remote control.

Point it at the remote control signal sensor on this unit.

Playable media

Ultra HD Blu-ray: Video BD-Video: Video

BD-RE/BD-RE DL/BD-R/BD-R DL: Video, MKV, MP4, MPEG2, JPEG, MPO, AAC, AIFF, ALAC, DSD (DFF, DSF), FLAC, MP3, WAV, WMA DVD-Video: Video

DVD-R/DVD-R DL: Video, AVCHD, MKV, MP4, MPEG2, JPEG, MPO, AAC, AIFF, ALAC, DSD (DFF, DSF), FLAC, MP3, WAV, WMA DVD-RW/+R/+RW/+R DL: Video, AVCHD

Music CD: Music [CD-DA]
CD-R/CD-RW: MKV, MP4, MPEG2, JPEG, MPO, AAC, AIFF, ALAC, FLAC, MP3, Music [CD-DA], WAV, WMA

USB devices (up to 4 TB): AVCHD, AVCHD 3D, MKV, MP4, MPEG2, JPEG, MPO, AAC, AIFF, ALAC, DSD (DFF, DSF), FLAC, MP3, WAV, WMA

The symbols on this product (including the accessories) represent the following:

Class II equipment (The construction of the product is double-insulated.)

A more detailed operating instruction is available in "Operating Instructions (PDF format)". To read it, download it from the website.

http://panasonic.jp/support/global/cs/bd/oi/index.html

You will need Adobe Reader to browse or print the Operating Instructions (PDF format).
You can download and install a version of Adobe Reader that you can use with your OS from the following website. (As of February 2019)
http://www.adobe.com/products/acrobat/readstep2.html

To dispose or transfer this unit

The unit may keep the user settings information in the unit. If you discard this unit either by disposal or transfer, then follow the procedure to return all the settings to the factory presets to delete the user settings. For details, refer to the operating instructions (PDF format).

• The operation history may be recorded in the memory of this unit.

Precautions

WARNING

Unit

To reduce the risk of fire, electric shock or product damage,

• Do not expose this unit to rain, moisture, dripping or splashing.
• Do not place objects filled with liquids, such as vases, on this unit.
• Use the recommended accessories.
• Do not remove covers.
• Do not repair this unit by yourself. Refer servicing to qualified service personnel.
• Do not let metal objects fall inside this unit.
• Do not place heavy items on this unit.

AC adaptor

To reduce the risk of fire, electric shock or product damage,
- Ensure that the power supply voltage corresponds to the voltage printed on this unit.
- Insert the mains plug fully into the socket outlet.
- Do not pull, bend, or place heavy items on the lead.
- Do not handle the plug with wet hands.
- Hold onto the mains plug body when disconnecting the plug.
- Do not use a damaged mains plug or socket outlet.

The mains plug is the disconnecting device. Install this unit so that the mains plug can be unplugged from the socket outlet immediately.

Small object

Keep the batteries out of reach of children to prevent swallowing.

CAUTION

Unit

• This unit utilizes a laser. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
• Do not place sources of naked flames, such as lighted candles, on this unit.
• This unit may receive radio interference caused by mobile telephones during use. If such interference occurs, please increase separation between this unit and the mobile telephone.
• This unit is intended for use in moderate climates.
• Some portions of this unit may become hot during use. When moving or cleaning this unit, disconnect the AC mains lead and wait for 3 minutes or longer.

Placement

Place this unit on an even surface.

To reduce the risk of fire, electric shock or product damage,

• Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure this unit is well ventilated.
• Do not obstruct this unit's ventilation openings with newspapers, tablecloths, curtains, and similar items.
• Do not place the unit on amplifiers/receivers or equipment that may become hot. The heat can damage the unit.
• Do not expose this unit to direct sunlight, high temperatures, high humidity, and excessive vibration.

Batteries

Mishandling of batteries can cause electrolyte leakage and may cause a fire.

• Danger of explosion if battery is incorrectly replaced. Replace only with the type recommended by the manufacturer.
• When disposing of the batteries, please contact your local authorities or dealer and ask for the correct method of disposal.
• Do not mix old and new batteries or different types at the same time.
• Do not heat or expose to flame.
• Do not leave the battery(ies) in a car exposed to direct sunlight for a long period of time with doors and windows closed.
• Do not take apart or short circuit.
• Do not recharge alkaline or manganese batteries.
• Do not use batteries if the covering has been peeled off. Remove batteries if you do not intend to use the remote control for a long period of time. Store in a cool, dark place.

AC adaptor

The AC adaptor operates on AC between 110 V and 240 V. But obtain a suitable plug adaptor if the plug does not fit the AC mains socket.

Disposal of Old Equipment and Batteries Only for European Union and countries with recycling systems

These symbols on the products, packaging, and/ or accompanying documents mean that used electrical and electronic products and batteries must not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points in accordance with your national legislation.

By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment. For more information about collection and recycling, please contact your local municipality.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Note for the battery symbol (bottom symbol):

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

BD-RE/BD-RE DL/BD-R/BD-R DL : Video, MKV, MP4, MPEG2, JPEG, MPO, AAC, AIFF, ALAC, DSD (DFF, DSF), FLAC, MP3, WAV, WMA

DVD-Video : Video

DVD-R/DVD-R DL: Video, AVCHD, MKV, MP4, MPEG2, JPEG, MPO, AAC, AIFF, ALAC, DSD (DFF, DSF), FLAC, MP3, WAV, WMA

DVD-RW/+R/+RW/+R DL: Video, AVCHD

CD musicax : [CD-DA] musicax

CD-R/CD-RW: MKV, MP4, MPEG2, JPEG, MPO, AAC, AIFF, ALAC, FLAC, MP3, [CD-DA] musicaux, WAV, WMA

Dispositif USB (jusqu'a 4 To): AVCHD, AVCHD 3D, MKV, MP4, MPEG2, JPEG, MPO, AAC, AIFF, ALAC, DSD (DFF, DSF), FLAC, MP3, WAV, WMA

BD-RE/BD-RE DL/BD-R/BD-R DL: Video, MKV, MP4, MPEG2, JPEG, MPO, AAC, AIFF, ALAC, DSD (DFF, DSF), FLAC, MP3, WAV, WMA

DVD-Video: Video

DVD-R/DVD-R DL: Video, AVCHD, MKV, MP4, MPEG2, JPEG, MPO, AAC, AIFF, ALAC, DSD (DFF, DSF), FLAC, MP3, WAV, WMA

DVD-RW/+R/+RW/+R DL: Video, AVCHD

BD-RE/BD-RE DL/BD-R/BD-R DL: Video, MKV, MP4, MPEG2, JPEG, MPO, AAC, AIFF, ALAC, DSD (DFF, DSF), FLAC, MP3, WAV, WMA

DVD-Video: Video

DVD-R/DVD-R DL: Video, AVCHD, MKV, MP4, MPEG2, JPEG, MPO, AAC, AIFF, ALAC, DSD (DFF, DSF), FLAC, MP3, WAV, WMA

DVD-RW/+R/+RW/+R DL: Video, AVCHD
