USER MANUAL Heat and Beat Tower Eurom

Exterior view of a vertical outdoor tower with HERT-BEAT branding, alongside a EUROM remote control and smartphone displaying the same device (no text or symbols on main body)

Heat and Beat Tower

Art.nr. 334562

Dank

Warning sign with document and triangular warning symbol indicating no obstruction or hazard

Technical line drawings of two mechanical components with mounting flanges and internal wiring (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Thank you very much for choosing for a EUROM device. You have made a good choice! We hope you will be satisfied about its functioning.

To get maximum profit from your product, it is important to read this manual attentive and totally before use, and to understand what is written. Read especially the safety instructions: they are there to protect you and your environment.

Keep the manual in a safe place for future reference. Store also the package: that is the best protection for your product in times of no-use. And if you at any time pass the appliance on, pass on the manual and package too.

We wish you a lot of fun with the Heat and Beat Tower!

Eurom

Kokosstraat 20

8281 JC Genemuiden (NL)

[e-mail]

www.eurom.nl

This manual has been complied with the utmost care. Nevertheless, we reserve the right to optimize this manual at any time and to adjust it technically. The image used may differ.

Symbol explanation

Warning sign with no document and triangular warning symbol indicating heat or hazard

To prevent overheating: Do not cover the device!

Be careful: hot surface!

Technical data

Voltage	220-240V~50Hz
Capacity	2000 W
IP protection	IP65
Remote control	+
App control	+
Dimmer positions	6 (stepless with app)
Bluetooth coverage	≥ 20m
Speakers capacity	2 x 3W + 25 W Subwoofer
Dimensions	35 x 35 x 115 cm
Weight	15,5 kg

Beware! Your patio heater will briefly decrease its peak current when it is switched on.

In some cases this can be too much for commonly used 16A-B installation machines in the meter cupboard, with the result that the installation machine switches off the relevant power group. To have an installation machine collect the peak current, you can have the 16A-B installation machine replaced by a 16A-C (or D) installation machine. They are slower and switch off the relevant power group less quickly and thus absorb the peak current better.

With the classic porcelain fuses (stopping) in your meter cupboard, this problem is less likely to occur; if it does happen, replace the fuse with a "slower" version.

If necessary, have a separate group installed for your patio heater. Then you do not have to take into account other equipment connected to the same group and the problem is unlikely to occur.

Warnings and safety regulations

General safety warnings

1. Use the terrace heater only for the purpose for which it is designed: heating a terrace, garden or other outdoor domestic spaces and NOT for heating indoor spaces, outdoor non-domestic spaces or for drying textile and/or other materials.
2. Carefully read this entire manual before using and/or installing this appliance. Keep the manual in order to be able to consult it in the future and possibly to pass it on to other people.
3. Check this new appliance before you use it (including cable and plug) for any visible damage. Do NOT use a damaged appliance, but bring it to your supplier for replacement.
4. Improper use and/or installation entail risks of electric shocks and/or fire.

Warnings for installation and positioning

1. Use the terrace heater only outdoors or in a very large open space. Keep all flammable objects, such as tent cloths, parasols, branches, furniture/garden furniture, curtains, paper, etc. away from the appliance (minimum 1 meter, also when they are windblown!). Always take care of good ventilation!

2. Observe the following minimum distances when installing the appliance: Minimum distance from the ceiling /roof: 25 cm Minimum distance to the tent canvas/umbrella etc.: 50 cm Minimum free distance at the front side: 100 cm Minimum distance to the sidewalls: 50 cm Minimum distance to the floor: 180 cm

3. Some parts of the appliance become extremely hot or the protective grids do not provide sufficient protection.

4. The air around the appliance should be able to circulate freely. Therefore, do NOT place it too closely to large objects. The minimum distances between large objects and the top, sides and bottom of the appliance are equal to the aforementioned distances to ceiling/roof, front side, sidewalls and floor.

5. The terrace heater is intended only for domestic use. Therefore, do NOT use it on construction sites, in greenhouses, sheds, stables, etc., even if these are largely open spaces. Usually, these spaces contain too many flammable substances.

6. Do NOT use this terrace heater for sauna heating, room heating, and heating of a kennel or another location in which there are animals.

7. If you use the appliance outdoors, it should be connected to a suitable, waterproof and earthed socket. All electrical connections must stay dry under all circumstances. The manufacturer, importer and supplier are not liable for incorrect connections!

8. Do NOT use this appliance before it is completely installed as described in the manual. NEVER use the appliance when it stands upright, leans or similar. Do NOT insert the plug into the wall socket before the appliance is correctly installed in its final place.

9. Do NOT place the appliance above a faucet, another source of water, etc. or within a distance of 1 metre from these objects. Do NOT install it in a humid environment, such as bathrooms, laundry rooms or similar indoor places. Be careful with water regardless of the fact that the appliance is splash-proof. Make sure that the

appliance cannot fall into water and do NOT expose it to hard or brutal waterjets. Do NOT operate or touch it with wet hands. Install the appliance in such a manner that nobody can operate or touch it from a bathtub, shower or swimming pool.

1. Use the appliance only when it is firmly mounted. Make sure that you always use fasteners suitable for the substrate and if necessary, consult an expert.
2. If this appliance will be connected directly to the cabling of your electricity installation, an authorized specialist should install it while taking into account the applicable legislation, regulations and instructions.
3. Always place the appliance on a firm, flat and horizontal substrate. The entire surface of the base should touch the substrate.
4. Do NOT place the appliance near, under or pointing towards a socket and do NOT place it near open fire or heat sources.
5. Do NOT use the appliance near or pointing towards furniture/garden furniture, parasols, tent cloths, branches, flags, paper, clothing and other flammable objects. Maintain at least 1 meter distance between these objects and the appliance!
6. The inside of the appliance contains hot and/or glowing and sparking parts. Therefore, do NOT use the appliance in spaces for storing combustible liquids and/or gases such as fuels and paint. Do NOT use the appliance in locations where there is a risk of fire, such as near gas tanks, gas pipes or spray cans. That entails the risk of explosion or fire!
7. When selecting a place for the appliance, take into account that this place cannot be reached / accessed by children.

Warnings regarding use

1. Do NOT use additions/accessories in/on the appliance that are not recommended or supplied by the manufacturer.
2. Use the appliance only for the purpose for which it is designed and only in a manner as described in the user manual.
3. Some parts of this appliance become extremely hot and can cause burns. Special attention is needed when children, vulnerable persons or pets are near the appliance. NEVER leave them alone if the appliance is operating!
4. NEVER cover or block the appliance, which causes overheating and entails the risk of fire. NEVER hang or put objects such as clothing, blankets, pillows, etc. on the appliance. Always observe a minimum distance of 1 meter between the appliance and flammable

materials. To prevent fire, ventilation openings must not be blocked. NEVER use the appliance for drying clothing and NEVER put something on it. Nothing may lean against the appliance!

1. Warning! NEVER leave an operating appliance without supervision. Do NOT put the appliance automatically into operation by means of a timer or any other device that switched on the appliance automatically. Always check that the appliance stands in safe conditions before using it! Do NOT use the appliance by means of a voltage regulator such as a dimmer or something similar; that is also dangerous!

2. Connection voltage and frequency stated on the appliance should correspond with the voltage and frequency of the wall socket that you are using. The wall socket must have an earth connection and the electrical installation should be protected using a 30mA residual-current circuit breaker. At all times, the wall socket used should be easily accessible in order to be able to remove the plug from the socket in case of an emergency.

3. To prevent overloading and blown fuses, other devices may not be connected to the same wall socket as the socket to which the appliance is connected.

4. Completely unwind the electric cable of the appliance before inserting the plug into the wall socket and ensure that the cable does not touch the hot parts of the appliance anywhere or can become hot in another manner. Do not put the electric cable under carpets, mats, runners, etc. and keep the cable out of the walkway. Make sure that no one steps on it and that garden furniture/furniture is not put onto it. Do not lead the cable around sharp corners and do not wind it too tightly after using it! Prevent the cable from making contact with oil, solvents and sharp objects. Regularly check the cable for damage. Do not twist or bend the electric cable or wind it around the appliance; these things can damage the insulation!

5. It is recommended not to use an extension cable, because that can cause overheating and fire. If using an extension cable is unavoidable, ensure that you use an undamaged and approved earthed extension cable with a minimum diameter of 3x2,5 mm2 and a minimally allowed power of 2500 Watt. Always unwind the extension cable completely to prevent overheating.

6. Connect the appliance only to a fixed wall socket. Do NOT use a junction box, power strip, etc.

7. The plug can feel lukewarm while the appliance is operating. This is normal, but if the plug gets very hot, then there is something wrong with the wall socket. Please contact your electrician.

8. Always switch off the appliance initially using the main switch and subsequently, remove the plug from the wall socket. NEVER switch off the appliance by removing the plug!

9. NEVER pull the electric cable to remove the plug from the wall socket or to move the appliance.

10. Prevent any strange objects from penetrating the radiation/ventilation openings. This can cause an electric shock, fire or damage.

11. NEVER stick fingers into the appliance through an opening.

12. NEVER leave an operating appliance without supervision; first, switch off the appliance and subsequently, remove the plug from the wall socket.

13. Always remove the plug from the wall socket, when the appliance is not operated. For this purpose, grasp the plug; NEVER pull the electric cable!

14. The housing and the front side of the appliance become extremely hot during its operation. Therefore, do NOT touch the appliance during or shortly after its operation: that causes burns! Pay attention that wind or other environmental factors do not bring flammable materials, such as branches, parasols, tent cloths, flags, plastic foils, etc., in the vicinity of the appliance. This can cause damage/singe damage or fire. Pay attention that these objects/materials do not cover or block the appliance.

15. Warning! This appliance is not equipped with a device to regulate room temperature. Do NOT use this appliance in small rooms, when these are used by persons that are not able to leave these rooms independently, unless there is continuous supervision.

16. NEVER operate the appliance with wet hands.

17. Warning! Some parts of this appliance become extremely hot and can cause burns. Special attention is needed when children, vulnerable persons or pets are near the appliance. NEVER leave them alone in case the appliance is operating!

Who is allowed to use the appliance?

1. Children, who are younger than 3 years old, should be kept away of the appliance, unless there is supervision.

2. Children between the ages of 3 and 8 are only allowed to switch the appliance on or off, if it is placed or installed in its normal workplace

and if there is supervision or if they have received instructions for using the appliance safely and understand which risks are related to using it.

1. Children between the ages of 3 and 8 are NOT allowed to insert the plug into the wall socket, regulate or clean the appliance and carry out maintenance. This appliance can be used by children, who are over the age of 8, and by persons with reduced physical, sensory or mental skills or lack experience and knowledge, if there is supervision or if they have received instructions for using the appliance safely and understand which risks are related to using it.
2. Children are not allowed to clean and maintain the appliance without supervision.
3. Children are not allowed to play with the appliance.

Warnings regarding maintenance

1. NEVER change anything in the appliance, electric cable or plug.
2. Keep the appliance clean, because dust, dirt and/or sediment is often the reason for overheating. Make sure that such sediment is removed regularly.
3. NEVER submerge the appliance in water to clean it.

4. Always switch off the appliance, remove the plug from the wall socket and let the appliance cool down, when you:

5. Want to clean the appliance.

6. Want to carry out maintenance.

7. Want to touch or move the appliance.

8. Do NOT put the appliance into operation, if you observe damage to the appliance, electric cable or plug, or if it operates poorly, makes unusual noise, has fallen or if you smell something, see smoke or observe some other fault. Remove the plug from the wall socket immediately. Return the entire appliance to your supplier or a qualified electrician for a check and/or repair. Always demand original spare parts.

9. Only authorized and qualified persons are allowed to open and/or repair the appliance. Do not repair the appliance yourself; that can be dangerous! Repairs by unauthorized persons or changes to the appliance breach the water and dust tightness of the appliance and cause the warranty and liability of the manufacturer to be cancelled.
10. If the electric cable is damaged, it should be replaced by the manufacturer or its service employee or persons with similar qualifications to prevent risks.

Deviations of points 5, 6, 7 can cause damage, fire and/or personal injury. This cancels the warranty and the manufacturer, importer and/or supplier do not accept any liability for the consequences.

Description, composition and installation

The Eurom Heat and Beat Tower is an infrared heater with remote control, app control, Bluetooth speakers and LED lighting.

Your Eurom Heat and Beat Tower infrared heater warms up not primarily the air in the room, but all objects before the heater. By means of that your infra red heater is effective and very qualified to be used in the open air as well.

The Eurom Heat and Beat Tower has some serious pré's:

• high degree of water tightness (dust- and watertight, IP65)
• Two integrated Bluetooth speakers that allow you to connect with your smartphone, PC, music carrier, etc.
• Integrated LED lighting at the top, which has countless colours and strength settings for atmospheric lighting.
• Two Bluetooth receivers: one for warmth and light and one for sound.

Use the infrared heater for the objective for which it is made: to heat a room or terrace. Don't hang p.e. wet textile over the lamp to dry, but always notice the minimum distances to the equipment.

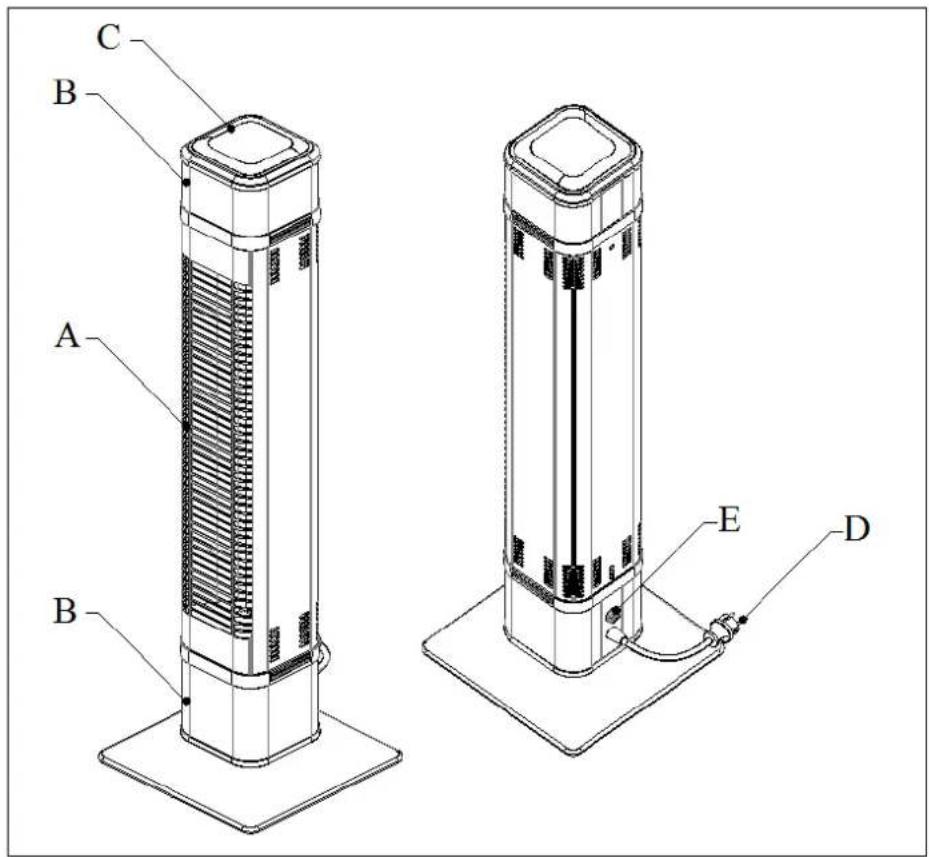

The Eurom Heat and Beat Tower infrared heater consists of:

A. Heater with suspension bracket (11), electrical cable and plug
B. Speaker (2)
C. Touch screen
D. Cable and plug
E. on / off switch and a remote control and base plate with fastening material.

A B C D E

Remove all package material (including the shock absorbing material around the bulb) before installing the heater and check the appliance, supply cord and the plug for signs of damage. Remove also the plastic white protection foil of the base plate.

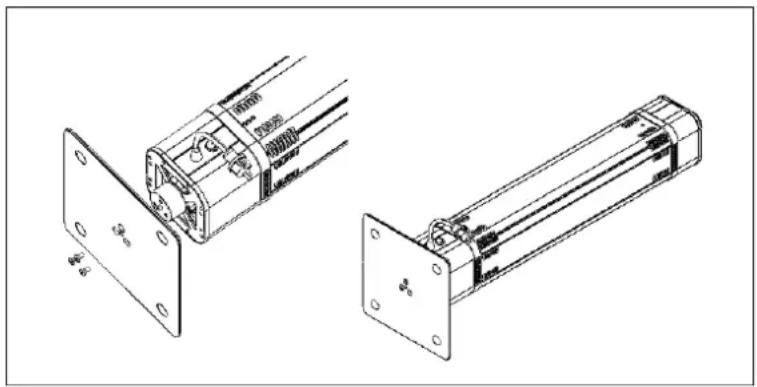

Install the heater according to the drawing below with the supplied screws on the base plate.

Technical line drawing of two mechanical components with mounting flanges and mounting brackets (no text or symbols)

Carefully choose the right place to install your heater.

Before placing, check that the minimum safe distances between the surroundings and the chosen location are respected:

Minimum distance heater – heated object: 1 metre

Minimum distance top* heater – fire-resistant ceiling: 0.25 metres

Minimum distance top* heater – tent tarpaulin, parasol etc.: 0.5 metres

Minimum distance side heater – walls, obstacles, objects: 0.5 metres

If you suspend the device outside, ensure that it is protected from the wind.

Pay attention:

• However you install the Eurom Heat and Beat Tower, always lead the electrical cable directly away from the heater. It may not become hot!
• For personal protection the installation, to which the Eurom Heat and Beat Tower is connected, has to be equipped with an earth fall device (max. 30 mAmp). Only connect the heater to an earthed socket!

Working

Check for every use:

• or the appliance doesn't show signs of damage.
• or the appliance still is fastened on the base plate firmly. Mechanical bearing pressure, oscillating duet o wind or rain could lead to loose.
• or there are no objects, canvas, sun screens etc. are inside the safety distances.
• or the socket you want to use gives the correct tension (220-240V\~50Hz) and is grounded.

If everything is all right you can insert the plug into the socket.

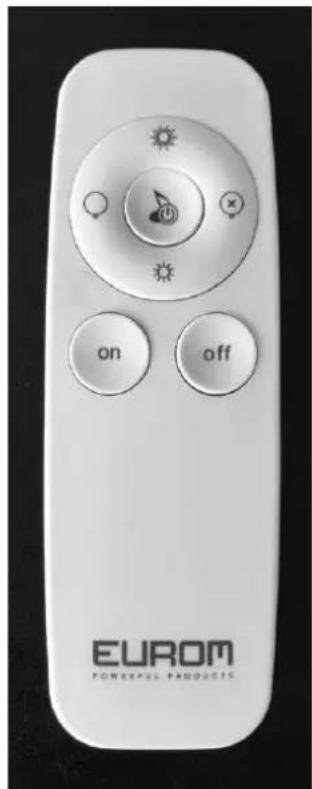

Remote control operation

The Eurom Heat and Beat Tower has a remote control that works with two batteries: AAA, 1.5V (not included).

While using, point the remote control to the receiving point of the heater. If there are obstacles between remote control and the heater, it will not work! The commands

from the remote control to the device can cover a maximum distance of 6 metres. Press the on/off switch (E) on the back f the unit to "I" (on); The screen light up.

White remote control with 'EUROM POWERFUL PRODUCTS' branding and function buttons (no readable text beyond branding)

Picture	Function
	To switch the heater on:Press ON. The patioheater has a soft start function of 33% power. 4 seconds after the heater has been turned on, it will automatically switch to the last heating level used. In case of the first-time use, after 4 seconds the heater will automatically switch to 100% power.
	Up one heating level.
	Down one heating level.
	Short: turn on/off the speaker.Long: enter into bluetooth pairing mode.
	Turn on the LED light.
	Turn off the LED light.
	To switch the heater off:Press OFF. The heater will switch to stanby mode (the receiver indicator will light up)

To stop the unit, first press the 'off' button on the remote control. Then turn it off by pressing the on/off-switch (5) to 'O' (off). Finally, unplug it from the wall outlet. Allow the heater to cool down.

Warning!

• When you turn off the unit using only the remote control (or the app), the 'standby' remains. So turn it off using the remote control (c.q. the app) or the on/off-switch and remove the plug from the socket!
• Remove the batteries out of the season, that will extend the life of the remote control.
• When you use the appliance for the first time (or after a long time again), observe it during the first 10 till 15 minutes to be sure that is works trouble-free.

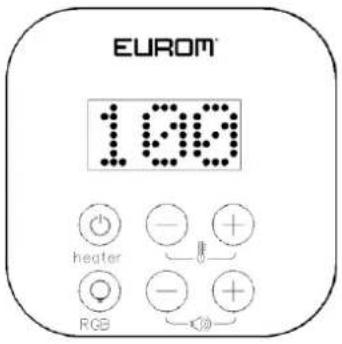

Touch screen operation

	Picture	Function
		1. Display shows the percentage of heating.2. Display shows the countdown of power off.3. Display shows the induction temperature of temperature sensor.
		1 On/off button of the heater2. On/off of the Bluetooth module
		1. -, The power is gradually smaller2. +, The power is gradually bigger
		1. On/off button of LED light.
		1. -, The volume is gradually smaller2. +, The volume is gradually bigger
		1. " + + press the 3 buttons until the touch screen flickering (3 seconds), then reset password.

APP Control

The Eurom Heat and Beat Tower can also be controlled by an app that has been downloaded to a tablet or smart-phone (via a Bluetooth connection). This app is available in the app store for Apple devices and can be found under Eurom heating. It is available for Android in the Google Play Store. In order to be able to use the app, turn on the Bluetooth connection on your smartphone or tablet and select Eurom Heating.

With the app, you can:

• Remotely switch the device on and off

• Gradually adjust the heat from 0 to 100%

• Set a timer that automatically switches the device off

• Adjusting the speaker volume
• Adjusting the colour and brightness of the LED lighting
• Set the sensitivity of the shock safeguard
• Set multiple heaters individually
• Protect your app control with a password

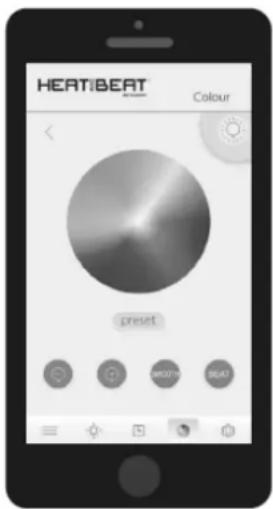

Turning on the speakers and establishing the Bluetooth connection

HEAT:BEAT Colour preset M0014 BEAT

Use the button on the remote control to turn on the speakers

and Bluetooth connection for the Heat and Beat Tower (hold down for 4 seconds). Before using for the first time, select the volume function of the Eurom Heat and Beat (Eurom Beat) on your tablet or smartphone via Settings > Bluetooth. Now, when you use your smartphone or tablet to play music (or news, a film, your phone etc) the sound will come from the Eurom Heat and Beat Tower speakers. The Bluetooth connection can cover a maximum distance of 20 metres.

Adjusting the colour and strength of the LED lighting

Use to turn on the LED lighting. The LED lighting is intended as atmospheric lighting; adjust the light strength using the + and - keys on the app. You can also use them to set a colour for the lighting and select constant light (smooth) or light that flashes with the music (beat).

Safety features

Tipping Safeguard

The Eurom Heat and Beat Tower is fitted with a tipping safeguard which automatically shuts off the appliance if it inadvertently falls over. When the heater is returned to its upright position, it does not resume its operating, but switch it off first with the on/off switch (E), remove the plug from the socket and check the heater for damage. In case of damage or malfunctioning do not use but offer for checking / repair. If there is nog damage, you can simply switch the heater on again as instructed!

Shock safeguard

The Eurom Heat and Beat has the option of a shock safeguard that switches the device off if it is shocked in any way. The shock safeguard can be activated with the app and the sensitivity can then be set on a sliding scale. When the device is supplied from the factory, the shock safeguard is off. Once the shock safeguard has been activated, it can be operated via the remote control or manually. If the shock safeguard has switched the device off, the red light at the reception point will blink.

Check to ensure that the device has not been damaged. If everything is ok, you can restart the device by:

• Using the remote control to switch the device off and then on again
• Switching it off and on again using the switch, and then selecting the desired output using the reset button (remote control)
• Switching the device off and on again with the app

Cleaning - maintenance - service

Cleaning

This appliance consists of a robust and maintenance-free aluminium casing with a safety grill. Before cleaning remove the plug from the power outlet and wait until the appliance is sufficiently cooled off. Wipe the appliance only with a clean and lint-free cloth or a soft brush. Never use abrasive cleaners, scrubbing brushes and chemical cleaners for cleaning! Never use flammable cleaners such as benzene or spiritus. Give the appliance time to dry before you use it again. To protect against electrical shock and danger of life, do not immerse cord, plug or any part of the appliance in water or other liquid.

Maintenance

Inside the Eurom Heat and Beat infrared heater are no user serviceable parts. The appliance is very good sealed (IP65) en may not be opened by not-qualified persons.

Service

Repairs must be carried out by authorised specialists (dealer or electrician), thus ensuring electrical safety. The warranty does not cover damage or failure which are the result of self-made reparations or alterations, accident, misuse, abuse, neglect or improper maintenance. In line with their policy of continuous product development we reserve the right to change the product and documentation specifications without notice.

Removal

Symbol of a trash bin crossed with no visible text or labels

In the EU this symbol indicates that this product may not be disposed of as ordinary household waste. Old equipment contains valuable materials, suitable for recycling. These materials should be made suitable for reuse in order to prevent any adverse effects to health and the environment caused by unregulated waste collection. Therefore, please make sure that you bring old equipment to a designated collection point. Alternatively, contact the original supplier, who can make sure that as many of the components as possible can be recycled.

CE-declaration

See page 74.

Dank

Warning sign with no document and triangular warning symbol indicating heat or hazard

Technical line drawing of two mechanical components with mounting flanges and internal brackets (no text or symbols)

White remote control device with 'EUROM POWERFUL PRODUCTS' branding and three buttons (on/off) on the right, no readable text beyond branding.

HEATiBEAT Colour preset HOT HOT

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Warning sign with document and triangular warning symbol indicating no liability or hazard

Technical line drawings of two mechanical components with mounting flanges and internal mechanisms (no text or symbols)

White remote control with 'EUROM POWERFUL PRODUCTS' branding and three buttons (on/off) on a black background (no readable text beyond branding)


Fonction

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Warning sign with no document and warning triangle indicating heat dissipation

Technical line drawing of two mechanical components with mounting flanges and internal components (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

declares the following device in sole responsibility:

Product: Infrared Terrace heater

Brand name: EUROM

Model: Heat and Beat Tower

Item number: 334562

Complies with the following harmonization rules:

Low Voltage Directive: LVD 2014/35/EU

Electromagnetic compatibility Directive: EMC 2014/30/EU

Radio equipment Directive: RED 2014/53/EU

Restriction of Hazardous Substances RoHS Directive: 2011/65/EU&(EU)2015/863

Applied harmonized standards:

EN 60335-1:2012+A11:2014+A13:2017

EN 60335-2-30:2009+A11

EN 62233:2008

EN 55014-1:2017

EN 55014-2:2015

EN 61000-3-3:2013

EN 61000-3-2:2014

EN 300 328 V2.1.1 (2016-11)
