USER MANUAL CDPE 6320L CANDY

“FASES DO PROGRAMA”/ “INÍCIO

GUARANTEE Your new appliance is fully guaranteed by the manufacturer for 12 months against electrical/mechanical break- down excluding: A. Any faults which occur due to bad installation or misuse of the machine. B. Any faults which occur due to repair of, or interference with, the machine by any person not authorised by the manufacturer to carry out service. C. Any faults which occur due to any parts which are fitted to the machine which are not the original manufacturers parts. D. Any faults arising from non-domestic use or unusual or abnormal use of the machine. E. Any faults arising from operation at incorrect voltage. F. Any faults arising from incorrect operation of the machine. The guarantee applies to Gt Britain and Northern Ireland only, and is an addition to your statutory rights.

For service and repairs call your local engineer on our national telephone number: GIAS Service Tel: 08444 995599 Support Service (Eire 0818 200021)

Width x Height x Depth (cm) 60 x 85 x 60 Depth with door open (cm) 120 EN 50242 place load Capacity with pans and dishes Water supply pressure (MPa) Fuse / Power input / Supply voltage

8 persons Min. 0,08 - Max. 0,8 See rating plate Power consumption of the off-mode and of the left-on mode: 0,10 W / 0,60 W *Values are measured in a laboratory according to European Standard EN 50242 (consumption may vary according to conditions of usage). 59,8 x 82 x 57,3

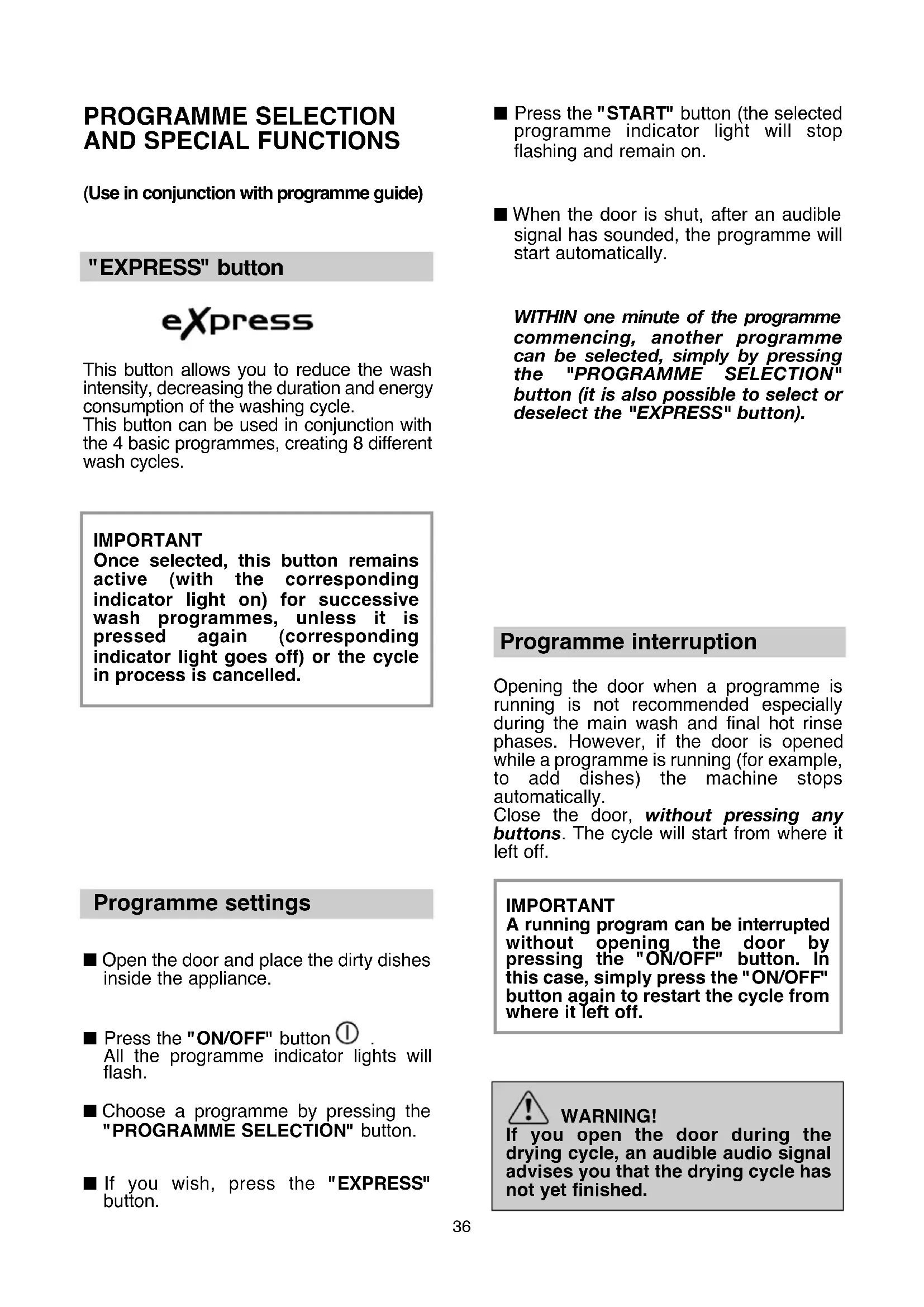

With working top Without working top36 PROGRAMME SELECTION

AND SPECIAL FUNCTIONS

(Use in conjunction with programme guide) "EXPRESS" button This button allows you to reduce the wash intensity, decreasing the duration and energy consumption of the washing cycle. This button can be used in conjunction with the 4 basic programmes, creating 8 different wash cycles. IMPORTANT Once selected, this button remains active (with the corresponding indicator light on) for successive wash programmes, unless it is pressed again (corresponding indicator light goes off) or the cycle in process is cancelled. Programme settings ■ Open the door and place the dirty dishes inside the appliance. ■ Press the "ON/OFF" button . All the programme indicator lights will flash. ■ Choose a programme by pressing the "PROGRAMME SELECTION" button. ■ If you wish, press the "EXPRESS" button. ■ Press the "START" button (the selected programme indicator light will stop flashing and remain on. ■ When the door is shut, after an audible signal has sounded, the programme will start automatically. WITHIN one minute of the programme commencing, another programme can be selected, simply by pressing the "PROGRAMME SELECTION" button (it is also possible to select or deselect the "EXPRESS" button). Programme interruption Opening the door when a programme is running is not recommended especially during the main wash and final hot rinse phases. However, if the door is opened while a programme is running (for example, to add dishes) the machine stops automatically. Close the door, without pressing any buttons. The cycle will start from where it left off. IMPORTANT A running program can be interrupted without opening the door by pressing the "ON/OFF" button. In this case, simply press the "ON/OFF" button again to restart the cycle from where it left off. WARNING! If you open the door during the drying cycle, an audible audio signal advises you that the drying cycle has not yet finished.37 Changing a running programme Proceed as follows to change or cancel a running program: ■ Hold the "RESET" button down for at least 5 seconds. The programme indicator lights will turn on and off individually and sequentially and some audible signals will sound. ■ The running programme will be cancelled and all the programme indicator lights will flash. ■ At this point a new programme can be set. WARNING! Before starting a new programme, you should check that there is still detergent in the dispenser. If necessary, top up the dispenser. Programme operations When a programme is running the relevant indicator light will remain on and the 3 “PROGRAMME STATUS” indicator lights ("WASH" , "DRY" , and "END" ) will light singularly and in sequence to indicate the current phase. If there is any break in the power supply while the dishwasher is operating, a special memory stores the selected programme and, when the power is restored, it continues where it left off. Programme end A 5 second alarm will sound (if not muted) 3 times at 30 second intervals to signal that the programme has ended. The programme end indicator light will turn on, while all the others indicator lights will turn off. Dishes can now be removed and the dishwasher turned off by pressing the "ON/OFF" button or dishes can be loaded for new cycle "DELAY START" button The dishwasher start time can be set with this button, delaying the start by 3, 6 or 9 hours. Proceed as follows to set a delayed start: ■ Press the "DELAY START" button (each time the button is pressed the start will be delayed by 3, 6 or 9 hours respectively and the corresponding time indicator light will illuminate). ■ To start the countdown, press the "START" button (the selected programme indicator light will come on, while the set time indicator light will start to flash). If a 9 hour delay is set, countdown will be displayed by the 6h indicator light after 3 hours and the 3h indicator light after 6 hours. At the end of the last 3 hours (at the end of countdown) the 3h indicator light will stop flashing and remain on to indicate the washing phase and the programme will start automatically. If countdown has not ended, whereby the programme has not yet started, it is possible to change or cancel the delayed start and select another programme or to select/deselect the option button, proceeding as follows: ■ Hold the "RESET" button down for at least 5 seconds. The programme indicator lights will turn on and off individually and sequentially and some audible signals will sound. ■ The delayed start and the selected programme will be cancelled. The programme indicator lights will flash. ■ Press the "DELAY START" button to set another delayed start time (the corresponding indicator light will turn on). ■ A new programme can be set after a delayed time has been changed or cancelled or an option button can be selected or deselected.38 Alarm mute for the PROGRAMME END The alarm for the programme end may be muted as follows: IMPORTANT The dishwasher must ALWAYS be off before start of this procedure.

1. Hold down the "PROGRAMME

SELECTION" button and at the same time switch on the dishwasher by pressing the "ON/OFF" button (a brief audible signal will sound).

2. Keep the "PROGRAMME SELECTION"

button pressed for at least 15 seconds (during this time, 2 audible signals will sound).

3. Release the button when the second

indicator lights (which indicate that the alarm is activated) will start flashing (to indicate that the alarm is off).

5. Turn off the dishwasher by pressing the

"ON/OFF" button to confirm the new setting. To turn the alarm on again, follow the same procedure. Memorization of the last programme used The last programme used can be memorized by following the below: IMPORTANT The dishwasher must ALWAYS be off before start of this procedure.

1. Hold down the "PROGRAMME

SELECTION" button and at the same time switch on the dishwasher by pressing the "ON/OFF" button (a brief audible signal will sound).

2. Keep the "PROGRAMME SELECTION"

button pressed for at least 30 seconds (during this time, 3 audible signals will sound).

3. Release the button when the THIRD

audible signal sounds (all the indicator lights will flash).

4. Press the same button again: the

flashing indicator light (memorization off) will stop flashing and remain on (memorization on).

5. Turn off the dishwasher by pressing the

"ON/OFF" button to confirm the new setting. To disable the memorization, follow the same procedure. Fault signals If malfunctions or faults occur when a programme is running the indicator light that corresponds to the selected cycle will flash rapidly and the alarm sounds. In this event, turn the dishwasher off by pressing the "ON/OFF" button. After checking to make sure the water inlet hose tap is open, that the drain hose is not bent and that the siphon or filters are not clogged, set the selected programme again. If the anomaly persists, contact Customer Service Department. IMPORTANT This dishwasher is equipped with an anti-overflow safety device which will automatically discharge any excess water should a problem occur. WARNING! To ensure the correct operation of the anti-overflow safety device, we recommend that the dishwasher is not moved or tilted during operation. If however it is necessary to tilt or move the dishwasher, please ensure that the washing cycle is complete and that there is no remaining water inside the dishwasher.* The water softener unit is set in the factory at level 3, as this is suitable for the majority of users. According to the degree of hardness of your water, regulate the softener unit in the following way: IMPORTANT The dishwasher must ALWAYS be off before start of this procedure.

1. Hold down the "PROGRAMME

SELECTION" button and at the same time switch on the dishwasher by pressing the "ON/OFF" button (a brief audible signal will sound).

2. Keep the "PROGRAMME SELECTION"

button pressed for at least 5 seconds, UNTIL an audible signal sounds. Some "PROGRAMME SELECTION" indicator lights will come on to indicate the current water softener setting level.

3. Press the same button again to select

the required water softener level: each time the button is pressed, one indicator light will come on (the water softener level is indicated by the number of lights on). For level 5, 4 lights will flash, for level 0 all lights will be off.

4. Turn off the dishwasher by pressing the

"ON/OFF" button to confirm the new setting. WARNING! If any problem occurs, turn the dishwasher off by pressing the "ON/OFF" button and start the procedure again from the beginning (STEP 1).

Depending on the source of the supply, water contains varying amounts of limestone and minerals which are deposited on the dishes leaving whitish stains and marks. The higher the level of these minerals present in the water, the harder the water is. The dishwasher is fitted with a water softener unit which, through the use of special regenerating salt, supplies softened water for washing the dishes. The degree of hardness of your water can be obtained from your water supply company. Regulating the water softener The softener unit can treat water with a hardness of up to 90°fH (French grading) or 50°dH (German grading) through 6 different settings. The table below lists different degrees of water hardness with the corresponding setting for the softener unit. Level ºfH (French grading) ºdH (German grading)

0-5 6-15 16-30 31-45 46-60 61-90 0-3 4-9 10-16 17-25 26-33 34-50 “ON/OFF” button “PROGRAMME SELECTION” button “PROGRAMME SELECTION” indicator lights40 Intensive 75°C Strong & Fast 65°C Universal 60°C Daily 55°C Eco 45°C Delicate 45°C Rapid 29' 50°C Refresh PROGRAMME GUIDE Wash with prewash For wash programmes with prewash, it is advisable to add a second dose of detergent (max. 10 g) directly in the machine. Once a day - for heavily soiled pans and any other items that have been left all day for washing. Quick wash for dishes which are to be washed immediately after the meal. Wash load of 6 persons. Suitable for delicate crockery and glassware. Also for less soiled items excluding pans. Short cold pre-wash for items that are stored in the dishwasher until you are ready to wash a full load. Once a day - for normal soiled pans and any other items that have been left all day for washing. Programme for normally soiled tableware (the most efficient in terms of its combined energy and water consumption for that type of tableware). Programme standardised to EN 50242. Intended for rapid washing of very dirty dishes. Fast cycle, for “normally” dirty dishes - intended for frequent washes and normal loads. Programme Description41
