USER MANUAL BPWM16W BLACK & DECKER

1.7 CU. FT. PORTABLE

WASHING MACHINE

MACHINE À LAVER PORTABLE 1,7 PI. CU.

LAVARROPAS PORTÁTIL DE 1,7 PIES CÚBICOS (48 L) DE CAPACIDAD

INSTRUCTION MANUAL

MANUEL D'INSTRUCTIONS

Line drawing of a single kitchen waste bin with lid and base (no text or symbols)

Thank you for choosing BLACK+DECKER!

THIS PRODUCT FOR ANY REASON.

VEUILLEZ LIRE AVANT DE RETOURNER CE PRODUIT POUR QUELQUE RAISON.

POR FAVOR, LEA ESTE MANUAL ANTES DE DEVOLVER EL PRODUCTO POR CUALQUIER RAZÓN.

If you have a question or experience a problem with your BLACK+DECKER purchase, go to www.blackanddecker.com/ instantanswers If you can't find the answer or do not have access to the Internet, call 844-299-0879 from 10:30 a.m. to 6:30 p.m. EST Mon. - Fri. to speak with an agent. Please have the catalog number available when you call.

SAVE THIS MANUAL FOR FUTURE REFERENCE.

CONSERVEZ CE MANUEL POUR TOUTE CONSULTATION ULTÉRIEURE. GUARDE ESTE MANUAL PARA SU REFERENCIA FUTURA.

CONTENTS

SAFETY INFORMATION

Important Safety Instructions....4-6

Installation Warnings and Precautions 6-7

Grounding Instructions....7

Usage and Maintenance Warnings and Cautions 8-11

SET UP & USE

Parts & Features....13

Installation Guide 15-19

Operation Guide....20-23

CLEANING & CARE 24

TROUBLE SHOOTING & WARRANTY

Before You Call For Service 25

Customer Service 25

Troubleshooting....26-33

Limited Warranty....34

PRODUCT REGISTRATION

Thank you for purchasing our BLACK+DECKER product. This easy-to-use manual will guide you in getting the best use of your product.

Remember to record the model and serial numbers. They are on a label on the back of the product.

Model number

Serial number

Date of purchase

Staple your receipt to your manual. You will need it to obtain warranty service.

SAFETY INFORMATION

DANGER

DANGER - Immediate hazards which WILL result in severe personal injury or death

WARNING

WARNING - Hazards or unsafe practices which COULD result in severe personal injury or death

CAUTION

CAUTION - Hazards or unsafe practices which COULD result in minor personal injury

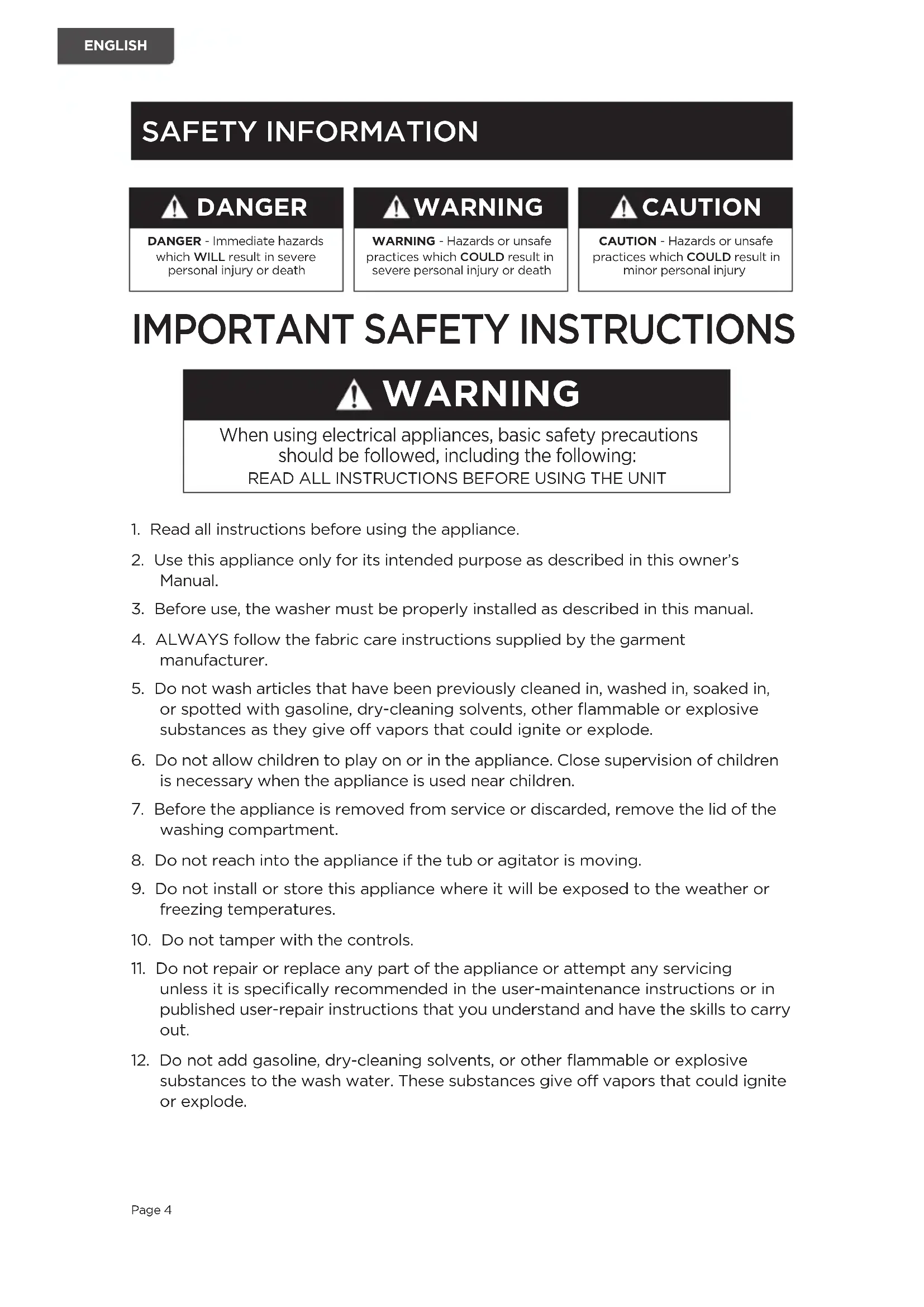

IMPORTANT SAFETY INSTRUCTIONS

WARNING

When using electrical appliances, basic safety precautions should be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THE UNIT

1. Read all instructions before using the appliance.
2. Use this appliance only for its intended purpose as described in this owner's Manual.
3. Before use, the washer must be properly installed as described in this manual.
4. ALWAYS follow the fabric care instructions supplied by the garment manufacturer.
5. Do not wash articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, other flammable or explosive substances as they give off vapors that could ignite or explode.
6. Do not allow children to play on or in the appliance. Close supervision of children is necessary when the appliance is used near children.
7. Before the appliance is removed from service or discarded, remove the lid of the washing compartment.
8. Do not reach into the appliance if the tub or agitator is moving.
9. Do not install or store this appliance where it will be exposed to the weather or freezing temperatures.
10. Do not tamper with the controls.
11. Do not repair or replace any part of the appliance or attempt any servicing unless it is specifically recommended in the user-maintenance instructions or in published user-repair instructions that you understand and have the skills to carry out.
12. Do not add gasoline, dry-cleaning solvents, or other flammable or explosive substances to the wash water. These substances give off vapors that could ignite or explode.

SAFETY INFORMATION

1. Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for 2 weeks or more, before using a washer or combination washer-dryer, turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.
2. Keep the area underneath and around your appliances free of combustible materials (lint, paper, rags, etc.), gasoline, chemicals and other flammable vapors and liquids.
3. Do not place items exposed to cooking oil in your washer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch fire.
4. This washer is not designed for maritime use or for mobile installations such as in RVs, aircraft, etc.
5. Turn off the water faucets and unplug the washer if the machine is to be left for an extended period of time, such as during vacations.
6. Packaging material can be dangerous for children. There is a risk of suffocation! Keep all package away from children.
7. Always check the inside of the washer for foreign objects before loading laundry. Keep the lid closed when not in use.

SAVE THESE INSTRUCTIONS

HOUSEHOLD USE ONLY

SAFETY INFORMATION

INSTALLATION WARNINGS AND PRECAUTIONS

CAUTION

1. Failure to closely follow these instructions may result in an abnormal vibrating and out-of-balance condition that could result in physical injury, property damage, and/or appliance damage.
2. Plug the power cord into an AC 120V/60Hz wall socket rated at 15amps or higher. Use the socket for this washer only.

3. Do not use an extension cord.

4. Sharing a wall socket with other appliance, using a power strip, or extending the power cord may result in electric shock or fire.

5. Do not use an electric transformer. It may result in electric shock or fire.

6. Ensure that the power voltage, frequency, and current match the product's specifications. Failing to do so may result in electric shock or fire.

7. Have this appliance installed by a qualified technician or service company.

- Failing to do so may result in electric shock, fire, explosion, problems with the product, or injury.

1. Remove all foreign substances such as dust or water from the power plug terminals and contact points using a dry cloth on a regular basis.

2. Unplug the power plug and clean it with a dry cloth.

3. Failing to do so may result in electric shock or fire.

4. Plug the power plug into the wall socket in the right direction so that the cord runs towards the floor.

- If you plug the power plug into the socket in the opposite direction, the electric wires within the cable may be damaged and this may result in electric shock or fire.

1. Plug the power plug into the wall socket firmly. Do not use a damaged power plug, or loosen wall socket.

- This may result in electric shock or fire.

1. Do not pull or excessively bend the power cord.

2. Do not twist or tie the power cord.

3. Do not hook the power cord over a metal object, place a heavy object on the power cord, insert the power cord between objects, or push the power cord into the space behind the appliance.

- This may result in electric shock or fire.

1. Do not pull the power cord when unplugging the power plug.

2. Unplug the power plug by holding the plug.

3. Failing to do so may result in electric shock or fire.

4. If the power plug or power cord are damaged, contact your nearest service center. For a grounded, cord-connected appliance, see GROUNDING INSTRUCTIONS.

5. Do not install this appliance near a heater or inflammable material.

6. Do not install this appliance in a humid, oily, or dusty location, or in a location exposed to direct sunlight or water (rain drops).

SAFETY INFORMATION

1. Do not install this appliance in a location where gas may leak.

- This may result in electric shock or fire.

1. If the washer is moved to a new location, have it checked and re-installed by a qualified service technician.

- Failing to follow this warning may result in electric shock or fire.

1. Do not install on carpet. Install washer on a level and solid floor that can support its weight.

- Failing to do so may result in abnormal vibrations, noise, or problems with the product.

1. The washer is heavy. Two or more people may be needed to install and move the appliance.

- Failing to do so may result in bodily or other injuries.

1. Store and install the washer where it will not be exposed to temperatures below freezing or exposed to outdoor weather conditions.

- Failing to do so may result in serious leak damage.

1. Position the appliance so that the power plug is easily accessible.

- Failing to do so may result in electric shock or fire due to electric leakage.

1. To reduce the risk of injury to persons, adhere to all industry recommended safety glasses.

- Failing to follow all of the safety warnings in this manual may result in property damage, or injury to persons.

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of the last resistance for electric current. This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

WARNING

Improper use of the grounding plug can result in a risk of electric shock.

Consult a qualified electrician or serviceman if:

1) The grounding instructions are not completely understood.
2) You are unsure that the appliance is properly grounded.
3) You have any questions about the grounding or electrical instructions.

WARNING

Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the appliance is properly grounded.

Do not modify the plug provided with the appliance - if it will not fit the outlet, have a proper outlet installed by a qualified electrician. Page 7

SAFETY INFORMATION

USAGE AND MAINTENANCE WARNINGS

WARNING

1. If the appliance is flooded, cut the power immediately and contact your nearest service center.
2. If the appliance emits a strange noise, a burning smell, or smoke, unplug the power plug immediately and contact your nearest service center.

- Failing to do so may result in electric shock or fire.

1. In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate the area immediately. Do not turn any appliance or light on or off.

2. Do not use a ventilating fan.

3. A spark may result in an explosion or fire.

4. Do not wash items contaminated with gasoline, kerosene, benzene, paint thinner, alcohol, dry cleaning detergent or other flammable or explosive substances.

5. This may result in electric shock, fire, or an explosion.

6. Do not force the washer lid open while the washer is operating (hightemperature washing / drying / spinning).

7. Water flowing out of the washer may cause burns or cause the floor to be slippery. This may result in injury.

8. Forcing the lid open can damage the product or cause injury.

9. Make sure to remove the packaging (sponge, styrofoam) attached to the bottom of the washer before using it.

10. Do not insert your hand or a metal object under the washer.

- This may result in injury.

1. Do not attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts, including a damaged cord or plug.

- This may result in electric shock, fire or death.

1. Do not touch the power plug with wet hands.

- This may result in electric shock.

1. Do not turn the appliance off by unplugging the power plug while the washer is in operation.

- Plugging the power plug into the wall socket again may cause a spark and result in electric shock or fire.

1. Keep all packaging material well out of the reach of children, as packaging materials can be dangerous to children.
2. If a child places a bag over its head, it may suffocate.
3. Do not let children or infirm persons use this washer unsupervised.
4. Failing to do so may result in electric shock, burns or injury.

SAFETY INFORMATION

1. Do not attempt to repair, disassemble, or modify the appliance yourself.

2. Do not use any fuse (such as cooper, steel wire, etc.) other than the standard fuse.

3. If you need to repair or reinstall the appliance, contact your nearest service center.

4. Failing to do so may result in electric shock, fire, problems with the product, or injury.

5. If any foreign substance such as water enters the appliance in any area other than the tub, unplug the power plug and contact your nearest service center.

- Failing to do so may result in electric shock or fire.

1. If the water supply hose comes loose from the faucet and floods the appliance, unplug the power plug.

- Failing to do so may result in electric shock or fire.

1. Do not mix chlorine bleach with ammonia or acids such as vinegar.

- Incorrect usage can produce poisonous gas, result in serious injury.

1. Do not reach into the washer while parts are moving. Before loading, unloading, or adding items, press the START/PAUSE button and allow the basket to come to complete stop before reaching inside.

- Failing to do so may result in electric shock, injury or fire.

1. Do not allow children to play on or in the washer. Close supervision of children is necessary when the washer is used near children. As children grow, teach them the proper, safe use of all appliances.

- Failing to do so may result in serious injury to persons.

1. Keep laundry products out of children's reach. Observe all warnings on product labels and follow to do.

- Failing to do so may result in serious injury to persons.

1. Disconnect this appliance from the power supply before attempting any user maintenance. Turning the controls to the OFF position does not disconnect this appliance from the power supply.

- Failing to do so may result in electric shock, injury or fire.

1. Do not clean the appliance by spraying water directly onto it.

2. Do not use benzene, thinner, or alcohol to clean the appliance.

- This may result in discoloration, deformation, damage, electric shock or fire.

1. Do not to wash water-resistant or water repellant-type clothing.

SAFETY INFORMATION

USAGE AND MAINTENANCE CAUTIONS

CAUTION

1. Unplug the power plug when the appliance is not being used for long periods of time or during a thunder/lightning storm.

- Failing to do so may result in electric shock or fire.

1. Keep hands and foreign objects clear of the lid and latch area when closing the lid.

- Failing to do so may result in personal injury.

1. If the washer is contaminated by a foreign substance such as detergent, dirt, food waste, etc., unplug the power plug and clean the washer with a damp, soft cloth.

- Failing to do so may result in discoloration, deformation, damage or rust.

1. The clear portion of the lid can be broken by a strong impact. Take care when using the washer.

- If the clear portion is cracked or broken, it may result in injury.

1. After a water supply failure or when reconnecting the water supply hose, open the faucet slowly.

2. Open the faucet slowly after a long period of non-use.

- The air pressure in the water supply hose or the water pipe may result in damage to a part or in water leakage.

1. If a drain error occurs during an operation, check if there is a draining problem.

- If the washer is used when it is flooded because of a draining problem, it may result in electric shock or fire due to electric leakage.

1. Do not insert your hand or a metal object under the washer.

- This may result in injury.

1. Insert the laundry into the washer completely so that laundry does not get caught in the lid.

- If laundry gets caught in the lid, it may result in damage to the laundry or the washer, or result in water leakage.

1. Ensure that the faucet is turned off when the washer is not being used.

- Ensure that the water supply hose connectors are properly tightened.

- Failing to do so may result in property damage or injury.

1. Open the faucet and check if the water supply hose connector is firmly tightened and that there is no water leaking before using the product.

- If the water supply hose connectors are loose, it may result in water leakage.

1. Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.

- This may result in electric shock, fire, problems with the product, or injury.

1. Do not operate the appliance with wet hands.

- This may result in electric shock.

1. Do not spray volatile material such as insecticide onto the surface of the appliance.

- As well as being harmful to humans, it may also result in electric shock, fire, or problems with the product.

SAFETY INFORMATION

1. Do not place an object that generates an electromagnetic field near the washer.

2. This may result in injury due to a malfunction.

3. Since the water drained during a high temperature wash or drying cycle is hot, do not touch the water.

4. This may result in burns or injury.

5. Do not wash, spin, or dry water-proof seats, mats, or clothing.

6. Do not wash thick, hard mats even if the washer mark is on the care label.

7. This may result in injury or damage to the washer, walls, floor, or clothing due to abnormal vibrations.

8. Do not operate the washer when detergent dispenser is removed.

9. This may result in electric shock or injury due to water leakage.

10. Do not insert your hand into the detergent dispenser after opening it.

11. This may result in injury as your hand may be caught.

12. Do not place any non-laundry objects, such as shoes, food waste, or animals into the washer.

13. This can cause abnormal vibrations that can damage the washer, and, in the case of pets, cause severe injury or death.

14. Do not press the buttons using sharp objects such as pins, knives, fingernails, etc. - This may result in electric shock or injury.

15. Do not wash laundry contaminated by oils, creams, or lotions usually found in skincare shops or massage clinics.

16. This may result in the rubber seal becoming deformed and water leakage.

17. Ensure that the water inlet pipe is connected and the tap is opened before washing clothes.

18. Do not leave metal objects (safety pins, hair pins, etc.) or bleach in the tub for long periods of time.

- This may cause the tub to rust. - If rust appears on the surface of the tub, apply a neutral cleansing agent to the surface and use a sponge to clean it. Never use a metal brush.

1. Do not use hot water from water cooling/heating devices.

2. This may result in problems with the washer.

3. Do not use natural hand-washing soap in the washer.

4. If it hardens and accumulates inside the washer, it may cause problems with the product, discoloration, rust, or bad odors.

5. Do not wash large laundry items such as bedding in the washing net.

6. Failing to do so may result in injury due to abnormal vibrations.

7. Place smaller items, such as lace socks and lingerie in the washing net.

8. Do not use hardened detergent.

9. If it accumulates inside the washer, it may result in water leakage.

10. Do not wash throw rugs or doormats.

11. If you wash throw rugs or doormats, the sand will accumulate inside the washer.
12. It may result in error such as no draining.

SAFETY INFORMATION

UNPACKING AND REMOVING SHIPPING MATERIAL

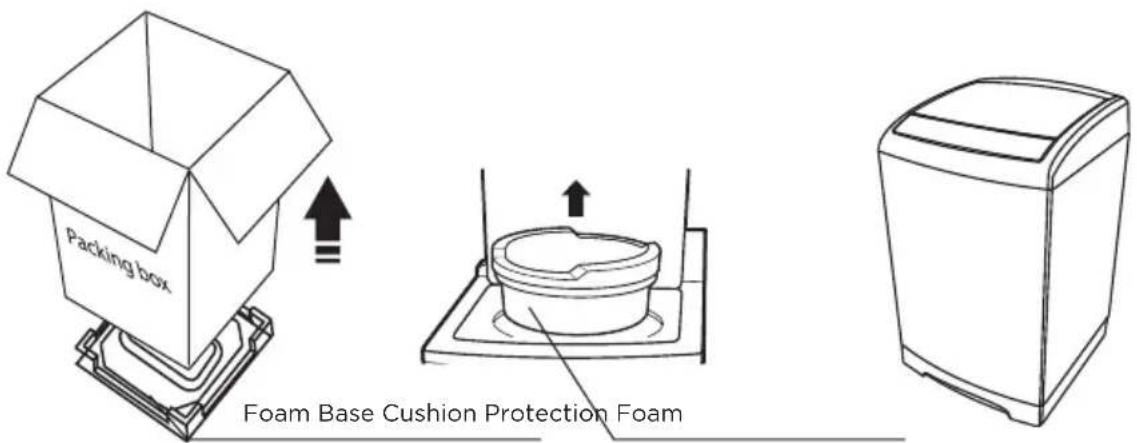

Remove the packing box and lift the washer up and away from the foam base cushion. Open the lid of washer to take out all accessories including protection foam.

Packing box Foam Base Cushion Protection Foam

CAUTION: Packaging materials can be dangerous to children; Keep all packaging material (plastic bags, polystyrene, etc.) well out of children's reach. Do not operate this appliance on the foam base cushion. Failing to do so will result in serious vibration.

SET UP & USE

PARTS & FEATURES

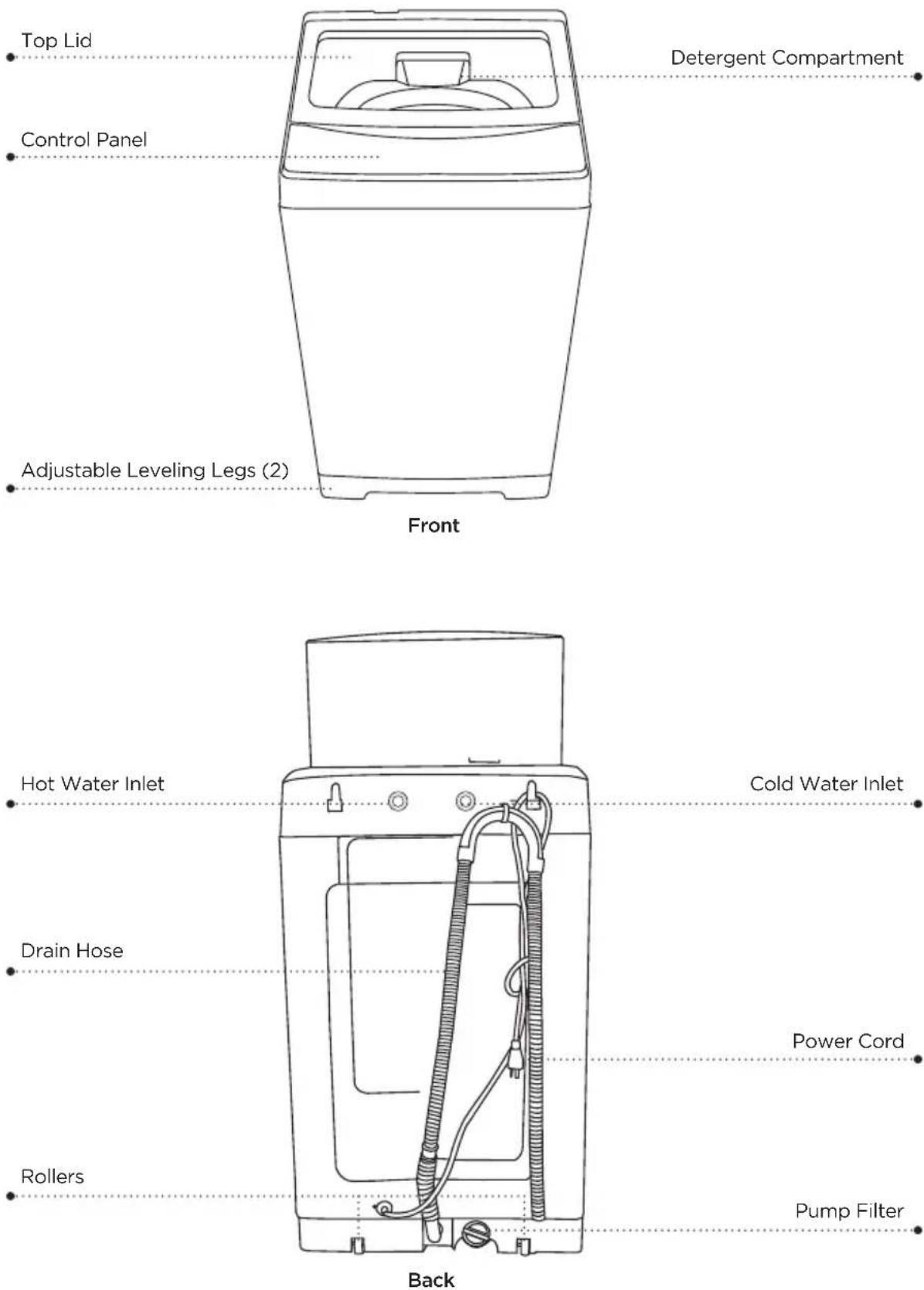

Top Lid Detergent Compartment Control Panel Adjustable Leveling Legs (2) Front Hot Water Inlet Cold Water Inlet Drain Hose Power Cord Rollers Pump Filter Back

SET UP & USE

ACCESSORIES

Owner's manual

Water supply hose Bottom cover screw

Water inlet cap

Quick connection adaptor Bottom cover Drain hose

TOOLS NEEDED IN INSTALLATION

Phillip screwdriver

LevelAdjustable pliers
or spanner wrench

KEY DIMENSIONS AND SPECIFICATIONS

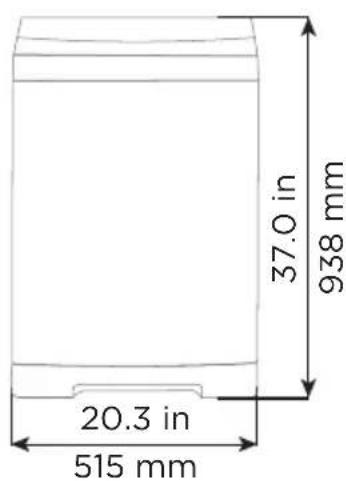

20.3 in 515 mm 37.0 in 938 mm

Front View Side View

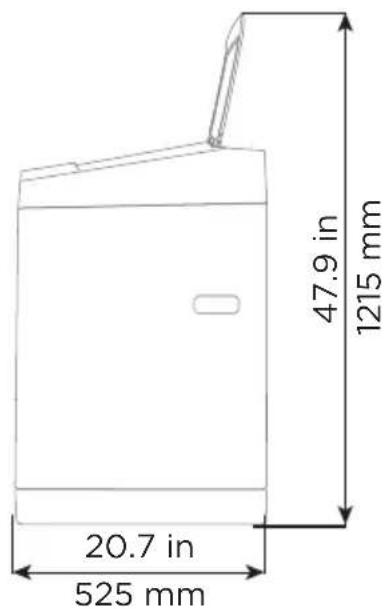

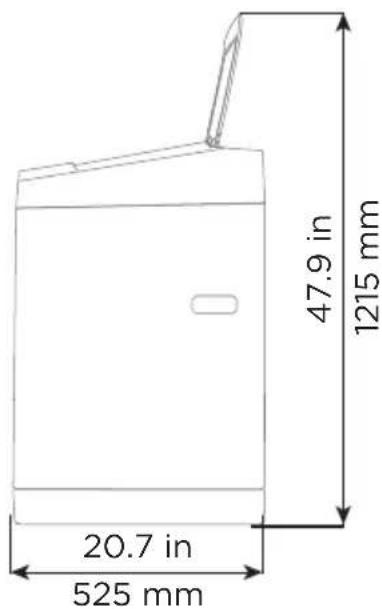

20.7 in 525 mm 47.9 in 1215 mm

SET UP & USE

For best performance, you must install your washer on a solidly constructed floor. Wood floors may need to be reinforced to minimize vibration and/or unbalanced load situations.

- Carpeting and soft tile surfaces are contributing factors to vibration which can cause your washer to move slightly during the spin cycle.

CAUTION: Do not install your washer in areas where water may freeze, since washer will always retain some water in its water valve, pump, and hose areas.

Frozen water can damage the belts, the pump, hoses, and other components. Never install on a platform or weakly supported structure.

ELECTRIC

Use 120Volt 60Hz 15 Amps fuse or circuit breaker. Individual branch circuit serving only for your washer is recommended.

CAUTION: Never use an extension cord.

GROUNDING

Electrical grounding is required for this washer.

This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a power cord having a three-prong grounding plug for use in a properly installed and grounded outlet. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

CAUTION: An improperly connected equipment-grounding conductor can increase the risk of electrical shock. Check with a qualified electrician or serviceman if you are not sure whether the appliance is properly grounded. Do not modify the plug provided with the appliance. If it does not fit the outlet, have a proper outlet installed by a qualified electrician. To prevent unnecessary risk of fire, electrical shock or personal injury, all wiring and grounding must be done in accordance with the National Electrical Code ANSI/FNPA, No.70 Latest Revision and local codes and ordinances. It is the personal responsibility of the appliance owner to provide adequate electrical service for this appliance.

WARNING: Never connect the ground wire to plastic plumbing lines, gas lines, or hot water pipes.

SET UP & USE

To correctly fill your washer in the proper amount of time, water pressure of 14 to 70psi (100 to 500 kPa) is required. Water pressure less than 14psi may cause water valve failure, or may not allow the water valve to shot off completely, or may extend the fill time beyond what your washer controls allow, causing your washer to turn off and alarm error. A time limit is built into the controls to prevent flooding in your home if a hose becomes loose.

The water faucet must be within 4 feet / 122cm of the back of your washer to match the inlet hoses provided with your washer.

To avoid the possibility of water damage:

• Operate with cold water only.
• Have water faucets easily accessible.
• Turn off faucets when the washer is not in use.
• Periodically check that there is no leakage from the water inlet hose fittings.

DRAIN FACILITY

The recommended height of the standpipe is 35in. or 90cm. The drain hose must be routed through the drain hose clip to the standpipe. The standpipe must be large enough to accept the outside diameter of the drain hose.

INSTALL YOUR WASHER

Before installing, make sure there are rubber gaskets inside the fittings at both ends of the water supply hoses.

If there are no water inlet hoses packed with the washer or if the hoses are damaged, Call the Customer Satisfaction Center at 1-844-299-0879. Installing the water supply hoses without rubber. gaskets can cause water leakage. When you initially install the washer, be sure to use new hoses. Failing to do so may result in a water leakage or overflow and may damage your property. If a hose is too short, replace the hose with a longer, high pressure hose.

Coupling Rubber Gasket

Step 1: Move your washer to selected position

Tilt the unit back onto its rear rollers and push it forward as shown in the figure below. Move the unit to a location as described in the previous Choose the Proper Location section.

Make sure the location has a hard, level surface without carpeting. There should be no direct sunlight. Do not expose the unit to freezing temperatures (under 32^ F or 0^ C).

Front of the washer

the 60~70°

Back of the washer

SET UP & USE

Step 2: Install the Bottom Cover

Slide the bottom cover into the slots on bottom surface of the unit as in the following figure, and fix it with the one screw attached with the unit.

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Bottom Cover

Step 3: Connect the water hose

TEMPORARY CONNECTION

• The Quick Connection Adaptor is primarily for quick connection to a single faucet, such as a typical kitchen sink, in cases where the washer is stored in a different place than where it is used. (Skip this step if you are connecting the washer to a sink with separate hot and cold faucets. See PERMANENT INSTALLATION section below.) The adaptor consists of two parts that quickly connect or disconnect. One part, the faucet fitting, is for connection to the faucet and the other part, the hose fitting, connects to the COLD water hose of the washer.
• Pull back on the white ring to free the faucet fitting from the adaptor for installation into the faucet.
• Screw the end of the COLD water hose onto the base of the hose fitting.
• If the faucet has internal screw threads, unscrew the aerator if present from the tip of the faucet. Then screw the faucet fitting into the faucet. Make sure that the black rubber gasket is on the top of the adaptor before screwing it in.
• If the faucet has external screw threads, remove the gasket from the top of the faucet fitting, and screw the fitting over the external threads.
• Pull back on the white ring to connect the two parts of the adaptor back together.

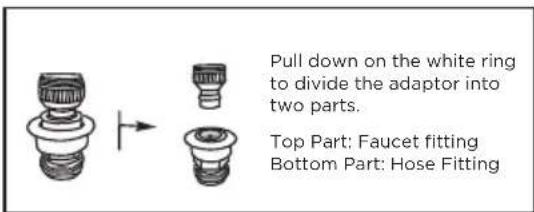

Pull down on the white ring to divide the adaptor into two parts. Top Part: Faucet fitting Bottom Part: Hose Fitting

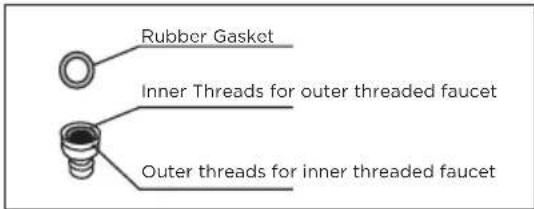

Rubber Gasket Inner Threads for outer threaded faucet Outer threads for inner threaded faucet

Internal Threads External Threads

Technical diagram showing two configurations of a kitchen sink with labeled parts A, B, C, D

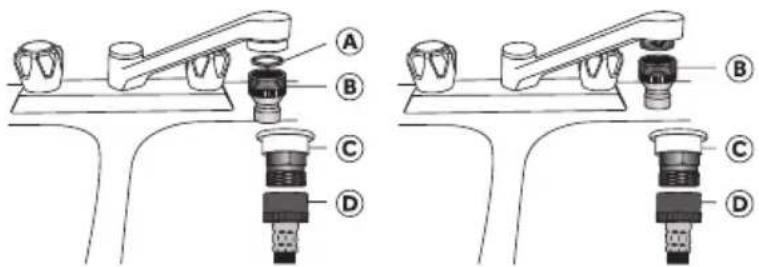

A Rubber Washer
B Faucet Connector
© Quick Connection Adaptor
D Water Inlet Hose

NOTE: When connected to a single faucet that can dispense either hot or cold water, both hot and cold water can be run through the cold water line. It is recommended to ONLY run COLD water washes when the adapter is connected to such a faucet.

SET UP & USE

PERMANENT CONNECTION

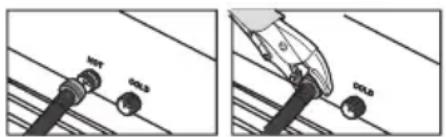

• Connect the ends of the water supply hoses to the HOT and COLD faucets. For convenience, use the Quick Connection Adapter for connection to the cold water faucet. See instructions for Quick Connection Adapter use in step 3 (previous page).
• Tighten the fittings by hand until they are snug, and then tighten them an additional two-thirds of a turn with a wrench/pliers.

When you fasten the fitting, do not fasten it too tightly or apply tape or sealant to the faucet or water supply inlet. This can damage the fitting. After you have connected the water supply hose to the faucet, ensure that it is connected securely by pulling the water supply hose downwards.

- Place the unconnected end of the hose into a bucket and open the faucet connected to the water supply hose for 10 or 15 seconds to remove any foreign substances from the hose. Close the faucet before continuing.

- Connect the end of the water supply hose to the water supply inlet connection at the top of the washer.

NET GOLD GOLD

The water supply hose connected to the HOT faucet must be connected to the HOT water supply inlet and the water hose connected to the COLD water source must be connected to the COLD water supply inlet.

- Tighten the fitting by hand until it is snug, and then tighten them an additional two-thirds of a turn with a wrench/pliers.

Confirm that the water supply hoses are not twisted or bent. If the hoses are twisted or bent, the hoses can leak and cause electric shock due to the water leakage. To ensure the correct water usage, connect both the HOT and COLD water faucets. If they are not both connected an error can occur.

If you do not want to use the HOT water supply hose, install the water inlet cap into the HOT water supply inlet hole In this case, you must select cold water as the wash temperature choice.

Turn on the HOT and COLD water supplies and check all the water supply inlet connections and the faucets for water leaks.

Step 4: Connect the drain hose

The drain hose is connected to the bottom side of the unit. The other end of the hose should be positioned using one of the following methods:

SET UP & USE

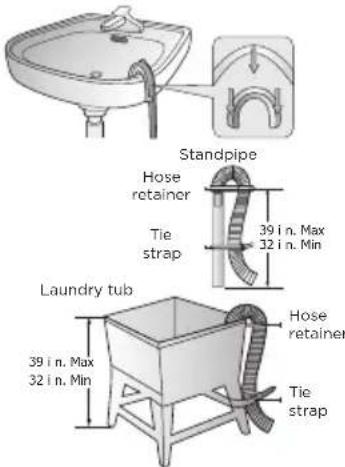

A. Over the edge of a wash basin. Secure the guide to the side of the basin wall with a hook or to the tap with a piece of string to prevent the drain hose from moving.
B. In a standpipe The standpipe must be no shorter than 32 in. (81cm) and no longer than 39 in. (100cm).
C. In a laundry tub. The laundry tub must be no shorter than 32 in. (81cm) and no higher than 39 in. (100cm).

Make sure that the connection between the drain hose and the wash basin, standpipe or laundry tub is not airtight.

Standpipe Hose retainer 39 in. Max 32 in. Min Tie strap Laundry tub 39 in. Max 32 in. Min Hose retainer Tie strap

Pulsator

Step 5: Leveling your washer

See if the washer is level by checking the position of the tub or using a leveling gauge.

1. Slide the washer into position.
2. Open the lid of the washer, and pour the water into the tub to just below the pulsator level.
3. If the washer is level, the pulsator is positioned at the center of the washer as shown in the figure above right. If not, level your washer by turning the front leveling leg clockwise or counterclockwise as necessary.

There are TWO adjustable legs.

Leveling gauge

Adjustable legs

Step 6: Powering your washer

Plug the power cord into a 3-prong, well grounded 120 volt 60 Hz approved electrical outlet protected by a 15-amp fuse or comparable circuit breaker. Your washer is grounded through the third prong of the power cord when plugged into a 3-prong grounded electrical outlet.

Step 7: Running a test cycle

Run a test cycle as follows to check if your washer is properly installed.

1. Press the Power button to turn on your washer.
2. Press the PROCEDURE button repeatedly until the rise and spin cycles are selected and the corresponding indicator lights are illuminated.
3. Press the Start/Pause button to start the test cycle.
4. The washer should not rock or vibrate excessively when water is supplied or when washing or spinning, and should drain well during the spin cycle.

If water leaks while water is being supplied or drained, check the water connections. If the washer rocks and vibrates excessively, level your washer again.

Step 8: Storing your washer

If you want to store your washer at another location, unplug it, drain any remaining water from the drain pipe and hook the pipe onto the back of the washer. Disconnect the water inlet hoses from the faucets and move washer to new location.

SET UP & USE

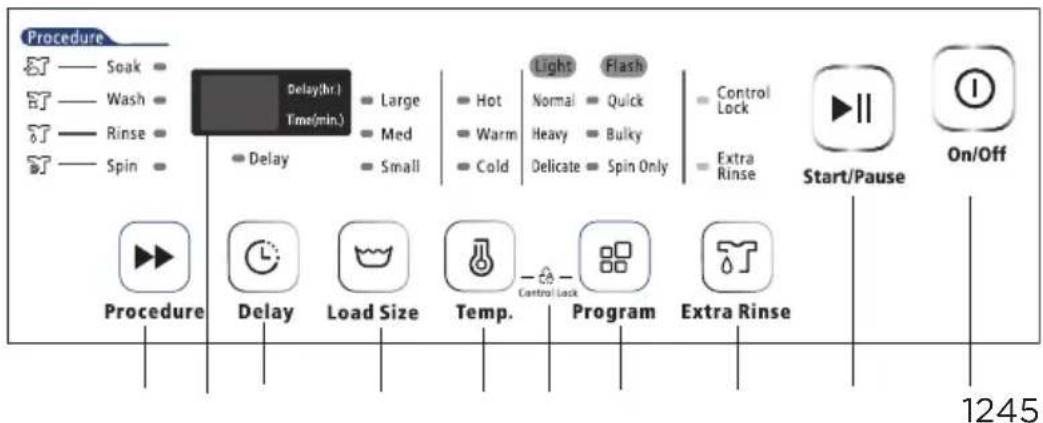

CONTROL PANEL

Procedure Soak Wash Rinse Spin Delay(hr) Time(min) Large Med Small Hot Warm Cold Light Normal Heavy Delicate Flash Quick Bulky Spin Only Control Lock Extra Rinse Start/Pause On/Off Procedure Delay Load Size Temp. Program Extra Rinse 1245

1. On/Off

Press the On/Off button once to turn ON the power to the washer. Press again to turn OFF the unit.

2. Start/Pause

Press Start/Pause button once to start the wash cycle. Press again during operation to PAUSE the cycle. Press again to continue the cycle.

3. Extra Rinse

Press the Extra Rinse button to select an additional rinse cycle.

4. Program

Press the Program button to select from the following:

Normal (light)

Quick (Flash)

Heavy (light)

Bulky (Flash)

Delicate (light)

Spin Only (Flash)

5. Control Lock

Use this option to disable the controls. This feature can prevent children from changing cycles or powering off the machine. The washer can only be locked during a cycle. To activate this function after starting the washer, press and hold the Temp and Program buttons at the same time. The control lock indicator light will turn on. To cancel this function select the Temp and Program buttons again.

6. Temperature

Press this button to select the water temperature for washing Cold, Warm or Hot temperature selections.

7. Load Size

Press Load Size to select Small, Medium or Large. This will determine the water level throughout the wash cycle

8. Delay

You can delay the start of the wash cycle up to 24 hours. Activate Delay by pressing the button to add 1 hour to the start time each time you press the button. The digital display will show the amount of hours remaining until the wash cycle is programmed to start.

9. Digital Display

The digital display will show and count down the estimated minutes for the wash cycle selected. If delay start is set, the display will indicate the amount of hours until the wash cycle is to begin.

10. Procedure

Press this button to select different cycles: Soak, Wash, Rinse and Spin. The light will illuminate next to the selected cycles or combination of cycles.

SET UP & USE

WARNING

To reduce the risk of electric shock, or injury to persons, read the important safety instructions before operating this appliance.

WASHING A LOAD OF LAUNDRY

Step 1: Power on your washer

ess the ON/OFF button to power your washer on.

ON/OFF

Step 2: Load your washer

fore loading your laundry, be sure to take out coins, keys and other hard objects, and close all zippers to prevent the clothes from damage.

Sort laundry by fabric type, soil level, color and load size as needed. You can fill the tub with dry, unfolded clothes, but DO NOT OVERLOAD the tub. Load the tub no more than 3/4 full.

To ensure good cleaning results do not overload the tub, especially when washing heavily soiled loads. Never load the tub more than 3/4 full.

verloading may reduce washing efficiency, cause excess wear, and possibly cause creasing or wrinkling of items in the load.

NOTE: To add a forgotten item:

1. Press the START/PAUSE button to pause the washer.
2. Wait for the tub to stop turning, then open the door.
3. Add the item, close the door, and then press the START PAUSE button. The cycle will resume.

Step 3: Add detergent

This washer is designed for high efficiency (HE) detergent only. Add the recommended amount of detergent directly into the detergent compartment before starting your washer. The normal amount of detergent to use is 1/4 to 1/2 of the maximum amount recommended by the detergent manufacturer. Always reduce the amount of detergent if the load is small or lightly soiled, or if your water is very soft. Never use more than the maximum amount recommended by the detergent manufacturer.

Detergent Compartment

ever pour any liquid bleach directly onto the load. It can cause fabric damage, such as weakening of cloth fibers or color loss.

SET UP & USE

Step 4: Select your desired cycle and options

Light/Flash Normal ■ Quick Heavy ■ Bulky Delicate ■ Spin Only Program

Select your desired wash program by pressing the program button repeatedly. The indicator light will illuminate as shown next to the selected cycle below. If Normal is selected there will be a steady light. If Quick is selected the light will flash.

Normal (steady light) Quick (Flashing light) Heavy (steady light) Bulky (Flashing light) Delicate (steady light) Spin Only (Flashing light)

The Spin Only cycle can help remove some moisture from clothing to reduce drying time.

You can refer to the rinse and spin cycle guide on page 23.

LargeMediumSmalle	Press the Load Size button to choose the water level setting based on a Small, Medium or Large sized load.
SoakWashRinseSpin	Select your desired wash cycles by repeatedly pressing the Procedure button to choose the cycle or combination of cycles: Wash /Rinse /Spin (default setting), Spin, Wash, Wash/Rinse, Rinse/Spin, Soak/Wash/Rinse/SpinA steady light will indicate the selected cycle(s)
HotWarmCold	Press the temperature button to select cold, warm or hot water for the wash cycle.Note:The temperature setting is for the wash cycle only. The rinse cycle is cold water.
Remain(min)Delay(Ir.)	To delay the start of your washer up to 24 hours press the Delay button to activate. The number shown on the digital display will indicate when the wash cycle will start. 1 hour will be added to the start time each time you press the Delay button up until 24 hours. Pressing the delay button to exceed 24 hours will deactivate the delay function and the display will turn off.To cancel the Delay Start function after it has started, power off the unit to reset all functions before restarting the washer.

SET UP & USE

Step 5: Start the cycle

Press the START/PAUSE button to start the washing cycle. When the washing cycle begins, the Estimated Time in minutes for the cycle to complete will show and count down in the digital display. Or, if Delay Start is set, the display will count down the hours until the cycle begins, and then change to a minute countdown for the cycle.

CAUTION: When the washer is running, you should pause the program and wait for the tub to stop completely before you open the lid.

Control Lock

Press and hold the TEMP and PROGRAM buttons simultaneously to activate this function. When Control Lock is activated, the indicator light will turn on. The control panel buttons will not function except for POWER and the ability to deactivate Control Lock by pressing and holding the TEMP and PROGRAM buttons again.

RINSE & SPIN CYCLE GUIDE

Program	Load Size		Soak time (approx.)	Wash Time (ap-prox.)	Rinse Times	Final Spin Time	Total Time
	Default Scope
Normal	Large	Sm, Med, Lg	-	15 min	1	8 min	34 min
Heavy	Large	Sm, Med, Lg	-	15 min	2	7 min	52 min
Delicate	Large	Sm, Med, Lg	-	12 min	1	5 min	35 min
Quick Medium		Sm	-	3 min	1	4 min	15 min
		Med	-	3 min	1	4 min	19 min
		Lg	-	3 min	1	4 min	22 min
Bulky	Large	Sm, Med, Lg	15 min	15 min	2	9 min	69 min
Spin Only	-	-	-	-	-	24 min	26 min

Normal/Eco is the recommended wash cycle to wash up to a full load of normally soiled cotton or linen clothing. The cycle (Normal/Eco on large load size and cold water temperature) has a much longer spin time (86 minutes) than other cycles, which removes more water from your clothes than other cycles, providing you with energy savings when drying your clothes in your dryer. Hot and warm water temperatures are the same when using Normal/Eco. If you need a higher temperature wash, use a different program.

CARE AND CLEANING

CLEANING AND MAINTENANCE

WARNING: Turn off and unplug appliance before cleaning or maintenance.

Cleaning the exterior

Turn off the water faucets after finishing the day's washing.

This will shut off the water supply to your washer and prevent the unlikely possibility of damage from escaping water.

Leave the lid open to allow the inside of your washer to dry out.

Use a soft cloth to wipe up all detergent, bleach or other pills as they occur.

Clean the following as recommended:

Control Panel - Clean with a soft, damp cloth. Do not use abrasive powders or pads. Do not spray cleaners directly onto the panel.

Cleaning the interior

Clean the interior of your washer periodically to remove any dirt, soil, odor, mold, mildew, or bacterial residue that may remain in your washer as a result of washing clothes.

Failure to follow these instructions may result in unpleasant conditions, including odors and/or permanent stains on your washer or laundry. Hard water deposits may be removed, if needed. Use cleaners labeled "Washer safe".

Tub clean

Run an Rapid cycle with some bleach every month to clean the tub.

This will also help to remove mold which may occur inside the washer.

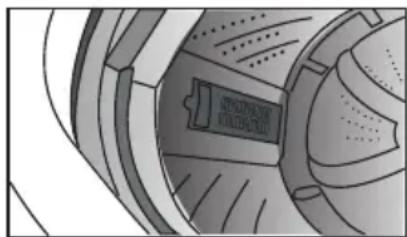

Lint filter clean

There is a built-in lint filter in your washer. It can help to collect lint during washing cycle.

It is suggested to clean the lint filter every 10 cycles.

Take it out and clean the filter with water. Then place it back into the washer.

Cross-sectional diagram of a mechanical component with no visible text or symbols

Press down to remove snap back into place to re-insert

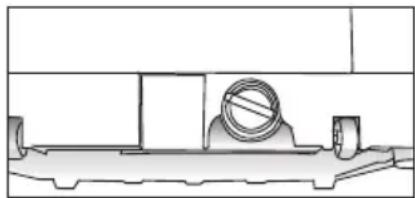

Pump filter clean

There is a built-in Pump filter located in the back of your washer. It can help to protect the pump during washing cycle.

It is suggested to clean the lint filter every once every month.

It is suggested to clean the pump filter once every month.

Remove the filter by turning it to the left. Rinse it with water and re-insert it by turning it to the right.

Technical line drawing of a mechanical component with no visible text or symbols

TROUBLESHOOTING & WARRANTY

BEFORE YOU CALL FOR SERVICE

IF THE UNIT FAILS TO OPERATE:

A) Check to make sure that the unit is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds and plug it in again securely.
B) Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.

IF NONE OF THE ABOVE SOLVES THE PROBLEM, CONTACT OUR CUSTOMER SATISFACTION CENTER. DO NOT TRY TO ADJUST OR REPAIR YOURSELF.

IMPORTANT

DO NOT RETURN THIS PRODUCT TO THE STORE

If you have a problem with this product, please contact the W Appliance Co. Customer Satisfaction Center at 844-299-0879 or [e-mail].

DATED PROOF OF PURCHASE, MODEL # AND SERIAL # REQUIRED FOR WARRANTY SERVICE.

TROUBLESHOOTING & WARRANTY

TROUBLESHOOTING

Troubleshoot your problem by using the chart below. If the unit still does not work properly, contact W Appliance Co. customer service center or the nearest authorized service center. Customer must never troubleshoot internal components.

SYMPTOMS POSSIBLE CAUSE SOLUTIONS
Thumping sound	Heavy wash loads may produce a thumping sound. Washer load may be out of balance.	This is normal. If sound continues, washer is probably out of balance. Stop and redistribute wash load. Pause the cycle and redistribute the load.
Vibrating noise	Packaging materials were not removed. Wash load may be unevenly distributed in the tub. Not all leveling feet are resting firmly and evenly on the floor. Floor not rigid enough.	See the UNPACKING AND REMOVING SHIPPING MATERIAL section in the installation instructions. Pause the cycle and redistribute the load. See Leveling the Washer in the Installation Instructions. Make sure that the floor is solid and does not flex. See Flooring in the Installation Requirements.

TROUBLESHOOTING & WARRANTY

SYMPTOMS POSSIBLE CAUSE SOLUTIONS
Excessive sudsing	Too much detergent or incorrect detergent.	HE detergents are formulated specifically for High-Efficiency washers and contain suds reducing agents. Only use detergent with the High-Efficiency (HE) logo.
Water leaking Inlet	hose connection is loose at faucet or washer.House drain pipes are clogged.Drain hose has come out of drain or is not inserted far enough.A large item such as a pillow or blanket is above the top of the tub.	Check hoses for leaks, cracks and splits.Check and tighten hose connections.The washer pumps out water very rapidly.Check for water backing up out of the drain pipe during drain. If water is seen coming out of the drain, check for proper drain hose installation and check for restrictions in the drain . Contact a plumber to repair drain pipe.Tie drain hose to inlet hose or standpipe to prevent it from coming out during drain. For smaller drain pipes, insert the drain hose into the pipe as far as the drain hose flange.For larger drain pipes, insert the drain hose into the pipe 1-2 in. past the flange .Stop the washer and check the load.Make sure the load does not crest above the top edge of the tub.
Rattling and clanking noise	Foreign objects, such as keys, coins, or safety pins, may be in tub or pump.	Stop washer, check tub and drain filter for foreign objects.If noise continues after washer is restarted, call for service.
Wrinkling Washer	not unloaded promptly.Washer overloaded.Hot and cold water inlet hoses are reversed.	Always remove items from the washer as soon as the cycle is complete.The washer can be fully loaded, but the tub should not be tightly packed with items. The lid of the washer should close easily.Hot water rinse can set wrinkles in garments. Check the inlet hose connections.

TROUBLESHOOTING & WARRANTY

SYMPTOMS POSSIBLE CAUSE SOLUTIONS
Staining Washer	was not unloaded promptly. Clothes were not properly sorted.	Always remove items from the washer as soon as possible after the cycle is complete. Always wash dark colors separately from light colors and whites to prevent discoloration. Never wash heavily soiled items washed with lightly soiled items.
Wash cycle time is longer than usual	The washer automatically adjusts the wash time for the amount of laundry, water pressure and other operating conditions.	This is normal. The washer adjust cycle time automatically to provide optimal results for the selected cycle.The time remaining shown in the display is only an estimate. Actual time may vary.
Musty or mildewy odor in washer	Incorrect or too much detergent has been used Inside of tub was not cleaned properly.	Use only High-Efficiency (HE) detergent in accordance with the manufacturer's instructions. Run an Express cycle with bleach once a month to clean tub and remove any mold from inside washer.
Washer will not turn ONNOTE: If the washer stopped during a cycle due to a loss of power, the washer will resume the cycle where it stopped when the power is restored.	Power cord is not properly plugged in. House fuse is blown, circuit breaker has tripped, or power outage has occurred. House fuse is blown, circuit breaker has tripped, due to multiple appliances on one outlet.	Make sure that the plug is plugged securely into a grounded,3-prong, 120-VAC, 60-Hz outlet. Reset circuit breaker or replace fuse. Do not increase fuse capacity. If the problem is a circuit overload, have it corrected by a qualified electrician. Reset circuit breaker or replace fuse. If more than one appliance is connected to the outlet, call an electrician to have an additional circuit installed.

TROUBLESHOOTING & WARRANTY

SYMPTOMS POSSIBLE CAUSE SOLUTIONS
Water leaks Over	sudsing of detergent.	Over sudsing may create leaks, and may be caused by the type and amount of detergent used. High-Efficiency detergent is the only detergent recommended. Make sure that detergent and any additives are put into the correct dispenser compartments. The normal amount of detergent to use is 1/4 to of the maximum amount recommended by the detergent manufacturer. Always reduce the amount of detergent if the load is small or lightly soiled, or if your water bis very soft. Never use more than the maximum amount recommended by the detergent manufacturer.
Poor stain removal	Previously set stains. Articles	es that have previously been washed may have stains that have been set. These stains may be difficult to remove and may require hand washing or pre-treating to aid in stain removal.
Washer will not drain water	Kinked drain hose. Drain located higher than 48 in. above the floor.	Ensure that the drain hose is not kinked. Make sure that the drain hose is no higher than 4 ft. above the bottom of the washer and is no more than 5 ft. away from the washer.

TROUBLESHOOTING & WARRANTY

SYMPTOMS POSSIBLE CAUSE SOLUTIONS

Washer will not operate

Water supply is turned off. Control panel has powered off due to inactivity. Washer is unplugged. Controls are not set properly.Lid is open.Circuit breaker/fuse is tripped/blown.Control needs to be reset.START/PAUSE was not pressed after a cycle was set.Extremely low water pressure.Washer is too cold.Washer is running under Delay start program.

This is normal. Press the POWER button to turn the washer on.Make sure cord is plugged securely into a working outlet.Turn both hot and cold faucets fully on.Make sure the cycle was set correctly, close the lid and press the START/PAUSE button.The washer will not operate if the lid is open. Close the lid and make sure that nothing is caught under the lid preventing it from closing completely.Check house circuit breakers/fuses.Replace fuses or reset breaker. The washer should be on a dedicated branch circuit. The washer will resume the cycle where it stopped once power is restored.Press the POWER button, then re-select the desired cycle and press the START/PAUSE button.Press the POWER button then re-select the desired cycle and press the START/PAUSE button. The washer will shut off if the START/ PAUSE button is not pressed within ten minutes.Check another faucet in the house to make sure that household water pressure is adequate.If the washer has been exposed to temperatures below freezing for an extended period of time, allow it to warm up before pressing the POWER button. Otherwise, the display will not come on.It's normal if the unit doesn't operate under Delay start function. It will start automatically after the delay time is out.

TROUBLESHOOTING & WARRANTY

SYMPTOMS POSSIBLE CAUSE SOLUTIONS

Washer not filling properly	Filter clogged. Inlet hoses may be kinked Insufficient water supply. The washer lid is open. Hot and cold inlet hoses are reversed. Water level is too low. Water inlet valve damaged.	Disassemble the water inlet hose and clean the inlet point. Check that inlet hoses are not kinked or clogged. Make sure that both hot and cold water faucets are turned on all the way. The washer will not operate if the lid is open. Close the lid and make sure that nothing is caught under the lid preventing it from closing completely. Check inlet hose connections. Make sure the hot water supply is connected to the hot inlet valve, and the cold water supply is connected to the cold inlet valve. This is a high efficiency washer. The water will not normally cover the clothes. The fill level is optimized for the wash motion to achieve the best wash performance. Call to the service center for service.
Water leaks every load	Hoses not installed correctly.	Check all fill and drain hose connections to ensure that they are tight and secure.

TROUBLESHOOTING & WARRANTY

ERROR CODE POSSIBLE CAUSE SOLUTIONS
E1 It takes over 30	minutes to fill water but cannot achieve its preset water level.	Check troubleshooting (pg 32) for washer not filling properly and water leakage.
E2 It takes over 10	minutes to drain the water but the washer is not completely drained.	Check troubleshooting for Washer will not drain water.
E3 The top lid is open.	Close the lid and press the ON/OFF button.
E4 The washer runs out of balance three times.		Redistribute the load.

TROUBLESHOOTING & WARRANTY

FABRIC CARE CHART

The following symbols provide garment care direction. The Clothing care labels include symbols for washing, bleaching, drying and ironing, or dry cleaning when necessary. The use of symbols ensures consistency among garment manufacturers of domestic and imported items. Follow care label directions to maximize garment life and reduce laundering problems.

Water Cycle Special Instructions Warning Symbols for laundering
	Normal Do Not Wash		Line Dry/Hang to Dry
	Permanent Press / Wrinkle Resistant / Wrinkle Control		Drip Dry		Do Not Wring
	Gentle/Delicates Dry Flat				Do Not Bleach
[56ZZ]	Hand Wash	H Setting			Do Not Tumble Dry
V Temperature**			High	[GABA]	No Steam (added to iron)
	Hot	[8SXY]	Medium		Do Not Iron
	Warm		Low	ean
	Cold		Any Heat		Dry Clean
B			No Heat/Air		Do Not Dry Clean
	Any Bleach (when needed)	In or St - ... 0 Temperature			Line Dry/Hang to Dry
	Only Non-Chlorine (color-safe) Bleach (when needed)		High		Drip Dry
[C384]	Tumble Dry Cycle		Medium		Dry Flat
Normal			Low		For machine-washable wool. Loads should be under 8 pounds.
	Permanent Press / Wrinkle Resistant / Wrinkle Control
	Gentle / Delicates

** The number of dots represent appropriate wash water temperatures for various items. The temperature range for Hot is 105°-125°F/41°-52°C, for Warm 85°-105°F/29°-41°C and for Cold 60°-85°F/16°-29°C.(Wash water temperature must be a minimum of 60°F/16°C for detergent activation and effective cleaning.)The clothes washer can

not ensure these temperatures because the actual temperature of the water entering your washer depends on water heater settings and regional water supply temperatures.

For example, cold water entering the home in the northern states during winter may be 40^ F/ 4^ C which is too cold for effective cleaning. In this situation, you will need to adjust the water temperature by selecting a warm setting, adding some hot water to the MAX FILL line, or using your Washer's heating option, if available.

LIMITED WARRANTY

Any repair, replacement, or warranty service, and all questions about this product should be directed to W Appliance Co. at 844-299-0879 from the USA or Puerto Rico.

W Appliance Co. warrants to the original purchaser that the product will be free from defects in material, parts and workmanship for the period designated for this product. The warranty commences the day the product is purchased and covers up to a period of 1 year (12 months) for labor/1 year (12 months) for parts (manufacturing defects only)/carry in service.

W Appliance Co. agrees that it will, at its option, replace the defective product with either a new or remanufactured unit equivalent to your original purchase during the warranty period.

Exclusions: This warranty does not apply to the below:

1. If the appearance or exterior of the product has been damaged or defaced, altered or modified in design or construction.

2. If the product original serial number has been altered or removed or cannot be readily determined.

3. If there is damaged due to power line surge, user damage to the AC power cord or connection to improper voltage source.

4. If damage is due to general misuse, accidents or acts of God.

5. If repair attempts are done by unauthorized service agents, use of parts other than genuine parts or parts obtained from persons other than authorized service companies.

6. On units that have been transferred from the original owner.

7. On products that have been purchased as refurbished, like new, second-hand, in a "As-Is" or "Final Sale" terms.

8. To products used in a commercial or rental setting.

9. To products used in settings other than ordinary household use or used other than in accordance with the provided instructions.

10. To damages for service calls for improper installations.

11. To glass parts and other accessory items that are included with the unit.

12. Transportation and shipping costs associated with the replacement of the unit.

13. Service calls to instruct you how to use your product.

14. Service calls to repair or replace the house fuse, reset the circuit breaker or correct the wiring in the house.

REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE CUSTOMER; W Appliance Co. SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW. ANY IMPLIED WARRANTY OF MERCHANTABILITY OF FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED TO THE DURATION OF THE WARRANTY.

Some states do not allow the exclusion or limitations of incidental or consequential damages, or limitations on how long the warranty lasts. In these cases the above exclusions or limitations may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

Obtaining Service: To obtain service, product literature, supplies or accessories please call 844-299-0879 to create a ticket for exchange/repair. Please make sure to provide the date of purchase, model number and a brief description of the problem. Our customer service representative will contact you or send detailed return instructions.

W Appliance Co. does not warrant that the appliance will work properly in all environmental conditions, and makes no warranty and representation, either implied or expressed, with respect to the quality, performance, merchantability, or fitness for a particular purpose other than the purpose identified within this user's manual. W Appliance Co. has made every effort to ensure that this user's manual is accurate and disclaims liability for any inaccuracies or omissions that may have occurred. Information in this user's manual is subject to change without notice and does not represent a commitment on the part of W Appliance Co.. W Appliance Co. reserves the right to make improvements to this user's manual and/or to the products described in this user's manual at any time without notice. If you find information in this manual that is incorrect, misleading, or incomplete, please contact us at 844-299-0879.

W Appliance Co.

1356 Broadway

New York, NY 10018

TABLE DES MATIÈRES

INFORMATIONS DE SÉCURITÉ

Service Clients....60

Dépannage....61-68

Garantie Limitée 69

ENREGISTREMENT DU PRODUIT

20.3 in 515 mm 37.0 in 938 mm

20.7 in 525 mm 47.9 in 1215 mm

VUE DE FACE VUE DE CÔTÉ

CONFIGURATION ET UTILISATION

CHOISISSEZ LE BON EMPLACEMENT

PLANCHER

Technical diagram showing two configurations of a bathroom sink with labeled parts A, B, C, D

NOT GOLD COLD

Cross-sectional diagram of a mechanical component or housing (no text or symbols visible)

Cross-sectional illustration of a mechanical component or housing (no visible text or symbols)

Technical drawing of a mechanical component with no visible text or symbols

DÉPANNAGE ET GARANTIE

AVANT D'APPELER POUR LE SERVICE

SI L'UNITÉ NE FONCTIONNE PAS:

NE PAS RETOURNER CE PRODUIT AU MAGASIN

PROBLÈME CAUSE POSSIBLE SOLUTION POSSIBLE

Packing box Foam Base Cushion Protection Foam

37.0 in 938 mm 20.3 in 515 mm VISTA FRONTAL 47.9 in 1215 mm 20.7 in 525 mm VISTA LATERAL

CONFIGURACIÓN Y USO

Simple line drawing of a boat on a dock with no text or symbols

Cubierta inferior

Paso 3: conecte la manguera de suministro de agua

CONEXIÓN TEMPORAL

Diagram showing two configurations of a kitchen sink with labeled parts A, B, C, D

Cross-sectional diagram of a mechanical component or housing (no visible text or symbols)

Technical drawing of a mechanical component with no visible text or symbols

BLACK & DECKER, BLACK+DECKER, the BLACK & DECKER and BLACK+DECKER logos and product names and the orange and black color scheme are trademarks of The Black & Decker Corporation, used under license. All rights reserved.

Product in this box may differ slightly from that pictured. Does not affect function. Not all accessories shown in photography are included in this package.

Imported by W Appliance, Inc., 1356 Broadway, New York, NY 10018 Customer Service: 844-299-0879

Importado por W Appliance, Inc., 1356 Broadway, New York, NY 10018 Servicio al Cliente: 844-299-0879
