560 - Fan Vornado - Free user manual and instructions

Technical Features	Air circulation fan, 120 watt power, 14-inch diameter.
Operating Modes	3 fan speeds, quiet operation.
Usage	Ideal for cooling medium to large rooms, indoor use.
Maintenance	Regular cleaning of grills and blades, washable filter.
Safety	Overheat protection, stable base to prevent falls.
General Information	5-year warranty, compact and modern design, easy to carry.

Frequently Asked Questions - 560 Vornado

The Vornado 560 fan won\u0027t turn on, what should I do?

First, check that the fan is properly plugged into a working outlet. Also ensure that the power cord is not damaged. If the problem persists, try resetting the fan by unplugging it for 10 minutes, then plugging it back in.

The Vornado 560 fan makes noise, is this normal?

A slight noise is normal due to the motor and air movement. However, if you hear loud or strange noises, this may indicate a problem. Check if objects are obstructing the fan blades or if the fan is improperly positioned. If the noise continues, contact customer service.

How do I clean the Vornado 560?

Unplug the fan before cleaning. Use a soft, damp cloth to wipe the exterior surface. To clean the blades and grill, you can use a vacuum cleaner or a dry cloth. Never immerse the fan in water.

The fan is not blowing cool air, what should I do?

Make sure the fan is in \"ventilation\" mode and the speed is set correctly. Also check that the grill is not blocked by dust. If the problem persists, there may be an issue with the motor.

What is the power of the Vornado 560?

The Vornado 560 has a power of 120 watts, which allows effective air circulation in medium to large rooms.

Can I use the Vornado 560 in night mode?

Yes, the Vornado 560 is designed to operate quietly, making it ideal for use at night. Set it to the lowest speed for discreet operation.

Where can I buy spare parts for the Vornado 560?

Spare parts can be purchased directly from the official Vornado website or from authorized dealers. Make sure to check the compatibility of parts with your model.

Is the Vornado 560 fan covered by a warranty?

Yes, the Vornado 560 is generally covered by a limited 5-year warranty. Check the user manual for specific warranty details.

USER MANUAL 560 Vornado

We expect this product to be perfect.

If it is not, we will make it right.

vornado.com

800-234-0604

[e-mail]

CONTENTS

Important Safety Instructions

Whole Room Circulation 7

Features 8

Circulation 101

Cleaning 10

Troubleshooting 14

Warranty 15

Lspcip 10 nposp 31

READ AND SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

This owner's guide and any additional inserts are considered part of the product. They contain important information about safety, use and disposal. Before using the product, please familiarize yourself with all operating and safety instructions. Please keep all documents for future reference and pass these documents on, together with the product, to any future owner. See www.voluntary.com to view, download and print the most current version of these instructions.

INTENDED USE: This product is intended to circulate the air in motor living spaces only in the United States and Canada. This product is not intended for commercial or industrial use. The manufacturer assumes no responsibility for damage or injury due to unauthorized use or procu: modification. I see to follow these directions will void the product; warranty.

WARNING: Risk to Children and Impaired Persons

Supervision is required during the installation, operation, cleaning and maintenance of this product by children 12 years of age and younger. The supervision should be carried out by a senior professional. Children should be supervised to ensure that they do not play with the spolionics, its parts and packaging material.

INSTALLATION WARNING—to reduce risk of fire, electrical shock and injury to persons, observe the following:

Place this product away from curtains, drapes, stockings, and other fabrics, since they may be drawn into the product, damage the motor and/or cause a fire.
- No part of this product this appliance, power cord, plug, packaging

etc.) should be placed near furnaces, fireplaces, stoves or other high temperature heat sources. Do not use this product in a window, on an uneven or unstable surface, or near water.

The spoilence, power supply, power cord and plug cannot come into contact with water. Do not use this product on wet surfaces. Do not use this product in a bathtub or shower or position product where it may fall into a bathtub, laundry, swimming pool or other water container. Do not use this product on ledges or exposed it to weather or elements.

Do not run cord under carpeting. Do not cover cord with throw mags, nurners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic areas and where it will not be tripped over. The cord should not hang over edges of counters or be placed where it can be crimped or closed in doors. Place警示牌 near an easily accessible outlet so the product can be unplugged quickly during an emergency.

SAFE USE WARNING-To reduce risk of fire, electrical shock and injury to persons, observe the following:

WARNING: To reduce likelihood of circuit overload, fire and electric shock, do not operate with a solid state speed device, such as a dimmer control switch. Do not operate any for with a damaged core or plug. Discard fan or return to an authorized service facility for examination end/or repair. Do not operate unit if the unit has been dropped or damaged. Do not operate in operation mode. Do not operate in operation mode. To avoid risk of electrical shock, do not attempt to repair or replace parts. Only original replacement parts may be used. If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Contact Vornado Consumer Service at 1-800-234-6601 (phone), or [e-mail] (email) for further

instructions about replacement and repair

Before unplugging power cord into electrical outlet, be sure that all electrical information on the rating label, including voltage, is compatible with your outlet's power supply.

Fever uses the cord as a handle or otherwise yarn, strain or stretch the power cord.

While the product is plugged in, do not insert or allow foreign objects to enter any input or output opening as this may cause risk of data loss.

A loose fit between wall outlet (recoprod) and plug may cause overheating and distortion of the plug. Discontinue use of the product in this outlet. Contact a suited electrician to replace loose or worn outlets.

This appliance has a polarised plug lone blade is wider than the other. To reduce the risk of electric shock, this plug is intended to be made from a solid material. The plug is made of steel. It fits in the outer, reverses the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.

Before moving, repositioning, servicing, cleaning and when not in use, use the product controls to turn off the power and then unplug. To disconnect from outlet, grasp and pull only the plug. Also, power and water should be turned off. This is an additional for an extended portion of time or during electrical storms.

SERVICING WARNING-To reduce risk of fire, electrical shock and injury to persons, observe the following:

Clean your product regularly, only as instructed in this manual. Prior to cleaning, turn off the power on your product end unplug. Do not use any cleaning products with a high risk of contamination for cleaning. Refer to the CLEAN NG instructions provided. Do not use appliance housing while product is plugged in.

avoid risk of shock, all service and/or repairs must be done by a Vorrano Authorized Service Center.

This product employs overload protection (fuse). A blowup fuse indicates an overload or short-circuit situation. If the fuse blows, unlike the product from the outlet, replaces the fuse as per the user servicing instructors (follow product marking for proper fuse rating). The fuse may be replaced by a different fuse when the fuse circuit may be present and the product should be discarded or returned to an authorized service facility for examination and/or repair.

User Servicing Instructions

1. Using the product controls, turn off the appliance.
2. Grasp the plug (not the cord) and disconnect from the outlet.
3. Risk of Fire. Replace fuse or any 2.5 Amp, 120 Volt fuse as approved by Vornado Consumer Service. For an authorized replacement fuse, please contact Vornado Consumer Service.

4. Once the replacement is received, use a small flat-head screwdriver to slide open the fuse cover located on the plug (see Note 1).

5. Remove fuse by using the screwdriver to gently lift each end of the fuse (See Next Page, Fig. 1).

6. Install the replacement fuse by using the screwdriver to gently push each metal end of the fuse into the receptacle one at a time.

7. Show the fuse cover closed using the screwdriver. When closed, the screw should fit completely in the plug. No part of the cover should attack out (See Next Page, Fig. 1).

8. Plug your appliance into the outlet and turn the power on.
9. If the replacement fuse blows, a short circuit may be present and the product should be discarded or returned to an authorized service facility for examination and/or repair.

Risk of fire. Do not replace attachment plug. Contains a safety device (fus, AFCI, LCD) that should not be removed. Discard product if the attachment plug is damaged.

FCC Compliance Statement (Models 560, 569, 660 only) NOTE: This equipment has been tested and complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This product generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Recipient or relocate the receiving antenna.

E

Increase the separation between the product and the receiver.
- Connect the product into an outlet on a circuit different from that to which the receiver is connected.
- Contact Vodafone Consumer Services or dealer or an experienced radio/TV technician for help.

This Class B digital apparatus complies with Canadian IES 003.

Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the product.

Supplier's FCC Declaration of Conformity

Unique Identifier Varnao Modals 560,569,660

Responsible Party: Vongnac X'LLM
Mailing Address: 415 F. 13th St., Annapolis, K5 67020

SAVE THESE INSTRUCTIONS

WHOLE ROOM CIRCULATION

The Vornado's signature Whole Room Circulation delivers continuous, uniform air circulation to the entire room. Cool only the rooms that you are in and not the entire house.

A Vamoda circulates all the air in the room so everyone is comfortable. Air in motion feels closer when air that is stagnant, by providing whole room circulation, a Vamoda allows you to turn the thermostat up 5^ - saving energy and money - without sacrificing comfort

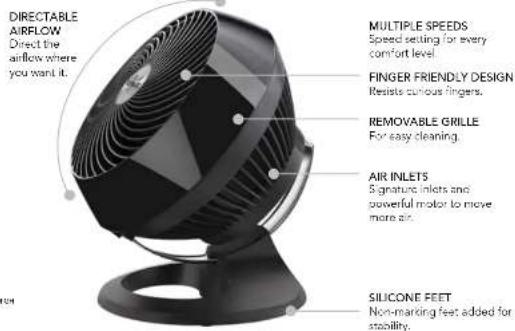

FEATURES

Save energy by maximizing the performance of heating and cooling systems. When you use a Vornado Air Circulator, you will not have to set your summertime thermostat as low or your wintertime thermostat as high. Refer to page 9 for further details.

E

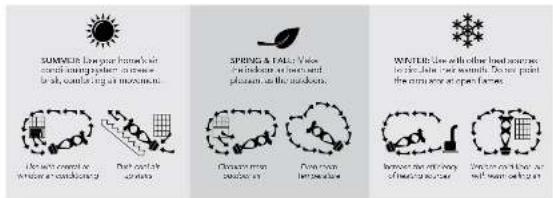

CIRCULATION 101

GETTING THE MOST OUT OF YOUR VORNADO - ALL YEAR LONG

With Vomodo Air Circulators, you can save money on enemy bills by adjusting your thermostat several degrees and still maintaining the same comfort level.

HOW TO USE

Before use, check appliance for visible damage, DO NOT USE THIS CIRCULATOR if there is evidence of damage. If any damage is found, contact Vornado Air LLC at 1-800-234-0604.

1. Plug in end position the circulator so airflow is not obstructed.

2. Set desired speed and allow a few minutes for an airflow pattern to be established. Different airflow patterns can be established by changing the location, angle and speed. Adjust until a desired comfort level is achieved.

CLEANING

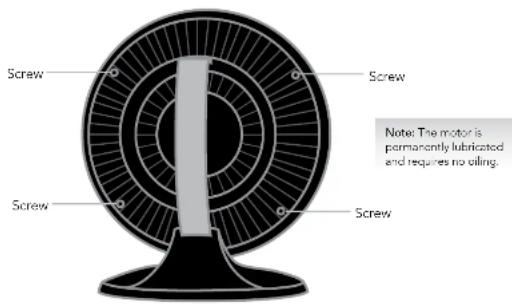

GRILLE REMOVAL (MODELS 160, 560 & 569) Screwdriver required.

WARNING: To reduce the risk of electrical shock and injury to persons, unplug the circulator before removing grille.

1. To release the Front Grillie, remove the 4 screws located on the back of the inlet grillie, located at 2,5,7, and 10~s clock position.
2. Dust or wash: Font Grilla with a mild dishwashing soap. Do not place grillie in the dishwasher. The excessive heat can distort the plastic.
3. To reachach position the FrontGrillo so the Vorrado logo inthe center of the front Grillie is straight. Replace all the screws
   Use the brush attachment on your household vacuum cleaner to vacuum any accumulated dust off the Front Grills and Air Inlets.

10 E

CLEANING

GRILLE REMOVAL (MODELS 360 & 460)

WARNING: To reduce the risk of electrical shock and injury to persons, unplug the circulator before removing grille.

1. Feel for nouns about a product, close to inlets, that help to locate screws at roughly 12, 3, 6 and 9 o'clock positions. Remove the 4 screws located at those positions, releasing the grille.
2. Dust or wash front Grillite with a mild dishwashing soap. Do not place grille in the dishwasher. The detergent heat can distort the plastic.
3. To reach position the Front Grillie so the Vornado logo in the center of the Front Grillie is straight. Replace all the screws.
   Tb Use the brush a tachment on your household vacuum cleaner to vacuum any accumulated dust off the Front Grillie and Air Intakes.

Screw

CLEANING

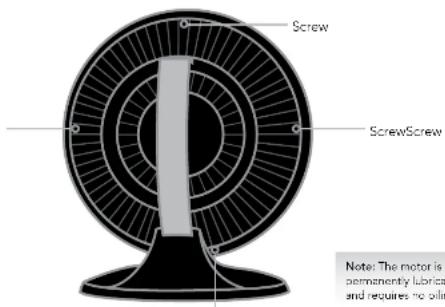

GRILLE REMOVAL (MODELS 660)

Screwdriver required.

WARNING To reduce the risk of electrical shock and injury to persons, unplug the circulator before removing grille.

1. To release the Front Grill, remove the 3 screws on the back of the inlet grille located at roughly 10,2 and 6 o'clock positions.
2. Dust or wash from Grillie with a mild dishwashing soap. Do not place grille in the dishwasher. The excessive heat can distort the plastic.
3. To reach a position the Front Grilla so the Vornado logo is in the center of the Front Grilla is straight. Realize all the screws.

Use the brush attachment on your household vacuum cleaner to vacuum any accumulated dust of the Iron Grill and Air ins.

125

CLEANING

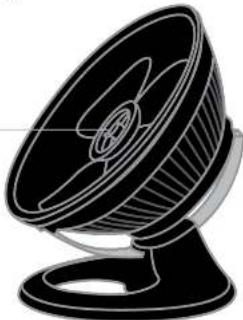

BLADE REMOVAL Piers recommended

WARNING: To reduce the risk of electrical shock and injury to persons, unplug the circulator before removing blade.

1. First, remove the nut from the shaft by turning the nut clockwise to loosen. Remove the washer. Pull the blade straight out from the shaft.
2. Wire the blade with a damp cloth. If your circulatory is used in a greasy environment, such as a kitchen, mild soap or a common household cleaner may be necessary. Do not use solvents. Do not place blade in the dishwasher. The excessive heat can distort the plastic.
3. To react back to contain the flat side of the flat agains directly with the corresponding flat side on the blade's socket. Push the blade all the way on the shaft until it bottoms out. Do not use a hammer as this could result in bearing damage. Reinsdale nut

TROUBLESHOOTING

POSSIBLE CAUSE AND SOLUTIONPROBLEM

The unit falls to power on.

Unit is not plugged in. Plug Power Cord into electricity, put it

Ensure unit for speed setting is selected.

Plug (use has blown. Replace fuse (See USER SERVICING INSTRUCTIONS on page 6).

Unit is damaged or in need of repair. Feease usage and unplug. Contact Consumer Service for assistance.

The outlet is worn or damaged. Try another outlet or contact a qualified electrician.

Unit set to a low speed setting. Adjust to a higher speed setting.

Airflow is blocked. Remove obstruction.

Adjust direction of airflow towards the user.

GFCI has tripped.

Under certain conditions, it is possible for a reset GFCI (Ground Fault Circuit interrupter) outlet to tip when the user is charging speeds on a Vornado circulation. In this event, change to an outlet that is not connected to a GFCI device. It could also indicate a weak or defective GFCI outlet. Contact a qualified electronician to check the GFCI outlet.

14E

WARRANTY

We expect this product to be perfect. If you're not satisfied with this product, let us know.

We're Here To Help

800.234.0604

yornado.com

[e-mail]

Vemurafen A (C) "Vemurafen" actuarial is the original consumer or counterpart of this Vemurafen Whole/Ordeal (Tiroflox, C.) is free from defects in material or otherwise for a point of view (B) from the nature of cardiac arrhythmia. Any such defect is a dissection with V. 289: vorty, vena cava, Vemurafen, at least as well as implant or修补 the Puerine in one small

Fur matrally autowc, Call 1006234-0606 or e-mail [e-mail] to submit a Return Authorization (RAI)批复 or Indicate your product's model number or serial number as well as your name, addwic, city state zip code, e-mail, and phone number. Your return response will be sent in the form of a letter with a date of delivery, claim, vorture notice, or contact us.

After receiving the BA firm, ship your Customer to Vodafone Air LLC. Warranty & Repair 4th Part: BT in Shown Assembly (COSMOS). For your warranty, please have your material checked before shipping. This will be a very important step in the process. After this, you can proceed hardening; judgements must clearly mark with the BA number. Judgements not included in the product description are not included in the product description unless you use the A/S used for warranty service and return of your product after the 'mark' is received.

This warranty does not apply to defects resulting from use of the product, modification, alteration, manufacturing, nonpart maintenance, commercial use or repair of service. The Product Warranty applies that Verma's damage is of its usual inbuilt repair and/or able to act as Good Impact product use, which includes using or national devices that are in motion or subject to the voltage or frequency of electricity, or shipping a Verma product prior to a country it intended for use will hold a warranty. Any manufacturer and a product.

modification, such as unauthorized riparian center, or use of non-approved replacement parts is not recommended and any consequences will not be covered by support services. The use of a new product in the last 12 months may not be considered to be required in the country intended. THEVIRAL OR CLINICAL? AS WELL? UNLESS OTHERWISE, THIS WARRANTY IS THE EXCELLOUS PRINCIPLE OF "THE CONSUMER WORRY AND I DO NOT BELIEAR THAT ANY INDICATE OR CONCREJUAL DEFENCE FOR REACH OF A NEW PRODUCT OR SERVICE" (ITEM 10.3). THE WARRANTY IS NOT INTENDED TO PROPRIETISE BY APPICARE! ANY IMPED' WARRANTY OF MERCULE-ANTHILARY OR 'TITLES OR QUALITY/CONDITIONS ON THIS PRODUCT IS HELD IN DURATION TO THE DURATION OF THIS WARRANTY. Some states do not allow the use of this product because of their legal requirements. This product has been used for many years but, so the above limitations or exclusions may not apply to you. This warranty gives private legal rights, and may, upon reasonable right, carry from you the warranty on all matters associated with responsibility for damage caused to you. To follow those standards, improve products use. Any such warranty will invalidate the productarranty.

All company names and product names are trademarks of their respective customer. ©
All rights reserved. All material information on this web site, except for the use in this publication, may not be copied or transmitted without written permission. This work may not be reproduced or transmitted in any form without written permission. This corresponds to the individual user's right to copy from the actual product. ©See www.all rights.com for additional supplements.

Dnged angreeed and austnred in Andover, K2

念 2022 Vessels and Endocarditis, K9 S100CA U.S. Patient Funding: Spanish National Institute for the Study of Vascular Drugs, University of Valencia, Spain

WARNING: To reduce the risk of electrical shock and injury to persons, unplug the circulator before removing grille.

POSIBLE CAUSA Y SOLUCIONPROBLEMA

El atrafacto no se andende.

2022 Veri 11.14, 16, 2022 U.S. Patent No. 53789366 (Filed on April 2, 2022)

30E

Theorem 1. The existence of the canonical measure on a nonoverline{co} hyperbolic basis of ^n is equivalent to the existence of the canonical measure on a submanifold of the real line L in the unit sphere. The existence of the real line L in the unit sphere is equivalent to the existence of the real line L in the unit sphere.

© 2022 Vinylios Y. Li, MD, PhD, MS 670024 B, Bowen, anetin, Barabashov and yuzan

VORNADO

Vornado Air, LLC

415 East 13th Street, Andover, Kansas 67002

800.234.0604 | vornado.com

CL3-0415 RB, V01
