USER MANUAL WA45H7000AP SAMSUNG

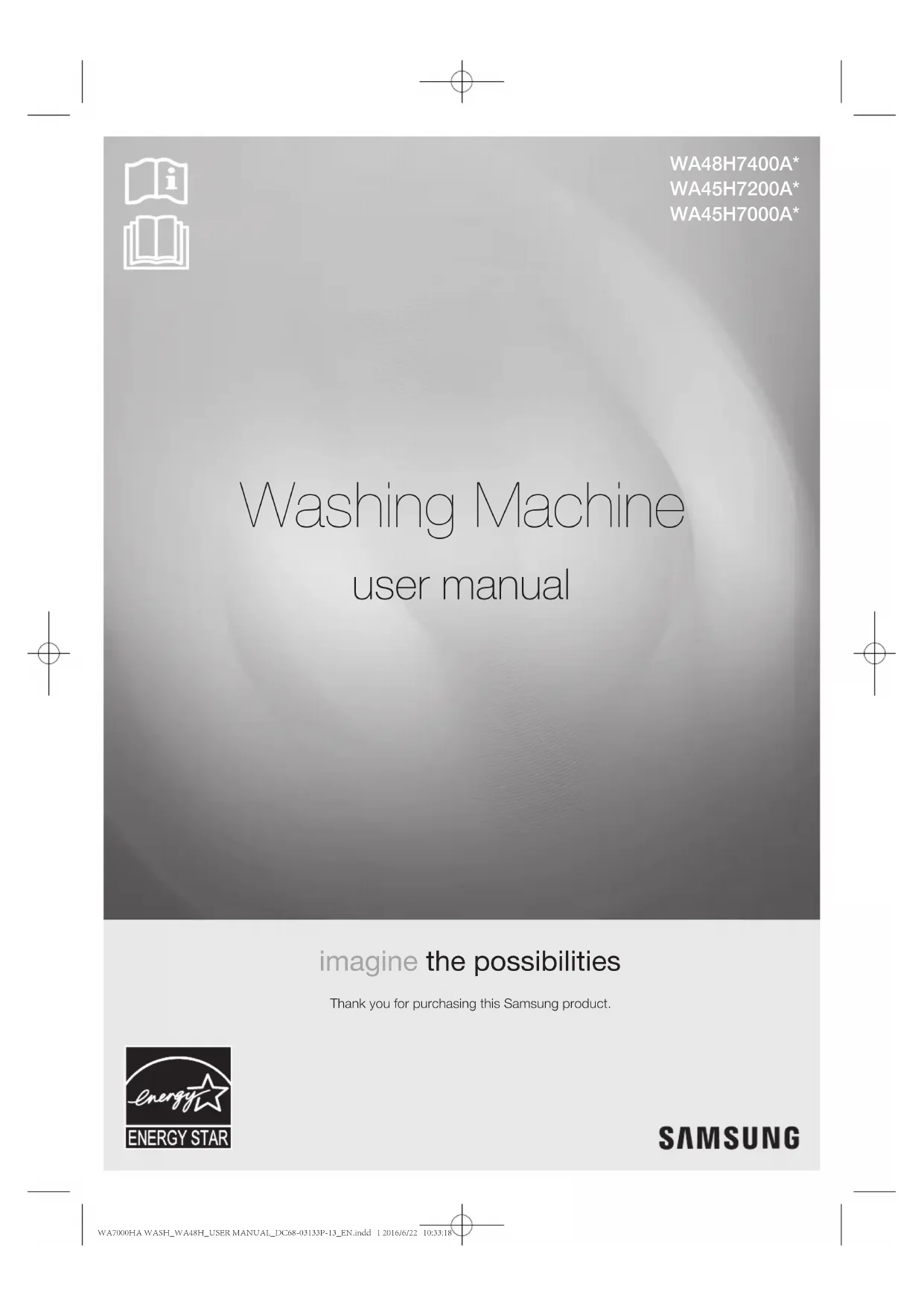

Washing Machine user manual WA48H7400A* WA45H7200A* WA45H7000A* imagine the possibilities Thank you for purchasing this Samsung product. WA7000HA WASH_WA48H_USER MANUAL_DC68-03133P-13_EN.indd 1 2016/6/22 10:33:18English - 2 contents installing your washer

10 Unpacking your washer 10 Overview of your washer 11 Basic location requirements 11 Electrical 11 Grounding 11 Water 12 Drain facility 12 Flooring 12 Location considerations 12 Alcove or closet installation 13 Required dimensions for Installation 13 Important note to installer operating instructions

17 Loading your washer 17 Getting started washing a load of laundry

18 Overview of the control panel 20 Child Lock [

27 Cleaning the exterior 27 Cleaning the interior 27 Storing your washer 27 Preserving the top cover and the front frame 27 Cleaning mesh filter 28 Cleaning the dispensers 29 Self Clean troubleshooting

34 Fabric care chart 35 Cycle chart 38 Helping the environment 38 Declaration of conformity 38 Specification WA7000HA WASH_WA48H_USER MANUAL_DC68-03133P-13_EN.indd 2 2016/6/22 10:33:18English - 3 safety information Congratulations on your new Samsung Washer. This manual contains important information on the installation, use, and care of your appliance. Please take time to read this manual to take full advantage of your washer’s many benefits and features. WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your washer.

IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS

What the icons and signs in this user manual mean: warningHazards or unsafe practices that may result in severe personal injury or death.To reduce the risk of fire, explosion, electric shock, or personal injury when using your washer, follow these basic safety precautions: cautionHazards or unsafe practices that may result in minor personal injury or property damage.Do NOT attempt.Do NOT disassemble.Do NOT touch.Follow directions explicitly.Unplug the power plug from the wall socket.Make sure the machine is grounded to prevent electric shock.Call the service center for help. Note These warning icons are here to prevent injury to you and others.Please heed them explicitly.After reading this section, keep it in a safe place for future reference.Read all instructions before using the appliance. saVe these instructions WA7000HA WASH_WA48H_USER MANUAL_DC68-03133P-13_EN.indd 3 2016/6/22 10:33:18English - 4

SAVE THESE INSTRUCTIONS

WARNING State of California Proposition 65 Warning (US only) This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

IMPORTANT SAFETY PRECAUTIONS

To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following:1. Read all instructions before using the appliance.2. Do not wash or dry articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, other flammable or explosive substances as they give o vapors that could ignite or explode.3. Do not allow children to play on or in the appliance. Close supervision of children is necessary when the appliance is used near children.4. Before the appliance is removed from service or discarded, remove the lid of the washing or drying compartment.5. Do not reach into the appliance if the drum is moving.6. Do not install or store this appliance where it will be exposed to the weather.7. Do not tamper with the controls.8. Do not repair or replace any part of the appliance or attempt any servicing unless it is specifically recommended in the user-maintenance instructions or in published user-repair instructions that you understand and have the skills to carry out.9. Do not add gasoline, dry-cleaning solvents, or other flammable or explosive substances to the wash water. These substances give o vapors that could ignite or explode.10. Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for 2 weeks or more, before using a washer or combination washer-dryer, turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time. safety information WARNINGWARNINGWA7000HA WASH_WA48H_USER MANUAL_DC68-03133P-13_EN.indd 4 2016/6/22 10:33:18English - 5 criticAl instAllAtion WArninGs Plug the power cord into an AC 120 V / 60 Hz/wall socket rated at 15 amps or higher. Use the socket for this appliance only. In addition, do not use an extension cord. - Sharing a wall socket with other appliances, using a power strip, or extending the power cord may result in electric shock or fire. - Do not use an electric transformer. It may result in electric shock or fire. - Ensure that the power voltage, frequency, and current match the product’s specifications. Failing to do so may result in electric shock or fire. Have this appliance installed by a qualified technician or service company. - Failing to do so may result in electric shock, fire, an explosion, problems with the product, or injury. Remove all foreign substances such as dust or water from the power plug terminals and contact points using a dry cloth on a regular basis. - Unplug the power plug and clean it with a dry cloth. - Failing to do so may result in electric shock or fire. Plug the power plug into the wall socket in the right direction so that the cord runs towards the floor. - If you plug the power plug into the socket in the opposite direction, the electric wires within the cable may be damaged and this may result in electric shock or fire. This appliance must be properly grounded. Do not ground the appliance to a gas pipe, plastic water pipe, or telephone line. - Improper grounding may result in electric shock, fire, an explosion, or problems with the product. - Never plug the power cord into a socket that is not grounded correctly. Make sure the socket you use is grounded in accordance with local and national codes. Do not install this appliance near a heater or flammable material. Do not install this appliance in a humid, oily, or dusty location, or in a location exposed to direct sunlight or water (rain drops). Do not install this appliance in a location where gas may leak. - This may result in electric shock or fire. Plug the power plug into the wall socket firmly. Do not use a damaged power plug, damaged power cord, or loose wall socket. - This may result in electric shock or fire. Do not pull or excessively bend the power cord. Do not twist or tie the power cord. Do not hook the power cord over a metal object, place a heavy object on the power cord, insert the power cord between objects, or push the power cord into the space behind the appliance. - This may result in electric shock or fire. Do not pull the power cord when unplugging the power plug. - Unplug the power plug by holding the plug. - Failing to do so may result in electric shock or fire. If the power plug or power cord are damaged, contact your nearest service center. saVe these instructions WArninG WA7000HA WASH_WA48H_USER MANUAL_DC68-03133P-13_EN.indd 5 2016/6/22 10:33:18English - 6 instAllAtion cAutions Position the appliance so that the power plug is easily accessible. - Failing to do so may result in electric shock or fire due to electric leakage. Install your appliance on a level and hard floor that can support its weight. - Failing to do so may result in abnormal vibrations, noise, or problems with the product. Unplug the power plug when the appliance is not being used for long periods of time or during a thunder/lightning storm. - Failing to do so may result in electric shock or fire. criticAl usAGe WArninGs If the appliance is flooded, cut the power immediately and contact your nearest service center. If the appliance emits a strange noise, a burning smell, or smoke, unplug the power plug immediately and contact your nearest service center. - Failing to do so may result in electric shock or fire. In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate the area immediately. Do not turn any appliance or light on or o. - Do not use a ventilating fan. - A spark may result in an explosion or fire. Do not wash items contaminated with gasoline, kerosene, benzene, paint thinner, alcohol or other flammable or explosive substances. - This may result in electric shock, fire, or an explosion. Do not force the washer lid open while the washer is operating (high-temperature washing/ drying/spinning). - Water flowing out of the washer may cause burns or cause the floor to be slippery. This may result in injury. - Forcing the lid open can damage the product or cause injury. Make sure to remove the packaging (sponge, styrofoam) attached to the bottom of the washer before using it. Do not insert your hand under the washer. - This may result in injury. safety information saVe these instructions WArninGcAutionWA7000HA WASH_WA48H_USER MANUAL_DC68-03133P-13_EN.indd 6 2016/6/22 10:33:18English - 7 Do not touch the power plug with wet hands. - This may result in electric shock. Do not turn the appliance o by unplugging the power plug while the washer is in operation. - Plugging the power plug into the wall socket again may cause a spark and result in electric shock or fire. Keep all packaging materials well out of the reach of children, as packaging materials can be dangerous to children. - If a child places a bag over their head, the child may suocate. Do not let children or infirm persons use this washer unsupervised. - Failing to do so may result in electric shock, burns or injury. Do not insert your hand or a metal object under the washer while it is operating. - This may result in injury. Do not attempt to repair, disassemble, or modify the appliance yourself. - Do not use any fuse (such as copper, steel wire, etc.) other than the standard fuse. - If you need to repair or reinstall the appliance, contact your nearest service center. - Failing to do so may result in electric shock, fire, problems with the product, or injury. If any foreign substance such as water enters the appliance in any area other than the tub, unplug the power plug and contact your nearest service center. - Failing to do so may result in electric shock or fire. If the water supply hose comes loose from the faucet and floods the appliance, unplug the power plug. - Failing to do so may result in electric shock or fire. usAGe cAutions If the washer is contaminated by a foreign substance such as detergent, dirt, food waste, etc., unplug the power plug and clean the washer using a damp, soft cloth. - Failing to do so may result in discoloration, deformation, damage or rust. The clear portion of the lid can be broken by a strong impact. Take care when using the washer. - If the clear portion is cracked or broken, it may result in injury. After a water supply failure or when reconnecting the water supply hose, open the faucet slowly. Open the faucet slowly after a long period of non-use. - The air pressure in the water supply hose or the water pipe may result in damage to a part or in water leakage. If a drain error occurs during an operation, check if there is a draining problem. - If the washer is used when it is flooded because of a draining problem, it may result in electric shock or fire due to electric leakage. Do not insert your hand under the washer. - This may result in injury. saVe these instructions cAution WA7000HA WASH_WA48H_USER MANUAL_DC68-03133P-13_EN.indd 7 2016/6/22 10:33:18English - 8 Insert the laundry into the washer completely so that laundry does not get caught in the lid. - If laundry gets caught in the lid, it may result in damage to the laundry or the washer, or result in water leakage. Ensure that the faucet is turned o when the washer is not being used. - Ensure that the water supply hose connectors are properly tightened. - Failing to do so may result in property damage or injury. Open the faucet and check if the water supply hose connector is firmly tightened and that there is no water leaking before using the product. - If the water supply hose connectors are loose, it may result in water leakage. Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance. - This may result in electric shock, fire, problems with the product, or injury. Do not operate the appliance with wet hands. - This may result in electric shock. Do not spray volatile material such as insecticide onto the surface of the appliance. - As well as being harmful to humans, it may also result in electric shock, fire, or problems with the product. Do not place an object that generates a electromagnetic field near the washer. - This may result in injury due to a malfunction. Since the water drained during a high-temperature wash or drying cycle is hot, do not touch the water. - This may result in burns or injury. For waterproof fabrics, only use the WATERPROOF cycle. - Do not use other cycles for waterproof fabrics.

• This may result in injury or damage to the washer, walls, floor, or clothing due to abnormal vibrations. - Set the temperature and spin according to the attached care label. Do not operate the washer when detergent dispenser is removed. - This may result in electric shock or injury due to water leakage. Do not insert your hand into the detergent dispenser after opening it. - This may result in injury as your hand may be caught. safety information saVe these instructions WA7000HA WASH_WA48H_USER MANUAL_DC68-03133P-13_EN.indd 8 2016/6/22 10:33:19English - 9 Do not place any non-laundry objects, such as shoes, food waste, or animals into the washer. - This can cause abnormal vibrations that can damage the washer, and, in the case of pets, cause severe injury or death. Do not press the buttons using sharp objects such as pins, knifes, fingernails, etc. - This may result in electric shock or injury. Do not wash laundry contaminated by oils, creams, or lotions usually found in skincare shops or massage clinics. - This may result in the rubber seal becoming deformed and water leakage. Do not leave metal objects (safety pins, hair pins, etc.) or bleach in the tub for long periods of time. - This may cause the tub to rust. - If rust appears on the surface of the tub, apply a neutral cleansing agent to the surface and use a sponge to clean it. Never use a metal brush. Do not use dry cleaning detergent directly and do not wash, rinse, or spin laundry contaminated by dry cleaning detergent. - This may result in spontaneous combustion or ignition due to heat from the oxidation of the oil. Do not use hot water from water cooling/heating devices. - This may result in problems with the washer. Do not use natural hand-washing soap in the washer. - If it hardens and accumulates inside the washer, it may cause problems with the product, discoloration, rust, or bad odors. Do not wash large laundry items such as bedding in the washing net. - Failing to do so may result in injury due to abnormal vibrations. - Place smaller items, such as lace socks and lingerie in the washing net. Do not use hardened detergent. - If it accumulates inside the washer, it may result in water leakage. Do not wash throw rugs or doormats. - If you wash throw rugs or doormats, the sand will accumulate inside the washer. It may result in error such as no draining. criticAl cleAninG instructions Do not clean the appliance by spraying water directly onto it. Do not use the strong acid cleaning agent. Do not use benzene, thinner, or alcohol to clean the appliance. - This may result in discoloration, deformation, damage, electric shock, or fire. Before cleaning or performing maintenance, unplug the appliance from the wall socket. - Failing to do so may result in electric shock or fire. saVe these instructions WArninG WA7000HA WASH_WA48H_USER MANUAL_DC68-03133P-13_EN.indd 9 2016/6/22 10:33:19English - 10 installing your washer unpAckinG your WAsHer Unpack your washer and inspect it for shipping damage. Make sure you have received all the items shown below. If your washer was damaged during shipping, or you do not have all of the items, contact 1-800-SAMSUNG (1-800-726-7864). To prevent personal injury or strain, wear protective gloves whenever lifting or carrying the washer. Packing materials can be dangerous to children. Keep all packing material (plastic bags, polystyrene, etc.) well out of children’s reach. When unpacking the washer, 2 person collaboration is needed. To remove the cushion bottom of the packing materials, forward dumping is strictly prohibited. When you lay the washer down to remove carton base, should protect the side of washer and lay it carefully. Never lay your washer on its back or front. overvieW of your WAsHer Parts supplied Hose guide User manual book Plastic zip hose tie Water intake cap Tools needed Wrench Flat screwdriver Level Adjustable plier Measuring tape Parts not supplied

• Ifyouloseanaccessoryandwanttopurchaseareplacement,contactthe Samsung service center (1-800-SAMSUNG (1-800-726-7864)).

• Thedesignofthepartsandaccessoriesmaydierfromthepicturesabove.Theirdesignis subject to change without notice for product improvement.

• Donotreuseoldhoses.Onlyusenewwatersupplyhoseswhenyouinstallthewashing machine. Old water supply hoses can leak or burst causing flooding and property damage.

• Individual branch circuit serving only your Washer is recommended.

• Your Washer is equipped with a power cord. NEVER USE AN EXTENSION CORD. Grounding ELECTRICAL GROUNDING IS REQUIRED FOR THIS APPLIANCE. This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a power cord having a three-prong grounding plug for use in a properly installed and grounded outlet. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. An improperly connected equipment-grounding conductor can increase the risk of electrical shock. Check with a qualified electrician or serviceman if you are not sure whether the appliance is properly grounded. Do not modify the plug provided with the appliance – if it does not fit the outlet, have a proper outlet installed by a qualified electrician.

IMPORTANT SAFETY PRECAUTIONS

• To prevent unnecessary risk of fire, electrical shock or personal injury, all wiring and grounding must be done in accordance with the National Electrical Code ANSI/FNPA, No. 70 Latest Revision and local codes and ordinances. It is the personal responsibility of the appliance owner to provide adequate electrical service for this appliance. NEVER CONNECT THE GROUND WIRE TO PLASTIC PLUMBING LINES, GAS LINES, OR HOT WATER PIPES. Water To correctly fill your Washer in the proper amount of time, water pressure of 20 to 116psi (137 to 800kPa) is required. Water pressure less than 20 psi may cause water valve failure, or may not allow the water valve to shut o completely, or may extend the fill time beyond what your Washer controls allow, causing your Washer to turn o. A time limit is built into the controls to prevent flooding in your home if a hose becomes loose. The water faucets must be within 4 feet / 122 cm of the back of your Washer to match the inlet hoses provided with your Washer. Accessory inlet hoses are available in various lengths up to 10 feet / 275 cm for faucets that are further away from the back of your Washer. To avoid the possibility of water damage:

• Have water faucets easily accessible.

• Turn o faucets when the washer is not in use.

• Periodically check that there is no leakage from the water inlet hose fittings. CHECK ALL CONNECTIONS AT THE WATER VALVE AND FAUCET FOR LEAKS. 01 installing your washer cautionwarningcautionwarningWA7000HA WASH_WA48H_USER MANUAL_DC68-03133P-13_EN.indd 11 2016/6/22 10:33:20English - 12 Drain facility The recommended height of the standpipe is 39 in / 99 cm. The drain hose must be routed through the drain hose clip to the standpipe. The standpipe must be large enough to accept the outside diameter of the drain hose. The drain hose is attached to the washer at the factory. Flooring For best performance, you must install your washer on a solidly constructed floor. Wood floors may need to be reinforced to minimize vibration and/or unbalanced load situations. Carpeting and soft tile surfaces are contributing factors to vibration which can cause your washer to move slightly during the spin cycle. Never install your washer on a platform or weakly supported structure. Location considerations Do not install your washer in areas where water may freeze, since your washer will always retain some water in its water valve, pump, and hose areas. Frozen water can damage the belts, the pump, hoses, and other components. Alcove or closet installation MINIMUM CLEARANCES FOR CLOSET AND ALCOVE INSTALLATIONS: Sides – 1 in / 25 mm Rear – 6 in / 152 mm Closet Front – 2 in / 51 mm TOP - 21 in / 533 mm Gap between end of water valve and the wall - Case 1. Assemble supply hose after installing : Over 3.9 in (10 cm). - Case 2. Assemble supply hose before installing : Over 2.8 in (7cm). If the washer and dryer are installed together, the closet front must have at least a 72 in² (465 cm²) unobstructed air opening. Your washer alone does not require a specific air opening. A. Recessed area B. Side view - closet or confined area installing your washer 2 in. (5.1 cm) 6 in. (15.2 cm)

21 in. (53.3 cm) Case 1. 3.9 in. (10 cm)Case 2. 2.8 in. (7 cm)

1 in. (2.5 cm) 1 in. (2.5 cm)

Please read the following instructions carefully before installing your washer. These instructions should be retained for future reference. We recommend you hire a professional to install this washer. Installation Flow chart step 1 Selecting a Location Before you install the washer, make sure the location:

• Hasadequateventilation.

• Hasenoughspacesothatthewasherdoesn’trestonitspowercord. 27.0 in.(68.6 cm)43.9 in.(111.5 cm)39.3 in.(99.8 cm)29.3 in.(74.4 cm)29.3 in.(74.4 cm)43.9 in.(111.5 cm)58.1 in.(147.6 cm)Closet or Door48 in.² *(310 cm²)24 in.² *(155 cm²)3 in.(7.6 cm)3 in.(7.6 cm)*Required spacingSelectinga locationRemoving the shipping bolts(*Drum only)Adjusting the levelling feetConnecting the water and the drain[Running a test cycle]Run a test cycle(Rinse+Spin)with small amount of laundary(about 4~5 Towels)Runninga Calibration mode Powering your washing machineFinish the installationDoes a Laundary machine Vibrate?

Yes Please check again before steps. 01 installing your washer WA7000HA WASH_WA48H_USER MANUAL_DC68-03133P-13_EN.indd 13 2016/6/22 10:33:21English - 14 STEP 2 Connecting the water and the drain Connecting the water supply hose Before installing the water supply hoses, make sure there are rubber gaskets inside the fittings at both ends of each new water hose. Installing the water supply hoses without rubber gaskets can cause water leakage. When you initially install the washer, be sure to use new hoses. Failing to do so may result in a water leakage or overflow and may damage your property. Do not connect multiple water supply hoses together to increase the length of the supply hose. Hoses connected this way can leak and the leakage can cause electrical shock. If a hose is too short, replace the hose with a longer, high pressure hose.

1. Connect the ends of the water supply hoses to the HOT and COLD

2. Tighten the fittings by hand until they are snug, and then tighten them an

additional two-thirds of a turn with a plier. When you fasten the fittings, do not fasten them too tightly or apply tape or sealant to the faucets or water supply intakes. This can damage the fittings. After you have connected the water supply hoses to the faucets, ensure that they are connected correctly by pulling the water supply hoses downwards

3. Place the unconnected ends of the hoses into a bucket and open the

faucets connected to the two water supply hoses for 10 or 15 seconds to remove any foreign substances from the hoses. Close the faucets before continuing.

4. Connect the ends of the water supply hoses to the water supply intake

connections at the back of the washer. The water supply hose connected to the HOT faucet must be connected to the hot water supply intake and the water hose connected to the COLD faucet must be connected to the COLD water supply intake.

5. Tighten the fittings by hand until they are snug, and then tighten them

an additional two-thirds of a turn with a plier. To ensure the correct water usage, connect both the HOT and COLD water faucets. If either or both are not connected, an “4E” (no fill) error can occur. If you do not want to use the HOT water supply hose, insert the water intake cap into the HOT water supply intake hole. In this case, you must select the Tap Cold option for the water temperature. If you select the Tap Cold option, all the lamps for the water temperature options are turned o. Confirm that the water supply hoses are not twisted or bent. If the hoses are twisted or bent, the hoses can leak and cause electric shock due to the water leakage.

6. Turn on the HOT and COLD water supplies and check all the water

supply intake connections and the faucets for water leaks. installing your washer Rubber Washer Coupling CAUTIONCAUTIONCAUTIONCAUTIONCAUTIONCAUTION WA7000HA WASH_WA48H_USER MANUAL_DC68-03133P-13_EN.indd 14 2016/6/22 10:33:22English - 15 Connecting the drain hose The end of the drain hose can be positioned in three ways: In a Wall standpipe or Floor standpipe The height of end of standpipe must be no lower than 39 in (99 cm) and no higher than 96 in (245 cm). If drain pipe are built into the wall with water valves (A), fasten the drain hose to the water hose. Make sure that the connection between the drain hose and the standpipe is not airtight. In a laundry tub The height of the tub must be no lower than 39 in (99 cm) and no higher than 96 in (245 cm). Assemble the supplied Hose guide at the end of the drain hose, and put the hanger on laundry tub. And fasten the drain hose to the leg of laundry tub. Connect the hose guide (A) within 3~5 in (7.6~12.7 cm)* from the end of the drain hose. If the drain hose is extended beyond the end of the hose guide, mold or microorganisms could spread inside the washer. Drain Hose can be installed until 96 in (245cm) maximum. But drain capability can be reduced at this height. It causes the washer to have odor, because of remained water in the drain system. If the drain hose is installed below 39 in (99 cm), water can be drained in cycles due to a siphon phenomenon. It causes the washer to display a “4E” error code. STEP 3 Leveling your washer See if the washer is level by checking the position of the tub:

1. Slide the washer into position.

2. Open the lid of the washer, and pour the water into the tub to

just below the pulsator level.

3. If the washer is level, the pulsator is positioned at the center of the

water as shown in the figure. If not, level your washer by turning the front leveling feet clockwise or counterclockwise as necessary. Turn the front leveling feet clockwise to raise the washer, and counterclockwise to lower the washer.

01 installing your washer Loosen LockPulsatorAdjustable legs(three)WA7000HA WASH_WA48H_USER MANUAL_DC68-03133P-13_EN.indd 15 2016/6/22 10:33:23English - 16 STEP 4 Powering your washer Plug the power cord into a 3-prong, well grounded 120 volt 60 Hz approved electrical outlet protected by a 15-amp fuse or comparable circuit breaker. Your washer is grounded through the third prong of the power cord when plugged into a three-prong grounded electrical outlet. Test run Make sure that you install your washing machine correctly by running the Rinse+Spin cycle after the installation is complete. STEP 5 Running a test cycle Run a test cycle as follows to check if your washer is properly installed.

1. Load about 6 pounds of laundry into the tub.

2. Press the Power button to turn on your washer.

3. Select the Rinse+Spin cycle by turning the Cycle Selector.

4. Press the Start/Pause button to start the test cycle.

5. The washer should not rock or vibrate excessively when water is supplied or when washing

or spinning, and should drain well during the spin cycle. If water leaks while water is being supplied or drained, check the water connections. Refer to the “Connecting the water and the drain” section on pages 14~15 for instructions. If the washer rocks and vibrates excessively, level your washer again. Refer to the “Leveling your washer” section on page 15 for instructions. STEP 6 Calibration mode Your Samsung washing machine detects the laundry weight automatically. For more accurate weight detection, please run Calibration Mode after the installation. To run Calibration Mode, follow these steps:

1. Remove laundry or any contents in the machine.

2. Press the Temp. and Delay End buttons simultaneously, and then press the Power button.

The machine turns on.

3. Press the Start/Pause button to activate “Calibration Mode”.

4. The pulsator rotates clockwise and counterclockwise for approximately 1 minute.

5. When “Calibration Mode” is finished, “End” (WA48H7400A*, WA45H7200A*) / “0”

(WA45H7000A*) appears on the display, and the machine automatically turns o. The washing machine is now ready for use. installing your washer WA7000HA WASH_WA48H_USER MANUAL_DC68-03133P-13_EN.indd 16 2016/6/22 10:33:23English - 17 operating instructions

WARNING: To reduce the risk of fire, electric shock, or injury to persons when using your appliance,

follow basic precautions, including the following:

• Fill the tub with dry, unfolded clothes evenly around in order to enhance washing eciency and prevent excess wear, or wrinkling of the load. - For optimal washing performance, make sure the laundry is piled up evenly.

• Wash delicate items such as bras, hosiery, and other lingerie in the Delicates cycle with similar lightweight items.

• When washing big bulky items or a few smaller items that don’t fill the tub completely – a rug, a pillow, stued toys, or one or two sweaters, for example – add a few towels to improve spin performance.

• Do not insert bulky items except for Bedding in this cycle. During the spin cycle, the washer may add additional water to redistribute the clothes and correct an imbalance inside the drum.

• When washing heavily soiled loads, do not overload your washer to ensure good cleaning results.

• Inatableitemsmaycausedamagetothelaundryorthemachineduringthewashordrying process.

• Regardlessofthesize,blanketsorquiltsaresaferandcleanertowashoneitematatime. Two dierent-sized blankets in the same load may compromise the drying performance due to unbalanced loads. To input a blanket Fold the blanket into the blanket-specific net as shown, and then insert in the tub below the plastic area of the tub. Make sure the laundry is inserted completely.

1. Press the Start/Pause button to pause the washer.

2. Wait for the door to unlock automatically, and then open the door.

1. Load your washer.

2. Add liquid (or powder) detergent and additives to the dispenser (see pages 24~26).

7. The estimated cycle time will appear in the display.

The time may fluctuate to indicate the time remaining in the cycle better. The actual time required for a cycle may dier from the estimated time in the display depending on the water pressure, water temperature, detergent, and laundry.

8. Before your washer starts to fill, it will make a series of clicking noises to check the door lock and do a

• When the cycle is complete, the Door Lock light will go out and “End” (WA48H7400A*, WA45H7200A*) / “0” (WA45H7000A*) will appear in the display.

• Pressing the Power button cancels the cycle and stops your washer.

The Wash, Rinse , and Spin indicator lights will illuminate during those portions of the cycle. 02 operating instructions WARNINGWARNINGWARNING WA7000HA WASH_WA48H_USER MANUAL_DC68-03133P-13_EN.indd 17 2016/6/22 10:33:23English - 18 washing a load of laundry overvieW of tHe control pAnel Cycle Selector Select the appropriate cycle for the type of load. The cycle you select determines the tumble pattern and spin speed for the cycle. To minimize wrinkling of laundry, select the Perm Press cycle. normAl - For most fabrics including cottons, linens, and normally soiled garments. HeAvy duty - For sturdy, colorfast fabrics and heavily soiled garments. colors/dArks (WA48H7400A*, WA45H7200A*) - For brightly or dark colored casual garments. beddinG - For bulky and large items, such as comforters, blankets and sheets. When washing comforters, use liquid detergent. Waterproof sheets and all water resistant items should be washed using the waterproof cycle. Use the waterproof cycle for waterproof or water-resistant items such as mattress covers, plastic mats, bath mats, ski pants, raincoat and comforters which hardly absorb water. delicAtes - For sheer fabrics, bras, lingerie, silks, and other handwash-only fabrics. For best results, use liquid detergent. WA48H7400A*

WA7000HA WASH_WA48H_USER MANUAL_DC68-03133P-13_EN.indd 18 2016/6/22 10:33:24English - 19 WATERPROOF - For waterproof or water-resistant items. Do not wash waterproof items and non-waterproof items together. Check the specification label on the fabric item and see if the item is waterproof. Do not wash non-waterproof items with the WATERPROOF cycle. PERM PRESS - For wash-and-wear, synthetic fabrics, and lightly to normally soiled garments. ACTIVE WEAR (WA48H7400A*, WA45H7200A*) - Use this cycle to wash exercise wear such as sports jerseys, training pants, shirts/tops and other performance clothing. This cycle provides eective soil removal with gentle action for special fabric care. QUICK WASH - For lightly soiled garments needed quickly. SPIN - Drains the water and spins at a high speed. RINSE + SPIN - Use for loads that need rinsing only or to add rinse-added fabric softener to a load. Display Provides instructions and diagnostics while keeping you updated on the cycle status and time remaining. Temp. selection button Press the button repeatedly to cycle through the dierent water temperature options. Hot - Whites and heavily soiled, colorfast items. Warm - Colorfast items. Eco Warm - Moderately soiled, colorfast items; most wrinkle-free items. Cold - Brightly colored, very lightly soiled items. Tap Cold - Cold water with no warm water added. If you select the Tap Cold option, all the lamps for the water temperature options are turned o. Spin selection button Press the button repeatedly to cycle through the dierent spin speed options. High - Use for underwear, t-shirts, jeans, and sturdy cottons. Medium - Use for jeans, wrinkle-free or wash-and-wear items, and synthetics. Low - Use for delicate items needing a slow spin speed. No Spin - Drains your washer without spinning. Use for extremely delicate items that cannot tolerate any spin. Soil Level selection button Press the button to select the soil level/washing time. Heavy - For heavily soiled loads. Normal - For moderately soiled loads. This setting is best for most loads. Light - For lightly soiled loads. Select Cycle Option Press these buttons to select dierent cycle options. AquaJet

Deep Clean (WA48H7400A*) - Improve washing performance through longer AquaJet spray action. Water Level can be adjusted. AquaJet

(WA45H7200A*) - Improves the washing & rinsing performance using falling water. Extra Rinse (WA45H7000A*) - Change from spray rinse mode to deep rinse mode, and rinse once again. Delay End - Delay the end of any cycle for up to 19 hours in one-hour increments. Displayed hour indicates the time the wash will be ended. Self Clean - Use to clean dirt and bacteria from the drum. Regular use (after every 40 washes) is recommended. No detergent or bleach is needed. Pre Soak - It adds 15 minutes soaking time at the start of the wash cycle for better stain removal. Start/Pause selection button Press to pause and restart cycles. Power button Press once to turn your washer on. Press again to turn your washer o. If the washer is left on for more than 10 minutes without any buttons being pressed, the power automatically turns o.

03 washing a load of laundry

WA7000HA WASH_WA48H_USER MANUAL_DC68-03133P-13_EN.indd 19 2016/6/22 10:33:24English - 20 Child Lock [ ] Child Lock prevents children from playing with your washer. Activating the Child Lock function Press and hold the Spin and Soil Level buttons simultaneously for approximately 3 seconds.

• When you activate the Child Lock function, the “Child Lock [ ]” lamp blinks. Using the Child Lock function If the lid is opened when the Child Lock function is on, “dE” is displayed and an alarm sounds.

• If the water level in the tub is above the safe water level, “dE” is displayed on the LED display and the washing machine starts to drain water by force after 30 seconds.

• If the water level in the tub is above the safe water level and the Child Lock function is turned on while the door is open, “CL” is displayed on the LED display even if the power of the washing machine is turned o and the washing machine drains water by force.

• Even if the power of the washing machine is turned o, if the lid is opened while the water level in the tub is above the Reset water level, “CL” is displayed on the LED display without the alarm sounding and the washing machine starts to drain water. When the draining operation finishes, the power is automatically turned o again.

• You have activated the Child Lock function while the washing machine is running, the Start/ Pause button will not work.

• After the compulsory drain, the “CL” code display blinks at 1 second intervals and the product enters the “CL” mode. (When the product is in the “CL” mode, only the Power button works.)

• To cancel the “CL” mode, you need to turn the power o and then on again.

• To cancel the “dE” mode, deactivate the Child Lock function. To deactivate the Child Lock function, press and hold the Spin and Soil Level buttons simultaneously for at least 3seconds. Adding laundry when Child Lock is on

• Toaddlaundry,deactivatetheChildLockfunction.TodeactivatetheChildLockfunction, press and hold the Spin and Soil Level buttons simultaneously for at least 3seconds. See “Pause Option” on page 23 for additional details. Deactivating the Child Lock function Press and hold both the Spin and Soil Level buttons simultaneously for approximately 3seconds.

• When you deactivate the Child Lock function, the “Child Lock [ ]” is turned o.

• The Child Lock function prevents children or the infirm from accidently operating the washer and injuring themselves.

• Ifachildentersthewashingmachine,thechildmaybecometrappedandsuocate.

• OnceyouhaveactivatedtheChildLockfunction,itcontinuesworkingevenifthepower is turned o.

• Forcingthelidopencanresultininjuryordamagetotheproduct. To add laundry after you have activated the Child Lock function, you must first deactivate the Child Lock function. CAUTIONWARNING washing a load of laundry WA7000HA WASH_WA48H_USER MANUAL_DC68-03133P-13_EN.indd 20 2016/6/22 10:33:24English - 21 Sound The Sound O function can be selected during all cycles. Garment You can add or take out laundry items even after the wash has started, as long as the “Garment” light is on. Pushing the Start/Pause button unlocks the lid. If you open the lid and want to continue the wash cycle, close the lid, and then press the Start/Pause button. If you have activated the Child Lock, you must deactivate it first. See page 20. Delay End You can set the washing machine to start your wash automatically at a later time, by choosing a delay time. The hour displayed indicates the time at which the wash will be ended.

1. Set your wash cycle.

2. Press the Delay End button repeatedly until the delay time is set.

3. Press the Start/Pause button. The “Delay End” indicator will be lit, and the clock will begin

counting down until it reaches the set time.

4. To cancel a Delay End function, press the Power button and then turn the washing machine on

again. Pre Soak Use this function when the laundry is heavily contaminated or stained. This function improves the wash performance by adding a Pre Soak cycle. - If you select this function, the total cycle time is increased by 15 minutes. - When the Pre Soak cycle starts, the washing machine repeats a wash cycle after supplying water and then performs a 15-minute soak cycle. - When the Pre Soak cycle is complete, the configured wash cycle starts without draining water. AquaJet

With a strong spray and soapy water recirculated by the AquaJet™ pump, laundry can be more gently and thoroughly cleaned than in conventional Top Loads. - AquaJet™ Deep Clean: If AquaJet™ Deep Clean mode is selected, washing performance can be further improved by the additional spray action. Sucient water quantity can be ensured by adjusting the water level. Cycles AquaJetTM Function NORMAL, HEAVY DUTY, PERM PRESS,

COLORS/DARKS, ACTIVE WEAR, RINSE+SPIN

Available BEDDING, DELICATES,WATERPROOF,

Not Available 03 washing a load of laundry WA7000HA WASH_WA48H_USER MANUAL_DC68-03133P-13_EN.indd 21 2016/6/22 10:33:24English - 22 Mist Shower Mist Shower sprays water from a nozzle that is independent of the main water supply system. This soaks the laundry with water from the beginning of the rinse cycle and ensures an eective wash even with a small amount of water. (The Mist Shower function may not work if there is too large of a load in the machine.) Smart Care (WA48H7400A*, WA45H7200A*) This function enables you to check the status of the washing machine using a smartphone.

1. To enable the Smart Care function, press and hold the Pre Soak key for 3 seconds after

turning the power on or when an error occurs.

• Theerrorcodehistoryisdeletedafteryouuse this function.

2. The Smart Care indicator is lit on the display.

3. Run the Smart Care app on your smart phone.

• GalaxyS,GalaxyS2,GalaxyS3,GalaxyS4,GalaxyS2(HD),GalaxyNote,GalaxyNote2, Galaxy Note3 (Other devices may not be normal operation). Supported operating system: Android 2.2 or higher.

• IPhone 3 G S, iPhone 4/4S, iPhone 5/5S. Supported operating system : OS 4.3 or higher.

4. Focus your smart phone’s camera on the display panel of the washing machine.

5. If the smart phone’s camera is focused on the display panel of the washing machine,

the panel and error message is automatically recognized and the error type and countermeasures are displayed on the smart phone.

6. If the smartphone fails to recognize the error code more than twice, please enter the error

code displayed on the display panel of the washer manually into the Smart Care app. Downloading the Smart Care app

• Ifyouholdthesmartphoneattoolargeananglerelativetothefrontofthedisplaypanel, it may not be able to recognize the error code. For best results, hold the smartphone so that the front of the panel and the smartphone are parallel or nearly parallel. blue round object located left to detergent dispenser washing a load of laundry WA7000HA WASH_WA48H_USER MANUAL_DC68-03133P-13_EN.indd 22 2016/6/22 10:33:25English - 23 Washing clothes using the cycle selector Your new washing machine makes washing clothes easy, using Samsung’s “Fuzzy Control” automatic control system. When you select a wash program, the machine will set the correct temperature, washing time, and washing speed.

3. Load the articles of clothing one at a time loosely into the drum, without overfilling it.

4. Add liquid (or powder) detergent, softener, and/or bleach (if necessary) to the appropriate

compartments. See pages 24~26.

6. Use the Cycle Selector to select the appropriate cycle according to the type of material:

NORMAL, HEAVY DUTY, COLORS/DARKS, BEDDING, DELICATES, WATERPROOF, PERM PRESS, ACTIVE WEAR, QUICK WASH, SPIN, RINSE+SPIN. The relevant indicators will illuminate on the control panel.

7. At this time, you can control the wash temperature, the number of rinse cycles, the spinning

speed, and the delay time by pressing the appropriate option button.

8. Press the Start/Pause button on the Cycle Selector and the wash will begin. The process

indicator will light up and the remaining time for the cycle will appear in the display. Pause Option To remove or add laundry items, follow these steps:

1. Press the Start/Pause button to unlock the lid.

The lid cannot be opened when the water is too HOT.

If you have Child Lock on, you must deactivate it first. See page 20. When the cycle is finished: After the total cycle has finished, the power will turn o automatically.

ATC (AUTO TEMPERATURE CONTROL) ATC is the control function that the washer controls water temperature with temperature sensor (thermistor). Because there are numerous water temperatures depending on the customer’s environments (cold areas, warm areas, various water temperatures, settings of heater temperature, etcs.), ATC function in our washer maintains the certain level of wash temperature to output the best washing performance at each cycle. If you select normal & heavy duty cycles, those cycles are the regulation and UL cycle. Since new washer must reduce the amount of energy usage at first priority, customer will notice more cold water entering the washer. But This is Normal, not a problem. In those regulation cycles, Hot temperature is similar to acceptable adult bath-water temperature and warm temperature is similar to comfortable swimming-pool water temperature. If customers want to wash clothes in specific water temperature, customers should choose a dierent cycle at each temperature (Hot/Warm/Eco Warm) 03 washing a load of laundry WA7000HA WASH_WA48H_USER MANUAL_DC68-03133P-13_EN.indd 23 2016/6/22 10:33:25English - 24 DETERGENT USE Your washer is designed to use high eciency (HE) detergents.

• For best cleaning results, use high eciency detergent such as Tide HE, Wisk HE, Cheer HE or Gain HE*. High eciency detergents contain suds suppressors that reduce or eliminate suds. When fewer suds are produced, the load tumbles more eciently and cleaning is maximized. Regular detergent is not recommended. Use HE detergents only. Reducing the amount of detergent may reduce the quality of cleaning. It is important to pre–treat stains, sort carefully by color and soil level, and avoid overloading.

• Brand names are trademarks of their respective manufacturers. FEATURES Automatic dispenser Your washer has separate compartments for dispensing detergent and color-safe bleach and fabric softener. Add all laundry additives to their respective compartments before starting your Washer. The automatic dispenser MUST ALWAYS be in place before you start your washer. DO NOT open the automatic dispenser when your washer is running.

• Never exceed the manufacturer’s recommendations when adding detergent.

• This compartment holds liquid detergent for the main wash cycle, which is added to the load at the beginning of the cycle.

• When using powdered detergent, remove the liquid detergent compartment from the detergent drawer. The washer will not dispense powdered detergent from the liquid detergent compartment. To add detergent to the automatic dispenser:

1. Open the dispenser drawer.

2. Load the recommended amount of liquid (or powder) detergent into the detergent

compartment before you start your wash.

3. Close the drawer slowly and smoothly to avoid spilling, splashing, or premature dispensing of

the contents. It is normal for a small amount of water to remain in the dispenser compartments at the end of the cycle. Do not put chlorine bleach in the dispenser drawer. washing a load of laundry warningLiquid detergent compartmentWA7000HA WASH_WA48H_USER MANUAL_DC68-03133P-13_EN.indd 24 2016/6/22 10:33:25English - 25 Loading the Liquid (or Powder) detergent compartment

1. Pour the recommended amount of laundry detergent

directly into the detergent compartment before starting your washer.

2. If you are using color-safe bleach, add it with the detergent

to the detergent compartment. When adding color-safe bleach with detergent, it is best if both laundry products are in the same form – liquid. When using powdered detergent, remove the liquid detergent compartment from the detergent drawer. The washer will not dispense powdered detergent from the liquid detergent compartment. Loading the Bleach compartment (Liquid chlorine bleach only)

1. Add chlorine bleach to the bleach compartment.

DO NOT exceed the MAX FILL line.

• Avoid splashing or over–filling the compartment.

• Your washer automatically dispenses bleach into the tub at the appropriate time.

2. The dispenser automatically dilutes liquid chlorine bleach

before it reaches the wash load.

• Never pour undiluted liquid chlorine bleach directly onto the load or into the tub. It is a powerful chemical and can cause fabric damage, such as weakening of the fibers or color loss, if not used properly.

• If you prefer to use color–safe, non–chlorine bleach, add it to the appropriate detergent compartment. DO NOT pour color–safe bleach into the Bleach compartment. 03 washing a load of laundry Liquid detergent compartment Bleach compartment WA7000HA WASH_WA48H_USER MANUAL_DC68-03133P-13_EN.indd 25 2016/6/22 10:33:25English - 26 Loading the Fabric softener compartment

1. Pour the recommended amount of liquid fabric softener

into the softener compartment. For smaller loads, use less than one capful.

2. Dilute the fabric softener with water until it reaches MAX

FILL in the compartment.

3. The dispenser automatically releases liquid fabric softener

at the proper time during the rinse cycle.

• Use the softener compartment ONLY for liquid fabric softeners.

• DO NOT use the Downy Ball* in the fabric softener compartment with this washer. It will not add fabric softener at the appropriate time. Use the detergent compartment.

• Do not use liquid fabric softener that is too sticky as it may not mix with the water suciently.

• Brand names are trademarks of their respective manufacturers. washing a load of laundry Fabric softener compartment WA7000HA WASH_WA48H_USER MANUAL_DC68-03133P-13_EN.indd 26 2016/6/22 10:33:25English - 27 maintaining your washer

CLEANING THE EXTERIOR

Turn o the water faucets after finishing the day’s washing. This will shut o the water supply to your washer and prevent the unlikely possibility of damage from escaping water. Leave the lid open to allow the inside of your washer to dry out. Use a soft cloth to wipe up all detergent, bleach or other spills as they occur. Clean the following as recommended: Control Panel – Clean with a soft, damp cloth. Do not use abrasive powders or cleaning pads. Do not spray cleaners directly on the panel.

CLEANING THE INTERIOR

Clean the interior of your washer periodically to remove any dirt, soil, odor, mold, mildew, or bacterial residue that may remain in your washer as a result of washing clothes. Failure to follow these instructions may result in unpleasant conditions, including odors and/or permanent stains on your washer or laundry. Hard water deposits may be removed, if needed. Use cleaners labeled “Washer safe”.

Washers can be damaged if water is not removed from hoses and internal components before storage. Prepare your washer for storage as follows:

• Select the Quick Wash cycle and add bleach to the automatic dispenser. Run your washer through the cycle without a load.

• Turn the water faucets o and disconnect the inlet hoses.

• Unplug your washer from the electrical outlet and leave your washer lid open to let air circulate inside the drum.

• If your washer has been stored in below–freezing temperatures, allow time for any leftover water in your washer to thaw out before use. PRESERVING THE TOP COVER AND THE FRONT FRAME Do not place any heavy or sharp objects or a detergent box on the washing machine. They can scratch or damage the top cover of the unit. Since the entire washing machine has a high-gloss finish, the surface can be scratched or damaged. Avoid scratching or damaging the surface when using the washing machine.

CLEANING MESH FILTER

Clean the mesh filter of the water hose once or twice a year.

1. Turn o the washer, and then unplug the power cord.

2. Close the faucet.

3. Loosen and disconnect the water hose from the back of the washer.

Cover the hose with a cloth to prevent water from gushing out.

4. Use pliers to pull out the mesh filter from the inlet valve.

5. Submerge the mesh filter deeply in water so that the threaded

connector is also submerged.

6. Dry the mesh filter completely in a shaded area.

7. Reinsert the mesh filter into the inlet valve, and reconnect the water

hose to the inlet valve.

If the mesh filter is clogged, the “4E” information code appears on the washer’s display screen. 04 maintaining your washer WA7000HA WASH_WA48H_USER MANUAL_DC68-03133P-13_EN.indd 27 2016/6/22 10:33:26English - 28 cleAninG tHe dispensers The automatic dispenser may need to be cleaned periodically due to laundry additive buildup.

1. Pull the dispenser drawer straight back until it stops.

2. Tilt the dispenser drawer upward and remove it.

3. Remove the inserts from the 3 compartments. Rinse the

inserts and the drawer with warm water to remove traces of accumulated laundry products.

4. To clean the drawer opening, use a small, non-metal brush

to clean the recess. Remove all residue from the upper and lower parts of the recess.

5. Return the inserts to the proper compartments and replace

the drawer. By placing the dispenser drawer rail on top of the compartment rail (Tilt the dispenser drawer downward and insert it.), and then push the drawer in firmly and slowly. maintaining your washer WA7000HA WASH_WA48H_USER MANUAL_DC68-03133P-13_EN.indd 28 2016/6/22 10:33:26English - 29 SELF CLEAN Self Clean is a self-cleaning cycle that removes mold that may occur inside the washing machine.

1. Press the Power button.

2. Select the Self Clean cycle.

• Once the Self Clean cycle is selected, the only function that can be set is Delay End.

• Using Self Clean, you can clean the drum without using a cleansing agent.

• Never use Self Clean when laundry is in the washing machine. This may cause damage to the laundry or a problem with the washing machine. The Self Clean Auto Indicator Function

• If the “Self Clean” indicator is lit after a wash, it indicates that tub (drum) cleaning is required. In this case, remove the laundry from the washing machine, turn the power on, and clean the drum by running Self Clean.

• If you do not run Self Clean, the “Self Clean” indicator turns o. However, the “Self Clean” indicator will light again after two washes. Not running Self Clean at this point will not cause a problem with the washing machine.

• Although the Self Clean Auto Indicator appears once a month or so, the frequency may dier depending on the number of times the washing machine is used. WA48H7400A* WA45H7200A* WA45H7000A* CAUTION WA48H7400A*/WA45H7200A* WA45H7000A* 04 maintaining your washer WA7000HA WASH_WA48H_USER MANUAL_DC68-03133P-13_EN.indd 29 2016/6/22 10:33:27English - 30 troubleshooting

CHECK THESE SOLUTIONS IF YOUR WASHER…

problem solution Will not start. • Make sure the lid is closed.

• Make sure your washer is plugged in.

• Make sure the water source faucets are open.

• Make sure to press the Start/Pause button to start your Washer.

• Make sure Child Lock is not activated. See page 20.

• Before your washer starts to fill, it will make a series of clicking noises to check the lid lock and do a quick drain.

• Check the fuse or reset the circuit breaker Has no water or not enough water.

• Turn both faucets on fully.

• Straighten the water inlet hoses.

• Disconnect hoses and clean the screens. Hose filter screens may be clogged. Has detergent remaining in the automatic dispenser after the wash cycle is complete.

• Make sure your washer is running with sucient water pressure. Vibrates or is too noisy. • Make sure your washer is set on a level surface. If the surface is not level, adjust your washer’s feet to level the appliance.

• Make sure your washer is not touching any other object.

• Make sure the laundry load is balanced. Stops • Plug the power cord into a live electrical outlet.

• Check the fuse or reset the circuit breaker.

• Close the lid and press the Start/Pause button to start your washer. For your safety, your washer will not spin unless the lid is closed.

• Before your washer starts to fill, it will make a series of clicking noises to check the lid lock and do a quick drain.

• There may be a pause or soak period in the cycle. Wait and it may start.

• Check the screens on the inlet hoses at the faucets for obstructions. Clean the screens periodically. WA7000HA WASH_WA48H_USER MANUAL_DC68-03133P-13_EN.indd 30 2016/6/22 10:33:27English - 31 problem solution Fills with the wrong temperature water.

• Turn both faucets on fully.

• Make sure the temperature selection is correct.

• Make sure the hoses are connected to the correct faucets. Flush water lines.

• Disconnect the hoses and clean the screens. The hose filter screens may be plugged.

• As your washer is filling, the water temperature may change as the automatic temperature control feature checks incoming water temperature. This is normal.

• While your washer is filling, you may notice just hot and/or just cold water going through the dispenser when you have selected cold or warm wash temperatures. This is a normal function of the automatic temperature control feature as your washer determines the temperature of the water. Lid locked or will not open. • Press the Start/Pause button to stop your washer.

• It may take a few moments for the lid lock mechanism to disengage. Does not drain and/or spin. • Check the fuse or reset the circuit breaker.

• Straighten the drain hoses. Eliminate kinked hoses. If there is a drain restriction, call for service.

• Close the lid and press the Start/Pause button. For your safety, your washer will not spin unless the lid is closed. Load is too wet at the end of the cycle.

• Use the High spin speed.

• Use high eciency detergent to reduce over–sudsing.

• The Load is too small. Very small loads (one or two items) may become unbalanced and not spin out completely. Leaks water. • Make sure all hose connections are tight.

• Make sure the end of the drain hose is correctly inserted and secured to the drainage system.

• Use high eciency detergent to prevent over–sudsing. Has excessive suds. • Use high eciency detergent to prevent over-sudsing.

• Reduce the detergent amount for soft water, small or lightly soiled loads.

• Non-HE detergent is NOT recommended. Has an odor. • Check your Detergent . Excessive suds collect in nooks and crannies and cause mold.

• Run cleansing cycles to sanitize the machine periodically. (Silver Care or Sanitize Cycle or Self Clean)

• Dry the interior of your washer after the total cycle has finished. 05 troubleshooting WA7000HA WASH_WA48H_USER MANUAL_DC68-03133P-13_EN.indd 31 2016/6/22 10:33:27English - 32 informAtion codes The Washer may display information codes to help you understand what is occurring with your Washer better.

The Water Level sensor is not working properly. When washer displays “1E”, washer will drain for 3 minutes. At this time, the Power button is invalid Call for service.

Your Washer has tried to fill but was unsuccessful. Check if the hot water supply hose is connected. When washer displays “4E”, washer will drain for 3 minutes. At this time, the Power button is invalid. Make sure the water faucets are open all the way. Check for kinked hoses. Check the inlet screens on the fill hoses. If you use a Flood Safety Device, then please remove the device and connect the water hoses directly to the unit. You must connect the hot water supply hose because hot water is supplied by the Auto Temperature Control (A.T.C.) function.

Your washer is not draining. It can also mean that the unit senses a small clog while draining. Do the following:

1) Turn o the unit and turn it on again.

2) Select only the Spin Cycle.

3) Press the Start/Pause to drain the water.

If it still does not drain, call for service.

Your Washer has tried to fill but has not reached the proper water level. When washer displays “LE”, washer will drain for 3 minutes. At this time, the Power button is invalid. Call for service.

Unbalanced load prevented your Washer from spinning. Redistribute the load, press the Start/Pause button.

Lid is open when washer is running. Close the lid tightly and restart the cycle. If the code reappears, call for service. dE1 Your washer failed to lock or unlock the lid. Close the lid tightly and restart the cycle. If the code reappears, call for service. dE1 The door will not unlock. Make sure the lid is firmly closed. Push the Power button to turn o your washer, then turn it on again. If the code reappears, call for service. bE2 A jammed Key. Call for service.

Motor not running properly. Restart the cycle pressing the Start/Pause button. If the code reappears, call for service.

Communication error between SUB PBA and MAIN PBA. Call for service. troubleshooting WA7000HA WASH_WA48H_USER MANUAL_DC68-03133P-13_EN.indd 32 2016/6/22 10:33:27English - 33

8E1 8E2 Mems sensor problem. Call for service. tE1 Temperature sensor problem. Restart the cycle. If the code reappears, call for service.

A fault is detected in the water level sensor. Call for service. 4E2 This occurs when the temperature exceeds 50 degrees for over 8 seconds in the Wool and Delicates cycle. Call for service. AE6 Commuication error between INVERTER PBA and MAIN PBA. Call for service. For any codes not listed above, call 1–800–726–7864 (1–800–SAMSUNG). 05 troubleshooting WA7000HA WASH_WA48H_USER MANUAL_DC68-03133P-13_EN.indd 33 2016/6/22 10:33:27English - 34 appendix

The following symbols provide garment care direction. The Clothing care labels include symbols for washing, bleaching, drying and ironing, or dry cleaning when necessary. The use of symbols ensures consistency among garment manufacturers of domestic and imported items. Follow care label directions to maximize garment life and reduce laundering problems. Wash Cycle Special Instructions Warning Symbols for Laundering Normal Line Dry/ Hang to Dry Do Not Wash Permanent Press / Wrinkle Resistant / Wrinkle Control Drip Dry Do Not Wring Gentle/Delicates Dry Flat Do Not Bleach Hand Wash Heat Setting Do Not Tumble Dry Water Temperature** High No Steam (added to iron) Hot Medium Do Not Iron Warm Low Dryclean Cold Any Heat Dry Clean Bleach No Heat/Air Do Not Dry Clean Any Bleach (when needed) Iron-Dry or Steam Temperatures Line Dry/ Hang to Dry Only Non-Chlorine (color-safe) Bleach (when needed) High Drip Dry Tumble Dry Cycle Medium Dry Flat Normal Low Permanent Press/ Wrinkle Resistant/ Wrinkle Control Gentle/ Delicates ** The dot symbols represent appropriate wash water temperatures for various items. The temperature range for Hotis105°-125°F/41°-52°C,forWarm85°-105°F/29°-41°CandforCold60°-85°F/16°-29°C. (Washwatertemperaturemustbeaminimumof60°F/16°Cfordetergentactivationandeectivecleaning.) The clothes washer can not ensure these temperatures because the actual temperature of the water entering your washer depends on water heater settings and regional water supply temperatures. For example, cold waterenteringthehomeinthenorthernstatesduringwintermaybe40°F/4°Cwhichistoocoldforeective cleaning. In this situation, you will need to adjust the water temperature by selecting a warm setting, adding some hot water to the MAX FILL line, or using your Washer’s heating option, if available. WA7000HA WASH_WA48H_USER MANUAL_DC68-03133P-13_EN.indd 34 2016/6/22 10:33:28English - 35 CYCLE CHART Use this chart to set the best cycle and options for you laundry. WA48H7400A*

• Your washer is manufactured from recyclable materials. If you decide to dispose of it, please observe local waste disposal regulations. Cut o the power cord so that the appliance cannot be connected to a power source. Remove the lid so that animals and small children cannot get trapped inside the appliance.

• Do not exceed the detergent quantities recommended in the detergent manufacturers’ instructions.

• Use stain removal products and bleaches before the wash cycle only when necessary.

• Save water and electricity by only washing full loads (the exact amount depends upon the program used).

DECLARATION OF CONFORMITY

Height 43.9”(111.5) B. Width 27.0”(68.6) C. Height with lid open 58.1”(147.6) D. Depth 29.3”(74.4) water pressure 20-116 psi (137-800 kPa) weight wa48h7400a* 64.0 kg (141.1 lb) wa45h7200a* 57.0 kg (125.7 lb) wa45h7000a* 57.0 kg (125.7 lb) spin reVolution wa48h7400a* 1100 rpm wa45h7200a* 1000 rpm wa45h7000a* 800 rpm power consumption washing 120 V 700 W spin 120 V 400 W drain 120 V 80 W appendix WA7000HA WASH_WA48H_USER MANUAL_DC68-03133P-13_EN.indd 38 2016/6/22 10:33:28English - 39 warranty (U.S.A) samsung washer limited warranty to original purchaser This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS AMERICA, INC. (SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of: One (1) year part and labor, Three (3) years stainless tub part (Part Only), Ten (10) years washing DD motor part (Part Only). This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the United States. To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service procedures. Warranty service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG’s authorized service center. SAMSUNG will provide in-home service during the warranty period at no charge, subject to availability within the contiguous United States. In-home service is not available in all areas. To receive in-home service, product must be unobstructed and accessible to the service agent. If service is not available, SAMSUNG may elect to provide transportation of the product to and from an authorized service center. SAMSUNG will repair, replace, or refund this product at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above. All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG. Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is longer.This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, noncommercial use of this product and shall not apply to the following: damage that occurs in shipment; delivery and installation; applications and uses for which this product was not intended; altered product or serial numbers; cosmetic damage or exterior finish; accidents, abuse, neglect, fire, water, lightning, or other acts of nature or God; use of products, equipment, systems, utilities, services, parts, supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied or authorized by SAMSUNG that damage this product or result in service problems; incorrect electrical line voltage, fluctuations and surges; customer adjustments and failure to follow operating instructions, maintenance and environmental instructions that are covered and prescribed in the instruction book; product removal and reinstallation; problems caused by pest infestations. This limited warranty does not cover problems resulting from incorrect electric current, voltage or supply, light bulbs, house fuses, house wiring, cost of a service call for instructions, or fixing installation errors. SAMSUNG does not warrant uninterrupted or error-free operation of the product. WA7000HA WASH_WA48H_USER MANUAL_DC68-03133P-13_EN.indd 39 2016/6/22 10:33:28English - 40 EXCEPT AS SET FORTH HEREIN, THERE ARE NO WARRANTIES ON THIS PRODUCT EITHER EXPRESS OR IMPLIED, AND SAMSUNG DISCLAIMS ALL WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY, INFRINGEMENT OR FITNESS FOR A PARTICULAR PURPOSE. NO WARRANTY OR GUARANTEE GIVEN BY ANY PERSON, FIRM, OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE, OR INJURY TO PURCHASER AND PURCHASER’S PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY. Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific rights, and you may also have other rights, which vary from state to state. To obtain warranty service, please contact SAMSUNG at: Samsung Electronics America, Inc. 85 Challenger Road Ridgefield Park, NJ 07660 1-800-SAMSUNG (726-7864) www.samsung.com/us/support Visits by a Service Engineer to explain functions, maintenance or installation is not covered by warranty. Please contact your Samsung call agent for help with any of these issues. warranty (U.S.A) WA7000HA WASH_WA48H_USER MANUAL_DC68-03133P-13_EN.indd 40 2016/6/22 10:33:28English - 41 warranty (CANADA) samsung washer limited warranty to original purchaser This SAMSUNG brand product, as supplied and distributed by SAMSUNG ELECTRONICS CANADA, INC. (SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials and workmanship for a limited warranty period of: One (1) year part and labor, Ten (10) years washing DD motor part (Part Only). This limited warranty begins on the original date of purchase, and is valid only on products purchased and used in the Canada. To receive warranty service, the purchaser must contact SAMSUNG for problem determination and service procedures. Warranty service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG’s authorized service center. SAMSUNG will provide in-home service during the warranty period at no charge, subject to availability within the Canada. In-home service is not available in all areas. To receive in-home service, product must be unobstructed and accessible to the service agent. If service is not available, SAMSUNG may elect to provide transportation of the product to and from an authorized service center. SAMSUNG will repair, replace, or refund this product at our option and at no charge as stipulated herein, with new or reconditioned parts or products if found to be defective during the limited warranty period specified above. All replaced parts and products become the property of SAMSUNG and must be returned to SAMSUNG. Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is longer.This limited warranty covers manufacturing defects in materials and workmanship encountered in normal, noncommercial use of this product and shall not apply to the following: damage that occurs in shipment; delivery and installation; applications and uses for which this product was not intended; altered product or serial numbers; cosmetic damage or exterior finish; accidents, abuse, neglect, fire, water, lightning, or other acts of nature or God; use of products, equipment, systems, utilities, services, parts, supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied or authorized by SAMSUNG that damage this product or result in service problems; incorrect electrical line voltage, fluctuations and surges; customer adjustments and failure to follow operating instructions, maintenance and environmental instructions that are covered and prescribed in the instruction book; product removal and reinstallation; problems caused by pest infestations. This limited warranty does not cover problems resulting from incorrect electric current, voltage or supply, light bulbs, house fuses, house wiring, cost of a service call for instructions, or fixing installation errors. SAMSUNG does not warrant uninterrupted or error-free operation of the product. WA7000HA WASH_WA48H_USER MANUAL_DC68-03133P-13_EN.indd 41 2016/6/22 10:33:28English - 42 EXCEPT AS SET FORTH HEREIN, THERE ARE NO WARRANTIES ON THIS PRODUCT EITHER EXPRESS OR IMPLIED, AND SAMSUNG DISCLAIMS ALL WARRANTIES INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY, INFRINGEMENT OR FITNESS FOR A PARTICULAR PURPOSE. NO WARRANTY OR GUARANTEE GIVEN BY ANY PERSON, FIRM, OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON SAMSUNG. SAMSUNG SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NOR SHALL RECOVERY OF ANY KIND AGAINST SAMSUNG BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT SOLD BY SAMSUNG AND CAUSING THE ALLEGED DAMAGE. WITHOUT LIMITING THE FOREGOING, PURCHASER ASSUMES ALL RISK AND LIABILITY FOR LOSS, DAMAGE, OR INJURY TO PURCHASER AND PURCHASER’S PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT. THIS LIMITED WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL PURCHASER OF THIS PRODUCT, IS NONTRANSFERABLE AND STATES YOUR EXCLUSIVE REMEDY. Some provinces do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific rights, and you may also have other rights, which vary from province to province. To obtain warranty service, please contact SAMSUNG at: Samsung Electronics Canada Inc. 2050 Derry Road West, Mississauga, Ontario L5N 0B9 Canada. 1-800-SAMSUNG (726-7864) www.samsung.com/ca/support (English) www.samsung.com/ca_fr/support (French)

WATERPROOF (IMPERMÉABLES)

WATERPROOF (IMPERMÉABLES)
