USER MANUAL UXW7324BSS WHIRLPOOL

24" (60.0 CM) WALL-MOUNT CANOPY

RANGE HOOD Installation Instructions and Use & Care Guide For questions about features, operation/performance, parts, accessories or service, call: 1-800-253-1301 or visit our website at www.whirlpool.com In Canada, call 1-800-807-6777 or visit our website at www.whirlpool.ca

You can be killed or seriously injured if you don't immediately You can be killed or seriously injured if you don'tfollow All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed. Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.This is the safety alert symbol.This symbol alerts you to potential hazards that can kill or hurt you and others.All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”These words mean:follow instructions.instructions. DANGER WARNING3

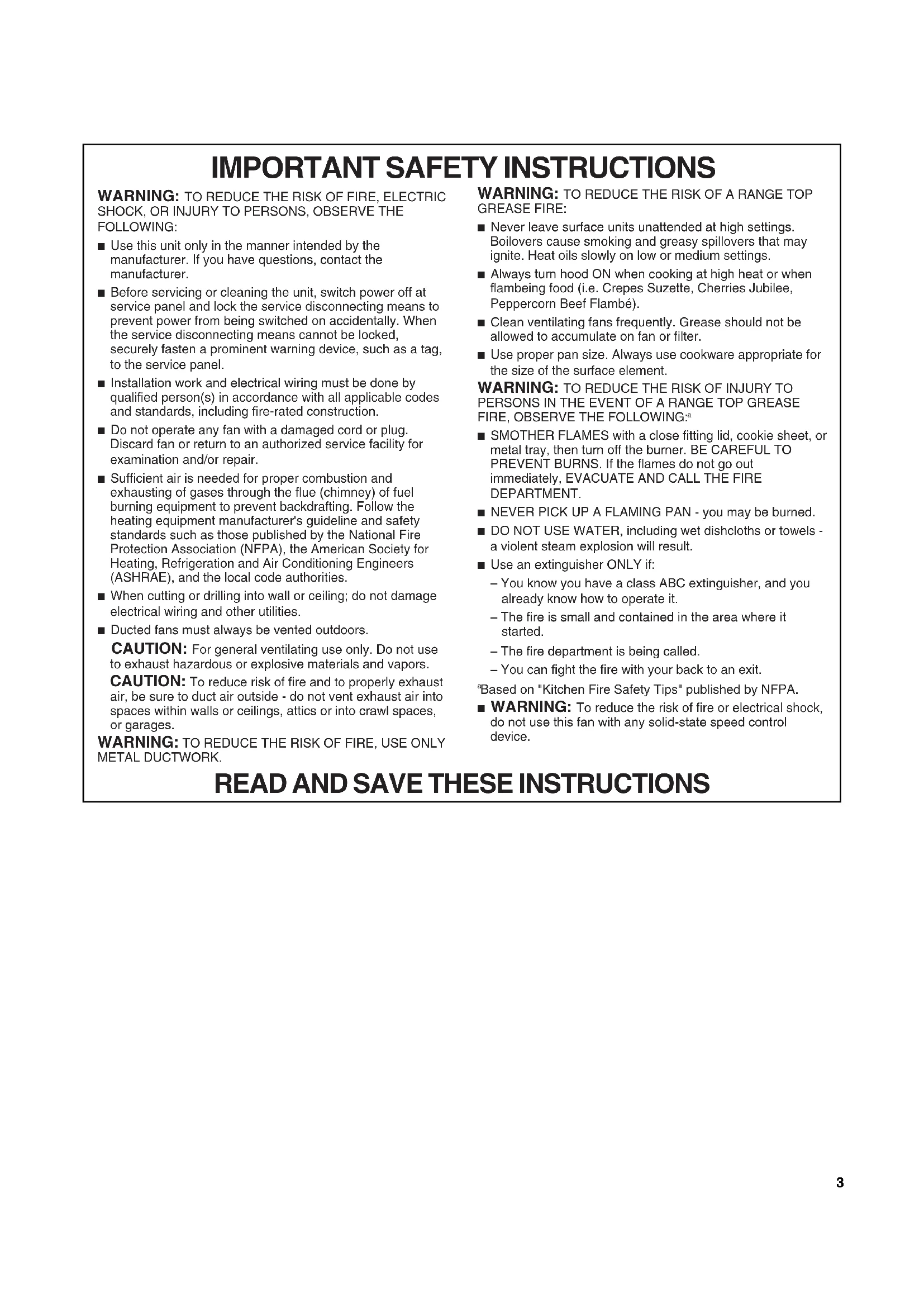

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: ■ Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer. ■ Before servicing or cleaning the unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel. ■ Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction. ■ Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair. ■ Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities. ■ When cutting or drilling into wall or ceiling; do not damage electrical wiring and other utilities. ■ Ducted fans must always be vented outdoors. CAUTION: For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors. CAUTION: To reduce risk of fire and to properly exhaust air, be sure to duct air outside - do not vent exhaust air into spaces within walls or ceilings, attics or into crawl spaces, or garages.

GREASE FIRE: ■ Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings. ■ Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé). ■ Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter. ■ Use proper pan size. Always use cookware appropriate for the size of the surface element.

■ SMOTHER FLAMES with a close fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT. ■ NEVER PICK UP A FLAMING PAN - you may be burned.■ DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will result. ■ Use an extinguisher ONLY if: – You know you have a class ABC extinguisher, and you already know how to operate it. – The fire is small and contained in the area where it started. – The fire department is being called. – You can fight the fire with your back to an exit.

Based on "Kitchen Fire Safety Tips" published by NFPA. ■ WARNING: To reduce the risk of fire or electrical shock, do not use this fan with any solid-state speed control device.4 INSTALLATION REQUIREMENTS Tools and Parts Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here. Tools needed ■ Level ■ Drill with 1¼" (3.0 cm), ³⁄₈" (9.5 mm), and ⁵⁄₁₆" (7.9 mm) drill bits ■ Pencil■ Wire stripper or utility knife■ Tape measure or ruler■ Pliers■ Caulking gun and weatherproof caulking compound■ Vent clamps■ Jigsaw or keyhole saw■ Flat-blade screwdriver■ Metal snips■ Phillips screwdriver■ Metric hex key set Parts needed ■ Home power supply cable■ ½" (12.7 mm) UL listed or CSA approved strain relief■ 3 UL listed wire connectors For vented installations, you will also need: ■ 1 wall or roof cap■ Metal vent system For non-vented (recirculating) installations, you will also need: ■ Recirculation Kit Part Number W10349327 for non-vented (recirculating) installations only. See “Assistance or Service” section to order. ■ 6" (15.2 cm) dia. round metal vent duct - length required is determined by ceiling height. Parts supplied Remove parts from packages. Check that all parts are included. ■ Hood canopy assembly with ventilator and light bulbs installed ■ Vent transition with back draft dampers installed■ Metal grease filter(s)■ Vent cover support bracket■ Mounting template■ 2-piece vent cover■ 2 - 3.5 x 9.5 mm screws■ 2 - 2.9 x 6.5 mm screws■ 6 - 5 x 45 mm mounting screws■ 2 - 8 x 40 mm wall anchors■ 4 - 10 x 50 mm wall anchors■ T20

adapter Location Requirements IMPORTANT: Observe all governing codes and ordinances. Have a qualified technician install the range hood. It is the installer's responsibility to comply with installation clearances specified on the model/serial rating plate. The model/serial rating plate is located behind the left filter on the rear wall of the vent hood. Canopy hood location should be away from strong draft areas, such as windows, doors and strong heating vents. Cabinet opening dimensions that are shown must be used. Given dimensions provide minimum clearance. Grounded electrical outlet is required. See “Electrical Requirements” section. The canopy hood is factory set for venting through the roof or wall. For non-vented (recirculating) Installation see “For Non- vented (recirculating) Installations Only” in “Connect Vent System” section. Recirculation Kit Part Number W10349327 is available from your dealer or an authorized parts distributor. All openings in ceiling and wall where canopy hood will be installed must be sealed. For Mobile Home Installations The installation of this range hood must conform to the Manufactured Home Construction Safety Standards, Title 24 CFR, Part 328 (formerly the Federal Standard for Mobile Home Construction and Safety, Title 24, HUD, Part 280) or when such standard is not applicable, the standard for Manufactured Home Installation 1982 (Manufactured Home Sites, Communities and Setups) ANSI A225.1/NFPA 501A, or latest edition, or with local codes. Product Dimensions *For non-vented (recirculating) installations **For vented installations ®†TORX and T20 are registered trademarks of Saturn Fasteners, Inc. 10" (25.4 cm) 20" (50.8 cm) 14¹⁄₈" (35.9 cm) 7¹⁄₄" (18.3 cm) 8¹⁄₈" (20.7 cm) *28⁷⁄₈" (72.6 cm) min. 42¹⁄₁₆" (106.9 cm) max. **28³⁄₈" (72.0 cm) min. 38" (96.6 cm) max. 1¹₂" (4.0 cm) 24" (60.0 cm)5 Cabinet Dimensions *For non-vented (recirculating) installations IMPORTANT: Minimum distance “X”: 24" (61.0 cm) from electric cooking surface. Minimum distance “X”: 27" (68.6 cm) from gas cooking surfaces. Suggested maximum distance “X”: 36" (91.4 cm) The chimneys can be adjusted for different ceiling heights. See the following chart. *NOTE: The range hood chimneys are adjustable and designed to meet varying ceiling or soffit heights depending on the distance “X” between the bottom of the range hood and the cooking surface. For higher ceilings, a Stainless Steel Chimney Extension Kit Part Number W10337357 is available from your dealer or an authorized parts distributor. The chimney extension replaces the upper chimney shipped with the range hood. Venting Requirements (vented models only) ■ Vent system must terminate to the outdoors, except for non- vented (recirculating) installations. ■ Do not terminate the vent system in an attic or other enclosed area. ■ Do not use 4" (10.2 cm) laundry-type wall cap.■ Use metal vent only. Rigid metal vent is recommended. Plastic or metal foil vent is not recommended. ■ The length of vent system and number of elbows should be kept to a minimum to provide efficient performance. For the most efficient and quiet operation: ■ Use no more than three 90° elbows. ■ Make sure there is a minimum of 24" (61 cm) of straight vent between the elbows if more than 1 elbow is used. ■ Do not install 2 elbows together.■ Use clamps to seal all joints in the vent system.■ The vent system must have a damper. If the roof or wall cap has a damper, do not use the damper supplied with the range hood. ■ Use caulking to seal exterior wall or roof opening around the cap. ■ The size of the vent should be uniform. Cold Weather Installations An additional back draft damper should be installed to minimize backward cold air flow and a thermal break should be installed to minimize conduction of outside temperatures as part of the vent system. The damper should be on the cold air side of the thermal break. The break should be as close as possible to where the vent system enters the heated portion of the house. Makeup Air Local building codes may require the use of makeup air systems when using ventilation systems greater than specified CFM of air movement. The specified CFM varies from locale to locale. Consult your HVAC professional for specific requirements in your area. Venting Methods This canopy hood is factory set for venting through the roof or wall. A 6" (15.2 cm) round vent system is needed for installation (not included). The hood exhaust opening is 6" (15.2 cm) round. NOTE: Flexible vent is not recommended. Flexible vent creates back pressure and air turbulence that greatly reduce performance. Vent system can terminate either through the roof or wall. To vent through a wall, a 90° elbow is needed. Rear discharge A 90° elbow may be installed immediately above the hood. Vented Installations Min. ceiling height Max. ceiling height Electric cooking surface 7' 5" (2.26 m) 9' 2" (2.79 m) Gas cooking surface 7' 8" (2.34 m) 9' 2" (2.79 m) Non-vented (recirculating) Installations Min. ceiling height Max. ceiling height Electric cooking surface 7' 5" (2.26 m) 9' 6" (2.9 m) Gas cooking surface 7' 8" (2.34 m) 9' 6" (2.9 m) 7¹⁄₄" (18.4 cm)6⁵⁄₈" (16.8 cm)2" (5.1 cm) min.6" (15.2 cm) min.* Centerline Side cabinet Side cabinet Vent and power supply cable entry location Cooking surface 15" (38.1 cm)7³⁄₈" (18.8 cm) “X” bottom of canopy to cooking surface24" (60.0 cm)6 For Non-Vented (recirculating) Installations If it is not possible to vent cooking fumes and vapors to the outside, the hood can be used in the non-vented (recirculating) version, using a Recirculation Kit (which includes charcoal filters and a deflector). To order, see the “Assistance or Service” section. Calculating Vent System Length To calculate the length of the system you need, add the equivalent feet (meters) for each vent piece used in the system. Maximum equivalent vent length is 35 ft (10.7 m). Example vent system The following example falls within the maximum recommended vent length of 35 ft (10.7 m). Electrical Requirements Observe all governing codes and ordinances. Ensure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22.1-94, Canadian Electrical Code,

Part 1 and C22.2 No. 0-M91 (latest edition) and all local codes

and ordinances. If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate. A copy of the above code standards can be obtained from: National Fire Protection Association 1 Batterymarch Park Quincy, MA 02169-7471 CSA International 8501 East Pleasant Valley Road Cleveland, OH 44131-5575 ■ A 120 volt, 60 Hz., AC only, 15-amp, fused electrical circuit is required. ■ If the house has aluminum wiring, follow the procedure below:

1. Connect a section of solid copper wire to the pigtail

2. Connect the aluminum wiring to the added section of

copper wire using special connectors and/or tools designed and UL listed for joining copper to aluminum. Follow the electrical connector manufacturer's recommended procedure. Aluminum/copper connection must conform with local codes and industry accepted wiring practices. ■ Wire sizes and connections must conform with the rating of the appliance as specified on the model/serial rating plate. The model/serial plate is located behind the filter on the rear wall of the range hood. ■ Wire sizes must conform to the requirements of the National Electrical Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22. 1-94, Canadian Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition) and all local codes and ordinances. Roof Venting Wall Venting Non-vented (recirculating) A. Roof capB. 6" (15.2 cm) round ventA. Wall capB. 6" (15.2 cm) round ventA. DeflectorB. 6" (15.2 cm) round vent Vent Piece 6" (15.2 cm) Round 45° elbow 2.5 ft (0.8 m) 90° elbow 5.0 ft (1.5 m)

1 - 90° elbow = 5.0 ft (1.5 m)

1 - wall cap = 0.0 ft (0.0 m)

90 elbow 6 ft (1.8 m) 2 ft (0.6 m) Wall cap7 INSTALLATION INSTRUCTIONS Prepare Location ■ It is recommended that the vent system be installed before hood is installed.■ Before making cutouts, make sure there is proper clearance within the ceiling or wall for exhaust vent.■ Check your ceiling height and the hood height maximum before you select your hood.1. Disconnect power.

2. Determine which venting method to use: roof, wall, or non-

vented.3. Select a flat surface for assembling the range hood. Place covering over that surface.4. Using 2 or more people, lift range hood onto covered surface. Range Hood Mounting Screws Installation 5. Determine and mark the centerline on the wall where the canopy hood will be installed.6. Select a mounting height between a minimum of 24" (61.0 cm) for an electric cooking surface, a minimum of 27" (68.6 cm) for a gas cooking surface, and a suggested maximum of 36" (91.4 cm) above the range to the bottom of the hood. Mark a reference line on the wall.7. Tape template in place, aligning the template centerline and bottom of template with hood bottom line and with the centerline marked on the wall.8. Mark centers of the fastener locations through the template to the wall.IMPORTANT: All canopy mounting screws must be installed into wood. If there is no wood to screw into, additional wall framing supports may be required.Remove the template.

9. Drill ³⁄₁₆" (4.8 mm) pilot holes at all locations where screws are

being installed into wood.

10. Install 2 - 5 x 45 mm mounting screws. Leave a ¹⁄₄"(6.4mm)

gap between the wall and the back of the screw head to slide range hood into place. Vent Cover Support Bracket Installation Installations using telescoping upper and lower vent cover assembly

1. Position vent cover bracket on wall about ¹⁄₈" (3.0 mm) away

from the ceiling.2. Mark the hole locations.

3. Drill ³⁄₈" (9.5 mm) holes for wall anchors and insert anchors

flush with the wall.4. Attach vent cover support bracket to wall. Complete Preparation 1. Determine and make all necessary cuts in the wall for the vent system. Install the vent system before installing the hood. See “Venting Requirements” section.

2. Determine the required height for the home power supply

cable and drill a 1¼" (3.2 cm) hole at this location.

3. Run the home power supply cable according to the National

Electrical Code or CSA Standards and local codes and ordinances. There must be enough ½" conduit and wires from the fused disconnect (or circuit breaker) box to make the connection in the hood’s electrical terminal box.NOTE: Do not reconnect power until installation is complete.4. Use caulk to seal all openings.A. CenterlineB. Fastener locationsC. Mounting height reference WARNING Excessive Weight Hazard Use two or more people to move and install range hood. Failure to do so can result in back or other injury. Vertical Centerline

A. 8 x 40 mm drywall anchorsB. Centerline on wallC. Vent cover support bracketD. 5 x 45 mm screws

1. Using 2 or more people, hang range hood on 2 mounting

screws through the mounting slots on back of hood.

2. Remove the grease filter. See “Range Hood Care” section.

3. Level the range hood and tighten upper mounting screws.

4. Install 2 - 5 x 45 mm lower mounting screws and tighten.

1. Install transition on top of hood (if removed for shipping) with

2 - 3.5 x 9.5 mm sheet metal screws.

For vented installations only:

1. Fit vent system over transition piece.

2. Seal connection with clamps.

3. Check that back draft dampers work properly.

For non-vented (recirculating) installations only:

1. Assemble the air deflector with the duct cover bracket with

2 assembly screws provided with the Recirculation Kit.

2. Measure from the bottom of the air deflector to the bottom of

3. Cut the duct to the measured size (X).

4. Remove the air deflector.

5. Slide the duct onto the bottom of the air deflector.

6. Place the assembled air deflector and duct over the exhaust

outlet from the hood.

7. Reassemble the air deflector to the duct cover bracket with

8. Seal connections with vent clamps.

A. Mounting screws B. Mounting slots C. Lower mounting screws A. Vent transition B. 3.5 x 9.5 mm screw

A. Vent cover bracket B. 2.9 x 6.5 mm screws C. Deflector A. Air deflector B. Vent clamp C. X = length to cut vent duct D. Vent duct E. Exhaust outlet

Make Electrical Connection

1. Disconnect power.2. Remove terminal box cover.

3. Remove the knockout in the terminal box and install a UL

listed or CSA approved ¹⁄₂" strain relief.

4. Run home power supply wiring through ¹⁄₂" strain relief into

terminal box.5. Use UL listed wire connectors and connect white wires (B) together.6. Use UL listed wire connectors and connect black wires (C) together.7. Connect green (or bare) ground wire from home power supply to the 2 yellow-green ground wires (D) in terminal box using UL listed wire connectors.8. Tighten strain relief screw.9. Install terminal box cover.10. Reconnect power. Install Vent Covers

1. When using both upper and lower vent covers, push lower

cover down onto hood and lift upper cover to ceiling and install with 2 - 2.9 x 6.5 mm screws. NOTE: For vented installations, the upper vent cover may be reversed to hide slots. Complete Installation

1. For non-vented (recirculating) installations only, install

charcoal filters over grille on blower housing. See the “Range Hood Care” section.

2. Install metal filters. See the “Range Hood Care” section.

3. Check the operation of the range hood blower and light. See the “Range Hood Use” section.NOTE: To get the most efficient use from your new range hood, read the “Range Hood Use” section.A. UL listed wire connectorsB. White wiresC. Black wiresD. Green (or bare) wire connected to yellow-green wiresE. Home power supply WARNING Electrical Shock HazardDisconnect power before servicing.Replace all parts and panels before operating.Failure to do so can result in death or electrical shock.

A. Upper vent coverB. Lower vent coverC. 2.9 x 6.5 mm screwsD. Bracket WARNING Electrical Shock HazardElectrically ground blower.Connect ground wire to green and yellow ground wire in terminal box.Failure to do so can result in death or electrical shock.

The range hood is designed to remove smoke, cooking vapors and odors from the cooktop area. For best results, start the hood before cooking and allow it to operate several minutes after the cooking is complete to clear all smoke and odors from the kitchen. The hood controls are located on the front panel on the right side of the range hood. Range Hood Controls NOTE: Control buttons will light up when range hood is On. Operating the light The Light On/Off button (A) controls both lights. Press once for On and again for Off. Operating the blower The Blower On/Off button (B) turns the blower On or Off. The Blower Speed buttons (C, D and E) set the desired speed and control the sound level for quiet operation. The speed can be changed anytime during fan operation by pressing the desired blower speed button.

Any of the 3 blower speed buttons can be in the On position at the same time. The blower will operate at the highest speed button that is pushed in. For lower blower speeds, the higher speed buttons must not be pushed in. A. Halogen lamp housingsB. Blower and light controlsC. Grease filter handleD. Grease filter

Cleaning IMPORTANT: Clean the hood and grease filters frequently according to the following instructions. Replace grease filters before operating hood. Exterior Surfaces: To avoid damage to the exterior surface, do not use steel wool or soap-filled scouring pads. Always wipe dry to avoid water marks. Cleaning Method: ■ Liquid detergent soap and water, or all-purpose cleanser ■ Wipe with damp soft cloth or nonabrasive sponge, then rinse with clean water and wipe dry. Metal Grease Filter:

1. Remove each filter by pulling the spring release handle and

then pulling down the filter.

2. Wash metal filters as needed in dishwasher or hot detergent

3. Reinstall the filter by making sure the spring release handles

are toward the front. Insert aluminum filter into upper track.

4. Push in spring release handle.

5. Push up on metal filter and release handle to latch into place.

6. Repeat steps 1-5 for the other filter.

Non-Vented (recirculating) Installation Filters: The charcoal filter is not washable. It should last up to 6 months with normal use. Replace with Charcoal Filter Kit. See the “Accessories” section for information on ordering. To replace charcoal filter:

1. Remove metal grease filter from range hood. See “Metal

Grease Filter” in this section.

2. Bend spring clips away from metal grease filter.

3. Place charcoal filter into top side of metal filter.

4. Bend spring clips back into place to secure the charcoal filter

to the metal filter.

5. Replace metal grease filter. See “Metal Grease Filter” in this

section. Replacing a Halogen Lamp Turn off the range hood and allow the halogen lamp to cool. To avoid damage or decreasing the life of the new lamp, do not touch lamp with bare fingers. Replace lamp, using tissue or wearing cotton gloves to handle lamp. If new lights do not operate, make sure the lamps are inserted correctly before calling service.

1. Disconnect power.

2. Use a flat-blade screwdriver and gently pry the light cover

maximum, halogen lamp made for a G-4 base.

A. Spring release handle A12 WIRING DIAGRAM Junction box

BK (Line) BU (Neutral) Y (Lamp) W (Speed 1) R (Speed 2) GY (Speed 3) AGC 02125 Mechanical pushbuttons with back light Y/G

BU/R BU/W Room temp.

When calling for assistance or service, please know the purchase date and the complete model and serial number of your appliance. This information will help us to better respond to your request. If you need replacement parts If you need to order replacement parts, we recommend that you use only factory specified parts. Factory specified parts will fit right and work right because they are made with the same precision used to build every new appliance. To locate factory specified replacement parts in your area, call us or your nearest designated service center. In the U.S.A. Call the Whirlpool Customer eXperience Center toll free: 1-800-253-1301. Our consultants provide assistance with: ■ Features and specifications on our full line of appliances. ■ Installation information. ■ Use and maintenance procedures. ■ Accessory and repair parts sales. ■ Specialized customer assistance (Spanish speaking, hearing impaired, limited vision, etc.). ■ Referrals to local dealers, repair parts distributors and service companies. Whirlpool designated service technicians are trained to fulfill the product warranty and provide after- warranty service, anywhere in the United States. To locate the Whirlpool designated service company in your area, you can also look in your telephone directory Yellow Pages. For further assistance If you need further assistance, you can write to Whirlpool Corporation with any questions or concerns at: Whirlpool Brand Home Appliances Customer eXperience Center 553 Benson Road Benton Harbor, MI 49022-2692 Please include a daytime phone number in your correspondence. In Canada Call the Whirlpool Canada LP Customer eXperience Centre toll free: 1-800-807-6777. Our consultants provide assistance with: ■ Features and specifications on our full line of appliances. ■ Use and maintenance procedures. ■ Accessory and repair parts sales. ■ Referrals to local dealers, repair parts distributors, and service companies. Whirlpool Canada LP designated service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in Canada. For further assistance If you need further assistance, you can write to Whirlpool Canada LP with any questions or concerns at: Customer eXperience Centre Whirlpool Canada LP

200 - 6750 Century Ave.

Mississauga, Ontario L5N 0B7 Please include a daytime phone number in your correspondence. Accessories Charcoal Filter Kit (for non-vented installations only) Order Part Number W10412939 Recirculation Kit (for non-vented installations only) Order Part Number W10349327 Chimney Extension Kit Order Part Number W1033735714

WHIRLPOOL CORPORATION MAJOR APPLIANCE WARRANTY

LIMITED WARRANTY For one year from the date of purchase, when this major appliance is operated and maintained according to instructions attached to or furnished with the product, Whirlpool Corporation or Whirlpool Canada LP (hereafter “Whirlpool”) will pay for Factory Specified Parts and repair labor to correct defects in materials or workmanship. Service must be provided by a Whirlpool designated service company. This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. Outside the 50 United States and Canada, this limited warranty does not apply. Proof of original purchase date is required to obtain service under this limited warranty.

ITEMS EXCLUDED FROM WARRANTY

This limited warranty does not cover: 1. Service calls to correct the installation of your major appliance, to instruct you on how to use your major appliance, to replace or repair house fuses, or to correct house wiring or plumbing. 2. Service calls to repair or replace appliance light bulbs, air filters or water filters. Consumable parts are excluded from warranty coverage. 3. Repairs when your major appliance is used for other than normal, single-family household use or when it is used in a manner that is contrary to published user or operator instructions and/or installation instructions. 4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in accordance with electrical or plumbing codes, or use of consumables or cleaning products not approved by Whirlpool. 5. Cosmetic damage, including scratches, dents, chips or other damage to the finish of your major appliance, unless such damage results from defects in materials or workmanship and is reported to Whirlpool within 30 days from the date of purchase.

6. Any food loss due to refrigerator or freezer product failures.

7. Costs associated with the removal from your home of your major appliance for repairs. This major appliance is designed to be repaired in the home and only in-home service is covered by this warranty.

8. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
