| Product type | Supplemental heater with hand warmer |
| Model | BEE |
| Brand | Sonnenkönig |
| Available colors | White, black, pink |
| Power | 400 W |
| Power supply | 220 V ~ 50/60 Hz, 5 A |
| Dimensions (L x W x H) | 14 x 12.8 x 15 cm |
| Weight | 0.56 kg |
| Hand warmer material | Phase change wax |
| Hand warmer charging time | 45 minutes |
| Heat diffusion time | 40 minutes |
| Heating element type | PTC |
| Usage | Indoor only |
| Minimum distance to wall | 10 cm |
| Minimum distance to furniture | 50 cm |
| Functions | Fan heater, hand warmer |
| Safety | Protective grille, automatic shut-off after 15 seconds (2nd press) |
| Cleaning | Soft, dry cloth; mild detergent for stubborn dirt |
| Warranty | 24 months |
| Included accessories | Support feet |
Frequently Asked Questions - Bee Sonnenkönig
User questions about Bee Sonnenkönig
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Heating in PDF format for free! Find your manual Bee - Sonnenkönig and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Bee by Sonnenkönig.
USER MANUAL Bee Sonnenkönig
Festnetz 14 Cent/Minute
Dimensions chauffe-main. 70 x 27.5 mm
Poids chauffe-main 70g
Chauffe-main Energy. 8000 kJ
Modifications techniques
Telephone Fixe 14 Cent/Minute
Material handverwarmer Faseverandering was
Energie handverwarmer 8000 kJ
Landline 14 Cent/Minute
Mobiel network 42 Cent/Minute

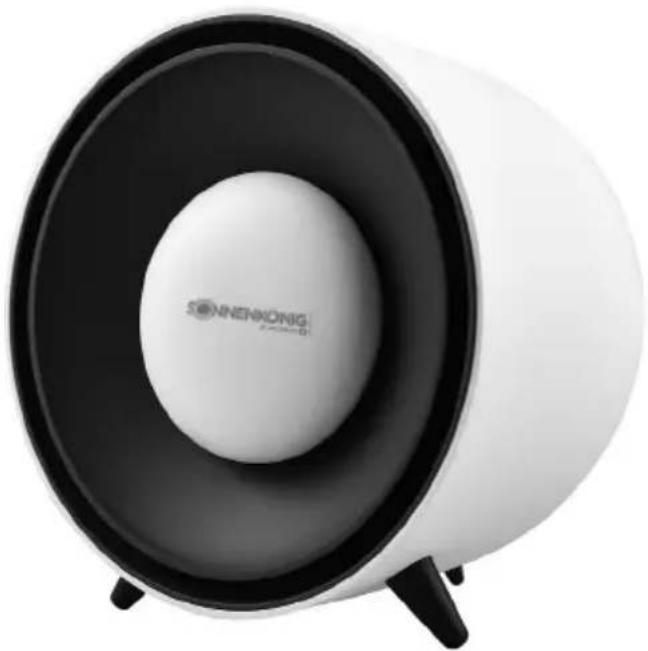

BEE
CERAMIC HEATER
User's manual
This product is only suitable for well insulated spaces or occasional use.
EN
INDEX
1 Safety instructions 43
2 Part description 45
3 Operating instructions 46
4 Cleaning and maintenance. 47
5 Specifications 47
6 Warranty / disposal / technical change 48

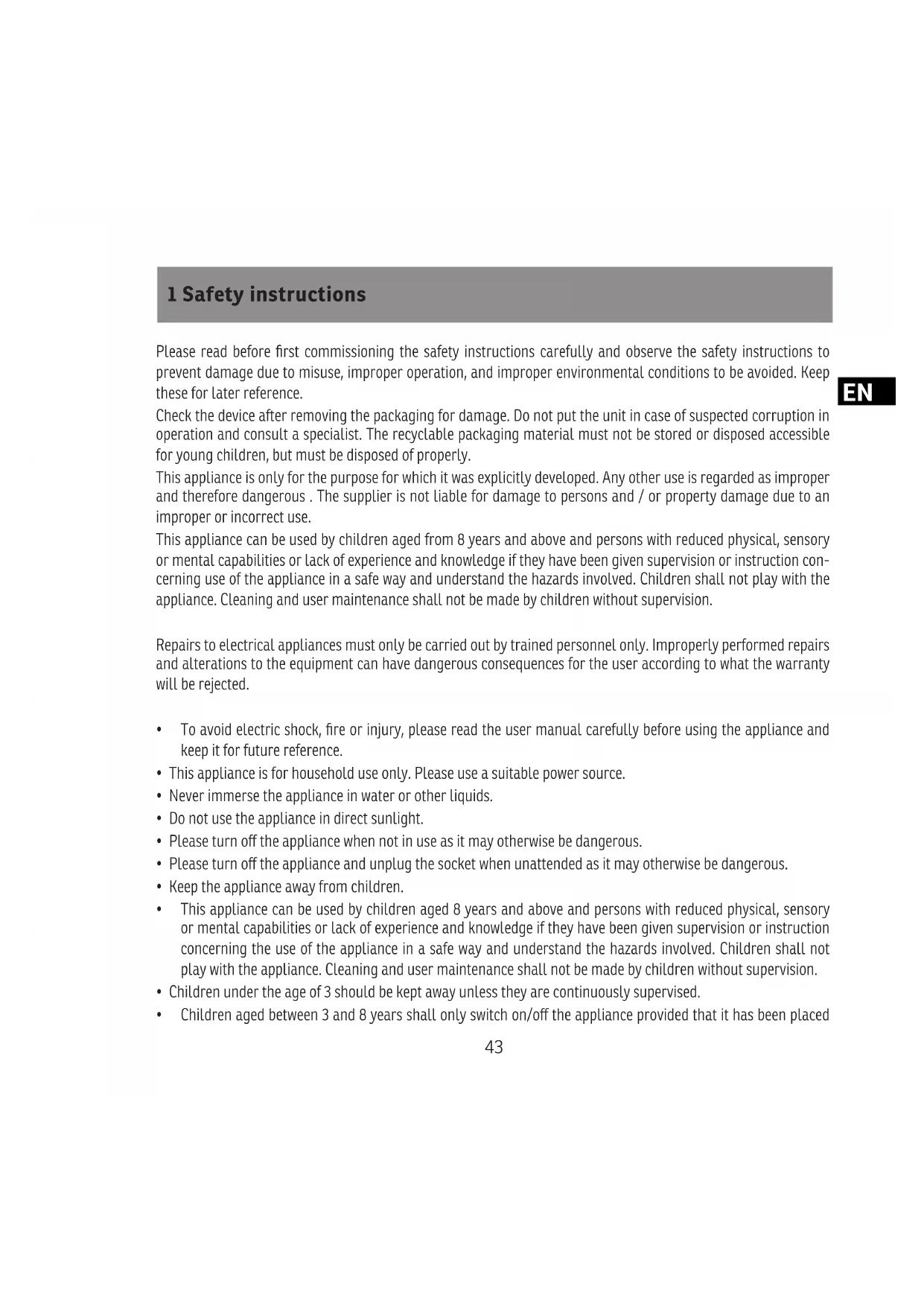

1 Safety instructions
Please read before first commissioning the safety instructions carefully and observe the safety instructions to prevent damage due to misuse, improper operation, and improper environmental conditions to be avoided. Keep these for later reference.
Check the device after removing the packaging for damage. Do not put the unit in case of suspected corruption in operation and consult a specialist. The recyclable packaging material must not be stored or disposed accessible for young children, but must be disposed of properly.
This appliance is only for the purpose for which it was explicitly developed. Any other use is regarded as improper and therefore dangerous. The supplier is not liable for damage to persons and / or property damage due to an improper or incorrect use.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
Repairs to electrical appliances must only be carried out by trained personnel only. Improperly performed repairs and alterations to the equipment can have dangerous consequences for the user according to what the warranty will be rejected.
- To avoid electric shock, fire or injury, please read the user manual carefully before using the appliance and keep it for future reference.
- This appliance is for household use only. Please use a suitable power source.
- Never immerse the appliance in water or other liquids.
- Do not use the appliance in direct sunlight.
- Please turn off the appliance when not in use as it may otherwise be dangerous.
- Please turn off the appliance and unplug the socket when unattended as it may otherwise be dangerous.
- Keep the appliance away from children.
- This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
Children under the age of 3 should be kept away unless they are continuously supervised.
Children aged between 3 and 8 years shall only switch on/off the appliance provided that it has been placed
EN
or installed in its intended normal operating position and they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children aged between 3 and 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
- With any indication of damage or malfunction, please stop using the appliance immediately to avoid hazards. Take it to an authorized service centre for repair. Do not attempt to repair or change any parts yourself.
- If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid hazards.
- Please turn off and unplug the appliance before cleaning or maintenance.
- Clean the surface of the appliance with a dry cloth. Do not use any corrosive detergent or solvent to clean. Do not splash water on the appliance.
- Please turn off and unplug the appliance when not in use. Make sure the power is off before pulling out the plug. Do not pull on the cord.
- When the appliance is not in use for a prolonged period, please turn it off, unplug it, pack it well and store it in a dry and cool place.
- It is forbidden to put flammable and explosive objects near the appliance. Do not use the appliance in an environment full of flammable gas or powder. Keep away from any fire and heat sources.
- Please put the power cord in the right place in order to avoid tripping over the appliance.
- Do not put any objects on the appliance and do not place the appliance directly under a socket outlet.
- Do not touch the air outlet when operating.
- Please keep the air inlet and the air outlet unblocked to minimize the risk of fire or malfunction.
- Do not let the power cord touch the air outlet or be near it. It will damage the insulation layer of the wires.
- Please operate the appliance on a firm and level desk or floor. Do not use the appliance in the immediate surroundings of a bath, a shower or a swimming pool.
- Ensure no water or raindrop leaks into the appliance in order to avoid electric shock. Do not put flammable objects or wet clothes on the air outlet in order to avoid short circuit or fire.
- Please do not place the air inlet or the air outlet near curtains or walls when operating as it will block the air current and cause fire. The appliance should be installed at a minimum distance of 10cm from the wall or other obstacles.
- Please do not insert any objects into the air inlet or the air outlet in order to avoid electric shock.
After a period of operation, unusual noise and uneven air volume may appear because of dust blocking the airflow. It will disappear after cleaning the back net. - In order to avoid overheating, do not cover the appliance with anything, especially flammable materials, such as clothes or paper.
-
This appliance is not equipped with a device to control the room temperature. Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.
-
In order to avoid hazards due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as timers, programmers, a separate remote control system or connected to a circuit that is regularly switched on and off by the utility.
- Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

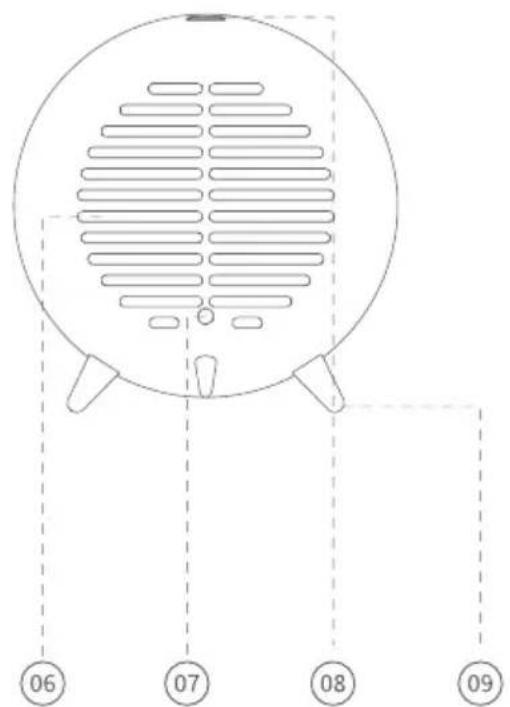

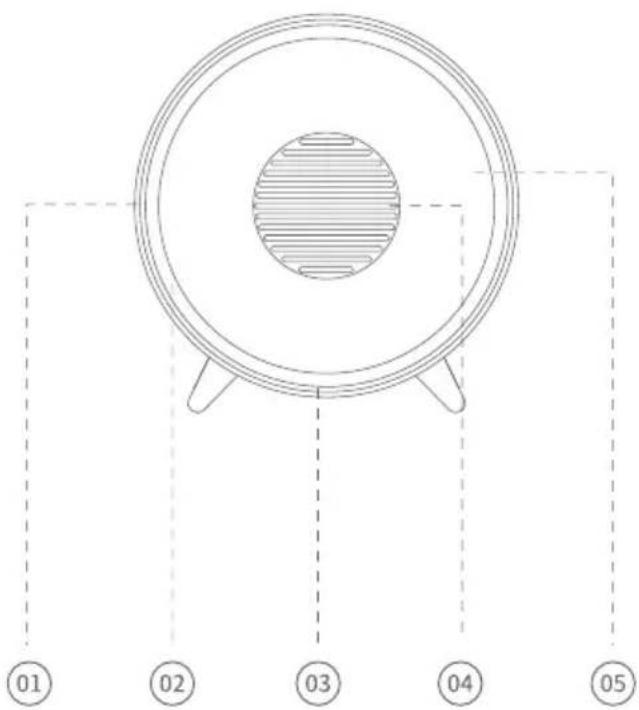

2 Part description
EN
1 Case
2 Outer air outlet
3 Inner air outlet
4 Protection grille / holder for hand warmer
5 Middle air outlet
6 Air inlet
7 Power cords
8 ON/OFF -key
9 Supporting legs
3 Operating instructions
- Please plug the plug into a 220 V ,50Hz/60Hz,5 A outlet before use to maintain power to the product.
- When the ON/OFF button is pressed for the first time, the heater and the PTC heating element are started and the warm air is blown out evenly.
- The second press of the ON/OFF button allows the appliance to continue running for 15 seconds before switching off.
Manual for hand warmer
- Place the hand warmer on the middle air outlet of the appliance.
- Press the ON/OFF button to start the heater.
- Remove the hand warmer from the appliance after 45 minutes.
- The hand warmer has now stored the heat for 40 minutes and emits it continuously.
General information
- The heater must be placed on a flat table or on the floor.
Before moving the heater, unplug it from the wall outlet and wait for it to cool down completely. When moving it, remember not to pull the power cord directly to avoid damaging the unit. - It is forbidden to cover the heater or bake on it in the event of a fire disaster.
- Because improper manipulations and arrangements can cause a fire, you cannot start this heater with a programmerr with an automatically connected power source, timer, or similar device.
If the heater is to be protected for an extended period of time, it is important to first turn off the power switch and then disconnect the power plug.
This product should not be used next to curtains or other indoor furniture. It is recommended to leave more than half the area in place. - 50~cm from the wall and furniture without obstacles 50~cm above, which can facilitate air circulation.
- This product is intended for indoor use only. Please do not use it outdoors.
This product should not be used or stored for long periods in damp or dusty locations for fear of accidents such as external corrosion, power failure due to moisture and electric shock. - If you plan to clean the heater, first unplug it and wait for it to cool down completely.
This product is prohibited in flammable, explosive, and greasy situations, and the ambient temperature should not exceed the ambient temperature.
30^ must not be exceeded. - This heater must not be used in bathrooms or swimming pools.
- Do not touch the mains switch and do not pull the mains plug with wet hands in the event of an electric shock.
-
Do not bend, pull, or knot the power cord to avoid excessive heat.
If the power cord is damaged, it must be replaced by a service technician from the manufacturer or its service department for safety reasons. -
When the heater is in operation, it is forbidden for users, especially children, to touch the front protective grille - risk of burns!
The front guard does not provide comprehensive protection for children and the disabled, which requires special attention from these groups to ensure that they stay away from the heater.
This product is not suitable for people who have physical, sensory or intellectual problems or who do not have experience and common sense, unless others can ensure their safety.
The user cannot abruptly dismantle the radiator to reinstall this product in any way to avoid hazards. A quiet noise is acceptable when the appliance is switched on. - It is forbidden to heat the hand warmer with a microwave or a high-voltage system.
4 Cleaning and maintenance
Please keep this product away from any heat source in case of deformation and discoloration. Regular cleaning of the ventilation openings and grille is required to prevent clogging.
If there is dirt on the product surface, use a soft cloth moistened with mild detergent to remove it and wipe the heater dry.
5 Specifications
Model. BEE
Frequency 50-60 Hz
Power. 400 Watt
Dimensions 14 x 12.8 x 15 cm
Weight 0.56 kg
Dimensions hand warmer. 70 x 27.5 mm
Weight hand warmer. 70 g
Material hand warmer.. Phase change wax
Energy hand warmer. 8000 kJ
Heat transfer time 45 min
Heat release time. 40 min
6 Warranty / Disposal / Technical change
Warranty
The Products are controlled just before delivery. If despite a lack of your product, try trustfully your seller. Please bring your receipt, as this is to be submitted for each warranty. The guarantee period is 24 months from date of purchase.
Disposal
The device must be disposed of properly. The device can be distributed free of charge for disposal at each dealer.
Technical changes
Subject to changes in technology and design. We shall not be liable for technical or editorial changes or omissions in this document.
Please save the packaging materials of the unit.
CE Declaration of Conformity
This device complies with the following standards
EN 55014-1:2017
EN 55014-2:2015
EN 60335-1:2012 + A11:2014 + A12:2017 + A13:2017
EN 60335-2-30:2009
EN 61000-3-2:2014
EN 61000-3-3:2013
EN 62233:2008
2011/65/EU
2014/30/EU
2014/35/EU
DISPOSAL INSTRUCTIONS FOR THE ELECTRICAL PART OF THE PRODUCT
In accordance with Article 26 of the Decree-Law of 14 March 2014 implementing Directive 2012/19/EC and the Law of 4 March 2014 implementing Directive 2011/65/EC on the reduction of the use of hazardous substances in electrical and electronic equipment and on waste management.
The crossed-out dustbin symbol on the machine or packaging indicates that the waste generated at the end of its useful life must be collected separately from other waste. The user must therefore take the device to the appropriate collection points at the end of its service life. Sort electronic and electrical waste or send the purchase of new, equivalent devices back to the dealer in a one-to-one process. L'adaguata separate collection for subsequent commissioning of the equipment to be recycled, treatment and environmentally sound disposal, helps to avoid possible adverse effects on the environment and health and promote the reuse and/or recycling of the materials to which they belong. composed the equipment. Misuse of this product by the user will result in the application of the administrative penalties provided for in the applicable legislation. Batteries contained in the device must be disposed of separately in the appropriate containers for the collection of used batteries.
DISPOSAL OF BATTERIES AND ACCUMULATORS
In accordance with Legislative Decree 188 of 20 November 2008 implementing Directive 2006/66/EC on batteries, accumulators and related waste, the symbol of the crossed-out waste bin on the battery indicates that it is prohibited to dispose of used batteries in household waste.
Batteries and batteries contain substances that are highly polluting for the environment. The user is obliged to dispose of used batteries at collection points in the municipality or in appropriate containers. The service is free. In this way, legal requirements will be respected and the environment will be protected. The symbols identifying hazardous materials that may be present in batteries and accumulators are as follows: Hg = Mercury, Cd = Cadmium, Pb = Lead.
