TSM6A011W - Coffee grinder BOSCH - Free user manual and instructions
Find the device manual for free TSM6A011W BOSCH in PDF.
| Technical specifications | Electric coffee grinder, 180 W power, 75 g coffee capacity |
|---|---|
| Type of grinder | Stainless steel grinder |
| Features | One-touch grinding function, transparent lid for visual control |
| Usage | Ideal for grinding coffee beans, spices, herbs, and nuts |
| Maintenance | Easy to clean, removable parts dishwasher safe |
| Safety | Safety system preventing operation if the lid is not in place |
| Dimensions | Compact, easy to store in the kitchen |
| Weight | Lightweight, easy to handle |
| Warranty | 2 years |
Frequently Asked Questions - TSM6A011W BOSCH
How to clean the BOSCH TSM6A011W coffee grinder?
To clean the grinder, unplug it and remove the coffee container. Use a soft, dry cloth to wipe the inside of the grinder. Do not immerse the grinder in water.
What is the maximum capacity of the BOSCH TSM6A011W coffee grinder?
The BOSCH TSM6A011W coffee grinder has a maximum capacity of 75 g of coffee.
Can the coffee grinder grind other grains or spices?
Yes, the grinder can also grind spices and dry grains, but it is recommended not to use it for wet foods.
How to adjust the grind fineness?
The BOSCH TSM6A011W coffee grinder does not have a fineness adjustment. The grind is obtained based on the operating time.
What to do if the coffee grinder does not start?
Check that the grinder is properly plugged in and that the lid is securely in place. If this does not work, try resetting the device by unplugging it for a few minutes.
Is the BOSCH TSM6A011W coffee grinder noisy?
All coffee grinders generate some level of noise due to their grinding mechanism. The BOSCH TSM6A011W model is designed to be relatively quiet compared to other grinders.
Can very fine coffee grounds be made with this model?
This coffee grinder is ideal for medium to fine grind, but it may not grind beans into very fine powder like a professional coffee grinder.
How to store ground coffee to keep it fresh?
Store ground coffee in an airtight container away from light and moisture to preserve its freshness.
Is it possible to grind coffee beans in large quantities?
It is recommended not to exceed the maximum capacity of 75 g to ensure uniform grinding and avoid overheating the motor.
Download the instructions for your Coffee grinder in PDF format for free! Find your manual TSM6A011W - BOSCH and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. TSM6A011W by BOSCH.
USER MANUAL TSM6A011W BOSCH

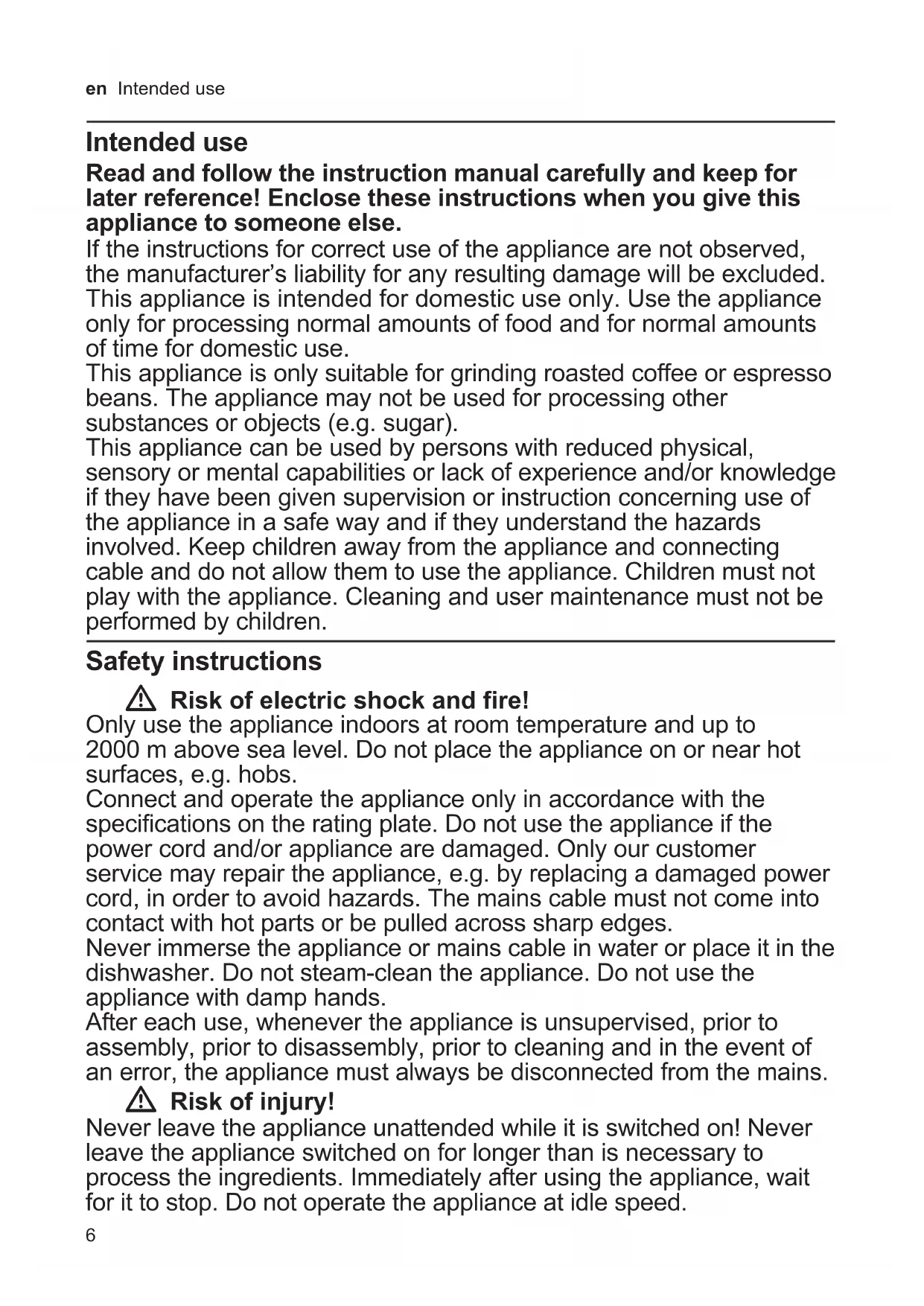

- Safety instructions W Important! After you have used the appliance three times without interruption, a pause of around 60 minutes is necessary. It is essential to clean the appliance as described after each use or after it has not been used for an extended period. “Cleaning and maintenance” see page 8 Congratulations on the purchase of your new Bosch appliance. You can find further information about our products on our website. Content Intended use p. 6
- Safety instructions p. 6
- Overview p. 7
- The grinding level p. 7
- Operating the appliance p. 7
- Cleaning and maintenance p. 8
- Disposal p. 8
- Guarantee Overview Please fold out the illustrated pages. 1 Transparent lid with safety switch 2 Housing 3 Container 4 Fly cutter The grinding level The grinding level of the coffee is deter- mined by the quantity that has been filled and the grinding duration. A shorter grinding duration results in more coarsely ground coffee. Also observe the grinding level specifi- cations in the instruction manual for your coffee machine. Coffee Quantity Grinding duration 10 g max. 20 sec. 40 g max. 25 sec. 75 g max. 30 sec. Espresso Regardless of the type of beans and the degree of roasting, espresso coffee requires a “fine” level of grinding. Quantity Grinding duration 16 g (for 2 cups) max. 20 sec. 32 g (for 4 cups) max. 25 sec. 64 g (for 8 cups) max. 30 sec. Operating the appliance Caution! Only fill the appliance with roasted coffee or espresso beans. Never process more than 75 g of beans ■ Fill up with the desired quantity of beans. Note: The measurement spoon belonging to the espresso/coffee maker can be used for filling the coffee beans. One measuring spoonful equals roughly 8 g. ■ Put on lid with switch. ■ Plug into the mains. ■ Press switch down. The beans will be ground. ■ After the desired grinding duration, release the switch and wait for the blade to stop. ■ Disconnect the mains plug. ■ Remove the lid and remove or decant the ground coffee.8 en Cleaning and maintenance Cleaning and maintenance The appliance requires no maintenance. Thorough cleaning protects the appliance from damage and keeps it functional. W Risk of electric shock! Never immerse the base unit in liquids and do not clean in the dishwasher. Do not steam-clean the appliance. Before cleaning the appliance, pull out the mains plug! Caution! Do not use abrasive cleaning agents. Surfaces may be damaged. ■ Disconnect the mains plug. ■ Clean the container and lid with a brush or dry cloth. The lid may also be washed in cold or tepid water. ■ Wipe the housing with a damp cloth. Disposal p. 8
Dispose of packaging in an environ- mentally-friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE). The guideline determines the frame- work for the return and recycling of used appliances as applicable throughout the EU. Please ask your specialist retailer about current disposal facilities. Guarantee The guarantee conditions for this appliance are as defi ned by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee. Changes reserved.9
- Calls are charged at the basic rate, please check with your telephone service provider for exact charges. IL Israel, C/S/B/ Home Appliance Ltd. 1, Hamasger St. North Industrial Park Lod, 7129801 Tel.: 08 9777 222 Fax: 08 9777 245 mailto:csb-serv@csb-ltd.co.il www.bosch-home.co.il IN India,Bhārat, BSH Household Appliances Mfg. Pvt. Ltd. Arena House, Main Bldg, 2nd Floor, Plot No. 103, Road No. 12, MIDC, Andheri East Mumbai 400 093 Toll Free 1800 266 1880* www.bosch-home.com/in
- Expert tips & tricks for your appliance
- Warranty extension options
- Discounts for accessories & spare-parts
- Digital manual and all appliance data at hand
- Easy access to Bosch Home Appliances Service Free and easy registration – also on mobile phones: www.bosch-home.com/welcome Expert advice for your Bosch home appliances, need help with problems or a repair from Bosch experts. Find out everything about the many ways Bosch can support you: www.bosch-home.com/service Contact data of all countries are listed in the attached service directory. Thank you for buying a Bosch Home Appliance! Looking for help? You´ll find it here.
