Technical features	Power: 1200 W, Bowl capacity: 1.8 L, Bowl material: Tritan, Stainless steel blades, Variable speed: Yes, Pulse function: Yes
Usage	Ideal for smoothies, soups, sauces, and frozen preparations. Easy to use with an intuitive control panel.
Maintenance and repair	Easy cleaning thanks to removable dishwasher-safe parts. Regularly check the condition of the blades and the sealing gasket.
Safety	Integrated safety system preventing start-up if the bowl is not properly positioned. Overheat protection.
General information	Warranty: 3 years, Included accessories: recipe book, spatula, and user manual. Dimensions: 20 x 20 x 45 cm.

Frequently Asked Questions - Power Blender MAGIMIX

How do I clean the MAGIMIX Power Blender?

To clean the MAGIMIX Power Blender, disassemble the removable parts, then wash them with warm soapy water. You can also put them in the dishwasher. The bowl and blade should be cleaned immediately after use to avoid residue.

Why won\u0027t my blender start?

Make sure the appliance is properly plugged in and that the bowl is correctly in place. Also check that the lid is properly closed, as the blender will not start if the lid is not securely fixed.

Is my blender\u0027s motor overheating?

If your blender\u0027s motor is overheating, it is recommended to stop it and let it cool down for about 15 minutes. Avoid running the appliance continuously for long periods.

How can I achieve optimal blending results?

To get the best blending results, start by adding liquid ingredients first, then add solid ingredients. Use the pulse function for harder ingredients and blend in intervals to avoid overload.

What should I do if the blades aren\u0027t turning?

If the blades aren\u0027t turning, check that the bowl is properly installed and that the motor is working. If the problem persists, check if any food is blocking the blades and remove any obstructions.

Can I use the MAGIMIX Power Blender for hot ingredients?

Yes, the MAGIMIX Power Blender is designed to blend hot ingredients. However, do not add boiling water directly and use the lid to prevent splashes.

Where can I find spare parts for my blender?

Spare parts for the MAGIMIX Power Blender are available on the official MAGIMIX website or from authorized dealers. Be sure to check your blender model when ordering.

My blender is making an unusual noise, what should I do?

An unusual noise may indicate a problem with the motor or blades. Check if any food is stuck and ensure all parts are properly assembled. If the problem persists, contact customer service.

USER MANUAL Power Blender MAGIMIX

Download the Magimix app or visit our website

Download de Magimix-app of ga waar onsze website

magimix.com

EN Safety instructions. 18
Description 20
Control panel 22
Blender capacities 24
Using your blender. 25
Using the attachments 28
Cleaning 32
Troubleshooting 33

Please read the blender safety instructions through carefully before using your appliance and its attachments.

WARNING: the safety instructions are an integral part of the appliance.

For your own safety, please read them carefully before using it for the first time.

• Never go above the Max.1.8 L mark.
• Never run the blender if the lid if not secured properly or if the lid seal and blades are not assembled correctly.
• Never put your fingers or anything other than the spatula delivered with the product in the bowl while the blender is operating.
• If the blades get stuck, always disconnect the blender before removing the ingredients.
• Always disconnect the blender (i) if it is left without surveillance, (ii) before mounting, dismounting or cleaning, (iii) before changing the attachments and (iv) when you need to go near any moving parts.
• All surfaces in contact with food must be cleaned with soapy water or washing-up liquid (see further details under CLEANING).
• Special precautions must be taken when handling sharpened blades, when emptying the bowl and during cleaning. There is a risk of injury if the blender is used incorrectly.
• Never immerse the blender in water or other liquids in order to avoid the risk of electrocution.
• Do not place the blender on or near a gas burner or hot plate nor in a hot oven.
• This appliance is intended solely for use in the home.
• Do not use the blender outside.
• Children must not play with the blender. The blender must not be used by children. Keep the blender and its cord out of reach of children.
• The blender can be used by persons whose, physical, sensory or mental capacities are reduced, or by persons who have no experience or knowledge of the appliance, provided they are properly supervised or have been instructed beforehand on using the blender safely and they understand the risks involved.
• Use of the appliance in the following cases is not covered by the warranty: in staff kitchen areas in stores, offices and other working environments, in farms, by guests in hotels, motels, bed & breakfasts, guest houses and other residential environments.

SAFETY INSTRUCTIONS

RISK OF BURNS

• NEVER process hot ingredients (solid or liquid) in the BlendCups or mill attachment, as blending hot foods in a lidded jug can lead to a build-up of pressure, forcing out scalding steam or liquids.
• Processing hot foods in the 1.8l jug: blending hot ingredients at high speed can lead to a build-up of pressure, forcing out scalding steam or liquids. Always take care when pouring in a hot liquid, as it may suddenly boil up and escape from the jug.
• Never introduce hot ingredients (solid or liquid) if they are over 60^ C in temperature. Always make sure the lid is firmly fitted but the measuring cap is only loosely positioned, to allow any steam to escape. Always use the SOUP programme or start at a low speed and gradually increase it. Never use the PULSE button.

MAINS CONNECTION

• Your appliance must be connected to an earthed socket with the original power cord.
• Check that the voltage indicated on its identification plate corresponds to the voltage of your mains supply.
• Never allow the power cord to dangle over the edge of your worktop or counter, and make sure that it does not come into contact with hot surfaces.

AFTER-SALES SERVICE

• If the power cord has been damaged, it must be replaced by the manufacturer, a Magimix-approved service agent or a similarly qualified person, in order to avoid all risks.
• The use of parts that are not recommended or sold by Magimix may result in injury, fire or electric shock.

KEEP THESE SAFETY INSTRUCTIONS FOR FUTURE REFERENCE

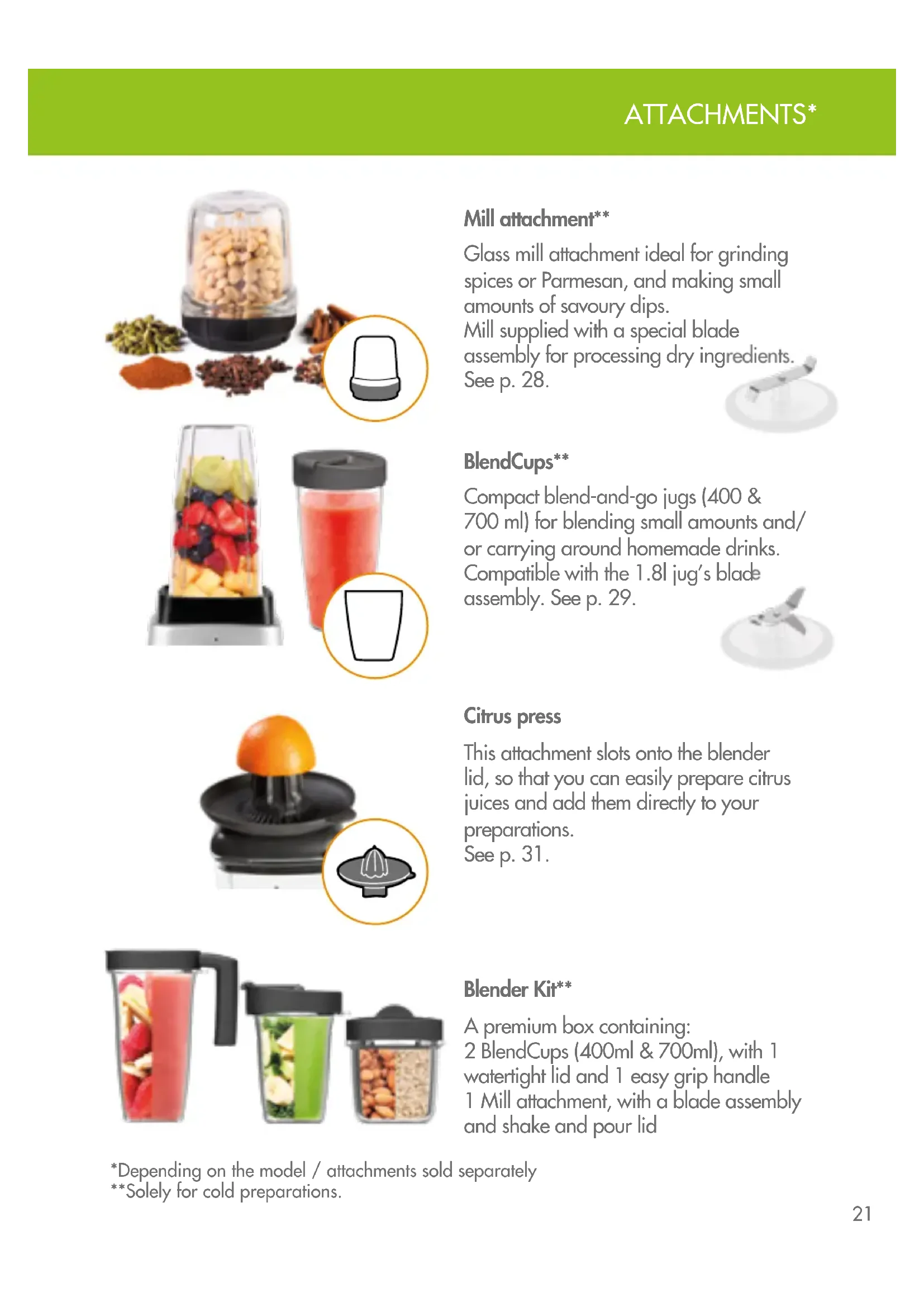

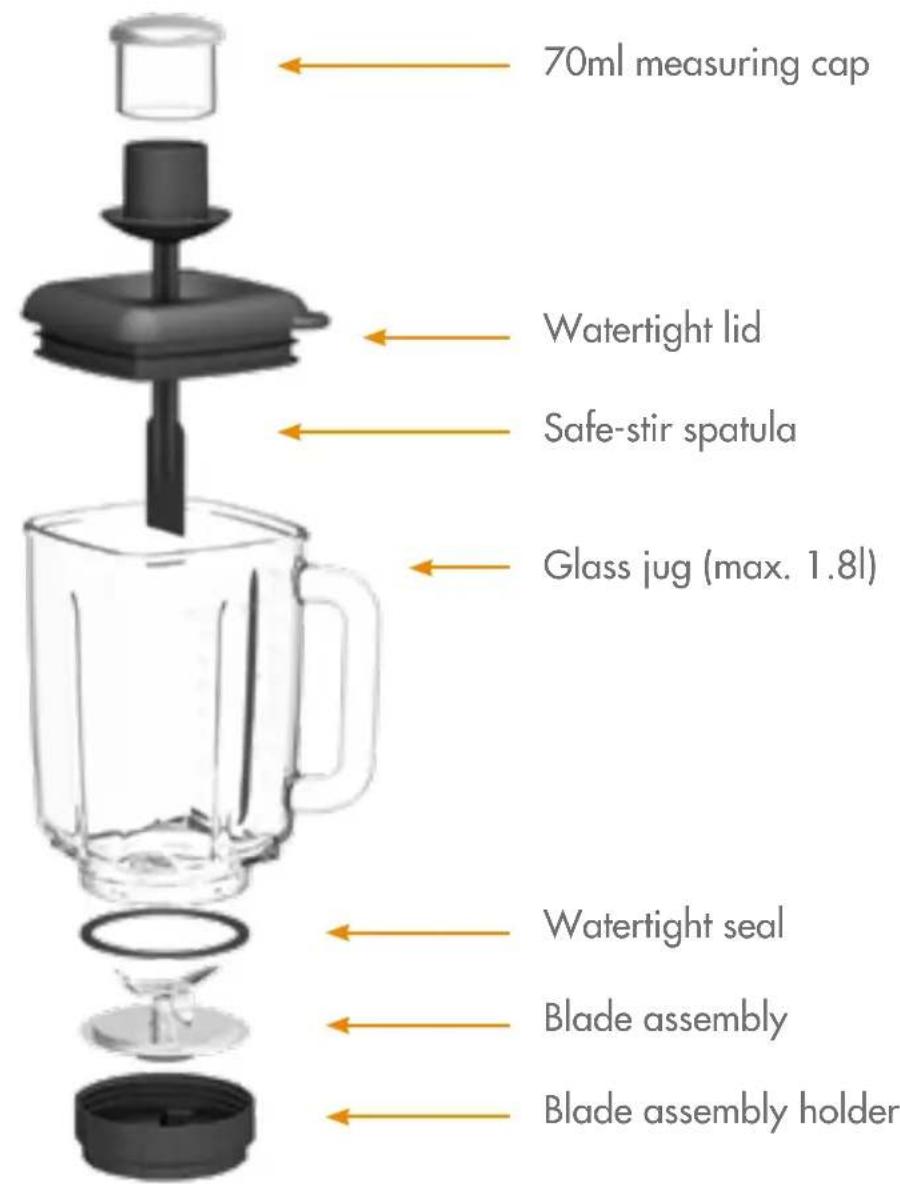

DESCRIPTION

Motor unit

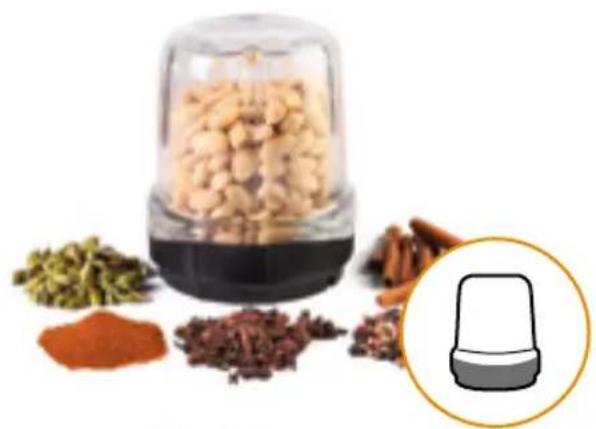

Mill attachment**

Glass mill attachment ideal for grinding spices or Parmesan, and making small amounts of savoury dips.

Mill supplied with a special blade assembly for processing dry ingredients.

Seep.28.

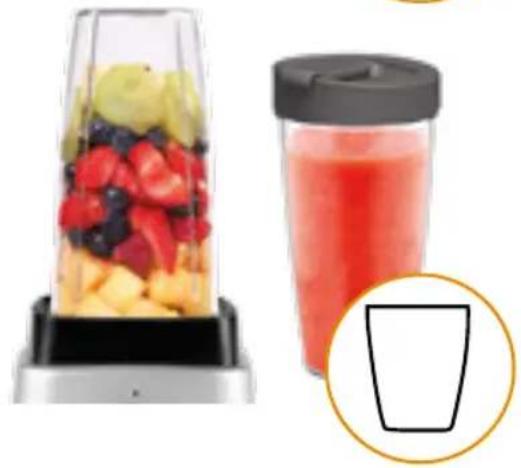

BlendCups**

Compact blend-and-go jugs (400 & 700 ml) for blending small amounts and/or carrying around homemade drinks.

Compatible with the 1.81 jug's blade assembly. See p. 29.

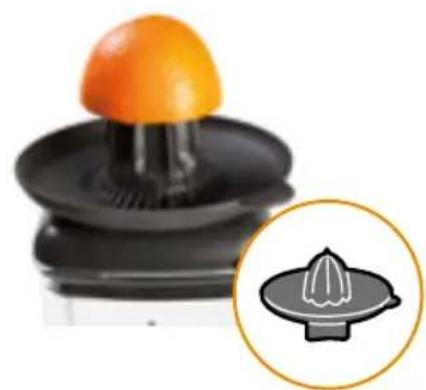

Citrus press

This attachment slots onto the blender lid, so that you can easily prepare citrus juices and add them directly to your preparations.

Seep.31.

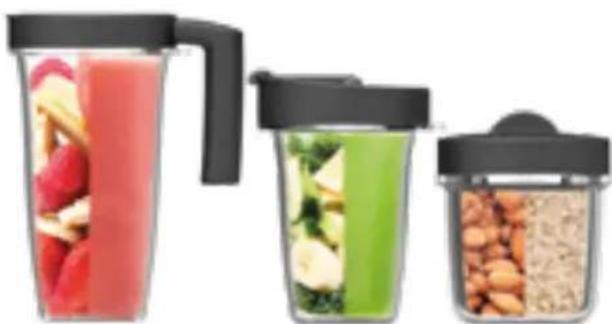

Blender Kit**

A premium box containing:

2 BlendCups (400ml & 700ml), with 1 watertight lid and 1 easy grip handle

1 Mill attachment, with a blade assembly and shake and pour lid

*Depending on the model / attachments sold separately

**Solely for cold preparations.

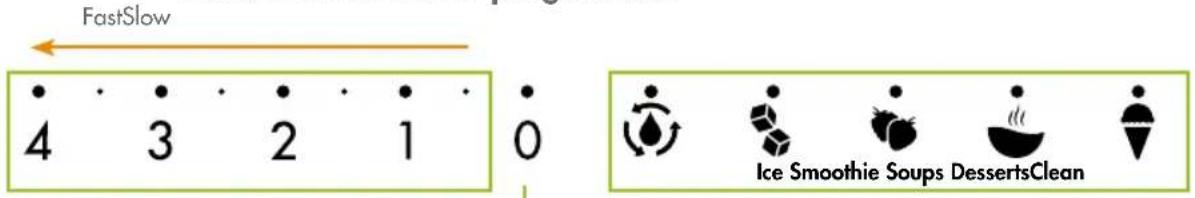

Manual mode AUTO programmes

OFF: your appliance is switched off

Light on

Your appliance is switched on

Flashing light

• Jug missing or incorrectly positioned

• Motor overload: switch to 0, either add some liquid or reduce the amount being processed, then restart

• Switching your appliance on: first select a speed or programme, then press AUTO.

• Manual mode: always start at the slowest speed and gradually increase it.
• Never run continuously for more than 60 seconds.
• PULSE: maximum speed for an even smoother texture / pulsing to give you complete control.

5 pre-set programmes of cycles and speeds to ensure the best result every time. As these programmes are for use with the 1.8I jug, please read the instructions on how to adapt them to the other jugs.

		1.8l jug	BlendCup	Mill attachment
Clean	Cleaning Automatic rinsing programme	✓	✓	✓
Ice	Crushed glass For crushing ice	✓
mothie	Drinks For blending milkshakes, smoothies and cocktails	✓	✓
Soups	Soups For making puréed soups and cream soups (hot or cold)	✓
Desserts	Frozen desserts For making instant desserts (using frozen fruit) and mixing or puréeing dense and compact ingredients	✓

The lengths of the cycles have been established on the basis of the maximum blender capacities (see p. 24).

You can stop the programme before the end of the cycle if you are processing smaller amounts or prefer a coarser texture.

BLENDER CAPACITIES

To make best use of your appliance, please follow the recommendations below:

	1.8l jug	BlendCup	Mill attachment
Dried breadcrumbs	×	×	3 breakfast rusk (30g) Sp 4, 14 s
Fruit compote	500g chilled cooked fruit Sp 1, then Sp 3 + spatula	×	200g chilled cooked fruit Sp 1 then Sp 3
Frozen desserts	300g frozen fruit (2cm cubes) Desserts + spatula	×	×
Ground spices	×	×	100g Sp 4, 20 s
Coffee beans	×	×	80 g Sp 4, 40 s
Crushed ice	300g (approx. 15-20 ice cubes) Ice	×	×
Milkshakes	1.6l Smoothies	0.4l or 0.7l Smoothies	×
Walnuts, almonds	×	×	100g Sp 3, 20 s
Onion	200g Sp 1 30 s + spatula	×	100g Sp 1, 30 s
Parmesan	×	×	80g (2cm cubes) Sp 4, 50 s
Pancake batter	1l Sp 3, 10 s + Sp 4, 20 s	×	×
Pureed vegetables	200g chilled cooked vegetables Sp 1, 50 s	×	200g chilled cooked vegetables Sp 1, 50 s
Smoothies	1.8l Smoothies	0.4l or 0.7l Smoothies	×
Hot soups	1.6l Soups	A	A
Icing sugar	×	×	200gcaster sugar Sp4 + Pulse, 60 s
Raw meat	×	×	200g (2cm cubes) Sp 4 10 s

A blender is not designed to knead dough or mash potatoes.

Whatever the attachment or recipe concerned, the blender must not be used continuously for more than 60 seconds.

1 Assemble the base

Place the seal on the rim of the blade assembly, making sure it is completely flat.

Position the blade assembly on the underside of the jug.

Screw the holder tightly onto the blender jug.

2 Assemble the jug

Place the upright jug on the motor unit.

Add the ingredients (max. 1.8l).

Push the lid down firmly into place. Loosely position the cap.

3 Blend

Select a speed or programme. Press AUTO.

If necessary, use the spatula to help with the mixing.

Wait until the blades have completely stopped moving before opening.

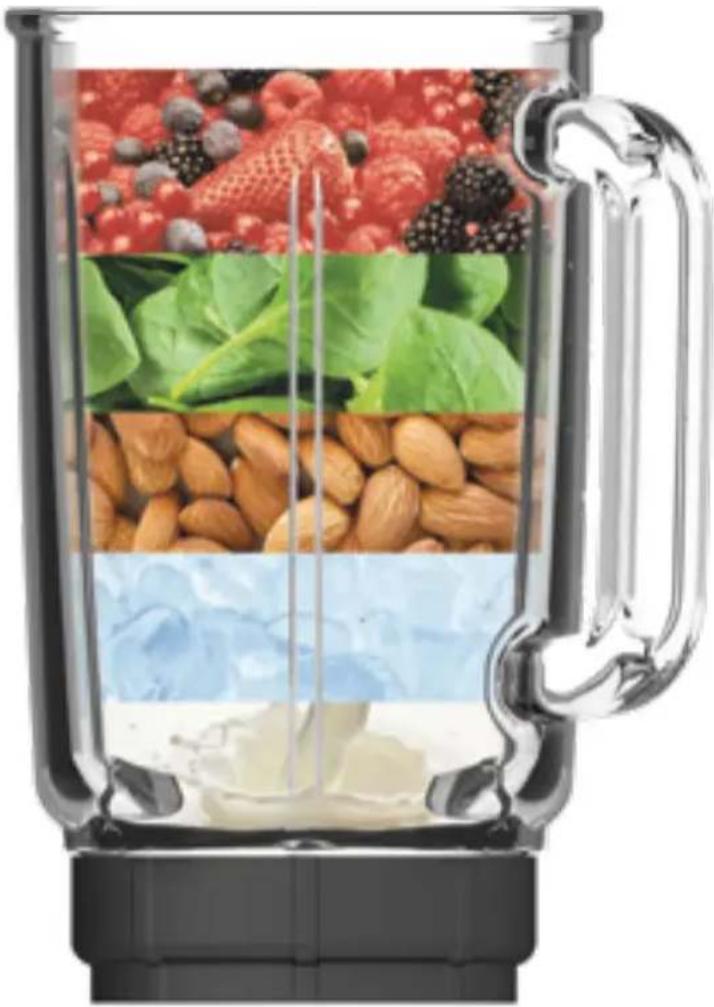

Ice / frozen or sticky ingredients such as honey, banana and avocado

Fresh fruit and vegetables except for banana and avocado

Leaves, herbs such as spinach and fresh herbs

Hard or dry ingredients such as cereals, nuts and carrots

Liquids such as water, milk and fruit juice

For the best possible result:

• Cut the food into chunks measuring approx. 2cm .
• Coarsely chop the herbs or leaves before adding them.
• Always add the ingredients in the order specified in the recipe.
• When processing thick mixtures, always start at a low speed, otherwise the food will stick to the sides and not come into contact with the blades. If necessary, add a little liquid and use the spatula.
• To add ingredients, either remove the measuring cap or stop the machine and remove the lid.
• Never run your blender if the jug is empty. To process dry ingredients such as nuts and spices, we recommend using the mill attachment, which has a specially designed blade assembly.

Never fill above the MAX mark.

Never add solid or liquid ingredients if they are above 60^ in temperature.

Tips

• Hot soups: wait for the ingredients to cool to 60^ C (tasting temperature) before blending. Make sure that the measuring cap is only loosely positioned on the lid, to allow any steam to escape. Either use the SOUP programme or start at a low speed and gradually increase it. Never use the PULSE button.
• Crushed ice: the ICE function reduces ice cubes to a very fine, snow-like powder. If you want more coarsely crushed ice, put a small number of ice cubes (100/150g max.) in the jug and use the PULSE button.
• To fold ingredients into a mixture without chopping them (e.g. chocolate chips in a cake mixture), add them at the end and run your blender for a further 5-10 seconds at a slow speed (0.5).
• Using frozen fruit: when fruit come out of the freezer it sometimes forms a solid block. Break this block into cubes measuring roughly 2cm before putting in the jug, to avoid damaging your blender.
  To rescue a lumpy sauce, blend it for 15 s at Speed 3.

Automatic overload failsafe

Your appliance is fitted with a safety system that cuts the motor if it is overloaded or has been running for too long. The indicator light then starts to flash.

• Turn to the selector to 0 and unplug your appliance.
• Wait for about 30 minutes before restarting your blender.
• Reduce the amount of ingredients in the jug and/or add some liquid.

1 Assemble the base

Place the seal on the rim of the blade assembly, making sure it is completely flat.

Put the ingredients in the mill attachment. Position the blade assembly on the mill attachment.

Screw the holder tightly onto the mill attachment.

2 Assemble the jug

Place the upright mill attachment on the motor unit.

Press down with your hand to check that it is ready to run.

Select a speed and press AUTO

• Instant crumble: crush digestives or butter biscuits and divide between fruit salad / ice cream verrines.
• Icing sugar: pour in 200g caster sugar. Blend for 1 min at Speed 4. For an even finer consistency, blend for a further minute.
• Cake icing: pour 200g icing sugar into the jug with 1 egg white. Blend for 20 s at Speed 1.

Never blend hot liquids. The blade assembly can be extremely hot after use.

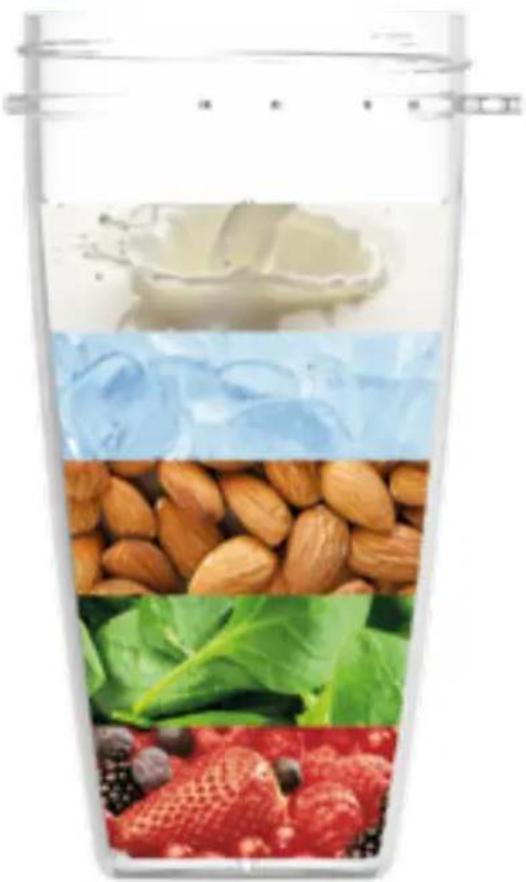

Add the ingredients

Liquids water,milk,fruit juice

Frozen foods or sticky ingredients honey, banana, avocado

Hard or dry ingredients cereals, nuts, carrots

Leaves, herbs spinach, fresh herbs

Fresh fruit and vegetables except banana and avocado

For the best possible result:

• Cut the ingredients into small chunks (approx. 2cm)
• Roughly chop leaves or herbs before adding to the jug, especially if they are large or thick
• Always add the ingredients in the right order
  Always add a little liquid
• Use ice cubes (max. 4 cubes) rather than crushed ice

Never use hot liquids
Never fill above the MAX level
Never put the BlendCups in the microwave
Do not use sparkling liquids in the BlendCups

2 Assemble the base

Position the seal on the rim of the blade assembly, making sure it is completely flat.

Place the blade assembly on the jug.

Screw the holder tightly onto the jug.

3 Blend

Place the BlendCup on the motor unit (locking pins at the back).

PRESS on the BlendCup to activate the blender.

Select a speed or programme and press AUTO.

Drink immediately or take away.

Wait until the blades have completely stopped moving.

Remove the BlendCup. Unscrew the holder.

If necessary, screw on the lid.

Tips and advice

• Run at a low speed for the first few seconds, until all the ingredients are caught up in the blades, then gradually increase the speed.
• Never run the blender continuously for more than 1 minute, otherwise the ingredients may heat up and pressure may build up inside the jug.
• If blending is difficult, reduce either the speed or the amount being processed. If the preparation is thick, add some liquid (without going above the MAX mark).
• Dense or sticky (e.g. nut-based) preparations tend to stick to the sides. If this happens, switch the blender off, wait until the blades have come to a complete standstill and shake the jug downwards to send the ingredients back towards the blades.
• The base of the jug is shaped to fit the cupholder in your vehicle.

CITRUS PRESS

Slot the citrus press onto the lid.

Turn until it locks into place.

Press then remove.

Automatic cleaning programme

As soon as you have finished using your appliance, fill the jug up halfway with warm water + few drops of washing-up liquid. Close the lid tightly, select the CLEAN programme and press AUTO.

Thorough cleaning

• Unplug the appliance and remove all the parts, not forgetting the seals.
• All the parts are dishwasher safe (except motor unit): use the short cycle and place all the small parts on the upper rack.
• For the best results, we nevertheless recommend washing the lid and the seals by hand.
• Never leave the blade assembly to soak, and check that the blades move freely before reassembling.
• Clean the base with a damp cloth.

Unscrew the holder with the aid of the spatula.

The top of the measuring cap can be removed.

Check that the locking pins slide smoothly, and clean them if necessary.

Electrical and electronic goods at the end of their lifetime

It is against European law to treat electrical and electronic equipment (WEEE) as regular household waste. Your appliance contains many materials that can be recovered or recycled. It should be taken to a WEEE collection point. For more details about collection points, please contact your local council or your household waste recycling centre. You can also take your appliance to an electrical goods store.

Problem Solution
The lid is stiff As the lid is designed to be watertight, it can be a little hard to fit, especially if the appliance is new or has not been used for a long time. Pour a little vegetable oil onto some kitchen paper and rub the seal
Flashing light Jug or attachment incorrectly positioned Motor overload: switch your appliance off and wait for 30 minutes before switching it back on
Your appliance will not check the plug/rod If the white indicator light is on, reposition the jug, then select a speed or programme and press AUTO
The ingredients are not Add some liquid Always add the ingredients in the right order Glass jug: use the spatula Cut the ingredients into smaller pieces
Leaking base Check that the blade assembly seal is correctly positioned Check that the support is screwed on properly to the base of the jug Glass jug: use the spatula
Desserts programme does not work	Frozen fruit: break into cubes measuring roughly 2cm before putting in the blender, to avoid damaging your appliance Do not exceed the blender capacity and add a little liquid Use the spatula
The motor smells There may be a faint smell when you use your appliance for the first time or if the motor is overloaded. This poses absolutely no risk, and the smell will go away after you have used your appliance a few times. Allow the motor to cool for 30 minutes before restarting it
Stained plastic parts Some ingredients, such as curry and carrots, may give rise to some staining. Pour some vegetable oil onto kitchen paper and rub the parts before adding the ingredients
The mixture tends to stick to the sides Add some liquid Use the spatula, start at a low speed and gradually increase it

water, melk, sap, etc.

Bevroen ingredienten of plakkerige ingredienten

honing, banaan, avocado, etc.

Droge of harde ingredienten

granen, oliezaden, wortels, etc.

Blaadjes, kruiden

spinazie, kruiden, etc.

Verse groenten en fruit

behalve banaan, avocado, etc.
