Product type	Juicer
Brand	JATA
Model	LI585N
Number of speeds	2 (I and II)
Power type	Mains
Voltage	220-240 V
Frequency	50/60 Hz
Maximum continuous use time	1 minute
Rest time in case of overheating	30 minutes
Safety functions	Automatic shut-off in case of overheating, lid locking system
Protection	Do not immerse the main body
Maintenance	Clean with water after each use, do not put in dishwasher
Spare parts	Pusher, chute, lid, centrifuge basket, separator, pulp container, glass
Usage	Domestic only
Included accessories	Glass with lid, pusher
Food preparation	Peel citrus fruits, remove stones from stone fruits, cut into pieces

Frequently Asked Questions - LI585N JATA

How to assemble the JATA LI585N juicer?

Place the separator on the main body, fit the filter by pressing firmly, tilt the pulp container, install the lid aligning the tab, then turn the handle to the left until locked.

Which fruits and vegetables can be juiced?

Most fruits and vegetables can be used, except bananas, avocados, and eggplants. Remove pits from peaches, cherries, plums, etc. Peel oranges, lemons, kiwis. Remove seeds from melons and watermelons.

Can I clean the parts in the dishwasher?

No, never put parts in the dishwasher. Clean them with water and dish soap, then dry immediately.

What is the maximum continuous use time?

Do not use the juicer for more than 1 minute without interruption. Let it rest before using again.

What to do if the appliance stops suddenly?

The appliance is equipped with a safety system that disconnects it in case of overheating. Unplug it and wait about 30 minutes before restarting.

How to clean the main body?

Never immerse the main body in water. Clean it with a slightly damp cloth and wipe dry.

Can I juice fruits with pits?

No, always remove pits from peaches, cherries, apricots, plums, etc., as they could damage the filter.

How to change speed during use?

Turn the speed selector to position I or II. It is recommended to start at low speed for soft fruits, and at high speed for hard fruits.

What to do if the power cord malfunctions?

If the cable is damaged, it must be replaced by an authorized service technician to avoid any danger.

Can I use the appliance without the lid?

No, the lid must always be properly locked before starting. Never operate the appliance without the lid.

USER MANUAL LI585N JATA

INSTRUCCIONES DE USO

INSTRUÇÕES DE UTILIZAÇÃO • INSTRUCTIONS OF USE

INSTRUCTIONS D'USAGE • ISTRUZIONI PER L'USO

BEDIENUNGSANLEITUNG

LICUADORA INOX

Black and silver product device with a curved arrow indicating rotation, labeled Fig A, Fig C, Fig B (no text on device body)

Exterior view of a modern stainless steel coffee maker with a curved arrow indicating rotation (no text or symbols visible)

Close-up of a mechanical component with a magnified circular detail (no visible text or symbols)

DATOS TÉCNICOS • DADOS TECNICOS • TECHNICAL DATA

MOD. LI585N 230V.~ 50 Hz. 400 W.

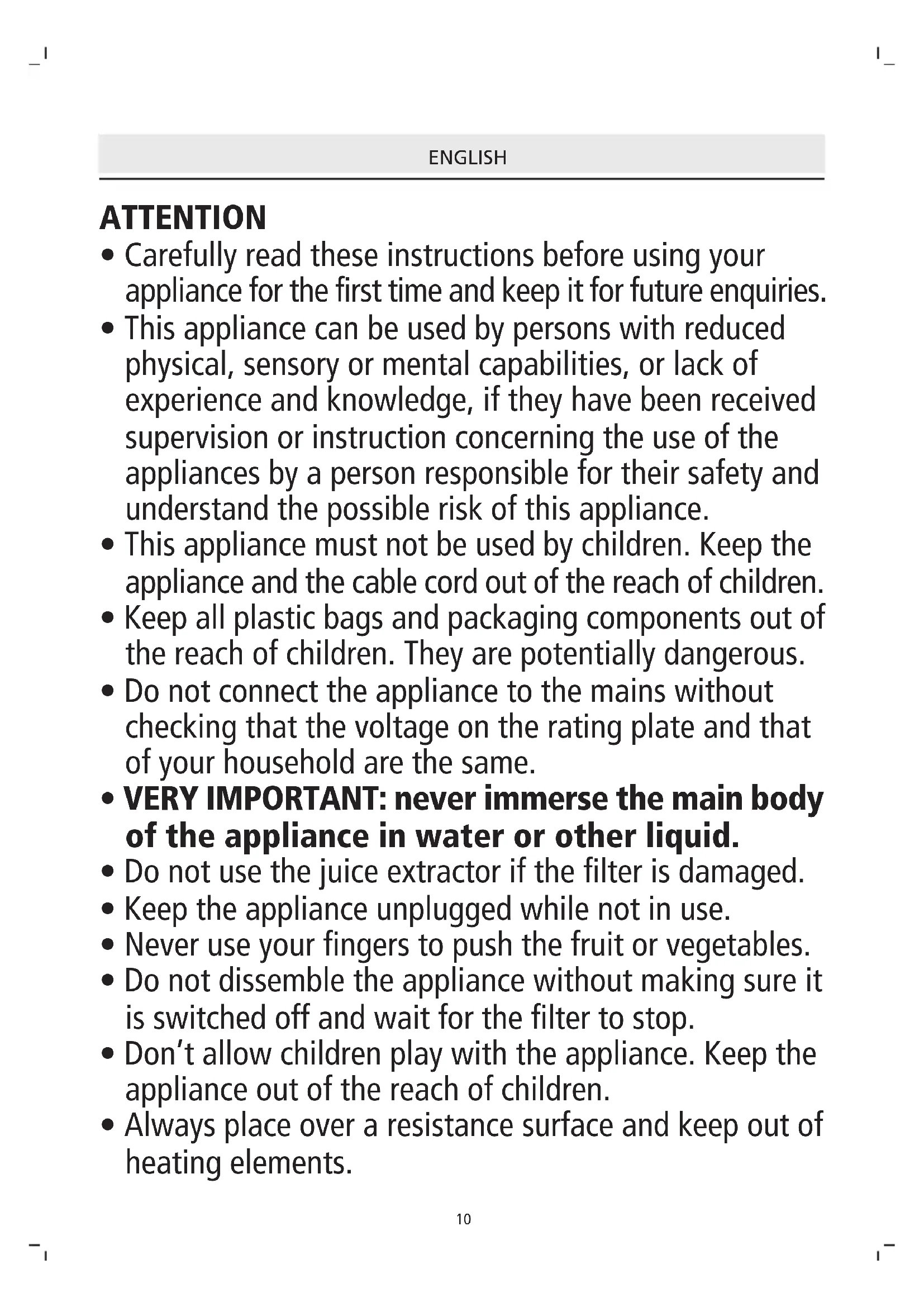

• Carefully read these instructions before using your appliance for the first time and keep it for future enquiries.
• This appliance can be used by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they have been received supervision or instruction concerning the use of the appliances by a person responsible for their safety and understand the possible risk of this appliance.
• This appliance must not be used by children. Keep the appliance and the cable cord out of the reach of children.
• Keep all plastic bags and packaging components out of the reach of children. They are potentially dangerous.
• Do not connect the appliance to the mains without checking that the voltage on the rating plate and that of your household are the same.
• VERY IMPORTANT: never immerse the main body of the appliance in water or other liquid.
• Do not use the juice extractor if the filter is damaged.
• Keep the appliance unplugged while not in use.
• Never use your fingers to push the fruit or vegetables.
• Do not dissemble the appliance without making sure it is switched off and wait for the filter to stop.
• Don’t allow children play with the appliance. Keep the appliance out of the reach of children.
• Always place over a resistance surface and keep out of heating elements.

- This appliance has been designed for domestic use only. Do not use it for more than 1 minute. After this period of time let it to rest.

WARNING: The appliance has a security system that disconnects it automatically if it was overheated. If this happens, unplug it from the mains and wait for 30 minutes before reconnecting it again.

• Always disconnect it from the mains when you do not use it and before assembling / disassembling or when cleaning.
• To unplug, pull from the plug, never from the cable.
• If the cable were to deteriorate it must be changed by an Authorised Service Centre.

BEFORE ITS FRIST USE

- Clean and dry all the pieces of the juice extractor, except the main body (10). If necessary, clean it with a slightly dampened cloth.

To disassemble the appliance

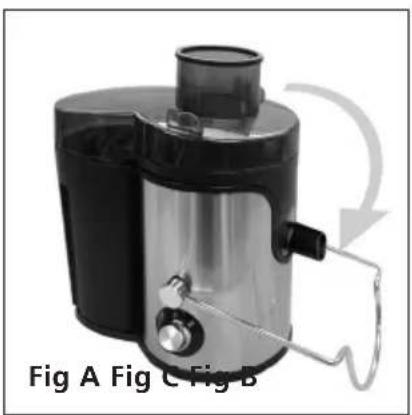

• Hold the lid (3) and turn the handle (7) rightwards (Fig. A).
• Remove the lid (3) and take out the filter (4), the separating unit (5) and the pulp collector (8).

To assemble the appliance

1. Place the separating unit (5) over the main body (10).
2. Fit the filter (4).

ATTENTION: Before switching on the appliance make sure the filter is correctly inserted in its place by pushing firmly.

1. Tilt a little bit the pulp container (8) to place them in its place.

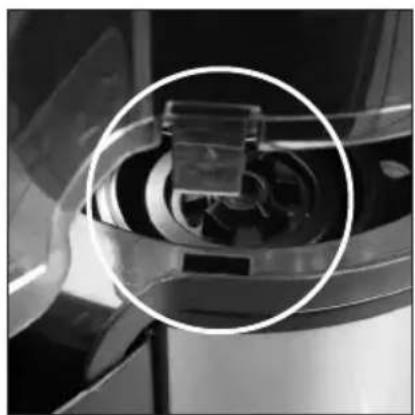

2. Place the lid (3). Doing this operation be sure that the flange of the lid fits properly in its position (Fig. B).

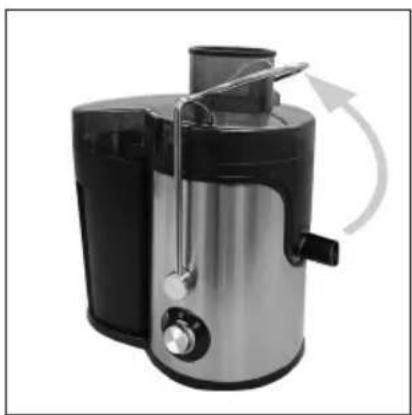

3. Keep pressed the lid (3) and turn it the handle to the left until the handle is fixed in the gaps of the lid (Fig. C).

- Clean all the fruit and vegetables you are going to use. If necessary, you may cut them up into small pieces to help you put them through the food opening.

You must bear in mind:

• The stone must be taken out of peaches, cherries, apricots, plumbs, etc.
• Oranges, lemons, kiwis, tangerines, melons, etc. must be peeled.
• The pips of melons, cucumbers, water melons must be taken out.
• Spinach, fresh kale, tomatoes, onions, peppers, parsley, carrots and similar foods, need no special preparation.
• It is not possible to obtain any juice from bananas, avocados, aubergines, etc.

INSTRUCTIONS OF USE

• Plug the appliance into the mains and turn the speed selector (9) to the selected position (I or II). Put the fruit or vegetables in the feed tube (2) and press them with the pusher (1) making coincide the marks with the groove of the pusher.
• Remember: never use your fingers and bear in mind that when putting food into the appliance the motor must always be running.
• Once the juice has been obtained place the speed selector (9) on off position (0) and switch off the appliance from the mains.
• It is advisable to consume the natural juices immediately after they are made. This way, neither the flavour nor the vitamins are lost.
• If you wish to keep them for some hours we recommend you add lemon juice to them.
• The following table shows the calories and nutritional values of the most common fruit and vegetables.

TABLE WITH THE CORRESPONDING CALORIC AND NUTRITION VALUES

Fruit and vegetables	Calories per 100 g.	Vitamins	Minerals and other elements
Apricot	47	A,B1,B2,PP,C	Iron, Calcium
Strawberry	36	B,C	Calcium, Iron, Phosphorous, Magnesium
Kiwi	55	C	Phosphorous, Iron
Lemon	35	C	Potassium
Tangerine	51	C,A	Minerals, Calcium, Phosphorous, Iron
Apple	57	B1,B2	Potassium
Peach	50	A,B1,B2,PP,C	Calcium, Iron
Melon	40	A,B	Potassium, Phosphorous, Magnesium
Orange	45	C	Potassium
Cucumber	13	A,B,C	Sulphur, Magnesium
Pear	60	A,B1,B2,PP,C	Calcium, Magnesium, Phosphorous, Potassium
Pineapple	51	C	Potassium
Grapefruit	35	A,B,C	Potassium, Magnesium
Water melon	0	----	Diuretic Properties
Grape	77	A,B1,B2	Potassium, Magnesium, Calcium
Tomato	22	C	Phosphorous, Iron
Carrot	41	A,B,C	Phosphorous, Calcium, Magnesium

MAINTENANCE AND CLEANING

• Before you proceed to cleaning it, ensure the appliance is unplugged and the motor is not running.
• Take out the lid (3), the filter (4), the separating unit (5) and the pulp collector (8) to proceed with the cleaning.
• All the components except the main body (10) may be cleaned with water and if necessary you may use a liquid detergent.
• Never clean them in the dish-washer.
• Do not use chemical or abrasive products, such as metallic scourers, which may deteriorate the surfaces of the appliance.
• The main body of the appliance may be cleaned with a slightly dampened cloth.
• It is important to clean the appliance as soon as you have finished, to avoid the pigments of some fruits or vegetables staining the plastic.

ENVIRONMENT PROTECTION

• Dispose the appliance according to the local garbage regulations.
• Never throw it away to the rubbish. So you will help to the improvement of the environment.
