EER7ALLRGY - Vacuum Cleaner ELECTROLUX - Free user manual and instructions

Brand	Electrolux
Model	EER7ALLRGY
Type	Cordless stick vacuum
Technology	ERGORAPIDO®
Power supply	Li-ion battery 18V, 36.5 Wh
Charger	25V - 500mA
Runtime	Up to 45 minutes (depending on model)
Charging time	Approximately 4 hours (first charge 24h)
Filtration	Fine filter + pre-filter, washable with water
Functions	Handheld mode, power regulation, BrushRollClean®
Included accessories	Crevice nozzle, furniture brush, wall mount and freestanding charging base
Lighting	Front LED lighting
Maintenance	Regular filter cleaning (rinse with lukewarm water, dry 12h); rotating brush cleaning; dust bin emptying
Safety	Important safety instructions – read the manual
Spare parts	Filter EF150 (PNC 900 168 3748), Auto Kit KIT10B (PNC 900 167 9803)
After-sales service	www.electrolux.com
Recycling	Battery and appliance to be recycled according to local regulations

Frequently Asked Questions - EER7ALLRGY ELECTROLUX

How to charge the vacuum cleaner?

Place the ERGORAPIDO on the charging base connected to the mains. The charging indicator lights up. Full charging takes about 4 hours. For the first use, charge for 24 hours.

What to do if the rotating brush does not spin?

The rotating brush may be blocked. Open the flap and remove the brush. Use scissors to remove trapped threads or fibres. Make sure it spins freely before reassembling.

How to clean the filters?

Remove the dust container, then the filters by pressing the unlocking buttons. Separate the inner filter from the pre-filter. Rinse them with lukewarm water without detergent, shake them and let them dry for at least 12 hours before reinstalling.

How to use the BrushRollClean function?

Place the vacuum on a hard, flat surface. While operating, press the BrushRollClean pedal for 5 seconds. A cutting sound is heard. This cleans the brush of hair and fibres. Do not use on carpet.

What do the indicator lights mean?

While charging: slow blinking = 100%; 3 lights = 75-100%; 2 lights = 50-75%; 1 light = 25-50%; red light = low battery. While in use: the lights indicate remaining capacity.

What to do if the vacuum does not turn on?

Check that the battery is charged. If the appliance has been exposed to extreme temperature, let it warm up or cool down for a few hours. If the problem persists, contact an authorized Electrolux service center.

How to detach the handheld vacuum?

Press the unlocking button of the handheld vacuum on the body of the appliance. It detaches for portable use. Attach the crevice nozzle or brush to clean furniture and hard-to-reach areas.

How to store the accessories?

The crevice nozzle and small brush can be stored in the charging base or attached to the handle. The charging base has a storage space for accessories.

Where to find spare parts?

Go to www.electrolux.com/shop. Recommended parts: filter EF150 (PNC 900 168 3748) and auto kit KIT10B (PNC 900 167 9803).

How to recycle the appliance at end of life?

Do not dispose of the appliance with household waste. Remove the batteries (only by an authorized center) and take the appliance to a collection point for recycling of electrical and electronic equipment. Follow local regulations.

USER MANUAL EER7ALLRGY ELECTROLUX

Cordless vacuum cleaner

AB	POTATO DOG	—	41	DE	FROZEN GOURD	54	BB	KONSO OF TENTITIME	55
AB	POKTI KONTO	—	103	BE	HUGOYAN POUZA	56	BB	KONSO OF TENTITIME	57
AB	JASIKU	12	118	BE	HUGOYAN POUZA	58	BB	KONSO OF TENTITIME	59
AB	POKTI KONTO	12	117	BE	HUGOYAN POUZA	59	BB	KONSO OF TENTITIME	60
AB	POKTI KONTO	—	115	BE	HUGOYAN POUZA	60	BB	KONSO OF TENTITIME	61
AB	POKTI KONTO	—	114	BE	HUGOYAN POUZA	61	BB	KONSO OF TENTITIME	62
AB	POKTI KONTO	—	113	BE	HUGOYAN POUZA	62	BB	KONSO OF TENTITIME	63
AB	POKTI KONTO	—	112	BE	HUGOYAN POUZA	63	BB	KONSO OF TENTITIME	64
AB	POKTI KONTO	—	111	BE	HUGOYAN POUZA	64	BB	KONSO OF TENTITIME	65
AB	POKTI KONTO	—	110	BE	HUGOYAN POUZA	65	BB	KONSO OF TENTITIME	66

(五)

Technical diagram of a vacuum cleaner with labeled parts and exploded views

Chelys and Cargers for 10 mm, as

Figure 1.0.1.2.3.4.5.6.7.8.9.10.11.12.13.14.15.16.17.18.19.20.21.22.23.24.25.26.27.28.29.30.31.32.33.34.35.36.37.38.39.40.41.42.43.44.45.46.47.48.49.50.51.52.53.54.55.56.57.58.59.60.61.62.63.64.65.66.67.68.69.70.71.72.73.74.75.76.77.78.79.80.81.82.83.84.85.86.87.88.89.90.91.92.93.94.95.96.97.98.99.100

The following table is a table for the years 2016 and 2017, including estimates of the financial statements.

(1) _1 (2)

In professional Limited, the company is not a

2014年1月1日，公司与关联方的交易

(1) "Read, None and Pa-come in a learning machine." Before

1. We have to set a place in the direction will do or go.

（一）估值方法

(1) 本说明仅供参考。

For the following step, we will be

A. Se rasses nade E. Chaves y sej patal, varce Sop cattu

(1) 2017年1月1日

FIMM SORU(0124) 78

Intralolylphenoate,indole/PHF all open to water

Primary Label: Val of Valued Term, Subject/Val of Val

A. The company is doing not a business activity in the United States or its affiliates of any other person.

Vår, prætikom flings olstiklens rond turey.

In the case of the first time, the case is a result that the case is a result.

Newly, we have a full-time policy that "any

The following table provides the information in English:

(1) 2008 and 2009 are the same

(五)本次会议的审议程序和决议

In joy a great understanding of the 1920/18/2017

Barreterel AGS

Loan credit statement

SAFETY PRECAUTIONS

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and maintenance shall not be made by children without supervision.

Batteries must be removed from the appliance before it is scrapped.

The battery is to be disposed of safely.

Only use the charging adapter that was provided with the product.

ERGORAPIDO ^® should only be used for normal vacuuming indoors and in a domestic environment. Make sure it is stored in a dry place.

Packaging material, e.g. plastic bags should not be accessible to children to avoid suffocation.

Never use the vacuum cleaner:

• In wet areas.
• Close to flammable gases, etc.
• When the product shows visible signs of damage.
• On sharp objects or liquids.
• On hot or cold cinders, lighted cigarette butts, etc.
• On fine dust, for instance from plaster, concrete, flour, hot or cold ashes.

Caution:

• Do not leave the vacuum cleaner in direct sunlight.
• Avoid exposing the vacuum cleaner to strong heat.
• The battery cells within must not be dismantled, short circuited or placed against a metal surface.
• Never use the vacuum cleaner without its filters.
• Do not try to touch the brush roll while the cleaner is switched on and the brush roll is turning.
• Mind your fingers if cleaning the inside of the floor nozzle. The metal blade of the BRUSHROLLCLEAN® function is sharp and could cause injury.

Using the vacuum cleaner in the above circumstances may cause serious personal injury or damage to the product. Such injury or damage is not covered by the warranty or by Electrolux.

SERVICING AND WARRANTY

All service or repairs must be carried out by an authorized Electrolux service centre.

This warranty does not cover reduction in battery runtime due to battery age or use, as the life of the battery depends upon the amount and nature of use.

To protect the motor, battery and electronics the product should not be stored or operated in:

• An ambient temperature below 5^ or exceeding 35^ . If the product is stored in a temperature below 5^ or exceeding 35^ , let the product cool down or warm up and dry for a few hours before usage.
• A humidity level below 20% or exceeding 80% (non-condensing).

If the product is stored for an extended time period (without usage or continuous charging), we recommend to store the product in normal room temperature with the batteries charged at 50% capacity or more. This will maintain the performance of the product.

Attention! Dew condensation may form inside the product if the unit is moved from a cold to a warm environment or after heating up the storage room. Wait a few hours for the internal components to warm up and dry before usage.

INDICATION LAMPS

CHARGING	WHAT DOES IT MEAN?	DURING USAGE	WHAT DOES IT MEAN?
	Blink slowly = 100 % fully charged 75 - 100 % capacity
	50 – 95 % charged 50- 75 % capacity remaining
	0 – 50 % charged 25 – 50 % capacity remaining
			ERGORAPIDO® needs to be recharged.

Get usage advice, brochures, trouble shooter, service information: www.electrolux.com

Register your product for better service: www.electrolux.com/productregistration

Buy Accessories and Consumables for your appliance: www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

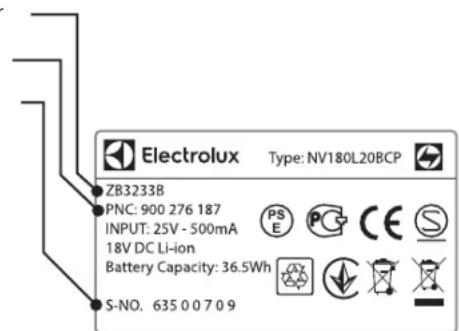

When contacting the Electrolux service center, ensure that you have following data available:

• Model number,
• PNC number
• Serial number

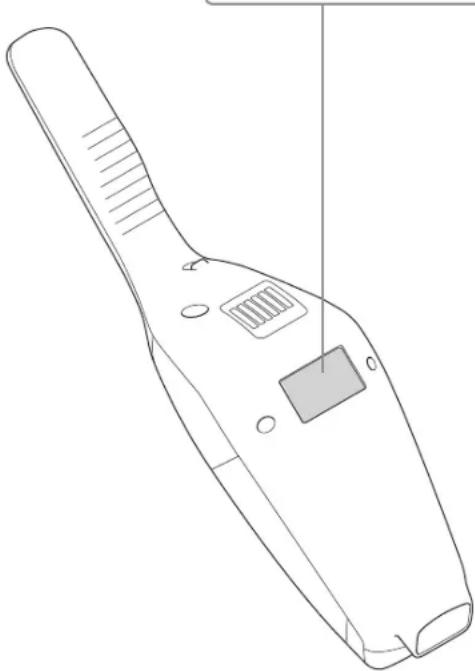

The information can be found on the rating plate.

Model number

PNC number

Serial number

Electrolux Type: NV180L20BCP ZB3233B PNC: 900 276 187 INPUT: 25V - 500mA 18V DC Li-ion Battery Capacity: 36.5Wh S-NO. 635 0 0 7 0 9

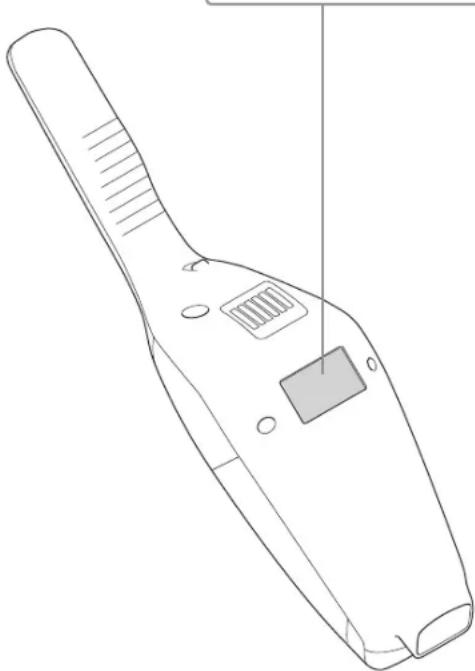

Line drawing of a handheld electronic device with a screen and handle (no text or symbols)

CONSUMABLES & ACCESSORIES

www.electrolux.com/shop

Filter

Ref: EF150

PNC: 900 168 3748

Car Kit

Ref: KIT10B

PNC: 900 167 9803

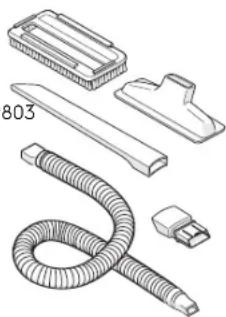

Technical line drawing of various electronic components including a coiled cable, plastic clip, and USB port (no text or symbols)

BedPro™ MINI

Ref: ZE125

PNC: 900 168 0819

RUNNING TIMES FOR ERGORAPIDO®

Modell Volt Long runtime mode
45xx 18V HD 45 min
35xx 18V 35 min
30xx 14,4V 30 min

The battery should be removed from The product before disposal. Dispose of or recycle The battery in accordance with local regulations. The symbol

■ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

FRANÇAIS

Technical line drawing of various electronic components including a coiled cable, plastic housing, and USB port (no text or symbols)

BedPro™ MINI

Réf: ZE125

PNC: 900 168 0819

AUTONOMIES POUR ERGORAPIDO®

Technical line drawing of various electronic components including a coiled cable, plastic housing, and USB port (no text or symbols)

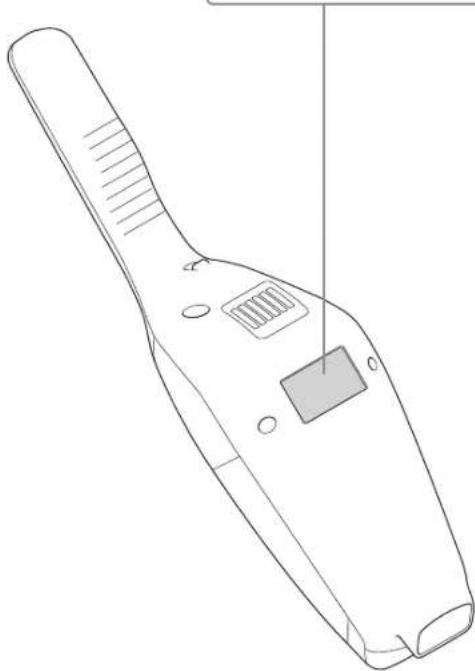

Line drawing of a handheld electronic device with a screen and handle (no text or symbols)

БЪЛГАРСКИ

Technical line drawing of various electronic components including a coiled cable, plastic housing, and connector (no text or symbols)

BedPro™ MINI Peφ: ZE125 PNC: 900 168 0819

BPEME HA PABOTA 3A ERGORAPIDO®

Line drawing of a handheld electronic device with a screen and handle (no text or symbols)

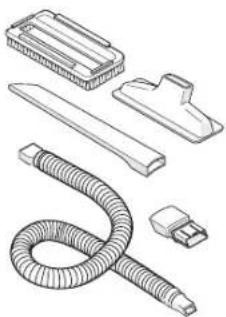

SPOTŘEBNÍ ZBOŽÍ A PŘÍSLUŠENSTVÍ

www.electrolux.com/shop

Filtr Ref: EF150 PNC: 900 168 3748

Sada pro automobil Ref: KIT10B PNC: 900 167 9803

Technical line drawing of various electronic components including a coiled cable, plastic housing, and connector (no text or symbols)

BedPro™ MINI Ref: ZE125 PNC: 900 168 0819

DOBA PROVOZU VYSAVAČE ERGORAPIDO®

Technical line drawing of various electronic components including a coiled cable, plastic clip, and USB port (no text or symbols)

BedPro™ MINI

Bez.: ZE125

T∅MNING AF ST∅VBEHOLDEREN

Line drawing of a handheld electronic device with a screen and handle (no text or symbols)

Technical line drawing of various electronic components including a coiled cable, plastic housing, and connector (no text or symbols)

BedPro™ MINI

Ref: ZE125

PNC: 900 168 0819

K∅RETIDERR FOR ERGORAPIDO®

Model Volt Lang driftstidstilstand
45xx 18V HD 45 min
35xx 18V 35 min
30xx 14,4V 30 min

Technical line drawing of various electronic components including a coiled cable, plastic housing, and USB port (no text or symbols)

BedPro™ MINI

Viide: ZE125

PNC: 900 168 0819

ERGORAPIDO® TÖÖAJAD

Mudel Volt Pika tööaja režiim
45xx 18V HD 45 min
35xx 18V 35 min
30xx 14,4V 30 min

Battery Capacity: 36.5Wh

S-NO. 63500709

Line drawing of a handheld electronic device with a small screen and ventilation slots (no text or symbols)

CONSUMIBLES Y ACCESORIOS

www.electrolux.com/shop

Filtro

Ref: EF150

Número de producto (PNC): 900 168 3748

Kit para el coche

Ref: KIT10B

Número de producto (PNC): 900 167 9803

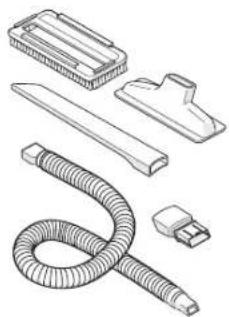

Technical line drawing of various electronic components including a coiled cable, plastic housing, and USB port (no text or symbols)

BedPro™ MINI

Ref: ZE125

Line drawing of a handheld electronic device with a screen and ventilation slots (no text or symbols)

KULUTUSTARVIKKEET JA VARUSTEET

www.electrolux.com/shop

Suodatin

Viite: EF150

PNC: 900 168 3748

Autopakkaus

Viite: KIT10B

PNC: 900 167 9803

Technical line drawing of various electronic components including a coiled cable, plastic clip, and USB port (no text or symbols)

BedPro™ MINI

Viite: ZE125

PNC: 900 168 0819

ERGORAPIDO®-PÖLYNIMURIN KÄYTTÖAJAT

Battery Capacity: 36.5Wh

S-NO. 63500709

Line drawing of a handheld electronic device with a screen and handle (no text or symbols)

Technical line drawing of various electronic components including a coiled cable, plastic housing, and connector (no text or symbols)

BedPro™ MINI

Avap: ZE125

PNC: 900 168 0819

Line drawing of a handheld electronic device with a screen and handle (no text or symbols)

POTROŠNI MATERIJAL I PRIBOR

www.electrolux.com/shop

Filtar

Ref: EF150

PNC: 900 168 3748

Technical line drawing of various electronic components including a coiled cable, plastic clip, and USB port (no text or symbols)

BedPro™ MINI

Ref: ZE125

PNC: 900 168 0819

TRAJANJA ZA ERGORAPIDO®

Model Volt		Način duljeg vremena rada
45xx 18V HD 45 min
35xx 18V 35 min
30xx 14,4V 30 min

Battery Capacity: 36.5Wh

S-NO. 63500709

Line drawing of a handheld electronic device with a screen and button (no text or symbols)

Technical line drawing of various electronic components including a coiled cable, plastic housing, and USB port (no text or symbols)

BedPro™ MINI

Ref: ZE125

Technical line drawing of various electronic components including a coiled cable, plastic housing, and connector (no text or symbols)

BedPro™ MINI

Rif: ZE125

PNC: 900 168 0819

TEMPI DI UTILIZZO PER ERGORAPIDO®

Modello Volt		modalit’ tempo di utilizzoprolungato
45xx 18V HD 45 min
35xx 18V 35 min
30xx 14,4V 30 min

Battery Capacity: 36.5Wh

S-NO. 63500709

Line drawing of a handheld electronic device with a screen and handle (no text or symbols)

PALİGMATERIÄLI UN PIEDERUMI

www.electrolux.com/shop

Filtrs

Norāde: EF150

PNC: 900 168 3748

Komplekts mašinām

Norāde: KIT10B

PNC: 900 167 9803

Technical line drawing of various electronic components including a coiled cable, plastic housing, and USB port (no text or symbols)

BedPro™ MINI

Norāde: ZE125

PNC: 900 168 0819

ERGORAPIDO® IZPILDES LAIKI

Modelis Volt Ilgi runtime režimă
45xx 18V HD 45 min
35xx 18V 35 min
30xx 14,4V 30 min

Technical line drawing of various electronic components including a coiled cable, plastic clip, and connector (no text or symbols)

„BedPro™ MINI"

Nr. ZE125

Gamyklinis numeris

(PNC) 900 168 0819

"ERGORAPIDO®" NEPERTRAUKIAMO DARBO TRUKMÈ

Modelis Itampa		Ilgo nepertraukiamo veikimo režimas
45xx 18V HD 45 min
35xx 18V 35 min
30xx 14,4V 30 min

VOOR U VAN START GAAT

Line drawing of a handheld electronic device with a screen and button (no text or symbols)

VERBRUIKSARTIKELEN & ACCESSOIRES

Technical line drawing of various electronic components including a coiled cable, plastic clip, and connector (no text or symbols)

BedPro™ MINI

Ref: ZE125

PNC: 900 168 0819

BEDRIJFSTIJDEN VOOR ERGORAPIDO®

Model Volt Lange werkingstijd modus
45xx 18V HD 45 min
35xx 18V 35 min
30xx 14,4V 30 min

Technical line drawing of various electronic components including a coiled cable, plastic housing, and connector (no text or symbols)

BedPro™ MINI

Ref: ZE125

PNC: 900 168 0819

GANGTIDER FOR ERGORAPIDO®

Modell Volt Laneffektmodus
45xx 18V HD 45 min
35xx 18V 35 min
30xx 14,4V 30 min

ZAPRASZAMY NA NASZA WITRYNE INTERNETOWA, ABY:

Battery Capacity: 36.5Wh

S-NO. 63500709

Line drawing of a handheld electronic device with a screen and buttons (no text or symbols)

AKCESORIA I MATERIAŁY EKSPLOATACYJNE

www.electrolux.com/shop

Filtr

Typ: EF150

Nr produktu: 900 168 3748

Zestaw Car

Typ: KIT10B

Nr produktu: 900 167 9803

Technical line drawing of various electronic components including a coiled cable, plastic housing, and USB port (no text or symbols)

BedPro™ MINI

Typ: ZE125

Nr produktu: 900 168 0819

CZAS PRACY ERGORAPIDO®

Line drawing of a handheld electronic device with a screen and handle (no text or symbols)

CONSUMÍVEIS E ACESSÓRIOS

www.aeg.com/shop

Filtros

Ref.Ş: EF150

PNC: 900 168 3748

Kit para automóvel

Ref.§: KIT10B

PNC: 900 167 9803

Technical line drawing of various electronic components including a coiled cable, plastic housing, and USB port (no text or symbols)

BedPro™ MINI

Ref.Ş: ZE125

PNC: 900 168 0819

Line drawing of a handheld electronic device with a screen and handle (no text or symbols)

CONSUMABILE ŞI ACCESORII

www.electrolux.com/shop

Filtru

Ref: EF150

PNC: 900 168 3748

Set pentru maşină

Ref: KIT10B

PNC: 900 167 9803

Technical line drawing of various electronic components including a coiled cable, plastic housing, and connector (no text or symbols)

BedPro™ MINI

Ref: ZE125

PNC: 900 168 0819

DURATELE DE FUNCTIONARE PENTRU ERGORAPIDO®

Model Tensiune Mod functionare indelungata
45xx 18V HD 45 min
35xx 18V 35 min
30xx 14,4V 30 min

Technical line drawing of various electronic components including a coiled cable, plastic housing, and USB port (no text or symbols)

Battery Capacity: 36.5Wh

S-NO. 63500709

Line drawing of a handheld electronic device with a screen and handle (no text or symbols)

FÖRBRUKNINGSARTIKLAR OCH TILLBEHÖR

www.electrolux.com/shop

Filter

Ref: EF150

PNC: 900 168 3748

För bilen

Ref: KIT10B

PNC: 900 167 9803

Technical line drawing of various electronic components including a coiled cable, plastic housing, and connector (no text or symbols)

BedPro™ MINI

Ref: ZE125

PNC: 900 168 0819

KÖRTIDER FÖR ERGORAPIDO®

Modell Volt Längt körtidsläge
45xx 18V HD 45 min
35xx 18V 35 min
30xx 14,4V 30 min

Line drawing of a handheld electronic device with a small screen and ventilation slots (no text or symbols)

SPOTREBNÝ TOVAR A PRÍSLUŠENSTVO

www.electrolux.com/shop

Filter

Kód: EF150

Č. ANC: 900 168 3748

Car Kit

Kód: KIT10B

Č. ANC: 900 167 9803

Technical line drawing of various electronic components including a coiled cable, plastic housing, and connector (no text or symbols)

BedPro™ MINI

Kód: ZE125

Č. ANC: 900 168 0819

DOBA POUŽITIA ERGORAPIDO®

Model Volt Dlhá doba použitia
45xx 18V HD 45 min
35xx 18V 35 min
30xx 14,4V 30 min

Battery Capacity: 36.5Wh

S-NO. 63500709

Line drawing of a handheld electronic device with a screen and handle (no text or symbols)

POTROŠNI MATERIAL IN PRIPOMOČKI

www.electrolux.com/shop

Filter

Ref: EF150

PNC: 900 168 3748

Avtomobilski komplet

Ref: KIT10B

PNC: 900 167 9803

Technical line drawing of various electronic components including a coiled cable, plastic housing, and USB port (no text or symbols)

BedPro™ MINI

Ref: ZE125

PNC: 900 168 0819

ČAS DELOVANJA ZA ERGORAPIDO®

Model Volt Način za dolgo delovanje
45xx 18V HD 45 min
35xx 18V 35 min
30xx 14,4V 30 min

Line drawing of a handheld electronic device with a small screen and ventilation slots (no text or symbols)

ПОТРОШНИ МАТЕРИЈАЛ И ДОДАТНИ ПРИБОР

www.electrolux.com/shop

Филтер

Реф: EF150

Technical line drawing of various electronic components including a coiled cable, plastic clip, and USB port (no text or symbols)

BedPro™ MINI

Peφ: ZE125

PNC (број артикла):

900 168 0819

ВРЕМЕ ИЗВРШАВАЊА ЗА ERGORAPIDO®

MOBİLYALARIN, ARABA KOLTUKLARININ VB. VAKUMLANMASI

Battery Capacity: 36.5Wh

S-NO. 63500709

Line drawing of a handheld electronic device with a screen and handle (no text or symbols)

SARF MALZEMELERI VE AKSESUARLAR

www.electrolux.com/shop

Filtre

Ref: EF150

PNC: 900 168 3748

Araç Kiti

Ref: KIT10B

PNC: 900 167 9803

Technical line drawing of various electronic components including a coiled cable, plastic housing, and connector (no text or symbols)

BedPro™ MINI

Ref: ZE125

PNC: 900 168 0819

ERGORAPIDO® IÇIN ÇALIŞMA ZAMANLARI

Technical line drawing of various electronic components including a coiled cable, plastic housing, and connector (no text or symbols)
