ES910 - Laminating machine Royal Sovereign - Free user manual and instructions

Product type	Laminator
Brand	Royal Sovereign
Model	ES910
Dimensions (L x W x H)	370 x 167 x 120 mm
Weight	3 kg
Power supply	120 V, 60 Hz, 300 W
Lamination modes	Hot and cold
Maximum laminating width	230 mm (9.1 in)
Maximum laminating thickness	0.7 mm (27.6 mil)
Recommended pouch thickness	75 to 125 microns (3-5 mil)
Number of rollers	2
Warm-up time	4 to 6 minutes
Laminating speed	360 mm/min (14.2 in/min)
Auto shut-off	After 1 hour of inactivity
Ready indicator	Yes (green)
Heating system	Hot shoe
Warranty	1 year
Safety	Overheat protection, auto shut-off, do not immerse
Maintenance	Clean with a soft dry cloth

Frequently Asked Questions - ES910 Royal Sovereign

How to use hot mode?

Place the machine on a flat surface and turn it on. Select the thickness setting (3-5 mil). Wait for the Ready indicator to light up (about 5 minutes). Insert the pouch with the document, sealed side first, into the front opening. The document will automatically exit from the rear. Let it cool on a flat surface or on the cooling rails.

How to use cold mode?

If the machine was in hot mode, let it cool for about 25 minutes. Select cold mode using the adjustment knob. Wait for the Ready indicator to light up. Place the document with the adhesive side of the cold film facing down, sealed side first. Insert into the front opening while gently removing the backing paper during insertion.

What to do if the pouch jams?

Press the reverse switch to eject the pouch from the front. If the jam persists, contact Royal Sovereign customer service at 1-800-397-1025.

Why does the Ready indicator not light up?

Check that the machine is plugged in and the switch is set to hot or cold. If the room temperature is below 18°C, the warm-up time may be longer. Ensure the thickness setting is correct.

Can I laminate thick items?

The maximum recommended thickness is 0.7 mm (27.6 mil) for the entire document + pouch. Do not insert thicker items such as flowers or clothing. Use 3 to 5 mil pouches.

How to clean the machine?

Unplug the device and let it cool. Clean the exterior with a soft dry cloth. Do not use liquids or abrasive products. Never immerse the machine in water.

Does the machine shut off automatically?

Yes, the laminator has an auto shut-off function after one hour of inactivity. This saves energy and prevents risks.

Can I use pouches of different thicknesses?

Yes, the machine has a temperature setting for pouches from 3 to 5 mil (75-125 microns). Select the appropriate thickness using the adjustment knob before laminating.

What to do if lamination is not uniform?

Check that the machine has reached the correct temperature (Ready indicator on). Ensure the pouch is inserted straight and centered. If the problem persists, perform a test with a pouch and similar document before laminating an original.

Where to find spare parts?

For spare parts or accessories, visit www.royalfullfillmentcorp.com or contact Royal Sovereign at 1-800-397-1025. For warranty repairs, request a return authorization number at www.royalsovereign.com.

USER MANUAL ES910 Royal Sovereign

Please read and retain these instructions.

To register your product, please go to www.royalsovereign.com USA.

Click the Customer Support Tab then Registration Tab.

www.royalsovereign.com

Royal Sovereign International, Inc.

LAMINATOR

SAFETY INSTRUCTIONS

The safety recommendations outlined in this section should be read and understood before operating this machine. When using this machine follow these basic safety precautions to reduce risk of fire, electric shock or injury. Keep this information for future reference.

1. To prevent the possibility of a fire or injury, do not allow foreign articles inside the machine.
2. Do not attempt to laminate items that exceed total recommended material thickness.
3. Do not insert pouch film with the back end first. (Front of film: sealed side, Back of film: open side.) This may cause the pouch to jam the rollers.
4. To prevent the possibility of electric shock, do not immerse the laminator in water or permit liquids inside the machine.
5. Because the laminator creates heat, keep out of the reach of children.
6. Do not cut pouches before inserting them into the laminator. This will cause the laminator to jam.
7. Do not laminate leaves, flower, clothes etc.
8. If the room temperature is low (under 64^ ), the ready light may take longer to come on.
9. When unplugging the power plug, grip the plug to pull it out. Pulling the cord may result in electric shock, fire, or damage to the machine.
10. Do not use the machine if the cord is damaged. This may result in electric shock, fire, or other hazards.
11. Do not place objects on the power cord and do not bend it excessively. This may result in electric shock, fire or other hazards.
12. When not using the machine for long periods of time, unplug the power cord from the outlet.

CONTENTS

Box Contents 5
Parts 5
Controls 5
Features 5
Operation 6
Troubleshooting 7
Specifications 7
Warranty 8
Contact Information 8
Pagina en Espanol 9
Page en Francais 17

BOX CONTENTS

Laminator and pouch film

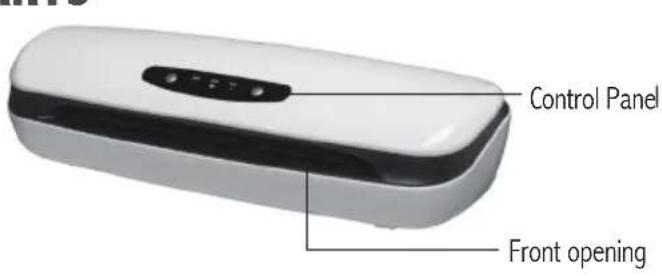

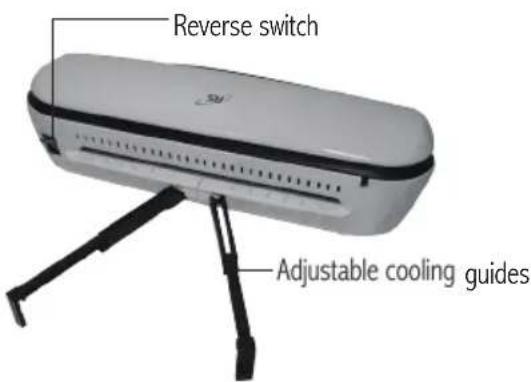

PARTS

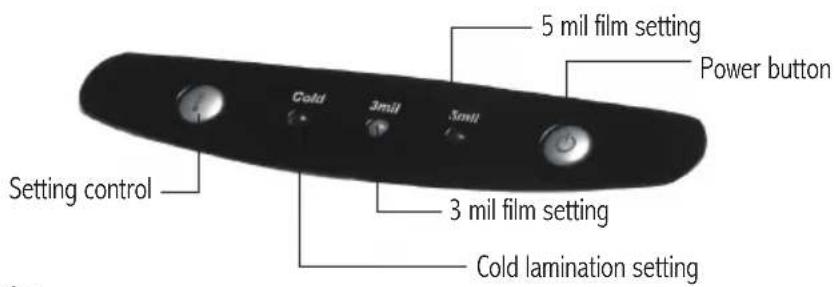

CONTROLS
FEATURES

Hot and Cold Lamination

The laminator can easily be adjusted to handle both hot and cold lamination pouch film.

Temperature Control

Individual settings for different film thicknesses from 3-5 mil.

Ready Light

A green ready light clearly indicates when the machine has reached optimal temperature and is ready to laminate.

Fast speed

Laminates up to 14.2" per minute.

Automatic Shut-Off Function

The machine will automatically shut off after one hour of non-use.

OPERATION

Hot Lamination

1. Place the machine on a flat, sturdy surface and press the power button to turn on the machine.
2. Pull out the cooling guides.
3. The machine is preset to the 3mil setting. To change the setting press the setting control button. The machine will take approximately 5 minutes to warm-up. When the proper temperature is reached, the ready light will glow steady.
4. Place the item to be laminated into the laminating pouch.
5. Insert the pouch film into the front opening of the laminator. Make sure to place the sealed end of the pouch film in first.
6. The document or photo will then automatically feed out the through the back of the machine.

NOTE: Laminated items exiting the machine may be too hot to touch.

1. If the item is not completely laminated, repeat steps 4-5.

NOTE: Laminated items will be hot and will easily bend. To keep the item flat, place on a flat surface and allow it to cool or lay item on the cooling guides.

Before laminating important or unique documents, always test a pouch through the laminator using a similar document.

Cold Lamination

1. Place the machine on a flat, sturdy surface and press the power button to turn on the machine.
2. Press the setting control button until the Cold lamination setting is lit. If the machine was previously used in hot mode, allow approximately 25 minutes to cool down. When the proper temperature is reached, the ready light will glow steady.
3. Place the document to be laminated on the adhesive side of the cold film with the document face down, sealed end first.
4. Insert the document to be laminated into the front opening of the machine.
5. Remove paper liner from the cold film slowly while the document is being inserted into the machine.

TROUBLESHOOTING

Symptom Solution
Motor does not work.	Check to make sure machine is plugged in. Check to make sure the power button is turned on.
Pouches are not laminating correctly. Make sure that the machine is set to the correct hot setting.
The pouch is jammed. Press down the reverse switch and the pouch will exit the front of the machine.

If you are still having complications, please contact Royal Sovereign's Service Center at 1-800-397-1025.

SPECIFICATIONS

Model ES-910	ES-1310
Dimensions	14.6x6.6x4.7 (inch)370x167x120 (mm)	19.2x6.6x4.7 (inch)490x167x120 (mm)
Maximum laminating width 9.1" / 230 mm	12.6" / 320 mm
Maximum laminating thickness	27.6 mil / 0.7 mm
Film thickness	3~5 mi / 75~125 micron
Number of rollers 2
Cold mode Yes
Heating system Hot shoe
Ready time 4-6 (min)
Motor type AC motor
Laminating speed 14.2" per min. / 360 mm per min.
Weight	6 lbs / 3 kg	7.4 lbs / 3.7 kg
Voltage/Cycle	120V,60Hz
Power consumption	300 W	400 W

LIMITED ONE YEAR WARRANTY

This warranty applies to repair or replacement of product found to be defective in material or workmanship for one year from the date of the original purchase. This warranty is extended only to the original purchaser.

This warranty does not apply to damage resulting from abuse, misuse, or improper maintenance of damage that is attributable to acts of nature. Royal Sovereign International, Inc. (and its affiliated companies) is not liable for incidental or consequential damages of any nature. This limitation would not apply if you live in those areas that do not permit the exclusion or limitation of incidental or consequential damages.

Defective products for warranty repair or replacement cannot be returned without a Return Authorization number. Please go to www.royalsovereign.com USA-Customer Support Tab to make a request for an Office Product Return Authorization.

Defective products must be returned to Royal Sovereign International Consumer Return Department, freight prepaid, with proof of purchase and Return Shipping and Handling payment (check or money order). Upon repair or replacement the product will be returned to the customer.

Return defective product to the following address with a detailed description of the problem. If possible, pack in original carton. Please prepay shipping charges.

For out of warranty service or frequently asked questions please go to www.royalsovereign.com USA- Customer Support Tab.

For sales of product, parts or accessories please visit us at www.royalfullfillmentcorp.com.

For service or sales please contact your local Royal Sovereign Office:

ROYAL SOVEREIGN INTERNATIONAL, INC. RS CANADA INC.

2 Volvo Drive Rockleigh, NJ 07647 USA 1025 Westport crescent, Mississauga, Ontario, Canada L5T1E8
TEL: [phone] FAX: [phone] TEL: [phone] FAX: [phone]
