CE733EW33 - Freezer CONSTRUCTA - Free user manual and instructions
Find the device manual for free CE733EW33 CONSTRUCTA in PDF.
| Product type | Freezer |
| Brand | Constructa |
| Model | CE733EW33 |
| Power supply | 220-240 V, 50 Hz |
| Recommended fuse | 10 to 16 A |
| Temperature range | -16°C to -26°C |
| Automatic defrost | NoFrost |
| Super freeze | Automatic and manual |
| Door alarm | Yes |
| Temperature alarm | Yes |
| Supplied equipment | Frozen food drawers, glass shelf, ice cube tray, cold accumulator |
| Refrigerant | R600a (flammable) |
| Protection class | I |
| Cleaning | Soft cloth, warm water, mild detergent |
| Self-diagnosis | Yes |
| Installation type | Free-standing |
| Door reversal possible | Yes, by after-sales service |
Frequently Asked Questions - CE733EW33 CONSTRUCTA
User questions about CE733EW33 CONSTRUCTA
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Freezer in PDF format for free! Find your manual CE733EW33 - CONSTRUCTA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. CE733EW33 by CONSTRUCTA.
USER MANUAL CE733EW33 CONSTRUCTA
Safety and warning information 22
Information concerning disposal ...... 25
Scope of delivery 25
Installation location 26
Ambient temperature and ventilation 26
Connecting the appliance 27
Getting to know your appliance 27
Switching the appliance on 28
Setting the temperature 29
Alarm functions 29
Usable capacity 30
Freezer compartment 30
Max. freezing capacity 30
Freezing and storing food 31
Freezing fresh food 31
Super freezing 32
Thawing frozen food 33
Interior fittings 33
Switching off and disconnecting the appliance 34
Defrosting 34
Cleaning the appliance 34
Tips for saving energy 35
Operating noises 35
Eliminating minor faults yourself 36
Appliance self-test 38
Customer service 38
fr Table des matieres
Safety and warning information
Before you switch ON the appliance
Please read the operating and installation instructions carefully! They contain important information on how to install, use and maintain the appliance. The manufacturer is not liable if you fail to comply with the instructions and warnings. Retain all documents for subsequent use or for the next owner.
Technical safety
The tubes of the refrigeration circuit convey a small quantity of an environmentally friendly but flammable refrigerant (R600a). It does not damage the ozone layer and does not increase the greenhouse effect. If refrigerant escapes, it may injure your eyes or ignite.
If damage has occurred
-
Keep naked flames and/or ignition sources away from the appliance,
thoroughly ventilate the room for several minutes, -
switch off the appliance and pull out the mains plug,
inform customer service.
The more refrigerant an appliance contains, the larger the room must be in which the appliance is situated. Leaking refrigerant can form a flammable gas-air mixture in rooms which are too small. The room must be at least 1m^3 per 8 g of refrigerant. The amount of refrigerant in your appliance is indicated on the rating plate inside the appliance.
If the power cord of this appliance is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person. Improper installations and repairs may put the user at considerable risk.
Repairs may be performed by the manufacturer, customer service or a similarly qualified person only.
Only original parts supplied by the manufacturer may be used. The manufacturer guarantees that only these parts satisfy the safety requirements.
Do not use multiple sockets, extension leads or adapters.
Important information when using the appliance
- Never use electrical appliances inside the appliance (e.g. heater, electric ice maker, etc.). Explosion hazard!
- Never defrost or clean the appliance with a steam cleaner! The steam may penetrate electrical parts and cause a short-circuit. Risk of electric shock!
- Do not use pointed or sharp-edged implements to remove frost or layers of ice. You could damage the refrigerant tubes. Leaking refrigerant may cause eye injuries or ignite.
- Do not store products which contain flammable propellants (e.g. spray cans) or explosive substances in the appliance. Explosion hazard!
-
Do not stand on or lean heavily against base of appliance, drawers or doors, etc
For defrosting and cleaning, pull the mains plug out or switch off the fuse. Do not pull out the mains plug by tugging on the power cord.
Store high-percentage alcohol tightly closed and standing up. -
Keep plastic parts and the door seal free of oil and grease. Otherwise, parts and door seal will become porous.
- Never cover or block the ventilation openings of the appliance!
Avoiding placing children and vulnerable people at risk:
At risk are children, people who have limited physical, mental or sensory abilities, as well as people who have inadequate knowledge concerning safe operation of the appliance.
Ensure that children and vulnerable people have understood the hazards.
A person responsible for safety must supervise or instruct children and vulnerable people who are using the appliance.
Only children from 8 years and above may use the appliance.
Supervise children who are cleaning and maintaining the appliance.
Never allow children to play with the appliance.
en
- Do not store bottled or canned drinks (especially carbonated drinks) in the freezer compartment. Bottles and cans may burst!
- Never put frozen food straight from the freezer compartment into your mouth. Risk of low-temperature burns!
- Avoid prolonged touching of frozen food, ice or the evaporator pipes, etc. Risk of low-temperature burns!
Children in the household
- Keep children away from packaging and its parts. Danger of suffocation from folding cartons and plastic film!
- Do not allow children to play with the appliance!
If the appliance features a lock: keep the key out of the reach of children!
General regulations
The appliance is suitable
for freezing food,
for making ice.
This appliance is intended for use in the home and the home environment.
The appliance is suppressed according to EU Directive 2004/108/EC.
The refrigeration circuit has been checked for leaks.
This product complies with the relevant safety regulations for electrical appliances (EN 60335-2-24).
This appliance is intended for use up to a maximum height of 2000 metres above sea level.
Information concerning disposal
Disposal of packaging
The packaging protects your appliance from damage during transit. All utilised materials are environmentally safe and recyclable. Please help us by disposing of the packaging in an environmentally friendly manner.
Please ask your dealer or inquire at your local authority about current means of disposal.
Disposal of your old appliance
Old appliances are not worthless rubbish! Valuable raw materials can be reclaimed by recycling old appliances.
This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.
Warning
Redundant appliances
- Pull out the mains plug.
- Cut off the power cord and discard with the mains plug.
- Do not take out the trays and receptacles: children are therefore prevented from climbing in!
- Do not allow children to play with the appliance once it has spent its useful life. Danger of suffocation!
Refrigerators contain refrigerant and gases in the insulation. Refrigerant and gases must be disposed of professionally. Ensure that tubing of the refrigerant circuit is not damaged prior to proper disposal.
Scope of delivery
After unpacking all parts, check for any damage in transit.
If you have any complaints, please contact the dealer from whom you purchased the appliance or our customer service.
The delivery consists of the following parts:
Free-standing appliance
Interior fittings (depending on model)
Bag containing installation materials
Operating instructions
Installation manual
Customer service booklet
Warranty enclosure
Information on the energy consumption and noises
Installation location
A dry, well ventilated room is suitable as an installation location. The installation location should not be exposed to direct sunlight and not placed near a heat source, e.g. a cooker, radiator, etc. If installation next to a heat source is unavoidable, use a suitable insulating plate or observe the following minimum distances from the heat source:
3 cm to electric or gas cookers.
30 cm to an oil or coal-fired cooker.
The floor of the installation location must not give way; if required, reinforce floor. If the floor is uneven, compensate with supports.
Distance from wall
Fig. 3
A gap is not required between the appliance and side wall. The containers and shelves are still fully extendable.
Reversing the door
(if required)
If required, we recommend that you have the door hinges changed over by our customer service. You can find out the costs for changing over the door hinges from your appropriate customer service.
Warning
While changing over the door hinges, ensure that the appliance is not connected to the power supply. Pull out the mains plug beforehand. To prevent damaging the back of the appliance, place adequate padding underneath. Carefully place the appliance on its back.
Note
If the appliance is placed on its back, ensure that the wall spacer is not fitted.
Ambient temperature and ventilation
Ambient temperature
The appliance is designed for a specific climate class. Depending on the climate class, the appliance can be operated at the following temperatures.
The climate class can be found on the rating plate. Fig. 9
| Climate class Permitted ambient temperature |
| SN +10 °C to 32 °C |
| N +16 °C to 32 °C |
| ST +16 °C to 38 °C |
| T +16 °C to 43 °C |
Note
The appliance is fully functional within the room temperature limits of the indicated climatic class. If an appliance of climatic class SN is operated at colder room temperatures, the appliance will not be damaged up to a temperature of +5^ .
Ventilation
Fig. 4
The air on the rear
panel of the appliance heats up.
Conduction of the heated air must
not be obstructed. Otherwise,
the refrigerating unit must work harder. This increases power consumption.
Therefore: Never cover or block
the ventilation openings!
Connecting the appliance
After installing the appliance, wait at least 1 hour until the appliance is switched on. During transportation the oil in the compressor may have flowed into the refrigeration system.
Before switching on the appliance for the first time, clean the interior of the appliance (see chapter "Cleaning the appliance").
Electrical connection
The socket must be near the appliance and also freely accessible following installation of the appliance.
Warning
Risk of electric shock!
If the length of the mains cable is inadequate, never use multiple sockets or extension leads. Instead, please contact Customer Service for alternatives.
The appliance complies with protection class I. Connect the appliance to 220-240 V/50 Hz alternating current via a correctly installed socket with protective conductor. The socket must be protected by a 10 A to 16 A fuse.
For appliances operated in non-European countries, check whether the indicated voltage and current type match the values of your electricity supply. This information can be found on the rating plate, Fig. 9.
Warning
Never connect the appliance to electronic energy saver plugs.
Our appliances can be used with mains and sine-controlled inverters. Mains-controlled inverters are used for photovoltaic systems which are connected directly to the national grid. Sine-controlled inverters must be used for isolated applications (e.g. on ships or in mountain lodges) which are not connected directly to the national grid.
Getting to know your appliance

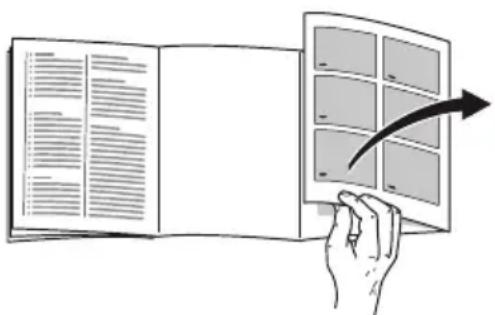

Please fold out the illustrated last page. These operating instructions refer to several models.
The features of the models may vary. The diagrams may differ.
en
Fig. 1
- Not all models.
1-4 Controls
5 NoFrost System
6^ Freezer compartment flap
7 Glass shelf
8 Frozen food container (small)
9 Frozen food container (large)
10 Height-adjustable feet
11 Door ventilation
Controls
Fig. 2
1 On/Off button
Serves to switch the whole appliance on and off.
2 Temperature display
Indicates the set temperature of the freezer compartment.
3 Display super freezing
Illuminates when super freezing is on.
4 Temperature selection button
The required temperature is set with this button.
Switching the appliance on
Fig. 2
Switch on the appliance with the On/Off button 1.
A warning signal sounds. Temperature display 2 is flashing.
Press the temperature setting button 4. The warning signal switches off.
When the freezer compartment has reached the set temperature, the temperature display 2 is lit.
We recommend a factory setting of -18^ in the freezer compartment.
Operating tips
After the appliance has been switched on, it may take several hours until the set temperature has been reached. Do not put any food in the appliance beforehand.
The fully automatic NoFrost system ensures that the freezer compartment remains free of ice. Defrosting is not required.
The sides of the housing are sometimes heated slightly. This prevents condensation in the area of the door seal.
If the freezer compartment door cannot be immediately re-opened after it has been closed, wait until the resulting low pressure has equalised.
Setting the temperature
Fig. 2
Freezer
The temperature can be set from -16^ to -26^ .
Keep pressing temperature setting button 4 until the required freezer compartment temperature is set.
The value last selected is saved. The set temperature is indicated on temperature display 2.
Alarm functions
Fig. 2
Door alarm
A warning signal is switched on if the appliance door is left open for a while. Close the door to switch off the warning signal.
Temperature alarm
The temperature alarm switches on if the freezer compartment is too warm and the frozen food is at risk of thawing.
Temperature display, Fig. 2/2, is flashing.
The alarm may switch on without any risk to the frozen food:
when the appliance is switched on,
- when large quantities of fresh food are placed in the appliance,
- if the freezer compartment door is open too long.
Note
Do not refreeze thawing or thawed food. Only ready meals (boiled or fried) may be refrozen.
No longer store the frozen produce for the max. storage period.
Switching off the alarm
Fig. 2
Press the temperature setting button 4 to switch off the warning signal.
Usable capacity
Information on the usable capacity can be found inside your appliance on the rating plate. Fig. 9
Fully utilising the freezer volume
The maximum amount of food can be placed in the freezer by removing all fittings. The food can be stacked directly on the shelves and in the bottom of the freezer compartment.
Note
Valid only for the types KG GSUU37A, KG GSUU39A and KG GSUU41A (see rating plate field "Type"):
To comply with the values indicated on the rating plate, the fitting at the very top must remain in the appliance.
Removing the fittings
Pull out the frozen food container all the way, lift at the front and remove. Fig. 6
Freezer compartment flap Fig. 5
- Open freezer compartment flap halfway,
- detach holder from one side of the appliance,
- pull freezer compartment flap forwards and remove from the holder,
- detach holder from the other side of the appliance.
Freezer compartment
Use the freezer compartment
To store deep-frozen food.
To make ice cubes.
To freeze food.
Note
Ensure that the freezer compartment door has been closed properly. If the door is open, the frozen food will thaw. The freezer compartment will become covered in thick ice. Also: waste of energy due to high power consumption!
Max. freezing capacity
Information about the max. freezing capacity within 24 hours can be found on the rating plate. Fig. 9
Prerequisites for max. freezing capacity
- Switch on super freezing before placing fresh products in the compartment (see chapter entitled "Super freezing").
Removing the fittings
The food can be stacked directly on the shelves and in the bottom of the freezer compartment.
Note
Do not cover the ventilation slots on the rear panel with frozen food.
- Freeze large quantities of food preferably in the very top compartment where food freezes particularly quickly and therefore also gently.
Freezing and storing food
Purchasing frozen food
- Packaging must not be damaged.
Use by the "use by" date.
Temperature in the supermarket freezer must be -18 ^ C or lower.
If possible, transport deep-frozen food in an insulated bag and place quickly in the freezer compartment.
Note when loading products
- Preferably freeze large quantities of food in the top compartment, where food freezes particularly quickly and therefore also gently.
- Do not cover the ventilation slots on the rear panel with frozen food.
Place the food over the whole area of the compartments or the frozen food containers.
Note
Food which is already frozen must not come into contact with the food which is to be frozen. If required, move the frozen food to the frozen food container.
To ensure air circulation in the appliance, insert frozen food container all the way.
Freezing smaller amounts of food
How you freeze smaller amounts of food, so that they are frozen solid extremely quickly, can be found in the section Automatic super freezing.
Freezing fresh food
Freeze fresh and undamaged food only. To retain the best possible nutritional value, flavour and colour, vegetables should be blanched before freezing. Aubergines, peppers, zucchini and asparagus do not require blanching.
Literature on freezing and blanching can be found in bookshops.
Note
Keep food which is to be frozen away from food which is already frozen.
The following foods are suitable for freezing: Cakes and pastries, fish and seafood, meat, game, poultry, vegetables, fruit, herbs, eggs without shells, dairy products such as cheese, butter and quark, ready meals and leftovers such as soups, stews, cooked meat and fish, potato dishes, souffles and desserts.
The following foods are not suitable for freezing: Types of vegetables, which are usually consumed raw, such as lettuce or radishes, eggs in shells, grapes, whole apples, pears and peaches, hard-boiled eggs, yoghurt, soured milk, sour cream, crème fraîche and mayonnaise.
Packing frozen food
To prevent food from losing its flavour or drying out, place in airtight containers.
- Place food in packaging.
- Remove air.
- Seal the wrapping.
- Label packaging with contents and date of freezing.
en
Suitable packaging:
Cling wrap, tubular film made of polyethylene, aluminium foil, freezer containers. These products are available from specialist outlets.
Unsuitable packaging:
Wrapping paper, greaseproof paper, cellophane, bin liners and used shopping bags.
Items suitable for sealing packaged food:
Rubber bands, plastic clips, string, cold-resistant adhesive tape, etc.
Bags and tubular film made of polyethylene (PE) can be sealed with a film heat sealer.
Shelf life of frozen food
Storage duration depends on the type of food.
At a temperature of -18^ :
Fish, sausage, ready meals and cakes and pastries: up to 6 months
Cheese, poultry and meat: up to 8 months
Vegetables and fruit: up to 12 months
Super freezing
Food should be frozen solid as quickly as possible in order to retain vitamins, nutritional value, appearance and flavour.
The appliance runs constantly when super freezing has been switched on. The freezer compartment temperatures are much lower than in normal operation.
Switching on super freezing
Depending on the amounts of food to be frozen, you can use super freezing in different ways.
Note
When super freezing is switched on, increased operating noises may occur and the super display is lit, Fig. 2/3.
Automatic super freezing
Smaller amounts of food are frozen solid extremely quickly if you freeze them as follows:
in the second frozen food container from below
from the outer right
over a large area
Automatic super freezing automatically switches on when warm food items are placed inside the freezer.
Manual super freezing
Freeze larger quantities of food preferably in the top compartment. This is where food freezes particularly quickly and therefore also gently.
Several hours before placing fresh food in the freezer compartment, switch on super freezing to prevent an unwanted temperature rise.
If the max. freezing capacity is to be used, super freezing must be switched on for 24 hours before the fresh products are placed in the freezer compartment.
Keep pressing 4 temperature setting button until 3 super display is lit.
Switching off super freezing
Fig. 2
Keep pressing 4 temperature setting button until the required temperature is displayed.
3 super display goes out.
When super freezing has finished, the appliance automatically switches to normal mode.
- With automatic super freezing: As soon as the smaller amounts of food to be frozen have frozen solid.
- With manual super freezing: After approx. 212 days.
Thawing frozen food
Depending on the type and application, select one of the following options:
at room temperature
in the refrigerator
in an electric oven, with/without fan assisted hot-air
in the microwave
Caution
Do not refreeze thawing or thawed food. Only ready meals (boiled or fried) may be refrozen.
No longer store the frozen produce for the max. storage period.
Interior fittings
(not all models)
Frozen food container (large)
Fig. 1/9
For the storage of large frozen items, e.g. turkey, duck and goose.
Freezer calendar
To prevent the quality of the frozen food from deteriorating, do not exceed the storage duration. The storage period depends on the type of produce. The figures next to the symbols indicate the permitted storage period of the produce in months. In the case of commercially available frozen food observe the date of manufacture or use by date.
Ice pack
If a power failure or malfunction occurs, the ice packs can be used to slow down the thawing process. The longest storage time is obtained by placing the ice pack on the food in the top compartment.
To save space, the ice pack can be stored in the door compartment.
The ice pack can also be used to cool food temporarily, e.g. in a cold bag.
en
Ice cube tray
Fig. 7
- Fill the ice cube tray 34 full of drinking water and place in the freezer compartment.
- If the ice tray is stuck to the freezer compartment, loosen with a blunt implement only (spoon-handle).
- To loosen the ice cubes, twist the ice tray slightly or hold briefly under flowing water.
Switching off and disconnecting the appliance
Turn off appliance
Fig. 2
Press the On/Off button 1.
Temperature display 2 goes out, refrigeration unit switches off.
Disconnecting the appliance
If you do not use the appliance for a prolonged period:
- Switch off the appliance.
- Pull out mains plug or switch off fuse.
- Clean the appliance.
- Leave the appliance door open.
Defrosting
Freezer compartment
The fully automatic NoFrost system ensures that the freezer compartment remains free of ice. Defrosting is no longer required.
Cleaning the appliance
Caution
- Do not use abrasive, chloride or acidic cleaning agents or solvents.
- Do not use scouring or abrasive sponges.
The metallic surfaces could corrode.
- Never clean shelves and containers in the dishwasher.
The parts may become deformed!
Note
Approx. 4 hours before cleaning the appliance, switch on super freezing so that the food drops to a very low temperature and can therefore be stored at room temperature for a longer period.
Proceed as follows:
- Before cleaning: Switch off the appliance.
- Pull out mains plug or switch off fuse.
- Take out the frozen food and store in a cool location. Place the ice pack (if enclosed) on the food.
- Wait until the layer of frost has thawed.
-
Clean the appliance with a soft cloth, lukewarm water and a little pH neutral washing-up liquid. The rinsing water must not run into the light.
-
Wipe the door seal with clear water only and then wipe dry thoroughly.
- After cleaning reconnect and switch the appliance back on.
- Put the frozen food back into the appliance.
Tips for saving energy
Install the appliance in a dry, well ventilated room! The appliance should not be installed in direct sunlight or near a heat source (e.g. radiator, cooker).
If required, use an insulating plate.
- Do not block the ventilation openings in the appliance.
- Allow warm food and drinks to cool down before placing in the appliance.
Thaw frozen food in the refrigerator compartment and use the low temperature of the frozen food to cool refrigerated food.
- Open the appliance as briefly as possible.
Ensure that the freezer compartment door is always closed properly.
- To avoid increased power consumption, occasionally clean the back of the appliance.
If available: Fit wall spacers to obtain the indicated energy rating of the appliance (see Installation instructions). A reduced wall gap will not restrict the function of the appliance. The energy rating may then increase slightly. The gap of 75mm must not be exceeded.
The arrangement of the fittings does not affect the energy rating of the appliance.
Operating noises
Quite normal noises
Note
When super freezing is switched on, increased operating noises may occur.
Droning
Motors are running (e.g. refrigerating units, fan).
Bubbling, humming or gurgling noises Refrigerant is flowing through the tubing.
Clicking
Motor, switches or solenoid valves are switching on/off.
Cracking
Automatic defrosting is running.
Preventing noises
The appliance is not level
Please align the appliance with a spirit level. Use the height-adjustable feet or place packing underneath them.
The appliance is not free-standing
Please move the appliance away from adjacent units or appliances.
Containers or storage areas wobble or stick
Please check the removable parts and re-insert them correctly if required.
Bottles or receptacles are touching each other
Move the bottles or receptacles slightly away from each other.
Eliminating minor faults yourself
Before you call customer service:
Please check whether you can eliminate the fault yourself based on the following information.
Customer service will charge you for advice - even if the appliance is still under guarantee!
| Fault Possible cause Remedial action | ||
| Temperature differs greatly from the set value. | In some cases it is adequate to switch off the appliance for 5 minutes. If the temperature is too high wait a few hours and check whether the temperature has approached the set value. If the temperature is too low check the temperature again the next day. | |
| Displays do not illuminate. Power failure; the fuse has been switched off; the mains plug has not been inserted properly. | Connect mains plug. Check whether the power is on, check the fuses. | |
| Warning signal sounds. Temperature display flashes. Fig. 2/2 | Fault - the freezer compartment is too warm! Frozen food is at risk. Appliance is open. Close the appliance. | To switch off the warning signal, press the temperature setting button, Fig. 2/4. |
| Ventilation openings have been covered. | Ensure that there is adequate ventilation. | |
| Too much food was placed in the freezer at once. | Do not exceed max. freezing capacity. | |
| When the fault has been rectified, the temperature display stops flashing. | ||
Fault Possible cause Remedial action
| Freezer compartment door was open for a long time; temperature is no longer reached. | The evaporator (refrigeration generator) in the NoFrost system is covered in thick ice and can no longer be defrosted fully automatically. | To defrost the evaporator, remove the frozen food with the compartments, insulate well and store in a cool location. Switch off the appliance and move it away from the wall. Leave the appliance door open. After approx. 20 min. the condensation begins to run into the evaporation pan, at the rear of the appliance. Fig. 8 To prevent the evaporation pan from overflowing in this case, mop up the condensation with a sponge. The evaporator is defrosted when the water stops running into the evaporation pan. Clean the interior. Switch the appliance back on again. |
| Appliance is not cooling, temperature display and light are lit. | Showroom mode is switched on. | Start appliance self-test (see chapter “Appliance self-test”). When the programme has ended, the appliance switches over to normal operation. |
| Automatic super freezing does not switch on. | The appliance decides independently whether automatic Super freezing is required and automatically switches it on or off. |
Appliance self-test
Your appliance features an automatic self-test program which shows you sources of faults which may be repaired by customer service only.
Starting the appliance self-test
- Switch off the appliance and wait 5 minutes.
- Switch on the appliance and hold down the temperature selection button, Fig. 2/4, for 3-5 seconds within the first 10 seconds until -26 °C is lit on the temperature display.
The self-test programme starts, when the temperature displays lit up in succession.
When after a short time the appliance displays the set temperature prior to the self-test, everything is ok.
If the super display flashes for 10 seconds, an error has occurred. Inform customer service.
Ending the appliance self-test
When the programme has ended, the appliance switches over to normal operation.
Customer service
Your local customer service can be found in the telephone directory or in the customer-service index. Please provide customer service with the appliance product number (E-Nr.) and production number (FD-Nr.).
This information can be found on the rating plate. Fig. 9
To prevent unnecessary call-outs, please assist customer service by quoting the product and production numbers. This will save you additional costs.
Repair order and advice on faults
Contact information for all countries can be found on the enclosed customer service list.
