USER MANUAL 360° Reach DIRT DEVIL

360^ REACH^TM

Cyclonic Vacuum

1.2.3…

MANUAL

961151143 / ID111781 / R1 9/14

©2014 All rights reserved

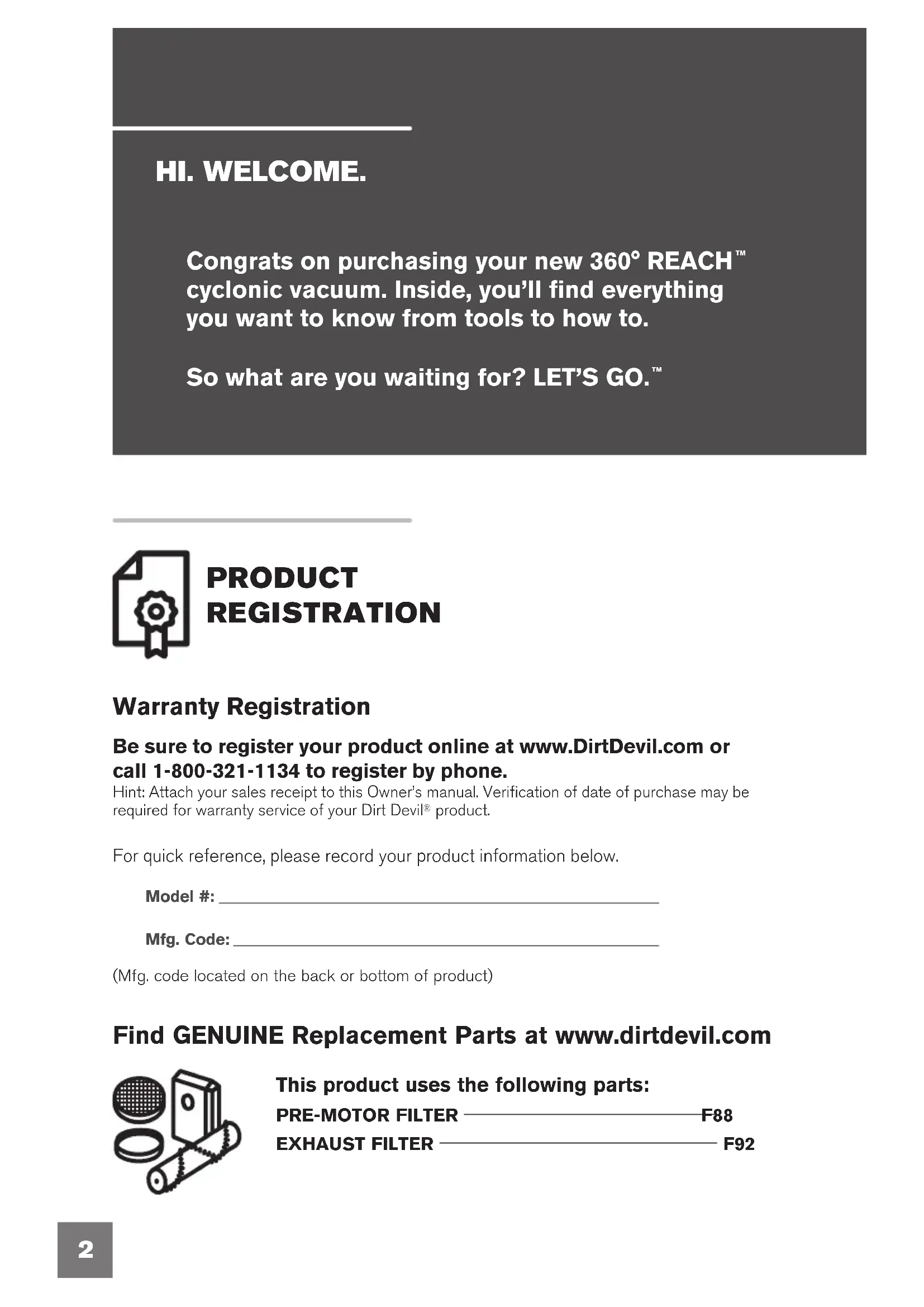

Congrats on purchasing your new 360^ REACH ™ cyclonic vacuum. Inside, you'll find everything you want to know from tools to how to.

So what are you waiting for? LET'S GO.

PRODUCT REGISTRATION

Warranty Registration

Be sure to register your product online at www.DirtDevil.com or call 1-800-321-1134 to register by phone.

Hint: Attach your sales receipt to this Owner's manual. Verification of date of purchase may be required for warranty service of your Dirt Devil® product.

For quick reference, please record your product information below.

Model #:

Mfg. Code:

(Mfg. code located on the back or bottom of product)

Find Genuine Replacement Parts at www.dirtdevil.com

This product uses the following parts:

PRE-MOTOR FILTER F88

EXHAUST FILTER F92

TABLE OF CONTENTS

1·2·3…

Quick Start Assembly 6

Tools 8

How to 12

Troubleshooting 17

Limited Warranty 18

WARNING

IMPORTANT: READ CAREFULLY BEFORE ASSEMBLY AND USE. THIS PRODUCT IS INTENDED FOR HOUSEHOLD USE ONLY. IF USED COMMERCIAALLY WARRANTY IS Void.

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE. WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:

• Fully assemble before operating.
• Operate cleaner only at voltage specified on data plate on back of cleaner.
• Do not use on wet surfaces. Do not expose to rain. Store indoors.
• Do not allow to be used as a toy. Not intended for use by children age 12 and under. Close supervision is necessary when used near children. To avoid injury or damage, keep children away from product, and do not allow children to place fingers or other objects into any openings.
• Use only as described in this manual. Use only manufacturer's recommended attachments and products.
• Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, take it to a service center prior to continuing use.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not place product on cord. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not leave appliance when plugged in. Unplug from outlet when not in use and before cleaning or servicing.
• Do not handle plug or appliance with wet hands.
• Do not put any objects into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
• Keep hair, loose clothing, fingers and all parts of body away from openings and moving parts.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or fine wood sandings or use in areas where they may be present.
• Always turn off this appliance before connecting or disconnecting motorized nozzle.
• Unplug before connecting motorized carpet nozzle.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use without filters and/or dirt cup in place.
• Do not use outdoors.
• WARNING: This product contains chemicals, known to the State of California to cause cancer and birth defects or other reproductive harm.

WASH HANDS AFTER USING.

CAUTION: TO REDUCE THE RISK OF DAMAGE:

• Avoid picking up hard, sharp objects with this product, as they may cause damage.
• Store appropriately indoors in a dry place. Do not expose machine to freezing temperatures.
• Put the product away after use to prevent tripping accidents.
• Do not allow power nozzle or powered stair tool with brushroll running to sit in one location for an extended period of time, as damage to floor can result.
• When cleaning the car, vehicle should be located in a garage.

SAVE THESE INSTRUCTIONS

WARNING:

To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.

NOTICE

A THERMAL PROTECTOR HAS BEEN DESIGNED INTO YOUR CLEANER TO PROTECT IT FROM OVERHEATING. WHEN THE THERMAL PROTECTOR ACTIVATES THE CLEANER WILL STOP RUNNING.

If this happens proceed as follows:

1. Turn cleaner OFF and unplug it from the electrical outlet.
2. Empty dirt cup.
3. Inspect the nozzle opening, dirt cup inlet and filter. Clear obstructions if present.
4. When cleaner is unplugged and motor cools for 30 minutes, the thermal protector will deactivate and cleaning may continue.

If the thermal protector continues to activate after following the above steps, your cleaner needs servicing.

QUICK START

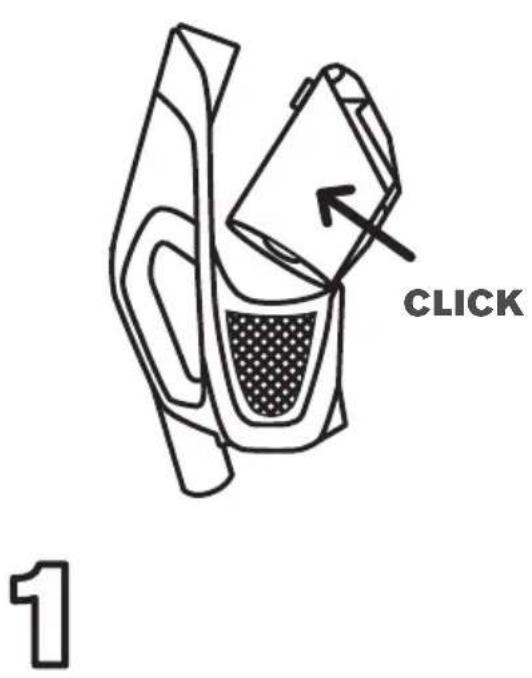

POP THE DIRT CUP IN AT AN ANGLE, BOTTOM END FIRST. IT'LL CLICK.

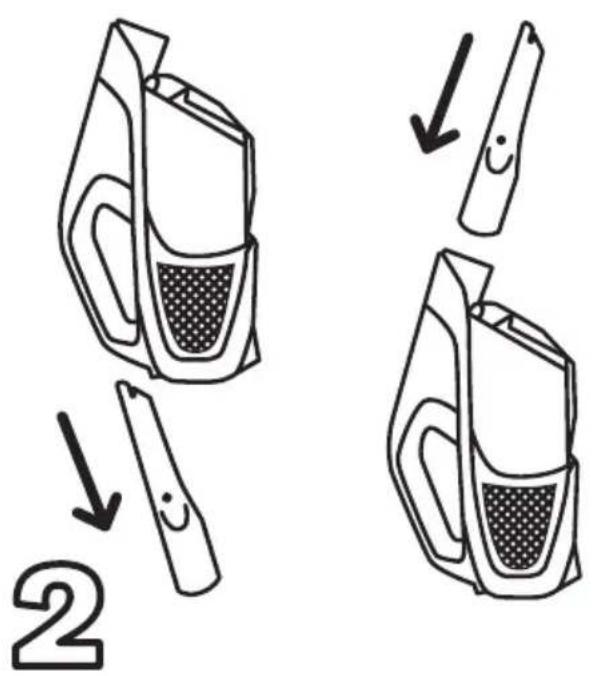

REMOVE CREVICE TOOL FROM HANDLE THEN SLIDE IT IN HERE.

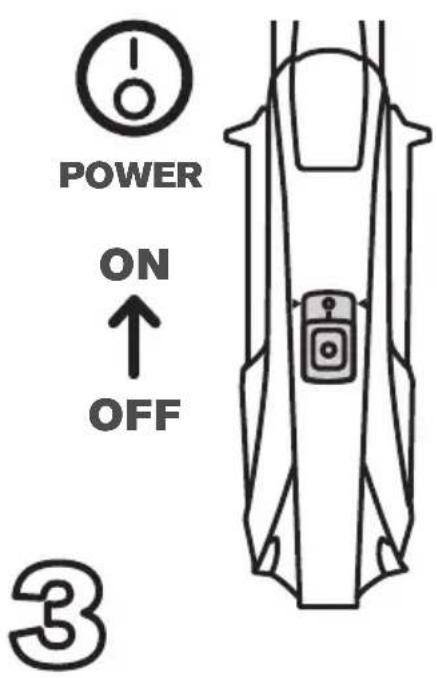

PLUG IN AND SLIDE UP HERE TO POWER ON (I=ON), SLIDE SWITCH TO OFF (0=OFF).

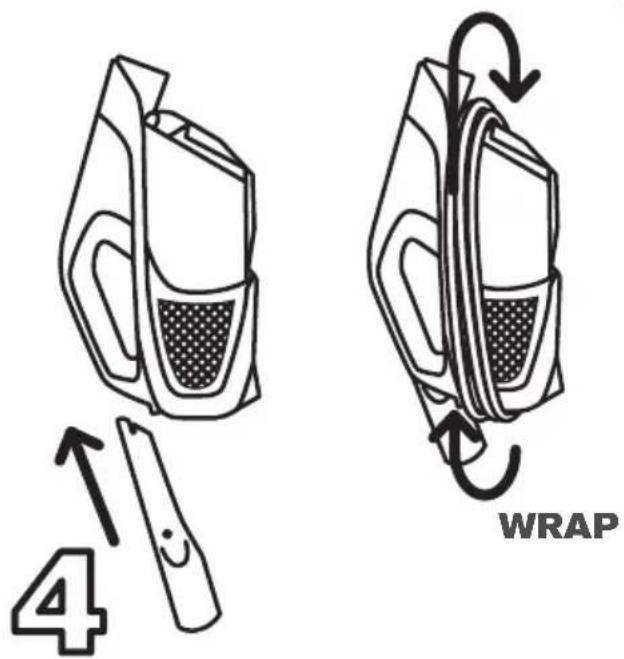

WHEN FINISHED CLEANING, REPLACE CREVICE TOOL INTO HANDLE AND WRAP THE CORD AROUND BOTH ENDS OF THE VACUUM. ATTACH THE PLUG END TO THE CORD.

YOUR 360^ REACH^TM CYCLONIC VACUUM IS READY TO CLEAN! LET'S GO.

NEED HELP? Go to dirtdevil.com/support or contact our Customer Service Department at [phone] 8:00 a.m. - 7:00 p.m. EST Mon. - Fri. or Sat. 10:00 a.m. - 6:00 p.m. EST.

Pick up the conversation on...

Facebook.com/DirtDevil Twitter@DirtDevil

CREVICE TOOL: use in tight spaces, corners, cars and along edges in such places as drawers, upholstered furniture, stairs and baseboards.

6" POWERED STAIR AND UPHOLSTERY TOOL: use on carpeted stairs, upholstery and in your car. It swivels 180^ for convenient cleaning.

VAC+DUST HARD FLOOR TOOL WITH SWIPESTM WASHABLE MICROFIBER PAD*: vacuum and dust most hard floor surfaces.

VAC+DUST™ ABOVE FLOOR TOOL WITH SWIPESTM WASHABLE MICROFIBER PAD: vacuum and dust air ducts, shelving, ceiling fans, or hard-to-reach areas.

PIVOT EXTENSION TOOL: use with above floor, fan or crevice tool for improved cleaning. Press silver buttons for desired angle.

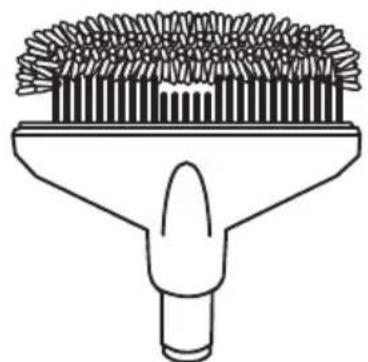

FAN TOOL:* best tool for cleaning ceiling fans. Vacuum and dust fan blades for easy clean up.

EXTENSION WAND:\*\* slide button on cleaning wand for longer reach on above and hard floor cleaning.

**Extensionwandisnotpowered.Toolstobe used includes crevice too I, vac+dust, hard floor tool, above floor tools, fan tool and the pivot extension tool.

LUBRICATION:

The motor and brushroll are equipped with bearings which contain lifetime lubrication. The addition of lubricant could cause damage. Do not add lubricant to motor or brushroll.

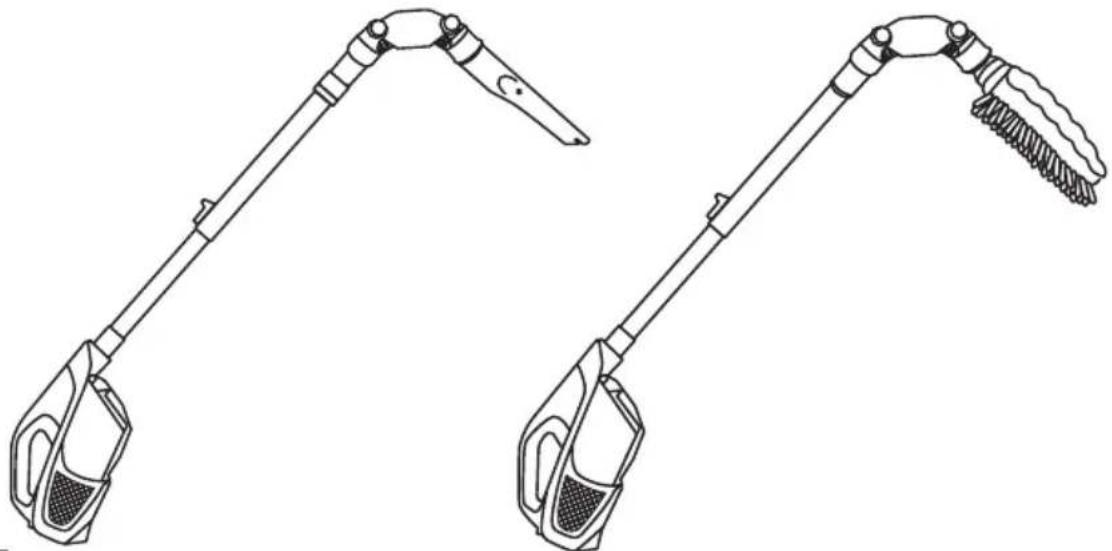

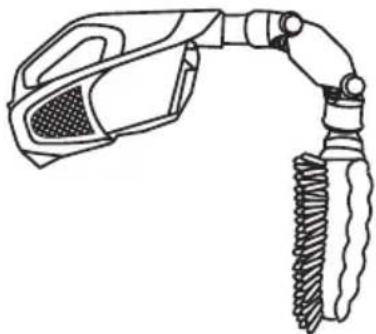

ABOVE FLOOR CLEANING

Easily clean cracks, crevices and tight places. Vacuum and dust hard surfaces including shelving, fans, vents and lighting.

*Tools not standard for all models. Visit DirtDevil.com for accessories and model availability.

CREVICE TOOL: easily cleans cracks, crevices and tight places.

VAC+DUST™ ABOVE FLOOR TOOL WITH SWIPESTM WASHABLE MICROFIBER PAD: use for ceiling fans, air ducts or hard-to-reach areas.

PIVOT EXTENSION TOOL: extend and pivot to clean hard-to-reach areas, corners, crevices and more.

EXTENSION WAND: extend your reach for detailed cleaning in vents and on furniture surfaces.

TOOLS

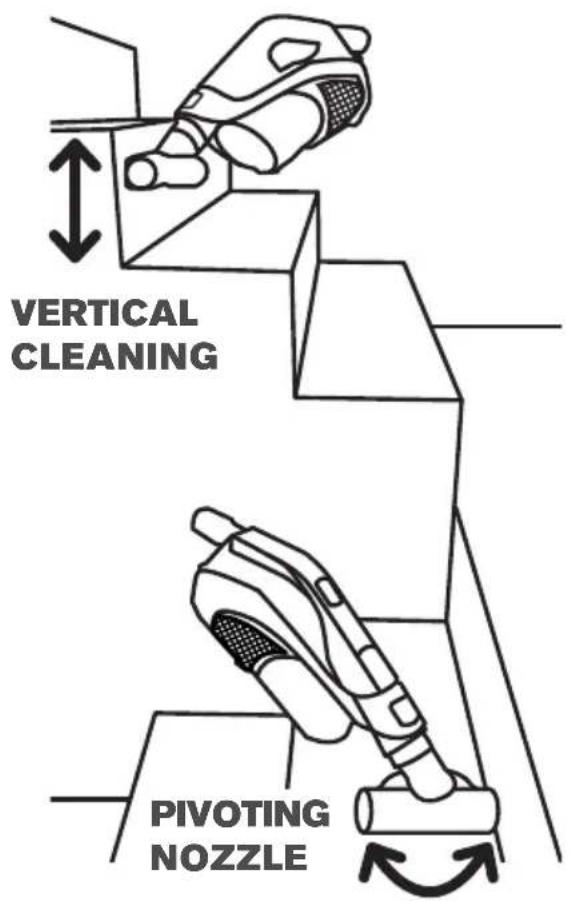

STAIR, UPHOLSTERY & CAR CLEANING

The tools make stair cleaning easy. Use the Powered Stair and Upholstery Tool for carpeted stairs. It swivels 180^ for convenient cleaning. For hard surfaced stairs use the crevice tool or SWIPESTM hard floor tool. Also, the tools work great for cleaning your car.

TOOLS

CAUTION CAUTION

Use extra care when cleaning on stairs. Do not place cleaner on stairs or furniture, as it may result in injury or damage.

To avoid injury, particularly to face and head, keep hair, loose clothing, fingers, and all parts of the body away from revolving brush.

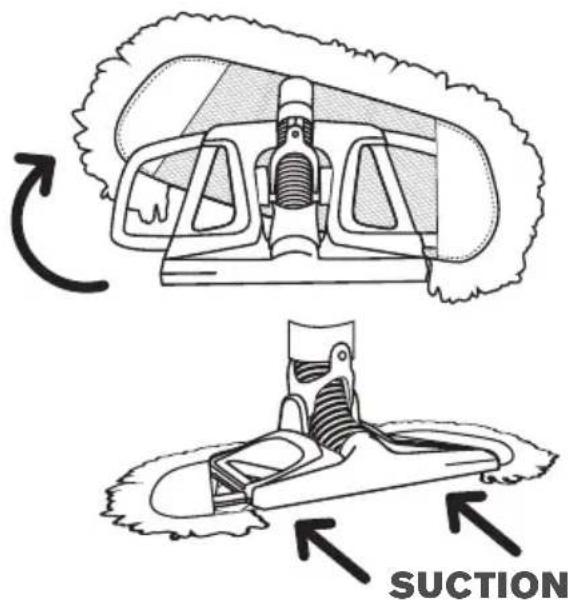

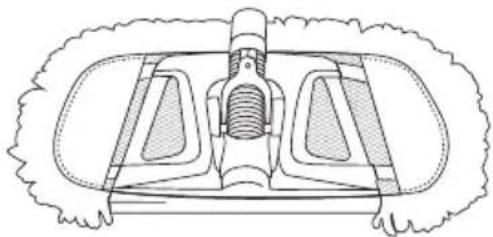

HARD FLOOR CLEANING WITH SWIPES

Vac+Dust Floor Tool with SWIPESTM Washable Microfiber Dusting Pad picks up dirt, dust, debris & pet hair. Works great on sealed hard floor surfaces such as tile, wood, linoleum and others.

1. Place dusting pad onto one end of the flexible dust head. Slide other pocket of dusting pad onto dust head starting at the back.
2. SWIPEST Microfiber dusting pad picks up fine dirt, dust and pet hair while the vacuum gets larger debris.

*Tools not standard for all models. Visit DirtDevil.com for accessories and model availability.

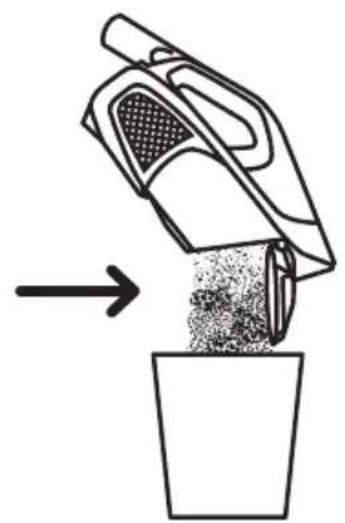

EMPTY THE DIRT CUP

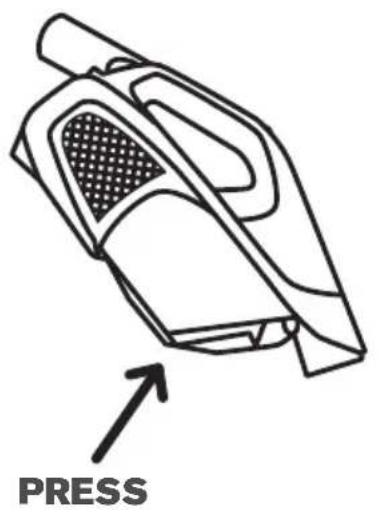

1. Press the Dirt Cup Lid latch. 2. Ditch the dirt. Give it a shake to remove any debris.

Any other servicing should be done by an authorized service representative. If appliance is not working as it should, has been dropped, damaged, left outdoors or dropped into water, take it to a service center prior to continuing use.

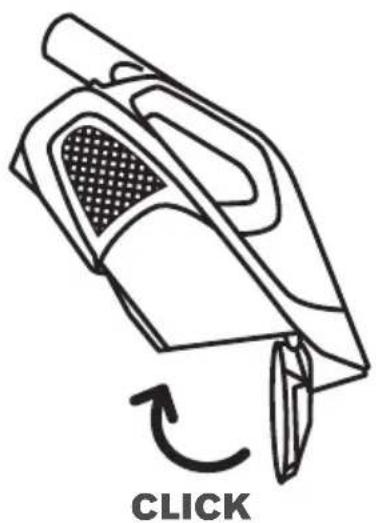

1. Close the lid until the latch clicks.

This would be a good point to check the condition of your filter. Dirty? Check out page 14 for cleaning steps.

CLEAN THE RINSABLE FILTER

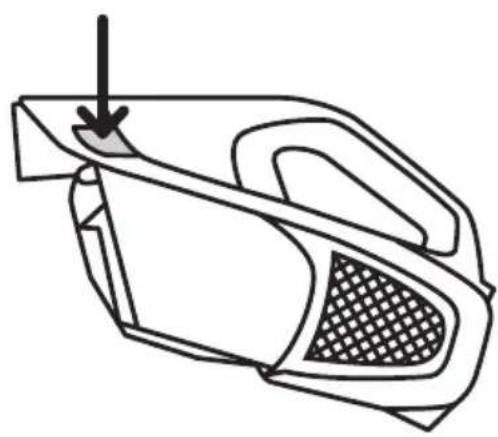

1. Press the Dirt Cup release button.

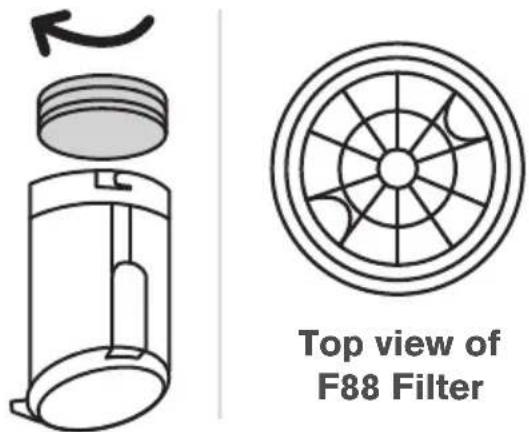

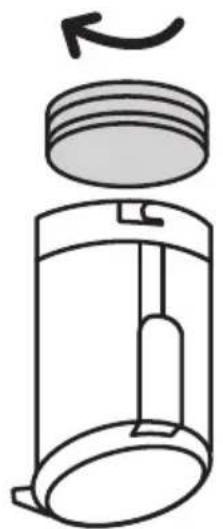

1. Twist clockwise and pull the Filter Frame out.

Top view of F88 Filter

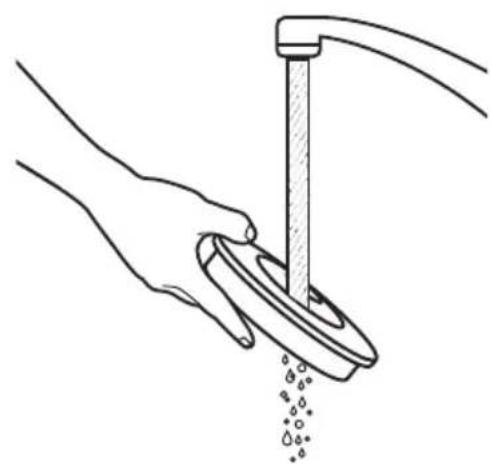

1. Rinse filter with water until the dirt disappears. Shake it out and then let it dry for 24 hours or until completely dry.

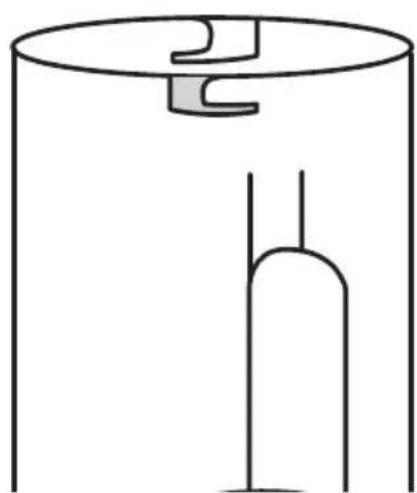

2. Put the dry filter back in by aligning the tabs and twist counter-clockwise into place.

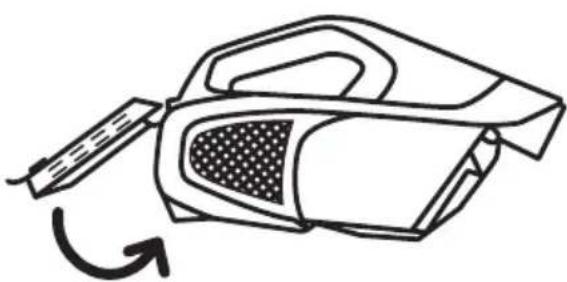

CLEAN THE EXHAUST FILTER

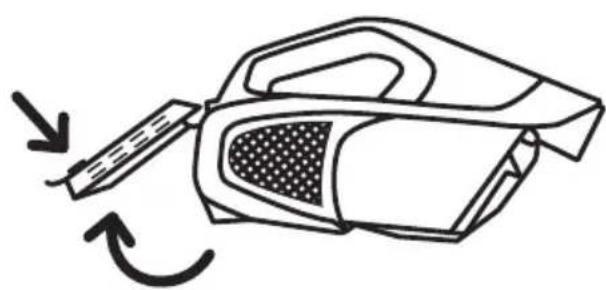

1. Press the silver Exhaust Cover release button and rotate out.

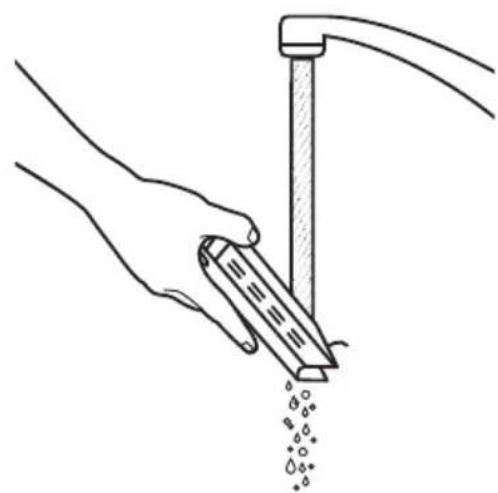

2. Rinse with water from both sides and let dry for 24 hours or until completely dry.

1. Put the dry filter back and click into place.

CLICK

CLEAN THE CYCLONIC FILTER ASSEMBLY

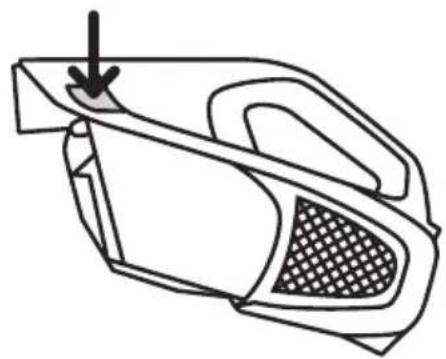

1. Press the Dirt Cup release button.

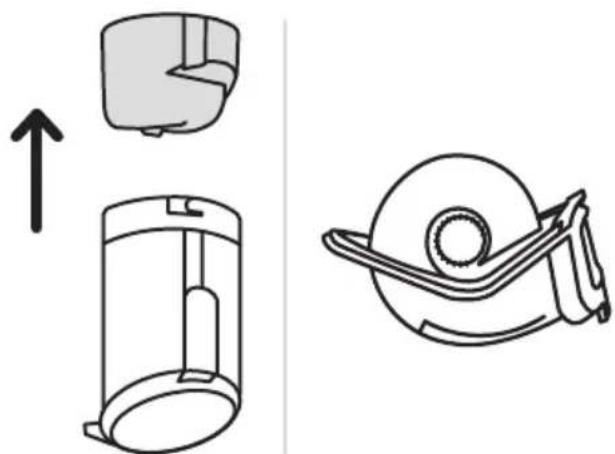

1. Pull out the red cyclone, wipe it clean.

1. Put the filter back in by aligning the tabs and twist counterclockwise into place.

1. Twist clockwise and pull the Filter Frame out.

1. Line up the Cyclonic Filter Assembly tab and push back into place.

CLEAN THE STAIR TOOL:

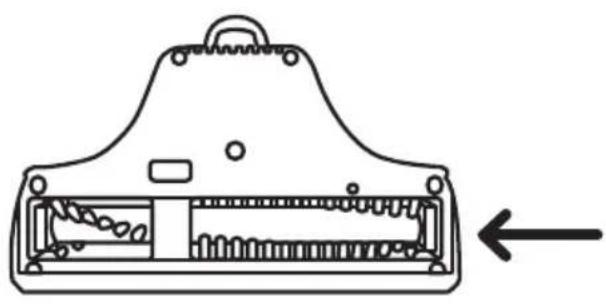

1. Turn the Stair Tool over. Remove any hair and debris from the brushroll.

HOW TO

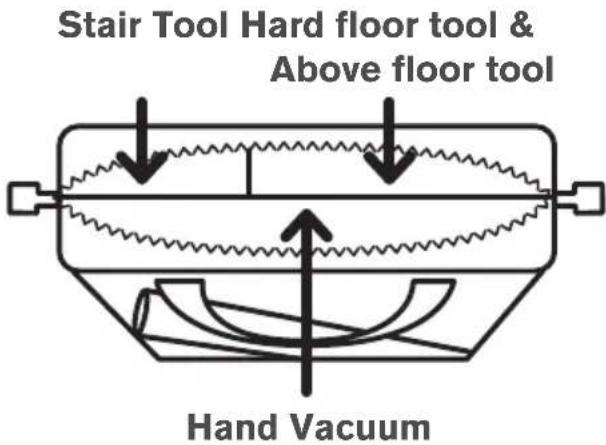

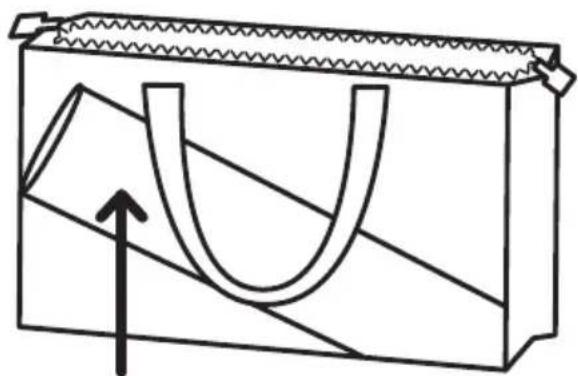

STORE YOUR UNIT:

Keep your vacuum and tools together in the storage bag.

Extension or powered wand pocket

TROUBLESHOOTING

Any other servicing should be done by an authorized service representative. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, take it to a service center prior to continuing use.

WARNING

To reduce the risk of personal injury - Unplug before cleaning or servicing.

PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION

Vacuum won't run	1. Power cord not firmly plugged into outlet.	1. Plug unit in firmly.
	2. Blown fuse or tripped breaker.	2. Check fuse or breaker in home. Replace fuse/reset breaker in home.
	3. No voltage in wall plug. 3. Check fuse or breaker in home. Replace fuse/reset breaker in home.
	4. Thermal Protector activated.	4. Unplug and allow vacuum to cool for 30 min. (This will reset the thermal protector)
Dust escaping from vacuum	1. Dirt cup full. 1. Empty dirt cup.
	2. Dirt cup not installed correctly. 2. Review Dirt Cup removal & replacement.
	3. Rinsable and/ or Filter made with HEPA media not installed completely.	3. Review Filter Removal and Cleaning.
Smoky/burning smell detected	1. Belt broken or stretched. 1. Call Customer Service: 1-800-321-1134.
	2. Brushroll is clogged. 2. Clear/remove debris from brushroll.
Vacuum tools won't pick-up	1. Dirt cup full. 1. Empty dirt cup.
	2. One or both filters are clogged. 2. Remove both filters and clean.
	3. Stair + upholstery tool not spinning.	3. Review tool section.
	4. Power carpet nozzle not spinning.	4. Review tool section.
Poor suction	1. Dirt cup not seated completely.	1. Reinstall dirt cup make sure lid is closed completely.
	2. One or both filters clogged.	2. Remove both filters and clean.

LIMITED WARRANTY

WHAT THIS WARRANTY COVERS

When used and maintained in normal household use and in accordance with the Owner's Manual, your Dirt Devil® product is warranted against original defects in material and workmanship. During the Warranty Period, We will provide labor and parts, at no cost to you, to correct any such defect in products purchased in the United States, U.S. Military Exchanges and Canada.

HOW TO MAKE A WARRANTY CLAIM

If this product is not as warranted, take or send the product to a Dirt Devil® Authorized Warranty Service Dealer along with proof of purchase. For an automated referral to authorized service outlets in the U.S.A., phone: [phone] OR visit Dirt Devil® online at www.DirtDevil.com. For additional assistance or information concerning this Warranty or the availability of warranty service outlets, phone the Dirt Devil® Consumer Response Center, Phone [phone], Mon-Fri 8am-7pm EST.

WHAT THIS WARRANTY DOES NOT COVER

This Warranty does not cover: use of the product in a commercial operation (such as maid, janitorial and equipment rental services), brushroll, belt, bags, filters, improper maintenance of the product, damage due to misuse, acts of God, nature, vandalism or other acts beyond the control of Royal Appliance Mfg. Co. ("Royal", "we"), owner's acts or omissions, use outside the country in which the product was initially purchased and resales of the product by the original owner. This warranty does not cover pick up, delivery, transportation or house calls.

This warranty does not apply to products purchased outside the United States, including its territories and possessions, outside a U.S. Military Exchange and outside of Canada. This warranty does not cover products purchased from a party that is not an authorized retailer, dealer, or distributor of Royal products.

OTHER IMPORTANT TERMS

This Warranty is not transferable and may not be assigned. This Warranty shall be governed and construed under the laws of the state of Ohio. The Warranty Period will not be extended by any replacement or repair performed under this Warranty. THIS WARRANTY IS THE EXCLUSIVE WARRANTY AND REMEDY PROVIDED BY ROYAL. ALL OTHER WARRANTYES, EXPRESSED OR IMPLIED, INCLUDING WARRANTYES OF MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSE, ARE DISCLAIMED. IN NO EVENT WILL ROYAL BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KIND OR NATURE TO OWNER OR ANY PARTY CLAIMING THROUGH OWNER, WHETHER BASED IN CONTRACT, NEGLIGENCE, TORT OR STRICT PRODUCTS LIABILITY OR ARISING FROM ANY CAUSE WHATSOEVER. Some states do not allow the exclusion of consequential damages, so the above exclusion may not apply to you. This warranty gives you specific rights; you may also have others that vary from state to state.

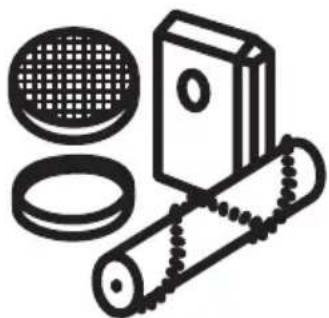

Find Genuine Replacement Parts at www.dirtdevil.com

This product uses the following parts:
PRE-MOTOR FILTER F88
EXHAUST FILTER F92

Call our Customer Service Department at [phone] 8:00 a.m. - 7:00 p.m. EST Mon. - Fri. or Sat. 10:00 a.m. - 6:00 p.m. EST.

www.dirtdevil.com

OUR VACS SPEAK VOLUMES

Pick Up the Conversation On...

Facebookcom/DirtDevil

Twitter@DirtDevil

360^ REACH
