DAISY - Pain therapy device Sonnenkönig - Free user manual and instructions

Technical Features	Pain therapy device with infrared technology
Usage	Designed to relieve muscle and joint pain
Maintenance	Clean with a soft cloth, do not immerse in water
Safety	Do not use on open wounds or sensitive areas
General Information	Lightweight and portable device, ideal for home use

Frequently Asked Questions - DAISY Sonnenkönig

How do I use the Sonnenkf6nig DAISY pain therapy device?

To use the device, place it on the painful area and select the desired therapy mode. Ensure the device is in good contact with the skin for optimal effectiveness.

What types of pain can the Sonnenkf6nig DAISY device relieve?

The device is designed to relieve various types of pain, including muscle, joint, and chronic pain.

How long can I use the device per session?

It is recommended not to exceed 30 minutes per session. Refer to the user manual for specific instructions on each mode.

Is using the device safe?

Yes, the device is designed to be safe. However, it is advisable to consult a healthcare professional before use, especially if you have pre-existing medical conditions.

Can I use the device while taking medication?

Yes, but it is best to discuss with your doctor before using the device alongside medication treatments.

What should I do if the device does not turn on?

Check that the device is charged or connected to a power source. If the problem persists, consult the user manual for troubleshooting instructions.

Is the device waterproof?

No, the device is not waterproof. Avoid any contact with water to ensure proper functioning.

How do I clean the device?

Use a soft, slightly damp cloth to clean the surface of the device. Avoid harsh chemicals.

Where can I find replacement parts for the device?

Replacement parts can be ordered from the manufacturer or authorized dealers. Visit the Sonnenkf6nig website for more information.

Is the device covered by a warranty?

Yes, the device is generally covered by a 2-year warranty. Check the warranty terms in the user manual.

USER MANUAL DAISY Sonnenkönig

Sonnenkönig of Switzerland

Olensbachstrasse 9-15

CH-9631 Ulisbach

Tel. Int. [phone]

Tel.Nat.0848870850

www.sonnenkoenig.ch

Firma

Sonnenkönig of Switzerland

Modifications techniques

Sonnenkönig of Switzerland

Olensbachstrasse 9-15

CH-9631 Ulisbach

Tel. Int. [phone]

Tel.Nat.0848870850

www.sonnenkoenig.ch

Maison

Sonnenkönig of Switzerland

Modifications techniques

Sonnenkönig of Switzerland

Olensbachstrasse 9-15

CH-9631 Ulisbach

Tel. Int. [phone]

Tel.Nat.0848870850

www.sonnenkoenig.ch

Ditta

Sonnenkönig of Switzerland

1 Cautions 27
2 Advantages. 29
3 How to use. 29
4 Technology parameter. 29
5 Warranty / Removal. 30

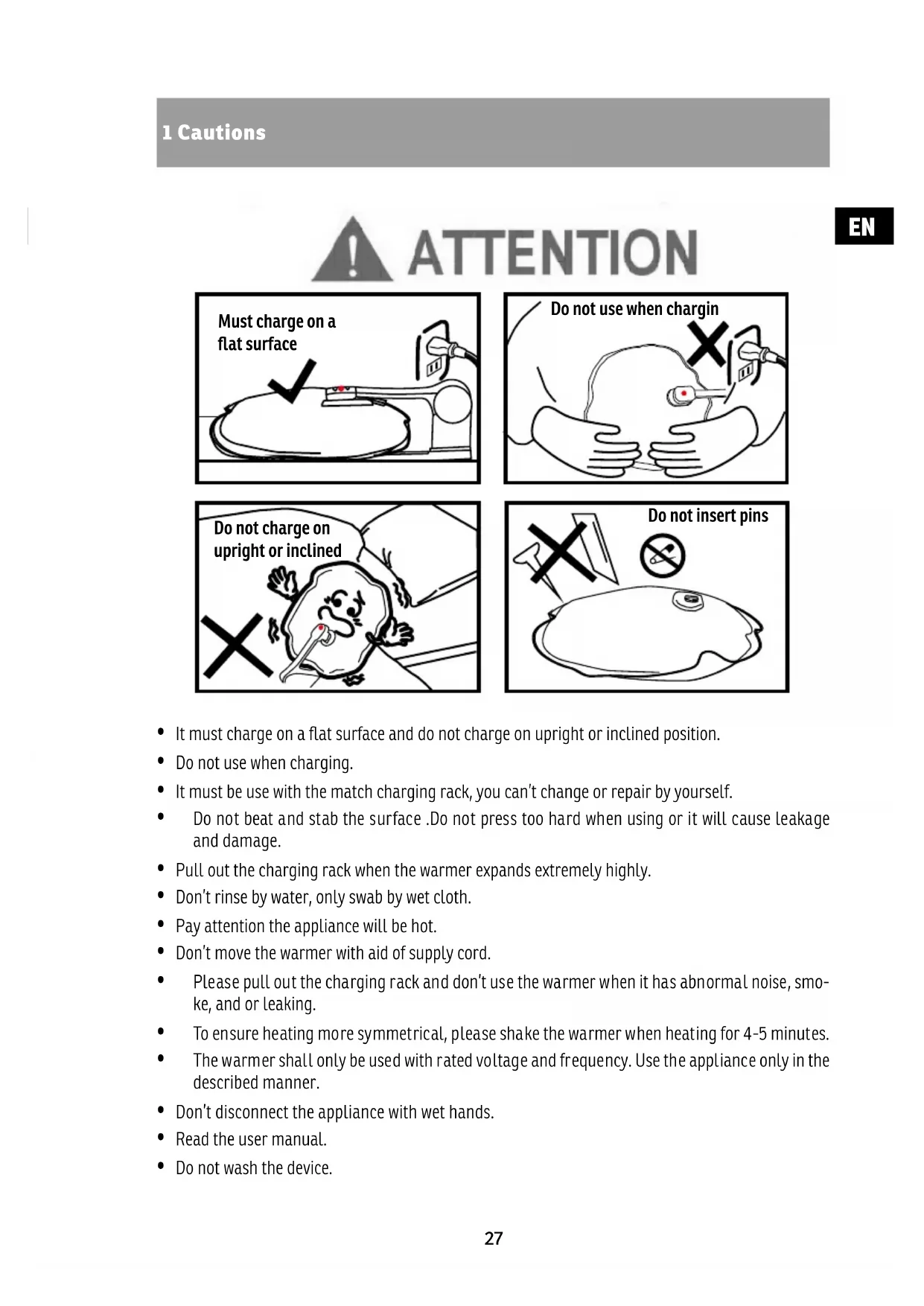

1 Cautions

ATTENTION

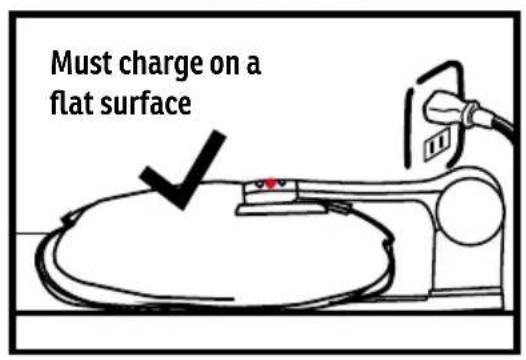

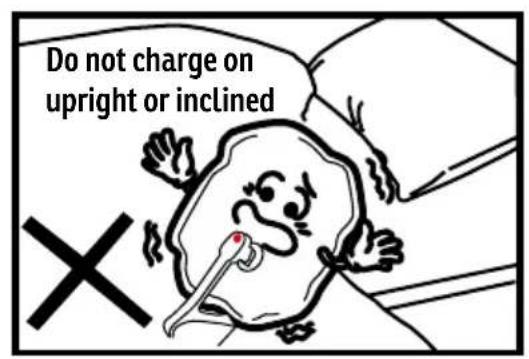

• It must charge on a flat surface and do not charge on upright or inclined position.

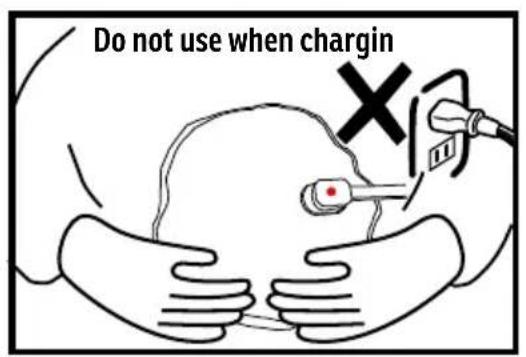

• Do not use when charging.
  It must be use with the match charging rack, you can't change or repair by yourself.
• Do not beat and stab the surface. Do not press too hard when using or it will cause leakage and damage.
• Pull out the charging rack when the warmer expands extremely highly.
• Don't rinse by water, only swab by wet cloth.
• Pay attention the appliance will be hot.
• Don't move the warmer with aid of supply cord.
• Please pull out the charging rack and don't use the warmer when it has abnormal noise, smoke, and or leaking.
  To ensure heating more symmetrical, please shake the warmer when heating for 4-5 minutes.
• The warmer shall only be used with rated voltage and frequency. Use the appliance only in the described manner.
• Don't disconnect the appliance with wet hands.
• Read the user manual.

• Do not wash the device.

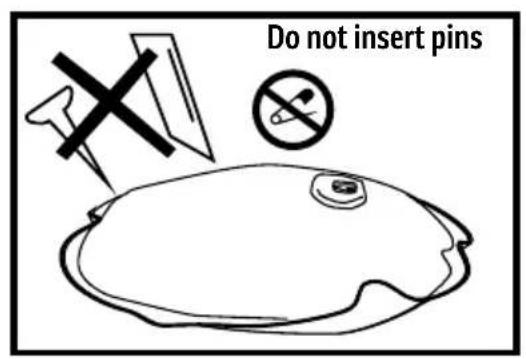

• Do not insert any pins.

• The appliance must be returned to the manufacturer or his service agent if the link has ruptured.
• When storing the appliance, allow it to cool down before folding.
• Do not crease the appliance by placing items on top of it during storage.
• Examine the appliance frequently for signs of wear or damage. If there are such signs or if the appliance has been misused, return it to the supplier prior to any further use.
• This appliance is not intended for medical use in hospitals.
  If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• When not in use, store as follows clean all parts of the product and put them into the original packing box for storage.
• The appliance is not to be used by young children unless the child has been adequately instructed on how to operate the appliance safely.
• Important instructions. Retain for future use.
• Pressure point load max. 50kg . Protect yourself and your belongings of leaking water.
• The product has a patented protection against overheating.

2 Advantages

This warmer is a new-style hot water bottle which is made of special material. It can keep warm and make you feel very soft, comfortable and convenient.
- The warmer is one of the new healthy and keeping warm products. It can ease pains such as arthritic, toothache, headache, back and neck pain, chilblain.
It has big difference from normal warmer. You don't have to fill in or change water since it is already filled with water.
It takes 10-15 minutes charged the warmer and it can keep warm for 2-5 hours.
There is no danger of burning.

EN

3 How to use

Before charging this warmer, please put the warmer and charging rack flat on table with the plug upward, Then insert the charging rack on the warmer and connect the power.
- The soft warmer will automatically cut off and the indicating light will turn off after 10-15 minutes heating. It means the temperature has arrived the rated temperature. Then please pull out the charging rack, the warmer can be used freely without the charging rack.
- When the warmer is cool, you may take the front steps to recharge again.

4 Technology parameter

Average power 360 Watt
Rated voltage 230 Volt
Dimensioni h x l x w 26 x 5 x 19 cm
Weight 1.7 kg

5 Warranty / Removal

Warranty

All products are checked from our company before the delivery. In case that there is a lack on your product, please contact the vendor. Please bring your proof of purchase for guarantees.

Removal

Please remove the device properly. You can bring the product to any specialized dealer for disposal.

Technical changes

Technical changes in technique and design are possible. Please save the packaging materials of the unit.

CE Declaration of Conformity

This device complies with the following standards

EMC EN IEC 55014-1:2021

EN IEC 55014-2:2021

EN IEC 61000-3-2:2019+A1:2021

EN 61000-3-3:2013+A1:2019+A2:2021

LVD EN 60335-2-15: 2016 + A11: 2018 + A1: 2021 + A12:2021 + A2: 2021

EN 60335-1: 2012 + A11: 2014 + A13: 2017 + A1: 2019 + A14: 2019 + A2: 2019 +

A15: 2021 + A16: 2023

EN 62233: 2008

LVD 2014/35/EU

EMC 2014/30/EU

RoHS 2015/863/EU

EN

DISPOSAL INSTRUCTIONS FOR THE ELECTRICAL PART OF THE PRODUCT

In accordance with Article 26 of the Decree-Law of 14 March 2014 implementing Directive 2012/19/EC, and the Law of 31 March 2015 implementing Directive 2015/863/EU on the reduction of the use of hazardous substances in electrical and electronic equipment and on waste management.

The crossed-out dustbin symbol on the machine or packaging indicates that the waste generated at the end of its useful life must be collected separately from other waste. The user must therefore take the device to the appropriate collection points at the end of its service life. Sort electronic and electrical waste or send back to the retailer when purchasing new, equivalent devices in a one-to-one process. Appropriate separate collection for subsequent commissioning of the equipment to be recycled, treatment and environmentally sound disposal helps to avoid possible adverse effects on the environment and health, and promote the reuse and/or recycling of the materials to which they belong. Misuse of this product by the user will result in the application of the administrative penalties provided for in the applicable legislation. Batteries contained in the device must be disposed of separately in the appropriate containers for the collection of used batteries.

DISPOSAL OF BATTERIES AND ACCUMULATORS

In accordance with Legislative Decree 188 of 20 November 2008 implementing Directive 2006/66/EC on batteries, accumulators and related waste, the symbol of the crossed-out waste bin on the battery indicates that the disposal of used batteries is prohibited in household waste.

Single-use and rechargeable batteries contain substances that are highly polluting for the environment. The user is obliged to dispose of used batteries at collection points in the municipality or in appropriate containers. This service is free. In this way, legal requirements are adhered to and the environment protected. The symbols identifying hazardous materials that may be present in single-use and rechargeable batteries are as follows: Hg = Mercury , Cd = Cadmium , Pb = Lead .
