USER MANUAL RT50QBSL SAMSUNG

If the appliance generates a strange noise, a burning or smell or smoke, unplug the power plug immediately and contact your nearest service centre. Failing to do so may result in electric or fire hazards. If any foreign substance such as water has entered the appliance, unplug the power plug and contact your nearest service center. Failing to do so may result in an electric shock or fire.50 mm 100 mm06_ operating06_ operating

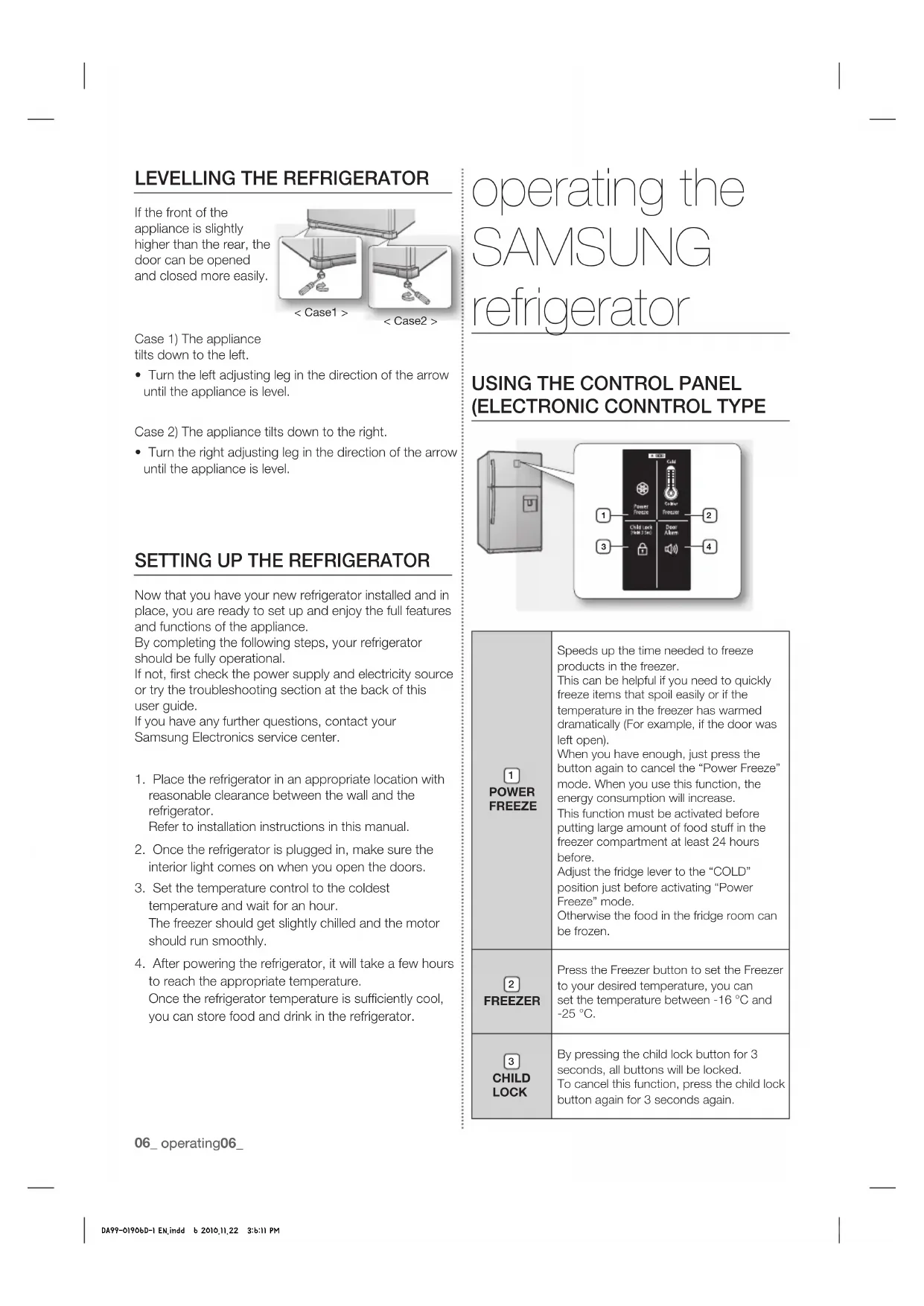

LEVELLING THE REFRIGERATOR

If the front of the appliance is slightly higher than the rear, the door can be opened and closed more easily. Case 1) The appliance tilts down to the left.

• Turn the left adjusting leg in the direction of the arrow until the appliance is level. Case 2) The appliance tilts down to the right.

• Turn the right adjusting leg in the direction of the arrow until the appliance is level.

SETTING UP THE REFRIGERATOR

Now that you have your new refrigerator installed and in place, you are ready to set up and enjoy the full features and functions of the appliance. By completing the following steps, your refrigerator should be fully operational. If not, first check the power supply and electricity source or try the troubleshooting section at the back of this user guide. If you have any further questions, contact your Samsung Electronics service center.

1. Place the refrigerator in an appropriate location with

reasonable clearance between the wall and the refrigerator. Refer to installation instructions in this manual.

2. Once the refrigerator is plugged in, make sure the

interior light comes on when you open the doors.

3. Set the temperature control to the coldest

temperature and wait for an hour. The freezer should get slightly chilled and the motor should run smoothly.

4. After powering the refrigerator, it will take a few hours

to reach the appropriate temperature. Once the refrigerator temperature is sufficiently cool, you can store food and drink in the refrigerator. operating the SAMSUNG refrigerator

POWER FREEZE Speeds up the time needed to freeze products in the freezer. This can be helpful if you need to quickly freeze items that spoil easily or if the temperature in the freezer has warmed dramatically (For example, if the door was left open). When you have enough, just press the button again to cancel the “Power Freeze” mode. When you use this function, the energy consumption will increase. This function must be activated before putting large amount of food stuff in the freezer compartment at least 24 hours before. Adjust the fridge lever to the “COLD” position just before activating “Power Freeze” mode. Otherwise the food in the fridge room can be frozen.

FREEZER Press the Freezer button to set the Freezer to your desired temperature, you can set the temperature between -16 °C and -25 °C.

CHILD LOCK By pressing the child lock button for 3 seconds, all buttons will be locked. To cancel this function, press the child lock button again for 3 seconds again.

< Case2 >< Case1 >DA99-01906D-1 EN.indd 6 2010.11.22 3:6:11 PMHowever, temperature indicator will be changed as the Freezer adjusts to the new temperature.To get more space, you can disassemble ice maker.* The upper guard is the two star section so the temperature is slightly higher than the other freezer compartments. Use only a potable water. Storage Guards*Never stare directly at the UV LED lamp for long periods of time. - This may result in eye strain due to the ultraviolet rays.troubleshooting _11 troubleshooting _11 03 TROUBLESHOOTING troubleshooting PROBLEM SOLUTION Theapplianceisnot operatingatallorthe temperatureistoohigh.

• Check that the power plug is correctly connected.

• Is the temperature control on the front panel correctly set?

• Does sun shine on the appliance or are there heat sources nearby?

• Is the back of the appliance too near to the wall? Thefoodintherefrigeratoris frozen.

• Is the temperature control on the front panel set to the coldest temperature?

• Is the surrounding temperature too low?

• Did you store the food with a high water content in the coldest part of the fridge? Thereareunusualnoises. • Check that the appliance is installed on a stable, level floor.

• Is the back of the appliance too near to the wall?

• Have any foreign objects fallen behind or under the appliance?

• Is the noise coming from the compressor in the appliance?

• A ticking sound may be heard inside the appliance; this is normal. This sound occurs when the various accessories contract or expand. Thefrontcornersandsides oftheappliancearewarm andcondensationstartsto form.

• Heat-proof pipes are installed in the front corners of the appliance to prevent condensation from forming. When the surrounding temperature rises, this may not always be effective. However, this is not abnormal.

• In very humid weather, condensation may form on the outer surface of the appliance when the moisture in the air comes into contact with the cool surface of the appliance. Youcanhearaliquid bubblingintheappliance.

• This is the refrigerant, which cools the inside of the appliance. Thereisabadsmellinside theappliance.

• Has a food item spoiled?

• Make sure that strong smelling food (for example, fish) is wrapped so that it is airtight.

• Clean out your freezer periodically and throw away any spoiled or suspect food. Thereisalayeroffroston theappliancewalls.

• Are the air outlet vents blocked by food stored inside the refrigerator.

• Space the food out as much as possible to improve ventilation.

• Is the door fully closed? Condensationformsonthe insidewalloftheappliance andaroundvegetables.

• Food with a high water content is stored uncovered with a high humidity level or the door has been left open for a long time.
