USER MANUAL TM300 BEHRINGER
Ultimate Tube Amp Modeling Effects Pedal


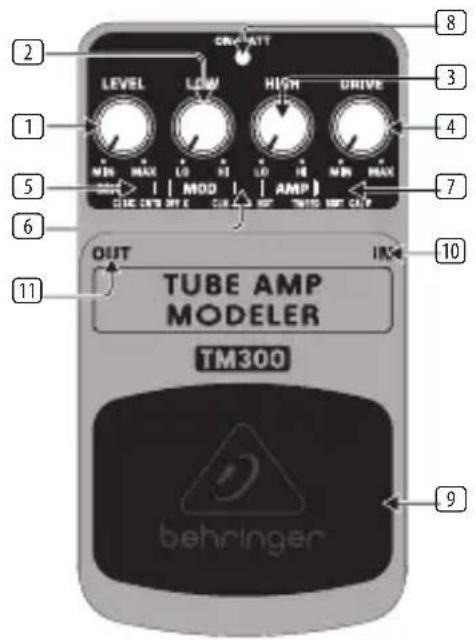

1. Controls
The LEVEL control adjusts the output level.
2 The LOW control allows you to boost/cut the low-frequency range.
3 The HIGH control allows you to boost/cut the high-frequency range.
4 The DRIVE control adjusts the amount of overdrive effect.
5 The MIC switch simulates the microphone placement (orientation and distance) in relation to the cabinet. Select CLSIC (Classic: distant mic placement without ambience) to achieve high mid-range content and a greater definition of notes like with classic early tube amps. In CNTR (Center: close miking at the center of a cone) you get greater high mid-range content and increased low-end for mega crunchy results. OFF X (Off Axis: close miking at the edge of a cone) is very similar to CNTR, but produces a smoother, softer sound with less upper mid-range content; perfect in combination with MODE position HOT.
6 Use the MODE switch to dial up one of 3 gain settings (HOT, HI G, CLN) that you want to combine with the amp setting.
7 Use the AMP switch to select one of 3 great classic tube amps. You will recognize these classic amp tones as soon as you hear them. For crystal-clear, transparent sounds with dynamic bass select TWEED. For aggressive mids and incredible sustain select BRIT(ISH). Rounder and more evened-out (yet still sophisticated) sounds can be dialed up if you select CALIF(ORNIAN); it's perfect for leads.
2 TUBE AMP MODELER TM300
EN
8 The ON/BATT LED illuminates when the effect is activated. It also serves as a battery level indicator.
9 Use the footswitch to activate/deactivate the effect.
10 Use this 14 " TS IN connector to plug in the instrument cable.
11 The 14 " TS OUT connector sends the signal to your amp.
Use the DC IN connection to plug in a 9 V power supply (not included).
The BATTERY COMPARTMENT is located underneath the pedal cover. To install or replace the 9 V battery (not included), press the hinges with a ballpoint pen and remove the pedal cover. Be careful not to scratch the unit.
The TM300 has no on/off switch. As soon as you insert the plug into the in connector, the TM300 is on. When not in use, remove the plug from the in connector. This extends the life of the battery.
The SERIAL NUMBER is located on the bottom.
2. Safety Instructions
Do not use near water, or install near heat sources. Use only authorized attachments/accessories. Do not service product yourself. Contact our qualified servicing personnel for servicing or repairs, especially when power supply cord or plug is damaged.
3. Limited Warranty
For the applicable warranty terms and conditions and additional information regarding Music Tribe's Limited Warranty, please see complete details online at community.musictribe.com/pages/support#warranty.
4. Specifications
EN
In
Connector 14 " TS
Impedance 500 kΩ
Out
Connector 14 " TS
Impedance 1 kΩ
Power Supply
| 9 V | ..., 100 mA DC regulated |
Behringer PSU-SB
| USA/Canada 120 V~, 60 Hz |
| Europe/U.K./Australia 230 V~, 50 Hz |
| China 220 V~, 50 Hz |
| Korea 220 V~, 60 Hz |
| Japan 100 V~, 50/60 Hz |
Power connector 2 mm DC jack, negative center
Battery 9 V type 6LR61
Power consumption 30 mA
Physical/Weight
| Dimensions (H x W x D) | approx. 218 × 234 × 415" | approx. 54 × 70 × 123 mm |
| Weight | approx. 0.73 lbs / 0.33 kg |
Behringer is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications may be made from time to time to existing products without prior notice. Specifications and appearance may therefore differ from those listed or shown.
4 TUBE AMP MODELER TM300
| 9 V | ==, 100 mA DC regulated |
Behringer PSU-SB
| USA/Canada 120 V~, 60 Hz |
| Europe/U.K./Australia 230 V~, 50 Hz |
| China 220 V~, 50 Hz |
| Korea 220 V~, 60 Hz |
| Japan 100 V~, 50/60 Hz |
(alt. x anch. x prof.) approx. 54 x 70 x 123 mm
Peso approx. 0.73 lbs / 0.33 kg
| 9 V | ==, 100 mA DC regulated |
Behringer PSU-SB
| USA/Canada 120 V~, 60 Hz |
| Europe/U.K./Australia 230 V~, 50 Hz |
| China 220 V~, 50 Hz |
| Korea 220 V~, 60 Hz |
| Japan 100 V~, 50/60 Hz |
| Netzanschluss 2-mm DC-Anschluss, Center negativ |
| Batterie 9 V Typ 6LR61 |
| Leistungsaufnahme 30 mA |
Abmessungen/Gewicht
| 9 V | ==, 100 mA DC regulated |
Behringer PSU-SB
| USA/Canada 120 V~, 60 Hz |
| Europe/U.K./ 230 V~, 50 Hz |
| Australia |
| China 220 V~, 50 Hz |
| Korea 220 V~, 60 Hz |
| Japan 100 V~, 50/60 Hz |
| 9 V | ==, 100 mA DC regulated |
Behringer PSU-SB
| USA/Canada 120 V~, 60 Hz |
| Europe/U.K./ 230 V~, 50 HzAustralia |
| China 220 V~, 50 Hz |
| Korea 220 V~, 60 Hz |
| Japan 100 V~, 50/60 Hz |
| Allacciamento alla rete Collegamento 2-mm DC, Center negativo |
| Batteria 9 V Tipo 6LR61 |
| Potenza assorbita 30 mA |
Dimensioni/Peso
Dimensioni ca. 2 1/8 x 2 3/4 x 4 4/5"
(A x L x P) ca. 54 x 70 x 123 mm
Peso ca. 0,73 lbs / 0,33 kg
| 9 V | ==, 100 mA DC regulated |
Behringer PSU-SB
| USA/Canada 120 V~, 60 Hz |
| Europe/U.K./Australien 230 V~, 50 Hz |
| Kina 220 V~, 50 Hz |
| Korea 220 V~, 60 Hz |
| Japan 100 V~, 50/60 Hz |
| Nätanslutning 2-mm DC-Anslutning, Center negativ |
| Batteri 9 V Typ 6LR61 |
| Effektförbrukning 30 mA |
Mått/Vikt
Mätt ca. 2 1/8 x 2 3/4 x 4 4/5" (H x B x D) ca. 54 x 70 x 123 mm
Vikt ca. 0,73 lbs / 0,33 kg
| 9 V | ==, 100 mA DC regulated |
Behringer PSU-SB
| USA/Canada 120 V~, 60 Hz |
| Europe/U.K./Australia 230 V~, 50 Hz |
| Chiny 220 V~, 50 Hz |
| Korea 220 V~, 60 Hz |
| Japonia 100 V~, 50/60 Hz |
