GB420B - Toaster INVENTUM - Free user manual and instructions

Brand	Inventum
Model	GB420B
Product type	Toaster
Number of slots	2
Power	About 800-1000 W (check rating plate)
Voltage	220-240 V ~ 50 Hz (check rating plate)
Browning control	7 positions (1 = light, 7 = dark)
Special functions	Defrost, reheat, stop
Heat compensation	Yes, automatic
Ejection mechanism	Automatic at end of cycle
Crumb tray	Yes, removable for cleaning
Power cord	Retractable or fixed? Not specified
Housing material	Plastic (probably)
Dimensions (L x D x H)	Approximately 28 x 18 x 20 cm (estimated)
Weight	Approximately 1 kg (estimated)
Color	Not specified
Warranty	2 years (manufacturer warranty)
Cleaning	Exterior: damp cloth; crumb tray: remove and empty
Safety	Do not immerse; hot surfaces; automatic shut-off
Use	Household use only

Frequently Asked Questions - GB420B INVENTUM

How to use the defrost function?

Place two slices of bread in the toaster, lower the lever, then press the DEFROST button. The bread will be defrosted first and then toasted automatically.

Why is my bread too toasted or not enough?

The browning level depends on the temperature setting (1 to 7). If you only put one slice, it will cook faster. Adjust the control knob. The heat compensation adjusts the time if you toast several times in a row.

How to clean my toaster?

Unplug the appliance and let it cool down. Clean the exterior with a damp cloth. Never immerse the appliance in water. Regularly empty the crumb tray by removing it and cleaning it with a damp cloth.

What to do if bread gets stuck in the slots?

First unplug the appliance. Let it cool, then push the bread lift button upwards. Carefully remove the bread without touching the heating elements. Never use metal utensils.

Can I make toast with cheese or ham?

No, because fat or cheese could drip onto the heating elements and damage the appliance. Use the toaster only for dry bread.

What is the warranty on this toaster?

Inventum offers a 2-year full manufacturer's warranty from the date of purchase. For any claim, return to the store or contact consumer service via www.inventum.eu/service-aanvraag with a copy of the receipt.

Can I use the toaster unattended?

It is not recommended to leave the appliance unattended while it is operating. Although it shuts off automatically, always stay nearby for safety reasons.

What to do if the appliance does not turn on?

Check the wall outlet and the fuse/circuit breaker. If the cord or plug is damaged, contact technical service. Do not attempt to repair yourself.

How to use the reheat function?

Place two slices of bread (already toasted) in the toaster, lower the lever, then press the REHEAT button. The bread will be reheated without becoming too toasted.

Can I toast irregularly shaped bread?

Yes, but make sure the bread is not too large or wrapped in aluminum foil. For even toasting, use slices of similar size and thickness.

USER MANUAL GB420B INVENTUM

Exterior view of a modern black and silver instant drink with two golden-brown slices (no text or symbols visible)

White instant drink tower with two slices of orange bread, no visible text or symbols on the device itself.

1. safety instructions page 8
2. appliance description page 10
3. before first use page 10
4. toasting bread page 10
5. cleaning & maintenance
   guarantee & after sales service

page 11

page 21

Deutsch

Close-up of a black printer with a white paper clip inserted (no visible text or symbols)

1 safety instructions

• Please read these instructions before operating the appliance and retain for future use.
• The appliance is intended solely for domestic use within the home.
• Attention! Avoid touching hot surfaces.
• Before plugging into a socket, check that the voltage in your home corresponds with the voltage printed on the bottom of the appliance.
• Never let the power cord of the appliance hang over the edge of a table or counter, touch hot surfaces or become knotted.
• Never place this appliance on or near a hot gas or electric burner or where it could touch a heated oven or microwave. Do not allow this appliance to touch curtains, wall coverings, clothing, dishtowels or other flammable materials during use.
  • Always use the appliance on a secure, dry, level surface.
• Never leave the appliance unattended when in use.
• Always return the appliance after a malfunction, or if it has been damaged in any manner to the Customer Service Department for examination, repair or adjustment as special purpose tools are required.
• If the mains connection cable is damaged, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard.
• For your own safety, only use the accessories and spare parts from the manufacturer which are suitable for the appliance.
• Never unplug it from the socket by pulling on the cable.
• Always ensure that your hands are dry before handling the plug, switch or power cord.
• You should not place too large food in the appliance, aluminium packed foods or utensils as this may cause electric shock.
• Do not try to remove a piece of bread which is caught into the toasting slots while the appliance is on.
• The appliance is not intended to be operated by means of an external timer or a separate remote-control system.
• This appliance shall not be used by children from 0 to 8 years. This appliance can be used by children over the age of 8 and above if they are continuously supervised. This can be used by people with reduced physical, sensory or mental capabilities or lack of experience or knowledge, if they have been given supervision

or instruction concerning use of the appliance in a safe way and understand the hazards involved. Keep the appliance and its cord out of reach of children aged less than 8 years.

• Cleaning and maintenance shall not be made by children.
  • Children must not play with the appliance.
• Unplug the appliance as soon as you have finished using it and when you are cleaning it.
• Never use the appliance if it is not working properly, or if it has been damaged. Any intervention other than cleaning and normal maintenance by the customer must be carried out by an approved service centre.
• Never immerse any part of the main body, power cord and plug in water or any other liquid to protect against electrical hazards.
• This appliance is intended to be used in household and similar applications such as:
• staff kitchen areas, in shops, offices and other working environments;
• by clients in hotels, motels and other residential type environments;
• Bed and Breakfast type environments
• farm houses.
• If the appliance is used for other purposes than intended, or is it not handled in accordance with the instruction manual, the full responsibility for any consequences will rest with the user. Any damages to the product or other things are not covered by the warranty.
• Should you decide not to use the appliance anymore, make it inoperative by cutting the power cord after removing the plug from the socket. We also recommend making all potentially dangerous parts of the appliance harmless, particularly for children who might be tempted to play with it.
• Legislation requires that all electrical and electronic equipment must be collected for reuse and recycling. Electrical and electronic equipment marked with the symbol indicating separate collection of such equipment must be returned to a municipal waste collection point.

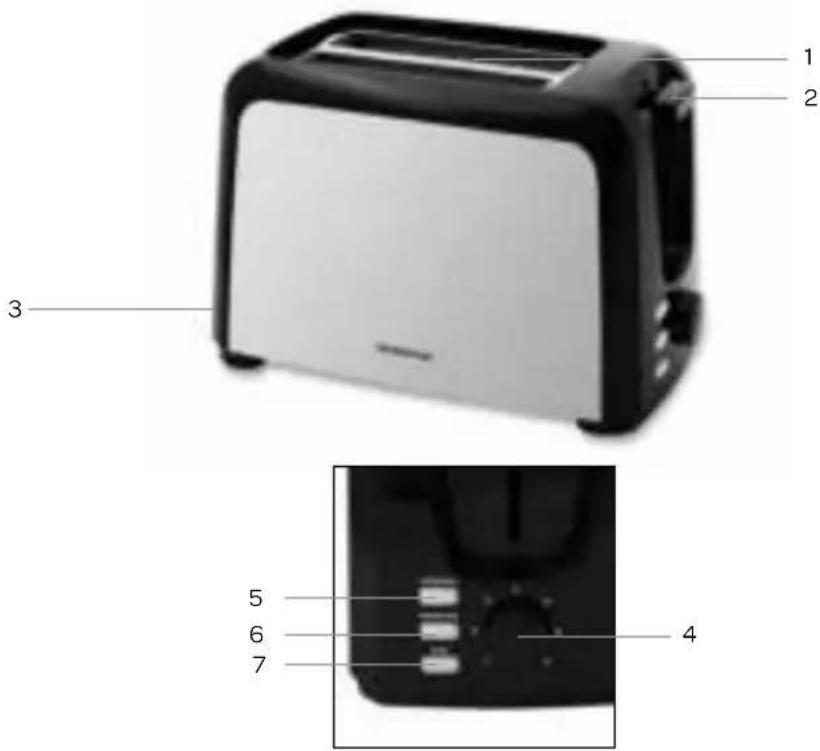

2 appliance description

1. Toasting slots
2. Lever for breadlift
3. Removable crumbtray
4. Button for browning control
5. Defrost button - ONTDOOIEN
6. Reheat button - OPWARMEN
7. Cancel button - STOP

3 before the first use

Before you use the appliance for the first time, please do as follows: Unpack the appliance carefully and remove all the packaging material and any promotional stickers. Keep the material (plastic bags and cardboard) out of reach of children. Check the appliance after unpacking for any visible damage, that could be caused by transportation.

Before plugging into a socket, check that the voltage in your home corresponds with the voltage printed at the bottom of the appliance. Place the appliance on a stable and heat resistant surface.

Wipe the housing of the appliance only with a damp cloth. Note: the new appliance can give off a bit of smoke and the typically 'new' smell. It is therefore advisable to switch the appliance on several times at the highest setting without bread inside.

Use the toaster only for toasting bread. Do not prepare sandwiches in the toaster. If you do, cheese and fat can come onto the heating elements which can shorten the lifetime of the appliance.

4 toasting bread

The toaster is suited to toast two slices of bread at once. Put the plug into the socket.

• Adjust the browning control with the control knob
• Place one or two slices of bread into the toasting slot.
• Push the bread lift lever straight down to lower the slices. The indicator light in the CANCEL button lights up.
• Once the toasting cycle has finished, the appliance will automatically switch off and the lever will return to its original position, lifting the toasted slices.

The browning level is adjustable; position 1 is light and position 7 is dark.

The toaster can automatically compensate the heat. This means that when you directly toast another slice of bread, the toaster calculates the temperature of the device and adjusts the toasting time. This will ensure that your second slice of bread has the same browning as the first one.

With the DEFROST function you can defrost and toast bread at the same time.

• Adjust the browning control with the control knob
• Place the frozen bread in the toasting slot and push the lever down.
• Press the DEFROST button. The indicator lights in the buttons DEFROST and CANCEL will light up.
  • The bread will be defrosted and then toasted.

If you would like to reheat the bread, after it has been toasted, press the REHEAT button.

• Place the bread in the toasting slot and push the lever down.
• Press the REHEAT button. The indicator lights in the REHEAT and CANCEL button will light up.
• The bread will be reheated. It is not necessary to set the browning control.

You can stop any process, toasting, reheating and defrosting, by pressing the CANCEL button.

The appliance will automatically switch off and the lever will return to its original position, lifting the toasted slices.

The toasting time depends on the dampness of the bread and the thickness of the slice. If you only place one slice into the toaster, it is possible that with the same setting the slice will brown more. Select a lower setting of the browning level.

If for whatever reason, a piece of bread is caught into the toasting slots, do not try to remove it immediately. Use the hi-lift function to lift the piece of bread higher to remove it easier. If this does not work, unplug the toaster and leave it to cool down first. Than try to remove the piece carefully without touching the heatingelements.

Never place bread rolls directly on the toaster to prevent damage to the appliance.

5 cleaning & maintenance

Always unplug the appliance before cleaning. Wipe the outside of the housing with a damp cloth and dry.

Never use any abrasives! Never immerse the appliance into water or other liquids.

Remove the crumbtray at the bottom of the toaster for easy cleaning of the inside. Pull the crumbtray carefully at the handle from the side of the toaster. Remove the crumbs and clean the crumbtray with a damp cloth. Slide the crumbtray back into the toaster after cleaning. Check the correct placement of the crumbtray before re-use.

Close-up of a black printer with a white clip inserted (no visible text or symbols)

Close-up of a black printer with a white clip inserted (no visible text or symbols)

Close-up of a black printer with a white paper clip inserted (no visible text or symbols)

general terms and conditions of service and warranty

We do not need to remind you of the importance of service. After all, we develop our products to a standard so that you can enjoy them for many years, without any concerns. If, nevertheless, there is a problem, we believe you are entitled to a solution straight away. Hence our products come with an exchange service, on top of the rights and claims you are entitled to by law. By exchanging a product or part, we save you time, effort and costs.

2-year full manufacturer's warranty

1. Customers enjoy a 2-year full manufacturer's warranty on all Inventum products. Within this period, a faulty product or part will always be exchanged for a new model, free of charge. In order to claim under the 2-year full manufacturer's warranty, you can either return the product to the shop you bought it from or contact the Inventum costumer service department via the form at www.inventum.eu/service-aanvraag.
2. The 2-year warranty period starts from the date the product is bought.
3. In order to claim under the warranty, you must produce a copy of the original receipt.
4. The warranty applies only to normal domestic use of Inventum products within the Netherlands.

Breakdowns or faults outside the warranty period

1. Breakdowns or faults in small or large domestic appliances outside the warranty period, can be reported to the costumer services department via the form at www.inventum.eu/service-aanvraag or by calling the costumer services department.
2. The costumer services department may ask you to send the product for inspection or repair. The costs of dispatch will be at your expense.
3. The inspection to establish whether repair is possible involves a charge. You need to grant your permission for this, in advance.
4. In the event of a large domestic appliance, Inventum, at your request, can send out a service engineer. In that case, you will be charged the call-out costs, as well as parts and labour.
5. In the event of an instruction to repair, the repair costs must be paid in advance. In the event of a repair by a service engineer, the costs of the repair must be settled with the engineer onsite, preferably by means of PIN payment.

Warranty exclusions

1. The following is excluded from the aforesaid warranties:

• normal wear and tear;
- improper use or misuse;
• insufficient maintenance;
- failure to comply with the operating and maintenance instructions;
- unprofessional installation or repairs by third parties or the customer himself;
• non-original parts used by the customer;
- use for commercial or business purposes;
- removal of the serial number and/or rating label.

1. In addition, the warranty does not apply to normal consumer goods, such as:

2. dough hooks, baking tins, (carbon) filters, etc.;

3. batteries, bulbs, carbon filters, fat filters etc.;
   • external connection cables;

4. glass accessories and glass parts such as oven doors;
   • and similar items.

5. Transport damage not caused by Inventum is also excluded. Therefore, inspect your new device before starting to use it. If you detect any damage, you must report this to the store where you purchased the product within 5 working days, or to the Inventum customer service department via the form at www.inventum.eu/service-aanvraag. If transport damage is not reported within this period, Inventum does not accept any liability in this respect.

6. The following are excluded from warranty and/or replacement: faults, loss of and damage to the device as a result of an event that is normally insured under the home contents insurance.

Important to know

1. The replacement or repair of a faulty product, or a part thereof, does not lead to an extension of the original warranty period.
2. If a complaint is unfounded, all costs arising from it will be at the customer's expense.
3. Following expiry of the warranty period, all costs of repair or replacement, including administration costs, dispatch and call-out charges, will be charged to the customer.
4. Inventum cannot be held liable for damage caused by external events, unless this liability arises from mandatory statutory provisions.
5. These warranty and service provisions are governed by Dutch law. Disputes will be settled exclusively by the competent Dutch court.
