Highlander 2060x80 - Binoculars Praktica - Free user manual and instructions

Product type	Terrestrial spotting scope / observation telescope
Brand	Praktica
Model	Highlander 2060x80
Magnification	20x to 60x (continuous zoom)
Objective lens diameter	80 mm
Focusing system	Dual focusing: coarse and fine
Eyecup	Rotating, adjustable for use with or without glasses
Lens hood	Sliding with adjustable integrated observation guide
Waterproofing	Yes, O-ring seal protecting against moisture
Anti-fog	Yes, dry nitrogen filling
Recommended use	On sturdy tripod (not included)
Lens cleaning	Soft brush, microfiber cloth, isopropyl alcohol
Body maintenance	Soft damp cloth
Storage	Dry, dark, and ventilated place; airtight bag with moisture absorber for long-term storage
Warranty	25 years international (5 years labor included)
Included accessories	Lens caps, microfiber cloth
Repairability	Repairs by authorized service only under warranty
Safety	Do not look directly at the sun

Frequently Asked Questions - Highlander 2060x80 Praktica

How to focus the Highlander 2060x80?

Use the dual focusing system: slowly turn the coarse focus knob for initial sharpness, then the fine focus knob to fine-tune the image.

Can I use this telescope with glasses?

Yes, the rotating eyecup can be adjusted by turning clockwise until it stops for glasses wearers.

How to clean the lenses?

First use a soft brush to remove dust, then a microfiber cloth in circular motions. For deep cleaning, use isopropyl alcohol applied to the cloth, never directly on the lens.

Is this product waterproof?

Yes, it is waterproof thanks to an O-ring seal and protected against moisture. Additionally, it is filled with dry nitrogen to prevent internal fogging.

Do I need to use a tripod with the Highlander 2060x80?

Yes, it is highly recommended to use a sturdy tripod for stability and to obtain clear, sharp images.

What is the warranty period?

The international warranty is 25 years. The first five years include labor costs. The legal warranty of conformity is not limited.

How to change the magnification?

Turn the zoom ring on the eyepiece to increase or decrease magnification between 20x and 60x.

What to do if the image remains blurry after focusing?

Check that the tripod is stable and the lens hood is not mispositioned. Ensure you have performed both focusing steps (coarse and fine). Clean the lenses if necessary.

Can I use this telescope for astronomy?

This model is designed for terrestrial observation. For astronomy, a stable tripod is essential, but the magnification and diameter allow observation of the Moon and bright planets.

How to store the telescope for long periods?

Place it in a plastic bag or airtight container with a moisture absorber sachet and store in a dry, dark place.

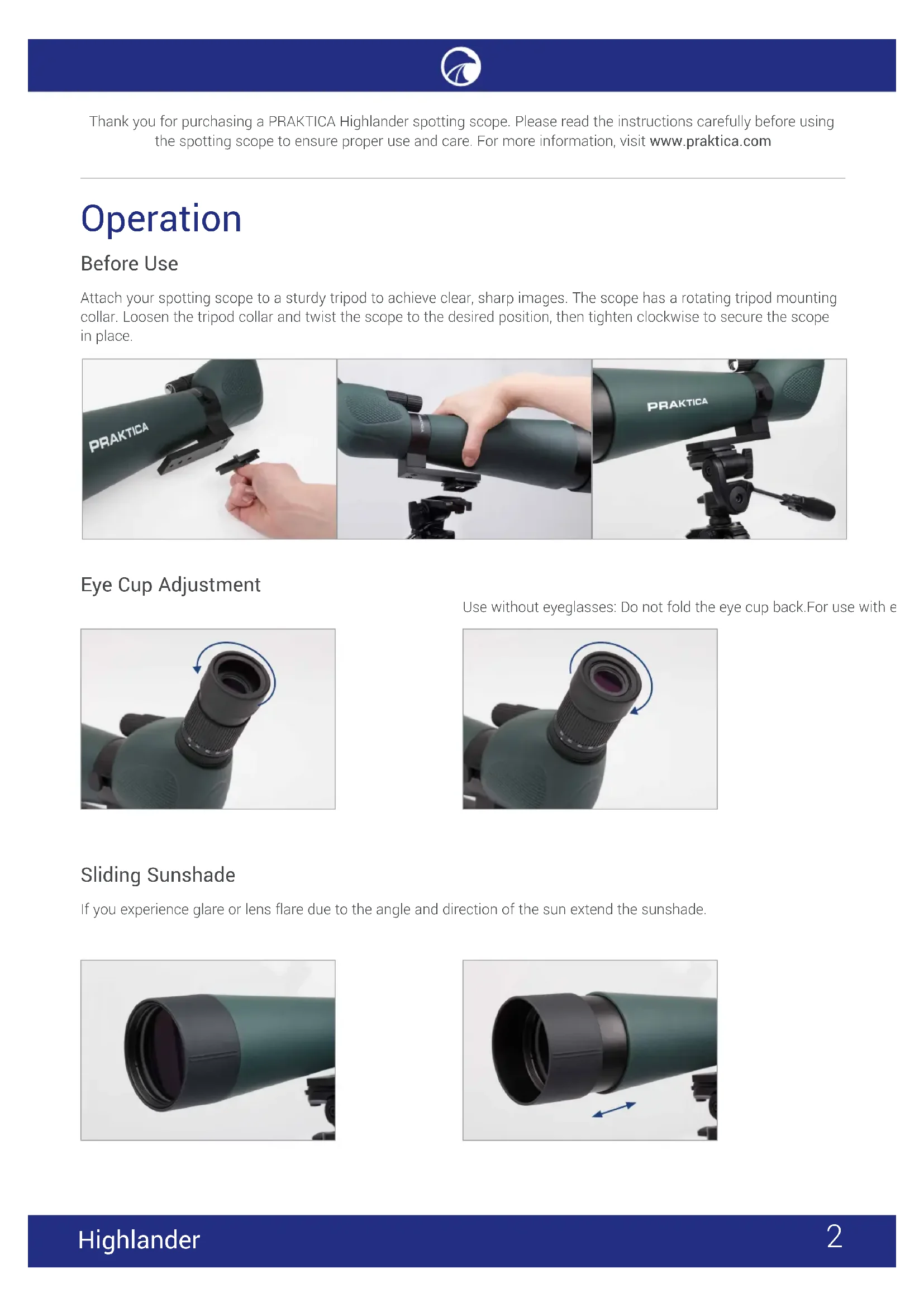

USER MANUAL Highlander 2060x80 Praktica

Thank you for purchasing a PRACTICA Highlander spotting scope. Please read the instructions carefully before using the spotting scope to ensure proper use and care. For more information, visit www.pRACTICA.com

Operation

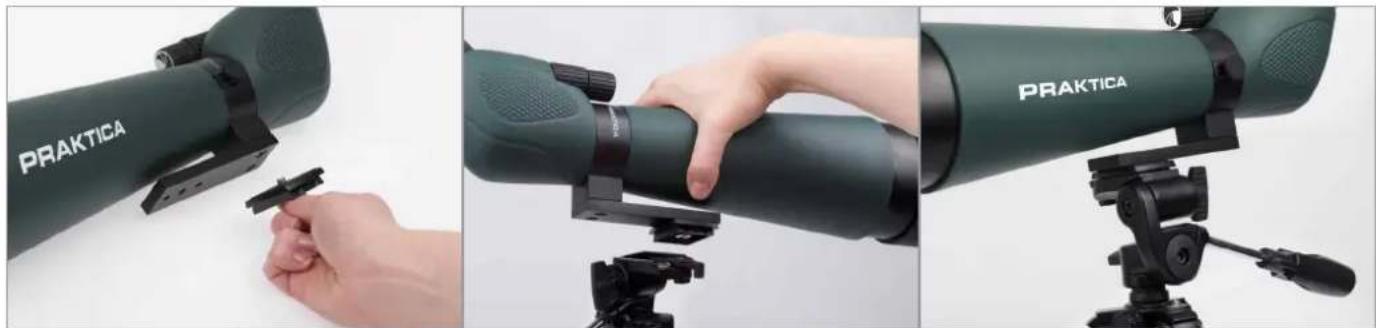

Before Use

Attach your spotting scope to a sturdy tripod to achieve clear, sharp images. The scope has a rotating tripod mounting collar. Loosen the tripod collar and twist the scope to the desired position, then tighten clockwise to secure the scope in place.

Eye Cup Adjustment

Use without eyeglasses: Do not fold the eye cup back. For use with e

Sliding Sunshade

If you experience glare or lens flare due to the angle and direction of the sun extend the sunshade.

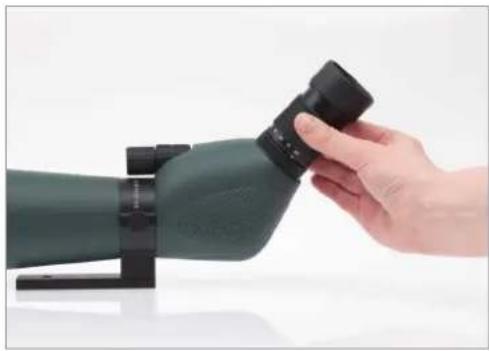

Changing the Magnification

Increase magnification by turning the adjustment ring to the left (anticlockwise)

Decrease magnification by turning the adjustment ring to the right (clockwise)

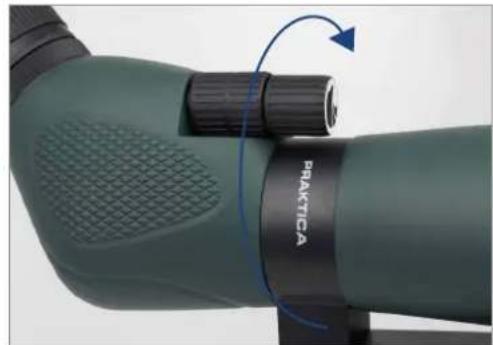

Focusing

To focus the spotting scope, slowly rotate the focus wheel until the image in the eyepiece is clear and sharp.

Maintenance & Care

Cleaning

Remove any dust on the lenses with a soft lens brush. To remove any dirt or finger prints, clean with the supplied micro-fibre cloth rubbing in a circular motion. Use of a coarse cloth or unnecessary rubbing may scratch the lens surface and will eventually cause permanent damage. The included washable microfiber cleaning cloth is ideal for routine cleaning. Simply breathe lightly on the lens to provide a slight amount of moisture, then gently rub the lens with the microfiber cloth. For a more thorough cleaning we recommend the use of a lens/optics cleaning kit available at most photo or optical shops. Additionally photographic lens cleaning fluid or isopropyl alcohol may be used. Always apply the fluid to the cleaning cloth - never directly on the lens.

The housing is best cleansed with a soft, moist cloth (don't use the lens-cleaning cloth).

Storage

Please protect your spotting scope from jolts and jars and do not force any of the moving parts beyond their limits. Protect the optics of your spotting scope by applying all lens caps when not in use.

You should also store your spotting scope in a well-ventilated and dark place. A wet spotting scope should be dried before storage.

When storing for an extended period of time, place the spotting scope in a plastic bag or airtight container with a desiccant.

Warranty

PRACTICA grant a worldwide warranty of 25 years from the date of purchase in accordance with the following conditions:

If defects in material and/or workmanship appear, we will take over material costs for the entire warranty period. We reserve the right in such instances to repair or replace the instrument or the defective part at our discretion. During the first five years we will take over the costs for materials and work.

This guarantee in no way limits the statutory warranty obligations.

In the event that products are updated, we reserve the right to repair defective instruments or to replace them with those of equal value.

We undertake no liability for repairs carried out by a repair shop which has not been authorized by us, nor for damages caused by improper use, nor for direct or indirect damages brought about by defects on the instrument. In addition, all parts are excluded from the warranty which are subject to natural wear, such as eye cups, carry straps, cases, armouring, etc.

5 Century Point, Halifax Road

High Wycombe, Bucks, HP12 3SL

United Kingdom
