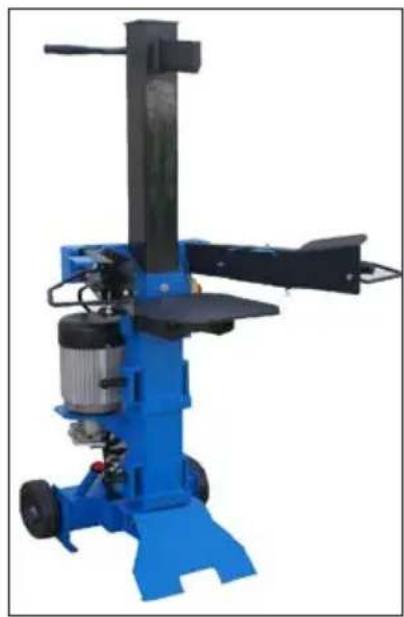

USER MANUAL Basic 6TW Güde

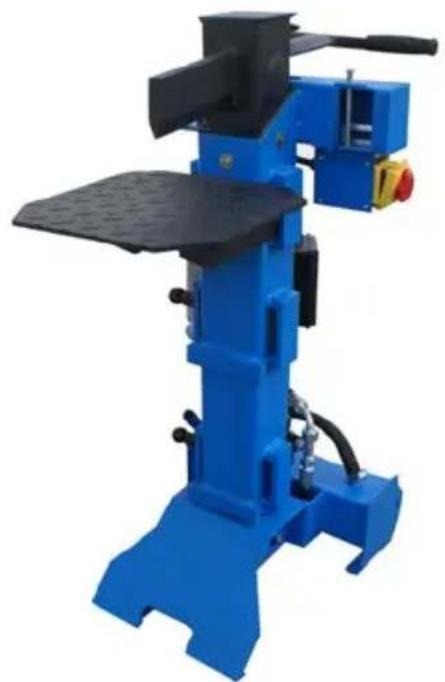

Blue industrial machine with mechanical components and a vertical support (no visible text or symbols)

Güde®

ENGLISH Please read the instructions carefully before starting the machine.

Scanned document page with Chinese text and a blue circular logo, likely a form or report section.

1

Blue industrial machine with black handle and yellow control knob (no visible text or symbols)

4

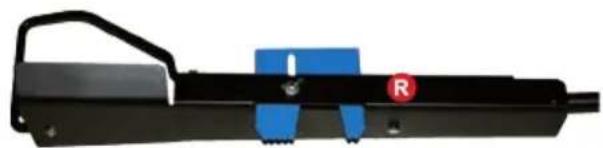

Close-up of a black mechanical device with blue components and a red circular marker labeled 'R' (no text or symbols on the device itself)

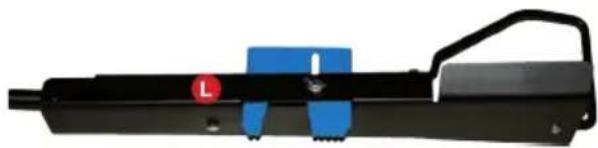

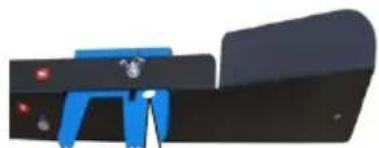

Mechanical component with black body, blue clamps, and a red L marker (no text or symbols)

5

Pure diagram of two parallel rods with circular and curved elements, no text or symbols present

2

Two identical dark plastic wheel rim with radial blades, shown from top and bottom (no text or symbols)

6

Pure diagram of two blue mechanical components with no text, numbers, or symbols

3

Pure electrical circuit lines without any symbols

7

DE	Montage	SI	Montaža
GB	Assembly	HR	Montaža
FR	Montage	BG	Монтаж
IT	Montaggio	RO	Montaj
NL	Montage	BA	Montaža
CZ	Montáž
SK	Montáž
HU	Szerelés

1

2-5

DE	Inbetriebnahme	SI	Uvedba v pogon
GB	Starting-up the machine	HR	Puštanje u rad
FR	mise en service	BG	Пускане в действие
IT	Messa in funzione	RO	Punerea în funcțiune
NL	Inbedrijfstelling	BA	Puštanje u rad
CZ	Uvedení do provozu
SK	Uvedenie do prevádzky
HU	Üzembe helyezés

2

6-11

DE	Betrieb	SI	Delovanje
GB	Operation	HR	Rad
FR	Fonctionnement	BG	Pábota
IT	Esercizio	RO	Functionare
NL	Gebruik	BA	Rad
CZ	Provoz
SK	Prevádzka
HU	Üzemeltetés

3

12-16

DE	Reinigung / Wartung	SI	Čiščenje / Vzdrževanje
GB	Cleaning / Maintenance	HR	Čišćenje / Održavanje
FR	Nettoyage / Entretien	BG	Чистене / Поддръжка
IT	Pulizia / Manutenzione	RO	Curățare / Întreținere
NL	Schoonmaken / Onderhoud	BA	Čišćenje / Održavanje
CZ	Čištění / Údržba
SK	Čistenie / Údrzba
HU	Tisztítás / Karbantartás

4

17

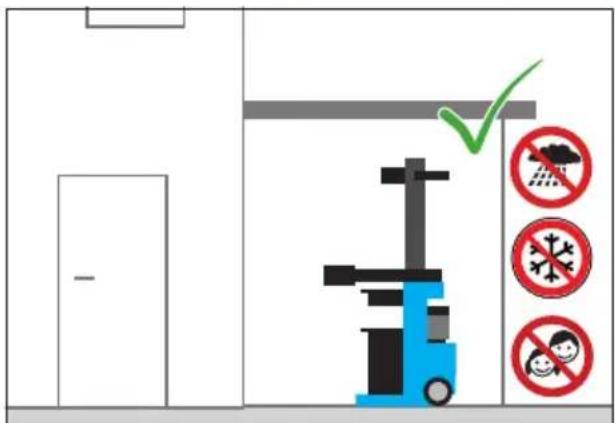

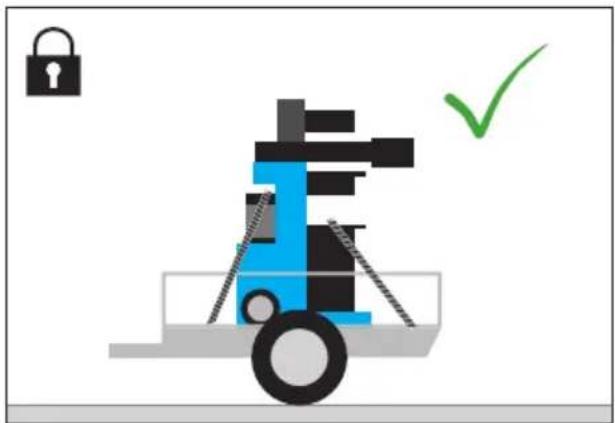

DE	Transport / Lagerung	SI	Transport / Shranjevanje
GB	transport / storage	HR	Prijevoz / Uskladištenje
FR	Transport / Stockage	BG	Транспортиране / Съхранение
IT	Trasporto / Stoccaggio	RO	Transport / Depozitare
NL	Transport / Bewaring	BA	Prevoz / Uskladištenje
CZ	Přeprava / Uložení
SK	Transport / Uloženie
HU	Szállítás / Tárolás

5

18

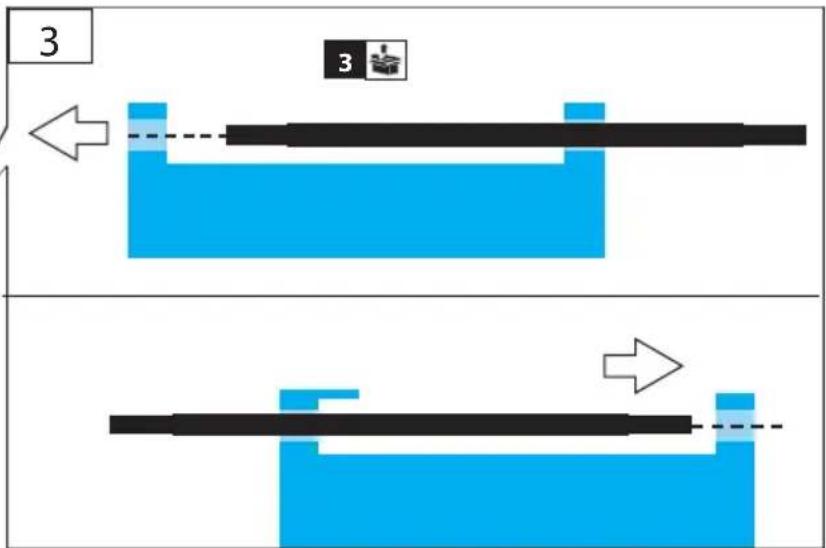

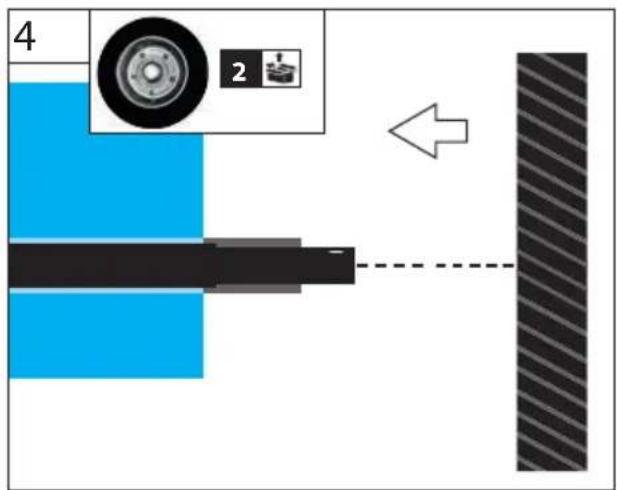

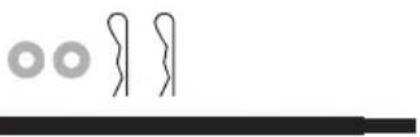

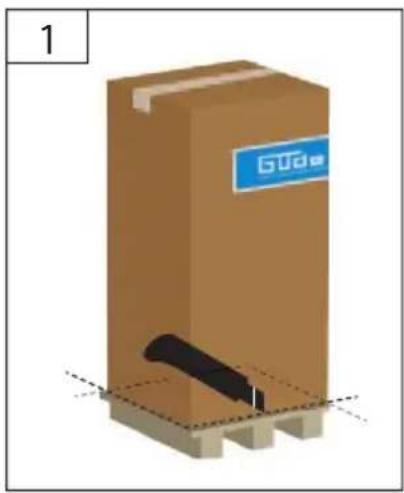

1	DE Montage	SI Montaža
	GB Assembly	HR Montaža
	FR Montage	BG Монтаж
	IT Montaggio	RO Montaj
	NL Montage	BA Montaža
	CZ Montáž
	SK Montáž
	HU Szerelés

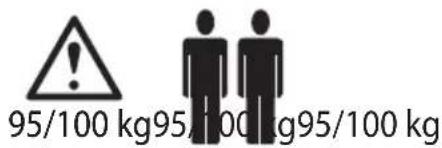

95/100 kg95/100 kg95/100 kg

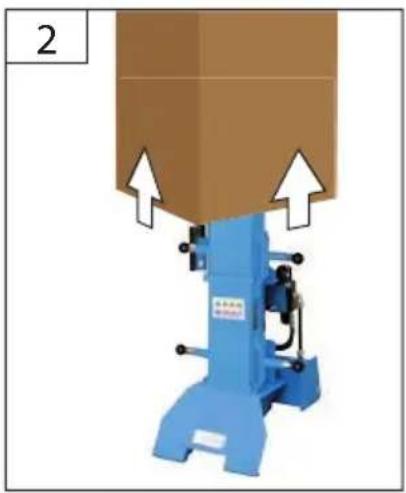

3D illustration of a brown cardboard box with a black tool inside, placed on a wooden base (no text or symbols)

Mechanical device with blue frame and brown top, showing directional arrows (no text or symbols)

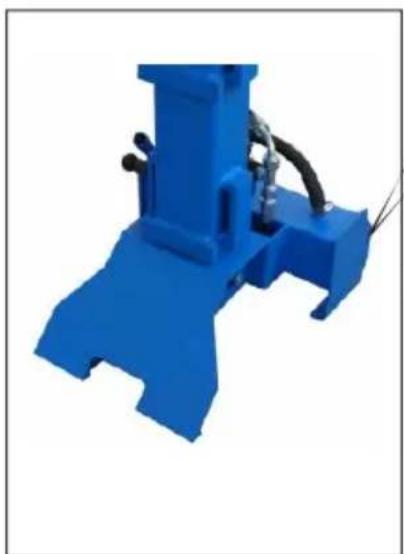

Blue industrial machine component with attached hoses and clamps (no visible text or symbols)

3 3

DE	Montage	SI	Montaža
GB	Assembly	HR	Montaža
FR	Montage	BG	Монтаж
IT	Montaggio	RO	Montaj
NL	Montage	BA	Montaža
CZ	Montáž
SK	Montáž
HU	Szerelés

4 2

5 3

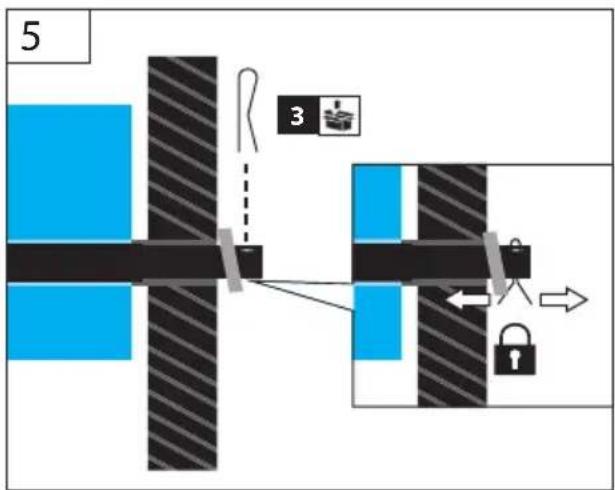

1	DE Montage	SI Montaža
	GB Assembly	HR Montaža
	FR Montage	BG Монтаж
	IT Montaggio	RO Montaj
	NL Montage	BA Montaža
	CZ Montáž
	SK Montáž
	HU Szerelés

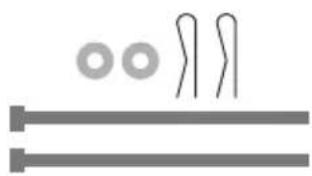

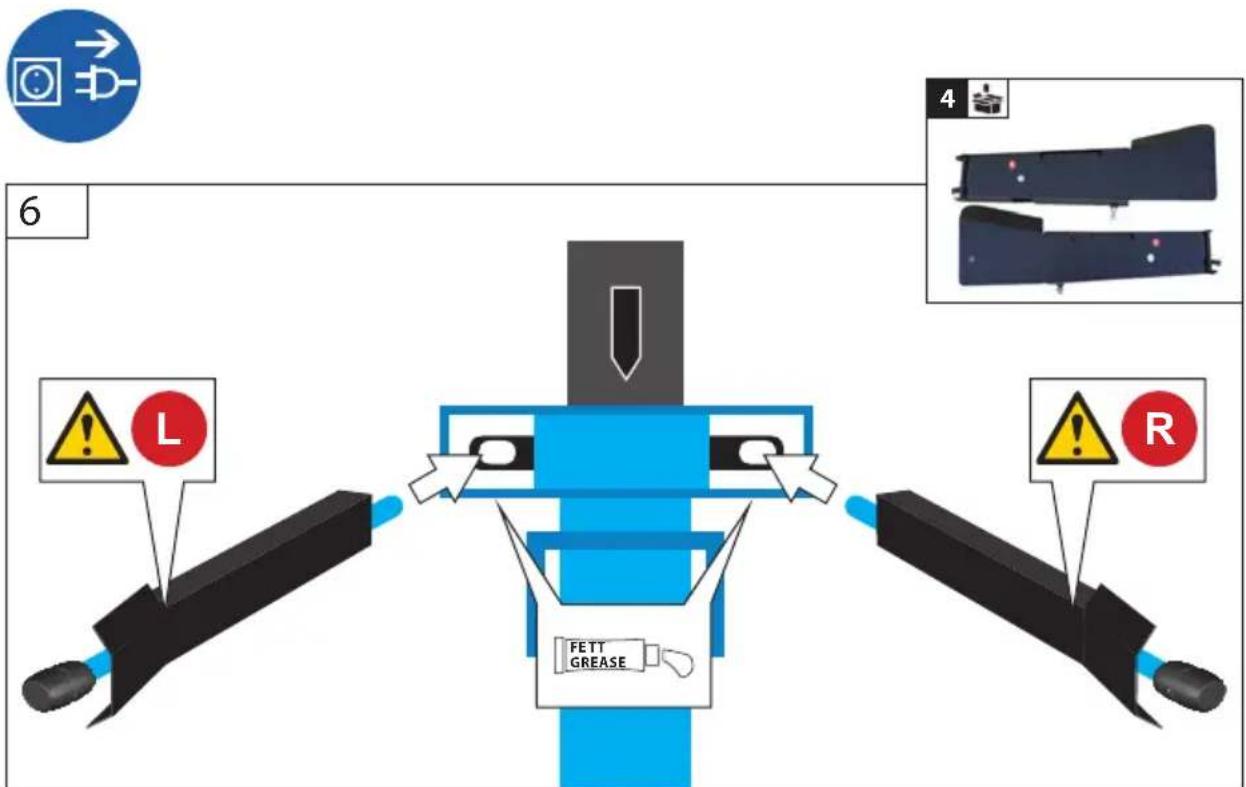

6 L FETT GREASE R 4

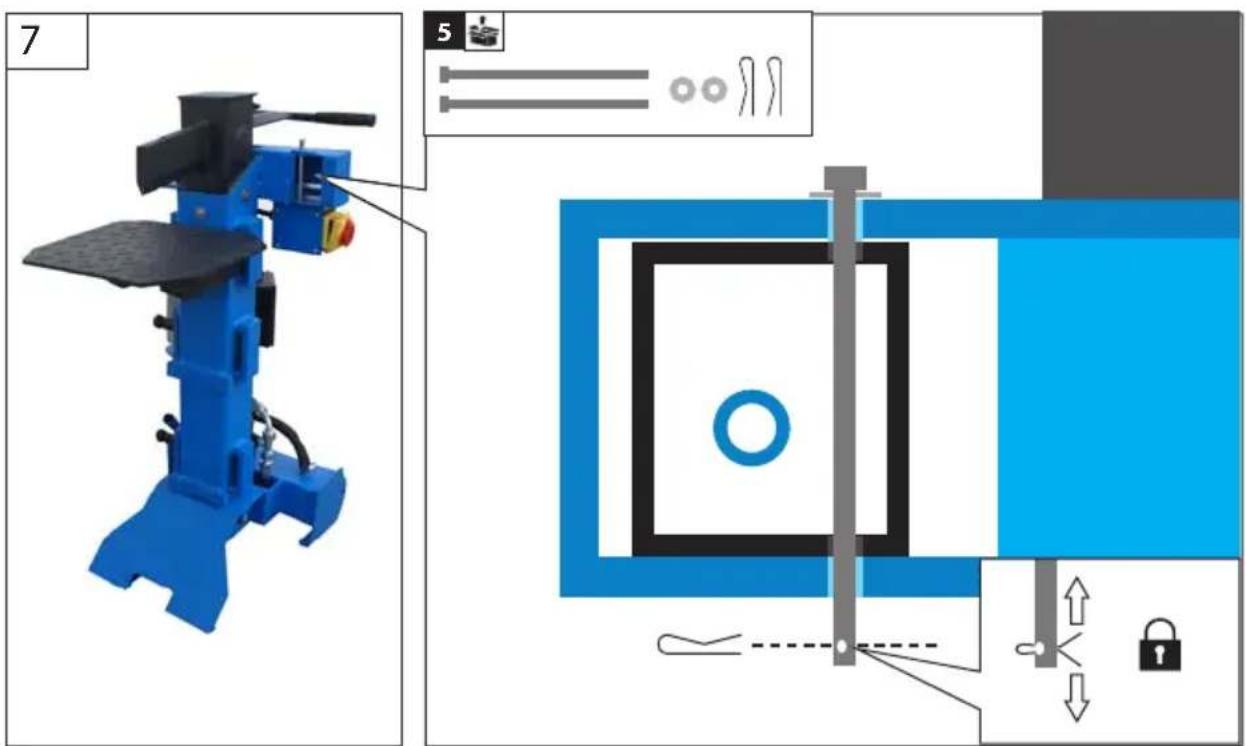

Technical diagram showing a blue industrial machine with labeled parts and a close-up of its internal components, including lock and padlock assembly.

DE Montage

GB Assembly

FR Montage

IT Montaggio

NL Montage

CZ Montáž

SK Montáž

HU Szerelés

SI Montaža

HR Montaža

BG Монтаж

RO Montaj

BA Montaža

1

Blue industrial machine with mechanical components and a vertical support (no visible text or symbols)

8

Abstract 3D graphic with blue and black geometric shapes (no text or symbols)

6

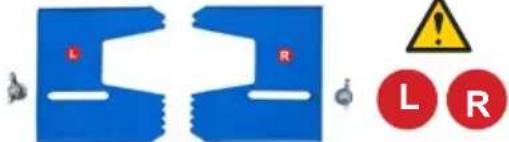

L R L R

Pure mechanical component diagram without any text, numbers, or symbols

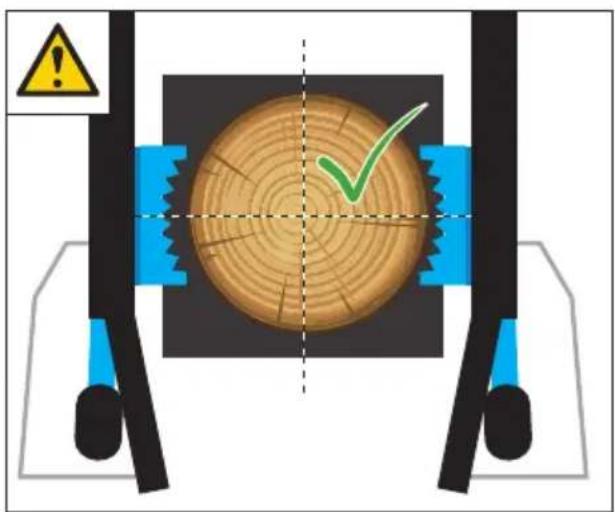

Diagram illustrating a tree stump testing setup with warning symbol and checkmark, showing mechanical components and alignment lines.

Diagram of a mechanical or electrical component with two arms and a central circular structure, no visible text or symbols.

2

DE Ölstand kontrollierenGB Oil level inspectionFR Contrôle du niveau d'huileIT Controllo livello d'olioNL Oliepeil controlerenCZ Kontrola stavu olejeSK Kontrola stavu olejaHU Olajszint ellenőrzése

SI Kontrola stanja oljaHR Kontrola razine uljaBG Контрол на състоянието на маслотоRO Verificarea stării uleiuluiBA Kontrola nivoa ulja

Diagram illustrating three-step machining process: warning, tool insertion, and tool disassembly with numbered annotations.

1 2

Diagram illustrating two-step robotic arm operation: left panel shows tool insertion, right panel shows hand holding a screwdriver.

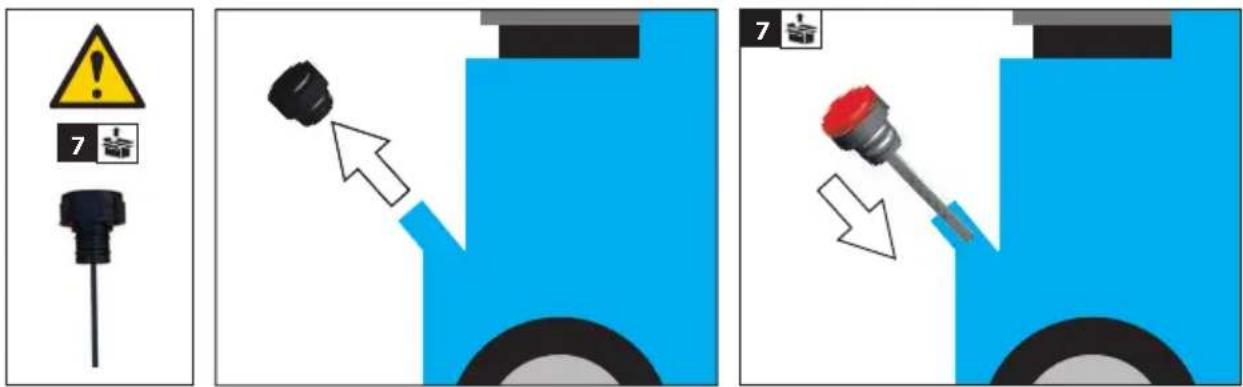

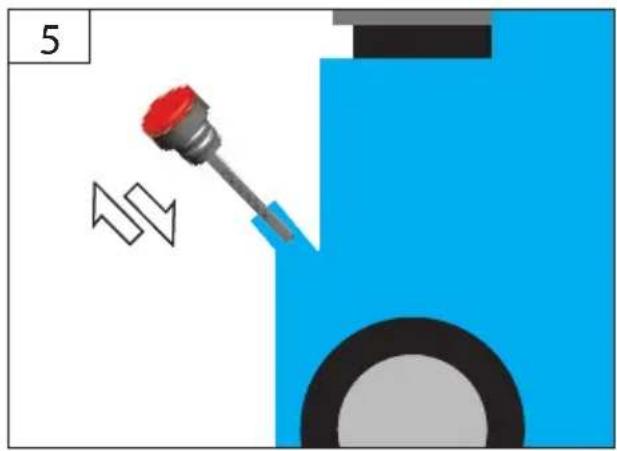

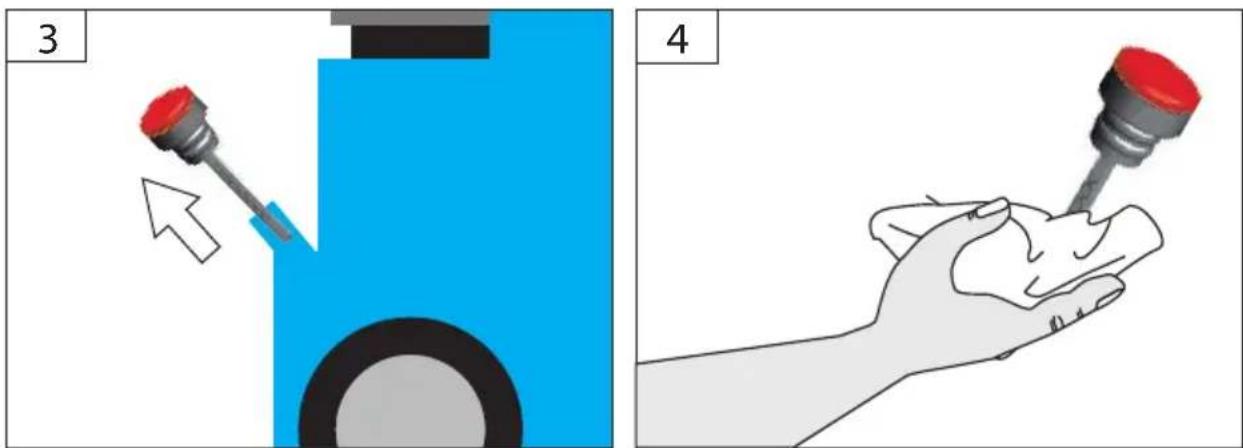

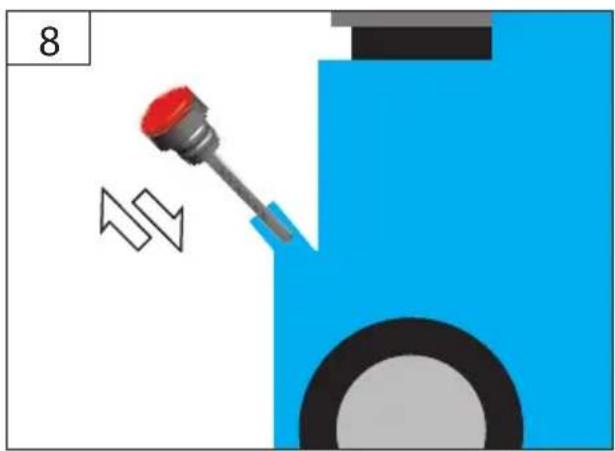

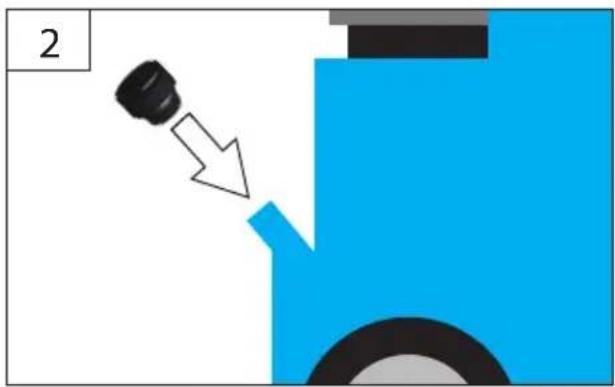

DE Ölstand kontrollieren

GB Oil level inspection

Abstract graphic with two interlocking gears and the number 2 (no text or symbols)

Diagram showing a red sensor inserted into a blue mechanical component with motion arrows (no text or symbols)

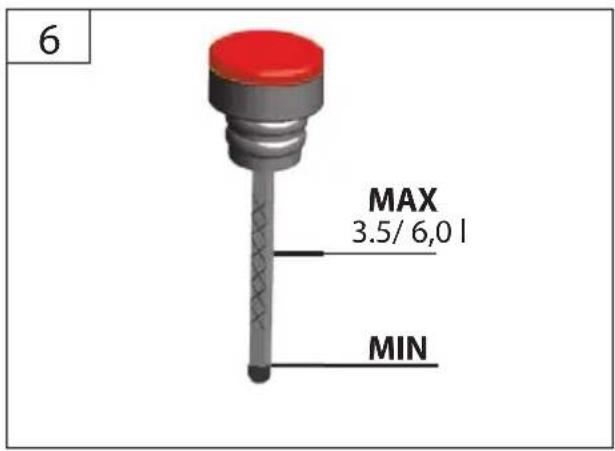

6 MAX 3.5/6,0 l MIN

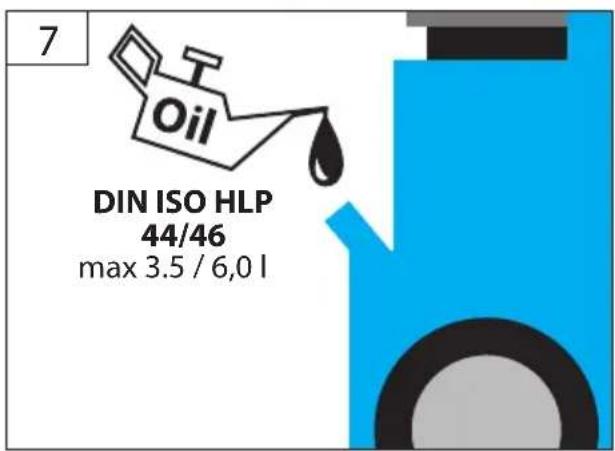

7 Oil DIN ISO HLP 44/46 max 3.5 / 6,0 l

Diagram showing a red sensor mounted on a blue mechanical component with a circular base, no text or symbols present

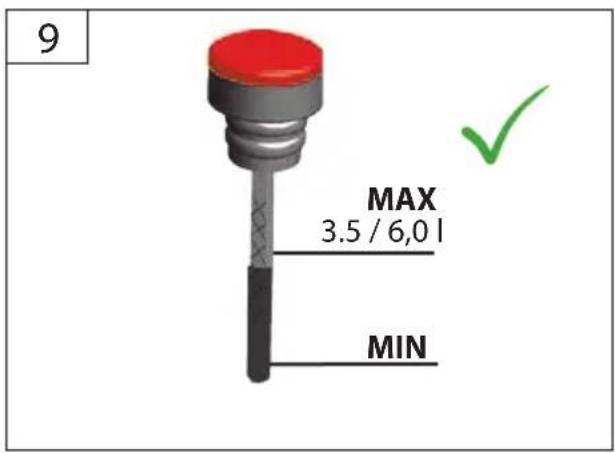

9 MAX 3.5 / 6,0 l MIN

2

DE Spaltlänge einstellenGB Gap length settingFR Réglage de la longueur de la fenteIT Impostazione di lunghezza della fessuraNL Splijtlengte instellenCZ Nastavení délky mezerySK Nastavenie dĺžky medzery

HU Hézaghossz beállításSI Nastavitev dolžine presledkaHR Podešavanje duljine razmakaBG Pergулиране на дължината на пролукатаRO Reglarea lungimii decalajuluiBA Podešavanje dužine razmaka

1

2 S

STOP

3

4

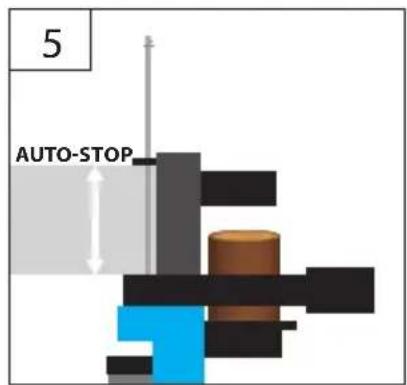

5 AUTO-STOP

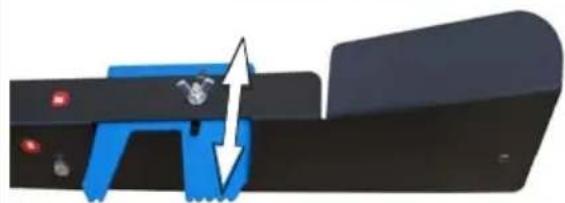

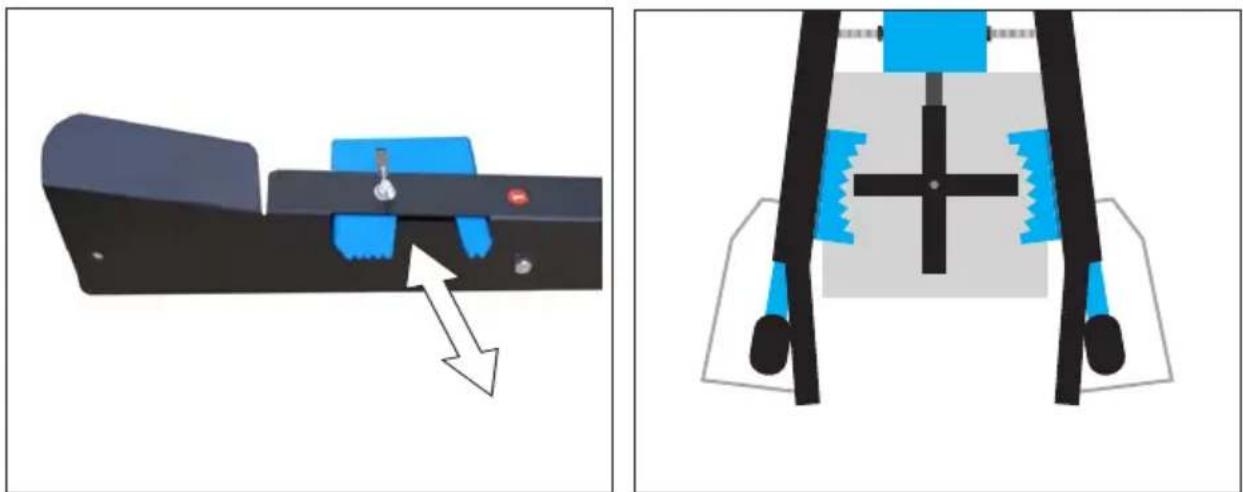

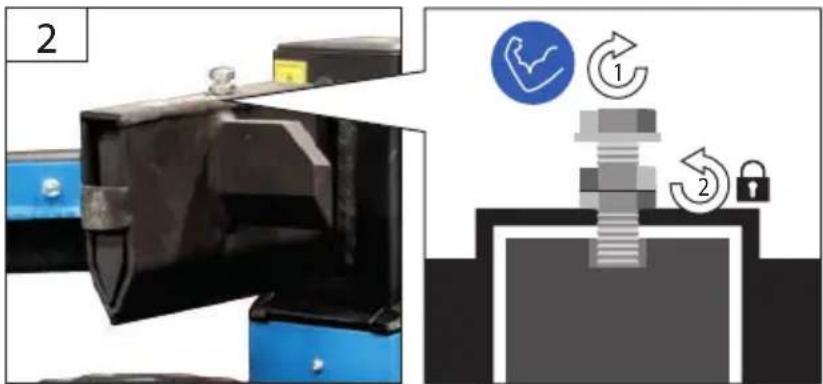

DE Zwischentisch

GB Intermediate table

Two black metal objects with cross-shaped bases, one mounted on a post and the other with a handle, both shown without any text or symbols.

2 1 2

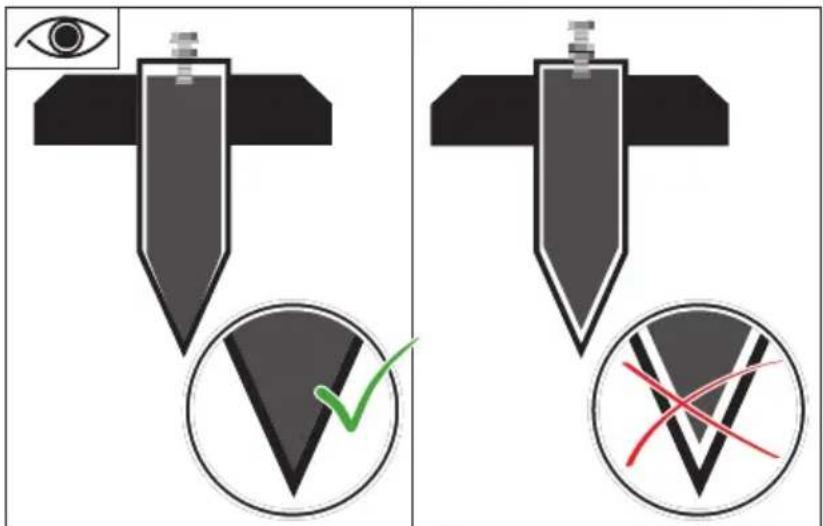

Diagram illustrating eye detection and checkmark behavior, showing correct (green checkmark) and incorrect (red cross) states in two panels.

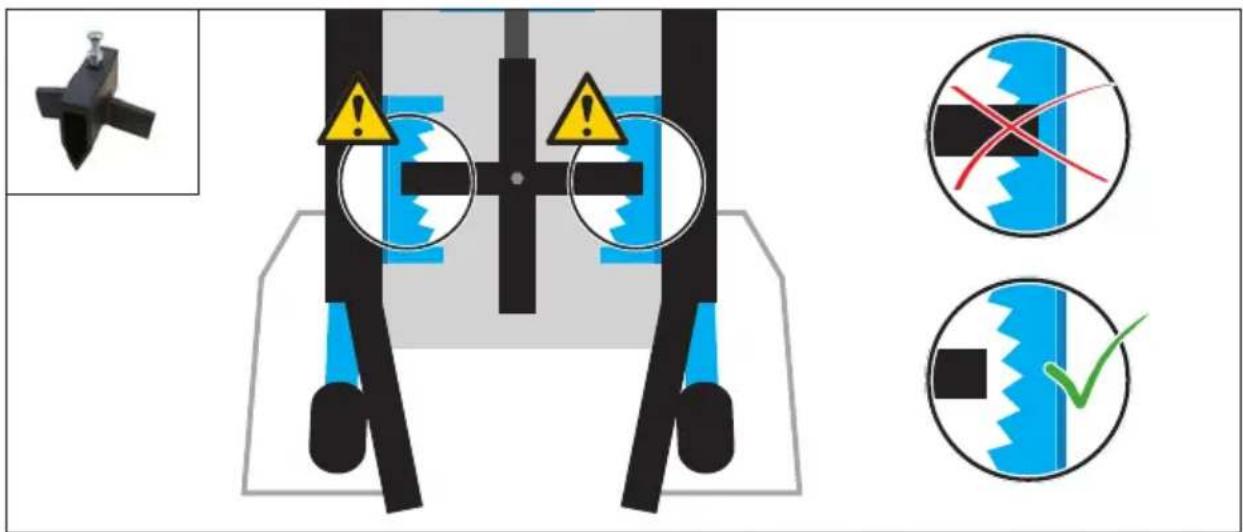

DE Spaltkreuz

SI Klin

GB Wedge

HR Klin

FR Coin

BG Клин

IT Cuneo

RO Pană

NL Splijtkruis

BA Klin

CZ Klin

SK Klin

HU Ék

2

Diagram illustrating safety warning symbols and correct checkmark for a mechanical component, with accompanying icons and labels.

Two technical diagrams showing a mechanical device with blue components and a close-up view of its internal structure (no text or symbols)

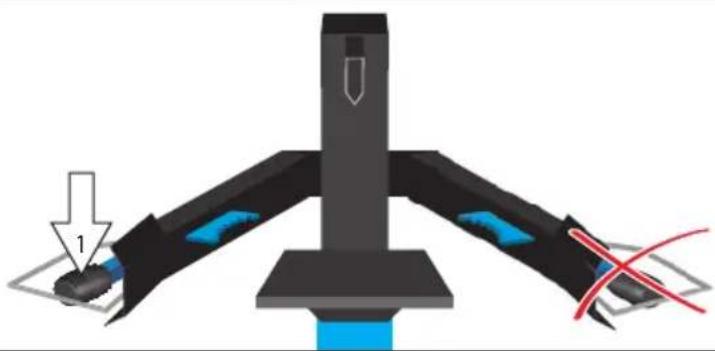

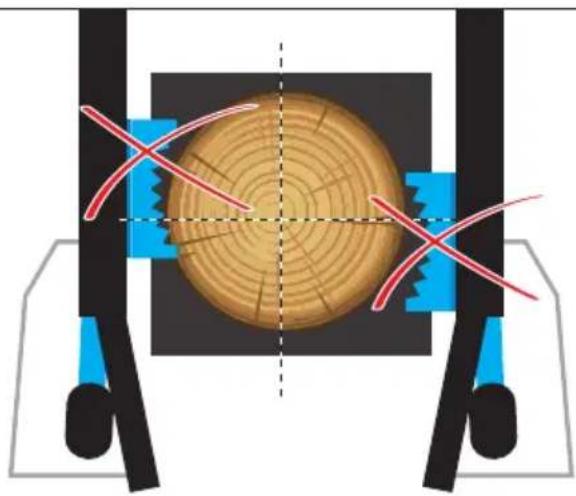

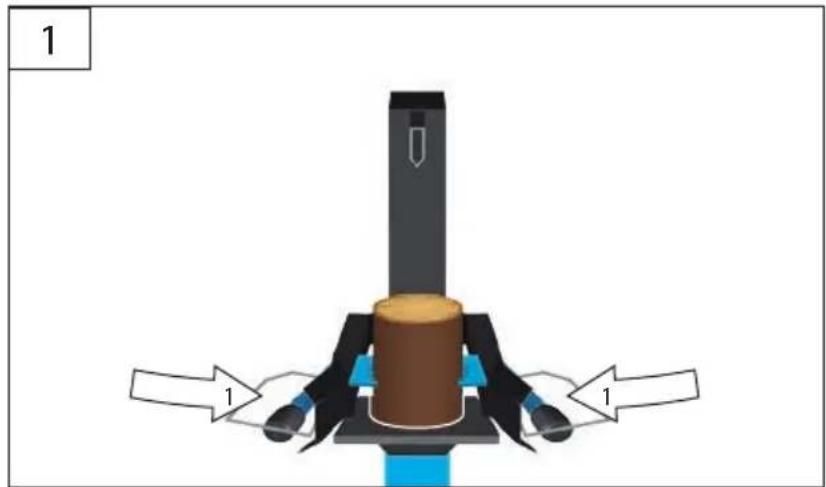

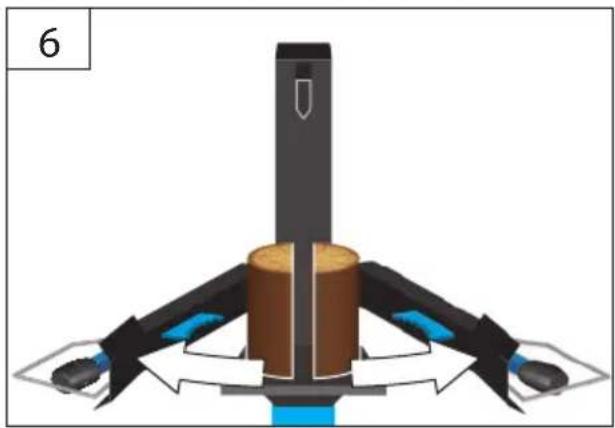

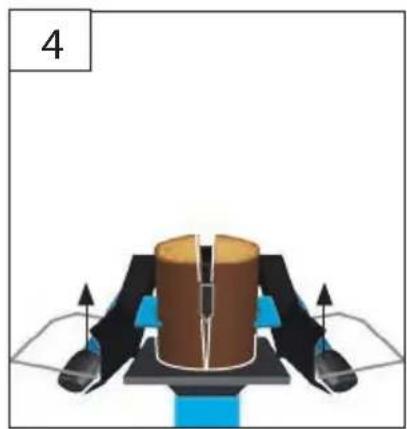

	DE	Betrieb	SI	Delovanje
	GB	Operation	HR	Rad
	FR	Fonctionnement	BG	Pábota
	IT	Esercizio	RO	Functionare
	NL	Gebruik	BA	Rad
	CZ	Provoz
	SK	Prevádzka
	HU	Üzemeltetés

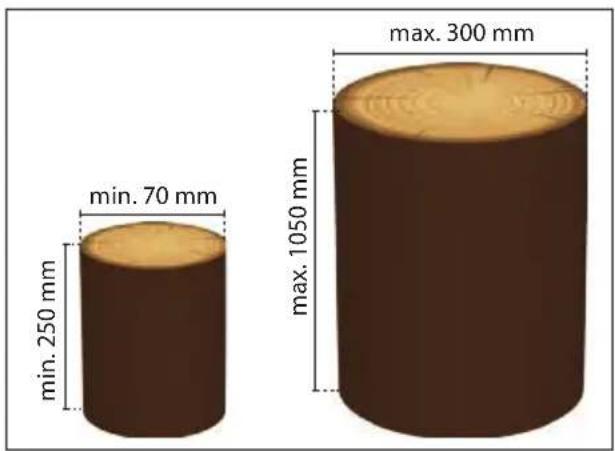

min. 250 mm min. 70 mm max. 1050 mm max. 300 mm

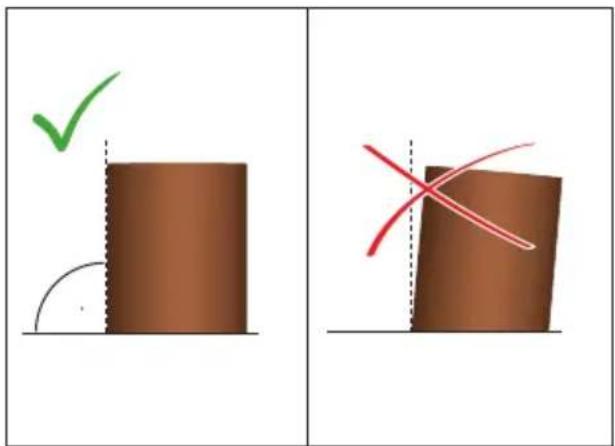

Two 3D diagrams showing a wooden log with green checkmark and red X marks, no text or symbols present.

Two-panel image showing a brown cylinder with a green checkmark and a red X mark, likely illustrating a correct vs. incorrect scoring system.

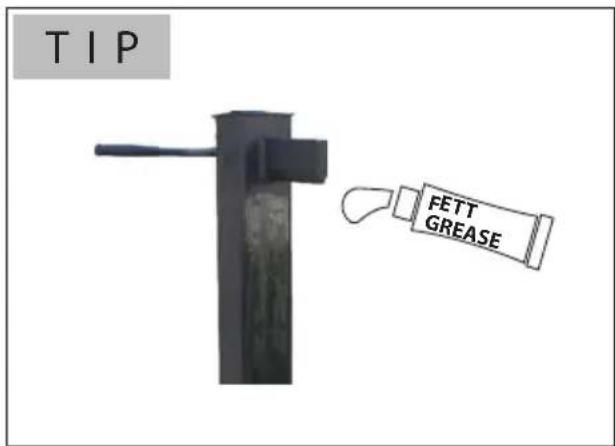

TIP FETT GREASE

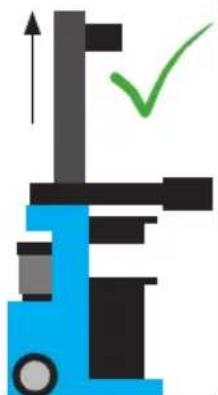

Illustration of a blue forklift with black handle and green checkmark indicating alignment (no text or symbols)

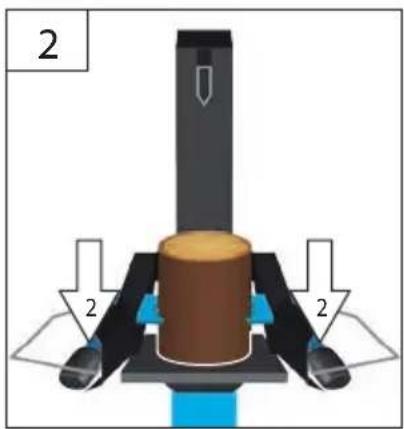

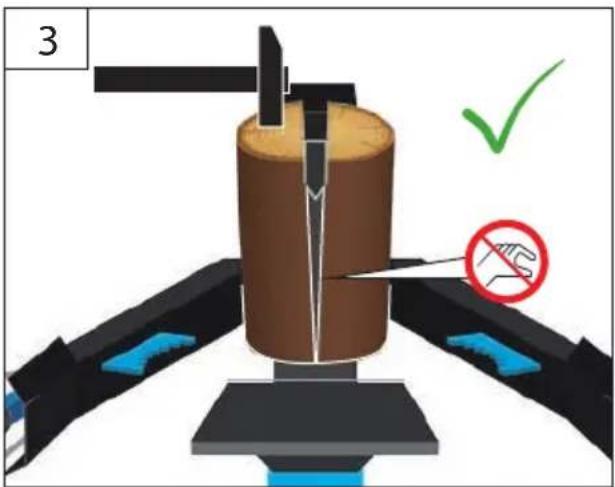

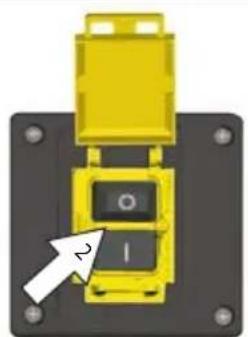

GB Operation - START

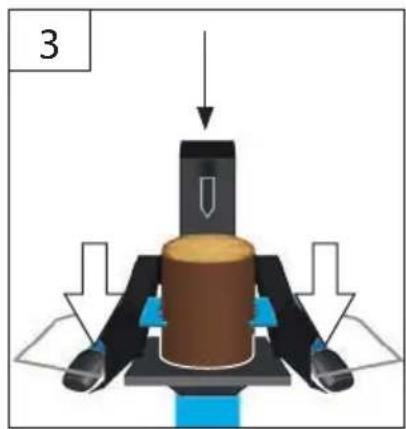

START 3 STOP

BASIC 8T/D

TEST

400 V

START

Illustration of a blue forklift with a green checkmark indicating approval (no text or symbols present)

STOP

Illustration of a blue and black industrial machine with red cross marks (no text or symbols)

400 V

180^

Simple diagram of a plug with three black dots and two white circles inside, surrounded by curved arrows (no text or symbols)

START

Mechanical assembly diagram showing a central shaft with two arms and a base, with a red cross mark indicating a specific component (no text or symbols present)

Close-up of a yellow industrial control panel with a black base and mounting holes (no visible text or symbols)

1min

Diagram of a robotic arm with blue base and directional arrows, no text or symbols present

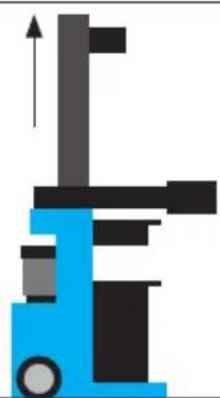

Illustration of a blue forklift with black handle and upward arrow (no text or symbols)

3

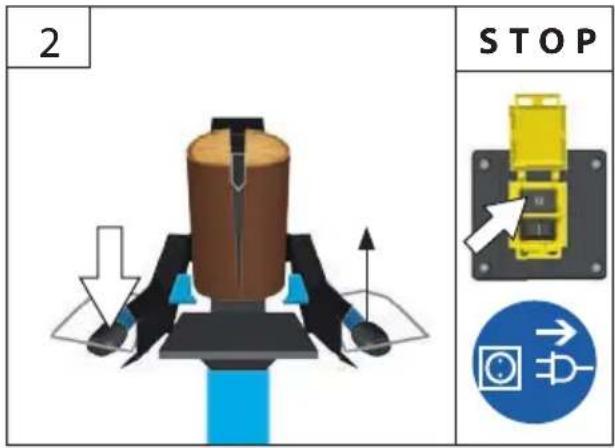

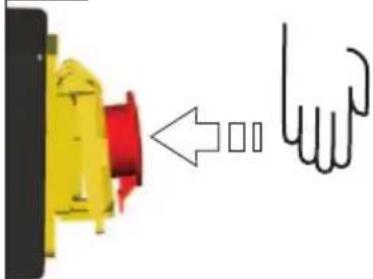

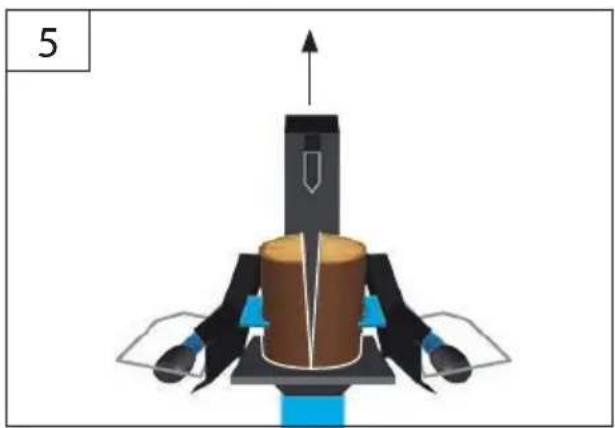

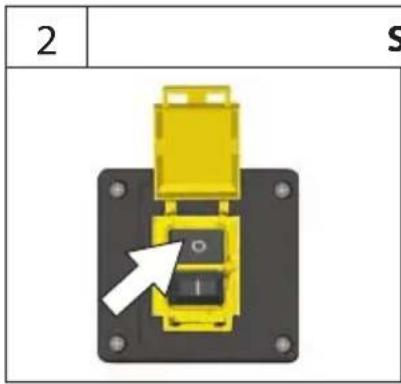

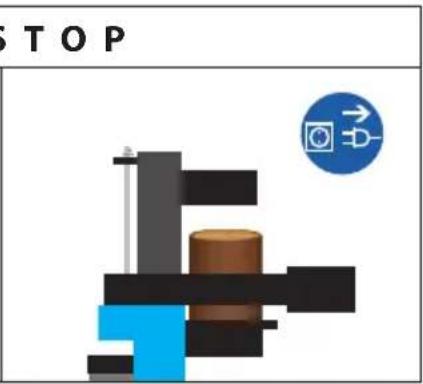

DE Betrieb - STOP

GB Operation - STOP

Close-up of a yellow mechanical component with a black central button labeled 'O' and a white arrow pointing to it, mounted on a dark base with bolt holes (no text or symbols beyond basic labels)

STOP 2

3D rendering of a yellow and red electrical component with mounting holes (no text or symbols visible)

1

Diagram showing a yellow connector with red internal structure and a hand gesture pointing to it (no text or symbols present)

2

Close-up of a yellow and red mechanical component next to a black padlock icon (no text or symbols)

3

Diagram illustrating a lock mechanism with labeled components including a red eye, yellow connector, and black lock symbol.

DE Betrieb

GB Operation

FR Fonctionnement

IT Esercizio

NL Gebruik

CZ Provoz

SK Prevádzka

HU Üzemeltetés

SI Delovanje

HR Rad

BG Работа

RO Functionare

BA Rad

Safety warning sign with hazard symbol, forklift, and human figure checkmark

Prohibition sign with pictograms of two human figures and a blue forklift, crossed by red diagonal lines

1 1 1

Mechanical assembly diagram showing a cylindrical component mounted on a base with two side supports and directional arrows indicating motion (no text or symbols)

3

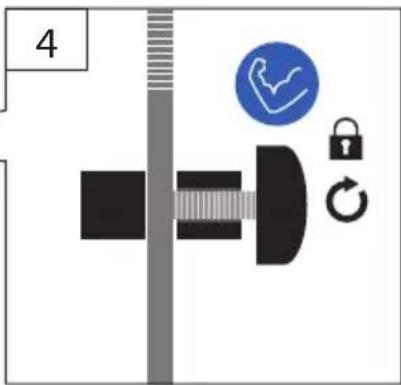

Diagram of a mechanical assembly with labeled part '4' and directional arrows indicating motion (no text or symbols beyond label)

3D diagram of a mechanical device with arrows indicating upward motion (no text or symbols)

Diagram of a mechanical device with central shaft and multiple arms, no visible text or symbols

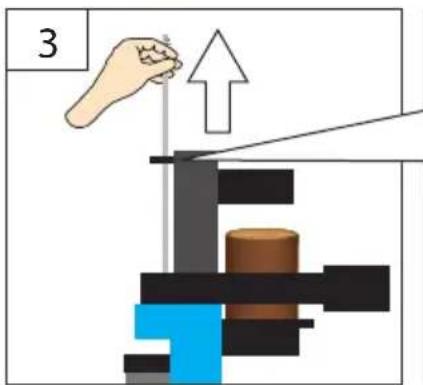

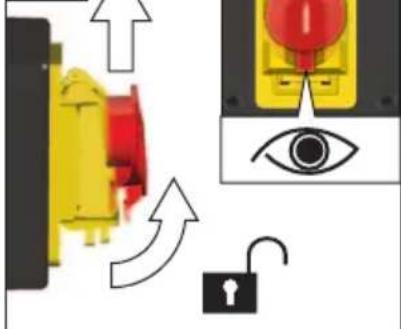

	DE	Blockierung lösen	SI	Popuščanje blokade
	GB	Locking release	HR	Popuštanje blokade
	FR	Desserrage du blocage	BG	Освобождаване на блокирането
	IT	Sbloccaggio	RO	Degajarea blocárii
	NL	Blokkering losmaken	BA	Popuštanje blokade
	CZ	Uvolnění blokování
	SK	Uvol'nenie blokovania
	HU	Blokkolás kioldás

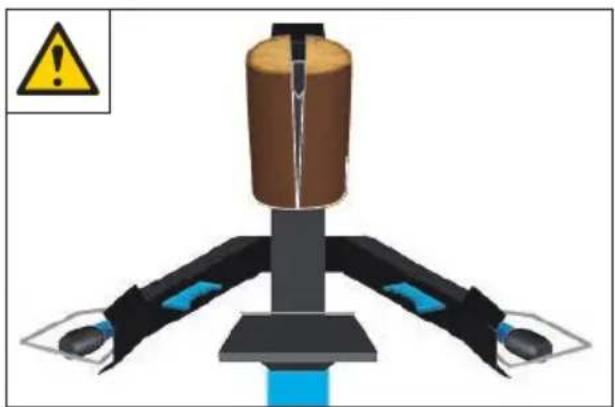

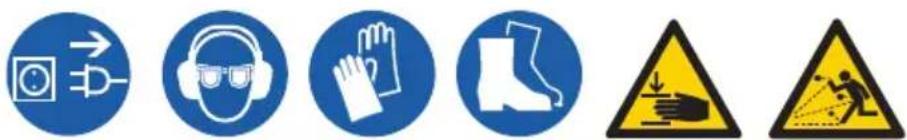

Safety warning symbols including circuit, head protection, hand gesture, boot cover, hazard symbol, and broken safety warning

3D diagram of a mechanical device with labeled components and warning symbol (no readable text or labels)

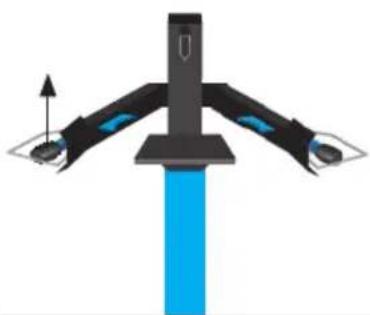

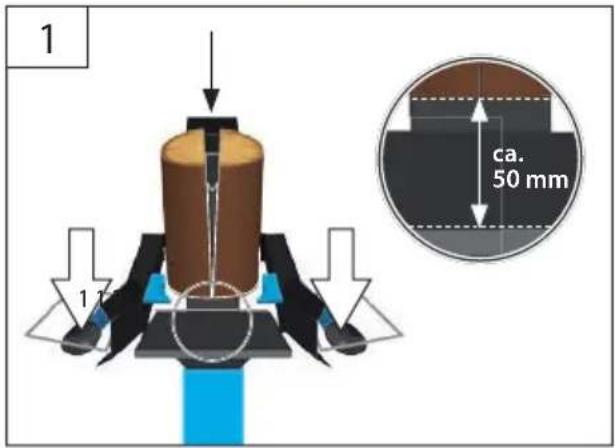

1 ca. 50 mm 17

2 STOP → ←

3

Diagram of a mechanical assembly with cross-shaped components and red curved lines indicating motion or force (no text or symbols)

GB Cleaning / Maintenance

FR Nettoyage / Entretien

Illustration of a blue industrial machine with a red sensor and arrow indicating motion (no text or symbols)

2

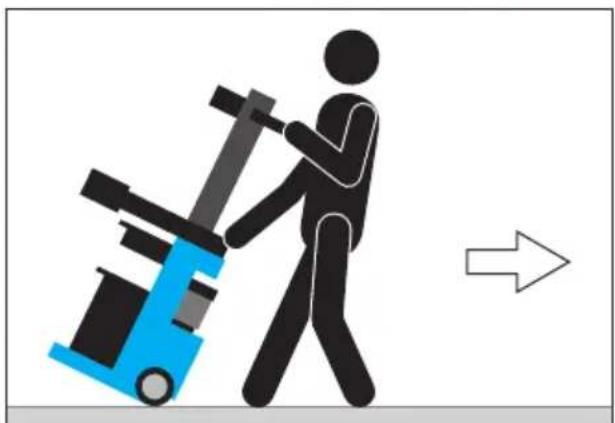

Silhouette of a person pushing a blue forklift with an arrow indicating direction (no text or symbols)

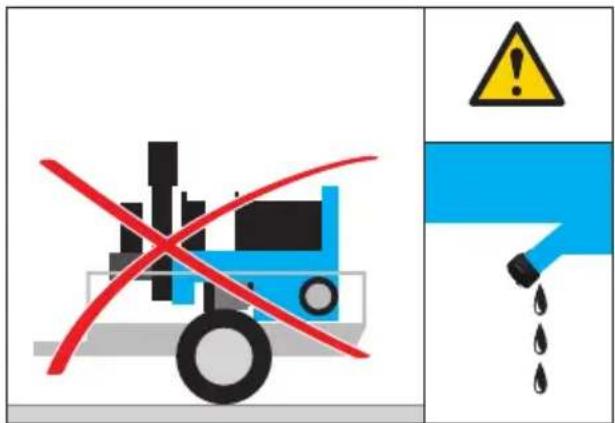

Diagram showing a forklift operation with three prohibition symbols: snow, frost, and people wearing masks.

Illustration of a blue forklift with a green checkmark indicating inspection or status (no text or symbols present)

Safety warning sign showing a blue truck with red prohibition crossed, alongside a warning symbol and water drop droplet.

Technische Daten

Holzspalter Basic 6T/W Basic 8T/D

Log splitter Basic 6T/W Basic 8T/D

Art. No 02020 02025

Service connection.... 230 V \~ 50 Hz.... 400 V\~50 Hz

Motor output....3 kW/P1 (S6/40%)....3,6 kW/P1 (S6/40%)

Engine speed....2800 min ^-1 ....1400 min ^-1

Max. splitting pressure....6 t....8 t

Max. splitting uplift 485 mm 460 mm

Forward speed 0,03 - 0,04 m/s 0,04 - 0,05 m/s

Reverse speed 0,10 - 0,12 m/s 0,10 - 0,12 m/s

Gewicht Netto....95 kg....111 kg

Split material lengths 570 / 770 / 1050 mm 570 / 770 / 1060 mm

Max. splitting diameter.....ca. 300 mm.....ca. 400 mm

Splitting post.... 100 mm x 100 mm....120 mm x 120 mm

Max. hydraulic pressure....210 bar....240 bar

Hydraulics tank (HLP 46)....3.5 l....6 l

Noise and Vibration Information

Sound pressure level L_pA^1) 69.9 dB(A) 80 dB (A)

Vibration emission value a_b .....2,5 m/s ^2 .....2,5 m/s ^2

^1) Uncertainty K=3 db (A)

WARNING The vibration emission level will vary because of the ways in which a power tool can be used and may increase above the level given in this information sheet.

The vibration emission level may be used to compare one tool with another.

It may be used for a preliminary assessment of exposure.

An accurate estimate of the vibratory load should also take into account the times when the tool is shut down or when it is running but not actually in use. This may significantly reduce the vibratory load over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Read and understand the operating instructions before using the appliance. Abide by all

the safety measures stated in the service manual. Act responsibly toward third parties.

In case of any doubts about connection and operation refer please to our customer center

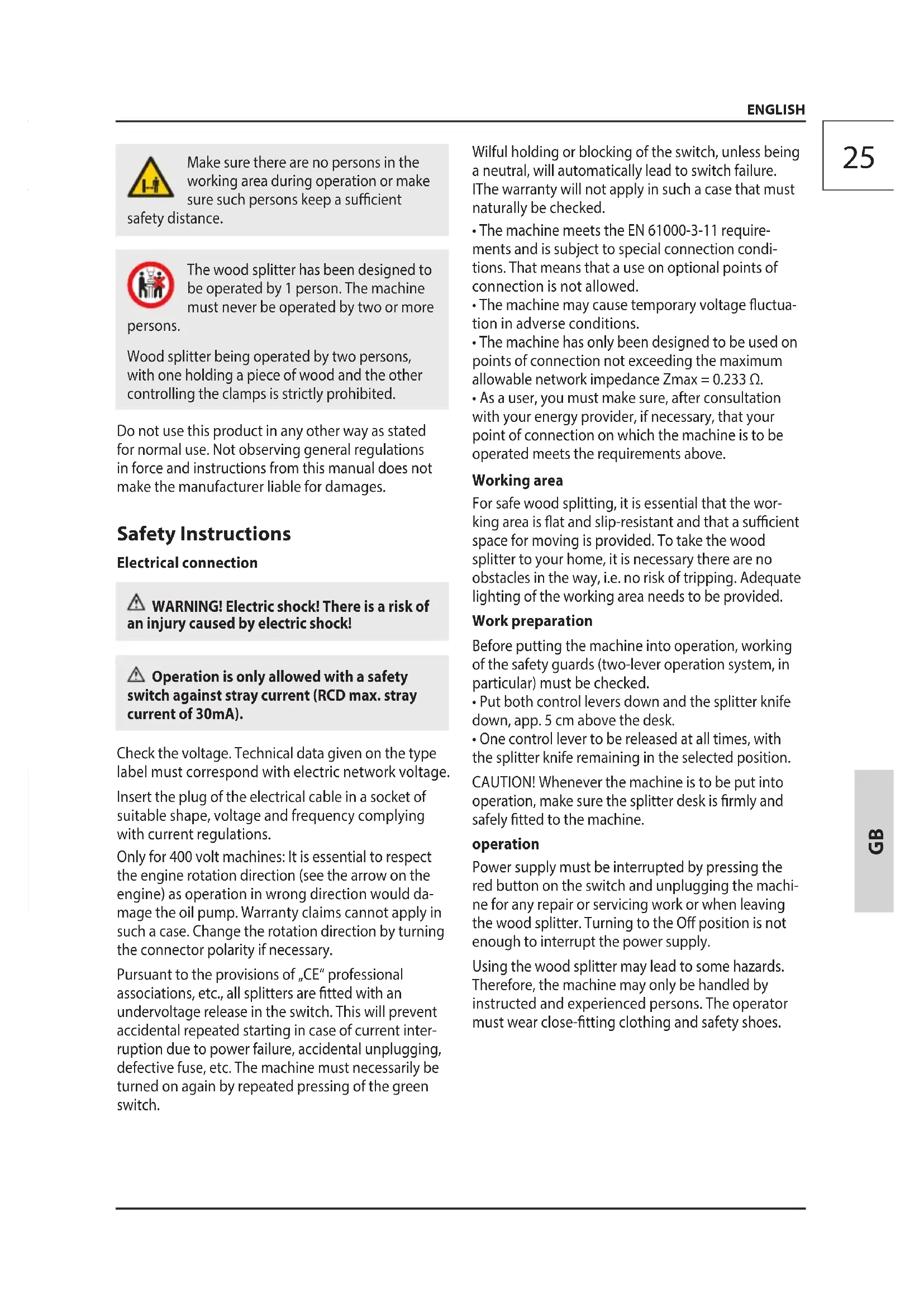

Specified Conditions Of Use

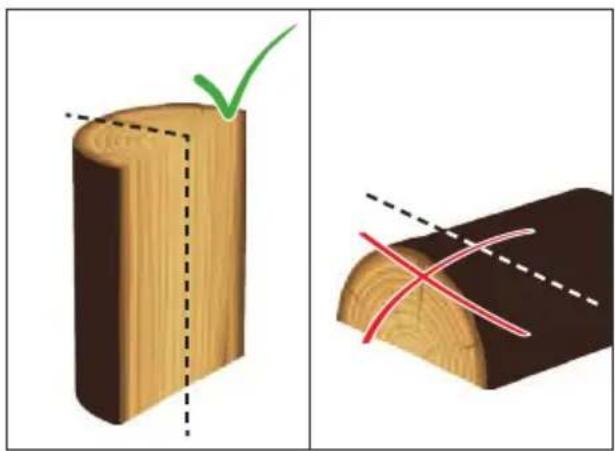

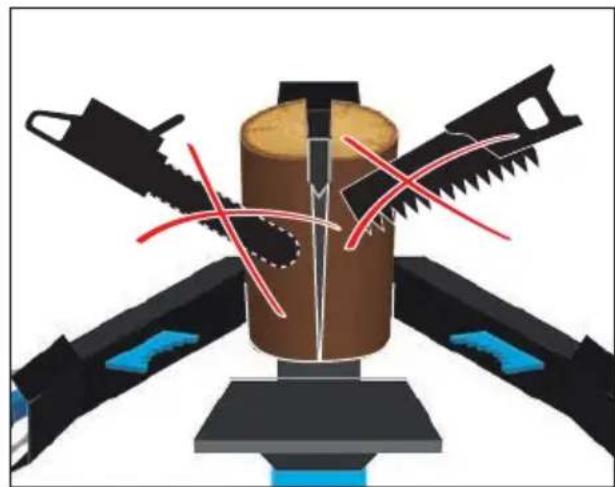

The wood splitter has only been designed to split wood in the fibre direction. Respecting technical data and safety precautions.

When splitting, it is essential to make sure the split wood only contacts the checkered sheet of the bottom plate or the checkered sheet of the splitting desk.

It is essential to follow instructions for installation, operation, repairs, etc. to prevent hazards and damage.

Please do not forget that this machine, as designed, is not intended for industrial use.

Make sure there are no persons in the working area during operation or make sure such persons keep a sufficient

safety distance.

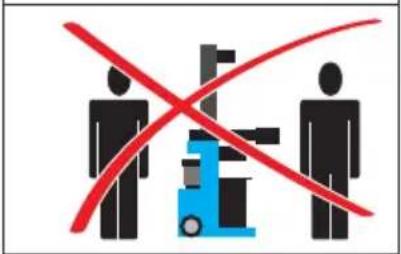

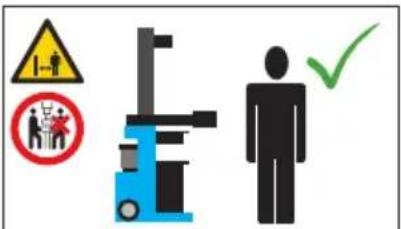

The wood splitter has been designed to be operated by 1 person. The machine must never be operated by two or more

persons.

Wood splitter being operated by two persons, with one holding a piece of wood and the other controlling the clamps is strictly prohibited.

Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.

Safety Instructions

Electrical connection

WARNING! Electric shock! There is a risk of injury caused by electric shock!

Operation is only allowed with a safety tch against stray current (RCD max. stray rent of 30mA).

Check the voltage. Technical data given on the type label must correspond with electric network voltage.

Insert the plug of the electrical cable in a socket of suitable shape, voltage and frequency complying with current regulations.

Only for 400 volt machines: It is essential to respect the engine rotation direction (see the arrow on the engine) as operation in wrong direction would damage the oil pump. Warranty claims cannot apply in such a case. Change the rotation direction by turning the connector polarity if necessary.

Pursuant to the provisions of „CE“ professional associations, etc., all splitters are fitted with an undervoltage release in the switch. This will prevent accidental repeated starting in case of current interruption due to power failure, accidental unplugging, defective fuse, etc. The machine must necessarily be turned on again by repeated pressing of the green switch.

Wilful holding or blocking of the switch, unless being a neutral, will automatically lead to switch failure. IThe warranty will not apply in such a case that must naturally be checked.

• The machine meets the EN 61000-3-11 requirements and is subject to special connection conditions. That means that a use on optional points of connection is not allowed.
• The machine may cause temporary voltage fluctuation in adverse conditions.
- The machine has only been designed to be used on points of connection not exceeding the maximum allowable network impedance Z_ = 0.233 .
- As a user, you must make sure, after consultation with your energy provider, if necessary, that your point of connection on which the machine is to be operated meets the requirements above.

Working area

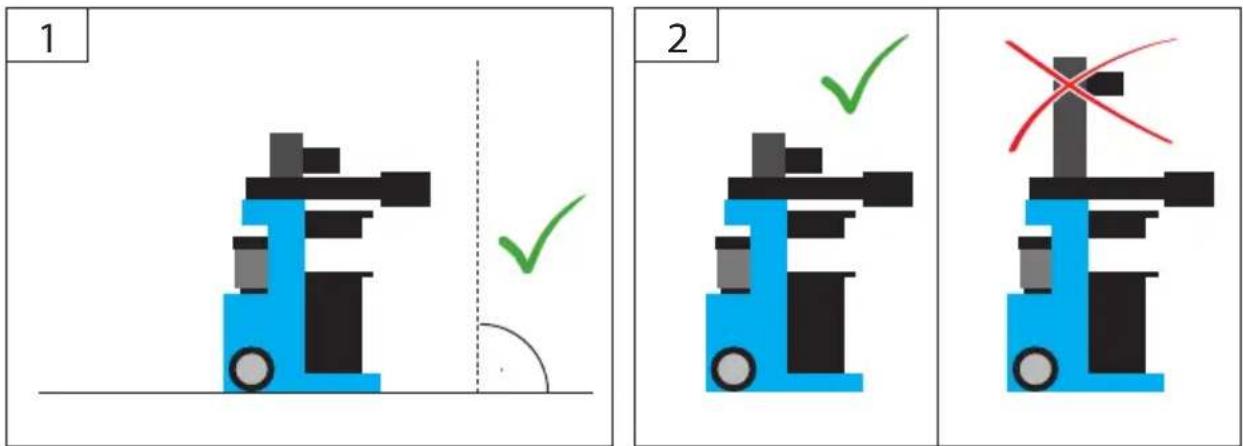

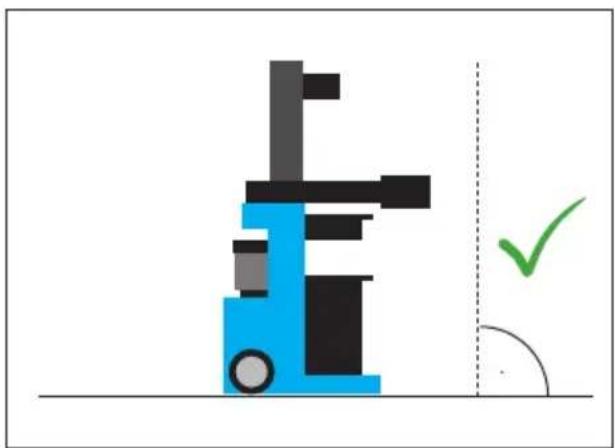

For safe wood splitting, it is essential that the working area is flat and slip-resistant and that a sufficient space for moving is provided. To take the wood splitter to your home, it is necessary there are no obstacles in the way, i.e. no risk of tripping. Adequate lighting of the working area needs to be provided.

Work preparation

Before putting the machine into operation, working of the safety guards (two-lever operation system, in particular) must be checked.

- Put both control levers down and the splitter knife down, app. 5 cm above the desk.

• One control lever to be released at all times, with the splitter knife remaining in the selected position.

CAUTION! Whenever the machine is to be put into operation, make sure the splitter desk is firmly and safely fitted to the machine.

operation

Power supply must be interrupted by pressing the red button on the switch and unplugging the machine for any repair or servicing work or when leaving the wood splitter. Turning to the Off position is not enough to interrupt the power supply.

Using the wood splitter may lead to some hazards. Therefore, the machine may only be handled by instructed and experienced persons. The operator must wear close-fitting clothing and safety shoes.

Residual risks

Dry and dried-up wood may jump up when being split and injure the face of the operator. Adequate protective clothes to be worn!

⚠ Wooden pieces produced during splitting may fall down and injure legs of the operator.

When splitting wood, parts of body may be crushed or separated due to hydraulic knife lowering.

There is a risk of branchy wood getting stuck when being split. Please be advised that wood being separated is under heavy pressure and your fingers may get squeezed in the gap.

Caution!

Pieces of wood cut at the right angle to be split only!

Diagonally cut pieces of wood may slip when cutting!

This may cause personal injury or damage to the splitter knife especially when using the gap extension by wedge!

Requirements for operating staff

The operating staff must carefully read the Operating Instructions before using the appliance.

Qualification: Apart from the detailed instructions by a professional, no special qualification is necessary for appliance using.

Minimum age: Persons over 18 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.

Training: Using the appliance only requires corresponding training by a professional or the Operating Instructions. No special training is necessary.

Emergency procedure

Conduct a first-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. For the sake of eventual accident, in accordance with DIN 13164, a workplace has to be fitted with a first-aid kit. It is essential to replace any used material in the first-aid kit immediately after it has been used. If you seek help, state the following pieces of information:

1. Accident site
2. Accident type
3. Number of injured persons
4. Injury type(s)

Maintenance

⚠️ Unplug the machine before any work on it..

Carry out a visual inspection before any use to make sure the appliance, especially the cutting tools, fastening parts and the entire cutting unit are not damaged.

The appliance must not be used if damaged or safety equipment is defective. Replace any worn-out and damaged parts.

The hydraulic hoses and connections must be checked if tight enough after app. 4 hours of operation and tightened if necessary.

If the device is defective, the repair has to be made exclusively by the customer service.

Use only original accessories and original spare parts. Never clean the machine and its components with solvents, flammable or toxic liquids. Us only a damp cloth making.

Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.

If necessary, a list of spare parts can be found at www.guede.com.

Symbols

Read the Operating Instructions

Wear eye protective goggles! Wear ear protectors!

Safety gloves to be used!

Safety shoes to be used

Use of crane

Caution! Moving parts of the machine!

To be operated by 1 person only!

Do not touch in the splitting area!

Protect against humidity. Never expose tool to rain.

WARNING/Caution!

Dangerous voltage

Caution - hot surface!

Danger of burns!

Warning against hand injuries

Keep distance of persons

Observe to keep out of dangerous zone.

Warning against thrown-off items

Warning against a risk of tripping

Warning against hand injury by the splitter knife

Engine rotation direction

2 people are needed for implementation.

Any damaged or disposed devices must be delivered to appropriate collection centres.

Protect against humidity

This side up

Warranty

Warranty period of 12 months applies to commercial use and 24 months applies to private use and commences on the day of purchase of the device.

Warranty applies exclusively to failures due to defective material or workmanship. An original sale slip with indication of date of sale must be presented in case of claiming for the warranty rights.

VWarranty does not cover unprofessional use such as device overload, violent use, damage caused by third party or foreign materials, failure to comply with operations and assembly manual, and normal wear and tear.

Important information for the customer

Please be sure to know that returning the product in or after the warranty period must be made in the original packaging.

Service

Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bureaucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label. Please enter it here for future reference:

Serial No.:

Art. No:

Year of production:

Tel.: [phone] / 700-360

Fax: [phone]

E-Mail: [e-mail]

Failure removal

Failures Causes Removal
Engine does not start No power in the socket Check the fuse
	Defective electric extension cable Pull the plug out, check it, replace it
	Wrong connecting cable 5-wire connection at 2.5 mm section	^2 cross
	Defective condenser switch Have the machine checked by a professional electrician
Wrong engine rotation direction Wrong connection Use a screwdriver to turn the phase-changing switch in the power supply
Splitting knife is not moving Adjust the two-hand control and starting levers		Defective control valve - to be replaced in a service centre only
Splitter has no power	Wrong rotation direction Have the rotation direction changed by a professional
	Few hydraulic oil Hydraulic oil to be added
	Trigger is bent; hydraulic piston on the valve is not fully seated	Check all screws on the triggerAdjust the trigger so that the hydraulic piston on the valve is fully seated
	Wood has many knobs and the splitting knife is getting stuck	Lubricate the splitting knife
	Control arm is bent Put the control arm back to the starting position
The green supply button does not hold after being pressed	Defective fuse, etc. Check the cable
	2-phase running
Hydraulic pump is whistling, splitting knife running jerkily	Oil loss, bottom contamination Tighten the screws replace the hose
	Few hydraulic oil Hydraulic oil to be added

Net weight....95 kg....111 kg

WAARSCHUWING/Opgelet!

Attentie, elektrische stroom

EC-DECLARATION OF CONFORMITY

We, hereby declare the conception and construction of the below mentioned appliances correspond - at the type of construction being launched - to appropriate basic safety and hygienic requirements of EC Directives. In case of any change to the appliance not discussed with us the Declaration expires.

DECLARATION CE DE CONFORMITE

PROHLASENI O SHODE EU

# 2020	/ Log splitter_ Basic 6T/W
# 2025	/ Log splitter_ Basic 8T/D
#	/
#	/

2006/95/EC 2004/108/EC

2009/105/EC 1907/2006/EC

2011/65/EC ROHS 2009/142/EC

89/686/EEC (PPE) 1935/2004/EC

□ □

2006/42/EC

Annex IV

Notified Body:

Reg. No.:

2000/14/EC_2005/88/EC

Noise: guaranteed L_WA dB (A)

97/6 8/EC_

Emission No.:
