AZ4060000 - Hammock AMAZON - Free user manual and instructions

Product type	Baby hammock with stand
Brand	Amazon
Model	AZ4060000
Hammock material	100% cotton
Stand material	Metal with rubber feet
Maximum load	Up to 9 kg (approx. 6 months)
Adjustable suspension height	Yes, via 4 metal triangles
Adjustable hammock depth	Yes, by adjusting the ropes at the ends
Rocking system	Natural rocking with safety belt to limit movement
Integrated safety harness	Yes
Tool-free assembly	Yes, thanks to self-locking wing nuts
Care and cleaning	Dry cleaning recommended (removable cover not specified)
Usage	For babies from birth up to about 6 months or 9 kg
Do not use for	Children who can sit up on their own or are too big/heavy
Included accessories	Stand, hammock with wooden bars, attachment system
Country of origin	Not specified
Warranty	Not specified

Frequently Asked Questions - AZ4060000 AMAZON

What is the recommended age to use this hammock?

This hammock is recommended for babies from birth up to about 6 months or up to 9 kg, as long as they cannot sit up on their own yet.

How to adjust the suspension height of the hammock?

Adjust the 4 metal triangles: to lower the hammock, move the triangles upward; to raise it, move them downward. Make sure the triangles are securely fixed before placing baby.

How to adjust the depth of the hammock?

Open the snap buttons at the 4 corners, move the rope knot in the groove to tighten or loosen the fabric, then close again. This allows creating a deeper or flatter hammock.

Can I use the hammock without the stand?

No, the hammock must be used with its stand. It should not be hung from other structures.

How to clean the hammock?

Since the hammock is 100% cotton, we recommend dry cleaning or gentle hand washing with mild soap. Check the labels if present.

Is the hammock safe for newborns?

Yes, it recreates the feeling of security of the womb. However, never leave baby unattended and follow the instructions: fasten the safety harness, do not place baby on stomach, and use only on a flat, hard surface.

Can I rock baby in the hammock?

Yes, the hammock allows natural rocking. You can limit the amplitude by attaching the safety belt under the hammock for more stability.

What to do if parts are missing or damaged?

Do not use the hammock if parts are missing or damaged. Contact the manufacturer for replacement parts.

Can the hammock be used in a car or airplane?

No, it should never be used in moving vehicles, whether car, plane or boat.

How to install the stand?

Unfold the sides of the stand (rubber feet facing down). No tools are needed thanks to the wing nuts. Then hang the hammock on the lifting rings using the hooks.

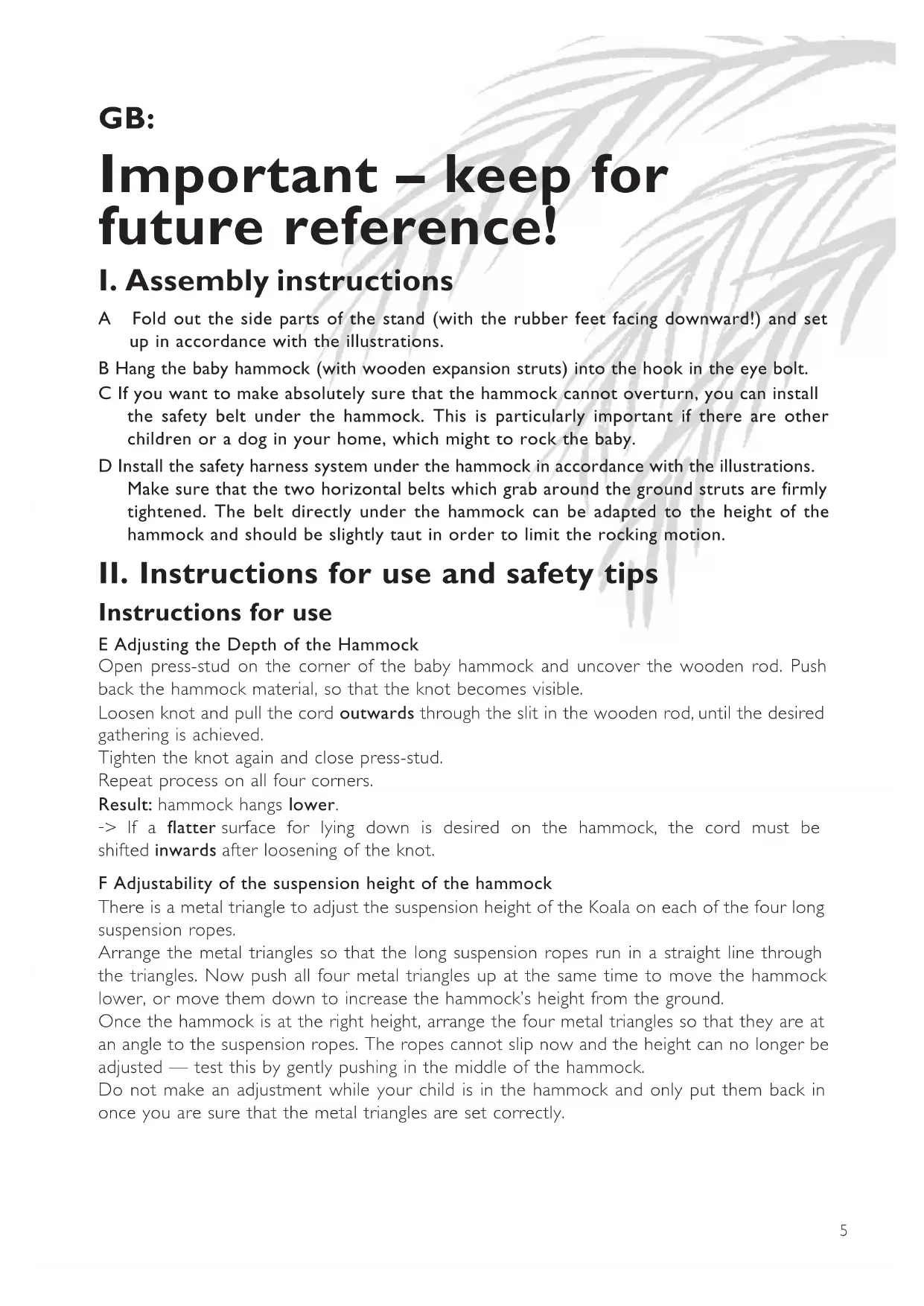

USER MANUAL AZ4060000 AMAZON

Important - keep for future reference!

I. Assembly instructions

A Fold out the side parts of the stand (with the rubber feet facing downward!) and set up in accordance with the illustrations.
B Hang the baby hammock (with wooden expansion struts) into the hook in the eye bolt.
C If you want to make absolutely sure that the hammock cannot overturn, you can install the safety belt under the hammock. This is particularly important if there are other children or a dog in your home, which might to rock the baby.
D Install the safety harness system under the hammock in accordance with the illustrations. Make sure that the two horizontal belts which grab around the ground struts are firmly tightened. The belt directly under the hammock can be adapted to the height of the hammock and should be slightly taut in order to limit the rocking motion.

II. Instructions for use and safety tips

Instructions for use

E Adjusting the Depth of the Hammock

Open press-stud on the corner of the baby hammock and uncover the wooden rod. Push back the hammock material, so that the knot becomes visible.

Loosen knot and pull the cord outwards through the slit in the wooden rod, until the desired gathering is achieved.

Tighten the knot again and close press-stud.

Repeat process on all four corners.

Result: hammock hangs lower.

• If a flatter surface for lying down is desired on the hammock, the cord must be shifted inwards after loosening of the knot.

F Adjustability of the suspension height of the hammock

There is a metal triangle to adjust the suspension height of the Koala on each of the four long suspension ropes.

Arrange the metal triangles so that the long suspension ropes run in a straight line through the triangles. Now push all four metal triangles up at the same time to move the hammock lower, or move them down to increase the hammock's height from the ground.

Once the hammock is at the right height, arrange the four metal triangles so that they are at an angle to the suspension ropes. The ropes cannot slip now and the height can no longer be adjusted — test this by gently pushing in the middle of the hammock.

Do not make an adjustment while your child is in the hammock and only put them back in once you are sure that the metal triangles are set correctly.

Guaranteed mobility

The Koala baby hammock is suitable for indoor as well as outdoor use and also for household use or as a travel crib.

Mobility and flexibility — this is the motto of this easy to transport baby hammock with folding frame.

Hammock preferred

Once a child is born it initially feels deprived of the protective mechanism and the feeling of security from the womb.

However, in the hammock the baby feels almost as secure as in the womb.

The embryonal position (we recommend the Sunny blanket as a heat-providing underlay) and the consistent rocking experience allow the child to quickly quiet down.

In order to optimally take advantage of this positive effect, please do not utilise any stiff/hard underlays in the hammock.

Looking out desired?

If the baby would like to look out from the hammock, then simply adjust the hammock's cords so that the baby's head lies higher than its legs. Simply shorten the cords on the side in which the baby's head is laid. (If shortening is not possible, lengthen the cords on the opposite side.)

Follow-up use

Once the children have outgrown the hammock, it can also be further used as a crib for children's teddy bears and dolls.

Assembly

The safety-tested knurled thumbscrews with self-locking nut make assembly - without tools and any energy involved - as easy as child's play!

A special advantage is that the screws are provided with a child lock and consequently cannot be swallowed!

CAUTION: Safety tips:

• Not recommended for children who can sit up on their own!
• Do not use for children who are too heavy or too big for the hammock!
• Please note: this child's reclining seat is not a substitute for a cradle or bed. If your child wants to sleep, he or she should be put in a suitable cradle or bed.
• Never leave the child unattended!
• It is dangerous to leave your child in the hammock in the care of another child!
• Do not lay your child on its tummy in the hammock!
• Always use the sewed-in safety pants to secure your child!
• Never place more than one child in the baby hammock!
• Pets, especially cats, dogs and large birds, have to be kept away from the hammock during use. The movement of the hammock may attract pets and entice them to play, which might cause the hammock to get out of balance or cause injury to the child.
• Keep loose fastening cords which are not attached to the frame away from small children.

• When not assembled, the stand has small parts that could be swallowed by children.

• Please take care to dress your child adequately for the ambient temperature. A hammock does not warm the child! If you want to protect your child against cold rising from below, we recommend our matching Sunny lined inlay!

• It is dangerous to place the cradle on high surfaces such as benches, tables, car roofs, boot spaces, banisters or window sills!
• Do not use the hammock near flames and other powerful sources of heat such as electric radiators, gas heaters, camping cookers, open fireplaces, etc.!
• The ground on which the hammock stand is situated must be flat, even and solid; under weight, all four rubber feet of the stand must be firmly on the ground to prevent the stand from tipping over. Never put up the stand on inclined surfaces, on couches, (water)beds or soft cushions or pillows!
• Do not move the baby hammock with the child lying in it, neither by carrying it nor by sliding it over the floor using coasters or cart.
• Do not use on vehicles in motion; in particular, not on vehicles that are fit for use on water or in the air.
• Please use the baby hammock only in combination with the stand from AMAZONAS!
• Please use the hammock only with the supplied wooden expansion bars inserted!
• Before using, always check to see that all screw connections are tight.
• Self-locking nuts that have become loose must not be used again. We cannot warrant their safety if they are used for a second time.
• Before using, always check to see that all connections at the hammock and all knots at the ends of the hanging cords are tight! In particular, make sure that a tensioning knot is between the hammock and the wooden expansion bar at each of the four corners.
• Before laying your child into the baby hammock, always check to see that the tensioning triangles at the hanging cords are arranged transversely to prevent the cords from slipping through.
• The stand and hammock must not be used if there are broken, torn, otherwise defective or missing parts!
• Any alteration of the stand or hammock will invalidate the manufacturer's warranty.
