Brand	Cherry
Model	KW 3000
Product Type	Wireless Keyboard
Keyboard Power Supply	2 alkaline batteries LR03 (AAA)
Keyboard Supply Voltage	2.2 to 3.3 V SELV
Keyboard Consumption	Max. 5 mA
Transmission Frequency	2400.0 to 2483.5 MHz
Transmission Power	Max. 10 mW (EIRP)
Wireless Range	Up to 8 meters
Operating Temperature	0 °C to +40 °C
Storage Temperature	-15 °C to +60 °C
Battery Level Indicator	Battery status LED
Key Programming	KeyM@n software (downloadable at cherry.de)
Cleaning	Slightly damp cloth, mild detergent, no solvents
Warranty	Applicable legal warranty
Recycling	Device and batteries to be taken to a collection point
Declaration of Conformity	Conforms to directive 2014/53/EU

Frequently Asked Questions - KW 3000 Cherry

How to connect the KW 3000 keyboard to the computer?

Plug the USB receiver into a computer port. The keyboard connects automatically. If not, hold down the Esc and A keys for 30 seconds until the LED flashes.

How to change the keyboard batteries?

Open the battery compartment located under the keyboard. Replace the two used batteries with new alkaline batteries of type LR03 (AAA) respecting polarity.

What to do if the keyboard stops responding?

First check the battery status. Replug the USB receiver into another port. If the problem persists, reset the connection by pressing Esc and A simultaneously for 30 seconds.

How to clean the KW 3000 keyboard?

Use a slightly damp cloth with a mild detergent (e.g., dish soap). Never use solvents like alcohol or gasoline. Avoid liquid entering the keyboard.

Is the keyboard programmable?

Yes, you can program function keys and shortcuts using KeyM@n software, downloadable for free from the Cherry website (www.cherry.de).

What is the maximum wireless range of the keyboard?

The keyboard works wirelessly up to 8 meters from the receiver.

How to know if the batteries are low?

A battery status LED on the keyboard lights up or flashes to indicate a low charge level.

Where to find the EU declaration of conformity?

The EU declaration of conformity is available on the Cherry website by clicking on the product name in the Help and support section.

How to dispose of the keyboard at end of life?

Hand over the used device to an electronic waste recycling center or your retailer. Batteries must be removed and recycled separately.

What does RSI syndrome mean and how to avoid it?

RSI syndrome (Repetitive Strain Injury) can cause pain. To avoid it, organize your workstation ergonomically, take regular breaks, and vary your postures.

USER MANUAL KW 3000 Cherry

CHERRY KW 3000 - Wireless Keyboard

Herzlichen Glückwunsch ...

CHERRY KW 3000 - Wireless Keyboard

4 Kontakt

CHERRY KW 3000 - Wireless Keyboard

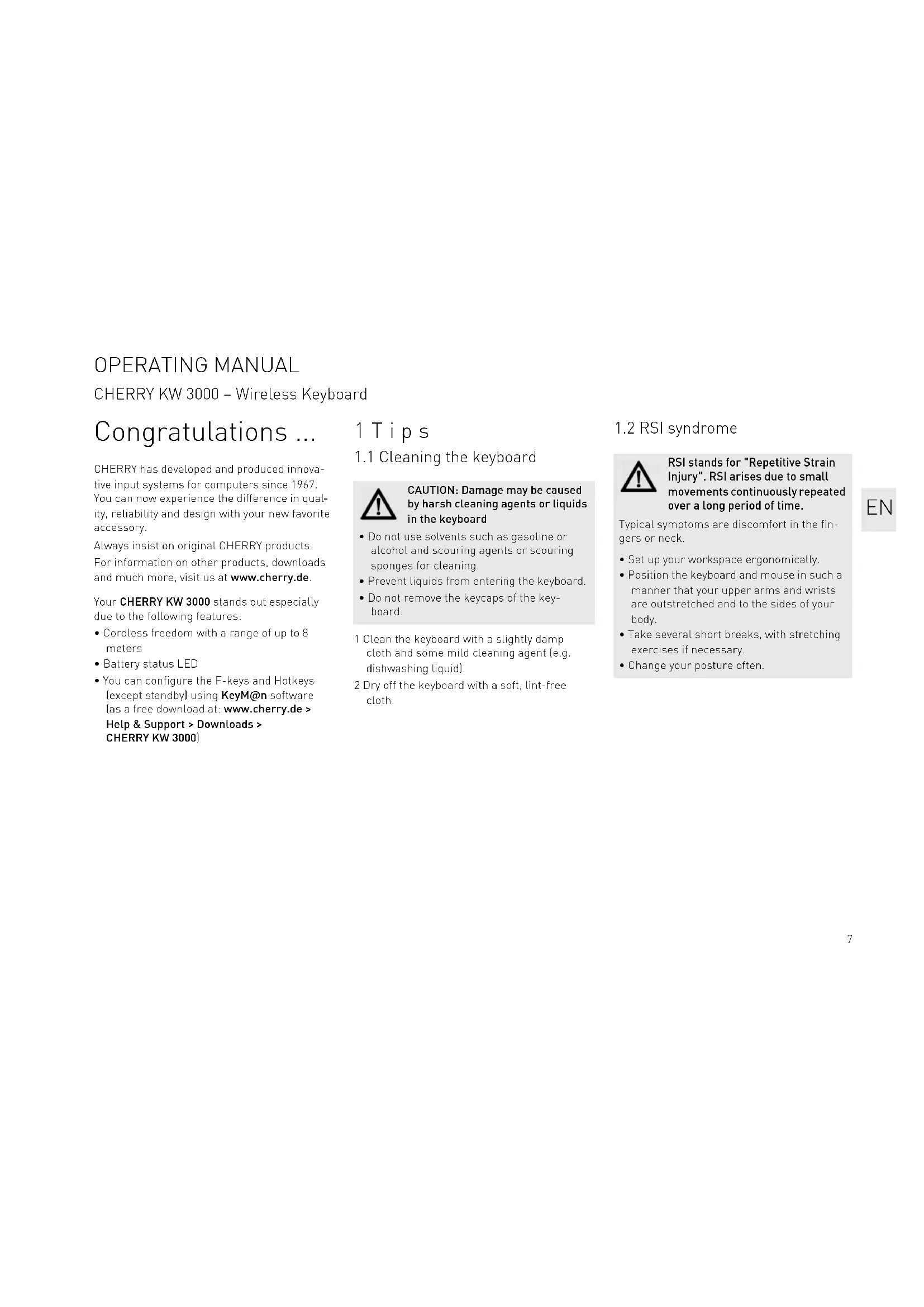

Congratulations ...

CHERRY has developed and produced innovative input systems for computers since 1967. You can now experience the difference in quality, reliability and design with your new favorite accessory.

Always insist on original CHERRY products. For information on other products, downloads and much more, visit us at www.cherry.de.

Your CHERRY KW 3000 stands out especially due to the following features:

• Cordless freedom with a range of up to 8 meters
• Battery status LED
• You can configure the F-keys and Hotkeys (except standby) using KeyM@n software (as a free download at: www.cherry.de > Help & Support > Downloads > CHERRY KW 3000)

1 Tips

1.1 Cleaning the keyboard

CAUTION: Damage may be caused by harsh cleaning agents or liquids in the keyboard

• Do not use solvents such as gasoline or alcohol and scouring agents or scouring sponges for cleaning.
• Prevent liquids from entering the keyboard.
• Do not remove the keycaps of the keyboard.

1 Clean the keyboard with a slightly damp cloth and some mild cleaning agent (e.g. dishwashing liquid).
2 Dry off the keyboard with a soft, lint-free cloth.

1.2 RSI syndrome

RSI stands for "Repetitive Strain Injury". RSI arises due to small movements continuously repeated over a long period of time.

Typical symptoms are discomfort in the fingers or neck.

• Set up your workspace ergonomically.
• Position the keyboard and mouse in such a manner that your upper arms and wrists are outstretched and to the sides of your body.
  Take several short breaks, with stretching exercises if necessary.
• Change your posture often.

OPERATING MANUAL

CHERRY KW 3000 - Wireless Keyboard

1.3 Troubleshooting

1 Check whether the batteries are inserted correctly and have sufficient voltage.
2 Connect the receiver to another USB port on the PC.
3 Establish a new connection to the receiver:
- Disconnect the receiver from the USB port and plug it in again.
Within 30 seconds, keep the keyboard as near to the receiver as possible, then press the esc and Q keys at the same time.
- Release the keys when the battery status LED on the keyboard flashes after approx. 3 seconds.

2 Disposal

2.1 Disposing of the device

Dispos of the used device at an official collection point for electronic waste or at your local dealer.

2.2 Disposing of the batteries

This device contains alkaline batteries. Do not dispose of them in the household waste. Batteries may contain pol

lutants which can harm the environment and health. Dispose of the batteries with the device in a retail outlet or at your local recycling depot. Returning the device is compulsory and free of charge.

All batteries are recycled. This enables valuable resources to be restored such as iron, zinc or nickel. Recycling batteries is the easiest contribution you can make towards environmental protection.

Thank you for your cooperation.

3 Technical data

Designation Value
Supply voltage Keyboard:
	2.2 ... 3.3 V SELV
	Receiver:
	5.0 V/DC ±5% SELV
Current	Keyboard: max. 5 mA
consumption	Receiver: max. 35 mA
Batteries 2 alkaline batteries, type LR03 (AAA)
Operating frequency	2400.0 ... 2483.5 MHz
Effective radiated power	Max. 10 mW (EIRP)
Storage temperature	-15 °C ... +60 °C
Operating temperature	0 °C ... +40 °C

4 Contact

Please provide the following information about the device when you make an enquiry:

• Item and serial no. of the product
  Name and manufacturer of your system
• Operating system and, if applicable, installed service pack version

Cherry GmbH

Cherrystraße 1

91275 Auerbach

Germany

We reserve the right to make technical modifications which serve the development of our products. Improper use and storage can lead to faults and damage to the product. These instructions are only valid for the supplied product.

6 Warranty

The statutory warranty applies. Please contact your specialist dealer or contractual partner. The warranty expires completely once unauthorized modifications to the product have been carried out. Do not carry out any unauthorized repairs and do not open up the product.

7 Certifications

7.1 EU declaration of conformity

The company Cherry GmbH, Auerbach/OPf., Germany hereby declares that this radio system

model conforms to the European guideline 2014/53/EU. The full text of the EU declaration of conformity can be found under the following Internet address: www.cherry.de/compliance.

There you must click on the product names to open the EU declaration of conformity.

7.2 Federal Communications Commission (FCC) Radio Frequency Interference Statement

Information to the user: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorientate or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/ TV technician for help.

Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

7.3 For UL

For use with Listed Personal Computers only!
