SoftScrape 62637 - Hand blender HAMILTON BEACH - Free user manual and instructions

USER MANUAL SoftScrape 62637 HAMILTON BEACH

1. Read all instructions.

2. This appliance is not intended for use by persons (including

children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.

3. Close supervision is necessary when any appliance is used by or

near children. Children should be supervised to ensure that they do not play with the appliance.

4. To protect against risk of electrical shock, do not put cord, plug,

or mixer body in water or other liquid.

5. Unplug from outlet when not in use, before putting on or taking

off parts, and before cleaning.

Avoid contacting moving parts. Keep hands, hair, and clothing, as well as spatulas and other utensils, away from beaters during operation to reduce risk of injury to persons and/or damage to mixer.

7. Remove beaters from mixer before washing.

8. Do not let cord hang over edge of table or counter.

9. Do not let cord contact hot surfaces, including the stove.

10. Do not operate any appliance with a damaged cord or plug,

or after the appliance malfunctions or is dropped or damaged in any manner. Call our toll-free customer service number for information on examination, repair, or electrical or mechanical adjustment.

11. The use of attachments not recommended or sold by the

appliance manufacturer for use with this model may cause fire, electric shock, or injury.

12. Do not use outdoors.

13. Do not place on or near a hot gas or electric burner, or in a

14. Check that control is off before plugging cord into wall outlet. To

disconnect, turn control to OFF (O) and then remove plug from wall outlet.

15. Do not use appliance for other than intended purpose.

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following: SAVE THESE INSTRUCTIONS! Other Consumer Safety Information This appliance is intended for household use only. WARNING! Shock Hazard: This appliance has a polarized plug (one wide blade) that reduces the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet. The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the counter- top or tabletop where it can be pulled on by children or accidentally tripped over. CAUTION! Moving Parts Hazard. To reduce the risk of personal injury, always unplug mixer before inserting or removing beaters.

WATTAGE/PEAK POWER INFORMATION

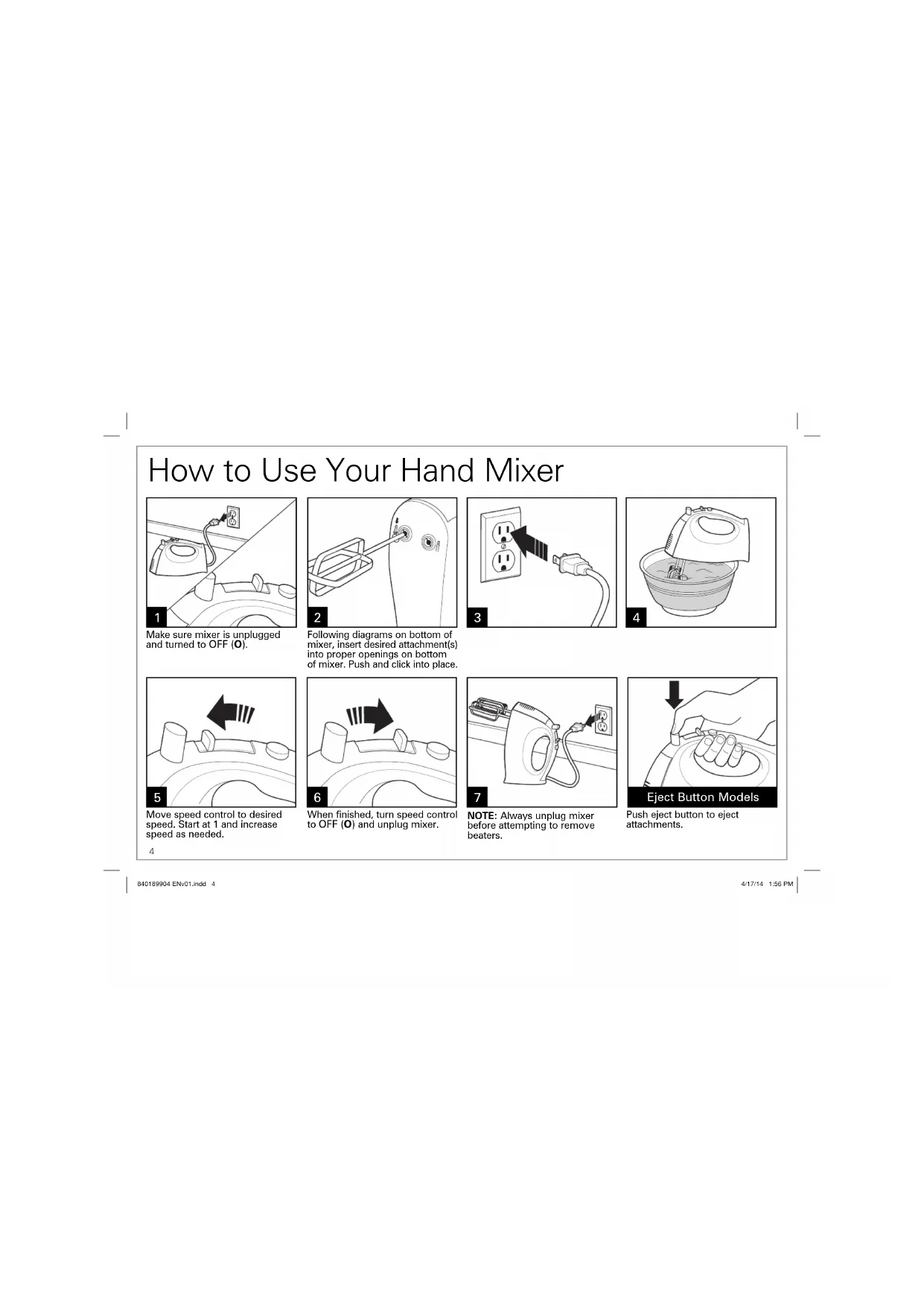

The marked rating of the hand mixer is determined by Underwriters Laboratories as the maximum stabilized power consumption of the hand mixer at high speed under a loaded condition. Peak power is an average of the maximum wattage a hand mixer may consume during initial operation at high speed. 840189904 ENv01.indd 2840189904 ENv01.indd 2 4/17/14 1:56 PM4/17/14 1:56 PM3 Parts and Features Speed Control Attachment* (depending on model) Eject Button Bowl Rest™ Snap-On Case* (Optional Accessory on Select Models) Flat Beaters* (General Use) SoftScrape™ Beaters* (General/Heavy Use) Dishwasher-Safe Stainless Steel Whisk* (Whipping/Aerating) Dough Hooks* (Mixing/Kneading) SoftScrape™ Whisk* (Whipping/Aerating) Dishwasher-Safe Snap-On Case With Storage Door* (Optional Accessory on Select Models) Straight Wire Beaters* (General/Heavy Use) *To order parts: US: 1.800.851.8900 www.hamiltonbeach.com Canada: 1.800.267.2826 Mexico: 01 800 71 16 100 840189904 ENv01.indd 3840189904 ENv01.indd 3 4/17/14 1:56 PM4/17/14 1:56 PM4 How to Use Your Hand Mixer

Make sure mixer is unplugged and turned to OFF (O).

Move speed control to desired speed. Start at 1 and increase speed as needed.

When finished, turn speed control to OFF (O) and unplug mixer. NOTE: Always unplug mixer before attempting to remove beaters. Following diagrams on bottom of mixer, insert desired attachment(s) into proper openings on bottom of mixer. Push and click into place. Eject Button Models Push eject button to eject attachments.

840189904 ENv01.indd 4840189904 ENv01.indd 4 4/17/14 1:56 PM4/17/14 1:56 PM5 Mixing Guide The following mixing guide is a suggestion for selecting mixing speeds for 6-speed mixers. Begin on speed 1 and increase to desired speed depending on the recipe consistency. FUNCTION OFF and/or Eject LOW speed for folding or mixing in dry ingredients, muffins, or quick breads To cream butter and sugar; most cookie dough MEDIUM speed for most packaged cake mixes Frosting and mashed potatoes; kneading dough Beating egg whites; kneading dough HIGH speed for whipping cream SPEED

General Mixing Guide

• Use a large mixing bowl so that the ingredients spread out for easier mixing.

• Butter and margarine should be at room temperature.

Add flour one cup at a time, mixing thoroughly after each addition.

• Chips and nuts should be stirred by hand. Cookie Dough Mixing Guide Additional Features QuickBurst™ Press and hold down the QuickBurst button for additional power at any speed. NOTICE: Do not use QuickBurst for more than 2 minutes at a time. This could cause the motor to overheat, possibly resulting in permanent damage to the mixer. Speed Control Button QuickBurst™ Button Bowl Rest™ Use the Bowl Rest while adding ingredients or checking a recipe. To use, TURN MIXER OFF (O) and then set the mixer on the edge of the bowl.Never use Bowl Rest when mixer is on. Do not use Bowl Rest on small or plastic mixing bowls. 840189904 ENv01.indd 5840189904 ENv01.indd 5 4/17/14 1:56 PM4/17/14 1:56 PM6 Cleaning and Storage

CORD STORED IN CASE DISHWASHER-SAFE Electrical Shock Hazard. Disconnect power before cleaning. Do not immerse mixer, cord, or plug in any liquid. w WARNING NOTE: SoftScrape™ beaters and whisk may be placed in the dishwasher. DO NOT use the “SANI” setting when washing in the dishwasher. “SANI” cycle temperatures could damage your product. 840189904 ENv01.indd 6840189904 ENv01.indd 6 4/17/14 1:56 PM4/17/14 1:56 PM7 Limited Warranty This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be free from defects in material and workmanship for a period of five (5) years from the date of original purchase in Canada and one (1) year from the date of original purchase in the U.S. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V ~ 60 Hz). We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you. To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit hamiltonbeach.com in the U.S. or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance. 840189904 ENv01.indd 7840189904 ENv01.indd 7 4/17/14 1:56 PM4/17/14 1:56 PM8
