HD7874/60 - Coffee maker PHILIPS - Free user manual and instructions

USER MANUAL HD7874/60 PHILIPS

For more support go to:

Flushing the machine before first use

Brewing SENSEO® coffee

Ordering accessories

Guarantee and service

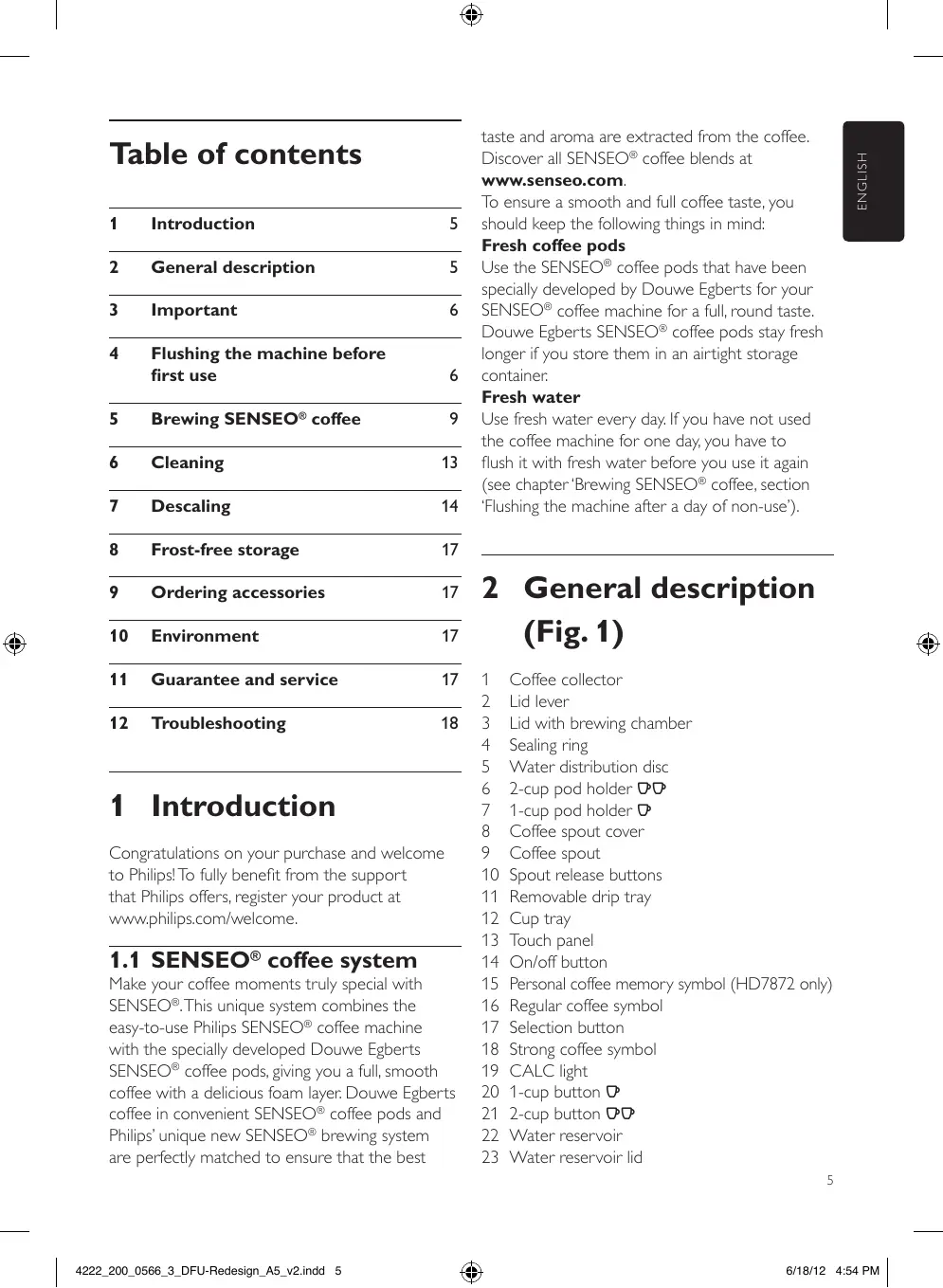

1 Introduction Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

1.1 SENSEO® coffee system

Make your coffee moments truly special with SENSEO®. This unique system combines the easy-to-use Philips SENSEO® coffee machine with the specially developed Douwe Egberts SENSEO® coffee pods, giving you a full, smooth coffee with a delicious foam layer. Douwe Egberts coffee in convenient SENSEO® coffee pods and Philips’ unique new SENSEO® brewing system are perfectly matched to ensure that the best

taste and aroma are extracted from the coffee. Discover all SENSEO® coffee blends at www.senseo.com. To ensure a smooth and full coffee taste, you should keep the following things in mind: Fresh coffee pods Use the SENSEO® coffee pods that have been specially developed by Douwe Egberts for your SENSEO® coffee machine for a full, round taste. Douwe Egberts SENSEO® coffee pods stay fresh longer if you store them in an airtight storage container. Fresh water Use fresh water every day. If you have not used the coffee machine for one day, you have to flush it with fresh water before you use it again (see chapter ‘Brewing SENSEO® coffee, section ‘Flushing the machine after a day of non-use’).

Coffee collector Lid lever Lid with brewing chamber Sealing ring Water distribution disc 2-cup pod holder qq 1-cup pod holder q Coffee spout cover Coffee spout Spout release buttons Removable drip tray Cup tray Touch panel On/off button Personal coffee memory symbol (HD7872 only) Regular coffee symbol Selection button Strong coffee symbol CALC light 1-cup button q 2-cup button qq Water reservoir Water reservoir lid 5

4222_200_0566_3_DFU-Redesign_A5_v2.indd 5

3 Important Read this user manual carefully before you use the machine and save it for future reference. Danger •• Never immerse the machine in water or any other liquid. Warning •• Check if the voltage indicated on the bottom of the machine corresponds to the local mains voltage before you connect the machine. •• This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the machine by a person responsible for their safety. •• Children should be supervised to ensure that they do not play with the machine. •• Do not use the machine if the plug, the mains cord or the machine itself is damaged. •• If the mains cord is damaged, you must have it replaced by Philips, a service centre authorised by Philips or similarly qualified persons in order to avoid a hazard. Caution •• After unpacking the machine, never put your SENSEO® machine on its side. Always keep it in upright position, also during transport. •• Always return the machine to a service centre authorised by Philips for examination or repair. Do not attempt to repair the machine yourself, otherwise your guarantee becomes invalid. •• Do not use the machine in combination with a transformer, as this could cause hazardous situations. •• Always put the machine on a flat and stable surface. •• Do not use the machine at altitudes higher than 2200 metres above sea level. •• Never pour milk, coffee, hot water or carbonated water into the water reservoir. •• Never flush the machine or let it brew coffee when the spout is not in place.

•• This machine is intended for normal household use only. It is not intended for use in environments such as staff kitchens of shops, offices, farms or other work environments. Nor is it intended to be used by clients in hotels, motels, bed and breakfasts and other residential environments.

3.1 Compliance with standards

This machine complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the machine is safe to use based on scientific evidence available today. The energy consumption of this machine in off mode is less than 1 watt. This means that this machine complies with European Directive 2009/125/EC, which sets the ecological design requirements for energy-using products.

4 Flushing the machine before first use It is important that you flush your SENSEO® coffee machine before first use. After the flushing cycle (which only takes approx. 2 minutes), the machine is ready for brewing SENSEO® coffee. C Caution: Never interrupt the flushing cycle halfway. If you do, the boiler does not fill itself properly. 1 Attach the spout to the machine. Grab the two ridges of the inner part of the spout and squeeze them lightly (1). Place the spout on the machine and release the two ridges (2).

Tilt the water reservoir and place the bottom back onto the machine (1). Then press the top of the water reservoir towards the machine (2).

Remove the drip tray.

Place a bowl with a capacity of at least 1.5 litres under the coffee spout.

C Caution: Never flush the machine or let it brew coffee when the spout is not in place. Tilt the top of the water reservoir backwards (1) and lift the water reservoir off the machine (2).

Fill the water reservoir to the top with cold tap water.

Place the lid on the water reservoir before you put the water reservoir back onto the machine.

Make sure a pod holder, without pod or pods, is in place.

•• When all the water in the water reservoir has been used up, the flushing cycle is finished and the machine switches off.

Put the plug in an earthed wall socket. Press the on/off button 3. The button lights up to indicate that you have to flush the machine.

To start flushing, press the 1-cup button q and the 2-cup button qq briefly at the same time.

Fill the water reservoir with fresh tap water, put the lid on it and place it back onto the machine.

•• The on/off button starts flashing to indicate that the flushing cycle has started. •• During the flushing cycle, the boiler fills itself with water from the water reservoir and cold water comes out of the coffee spout. During the flushing cycle, the machine produces more noise than during a regular brewing cycle.

Your SENSEO® machine is now ready for use so that you can brew your first cup of delicious coffee.

4222_200_0566_3_DFU-Redesign_A5_v2.indd 8

6/18/12 4:54 PM While the SENSEO® coffee machine is heating up, you can select the coffee strength you prefer and the number of cups you want to brew. The machine then brews the cup or cups immediately after it has heated up. 1 Make sure that the water reservoir is filled with fresh cold tap water beyond the MIN level and that the lid is on the water reservoir.

E Tip: Use fresh water every day. Put the plug in an earthed wall socket. Press the on/off button 3. The on/off button flashes slowly while the water heats up.

Pull the lid lever upwards to open the lid. The lid opens automatically.

If you want to make one cup of SENSEO® coffee, place the 1-cup pod holder q in the machine (1). If you want to make two cups, put the 2-cup pod holder qq in the machine (2). Make sure the pod holder is clean.

Place 1 coffee pod in the 1-cup pod holder q (1) or place 2 coffee pods in the 2-cup pod holder qq (2). Place the pod or pods properly in the centre of the pod holder, with the convex side pointing downwards. Press the pod or pods lightly into the pod holder.

5 Brewing SENSEO® coffee

D Note: If the on/off button flashes rapidly, the water reservoir does not contain enough water for brewing one cup of coffee.

4222_200_0566_3_DFU-Redesign_A5_v2.indd 9

6/18/12 4:54 PM D Note: Make sure the coffee in the pod or pods is evenly distributed.

Press the selection button to select the desired coffee strength. Select the cup symbol with three bars for a regular cup of coffee (125ml) (1). Select the cup symbol with one bar for a strong cup of coffee (60ml) (2).

When you have selected the desired coffee strength, press the 1-cup button q for one cup (1) or press the 2-cup button qq for two cups (2).

When the water has heated up and the on/ off button lights up continuously, the machine starts brewing coffee.

C Caution: Never put normal ground coffee or use torn pods in the SENSEO® machine, as this causes it to become blocked. Close the lid (1) and lock the lever (2).

B Warning: Make sure the lid is closed properly and the lid lever is locked before you start brewing coffee. Place one cup or two cups under the spout openings. You can adjust the height of the coffee spout by sliding it upwards or downwards. You can also remove the drip tray to be able to place higher cups.

D Note The cups you use should have a capacity of at least 150ml when you brew regular coffee or 100ml when you brew strong coffee. Do not use cups that are too large, as they cause the coffee to get cold more quickly.

E Tip: You can interrupt the brewing cycle at any time. To do this, press the same cup button (1cup button or 2-cup button) that you pressed to start brewing coffee. However, if you do this, the machine does not complete the interrupted brewing cycle if you switch it on again or press the same cup button again. D Note: Do not remove the water reservoir during a brewing cycle.

When the coffee is ready, remove the used coffee pod or pods. Simply lift the pod holder out of the machine and empty it.

To enter the programming mode, first select the personal coffee memory symbol (star symbol) with the selection button (1). Keep the selection button pressed for 2 seconds until the star symbol starts flashing (2) and you hear a beep. Then release the selection button.

Press the 1-cup button to make the coffee flow into the cup (1). When the cup contains the amount of coffee you prefer, press the 1-cup button again (2). Your preferred amount of coffee has been set.

C Caution: There may still be some hot water/coffee on the coffee pod or pods. After use, press the on/off button 3 to switch off the machine.

D Note: If you do not use the machine, it switches off automatically after 15 minutes to save energy.

5.1 Personal coffee memory (HD7872 only)

You can program the machine to brew the amount of coffee you prefer (up to 145ml). Simply experiment and find out what you like best. We advise you to brew at least 60ml for optimal taste and temperature. While programming, you can only use the 1-cup button. When you have completed the programming process, you will be able to brew one or two cups with the programmed amount of coffee. D Note: It is not possible to program your personal coffee memory while the machine is heating up. Wait until the on/off button lights up continuously. 1 Place 1 coffee pod in the 1-cup pod holder and place 1 cup under the spout openings.

From now on, your SENSEO® machine brews one or two cups with this amount of coffee when you select the personal coffee memory symbol with the selection button. D Note: If you want to change the set amount of coffee, simply perform steps 1-3 again.

4222_200_0566_3_DFU-Redesign_A5_v2.indd 11

5.2 Flushing the machine after a day of non-use

Press the on/off button 3. The on/off button flashes slowly while the water heats up.

Make sure that the coffee strength you have selected is regular coffee (cup symbol with three bars). Press the 2-cup button qq to brew two cups of hot water.

If you have not used the coffee machine for one day, flush it to make sure that the boiler is filled with fresh water. To flush the machine, brew two cups of hot water in the following way: 1 Fill the water reservoir with cold tap water beyond the MIN level (1). Put the lid on it (2) and put it the water reservoir back onto the machine.

Put the 1-cup pod holder q or the 2-cup pod holder qq in the machine without pods.

When the water has heated up, the on/off button lights up continuously and the coffee machine starts operating. Throw away the water in the cups. Now the machine is ready for use again.

Close the lid and lock the lever. Put two cups or a large mug under the coffee spout to collect the water.

To disassemble the coffee spout, grab the two ridges of the inner part of the spout and squeeze them lightly (1). Move the inner part downwards to remove it from the outer part of the spout (2).

Clean the water reservoir and its lid, the coffee spout, the coffee collector, the drip tray, the cup tray and the pod holders in hot water or in the dishwasher.

Regular cleaning of your SENSEO® is important to ensure that the SENSEO® coffee always tastes optimally and to optimise the lifetime of the coffee machine. B Warning: Never immerse the SENSEO® coffee machine in water. 1 Always unplug the machine before you clean it. 2 Clean the outside of the machine with a moist cloth. 3 Remove the coffee collector.

To remove the coffee spout, press the release buttons (1) and pull the coffee spout off the machine (2).

C Caution: Be careful not to damage the valve in the bottom of the water reservoir if you use a washing-up brush to clean the water reservoir.

D Note: Check if the sieve in the centre of the pod holder is clogged. If this is the case, unclog the sieve by rinsing the pod holder under the tap. If necessary, use a washing-up brush to clean the sieve 13

4222_200_0566_3_DFU-Redesign_A5_v2.indd 13

Clean the water distribution disc and the rubber sealing ring with a moist cloth.

C Caution: Do not remove the rubber sealing ring and be careful not to damage the tab on the water distribution disc. Clean the water inlet on the machine with a moist cloth.

7 Descaling Scale builds up inside the machine during use. It is essential to descale the SENSEO® coffee machine when the CALC light goes on. Use SENSEO® Descaler (HD7012, HD7011, HD7006) only.

When to descale •• Descale the SENSEO® coffee machine as described below when the CALC light goes on (after you have brewed approx. 400 cups of SENSEO® coffee).

Why to descale Your reasons to descale: •• It prolongs the life of your SENSEO® coffee machine •• It ensures maximum cup volume •• It ensures maximum coffee temperature •• The machine produces less sound during brewing •• It prevents malfunctioning If the descaling procedure is not performed correctly, scale residue remains behind in the machine. This causes scale to build up more quickly and may cause permanent and irreparable damage to the machine. Use the correct descaling agent Use SENSEO® Descaler (HD7012, HD7011, HD7006) only. It has been developed to ensure better machine performance and operation. Each descaling mixture can be used only once. For more information about this descaler, visit our website www.philips.com. B Warning: Never use a descaling agent based on mineral acids such as sulphuric acid, hydrochloric acid, sulphamic acid and acetic acid (e.g. vinegar). These descaling agents may damage your SENSEO® coffee machine.

7.1 Descaling procedure

4222_200_0566_3_DFU-Redesign_A5_v2.indd 14

The descaling procedure consists of a descaling cycle and two flushing cycles. Do not interrupt the descaling cycle and do not switch off the machine before you have performed the two flushing cycles.

6/18/12 4:54 PM Mix 50 grams of citric acid with 1 litre of water in a measuring jug. Stir until the powder has dissolved. Fill the water reservoir with the descaling mixture.

Tilt the water reservoir and place the bottom back onto the machine (1). Then press the top of the water reservoir towards the machine (2).

D Note: Always put a used coffee pod in the pod holder when you descale the machine. This pod serves as a ‘filter’ to prevent the sieve or hole in the pod holder from getting clogged with scale residue.

Place the 1-cup pod holder q with a used coffee pod in it in the coffee machine. Close the lid and make sure it is properly locked.

B Warning: Make sure the lid is closed properly and the lid lever is locked before you start descaling. Remove the drip tray.

Press the on/off button 3. The on/off button flashes slowly while the water heats up. The machine is ready for descaling when the on/ off button lights up continuously.

Put a bowl with a capacity of at least 1.5 litres under the spout to collect the descaling mixture.

When the on/off button lights up continuously, press the 1-cup button q and the 2-cup button qq at the same time for 3 seconds until you hear a beep. Release the buttons as soon as their lights as well as the selected strength go out. This means that the descaling procedure has been activated correctly.

•• The CALC light and the on/off button start flashing to indicate that the descaling cycle is in progress. •• During the descaling cycle, the water comes out of the machine in intervals. •• When all the water in the water reservoir has been used up, the descaling cycle is finished. The on/off button starts to flash rapidly. D Note: If you press the 1-cup and 2-cup button longer than 3 seconds, the machine does not start the descaling cycle. If this happens, press the 1-cup button and the 2-cup button at the same time for 3 seconds again.

D Notes: Do not refill the water reservoir with used hot water or the used descaling mixture. Tilt the water reservoir and place the bottom back onto the machine (1). Then press the top of the water reservoir towards the machine (2).

Place the 1-cup pod holder q with a used coffee pod in it in the coffee machine. Close the lid and make sure it is properly locked.

Put a bowl with a capacity of at least 1.5 litres under the spout to collect the water.

7.2 Flushing after descaling 1

Rinse the water reservoir under the tap and then fill it to the top with fresh tap water. 1.5L

Press the 1-cup button q and the 2-cup button qq at the same time for 3 seconds until you hear a beep to start the flushing cycle.

Remove the used pod and clean the pod holder after the flushing cycle to prevent the sieve in the centre from getting clogged. Repeat steps 1 to 6 once more to ensure a clean machine. After the descaling cycle and the flushing cycles, the CALC light goes out and the machine switches off automatically.

8 Frost-free storage After you have flushed the machine for the first time (see chapter ‘Flushing the machine before first use’), it may only be used and stored in a frost-free place to prevent damage.

9 Ordering accessories To purchase accessories for this machine, please visit our online shop at www.shop.philips.com/service. If the online shop is not available in your country, go to your Philips dealer or a Philips service centre. If you have any difficulties obtaining accessories for your machine, please contact the Philips Consumer Care Centre in your country. You find its contact details in the worldwide guarantee leaflet.

10 Environment •• Do not throw away the machine with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

11 Guarantee and service If you need service or information or if you have a problem, please visit the Philips website at www.philips.com/support or contact the Philips Consumer Care Centre in your country.You find its phone number in the worldwide guarantee leaflet. If there is no Consumer Care Centre in your country, go to your local Philips dealer. The purchase of the Philips SENSEO® coffee machine does not exhaust any of the rights of Sara Lee/Douwe Egberts or Philips under any of their patents nor does it confer upon the purchaser a licence under these patents. Always return the machine to a service centre authorised by Philips for examination or repair. Do not attempt to repair the machine yourself, otherwise your guarantee becomes invalid.

4222_200_0566_3_DFU-Redesign_A5_v2.indd 17

12 Troubleshooting 12.1 SENSEO® coffee machine

This chapter summarises the most common problems you could encounter with the machine. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Centre in your country. Problem

My cup overflowed when I used the machine for the first time.

You probably tried to brew a cup of coffee without flushing the machine first. Before you start brewing coffee, you have to flush the machine. When you switch on the machine again, the on/off button either lights up continuously or flashes slowly or rapidly. If the on/off button lights up continuously, you have to carry out the flushing procedure (see chapter ‘Flushing the machine before first use’). If the on/off button flashes slowly or rapidly, you do NOT have to carry out the flushing procedure. If the on/off button flashes slowly, the water is heating up. If it flashes rapidly, there is not enough water in the water reservoir or the water reservoir is not placed on the machine properly. If water continued to flow from the spout until the water reservoir was empty, the machine was performing the flushing cycle. Before you start brewing coffee, you have to flush the machine. When you switch on the machine again, the on/off button either lights up continuously or flashes slowly or rapidly. If the on/off button lights up continuously, you have to carry out the flushing procedure (see chapter ‘Flushing the machine before first use’). If the on/off button flashes slowly or rapidly, you do NOT have to carry out the flushing procedure. If the on/off button flashes slowly, the water is heating up. If it flashes rapidly, there is not enough water in the water reservoir or the water reservoir is not placed on the machine properly. You have used the SENSEO® coffee machine at an altitude higher than 2200 metres above sea level. This has caused the water in the machine to start boiling before it has reached the required temperature, which prevents the machine from functioning properly. Switch off the machine and no longer use it at altitudes higher than 2200 metres above sea level. You have pressed the 1-cup button and the 2-cup button at the same time. This started the descaling cycle. If you did not intend to start the descaling cycle, simply press the on/off button to switch off the machine. If you did intend to start the descaling cycle, do not interrupt this cycle but let the appliance operate until the water reservoir is empty.

Water continued to flow from the spout when I used the machine for the first time.

The on/off button flashes slowly.

The CALC light flashes.

4222_200_0566_3_DFU-Redesign_A5_v2.indd 18

6/18/12 4:54 PM Solution

The CALC light does not go out after descaling.

The CALC light does not go out if the descaling procedure has not been performed correctly. To perform the descaling procedure correctly:

The on/off button continues to flash rapidly.

Water leaks from the coffee machine.

1. Make sure that you do not interrupt the descaling cycle or switch off or unplug the machine during the descaling cycle. During the descaling cycle, hot water comes out of the coffee spout at intervals and the machine stops descaling 3 to 4 times to let the descaling mixture act and to heat up again. 2. Make sure that you start the descaling cycle by pressing the 1-cup button and the 2-cup button at the same time. See chapter ‘Descaling’ for a complete description of the descaling procedure. 3. Make sure that you use three full water reservoirs to complete the descaling procedure: one reservoir filled with descaling mixture and two reservoirs filled with fresh water. Make sure that there is enough water in the water reservoir and that the water reservoir is placed properly. Make sure that the ambient temperature is not lower than 5°C. If it is, the machine does not function properly. If you notice coffee or water leaking from your SENSEO® machine, try to establish where the leakage occurs. This is important, as the location of the leakage determines the solution. 1. If the leakage occurs near the lid or the spout, make sure that: 1a. The sieve in the centre of the pod holder is not clogged. If it is, unclog the sieve by holding the pod holder under a running tap. 1b. The coffee pod has been put properly in the centre of the pod holder. 1c. The sealing ring has not got stuck under the edge of the water distribution disc (see figure 1 at the beginning of this user manual). 1d. The spout and the coffee collector have been placed correctly. 2. If the leakage occurs near the bottom of the water reservoir or under the machine, make sure that: 2a. There is not too much water in the water reservoir. 2b. You do not place the water reservoir onto the machine too roughly. If you place the water reservoir too roughly, water may splash out of the water reservoir. 2c. The water reservoir is not damaged or broken. Normally, water should not start to drip from the water outlet in the bottom of the water reservoir within 30 seconds after filling.

I cannot open the lid.

A vacuum may have temporarily formed under the lid. Switch off the machine. Pull up the lever and wait 24 hours before you open the lid.You may need to use quite some force. Make sure that you do not move the SENSEO® machine. Moving the machine, placing it outdoors or in a cool or cold environment does not accelerate the unlocking of the lid. For this not to happen again, always make sure that the pod holders are clean and that the sieve in the centre of the pod holders is not clogged. Perhaps the sieve in the centre of the pod holder is clogged. If this is the case, unclog the sieve by rinsing the pod holder under a running tap. Use a washing-up brush to clean the sieve, if necessary. Descale the machine (see chapter ‘Descaling’). Check if a used coffee pod is sticking to the water distribution disc. If this is the case, remove the used pod. Check if you used the correct pod holder. Use 2 pods in combination with the deeper 2-cup pod holder qq. Make sure that you have selected the coffee strength that you prefer. You can choose between regular and strong coffee. You can also increase or decrease the coffee strength by setting your preferred amount of coffee with the personal coffee memory function (HD7872 only). Make sure that you have used the correct number of pods and have pressed the right button. Use 2 pods in combination with the 2-cup pod holder qq and the 2-cup button qq. Make sure that you have placed the coffee pod or pods properly in the centre of the pod holder, to prevent water from escaping along the edge of the pod or pods. When you use two coffee pods on top of each other, make sure that the convex sides of both pods point downwards and press the pods lightly into the pod holder. Make sure that you have not used the same coffee pod twice by accident. Make sure that the coffee in the pod is evenly distributed. If you prefer a more robust flavour, SENSEO® coffee pods with a stronger blend are available.

The coffee machine produces less coffee than before. I cannot close the lid properly.

The SENSEO® coffee is not strong enough.

4222_200_0566_3_DFU-Redesign_A5_v2.indd 20

6/18/12 4:54 PM Solution

The coffee is not hot enough.

If you have used the machine for quite some time and the temperature of the coffee decreases, we advise you to descale the machine. See chapter ‘Descaling’. Descale your SENSEO® coffee machine regularly. Do not use cups that are too large, as they cause the coffee to get cold more quickly. Make sure that the cups have a capacity of at least 150ml. Use thin-walled cups. Thin-walled cups absorb less heat from the coffee than thick-walled cups. Make sure the size of the cup matches the amount of coffee. Do not brew a small amount of coffee in a large cup. If you drink coffee with fresh milk, preheat the milk in the cup in a microwave. You can preheat the coffee machine by first brewing a cup of coffee without placing a coffee pod in the pod holder. In this way you also heat up your coffee cup. If there is water on the touch panel, the buttons do not work. Make sure that the touch panel is dry and also make sure your hands are dry when you use the touch panel. Make sure that you press the selection button and not the symbols to the left of the selection button. This happens because the touch panel is very sensitive and the buttons only require a light touch to be activated. There is no problem when this happens, the machine will not start brewing coffee. Unplug the machine before you clean it. Please read section ‘Personal coffee memory’ in chapter ‘Brewing SENSEO® coffee’ and try to set the amount of coffee you prefer again.

The touch panel does not work.

I accidentally activate the touch panel when I clean it. HD7872 only: The personal coffee memory button does not produce the amount of coffee I prefer.

English Introduction Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

Important Read this important information carefully before you use the appliance and save it for future reference. Danger -- Do not immerse the base and the milk jug in water or any other liquid. Do not clean them in the dishwasher either. Warning -- Check if the voltage indicated on the appliance corresponds to the local mains voltage before you connect the appliance. -- Always disconnect the appliance from the mains if you leave it unattended and before you assemble, disassemble or clean it. -- Only connect the appliance to an earthed wall socket. -- Do not use the appliance if the plug, the mains cord or other parts are damaged. -- If the mains cord is damaged, you must have it replaced by Philips, a service centre authorised by Philips or similarly qualified persons in order to avoid a hazard.

-- This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. -- Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. -- Keep the appliance and its cord out of the reach of children aged less than 8 years. -- Children should be supervised to ensure that they do not play with the appliance. -- Do not let the mains cord hang over the edge of the table or worktop on which the appliance stands. -- Only use the appliance in combination with its original base. -- Do not let water or a moist cloth come into contact with the connectors on the base and on the underside of the milk jug. Caution -- Never use any accessories or parts from other manufacturers or that Philips does not specifically recommend. If you use such accessories or parts, your guarantee becomes invalid. -- Only use the appliance to heat up or froth milk. Do not use it to process any other ingredients. -- Do not exceed the maximum level indicated in the milk frother. If you overfill the milk frother, hot milk may escape from under the lid and cause scalding. -- Do not move the appliance while it is operating, to prevent hot milk from escaping from under the lid. -- Correct cleaning of the milk frother is very important for reliable performance and good frothing results. -- Always return the appliance to a service centre authorised by Philips for examination or repair. Do not attempt to repair the appliance yourself, otherwise your guarantee becomes invalid. -- Always place the base and the milk jug on a dry, flat and stable surface. -- Do not place the appliance on a hot surface and prevent the mains cord from coming into contact with hot surfaces. -- Never let the appliance operate unattended. -- Make sure that the appliance has switched off before you remove the milk jug from the base. -- Do not use the appliance in combination with a transformer, as this could cause hazardous situations. -- Never use scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance. -- This appliance is intended for normal household use only. It is not intended for use in environments such as staff kitchens of shops, offices, farms or other work environments. Nor is it intended to be used by clients in hotels, motels, bed and breakfasts and other residential environments. Compliance with standards

-- This Philips appliance complies with all standards regarding electromagnetic fields (EMF). Ordering accessories To buy accessories or spare parts, visit www.shop.philips.com/service or go to your Philips dealer.You can also contact the Philips Consumer Care Centre in your country (see the worldwide guarantee leaflet for contact details).

Environment -- Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment. (Fig. 1) Guarantee and support If you need information or support, please visit www.philips.com/ support or read the separate worldwide guarantee leaflet. Troubleshooting This chapter summarises the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Centre in your country. For all questions regarding the milk frother that you bought together with the SENSEO® machine, please contact the Consumer Care Centre in your country instead of your Philips dealer. Problem

The light in the button flashes but the appliance does not operate.

You just prepared hot frothed milk or hot milk and pressed the button for milk or hot frothed milk again straightaway without letting the appliance cool down. The temperature of the milk is too high. You have not placed the lid properly on the appliance. You did not attach the frothing coil to the coil holder. You used a type of milk that is not suitable for frothing.

If you want to prepare hot frothed milk or hot milk again straightaway, the milk jug needs to cool down for a few minutes before you can use it again. As long as the milk jug is still hot, the temperature limiter makes sure that the appliance cannot be operated.You can rinse the inside of the milk jug with cold water to let it cool down faster. Replace the warm milk with cold milk or let the appliance cool down.

The appliance does not froth.

Place the lid properly.

Attach the frothing coil to the coil holder. Fresh milk is not always consistent and many factors can influence the quality of the milk froth (like protein content). If the milk does not froth as you would like, try a different type or brand of milk. Use semi-skimmed cow’s milk at refrigerator temperature for the best frothing result. Clean the coil holder and the inside of the milk jug.

The inside of the milk jug is polluted with milk residues, which prevents the coil holder from rotating. The appliance is Put the mains plug in an earthed wall not plugged in. socket.

The button does not light up after I press it. Milk froth You put too much escapes milk in the milk jug. from under the lid. The milk This is normal. is not very hot. Not all milk has been frothed.

Do not fill the milk jug beyond the MAX indication. The milk is heated up to approx 74°C to ensure the best froth and taste. Milk proteins start to break down and burn if the milk is over heated. The appliance does not froth all the milk. The appliance created the optimal milkfroth ratio.The milk easily mixes with coffee or other beverages and the milk froth stays on top for a delicious head.

Rinse the milk jug, the lid and the frothing coil with hot water and dry all parts before you use the appliance for the first time. If you want to prepare hot frothed milk or hot milk again straightaway, the milk jug needs to cool down for a few minutes before you can use it again. You can also heat up milk without frothing it. In this case you do not need to use the frothing coil. For hot preparations press the button shortly, for cold milk froth keep the button pressed for 3 seconds.

Do not immerse the base and the milk jug in water or any other liquid. Do not clean them in the dishwasher either. Never use sharp objects, scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance. Do not remove the coil holder from the spindle as this may cause damage.

DANSK Introduktion Tillykke med dit køb og velkommen til Philips! For at få fuldt udbytte af den support, Philips tilbyder, skal du registrere dit produkt på www.philips.com/welcome.
