CA6501 - Electric kettle PHILIPS - Free user manual and instructions

Product type	Coffee machine with grinder
Brand	Philips
Model	CA6501
Capacity	6 cups (0.6 L)
Type of carafe	Thermos (insulated)
Interior material of the carafe	Glass
Grinder function	Built-in
Automatic shut-off	Yes, after 6 cups
Activity indicator	Flashing (1 to 6 times depending on number of cups)
Visual indicators	Water tank empty, bean container empty, grounds bin full
Recommended cleaning	Warm soapy water
Dishwasher safe	No (carafe)
Microwave safe	No (carafe)
Usage precautions	Do not use if carafe is cracked; do not add ice cubes
Preheating recommended	Rinse carafe with hot water before use
Storage	Carafe dried, without lid
Usage	Automatic preparation in 5 cycles (6 cups)

Frequently Asked Questions - CA6501 PHILIPS

How to clean the thermos carafe of the Philips CA6501?

Clean the carafe with warm soapy water by hand. Rinse thoroughly with hot water and let dry. Do not put it in the dishwasher and do not use abrasive products.

Can I use the carafe in the microwave?

No, never put the carafe in the microwave. The carafe contains metal parts and could be damaged or cause sparks.

What to do if the 'Grounds bin full' indicator lights up during preparation?

Empty the coffee grounds bin and clean it. Then press the carafe button to resume the preparation cycle.

How to properly prepare 6 cups of coffee?

Make sure the water tank is filled to the MAX level and the bean container has enough beans (visible above the matte part). Place the carafe on the plate, the lid in 'Closed/Preparation' position, then press the carafe button. The machine grinds and automatically prepares 6 cups.

The preparation stops before 6 cups, what to check?

Check the indicators: if 'Water tank empty' is lit, fill with water. If 'Bean container empty' is lit, add beans. If 'Grounds bin full' is lit, empty the bin. Then press the carafe button to finish the cycle.

How to pour coffee without burning yourself?

Turn the lid of the carafe to the 'Pour' position (arrow on the handle pointing to the Pour symbol). After pouring, immediately return the lid to the 'Closed/Preparation' position to keep the coffee hot.

Can I put ice cubes in the carafe?

No, never put ice cubes or other solid objects in the carafe because the glass interior is fragile and could break.

How to prevent the coffee from cooling too quickly?

Before making coffee, rinse the carafe with hot water to preheat it. After pouring, always close the lid in the 'Closed/Preparation' position.

The carafe fell, is it dangerous?

If the carafe has fallen, do not use the contents because the inner glass wall could be cracked without visible signs. Discard the coffee and inspect the carafe. Do not use it if it is damaged.

How to store the carafe after use?

Let the carafe dry completely after cleaning, then store it without its lid to avoid odors.

USER MANUAL CA6501 PHILIPS

Register your product and get support at

www.philips.com/welcome

CA6501/00

PHILIPS

ENGLISH 4

NEDERLANDS 8

FRANÇAIS 12

4 ENGLISH

Introduction

Congratulations on your purchase and welcome to Philips! Go to www.philips.com for more information.

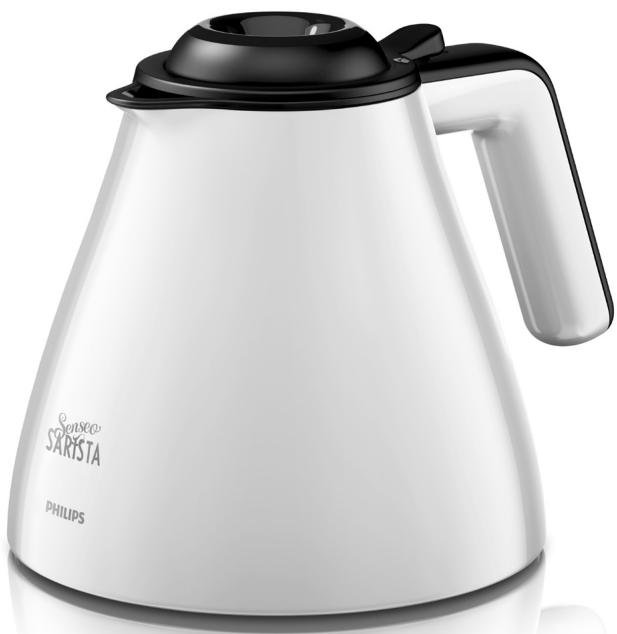

This thermo jug has a capacity of 6 cups of coffee (equivalent to 0.6 litres).

Caution

• The jug is not dishwasher-proof.
• Do not use aggressive cleaning agents, solvents or chemicals to clean the jug.
• Never use the jug in a microwave oven.
• Never immerse the jug in water or any other liquid, as this could cause water to enter between the walls of the jug.
• Keep the jug away from heat sources to prevent damage.
• To prevent scalding, always pour contents into a cup and do not drink directly from the jug.
• The inside of the jug is breakable because it is made of glass. Do not put ice cubes or other solid objects in the jug.
• Always check the inside of the jug before use. If you detect any cracks or damage, do not use the jug.
• Be careful not to drop the jug. If the jug has fallen while full, do not pour out the contents to prevent injury. The inner wall of the jug may be broken due to the fall.

Use and care

• Always clean the jug with warm water and some washing-up liquid before first use.
• If you have not used the jug for a while, rinse it with warm water to remove any odour.
• To keep the coffee hot longer, rinse the jug with hot water to preheat it before you start brewing coffee.
• Do not overfill the jug.

Cleaning

• Clean the jug with warm water and some washing-up liquid. Rinse the jug with warm water and leave it to drain. Store the jug without the lid on.
• Do not clean the jug in the dishwasher.

Using the jug

1 Before you brew a jug of coffee, check if the water tank is filled to the MAX indication. If necessary, fill the water tank with water. 2 Make sure that the bean-pack is attached properly and contains enough beans to brew a jug of coffee. The coffee beans have to be visible above the matt section of the bean-pack. If this is not the case, there are not enough coffee beans in the bean-pack to brew six cups of coffee. Replace the bean-pack with a full one or one that contains enough coffee beans.

3 Remove the detachable coffee spout, if present. Always empty the coffee grounds container and the drip tray before you start brewing a jug of coffee.

Note: If you do not empty the coffee grounds container, the 'coffee grounds container full' light may go on and the coffeemaker may stop during brewing. Empty the coffee grounds container and press the jug button to continue brewing coffee.

4 Turn the lid of the jug by its lever to the 'closed/brewing' position. In this position, the arrowhead on the jug handle points to the 'closed/brewing' symbol on the jug lid.

5 Place the jug on the drip tray. The jug does not have to be in central position.

6 Press the jug button. The coffeemaker grinds the required amount of coffee beans for the first cup of coffee and then brews coffee into the jug. The coffeemaker grinds coffee beans and brews five more times to fill the jug. The activity light flashes once when the beans for the first cup are ground, twice when the beans for the second cup are ground etc. When the beans for the sixth cup are ground, the activity light flashes six times. The coffeemaker automatically stops after brewing the sixth cup and the activity light lights up continuously.

7 To pour out coffee, turn the lid to the 'pour' position. In this position, the arrowhead on the jug handle points to the 'pour' symbol on the jug lid. To keep the coffee hot, always turn the lid to the 'closed/brewing' position immediately after pouring out coffee. 8 If the coffeemaker stops brewing before the sixth cup, check if the 'water tank empty' light, the 'bean-pack empty' light or the 'coffee grounds container full' light is on. If the 'water tank empty' light is on, refill the water tank. If the 'bean-pack empty' light is on, replace the empty bean-pack with a full one. If the 'coffee grounds full container' light is on, empty and clean the coffee grounds container. Then press the jug button to complete the brewing cycle.
