USER MANUAL RC100 Rival

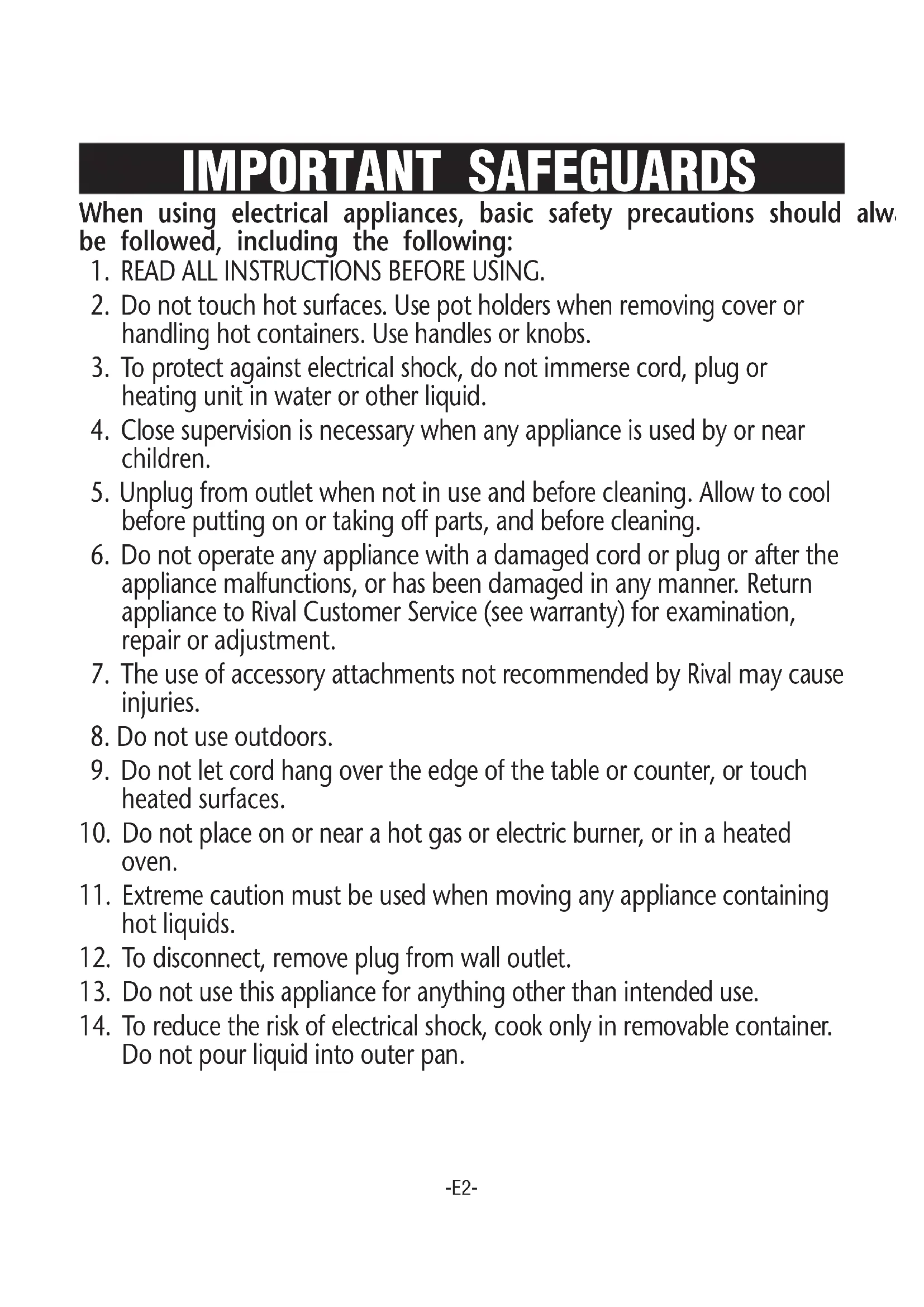

IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed, including the following:

1. READ ALL INSTRUCTIONS BEFORE USING.

2. Do not touch hot surfaces. Use pot holders when removing cover or

handling hot containers. Use handles or knobs.

3. To protect against electrical shock, do not immerse cord, plug or

heating unit in water or other liquid.

4. Close supervision is necessary when any appliance is used by or near

5. Unplug from outlet when not in use and before cleaning. Allow to cool

before putting on or taking off parts, and before cleaning.

6. Do not operate any appliance with a damaged cord or plug or after the

appliance malfunctions, or has been damaged in any manner. Return appliance to Rival Customer Service (see warranty) for examination, repair or adjustment.

7. The use of accessory attachments not recommended by Rival may cause

8. Do not use outdoors.

9. Do not let cord hang over the edge of the table or counter, or touch

10. Do not place on or near a hot gas or electric burner, or in a heated

11. Extreme caution must be used when moving any appliance containing

12. To disconnect, remove plug from wall outlet.

13. Do not use this appliance for anything other than intended use.

14. To reduce the risk of electrical shock, cook only in removable container.

Do not pour liquid into outer pan.SAVE THESE INSTRUCTIONS This appliance is for HOUSEHOLD USE ONLY. No user-serviceable parts inside. Power Unit never needs lubrication. Do not attempt to service this product. A short power supply cord is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord. An extension cord may be used if care is exercised in its use. If an extension cord is used the marked electrical rating of the extension cord should be at least as great as the electrical rating of the RICE COOKER. The cord should be arranged so that it will not drape over the countertop or table top where it can be pulled on by children or tripped over unintentionally. Do not immerse base in water or other liquids. No liability can be accepted for any damage caused by non-compliance with these instructions or any other improper use or mishandling. -E3- Congratulations on the purchase of your new RICE COOKER! You are now the proud owner of an extremely versatile appliance. You can expect perfect rice every time as well as prepare great soups and stews, steam vegetables and even bake a cake! Be sure to visit the Rival web site at www.rivalproducts.com for more about your RICE COOKER and the many different ways you can use it! POLARIZED PLUG This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way. If the plug fits loosely into the AC outlet or if the AC outlet feels warm do not use that outlet.ADDITIONAL IMPORTANT SAFEGUARDS

• CAUTION: This appliance generates heat and escaping steam during use. Proper precautions must be taken to prevent risk of burns, fires or other damage to persons or property.

• All users of this appliance must read and understand this OWNER’S MANUAL before operating or cleaning this appliance.

• The cord of this appliance should be plugged into a 120 volt AC electrical outlet only.

• When using this appliance, provide adequate air space above and on all sides for air circulation. Do not allow this appliance to touch curtains, wall coverings, clothing, dishtowels or other flammable materials during use.

• Do not leave appliance unattended during use.

• This appliance generates steam. Do not operate uncovered.

• If this appliance begins to malfunction during use, immediately unplug the cord. Do not use or attempt to repair the malfunctioning appliance. Do not use the INNER POT or LID if cracked or chipped.

• This appliance is for household use only.

• Unplug the RICE COOKER when not in use.

• Use the RICE COOKER on a hard, flat surface. Do not place near heat, an open flame or on a soft surface (such as carpeting). Avoid placing it where it may tip over during use. Dropping the RICE COOKER may cause it to malfunction.

• Avoid electrical shock by unplugging before washing or adding water.

• To avoid burns, stay clear of the steam vent during cooking. Also, wait for the RICE COOKER to cool down completely before touching or cleaning the LID, INNER POT or HEATING PLATE.

• Never use the INNER POT on a gas or electric cooktop or an open flame.

• Do not leave the RICE LADLE or MEASURING CUP in the INNER POT while unit is on and in use.

• Please use measuring cup that was provided in the RICE COOKER. A standard measuring cup SHOULD NOT BE USED.

Clean the LID, INNER POT, RICE LADLE and MEASURING CUP, following the user maintenance instructions. DO NOT IMMERSE THE HEATING UNIT OF YOUR RICE COOKER IN WATER OR OTHER LIQUID. -E5- KNOB LID STEAMING BASKET INNER POT HANDLES

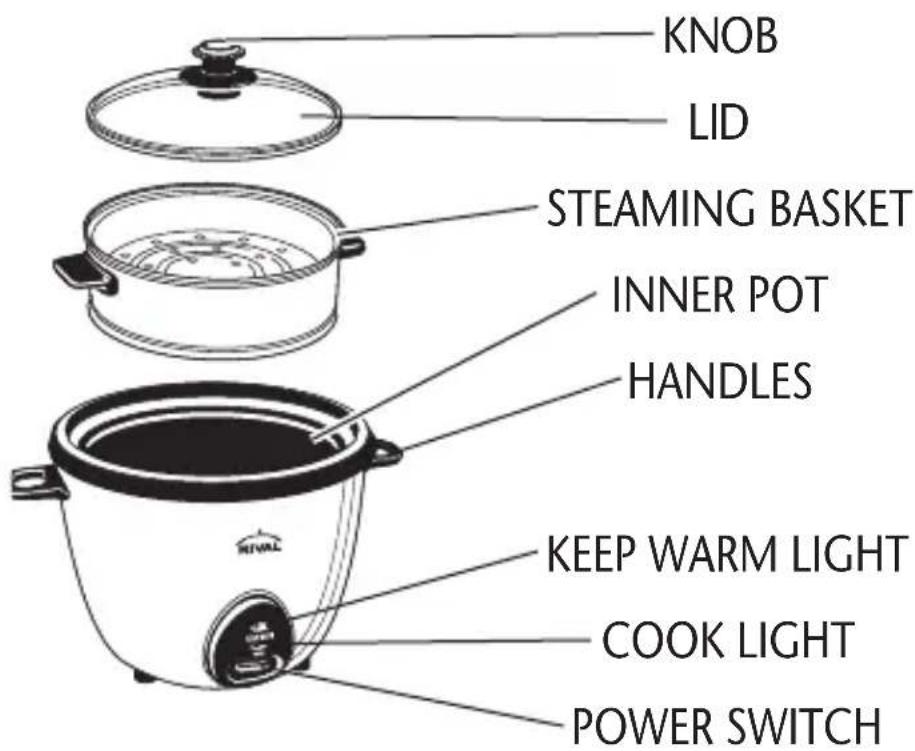

COOK LIGHT POWER SWITCHMeasuring your rice is of extreme importance. Please do not discard the "rice cooker" measuring cup that is provided with this unit. This "rice cooker" measuring cup is the standard unit of measurement for this product. When this manual instructs you to add 5 cups of rice and add the corresponding amount of water to the "5" marking on the INNER BOWL, the instructions are referring to the "rice cooker" measuring cup that is included, not a standard U.S. measuring cup.

Measure the amount of rice you would like to cook. A 3/4 cup (180 ml) measuring cup is included with your rice cooker. The "rice cooker" measuring cup makes approximately 2 1/4 cups of cooked rice. NOTE: The rice cooker is capable of cooking up to 5 full "rice cooker" measuring cups of uncooked rice. Many varieties of rice can be used, including basmati, wild rice, black rice, Arborio, risotto, saffron rice, short and long grain. Do not use instant rice with this rice cooker. Whole grains such as barley can also be prepared with the rice cooker.

Wash the measured rice in a separate bowl until water is clear.

Place rice in the INNER POT and add the corresponding amount of water. For example, if you are making 5 cups of uncooked rice, add water to the "5" mark on the inner bowl. NOTE: Brown rice will take longer to cook than white rice.

Set the INNER POT into the RICE COOKER. Make sure that the INNER POT is in direct contact with the heating plate by turning it slightly from left to right until it properly fits onto the heating plate. NOTE: If the outside of the INNER POT is wet when placed in the rice cooker, this may cause a crackling noise until the unit heats up. Also, this may damage the inner working of the appliance, so always wipe the outside of the pot completely before use.

-E6-• Rinse rice – Bran gives an unpleasant smell to cooked rice. Be sure to rinse rice thoroughly. Rinsing with water effectively removes bran quickly and thoroughly. NOTE: Some rice suppliers suggest not rinsing rice because vitamins may be lost.

After use, wash the INNER POT and LID in warm, soapy water.

Rinse thoroughly and dry.

DO NOT keep the rice cooker in operation: When there is only a small amount of rice left in the POT. When rice ladle is inside the rice cooker. To warm up cold rice.

• DO NOT let water in the INNER POT boil dry.

WARNING: Do not operate this appliance uncovered – steam is

generated during use that could cause burns or other serious injury.

Plug the cord into a 120-volt AC electrical outlet. Switch the rice cooker ON by pushing the button down. Make sure the COOK indicator light is illuminated. Steaming will begin shortly.

The switch will pop up and the KEEP WARM indicator light will come on when all the water in the RICE COOKER has evaporated. NOTE: You may need to add more water and set the rice cooker to COOK more than once depending on your own personal tastes.

After cooking, the KEEP WARM indicator light will illuminate. It is important to let the rice stand for 10-15 minutes of steaming without removing the LID. Carefully open the LID, taking care to avoid escaping steam. Use the RICE LADLE, or other long handled utensil, to mix the rice well to allow steam to escape. CAUTION: Steam will escape. Do not touch the INNER POT or heating unit until they have cooled.

Allow the appliance to cool completely before cleaning.

Disconnect the plug from the wall outlet when not in use. HOW TO USE YOUR RICE COOKER (CONTINUED) COOKING HINTS -E7-1. Clean and prepare your food or vegetables.

Place the INNER POT in the rice cooker. The length of steaming time is subject to your own personal tastes: depending if you prefer al denté (crunchy) or more well done steamed vegetables.

Measure appropriate amount of water and add to INNER POT. NOTE: You are able to steam rice and vegetables/food at the same time with the STEAMING BASKET resting on the INNER POT.

Place the STEAMING BASKET on the rim of the inner pot.

Add vegetables or food and put the LID onto the appliance. Switch to COOK position for the appropriate time as shown in the chart.

Please unplug this appliance after use.

HOW TO USE YOUR STEAMING BASKET

-E8-The steaming times in this chart are a guide and should be adjusted to suit the different quantities or thickness of food and to suit your own taste. *Altitude affects the temperature at which water boils and thus the cooking time. It’s especially true at high altitudes where longer cooking times are necessary. We have outlined a general guide to follow. Test for desired consistency when cooking times indicated have been reached. As you cook with this appliance, adapt times and measurements to your own personal tastes. -E9- STEAMING TIME

1. The ingredients must be of superior excellence.

2. Select lean cuts of meat that will result in tender food and require

less cooking time.-E10-

HOW TO CLEAN YOUR RICE COOKER

3. Make sure that the LID is secured on the rice cooker to prevent

escaping steam and requires longer cooking time.

4. DO NOT let food touch the water, or the food will boil not steam.

5. Always maintain the water level for continuous cooking.

6. Continue cooking foods that haven't been cooked through or not

cooked to your liking. This appliance should be cleaned after every use.

Unplug the rice cooker when not in use and before cleaning. Never immerse HEATING UNIT, cord or plug in water or any other liquids. Allow the RICE COOKER to cool completely before cleaning. NOTE: Use the RICE LADLE or wooden utensil to stir and remove food from the INNER POT. DO NOT use any metal utensils.

To clean the HEATING UNIT, lightly wipe the exterior with a damp cloth or sponge. Dry thoroughly with a soft cloth.

The INNER POT is coated with a non-stick coating to make clean up easier. To clean, remove the INNER POT from the rice cooker and fill with hot water from the tap. Let it sit for a while and then wash with hot soapy water. Rinse thoroughly and dry.

The "rice cooker" measuring cup, rice ladle and Lid can be washed in warm, soapy water. They are not dishwasher safe.

Make sure that the grains of rice do not stick to the heating plate in the bottom of the heating unit. If this occurs, remove immediately. If grains of rice are stuck onto the heating plate, a non-abrasive pad can be used to remove it. Polish the area for good contact between the heating plate, and the bottom of the INNER POT. NOTE: Do not use abrasive cleaners, scouring pads or steel wool to clean the RICE COOKER.

Do not use bleach, vinegar or other harsh chemicals to clean the RICE COOKER.

2 Tablespoons olive oil 3 large shallots, peeled and chopped 1 cup Arborio rice (short grain) 2 cups squash, peeled, seeded and cubed 3 cups chicken broth 1/4 cup Pecorino Romano cheese 1/2 coarsely chopped flat leaf parsley Salt and pepper to taste Saute shallots in olive oil on COOK for 2-5 minutes or until translucent. Add rice, stirring to coat and sauté for an additional 5 minutes. Stir in squash and stock. Place lid on unit and cook until cycle is completed, about 25 minutes. Season to taste with salt and pepper. To serve, garnish with cheese and parsley. Serves 4.

SPICY SPANISH SAFFRON RICE

A lively vegetarian medley of vegetables and spices. 3 T. olive oil 2 jalepenos, seeded and diced fine 1 large red Spanish onion 1 green pepper, cored, seeded and diced 3 cloves garlic 1 T. fresh oregano, chopped 1 T. fresh thyme 1 yellow summer squash, diced 1 red pepper, cored, seeded and diced 12 oz. canned plum tomatoes, juiced strained and

1/2 cups Arborio rice (short grain) chopped

3/4 cups chicken broth 1/4 teaspoon saffron dissolved in 1 T. milk 1/2 cup frozen peas Salt and pepper Saute onion and jalepenos in olive oil until softened, about 10 minutes on COOK of Rice Cooker. Stir in garlic, herbs, yellow squash, red pepper, green pepper and tomatoes and cook with lid on for 10 minutes. Add rice, broth and saffron milk and stir to combine. Place lid on unit and cook until cycle is complete. Stir in peas, salt and pepper and leave on WARM until peas are thoroughly warm throughout. Serves 4. -E11-RECIPES

GRITS WITH HAM AND CHEDDAR

This is a wonderful Southern dish, great for a special brunch. 1 cup grits 3 cups water 2 tablespoons butter 3/4 cup shredded cheddar 1 cup chopped ham or Canadian bacon Salt and pepper Add water, grits and 1/2 tsp salt to Rice Cooker. Place cover on unit and place on COOK, stirring occasionally. When cycle is complete, place unit on a second full cycle and continue to stir occasionally or every 5-10 minutes. After 10 minutes into second cycle, add butter, ham and cheese and season with salt and pepper.

OATMEAL WITH PEACHES AND CREAM

2 cups quick oats 3 1/2 cups water 1/4 tsp. salt (optional) 4 fresh peaches, pitted and sliced 1 cup cream or milk 1 tsp. cinnamon Place oats, water and salt in Rice Cooker, stir to incorporate. Place on COOK. When cycle is complete, spoon into individual serving bowls and top with peaches, cream and cinnamon. -E12-RECIPES

SICILIAN SPAGHETTI SQUASH

It is an old Italian wives tale that cutting basil with a knife will send bad luck! A wonderful alternative to pasta.

1/2 T. extra virgin olive oil 1 whole bulb garlic, peeled and coarsely chopped 1 28 oz. can plum tomatoes, 1 T. sugar with juices and chopped 1 bunch fresh basil, torn Salt and pepper to taste 2 1/2 lbs spaghetti squash, halved, seeded and 1/2 cup Pecorino Romano cheese fibrous strings removed Saute garlic in olive oil on COOK until fragrant, 2-5 minutes. Add tomatoes and sugar and Cook until heated through and sugar is dissolved. Remove to a separate bowl and add basil and salt and pepper to taste. Wash bowl and replace in unit. Pour water into bowl until it is approximately 1/4

1/3 filled. Add steamer basket and add squash, centers facing down. Replace lid and steam on COOK until tender, about 30 minutes. Remove strands of squash with a spoon until only the skin remains. Discard skin. Top with sauce and cheese. Serves 2. SALMON WITH CITRUS MARINADE WITH COCONUT RICE

1/2 cups jasmine rice 2 cans unsweetened coconut milk 1/4 cup water pinch salt Cooking spray 4 salmon steaks, approximately 6 oz. 1/2 lemon, zested and juiced 1/2 orange, zested and juiced

1/2 inch fresh ginger root, peeled and grated 1 T. soy sauce Salt to taste Place rice, coconut milk, water and rice into rice bowl. Spray steamer basket with cooking spray and arrange salmon. In a separate bowl, combine orange zest and juice, lemon zest and juice, ginger, and soy sauce. Brush both sides of salmon. Place cover on unit. Turn Rice Cooker to COOK. Every 5 minutes, baste top of fish with marinade. At end of cycle, test rice and cut into salmon to see if opaque. Serves 4. -E13--E14- RECIPES STEAMED RED SNAPPER WITH GINGER AND SCALLIONS 1 whole red snapper, approximately 2 1/2 lbs, 2 T. soy sauce diagonally scored on both sides 1 T. brown sugar 6 drops sesame oil 3 cloves garlic, peeled and sliced thinly 1 6 inch piece ginger root, finely julienned 6 scallions, julienned 1 small bunch fresh cilantro, stemmed In saucepan, simmer soy sauce, brown sugar and sesame oil until sugar dissolves and sauce becomes a syrupy glaze. Spray steamer basket with cooking spray. Pour water into rice bowl until it reaches 1/4 up the sides of the bowl. When water comes to a boil, place fish in basket and baste with glaze, inside and out. Place garlic, ginger and scallions into center cavity of fish. Place cover on unit and set to COOK for approximately 20 minutes. Fish is done when flesh is opaque and firm to the touch. Garnish with fresh cilantro sprigs. Serves 2-4.

WARM CINNAMON APPLESAUCE

This recipe is a great project in the fall when apples are plentiful and the air is crisp. 8 large apples, peeled, cored and chopped 1/2 cup cider 1/3 cup sugar 1 1/2 tsp. cinnamon 3 T. unsalted butter Add all ingredients to the rice bowl. Place cover on unit and set on the COOK. When cycle is complete, check to see if apples are tender. Add additional cook time if needed. Puree with hand blender or food processor. Serves 6.NOTES -E15-RC100/101/9100410000113 Printed in China RC100/10105EFM1 SERVICE INSTRUCTIONS 1. Do NOT attempt to repair or adjust any electrical or mechanical functions on this unit. Doing so will void the Warranty. 2. If you need to exchange the unit, please return it in its original carton, with a sales receipt, to the store where you purchased it. If you are returning the unit more than 30 days after the date of purchase, please see the enclosed Warranty. 3. If you have any questions or comments regarding this unit’s operation or believe any repair is necessary, please write to our Consumer Service Department or visit our website at www.rivalproducts.com RIVAL c/o THE HOLMES GROUP, INC.

A. This Warranty applies only to the original purchaser of this product. B. This Warranty applies ONLY to repair or replacement of any supplied or manufactured parts of this product that, upon inspection by The Holmes Group, Inc. authorized personnel, is shown to have failed in normal use due to defects in material or workmanship. The Holmes Group will determine whether to repair or replace the unit. This Warranty does not apply to installation expenses. C. Operating this unit under conditions other than those recommended or at voltages other than the voltage indicated on the unit, or attempting to service or modify the unit, will render this WARRANTY VOID. D. Unless otherwise proscribed by law, The Holmes Group shall not be liable for any personal injury, property or any incidental or consequential damage of any kind resulting from malfunctions, defects, misuse, improper installation or alteration of this product. E. All parts of this product are guaranteed for a period of 1 year as follows:

1. Within the first 30 days from date of purchase, the store from which you purchased your product should

replace this product if it is defective in material or workmanship (provided the store has in-stock replacement.) * If you intend to assert any claim in connection with the product, please follow the instructions in paragraph F.

2. Within the first twelve months from date of purchase, The Holmes Group will repair or replace the product if

it is defective in material or workmanship, subject to the conditions in paragraph G. F. If you have any other problem or claim in connection with this product, please write to our Consumer Service Department. G. IMPORTANT RETURN INSTRUCTIONS. Your Warranty depends on your following these instructions if you are returning the unit to The Holmes Group, Inc.:

1. Carefully pack the item in its original carton or other suitable box to avoid damage in shipping.

2. Before packing your unit for return, be sure to enclose:

a) Your name, full address with zip code and telephone number, b) A dated sales receipt or PROOF OF PURCHASE, c) A check for return prepaid shipping and handling, and d) The model number of the unit and the problem you are having. (Enclose in an envelope and tape directly to the unit before the box is sealed.)

3. The Holmes Group recommends you ship the package U.P.S ground service for tracking purposes.

4. All shipping charges must be prepaid by you.

5. Mark the outside of your package:

RIVAL c/o THE HOLMES GROUP, INC. 13052 JURUPA AVENUE FONTANA, CA 92337 This Warranty gives you specific legal rights, and you may have other rights which vary from state to state. The provisions of this Warranty are in addition to, and not a modification of, or subtraction from, the statutory warranties and other rights and remedies contained in any applicable legislation. To the extent that any provision of this Warranty is inconsistent with any applicable law, such provision shall be deemed voided or amended, as necessary, to comply with such law.RC100 RC101 Cuit-riz Notice D’emploi
