USER MANUAL DH05 Duronic

The Duronic Mini Dehumidifier uses "Peltier" technology to function (no compressor), and this makes it light, easy to use and quiet. It is perfect for small rooms or office spaces. Poor ventilation in rooms may cause musty odour and fungus in wardrobes, larder, and the Duronic Mini Dehumidifier eliminates this problem by keeping the room free of unwanted moisture.

1. On/Off button
2. 'On' Green LED
3. 'Full' Yellow LED
4. Air inlet
5. Removable water tank
6. Dry air outlet
7. DC power socket
8. Rubber feet
9. AC/DC switching mode power supply
10. DC power jack
11. AC plug with power cord (plug type is subject to market)
12. Water displacement hole
13. Water tank

14. Float switch

15. To avoid electric shock, do not open to reveal inside compartment. There are no user-friendly parts inside.

16. Any repair work must be done by a qualified technician appointed by our distributors.
17. Specifications are subject to change for improvement without prior notice.

Specifications

Capacity: Approx. 250ml per day at 30^ , 80% RH

Cooling element: Therm-electric Peltier module

Fan: 80mmx80mm DC Brushless motor

Power Adapter: 9V DC 2.5Amp

Power Consumption: 22.5W

Removeable Water Tank: 500ml

Water Level Detector: Automatic switch off with 'Yellow' LED indicator when water tank is full

Drying Feature: Warm air outlet on top for drying purposes

Product Dimension: 155mm (W) × 220mm(H) x 130 (D)

Working Environment: Over 15^ , over 40% RH

Connection

1. After removing the packaging materials, there should be 2 items:

a. Small dehumidifier

b. AC/DC Power adaptor

1. Plug the DC power jack (10) of AC/DC power adaptor to the DC power socket (7), then connect the AC plug (11) of the AC/DC power adaptor to the appropriate main socket.

Press the ON/OFF button (1) to ON position. The green LED will turn on. The small dehumidifier will begin to operate. You should be able to feel the air blowing from the dry air outlet (6) [as fig-1].

To switch off the unit, press the ON/OFF button (1) to OFF position.

Fig.1 Fig.2

Removable Water Tank

When the water tank is full with approx. 500ml of water, the unit will be switched off automatically and the yellow LED (3) will be on [as fig-3].

Fig.3

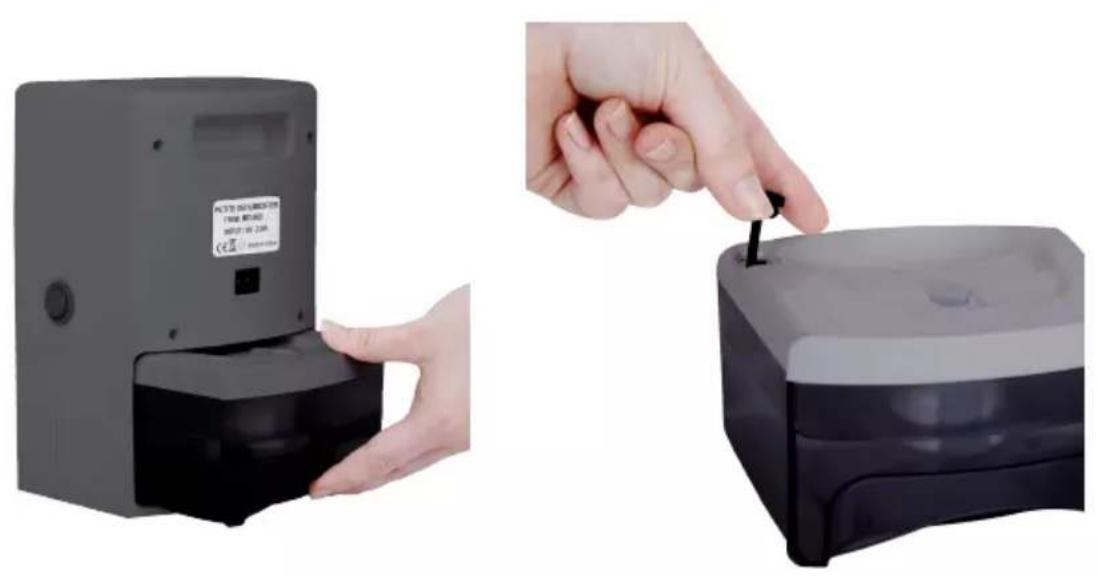

To remove the water tank (13), first switch off the dehumidifier. Press the ON/OFF button to OFF position.

Then, remove the water tank from the unit and pour the water out into a sink, or other drainage system. Put the water tank back into the unit. To continue dehumidifying, push the ON/OFF button to ON position.

Cleaning

Before cleaning the unit, turn off the dehumidifier and unplug the AC plug from the main socket first. Use a piece of soft cloth to clean the surface of the product or use a brush to wipe the dust off the grills of the air input (4). You should clear the dry air outlet (6) from time to time [as fig-4].

Warranty

1 Year Guarantee from Shine-Mart Ltd, Trademark owners of Duronic Products. NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY RIGHTS AS A CONSUMER

This product has been manufactured under the strictest or quality control procedures, and using the highest quality of materials, to ensure excellent performance and reliability. It will give very good and long lasting service, provided it is properly used and maintained. The product is guaranteed for 1 years from the date of original purchase. If any defect arises due to a faulty materials or poor workmanship, the faulty product must be returned to the original place of purchase. Refund or replacement is at the discretion of that company. Duronic Products are offered with a 1 year guarantee under the following conditions:

1. The product must be returned to the retailer with original proof of purchase.
2. The product must be installed and used in accordance with the instructions contained i n this operating manual.
3. It must be used only for domestic purposes.
4. It does not cover wear and tear, malicious damage, misuse, neglect, inexpert repairs or consumable parts.
5. Shine-Mart Ltd has no responsibilities for accidental or consequential loss or damage.
6. Shine-Mart Ltd are not liable to carry out any type of servicing work, under the guarantee
7. Valid in the UK only

This product is fitted with CE:1363 plug and fuse. Imported by Shine-Mart Ltd, RM3 8SB

Information on waste Disposal for Consumers of Electrical & Electronic Equipment.

This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste Electrical & Electronic Equipment, (WEEE).

Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.

For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local Authority Civic waste site,

where it will be accepted free of charge.

If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain.
