JE10 - Juicer Duronic - Free user manual and instructions

Frequently Asked Questions - JE10 Duronic

USER MANUAL JE10 Duronic

Creative Consumer Electronics

Exterior view of a DURONIC coffee maker with control panel and matching mug (no visible text or symbols)

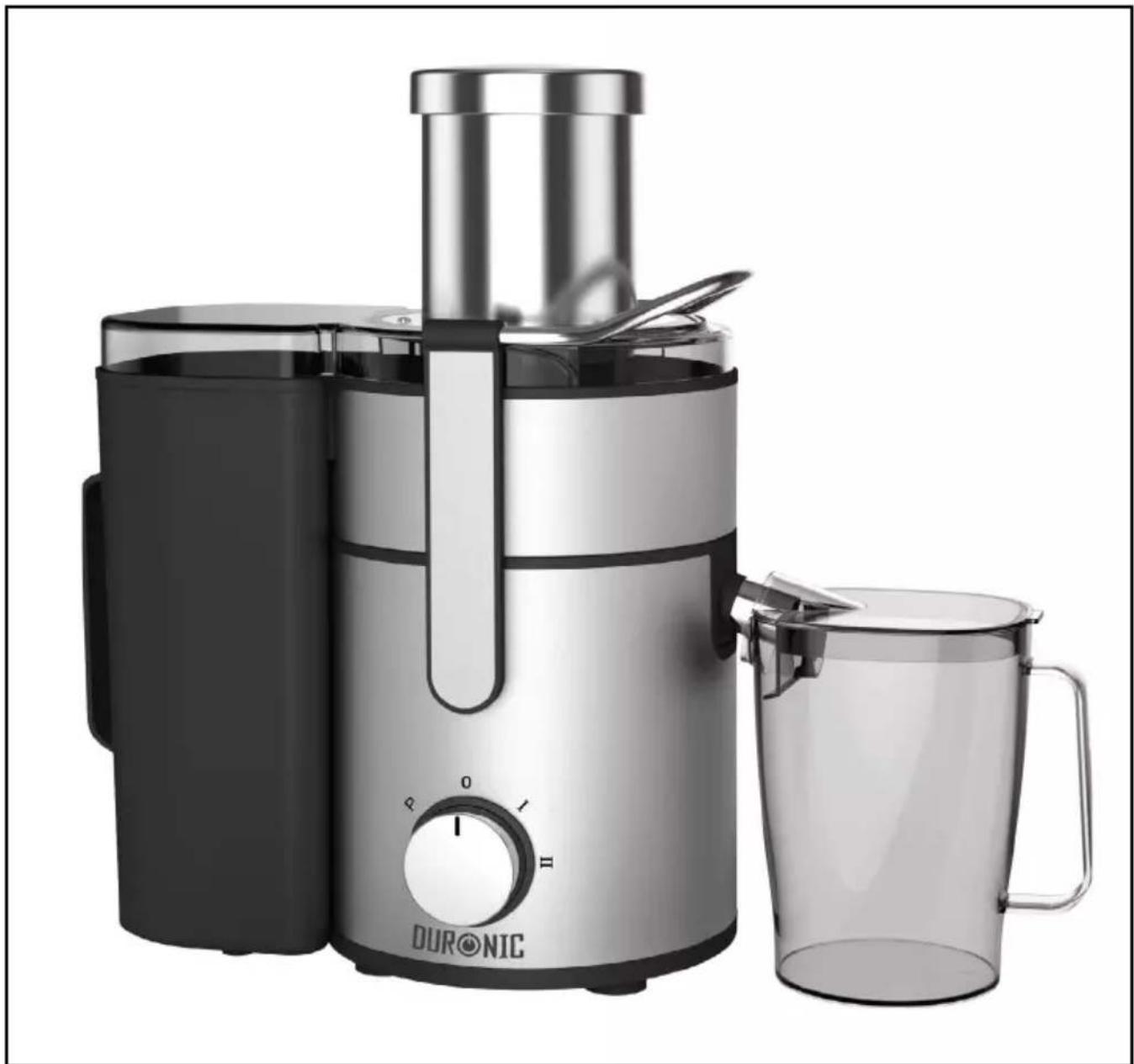

Whole Fruit Juicer - JE10

DURONIC

Contents

English Manual 5

Diagram of a food cleaning machine with numbered parts for identification and assembly reference.

1. Food Pusher
2. Transparent cover
3. Juicing sleeve

4. Middle ring

5. Handle

6. Pulp container
7. Main machine
8. Juice container

DURONIC

Performances

1. As the nozzle of this juicer is large in diameter, the user may use whole fruits such as apples or pears in their entirety for quick and easy juicing, without having cut the fruit beforehand.
2. This structural complex of this juicer has been designed for simplicity, allowing the user to operate the machine with ease.
3. A high speed electric motor with overheating protection is installed for high efficiency, time saving, and energy saving, prolonging the machines lifespan.
4. A safety lock is installed for added protection when the user is operating this machine.

Help & Guidance

1. This machine is equipped with a safety lock. Therefore when the handle does not fasten the cover, the motor cannot turn. This feature was installed for safety of the user.
2. When disassembling the juicing sieve, first remove the cover and waste barrel and then you may be able to pull out the juicing sieve from the rotor.
3. In order to avoid damage, please check power supply for compliance with rated voltage.
4. Please empty juicing sieve frequently when juicing, to avoid leakage.

Juicing

1. Please make sure the juicer is fully assembled correctly, in order to avoid damage to both the machine and user.
2. Before juicing, make sure the juicing sieve and rotor is clutched in position and nothing is blocking the juicing sieve and transparent cover. Put the transparent cover on, push the locking handle into the cover slot and then turn on the machine.
3. Turn on power supply and switch the machine on to let it run unloaded for 5 seconds. Place prepared vegetables or fruits into feed port of the juicer, press down evenly and slowly with the pushing bar.
4. Please press down gently in order to attain maximum juice. Too much pressure will result in less juice due to the fruit/veg being harshly forced through the sieve.

Food Preparation

1. The best result will be obtained if you juice really fresh produce, as foods which have been stored for any period of time will contain less juice.
   As a general guideline, you do not need to peel any fruit or vegetables which have skin you would normally eat. However, we do recommend washing all food before it is juiced, as the majority of commercially grown fruits and vegetables are sprayed with fertilizers and insecticides that could alter the taste of your juice.
2. Certified organic vegetables are guaranteed not to contain chemical residue but should still be washed.
3. Always trim off any blemishes.
4. Scrub carrots and other root vegetables with a brush to remove any dirt.
5. Remove the skin from thick skinned fruit such as melon and pineapple.
6. Remove stones from cherries, peaches, nectarines and avocados etc.
7. Leafy herbs and vegetables should be rolled tightly when juiced.

DURONIC

Health & Safety

1. This machine is not suitable for children without the supervision of a responsible adult.
2. For safety purposes, please operate this machine on a flat and stable surface.
3. The juicer may emit a slight burning odour. This is a natural phenomenon as this product consists of a brand new and unused motor. The odour will dissappear after the first couple of uses.
4. Please make sure to empty the juicer waste barrel once full to prevent overflowing.
5. It is imperative one does not put their hand or anything other than fruit or vegetable into the juicer as this may damage the unit and void the warranty due to misuse.
6. In order to prolong the lifespan of this machine, a heat sensing protective device is built into the motor. If the motor is running
   for over 10 minutes, there is a risk of overheating. Therefore the power will automatically cut off. After the motor stops, pull the plug from power supply, wait for the motor to cool (about 15 min) before using again.
7. Please do not leave the machine operating without supervision.
8. The sieve is very sharp, in order to avoid injury when cleaning, please put the sieve under running water and do not wash it with hands.
9. If the power supply or cord is damaged, the manufacturer must be contacted immediately for a replacement. You can contact Duronic via email at: [e-mail]

Operating Time

There are 2 settings for this juicer. For soft fruits, you may use soft grading (I) while hard fruits will require strong grading (II). In order to prolong the life of this machine, please allow a cooldown time of 5 minutes after every 10 minutes of juicing.

Maintenance and Cleaning

1. If the machine is frequently used, please make sure the unit is kept clean and dry.
2. If you are not using the juicer for a long time, please store this machine in a cool and well ventilated place so it prevents the motor from becoming corroded.
3. This machine is not dishwasher safe, therefore please clean using only water, washing-up liquid and cloth.

FAQs

Which speed should I use when juicing?

For small soft fruit, use the first speed setting. For harder fruit use the second setting. Using the second setting for soft fruit will not extract all of the juice.

Do you need to peel the fruit before juicing?

Any fruit of which you would normally eat the peel does not require peeling. Fruit with a skin that you would not normally eat, such as bananas, pineapple and oranges will require peeling before being placed into the juicer.

Can I use the juicer to juice nuts and seeds?

No. Placing nuts and seeds into the juicer may damage the device.

DURONIC

There is a burning smell coming from the juicer, what does this mean?

This could mean one of three things:

- Your juicer is new and the motor has not been used yet.

- You need to rinse out your juicer with water before juicing.

- Your juicer has been unused for a period of time and dust has formed in the motor.

Are there any uses for the pulp?

Yes, the pulp can be reused in baking or as compost.

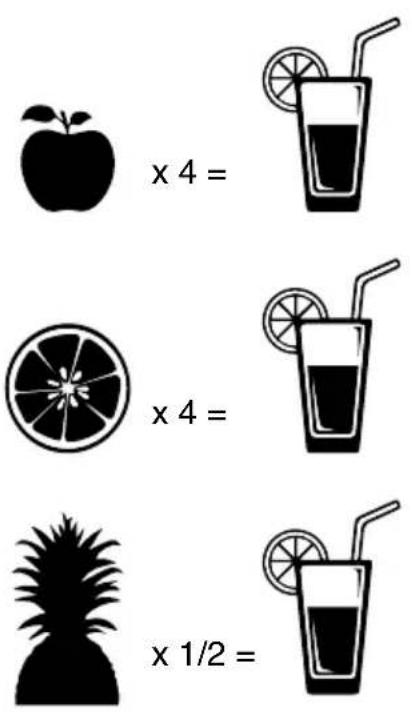

Fruit to Juice Ratio

x 4 =

x 20 =

x 4 =

x 5 =

x 1/2 =

x 1/8 =

Recipes

GREEN JUICE

Ingredients

1/2 bunch of spinach
1 handful watercress
1/2 lemon, peeled
1 celery stick
2 apples, halved
1 chunk of ginger root

Method

Juice all ingredients one by one. Pour into a glass and serve immediately.

ZINGY CITRUS JUICE

Ingredients

Method

1 grapefruit, peeled
2 oranges, peeled
1 lemon, peeled

Juice all ingredients one by one. Pour into a glass and serve immediately.

SWEET BERRY JUICE

Ingredients

2 apples, halved

1 cucumber, chopped
1 handful of blueberries
1 handful of strawberries
1 handful of raspberries
1 handful of blackberries

Method

Juice all ingredients one by one. Pour into a glass and serve immediately.

DETOX JUICE

Ingredients

3 plums, stoned

100g red grapes

50g strawberries

1 orange, peeled

1 chunk of ginger root

Method

Juice all ingredients one by one.

Pour into a glass and serve immediately.

HEALTHY VEGETABLE JUICE

Ingredients

2 heads of broccoli

2 celery sticks

1 lemon

1 apple

2 carrots

1 handful of spinach

Method

Juice all ingredients one by one.

Pour into a glass and serve immediately.

TROPICAL JUICE

Ingredients

1 kiwi, peeled

1/4 of a pineapple, peeled and sliced

6 strawberries

1 orange, peeled

1/2 mango, peeled and sliced

1/4 cup of coconut water

Method

Juice all ingredients one by one.

Add the coconut water to the juice and mix.

Pour into a glass and serve immediately.

Warranty

1 Year Guarantee from Shine-Mart Ltd, Trademark owners of Duronic Products. NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY RIGHTS AS A CONSUMER

This product has been manufactured under the strictest or quality control procedures, and using the highest quality of materials, to ensure excellent performance and reliability. It will give very good and long lasting service, provided it is properly used and maintained. The product is guaranteed for 1 years from the date of original purchase. If any defect arises due to a faulty materials or poor workmanship, the faulty product must be returned to the original place of purchase. Refund or replacement is at the discretion of that company.

Duronic Products are offered with a 1 year guarantee under the following conditions:

1. The product must be returned to the retailer with original proof of purchase.
2. The product must be installed and used in accordance with the instructions contained in this operating manual.
3. It must be used only for domestic purposes.
4. It does not cover wear and tear, malicious damage, misuse, neglect, inexpert repairs or consumable parts.
5. Shine-Mart Ltd has no responsibilities for accidental or consequential loss or damage.
6. Shine-Mart Ltd are not liable to carry out any type of servicing work, under the guarantee
7. Valid in the UK only

This product is fitted with BS:1363 plug and fuse Imported by Shine-Mart Ltd, RM3 8SB

Information on waste Disposal for Consumers of Electrical & Electronic Equipment.

This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste Electrical & Electronic Equipment, (WEEE).

Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used.

For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local Authority Civic waste site, where it will be accepted free of charge.

If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain.
