USER MANUAL FH101683 WAVES

Exterior view of a modern electric heating power supply with dual switches and a meshed heat sink (no visible text or symbols)

Ventilatorkachel (NL)

Fan Heater (EN)

Heizlüfter (DE)

Diagram of a portable electric heater with numbered components labeled 1 through 6

Thank you very much for purchasing our products. In order to ensure correct operation, please read this manual and instruction carefully before use.

Important instructions:

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, burns and other injuries.

1. Make sure the product is in good condition after remove it from the package.
2. Check your mains voltage; it must match the specification of this heater.
3. Check the power cord and plug carefully before use to ensure that they are not damaged.
4. Be sure the power is turned off before unplugging the heater. Do not touch the plug with wet hands.
5. Keep the heater away from furniture, curtains or other flammable objects. Keep a distance of 15 cm from the wall and other objects.
6. Don't allow moisture and dust to enter the appliance. Don't use this heater in bathrooms or laundries. Store it in dry areas.
7. Don't put the heater on soft surfaces such as beds or sofas.
8. Children must not play with or plug in the heater. Keep children away from the package. Polyethylene bags can be dangerous.

9. Avoid using extension cords, as they may cause a fire hazard due to overheating.

10. Indoor use only.

11. Do not use this heater with a programmer, timer, separate remote-control system or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.

12. Do not use the fan heater in rooms with explosive gas or while using inflammable solvents, varnish or glue.
13. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.
14. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capacities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
15. Children should be supervised to ensure that they do not play with the appliance.

Caution:

● This appliance is not a toy.
● This appliance is for household use only.
- Do not immerse the unit in water.
● To avoid the risk of fire or electric shock do not remove the housing.
- Any servicing other than cleaning and user maintenance should be performed by an authorized service representative only.
● The heater must not be located directly below a power outlet.
- Don't use this heater in the immediate surroundings of a shower or a swimming pool.

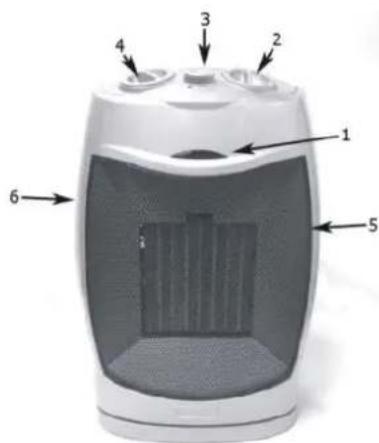

Parts description

1. Indication light
2. Thermostat control switch
3. Oscillating Button
4. Heat select switch
5. Air outlet grille
6. Air intake grill

Diagram of a portable electric heater with numbered components labeled 1 through 6

Heat setting:

The fan heater incorporates a rotatable switch; you can select the setting by turning the switch clockwise to:

0 OFF

FANONLY

I WARM AIR (750 W)

II WARM AIR (1500 W)

Means "DO NOT COVER"

THERMOSTAT:

When the fan heater is switched on:

1. Turn the thermostat knob in a clockwise direction to the max position.
2. Once the room temperature has reached the desired value, turn the thermostat knob slowly in anti-clockwise direction until you hear a "click" sound; this is the setting temperature. Now, the unit is switched off and the indicator lights are off.
3. The unit will automatically maintain the set temperature. It will switch on when the room temperature is below the setting, and switch off if it is above the setting.
4. The red indicator shows that the unit is switched on.

Safety system:

• The appliance has a safety system which automatically switches the unit off when overheated.
• If overheating occurs, remove the plug from the socket, push the buttons to switch the unit off and let it cool down for at least 10 minutes. Put the plug in the socket and switch the heater on.

Maintenance:

● The fan heater only needs regular cleaning on the outside.
- Before you clean the unit, turn the switch OFF. Remove the plug form the socket and wait until the fan heater cools down.
● Use a damp cloth to wipe the heater housing.
- Do not use detergents, abrasive cleaning liquids or chemicals (alcohol, gasoline etc.) to clean the appliance

Technical data:

Operating voltage : 220-240V\~ 50Hz

Power consumption : 1500W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee

For the purchased device we provide 2 years guarantee, commencing from the day of sale. During this period we will remedy all defects free of charge, which can be demonstrably attributed to material of manufacturing defects by repair or exchange.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts, are not covered by this guarantee.

Environment friendly disposal

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipments to an appropriate waste disposal centre

Customer service:

T. [phone]

E. [e-mail]
