USER MANUAL IVC107001 WAVES

Industrial vacuum cleaner (EN)

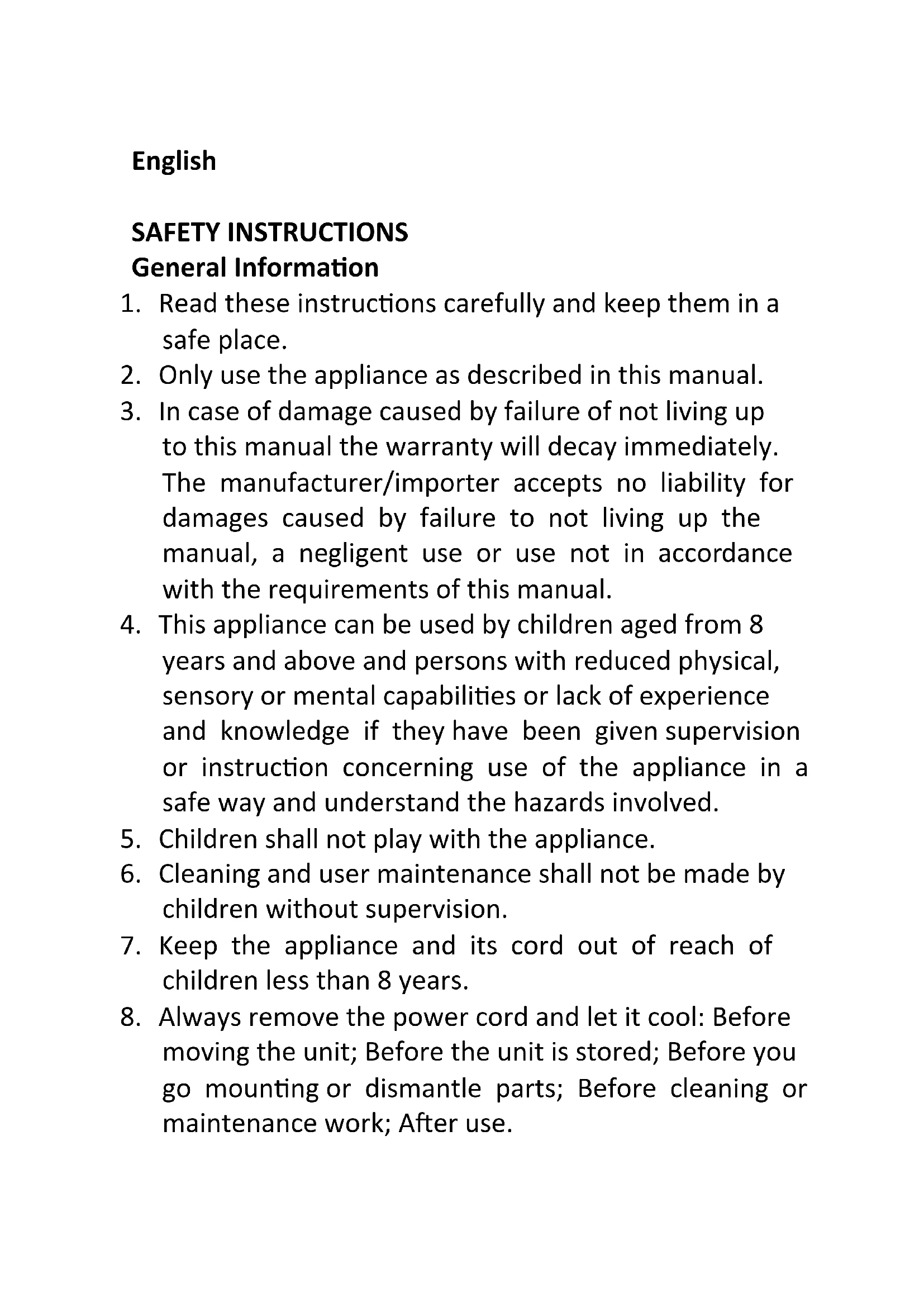

1. Read these instructions carefully and keep them in a safe place.
2. Only use the appliance as described in this manual.
3. In case of damage caused by failure of not living up to this manual the warranty will decay immediately. The manufacturer/importer accepts no liability for damages caused by failure to not living up the manual, a negligent use or use not in accordance with the requirements of this manual.
4. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
5. Children shall not play with the appliance.
6. Cleaning and user maintenance shall not be made by children without supervision.
7. Keep the appliance and its cord out of reach of children less than 8 years.

8. Always remove the power cord and let it cool: Before moving the unit; Before the unit is stored; Before you go mounting or dismantle parts; Before cleaning or maintenance work; After use.

9. Only have the appliance repaired by a qualified service centre.

10. Qualified service center: after-sales service of the manufacturer/importer, which is qualified to carry out repair to avoid any kind of danger. In case of problems please return the appliance to this service.

Electricity and heat

1. Before use, check that the mains power supply voltage is the same and the voltage is the same as the voltage indicated on the appliance.
2. Always plug the appliance into an earthed plug socket.
3. Regularly check the power cord for damage.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
5. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or is dropped or damaged in any manner. Return appliance to manufacturer or the nearest authorized service agent for examination, repair or electrical or mechanical adjustment.
6. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.

7. Make sure the power cord does not come into contact with hot surfaces or steam.

8. The machine should not be operated by means of an external timer-switch or by means of a separate system with remote control.

9. If an extension cord is absolutely necessary, a 10-ampere cord should be used. Cords rated for less amperage may overheat. Care should be taken to arrange the cord so that it cannot be pulled or tripped over.
10. To avoid a circuit overload, do not operate another high voltage appliance on the same circuit.
11. To protect against electric shock do not immerse cord, plugs, or housing in water or other liquid.
12. Do not touch the appliance if it falls into water. Remove the plug from its socket, turn off the appliance and do not use it again.
13. Do not use the appliance close to hot objects such as a stove or oven.

Using the appliance

1. This appliance is intended to be used in household and similar applications such as: Staff kitchen areas in shop, offices and other working environment; Farm houses; By clients in hotels, motels and other residential type environments; Bed and breakfast type environments.

2. The use of accessory attachment not recommended by the appliance manufacturer may cause injuries.

3. Only use the appliance indoors, in dry areas away from water.

4. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!
5. To reduce the risk of electric shock, do not use the appliance outdoors or on wet surfaces.
6. Children are unable to recognize the hazards associated with incorrect handling of electrical appliances. Therefore, children should never use electric household appliances unsupervised.
7. Close supervision is necessary for any appliance being used by or near children.
8. Never leave the appliance unattended during use.
9. Do not put any object into openings. Do not use with any opening blocked. Keep free of dust, lint, hair and anything that may reduce airflow.
10. Do not pick up hard or sharp objects such as glass nails, screws, coins, etc.
11. Do not pick up hot coals, cigarette, matches or any hot, smoking, or burning objects.
12. Do not use this appliance without dust bag or filters in place.
13. Use extra care when vacuuming on stairs.
14. Do not pick up flammable or combustible materials (lighter fluid, gasoline, etc.) or use in the presence of explosive liquids or vapor.
15. Do not pick up toxic material (chlorine bleach,

ammonia, drain cleaner, etc).

1. Do not operate the appliance in an enclosed space filled with vapors given off by oil based paints, paint thinner, moth proofing, flammable dust, or other explosive or toxic vapors.
2. Keep your work area well dry.
3. Do not use the cleaner to clean your pets or any animal.
4. When using and you hear a squeaking sound from the vacuum cleaner, or suction power appears to be reduced, stop the machine immediately and clean all filters and change the dust bag.
5. WARNING: Hold the plug when rewinding the cord. Do not allow the cord to whip when rewinding.

German

SICHERHEITSHINWEISE

Allgemeines

Power consumption: 1400W (MAX)

GARANTIE EN KLANTENSERVICE

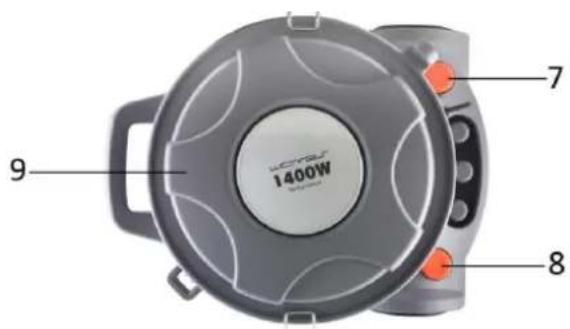

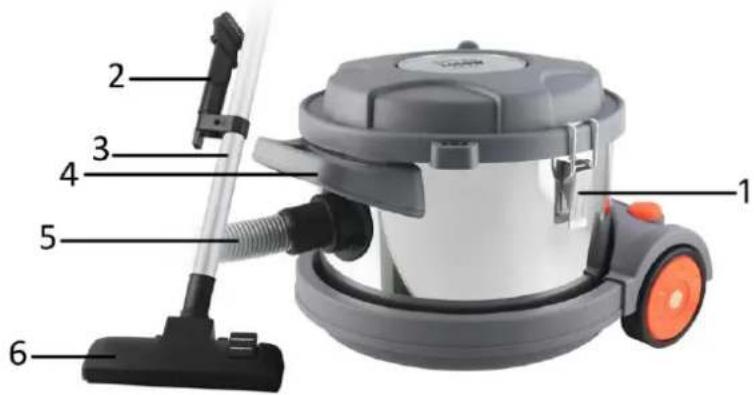

PARTS AND ACCESSORIES

1. Locking block
2. Combo brush
3. Extension tube
4. Carrying handle
5. Hose
6. Floor brush
7. Decorative button
8. On/off switch pedal
9. Cover
10. Sliding block

OPERATING MODE

1. Connect the hose accessories:

Insert the hose into the hose socket and rotate around 30 degree in clockwise direction to firm the connection.

1. Connect the extension tube to the curved hose end.

Connect the different nozzle tools/floor brush to the tube for different cleaning purposes. The floor brush has two positions, one for hard/even and one for soft/textile surfaces-Choose the right one.Use the combo brush for cleaning narrow surface.

This vacuum cleaner can also be used for water absorption.

1. Turn on the appliance:

Insert the plug into the power socket.

Make sure that the power supply corresponds to the required power mentioned on the rating label. Press the on/off switch pedal to turn on the power.

1. Turn off the appliance:

After using, press the on/off switch pedal, the appliance is turned off. Pull the plug out of the power socket.

1. To move the appliance from room to room, unplug and carry it by using the handle. Never pull the appliance by its cord when moving.

NOTE: You can adjust the airflow by pushing the sliding block (10) up and down.

MAINTENANCE

1. Release the locking block to open the housing.
2. Remove the dust bag.

3. Then take a new one, insert it into the bag holder. Paper dust bag cannot be re-used; cloth bag can be re-used after cleaning. Attention: the opened cloth bag must be completely closed by the clip.

4. Close the cover.

Note:

• Filters should be removed and rinsed twice a year or whenever it is visibly clogged. If the filter is damaged, a new filter should be replaced. Never use the machine without filters.
  The plug must be removed from the power socket before any maintenance or replacement.

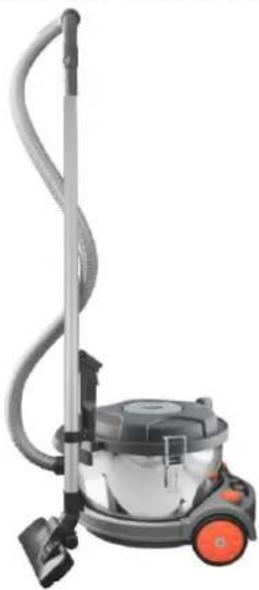

Parking:

This vacuum cleaner can be parked as below style to save your room space.

TECHNICAL DATA

Voltage: 220-240V ~ 50/60Hz

Power: 1400W (MAX)

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee:

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipments to an appropriate waste disposal centre.

Emerio Holland B.V.

Kenaupark 9

2011 MP Haarlem

Nederland

Customer service:

T: [phone]

E: [e-mail]

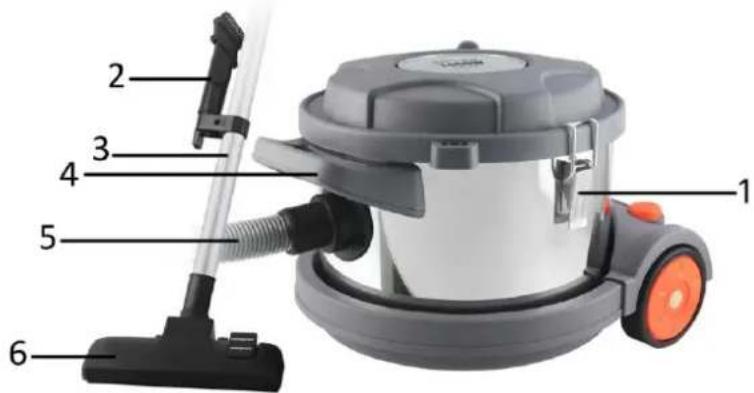

TEILE UND ZUBEHO R

Puisance: 1400W (MAX)

GARANTIE ET SERVICE APRÉS-VENTE
