Download the instructions for your Mobile Phone in PDF format for free! Find your manual Tango 1 - NGM and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Tango 1 by NGM.
USER MANUAL Tango 1 NGM
Copyright © 2014 NGM Italia
Welcome to the NGM world. Thank you for purchasing NGM Tango1. With this Easy Phone you can easily make phone calls, send and receive SMS. Freely use the resistive touch screen or the keypad since both are active at the same time. Thanks to the SOS key you can start an automatic procedure to call some previously set numbers in case of emergency. By visiting the official website www.ngm.eu you can appreciate the whole range of NGM mobile phones, ask for assistance, access the forum for technical assistance and download software updates.
tango

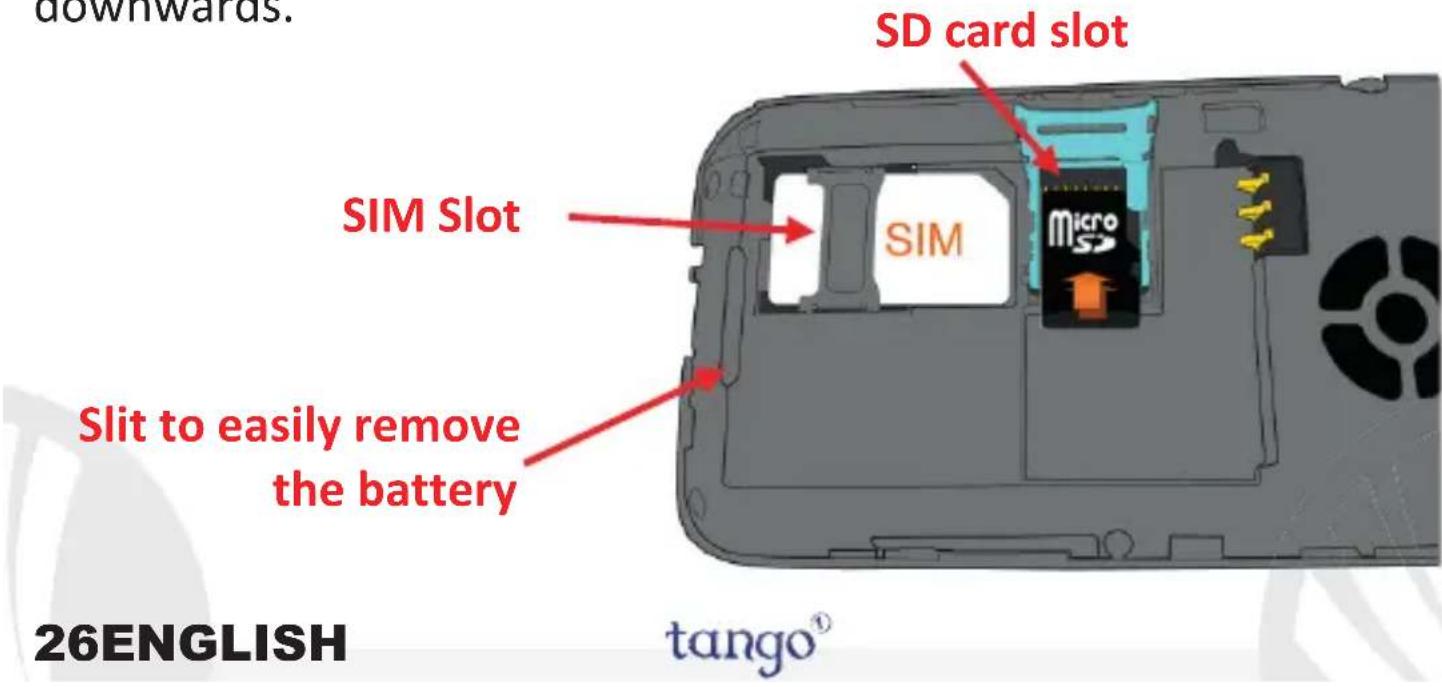

Insert the SIM card: the SIM card contains your phone number, PIN codes, links to operator services, contacts and SMS text messages. To access the compartment containing the SIM slot, turn off the phone and slide down the cover. Remove the battery. Insert the SIM card into the slot with its gold contact facing downwards.
Insert a memory card
In order to use camera and media player functions of NGM Tango1, a micro-SD memory card is required (not included in the package): the card must be placed on the backside of the phone, over the SIM slots. Unlock the metal grid by pushing it towards the side of the phone. Slide in SD card, as shown below, with the gold contacts facing downwards. Lock the grid on the micro-SD by sliding it into the opposite direction.
Camera: to activate the camera, in the main menu press the key on the lower left part of the keypad. Take the picture by pressing the OK key. Through Options (green SIM1 call key) you can access various settings of the camera and you can switch to Video recorder.
tango
Connecting to a PC: Use the USB cable to connect NGM Tango ^1 to a computer. Select USB Storage on your phone. You can save songs to play with the music player in the "My Music" folder, on the SD card.
Inserting the Battery: Your device is provided with a lithium-ion battery and is designed to be used exclusively with original NGM batteries and chargers. Insert the battery into the battery compartment with the contacts facing up, matching those of the phone. When done, put the hind cover back into position as shown in the following illustrations.

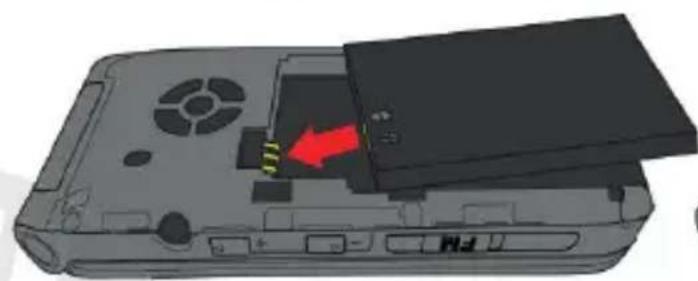

Inserting the battery

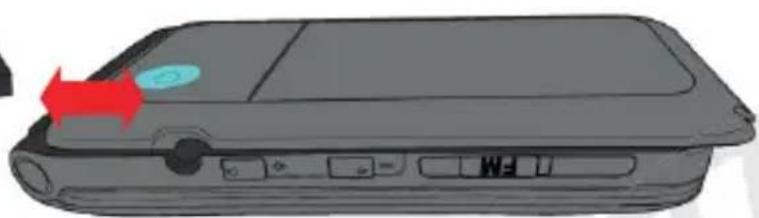

Placement of the cover
28ENGLISH
tango
Charging the battery
Charge the battery before starting to use the device. Connect the charger to a wall socket and then insert the micro-USB plug of the cable into the appropriate micro USB port on the bottom side of the phone. A animation on the screen will indicate that the progress of the charging process and a pop-up will indicate that charging is complete and the device may be disconnected safely from the grid.
Warning: To preserve the functionality of the product and the integrity of the warranty, we recommend the use of original NGM chargers. Please charge the battery indoors, in a dry and favorable environment. It's normal for the battery to get slightly warm during the charging process. The battery will reach its full capacity when cycled several times.

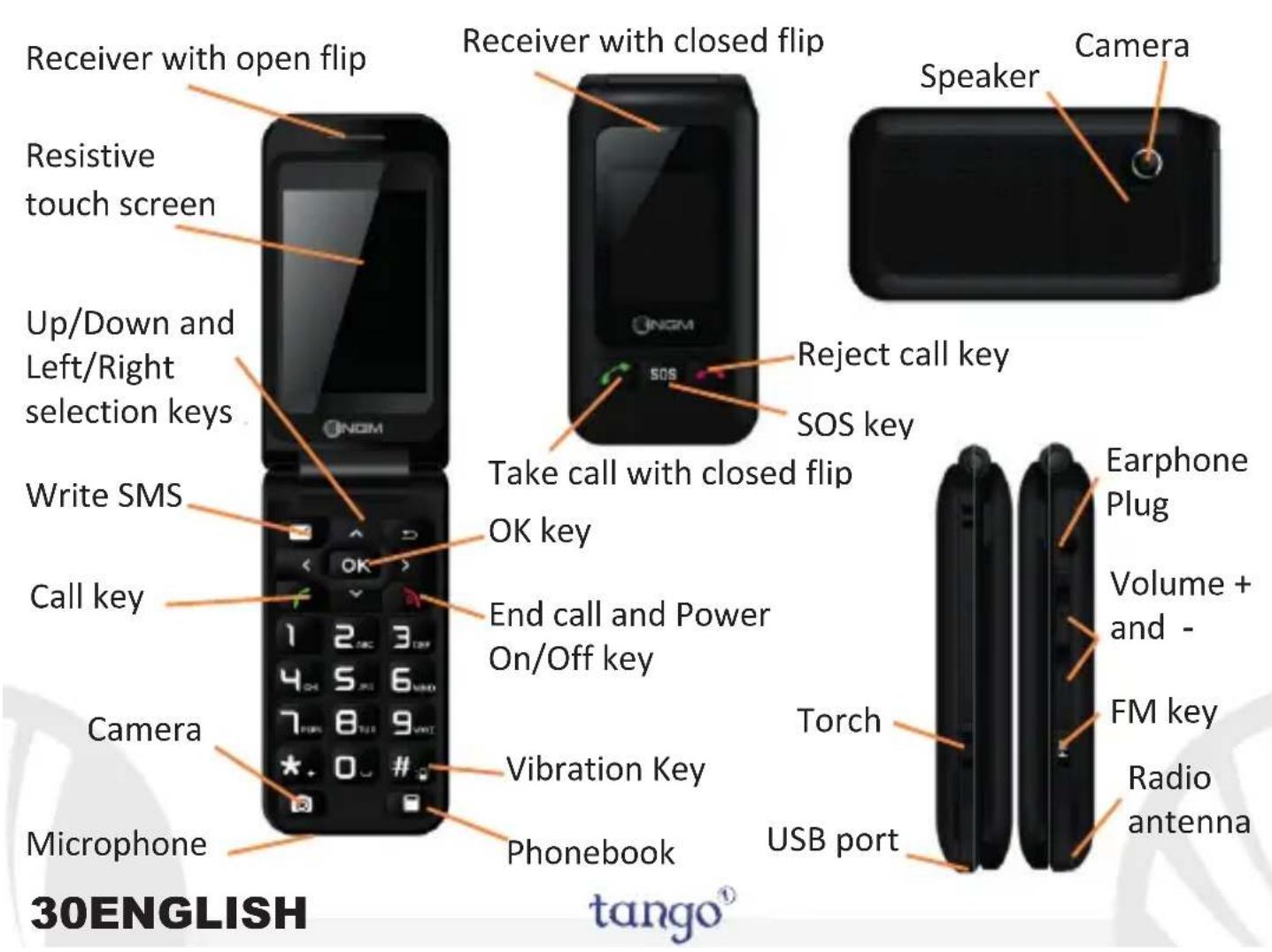

Turn ON, Turn OFF and keypad lock:
To turn on and off the phone, press and hold the red end call key when the flip is open. The keyboard locks by closing the phone, but you can still choose a period of time after which the keyboard locks itself automatically when the phone is open, in Menu > Settings > Security > keyboard lock.
To unlock the keypad, press Unlock (OK key) and then * At the first boot, the phone will ask you to make a short calibration procedure of the touch screen, at the end of which, the phone will automatically start. Follow the simple or-screen instructions.
tango

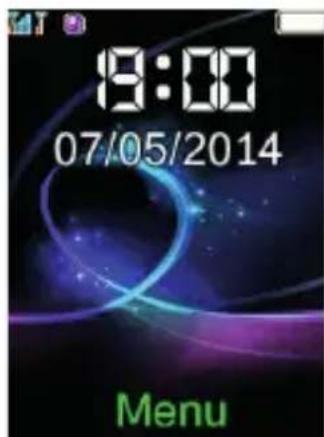

Main Menu
To access the phone Main Menu, press the OK key. Scroll through the items in the menu with the up and down keys
- Messaging: to write and read SMS text messages
- Phonebook: to manage and save contacts
- Calls: Call settings
- Settings: to customize your phone
- Multimedia: camera, radio, gallery...
- File Manager: to manage the files on the mass storage and on the SD card
- Tools: with Bluetooth, Calendar, To Do, Alarm and Calculator
- SOS: to enable and customize the SOS function
32ENGLISH
tango
Making a call
To make a call from the home screen, type the desired number with the keypad and then press the green call key. To end the call, press the red End Call key or close the flip.
Answer an incoming call
The external screen displays the phone number of the caller or the name if it is a contact in the address book. Take an incoming call simply by opening the flip. You can also answer with the closed flip; press the green call key on the external cover and use the external receiver. During the conversation, by selecting Options you can put the call on hold, turn on the Handsfree and deactivate the sound.
tango
Call a number from the Phonebook
From the main screen, press the dedicated key on the bottom right will automatically open the Phonebook. Scroll through contacts with the UP and DOWN keys and press the green call key to call a selected contact.
Call a number from the call log
From the main screen, press the green call key; the missed, received, and outgoing calls will be automatically displayed. Scroll them with the UP and DOWN keys and press again the green call key when you found the number you want to call.
Add contacts to the Phonebook
Select Menu > Phonebook > Add new, choose the storage between SIM card or Phone. Enter the name and the new number, then press Options > Save.
34ENGLISH
tango
Speed dial: in Menu > Calls > Options > Settings > Speed Dial > Set Number, you can assign to keys 2-9 a numbers that will be called automatically if you press and hold the related key. This feature can be turned on and off under Status.
Memory status: In the Phonebook > Options > Settings > Memory
you can check how many free storage locations there are in the phone and on the SIM card.

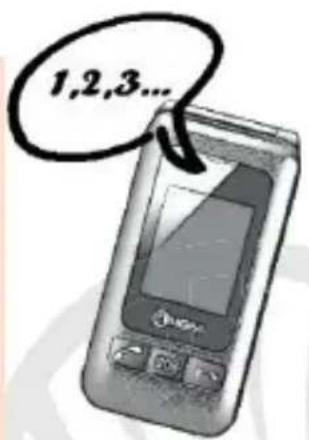

Speech: NGM Tango1 speaks out each number key you press. This function can be disabled in Settings > Profiles > General > Personalize > Keypad > Options > Change.
From the same menu, you can also choose a tone for the keypad or click.
tango
Send SMS messages: From the main screen, choose Menu > Messaging > Write message and write your message. Press Options > Send to > Number and enter the number using the numeric keypad or Add from phonebook to select from the Phonebook the contact that you want to text.
Read SMS: When you receive a new SMS, a pop up notification appears in the main screen. Press View (with the OK key) to access the Received folder or open it from the main screen by selecting Menu > Messages > Received.
In the messaging menu, in SMS Settings you can access additional features such as SMS Templates, short preset messages and Memory status, to control how many messages there are in the phone memory and on the SIM card.
36ENGLISH
tango

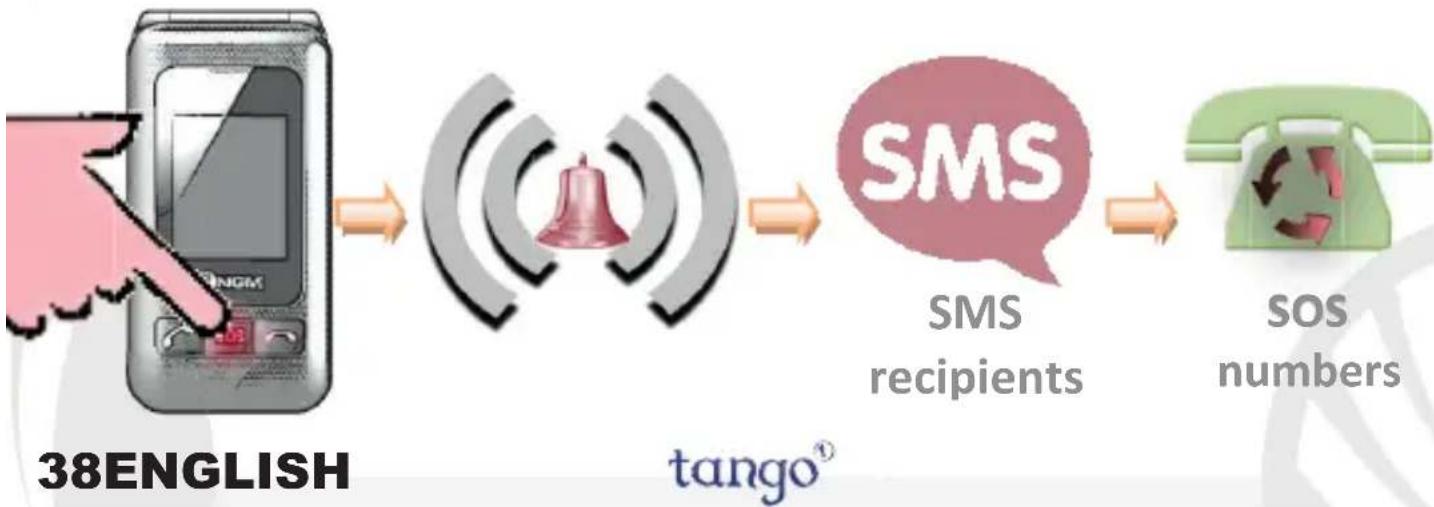

S.O.S. Function
NGM Tango1 is equipped with a dedicated key SOS for the fast forwarding of emergency calls (*). This feature can be turned on and off by selecting Menu > SOS > Activation (on/off).
In Menu > SOS > Call waiting time, you can decide to activate it immediately or after long pressing it for 5 to 10 seconds.
In case of emergency, use this function to ask for help up to five phone numbers, previously set in Menu > SOS > SOS numbers. As soon as S. O. S. is enabled, the phone will start to emit a high volume alarm tone (the alarm won't ring if you selected the "Call now" option in waiting time). So, it will send an SOS message to the SOS numbers set in Menu > SOS > SMS Recipients.
Then, the phone will call the five SOS numbers, for about 20 seconds each. If there is no answer, there will be a second cycle of calls. This procedure will be repeated for 5 times. If one of the called numbers answers, the cycle will be interrupted and the call will automatically switch to speaker phone (handsfee).
Attention: The SOS calls cycle will be interrupted if the answering machine of one of the called SOS numbers takes the call.
Bluetooth: In Tools > Bluetooth > On you can turn on Bluetooth and search for other devices (headsets, phones...) by selecting the Search for devices option. Select the device you would like to associate with and confirm it on both devices. Inside the Bluetooth menu you can manage the visibility of your device, change its name and access the advanced settings.
Set Ringtones: from the main screen, select Menu > Settings > User Profiles > General > Options > Personalize. Select Ringtone and set the desired tone from those available. You can also customize the following features: Alert type, Ringtone Volume, Keypad Volume, Messages tone, Ringtone type.
tango
Quickly turn on/off the vibration mode
To turn off all the phone ringtones and activate the vibration mode for calls and messages, press and hold the # key. By pressing again #, the phone will go back to General mode.
Phone Settings: from Menu > Settings > Phone, you can access various settings such as Date and Time, Language and Display.
Restoring the Phone: Select Menu > Settings > Restore to reset the factory settings of NGM Tango1: enter the phone password 1122 to confirm the reset.
Torch: Turn on and off the torch, from the main screen activate and deactivate the switch on the left side of the phone
40ENGLISH
tango
FM Radio
Press the FM key on the right side of the phone. The radio works also without a headset; pull the antenna out of the bottom of the phone to improve the reception of the radio signal.
With Options you have access to the following functions:
- Channel list to manually browse saved channels
- Manual input for the manual search of radio channels
- Auto search to automatic search radio stations
- Settings of radio playback
- Record to record from radio
- Files list to view the list of recordings
Select the OK key to turn on and off the radio and the left and right navigation keys to browse through the stations.
tango
*Limitation of Liability
this is not a life-saving device but a mobile phone. NGM will not be liable for any indirect, special, incidental or consequential damage arising from, or in connection with the use of this product.
Warning: The manufacturer assumes no responsibility for any failure of the policies set out above, or for any misuse of the phone. NGM reserves the right to modify any of the content in this user guide without previous public announcement. The content of this manual may vary from the actual content displayed in the mobile phone. In such case, the latter shall govern.
Copyright © 2014 NGM Italia
No part of this manual may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of NGM Italia.
42ENGLISH
