USER MANUAL HS 735 TEKA

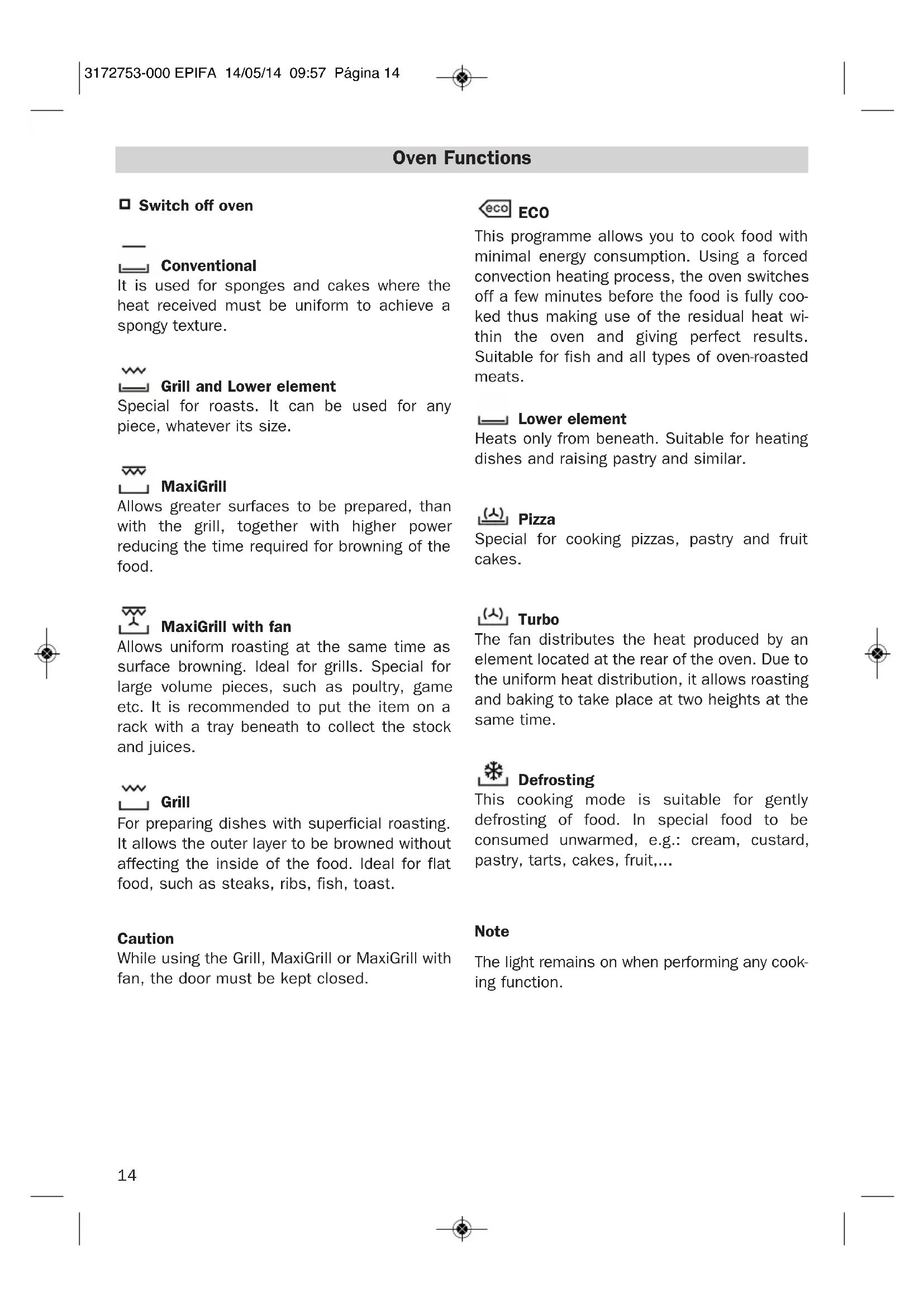

3172753-000 EPIFA 14/05/14 09:57 Página 1314 Switch off oven Conventional It is used for sponges and cakes where the heat received must be uniform to achieve a spongy texture. Grill and Lower element Special for roasts. It can be used for any piece, whatever its size. MaxiGrill Allows greater surfaces to be prepared, than with the grill, together with higher power reducing the time required for browning of the food. MaxiGrill with fan Allows uniform roasting at the same time as surface browning. Ideal for grills. Special for large volume pieces, such as poultry, game etc. It is recommended to put the item on a rack with a tray beneath to collect the stock and juices. Grill For preparing dishes with superficial roasting. It allows the outer layer to be browned without affecting the inside of the food. Ideal for flat food, such as steaks, ribs, fish, toast. Caution While using the Grill, MaxiGrill or MaxiGrill with fan, the door must be kept closed. ECO This programme allows you to cook food with minimal energy consumption. Using a forced convection heating process, the oven switches off a few minutes before the food is fully coo- ked thus making use of the residual heat wi- thin the oven and giving perfect results. Suitable for fish and all types of oven-roasted meats. Lower element Heats only from beneath. Suitable for heating dishes and raising pastry and similar. Pizza Special for cooking pizzas, pastry and fruit cakes. Turbo The fan distributes the heat produced by an element located at the rear of the oven. Due to the uniform heat distribution, it allows roasting and baking to take place at two heights at the same time. Defrosting This cooking mode is suitable for gently defrosting of food. In special food to be consumed unwarmed, e.g.: cream, custard, pastry, tarts, cakes, fruit,... Note The light remains on when performing any cook- ing function. Oven Functions 3172753-000 EPIFA 14/05/14 09:57 Página 1415 ENGLISH Caution The electronic clock features Touch-Control technology. To operate, simply touch the glass control symbols with your fingertip. The touch control sensitivity continuously adapts to ambient conditions. Make sure the glass surface of the control panel is clean and free of obstacles when plugging in the oven. If the clock does not respond correctly when you touch the glass, unplug the oven for a few seconds and then plug it in again. Doing this causes the sensors to adjust automatically so that they will react once more to fingertip con- trol. Setting the time on the Electronic Clock When the oven is connected to the power supply, the indication 12:00 flash on the display. Press or to set the time on the clock. The clock beeps twice to confirm the selected time. If you wish to modify the time, press or until the current time flash on the screen. Press . Then press or to modify the time. The clock beeps twice to confirm the modification. Manual Operation The oven is ready to be used when the clock has been set. Select a cooking function and a temperature. When you begin cooking, symbol lights up to indicate that the oven is heating the con- tents; the symbol goes out when the selected temperature is reached. Set the controls to to turn the oven off. Functions of the Electronic Clock Alarm: Creates an alarm signal when the peri- od of time finishes; the oven does not need to be in use in order to use this function. Cooking Time: To cook for a selected length of time; the oven turns itself off automatically when the time finishes. End Cooking Time: To cook until a set time; the oven turns itself off automatically when the time finishes. Cooking time and End Cooking Time: To cook for a selected length of time and end at a set time. When this function is set, the oven comes on automatically at the time required in order to cook for the set length of time (Cooking time) and end automatically at the indicated time (End Cooking Time) Child Safety Function. This function locks the electronic clock, preventing small children from playing with it. Programming the Alarm 1 Press until symbol lights up. Press

2 Set the period of time after which you wish the alarm to sound by pressing or . 3 The clock beeps twice and symbol lights up permanently to indicate that the alarm has been set. 4 When the set period of time comes to an end, the alarm sounds and symbol starts to flash. 5 Press any button to stop the alarm; symbol goes out. You can consult the remaining time at any moment by pressing or until symbol flashes and then pressing . You can also modify the set time at this point by press- ing or . The clock beeps twice to con- firm the change. Setting the Cooking Time 1 Press or until symbol lights up. Press . 2 Select the period of time you wish to cook for by pressing or . 3 The clock beeps twice and symbol lights up permanently to indicate that the oven will turn itself off automatically. 4 Select a cooking function and temperature. Use of the Oven 3172753-000 EPIFA 14/05/14 09:57 Página 1516 5 When the cooking time comes to an end, the oven turns itself off, the alarm sounds and symbol flashes. 6 Press any button to stop the alarm and turn the oven back on again. 7 Set the controls to to turn the oven off. You can consult the remaining cooking time at any moment by pressing or until sym- bol flashes and then pressing . You can also modify the set time at this point by pressing or . The clock beeps twice to confirm the change. Setting the End Cooking Time 1 Press or until symbol lights up. Press . 2 Select the time you wish the cooking process to finish at by pressing or . 3 The clock beeps twice, the current time is displayed and symbol lights up perma- nently to indicate that the oven will turn itself off automatically. 4 Select a cooking function and temperature. 5 When the set time is reached, the oven turns itself off, the alarm sounds and symbol flashes. 6 Press any button to stop the alarm and turn the oven back on again. 7 Set the controls to to turn the oven off. You can consult the end cooking time at any moment by pressing or until symbol flashes and then pressing . You can also modify the end cooking time at this point by pressing or . The clock beeps twice to confirm the change. This function can be used even when you are already using the oven. To do this, follow the instructions indicated above except point number 4. Setting the Cooking Time and the End Cooking Time 1 Press or until symbol lights up. Press . 2 Select the period of time you wish to cook for by pressing or . 3 The clock beeps twice and symbol lights up permanently. 4 Press or until symbol lights up. Press . 5 Select the time you wish the cooking process to finish at by pressing or . 6 The clock beeps twice, the current time is displayed and symbol lights up per- manently. 7 Select a cooking function and temperature. 8 The oven remains off with symbols and lit up. Your oven is set. 9 When the time to start cooking is reached, the oven starts up and cooks for the set period of time. 10 When the set end cooking time is reached, the oven turns itself off, the alarm sounds and symbol flash. 11 Press any button to stop the alarm and turn the oven back on again. 12 Set the controls to to turn the oven off. You can modify the end cooking time by press- ing or until symbol lights up and then pressing . You can now modify the end cooking time by pressing or . The clock beeps twice to confirm the change. Child Safety Function This function can be selected at any time while using the oven. To activate the function, press the and sensors at the same time for several seconds. 3172753-000 EPIFA 14/05/14 09:57 Página 1617 ENGLISH You will hear a beep and the display will show the word . The clock is locked. If the oven is off and you activate the child safety function, it will not work even if a cook- ing function is selected. If a clock sensor is touched while the child safety function is on, the word will appear on the display. The clock is locked. To disable the function, press the and sensors at the same time for several seconds until you hear a beep. Important In the event of a power cut, all the electronic clock settings are deleted and the indication 12:00 flashes on the display. It is necessary to set the time and programme the clock again. To clean the top of the oven,

• Wait until the oven is cold.

• Push the rod of the grill element (A) with both hands until it is released from the upper fastening point. Fold-down Grill Element

• Rotate the element and clean the top of the oven.

• Finally, place the grill element back in its original position.
