Brand	Progress
Model	PK1202
Product type	Built-in refrigerator
Dimensions (H x W x D)	1225 x 560 x 550 mm
Weight (estimated)	Approximately 40-45 kg
Power supply	230-240 V / 50 Hz
Climate class	SN (10 to 32°C), N (16 to 32°C), ST (16 to 38°C), T (16 to 43°C)
Refrigerant	Isobutane (R600a), flammable
Main features	Adjustable thermostat, automatic defrost, interior light, reversible door, temperature indicator, coldest zone (lower shelf), removable shelves, adjustable door bins
Maintenance and cleaning	Clean with warm soapy water, do not use abrasives, clean the water drain hole, clean the condenser (black grille) with brush/vacuum, automatic defrost
Safety	Magnetic seal, do not damage cooling circuit, mandatory grounding, do not use extension cord, do not store flammable gases or liquids
Spare parts and repairability	Specific bulb (max power indicated on diffuser), door gaskets, thermostat; repair by qualified professional only; contact customer service for original parts
General information	Manual 52 pages, available in several languages; recommended for household use; subject to changes

Frequently Asked Questions - PK1202 PROGRESS

What is the ideal temperature for the refrigerator?

The ideal temperature is at the middle position of the thermostat. A temperature indicator in the coldest zone (lower shelf) shows "OK" when the temperature is correct.

How to adjust the thermostat?

Turn the thermostat knob: downwards for less cold, upwards for colder. Wait at least 12 hours between each adjustment to stabilize the temperature.

How to clean the interior of the refrigerator?

Unplug the appliance. Clean with warm soapy water, rinse and dry thoroughly. Never use abrasive products, scouring powder or metal sponge.

Is the defrost automatic?

Yes, the defrosting of the refrigerator compartment is automatic: the frost melts during compressor stops. Water evaporates in a tray at the back. Clean the drain hole regularly.

How to replace the light bulb?

Unplug the appliance. Remove the diffuser screw, take off the diffuser, replace the bulb with one of the same wattage (max indicated on diffuser), reassemble and plug back in.

What to do if the "OK" display does not appear?

If "OK" does not appear on the temperature indicator, the temperature is too high. Set the thermostat to a colder position and wait 12 hours. Check that the indicator is properly lit.

The appliance makes noise: is this normal?

Yes, some noises are normal, such as those from the compressor and the cooling circuit. If the noises are unusual, check that the appliance is level and that nothing is touching the compressor.

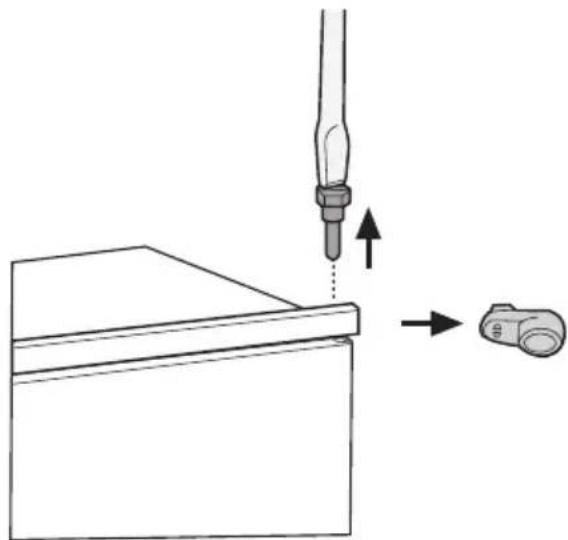

How to reverse the door opening direction?

Unscrew the top hinge pin, remove the door, remove the spacer, loosen the bottom rod, tighten the bottom hinge pin on the opposite side, install the spacer, put the door back and tighten the top hinge pin.

Tips for saving energy?

Do not open the door too often or for too long. Clean the condenser regularly. Avoid placing the appliance near a heat source. Set the thermostat to a moderate position.

What to do in case of a prolonged power outage?

If you cannot unplug the appliance, have it checked regularly to avoid food spoilage. When away, empty, clean and leave the door ajar.

USER MANUAL PK1202 PROGRESS

Simple diagram with a black circle and a warning sign (no text or symbols)

Line drawing of a hand using a tool to lift or install a wooden beam, with an upward arrow indicating force (no text or symbols present)

Illustration of a hand holding a tool inside a circular arrow, with no text or symbols present.

Line drawing of a hand holding a tool with a screwdriver and directional arrows, next to a metal bracket (no text or symbols)

De deur sluiten

Diagram showing a tool interacting with a mechanical component, with arrows indicating direction (no text or symbols present)

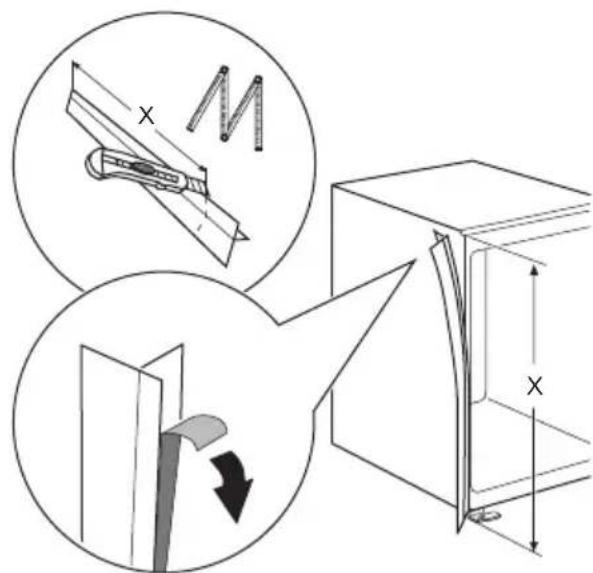

Technical diagram showing mechanical assembly with magnified insets and component views

Ventilatievereisten

Technical diagram illustrating a door mechanism with labeled parts and directional arrows indicating movement or adjustment.

Diagram of a mechanical or electrical component with labeled parts 1 and 2, showing directional arrows indicating movement or flow.

1. Stel het apparaat af in de nis.

Technical diagram showing two views of a structural connection with bracket and frame (no text or symbols)

3D diagram of a block with a curved arrow indicating direction, no text or symbols present

Ha Hb Hc Hd

8 mm Ha Hb

8 mm K Ha

Technical diagram of a mechanical or electrical component with two connectors and a labeled section Hb (no text or symbols beyond label)

HET MILIEU

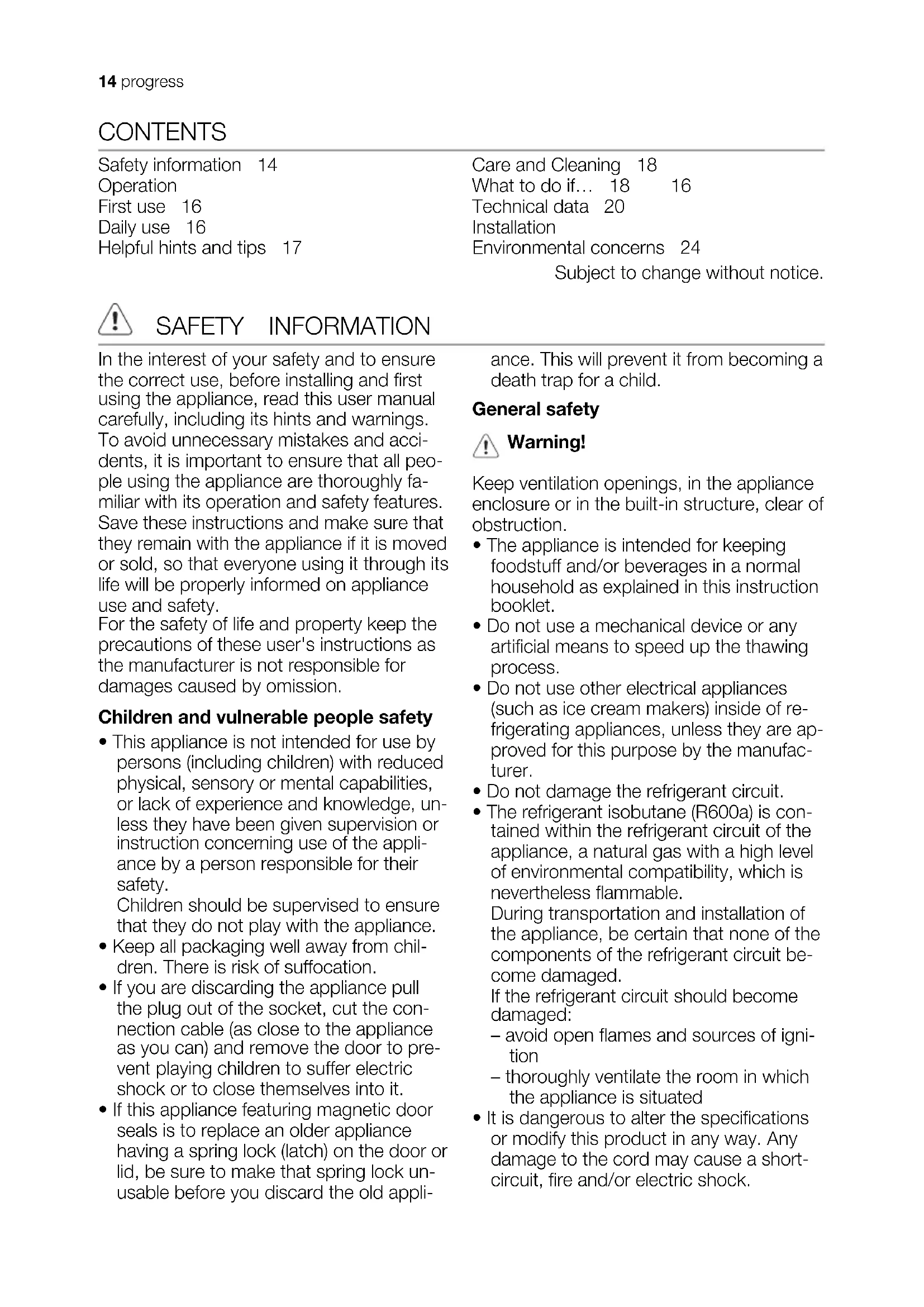

Helpful hints and tips 17

Care and Cleaning 18

What to do if... 18 16

Technical data 20

Installation

Environmental concerns 24

Subject to change without notice.

SAFETY INFORMATION

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.

For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

Children and vulnerable people safety

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

- Keep all packaging well away from children. There is risk of suffocation.

- If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it.

- If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lock unusable before you discard the old appli-

ance. This will prevent it from becoming a death trap for a child.

General safety

Warning!

Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

• The appliance is intended for keeping foodstuff and/or beverages in a normal household as explained in this instruction booklet.
• Do not use a mechanical device or any artificial means to speed up the thawing process.
• Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacturer.
• Do not damage the refrigerant circuit.
• The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.
  During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.
  If the refrigerant circuit should become damaged:
• avoid open flames and sources of ignition
  – thoroughly ventilate the room in which the appliance is situated
• It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short-circuit, fire and/or electric shock.

Warning! Any electrical component (power cord, plug, compressor) must be replaced by a certified service agent or qualified service personnel to avoid hazard.

1. Power cord must not be lengthened.
2. Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire.
3. Make sure that you can come to the mains plug of the appliance.
4. Do not pull the mains cable.
5. If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.

6. You must not operate the appliance without the lamp cover (if foreseen) of interior lighting.

7. This appliance is heavy. Care should be taken when moving it.

8. Do not remove nor touch items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
9. Avoid prolonged exposure of the appliance to direct sunlight.
10. Bulb lamps (if foreseen) used in this appliance are special purpose lamps selected for household appliances use only. They are not suitable for household room illumination.

Daily use

• Do not put hot pot on the plastic parts in the appliance.
• Do not store flammable gas and liquid in the appliance, because they may explode.
• Appliance's manufacturers storage recommendations should be strictly adhered to. Refer to relevant instructions.

Care and cleaning

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects.
• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain. If the drain is blocked,

water will collect in the bottom of the appliance.

Installation

Important! For electrical connection carefully follow the instructions given in specific paragraphs.

• Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing.
• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.
• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.
• Wherever possible the back of the product should be against a wall to avoid touching or catching warm parts (compressor, condenser) to prevent possible burn.
• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.
• Connect to potable water supply only (If a water connection is foreseen).

Service

• Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Centre, and only genuine spare parts must be used.

Environment Protection

This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appli-

ance shall be disposed according to the applicable regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially at the rear near the heat exchanger. The materials used on this appliance marked by the symbol 🌐 are recyclable.

OPERATION

Switching on

Insert the plug into the wall socket.

Turn the Temperature regulator clockwise to a medium setting.

Switching off

To turn off the appliance, turn the Temperature regulator to the "O" position.

Temperature regulation

The temperature is automatically regulated. To operate the appliance, proceed as follows:

• turn the Temperature regulator toward lower settings to obtain the minimum coldness.
• turn the Temperature regulator toward higher settings to obtain the maximum coldness.

i A medium setting is generally the most suitable.

However, the exact setting should be chosen keeping in mind that the temperature inside the appliance depends on:

• room temperature
  • how often the door is opened
  • the quantity of food stored
  • the location of the appliance.

Important! If the ambient temperature is high or the appliance is fully loaded, and the appliance is set to the lowest temperatures, it may run continuously causing frost to form on the rear wall. In this case the dial must be set to a higher temperature to allow automatic defrosting and therefore reduced energy consumption.

FIRST USE

Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand-new product, then dry thoroughly.

DAILY USE

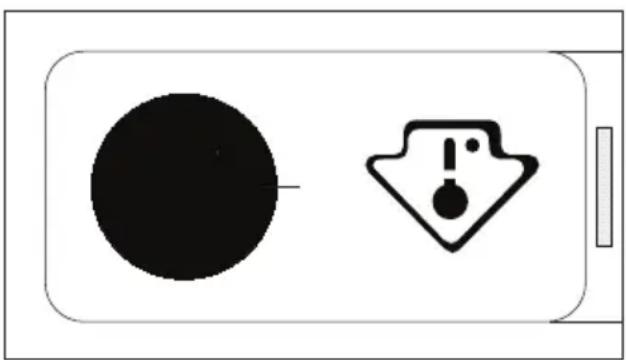

Important! this appliance is sold in France. In accordance with regulations valid in this country it must be provided with a special device (see figure) placed in the lower compartment of the fridge to indicate the coldest zone of it.

Important! Do not use detergents or abrasive powders, as these will damage the finish.

Simple diagram with a black circle and a warning symbol (no text or labels)

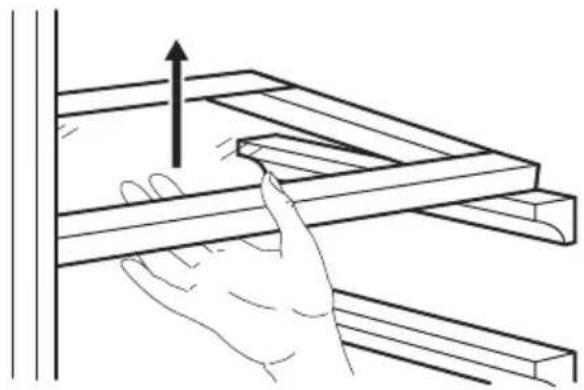

Movable shelves

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

For better use of space, the front half-shelves can lie over the rear ones.

Line drawing of a hand using a tool to lift or install a wooden beam, with an upward arrow indicating force (no text or symbols)

Positioning the door shelves

To permit storage of food packages of various sizes, the door shelves can be placed at different heights.

HELPFUL HINTS AND TIPS

Hints for energy saving

• Do not open the door frequently or leave it open longer than absolutely necessary.
• If the ambient temperature is high and the Temperature Regulator is set to low temperature and the appliance is fully loaded, the compressor may run continuously, causing frost or ice on the evaporator. If this happens, set the Temperature Regulator toward warmer settings to allow automatic defrosting and so a saving in electricity consumption.

Hints for fresh food refrigeration

To obtain the best performance:

• do not store warm food or evaporating liquids in the refrigerator
- do cover or wrap the food, particularly if it has a strong flavour
- position foods so that air freely around it

Hints for refrigeration

Useful hints:

To make these adjustments proceed as follows:

gradually pull the shelf in the direction of the arrows until it comes free, then reposition as required.

1 2 3

Meat (all types) : wrap in polythene bags and place on the glass shelf above the vegetable drawer.

For safety, store in this way only one or two days at the most.

Cooked foods, cold dishes, etc.: these should be covered and may be placed on any shelf.

Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided.

Butter and cheese: these should be placed in special airtight containers or wrapped in aluminium foil or polythene bags to exclude as much air as possible.

Milk bottles: these should have a cap and should be stored in the bottle rack on the door.

Bananas, potatoes, onions and garlic, if not packed, must not be kept in the refrigerator.

CARE AND CLEANING

Caution! Unplug the appliance before carrying out any maintenance operation.
This appliance contains hydrocarbons in its cooling unit; maintenance and re-charging must therefore only be carried out by authorized technicians.

Periodic cleaning

The equipment has to be cleaned regularly:

- clean the inside and accessories with lukewarm water and some neutral soap.

- regularly check the door seals and wipe clean to ensure they are clean and free from debris.

- rinse and dry thoroughly.

Important! Do not pull, move or damage any pipes and/or cables inside the cabinet. Never use detergents, abrasive powders, highly perfumed cleaning products or wax polishes to clean the interior as this will damage the surface and leave a strong odour.

Clean the condenser (black grill) and the compressor at the back of the appliance with a brush. This operation will improve the performance of the appliance and save electricity consumption.

Important! Take care of not to damage the cooling system.

Many proprietary kitchen surface cleaners contain chemicals that can attack/damage the plastics used in this appliance. For this reason it is recommended that the outer casing of this appliance is only cleaned with warm water with a little washing-up liquid added.

After cleaning, reconnect the equipment to the mains supply.

Defrosting of the refrigerator

Frost is automatically eliminated from the evaporator of the refrigerator compartment every time the motor compressor stops, during normal use. The defrost water drains out through a trough into a special container at the back of the appliance, over the motor compressor, where it evaporates. It is important to periodically clean the defrost water drain hole in the middle of the refrigerator compartment channel to prevent the water overflowing and dripping on-to the food inside. Use the special cleaner provided, which you will find already inserted into the drain hole.

Illustration of a hand holding a tool inside a circular arrow, with no text or symbols present.

Periods of non-operation

When the appliance is not in use for long periods, take the following precautions:

• disconnect the appliance from electricity supply
• remove all food
• defrost (if foreseen) and clean the appliance and all accessories
• leave the door/doors ajar to prevent unpleasant smells.

If the cabinet will be kept on, ask somebody to check it once in a while to prevent the food inside from spoiling in case of a power failure.

WHAT TO DO IF...

Warning! Before troubleshooting, disconnect the mains plug from the mains socket.

Only a qualified electrician or competent person must do the troubleshooting that is not in this manual.

Important! There are some sounds during normal use (compressor, refrigerant circulation).

Problem Possible cause Solution
The appliance does not operate. The lamp does not operate.	The appliance is switched off. Switch on the appliance.
The mains plug is not connected to the mains socket correctly.		Connect the mains plug to the mains socket correctly.
The appliance has no power.	There is no voltage in the mains socket.	Connect a different electrical appliance to the mains socket. Contact a qualified electrician.
The lamp does not work.	The lamp is in stand-by.	Close and open the door.
	The lamp is defective.	Refer to "Replacing the lamp".
The compressor operates continually.	The temperature is not set correctly.	Set a higher temperature.
	The door is not closed correctly.	Refer to "Closing the door".
The door has been opened too frequently.		Do not keep the door open longer than necessary.
The product temperature is too high.		Let the product temperature decrease to room temperature before storage.
The room temperature is too high.		Decrease the room temperature.
Water flows on the rear plate of the refrigerator.	During the automatic defrosting process, frost defrosts on the rear plate.	This is correct.
Water flows into the refrigerator.	The water outlet is clogged. Clean the water outlet.
Products prevent that water flows into the water collector.		Make sure that products do not touch the rear plate.
Water flows on the ground.	The melting water outlet does not flow in the evaporative tray above the compressor.	Attach the melting water outlet to the evaporative tray.
The temperature in the appliance is too low.	The temperature regulator is not set correctly.	Set a higher temperature.
The temperature in the appliance is too high.	The temperature regulator is not set correctly.	Set a lower temperature.

Replacing the lamp

1. Disconnect the mains plug from the mains socket.
2. Remove the screw from the lamp cover.

3. Remove the lamp cover (refer to the illustration).

4. Replace the used lamp with a new lamp of the same power and specifically designed for household appliances. (the maximum power is shown on the lamp cover).

5. Install the lamp cover.
6. Tighten the screw to the lamp cover.
7. Connect the mains plug to the mains socket.
8. Open the door. Make sure that the lamp comes on.

Line drawing of a hand holding a screwdriver with arrows indicating tool movement (no text or symbols)

Closing the door

1. Clean the door gaskets.
2. If necessary, adjust the door. Refer to "Installation".
3. If necessary, replace the defective door gaskets. Contact the Service Center.

TECHNICAL DATA

Dimension of the recess
Height 1225 mm
Width 560 mm
Depth 550 mm
Voltage 230-240 V
Frequency 50 Hz

The technical information are situated in the rating plate on the internal left side of the appliance and in the energy label.

INSTALLATION

Read the "Safety Information" carefully for your safety and correct operation of the appliance before installing the appliance.

Positioning

Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

Climate class	Ambient temperature
SN +10°C to + 32°C
N +16°C to + 32°C
ST +16°C to + 38°C
T +16°C to + 43°C

Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply. The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.

The manufacturer declines all responsibility if the above safety precautions are not observed.

This appliance complies with the E.E.C. Directives.

Door reversibility

The door of the appliance opens to the right. If you want to open the door to the left, follow these steps before you install the appliance:

1. Loosen and remove the upper pin.
2. Remove the door.
3. Remove the spacer.
4. With a key, loosen the lower pin.

Diagram showing a tool interacting with a mechanical component, with arrows indicating direction (no text or symbols present)

On the opposite side:

1. Tighten the lower pin.
2. Install the spacer.
3. Install the door.
4. Tighten the upper pin.

Technical diagram showing mechanical assembly with two views of a bolted component (no text or symbols)

Ventilation requirements

The airflow behind the appliance must be sufficient.

min. 200 cm² min. 200 cm²

Installing the appliance

Caution! Make sure that the mains cable can move freely.

Do the following steps:

1. If necessary cut the adhesive sealing strip and then apply it to the appliance as shown in figure.

Technical diagram illustrating mechanical assembly steps with magnified views and dimension labels

1. Install the appliance in the niche.

Push the appliance in the direction of the arrows (1) until the upper gap cover stops against the kitchen furniture.

Push the appliance in the direction of the arrows (2) against the cupboard on the opposite side of the hinge.

Diagram of a mechanical or electrical component with labeled parts 1 and 2, showing directional arrows indicating movement or flow.

1. Adjust the appliance in the niche.

Make sure that the distance between the appliance and the cupboard front-edge is 44 mm.

The lower hinge cover (in the accessories bag) makes sure that the distance between the appliance and the kitchen furniture is correct.

Make sure that the clearance between the appliance and the cupboard is 4 mm.

Open the door. Put the lower hinge cover in position.

4mm 44mm

1. Attach the appliance to the niche with 4 screws.

Technical diagram showing mechanical assembly steps with magnified views of components and detail labels

1. Remove the correct part from the hinge cover (E). Make sure to remove the part DX, in the case of right hinge, SX in opposite case.

3D diagram of a block with a curved arrow indicating direction, no text or symbols present

1. Attach the covers (C, D) to the lugs and the hinge holes.

Attach the hinge covers (E) to the hinge.

Technical diagram showing mechanical assembly steps with labeled components D, C, E, and directional arrows indicating motion or movement.

1. Disconnect the parts (Ha), (Hb), (Hc) and (Hd).

Ha Hb Hc Hd

1. Install the part (Ha) on the inner side of the kitchen furniture.

ca. 50 mm 90° 21 mm 90° ca. 50 mm 21 mm

1. Push the part (Hc) on the part (Ha).

Ha Hc

1. Open the appliance door and the kitchen furniture door at an angle of 90^ . Insert the small square (Hb) into guide (Ha). Put together the appliance door and the furniture door and mark the holes.

8 mm Ha Hb

1. Remove the brackets and mark a distance of 8 mm from the outer edge of the door where the nail must be fitted (K).

8 mm K Ha

1. Place the small square on the guide again and fix it with the screws supplied. Align the kitchen furniture door and the appliance door by adjusting the part Hb.

Technical diagram of a mechanical assembly with two components labeled Hb, showing alignment and movement arrows (no text or symbols beyond label)

1. Press the part (Hd) on the part (Hb).

Hb Hd

Do a final check to make sure that:

• All screws are tightened.
• The magnetic sealing strip is attached tightly to the cabinet.
• The door opens and closes correctly.

ENVIRONMENTAL CONCERNS

The symbol 📊 on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will

help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household

waste disposal service or the shop where you purchased the product.

SOMMAIRE

Simple diagram with a black circle and a warning symbol (no text or labels)

Line drawing of a hand holding a wooden beam with an upward arrow, no text or symbols present

Illustration of a hand holding a tool inside a circular arrow, with no text or symbols present.

Line drawing of a hand holding a tool with a screwdriver and two arrows indicating movement or repair (no text or symbols)

Diagram showing a tool interacting with a mechanical component, with arrows indicating direction (no text or symbols present)

Du côté opposé :

Technical diagram showing mechanical assembly with magnified views of a bolt and bracket components

Technical diagram illustrating door frame installation with magnified views and dimension labels

Technical diagram showing a 3D block with two labeled components (1 and 2) and directional arrows indicating flow or movement.

Technical diagram showing structural connection details with magnified insets and labeled component 'I'

3D diagram of a block with a curved arrow indicating direction, no text or symbols present

Technical diagram showing mechanical assembly with labeled components (D, C, E) and directional arrows indicating motion or assembly.

Ha Hb Hc Hd

8 mm Ha Hb

8 mm K Ha

Technical diagram of a mechanical assembly with two components labeled Hb, showing alignment between them (no text or symbols beyond label)

Simple diagram with a black circle and a warning symbol (no text or labels)

Kälteakkumulatoren

Line drawing of a hand holding a wooden beam with an upward arrow, no text or symbols present

Illustration of a hand holding a tool inside a circular arrow, with no text or symbols present.

Stillstandzeiten

Line drawing of a hand using a screwdriver to apply a tool to a component on a metal shelf (no text or symbols)

Schließen der Tür

Diagram showing a tool interacting with a mechanical component, with an arrow indicating direction (no text or symbols present)

Technical diagram showing mechanical assembly with two views of a bolted component (no text or symbols)

Technical diagram illustrating door frame installation steps with magnified views and dimension labels

Diagram of a mechanical or electrical component with labeled parts 1 and 2, showing directional arrows indicating movement or flow.

Technical diagram showing structural connection details with magnified views of components and a labeled section marked 'I'

3D diagram of a rectangular block with a curved arrow indicating direction (no text or symbols)

Technical diagram showing mechanical assembly with labeled components (D, C, E) and directional arrows indicating movement or force.

Ha Hb Hc Hd

8 mm Ha Hb

8 mm K Ha

Technical diagram of a mechanical assembly with two mounting holes and a labeled component Hb (no text or symbols beyond label)
